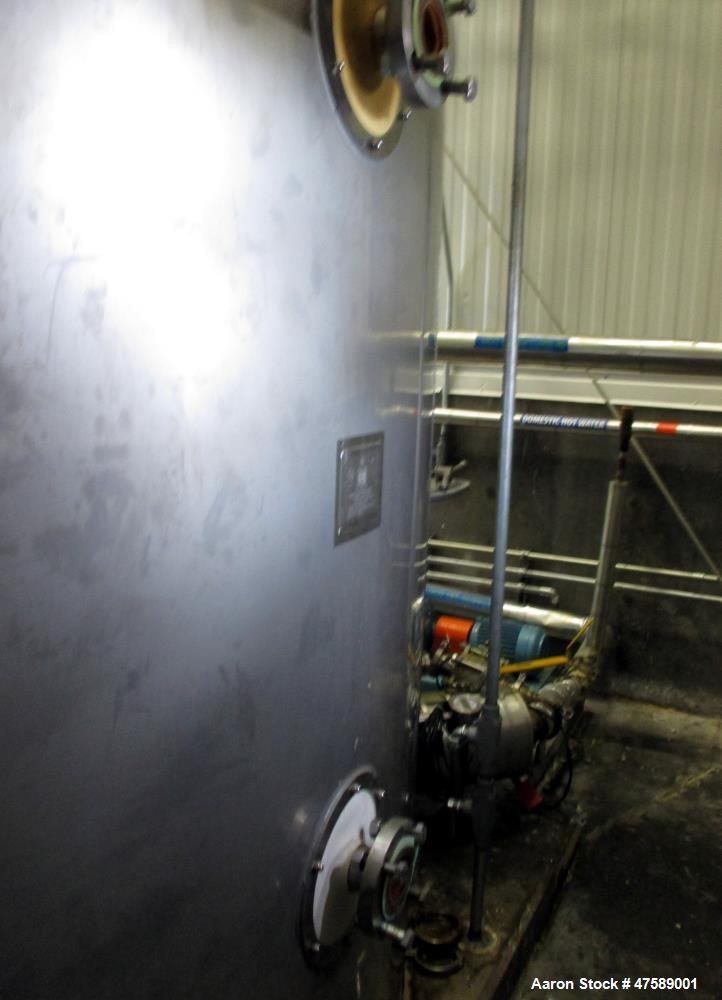

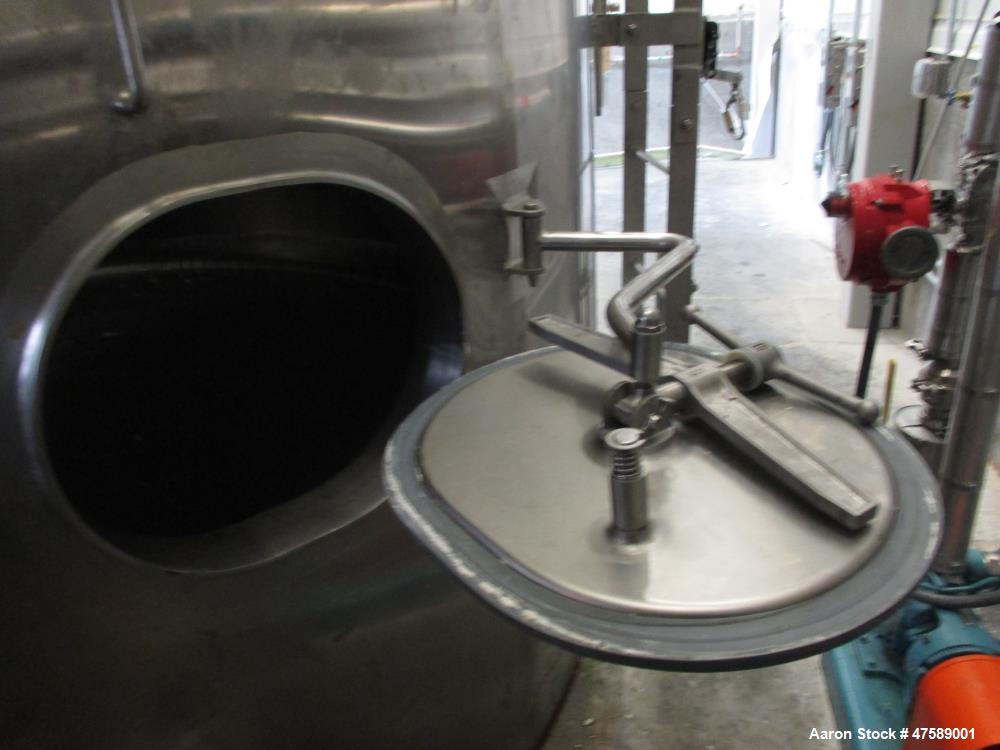

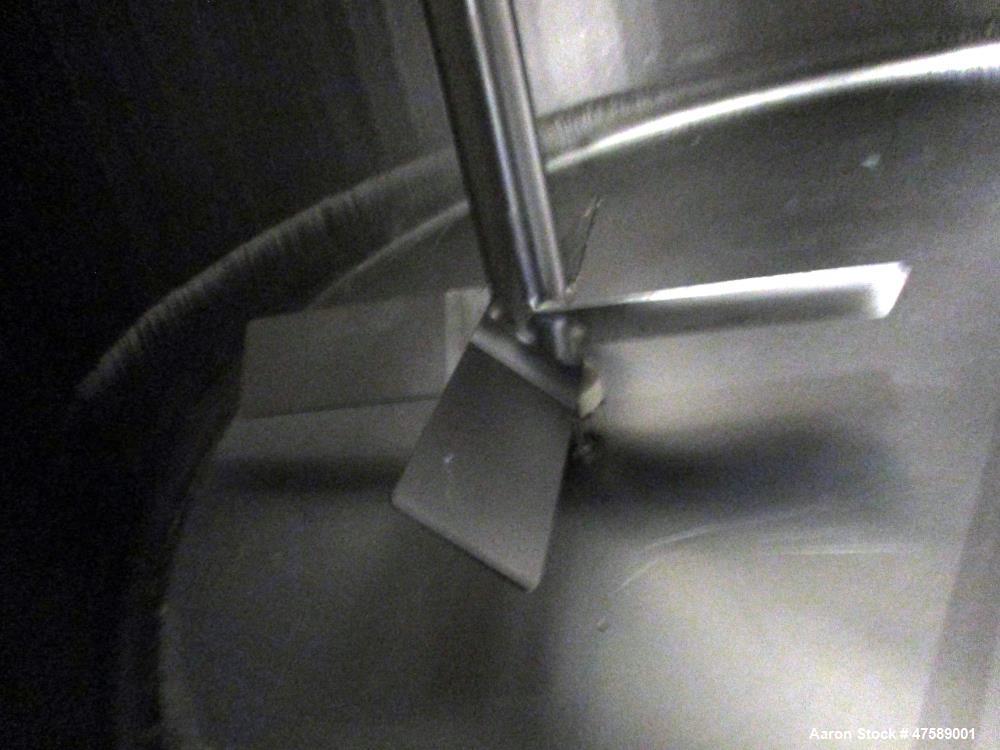

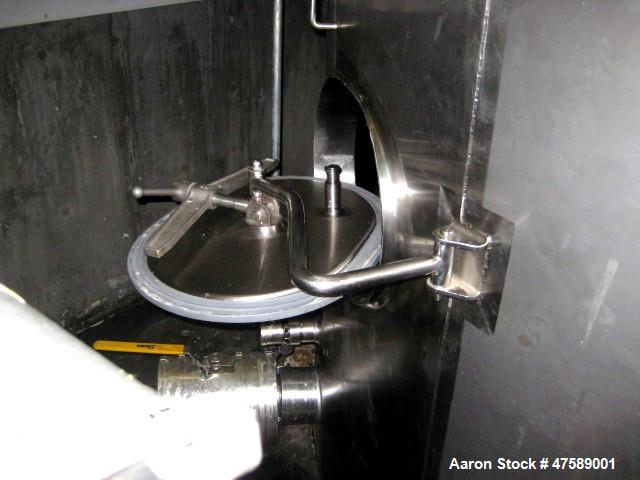

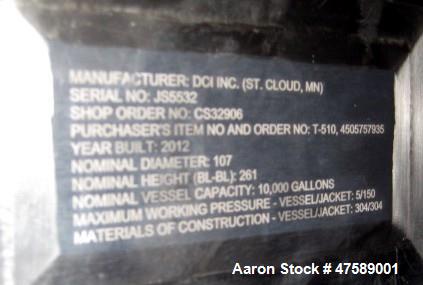

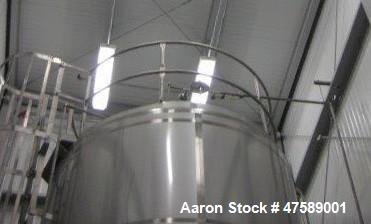

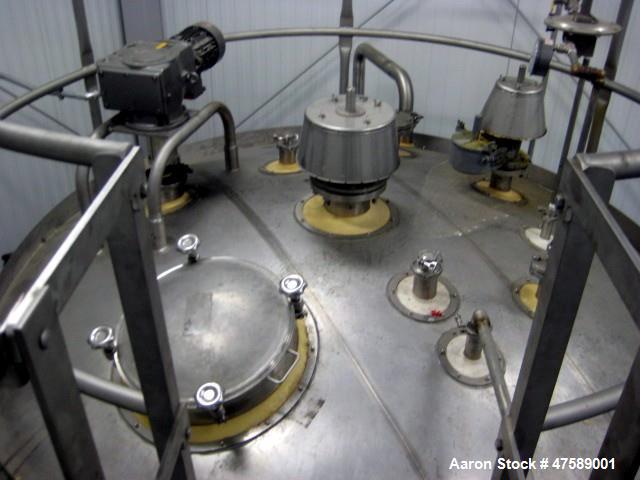

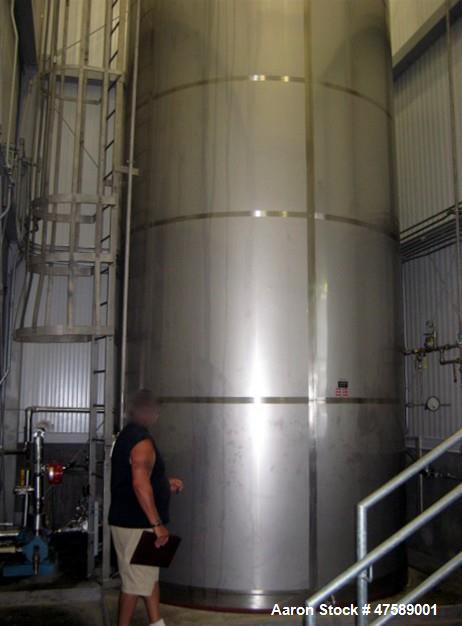

Used DCI Food Grade Silo, 10,000 Gallon, 304 Stainless Steel, Vertical. 107" Diameter x 261" straight side, dished top, sloped bottom. 9.3 Gallon volume of 44-1/4" wide bottom side wall dimple jacket rated 150 psi at 20 to 200 degrees F. Shell insulated with 3" of Perlite/fiberglass, bottom head 4" Foamglass, top head 3" fiberglass, and 304 stainless steel sheathing. Fixed off center stainless agitator bridge with an agitator. Bottom supported shaft with (3) 4 blade turbines, driven by a 5 hp gear motor, approximate 72 output rpm. (1) Spray ball. Openings top 1-1/2" tri-clamp, 1-1/2" flange, 2" tri-clamp, 3" tri-clamp, 4" tri-clamp, 6" flange, 6" tri-clamp for agitator, 20" man way. Side 16" x 20" oval man way, 4" tri-clamp side bottom outlet. Skirt mounted. Serial# JS5532. Built 2012.
Used DCI Food Grade Silo, 10,000 Gallon, 304 Stainless Steel, Vertical. 107" Diameter x 261" straight side, dished top, sloped bottom. 9.3 Gallon volume of 44-1/4" wide bottom side wall dimple jacket rated 150 psi at 20 to 200 degrees F. Shell insulated with 3" of Perlite/fiberglass, bottom head 4" Foamglass, top head 3" fiberglass, and 304 stainless steel sheathing. Fixed off center stainless agitator bridge with an agitator. Bottom supported shaft with (3) 4 blade turbines, driven by a 5 hp gear motor, approximate 72 output rpm. (1) Spray ball. Openings top 1-1/2" tri-clamp, 1-1/2" flange, 2" tri-clamp, 3" tri-clamp, 4" tri-clamp, 6" flange, 6" tri-clamp for agitator, 20" man way. Side 16" x 20" oval man way, 4" tri-clamp side bottom outlet. Skirt mounted. Serial# JS5532. Built 2012.
