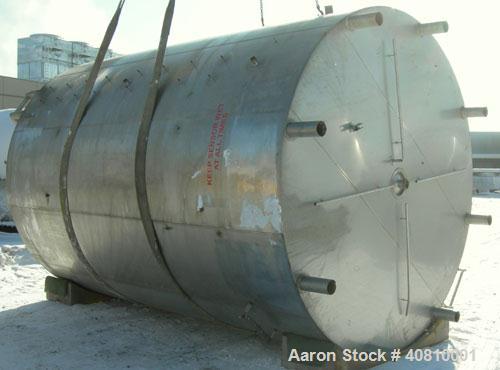

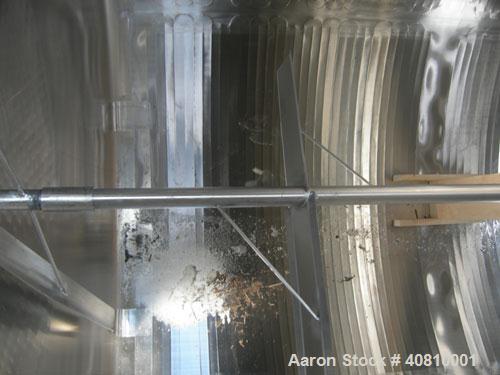

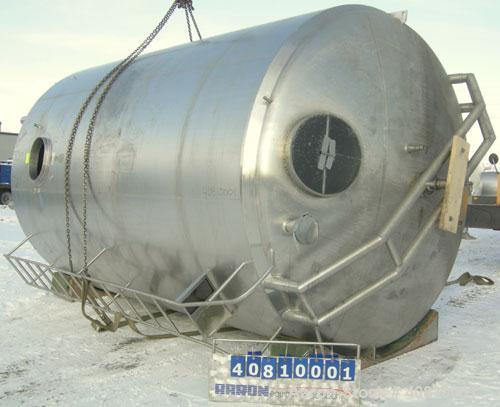

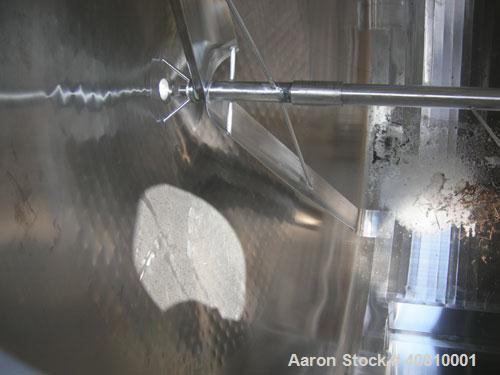

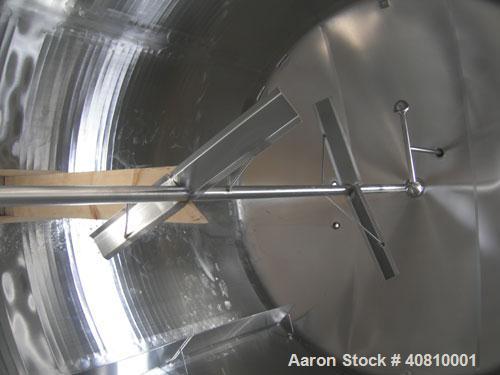

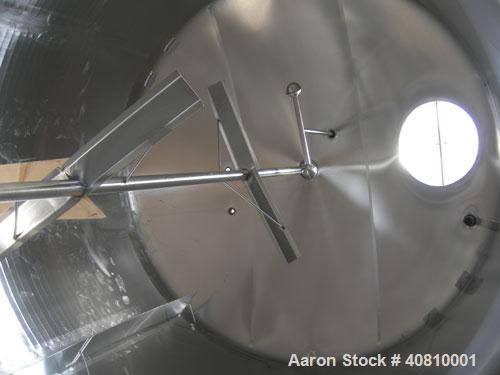

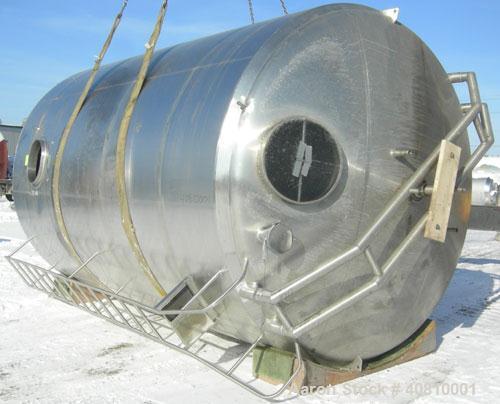

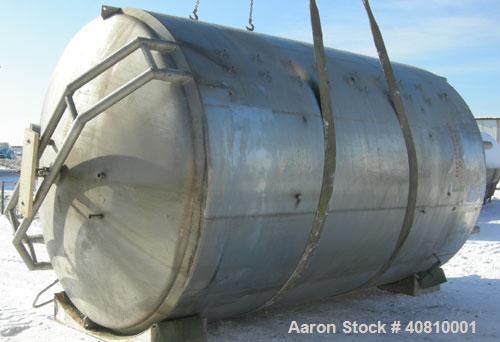

Used Cherry Burrell Jacketed Mix Tank, 7,200 Gallon, 304 Stainless Steel, Vertical. 120" diameter x 160" straight side, dished top, coned bottom. Partial sidewall channel jacket, approximetly 150 square feet on 1/2 of the diameter of the sidewall, 25 square feet of dimple jacket on coned bottom, no rating. Insulated with stainless steel sheathing. Stainless steel agitator bridge with a top entering 2 1/2" diameter bottom supported shaft with (2) 48" diameter 2 blade agitators, and a bottom sweep blade, driven by a 7.5 hp, 3/60/575 volt, 1755 rpm gear motor, ratio 70 to 1, approximate 25 rpm output. (1) 3 section side wall baffle, (2) spray balls. Openings: top (3) 1 1/2" tri-clamp, 6 1/2" tri-clamp, 7" funnel, 24" manway with a plastic cover; side 3" tri-clamp, 16" x 20" side bottom oval manway with cover; 3" center bottom outlet. Mounted on 8 legs, approximately 6" discharge height. Includes side mounted ladder.
Used Cherry Burrell Jacketed Mix Tank, 7,200 Gallon, 304 Stainless Steel, Vertical. 120" diameter x 160" straight side, dished top, coned bottom. Partial sidewall channel jacket, approximetly 150 square feet on 1/2 of the diameter of the sidewall, 25 square feet of dimple jacket on coned bottom, no rating. Insulated with stainless steel sheathing. Stainless steel agitator bridge with a top entering 2 1/2" diameter bottom supported shaft with (2) 48" diameter 2 blade agitators, and a bottom sweep blade, driven by a 7.5 hp, 3/60/575 volt, 1755 rpm gear motor, ratio 70 to 1, approximate 25 rpm output. (1) 3 section side wall baffle, (2) spray balls. Openings: top (3) 1 1/2" tri-clamp, 6 1/2" tri-clamp, 7" funnel, 24" manway with a plastic cover; side 3" tri-clamp, 16" x 20" side bottom oval manway with cover; 3" center bottom outlet. Mounted on 8 legs, approximately 6" discharge height. Includes side mounted ladder.
