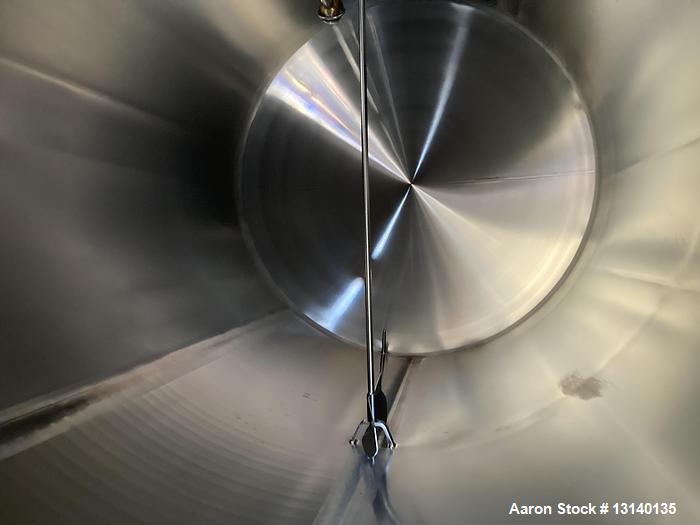

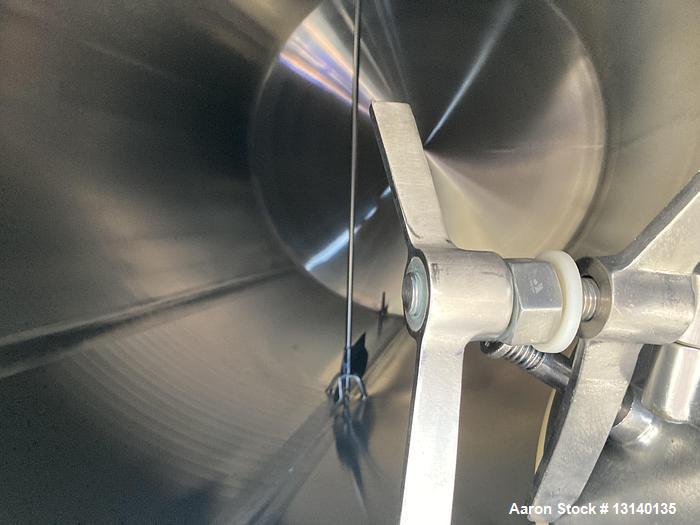

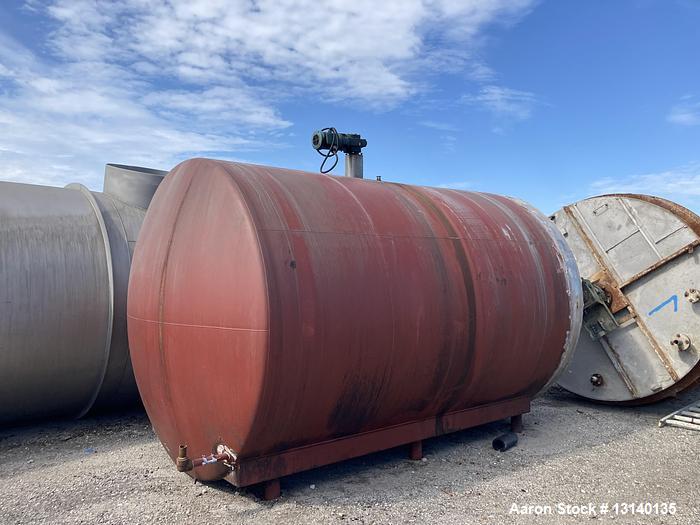

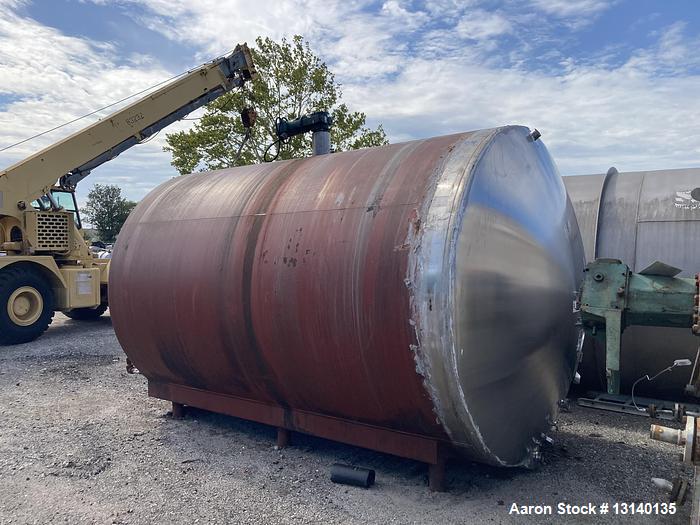

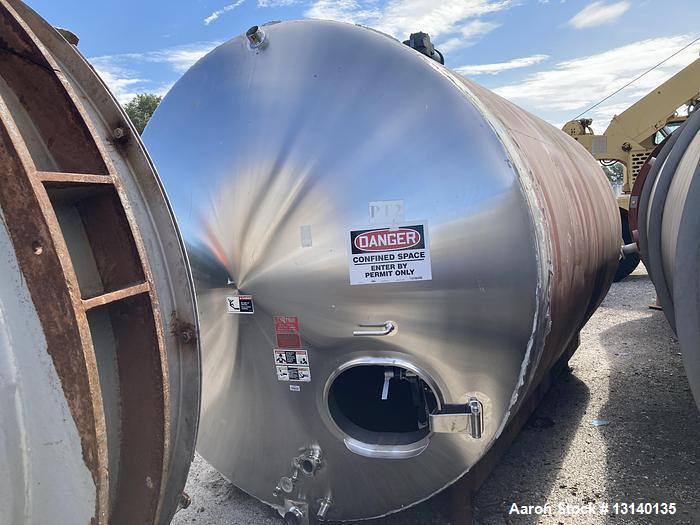

Used Walker Stainless Steel 4900 Gallon 304 Stainless Steel Horizontal Jacketed Dairy Tank. 84"' diameter ID x 148"' long straight side. Model 11955. Has a 36 sq ft volume jacket rated for 150 PSI. Refrigerant R-717. Dished heads. One end has a 20" X 16" "Shadowless" manway, (1) 2.75" sanitary end bottom drain, (1) 2.5" sanitary end inlet, (1) 1.5" end bottom threaded drain, (2) end bottom thermowells and (1) 2.5" end top opening for the vent. Opposite end has a end bottom thermowell. Top has (1) set of spray balls and a top entering (2) blade 1.5HP 3/60/208-230-460 volt agitator drive through a Dodge Master gear reducer with 36 ratio. Covered with 3" thick Styrofoam insulation with carbon steel sheathing. Overall dimensions are 92" diameter X 26' long. Mounted on (6) short legs.
Used Walker Stainless Steel 4900 Gallon 304 Stainless Steel Horizontal Jacketed Dairy Tank. 84"' diameter ID x 148"' long straight side. Model 11955. Has a 36 sq ft volume jacket rated for 150 PSI. Refrigerant R-717. Dished heads. One end has a 20" X 16" "Shadowless" manway, (1) 2.75" sanitary end bottom drain, (1) 2.5" sanitary end inlet, (1) 1.5" end bottom threaded drain, (2) end bottom thermowells and (1) 2.5" end top opening for the vent. Opposite end has a end bottom thermowell. Top has (1) set of spray balls and a top entering (2) blade 1.5HP 3/60/208-230-460 volt agitator drive through a Dodge Master gear reducer with 36 ratio. Covered with 3" thick Styrofoam insulation with carbon steel sheathing. Overall dimensions are 92" diameter X 26' long. Mounted on (6) short legs.
