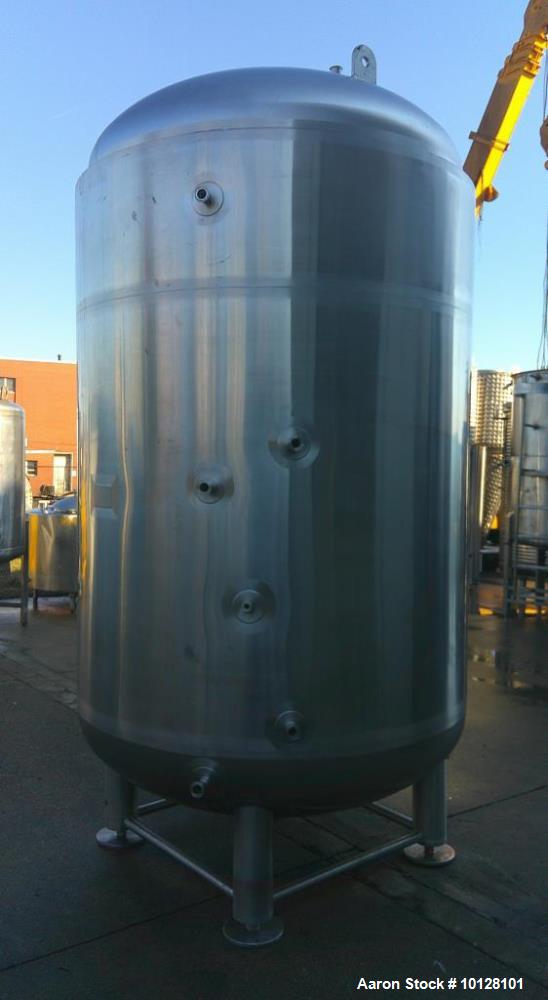

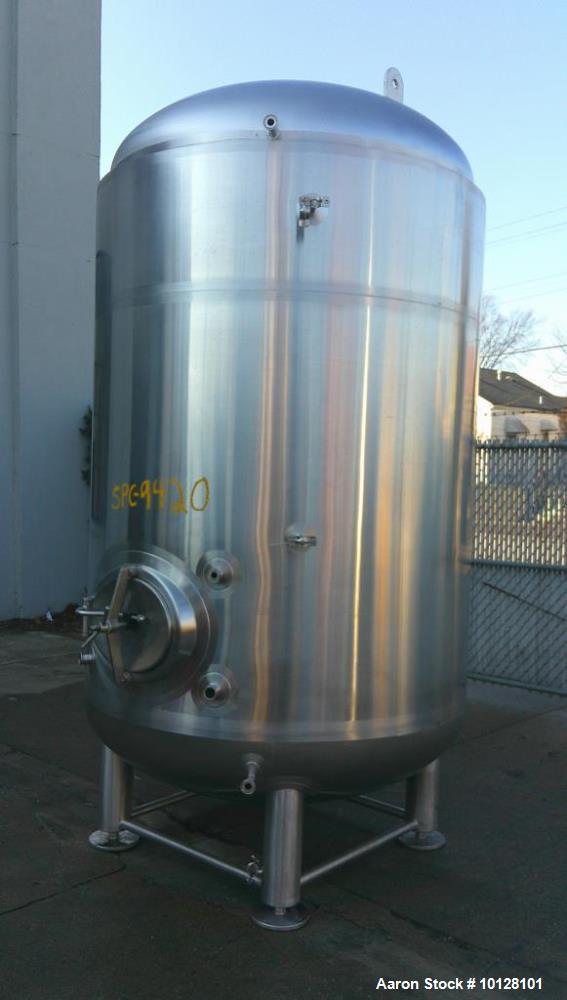

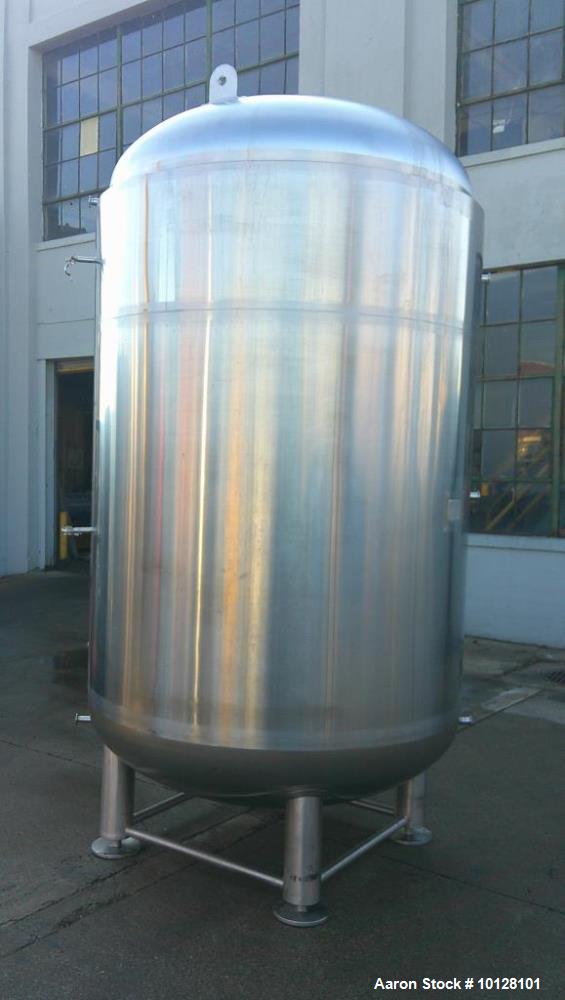

Used 4,500 Liter Stainless Steel Beer Barrel Tank | Jacketed Brewery Process Vessel

Manufacturer: ABC-Kinglai Co., Ltd. for Glacier Tanks LLC
Equipment Type: Beer Barrel / Brewery Process Tank
Capacity: 1188.77 Gallons (4,500 Liters / 4.5 m³)
Condition: Used
Year Built: 05/2016
Serial Number: AKL16-A-10005

Description

Used 4,500 liter stainless steel beer barrel tank manufactured by ABC-Kinglai Co., Ltd. for Glacier Tanks LLC. Designed for brewery and beverage processing applications, this vessel features sidewall jacketing for temperature-controlled storage and processing.

The tank is constructed with dished heads and mounted on four legs for stable installation. Designed for a shell pressure rating of 0.1 MPa and jacket pressure rating of 0.15 MPa, the vessel is suitable for brewery operations requiring controlled heating or cooling.

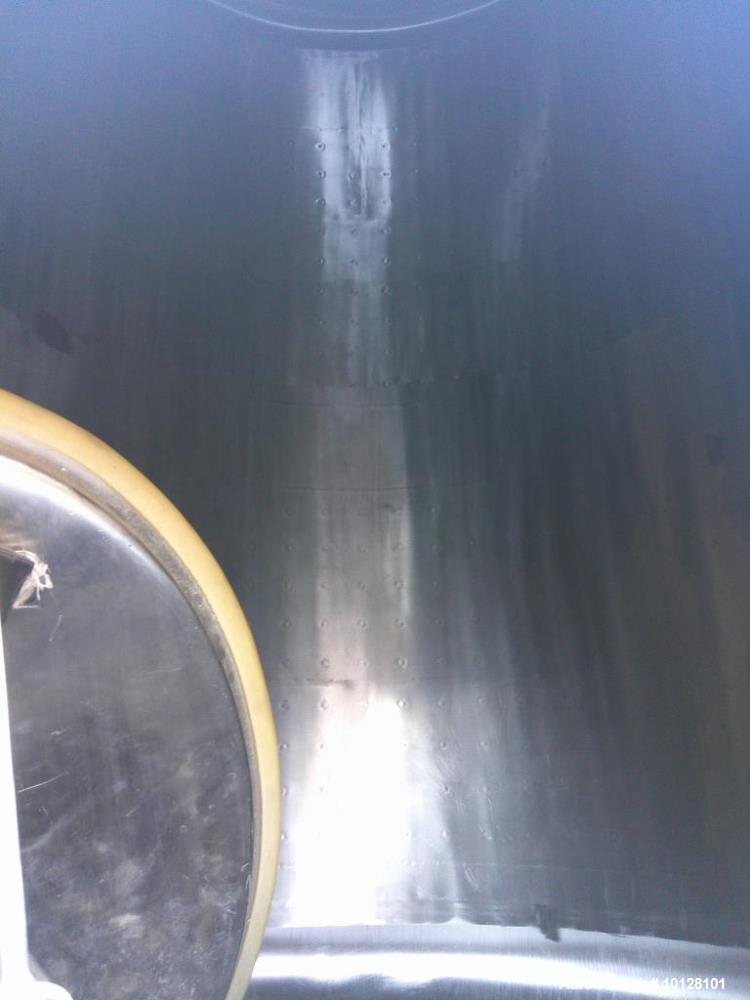

This process tank includes multiple tri-clamp sanitary connections, an elliptical hinged manway for interior access, and dual top lifting lugs for handling and installation. Previously configured for brewery service, the tank is ideal for beer storage, fermentation support, and beverage processing applications.

Specifications

• Manufacturer: ABC-Kinglai Co., Ltd.
• Built For: Glacier Tanks LLC
• Capacity: 1188.77 gallons (4,500 liters / 4.5 m³)
• Type: Beer barrel / process tank
• Material: Stainless steel
• Year Built: 05/2016
• Serial Number: AKL16-A-10005

Vessel Dimensions

• Diameter: Approx. 59”
• Straight Side Height: Approx. 81”
• Overall Dimensions: 70” x 70” x 122” high

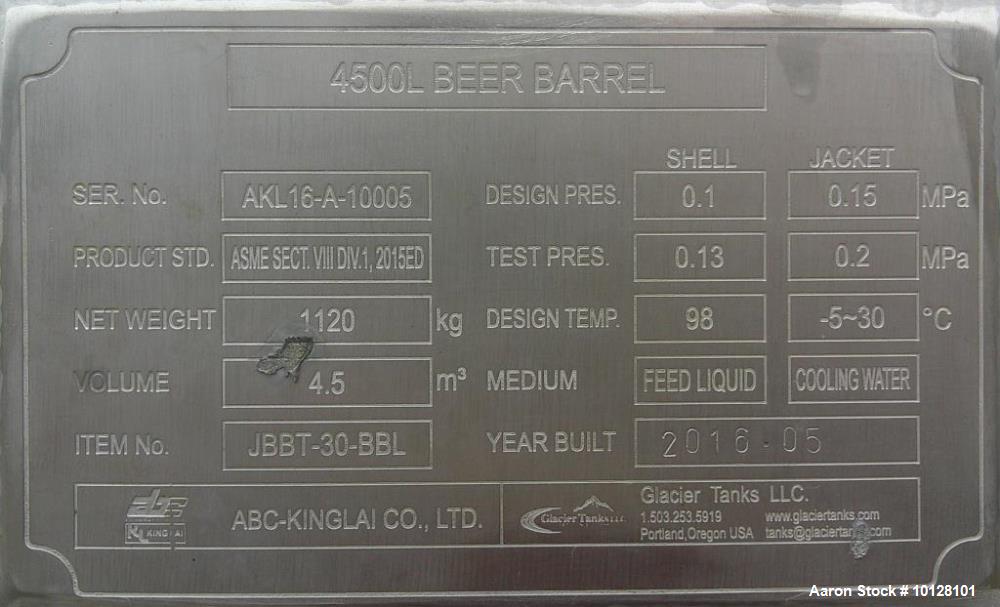

Pressure & Temperature Ratings

• Shell Design Pressure: 0.1 MPa
• Jacket Design Pressure: 0.15 MPa
• Design Temperature: 98°C

Construction Features

• Sidewall jacket only

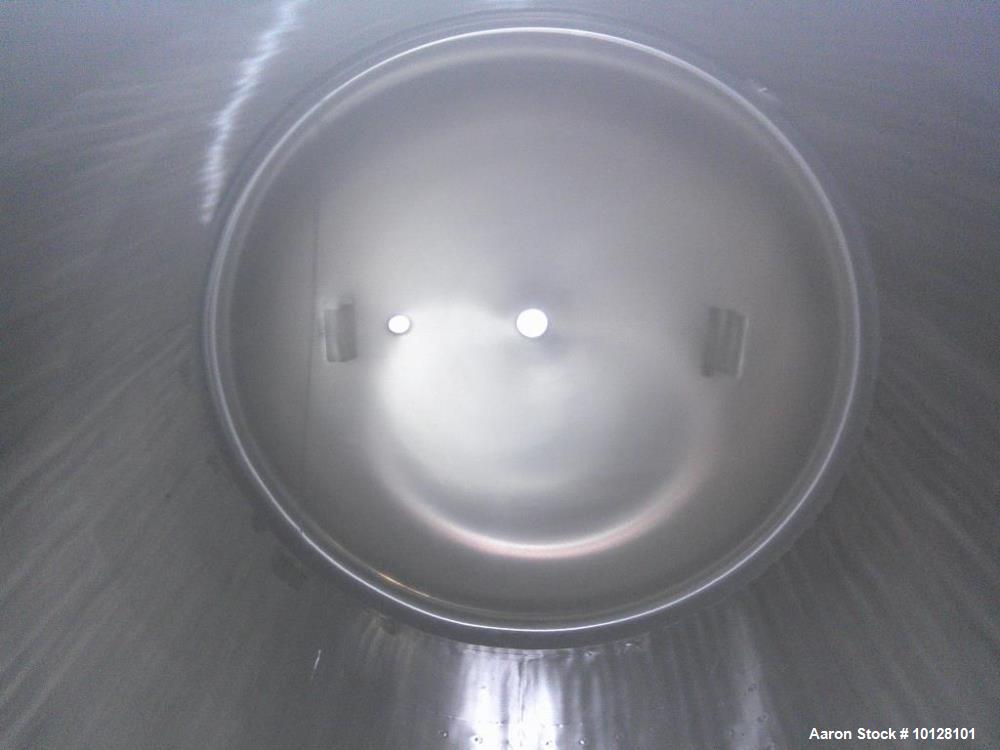

• Dished heads

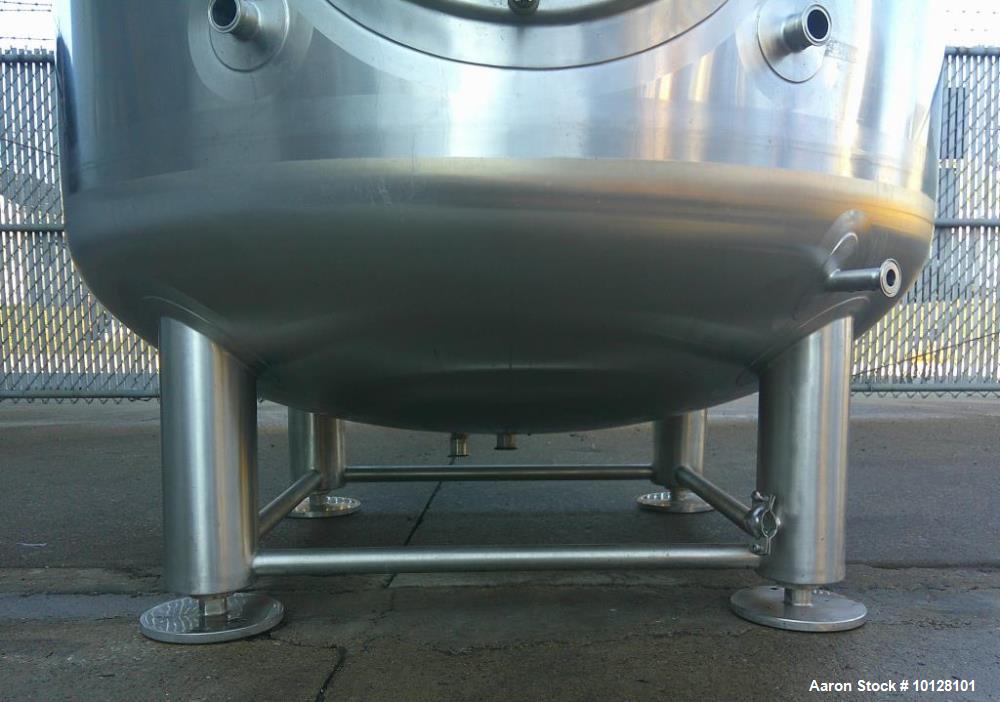

• Four legs

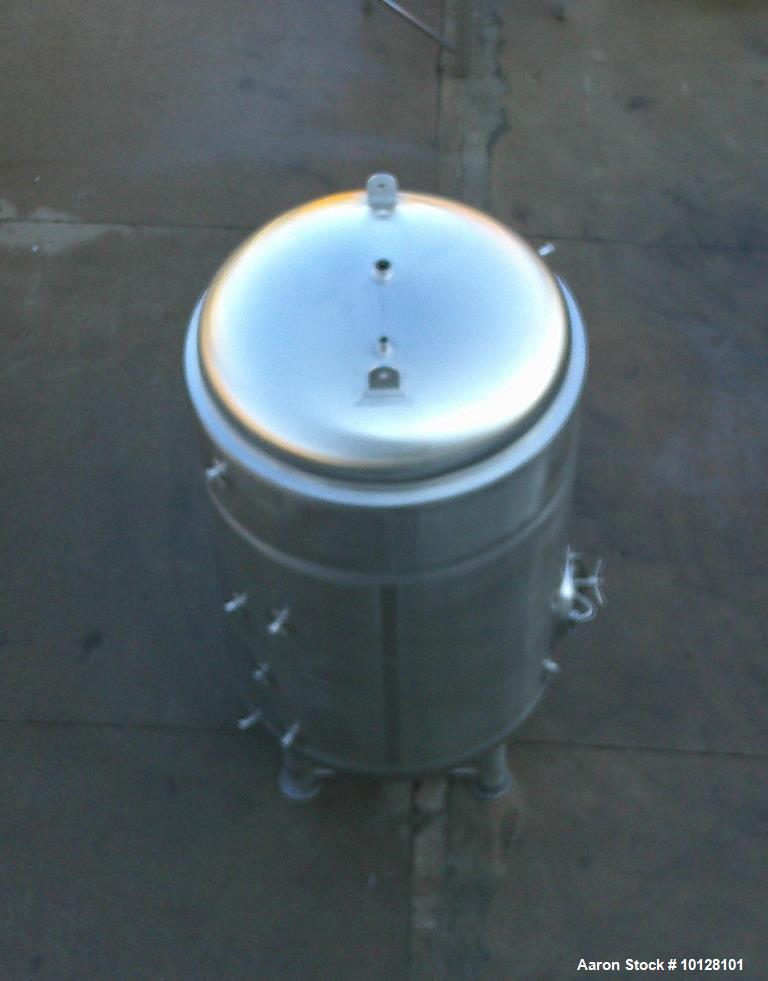

• Two top lift lugs

Top Connections

• (1) 3” tri-clamp nozzle
• (1) 1.25” tri-clamp nozzle

Bottom Connections

• (1) 1.25” tri-clamp nozzle
• (1) 1.5” tri-clamp nozzle

Side Connections

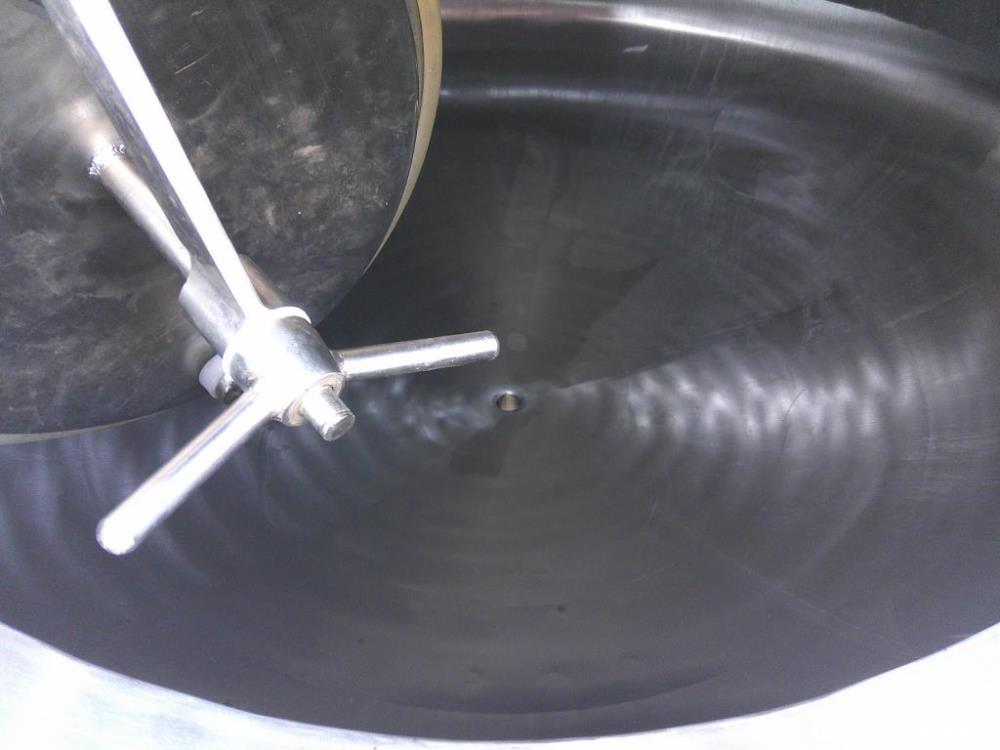

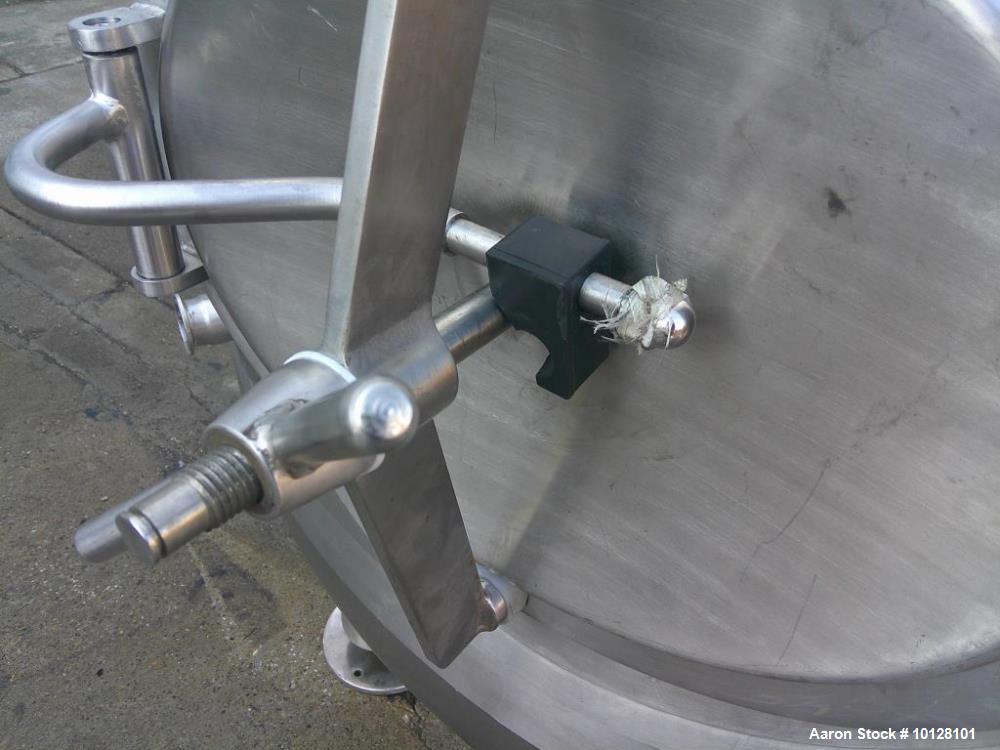

• (1) 16” x 13” elliptical hinged manway
• (5) 1.25” tri-clamp jacket nozzles
• (2) 1.25” tri-clamp nozzles
• (2) 0.75” tri-clamp nozzles
• (1) 0.75” coupling

Applications

Ideal for brewery production, beverage storage, fermentation support, and sanitary liquid processing.

Products This Equipment Would Be Used For

• Beer storage
• Craft beer production
• Fermentation support
• Kombucha processing
• Cider production
• Beverage ingredients
• Winery applications
• Liquid food products
• Distillery processing
• Process liquid storage
