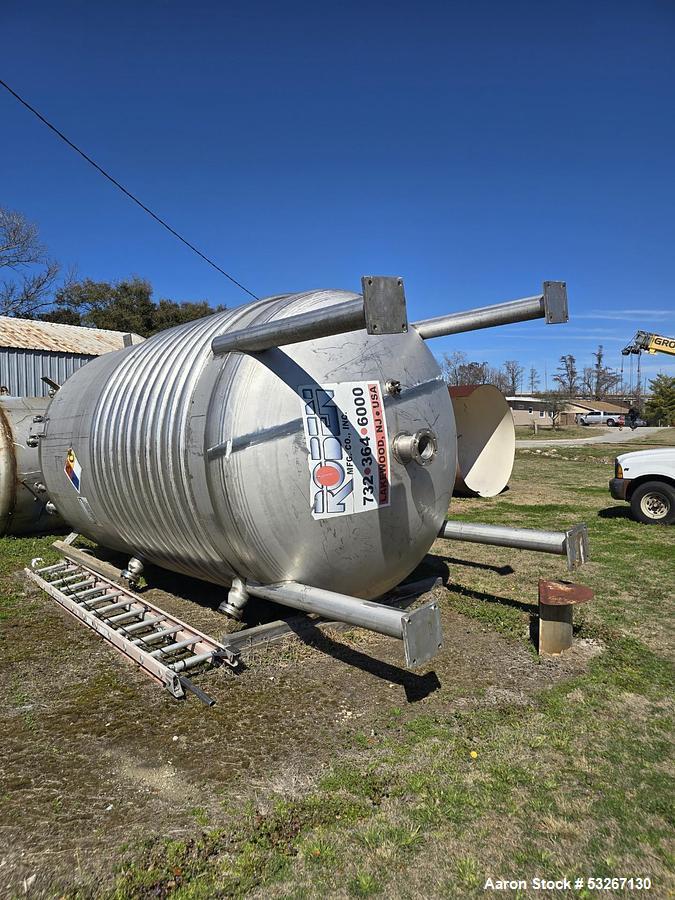

Used Roben Mfg 6,000 Gallon 304 Stainless Steel Jacketed Reactor – 100 PSI, Half-Pipe Coil (2015)

Manufacturer Information

• Manufacturer: Roben Manufacturing Co.

• Capacity: Approx. 6,000 Gallons

• Construction: 304 Stainless Steel

• Year Built: 2015

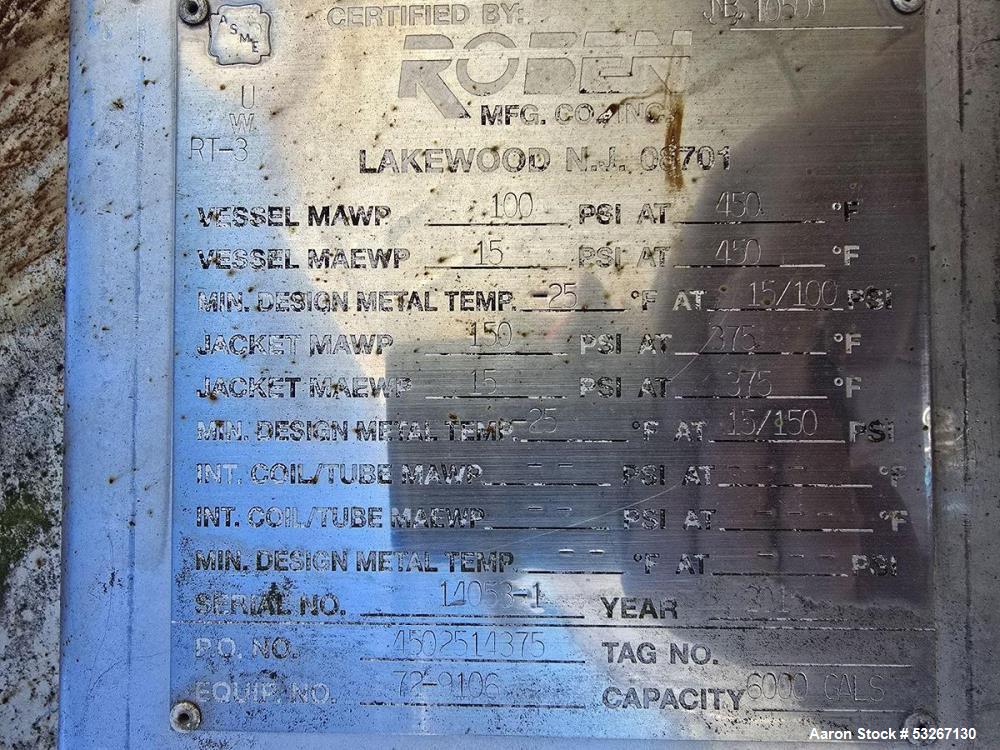

• National Board #: 10509

• Serial #: 14053-1

• Condition: Used

• Mounting: (4) Stainless Steel Legs

Description

This Used Roben Mfg 6,000 Gallon Stainless Steel Jacketed Reactor Body is a heavy-duty process vessel designed for heating, cooling, blending, and reaction applications in chemical, pharmaceutical, and food processing environments.

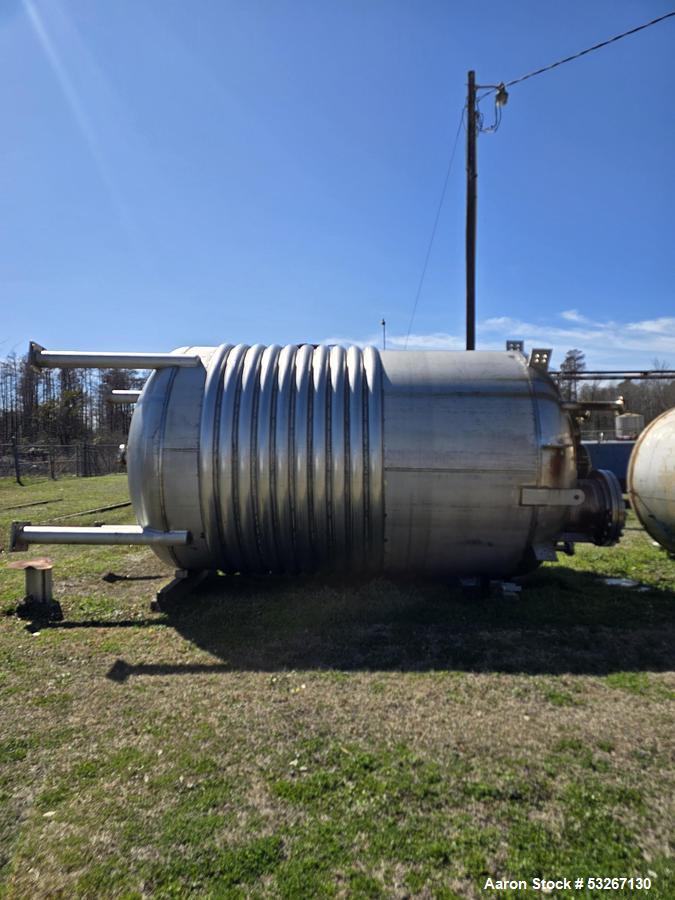

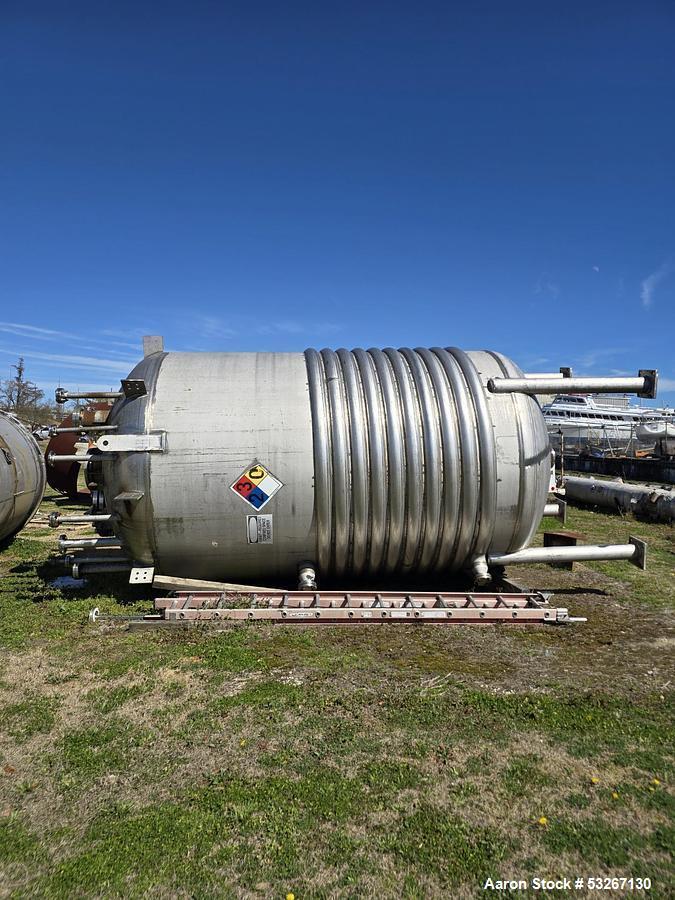

The vessel measures approximately 102" diameter x 144" straight side height and features dished heads for strength and pressure integrity. The internal vessel is rated 100 PSI / Full Vacuum at -25°F to 450°F, while the half-pipe coiled jacket is rated 150 PSI / Full Vacuum at 375°F, allowing efficient thermal transfer using steam, glycol, or hot oil.

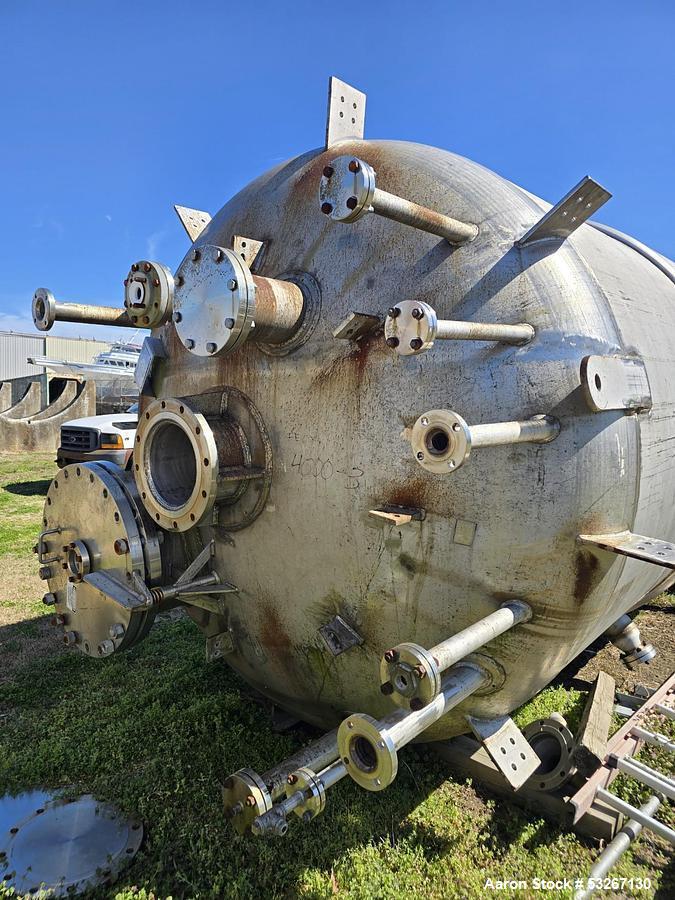

Top fittings include a 24" manway with sight glass, a 12" agitator nozzle (no agitator or drive included), and multiple process nozzles ranging from 1.5" to 8", providing flexibility for instrumentation and product flow.

Additional features include:

• 6" center bottom outlet

• 1" offset bottom head thermocouple

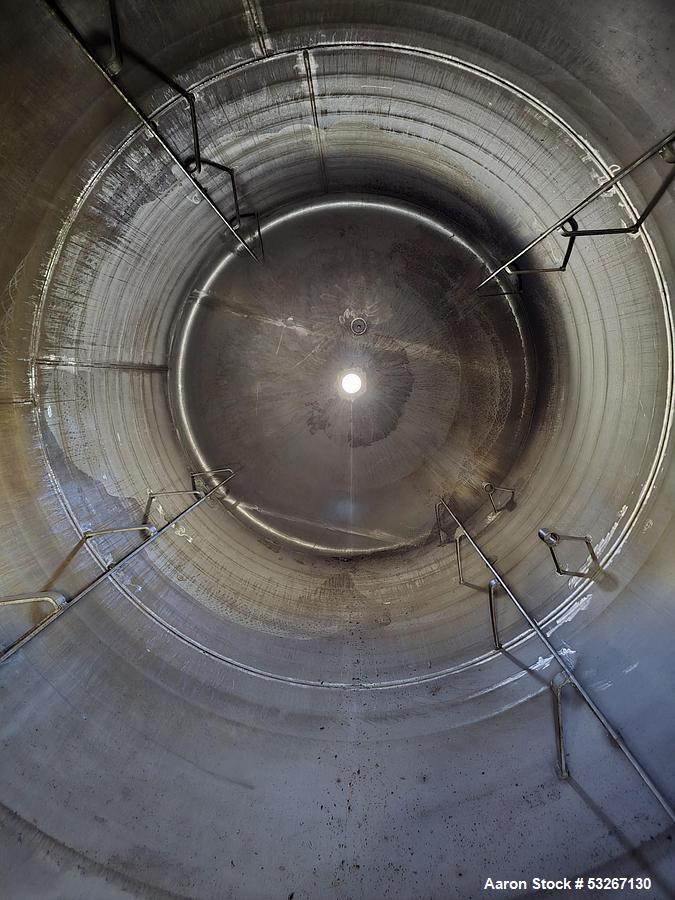

• (4) Internal baffles

• Dip tube support stands

• Mounted on (4) stainless steel legs

Built in 2015, this reactor body is ideal for facilities seeking a high-pressure, jacketed vessel ready for custom agitation and process integration.

Specifications

• Capacity: Approx. 6,000 Gallons

• Diameter: 102 inches

• Straight Side Height: 144 inches

• Construction: 304 Stainless Steel

• Heads: Dished Top & Bottom

• Internal Rating:

  • 100 PSI / Full Vacuum

  • -25°F to 450°F

• Jacket Type: Half-Pipe Coil

• Jacket Rating:

  • 150 PSI / Full Vacuum

  • Up to 375°F

• Top Fittings:

  • 24" Manway with Sight Glass

  • 12" Agitator Nozzle (No Agitator Included)

  • (2) 1.5"

  • (3) 2"

  • (3) 3"

  • (1) 4"

  • (1) 8"

• Bottom:

  • 6" Center Outlet

  • 1" Offset Thermocouple

• Internals:

  • (4) Baffles

  • Dip tube support stands

• Mounting: (4) Stainless Steel Legs

• Year Built: 2015

Applications

• Chemical reactions

• Polymer processing

• Pharmaceutical manufacturing

• Specialty chemical blending

• Food-grade heating and mixing

What Might This Be Used For

This jacketed reactor body is commonly used for temperature-controlled chemical reactions, blending, or batch processing under pressure or vacuum conditions, particularly in regulated and industrial environments.

Products This Equipment Is Used For

• Resins

• Adhesives

• Polymers

• Specialty chemicals

• Pharmaceutical intermediates

• Flavorings

• Liquid coatings

• Industrial additives

• Emulsions

• Process formulations
