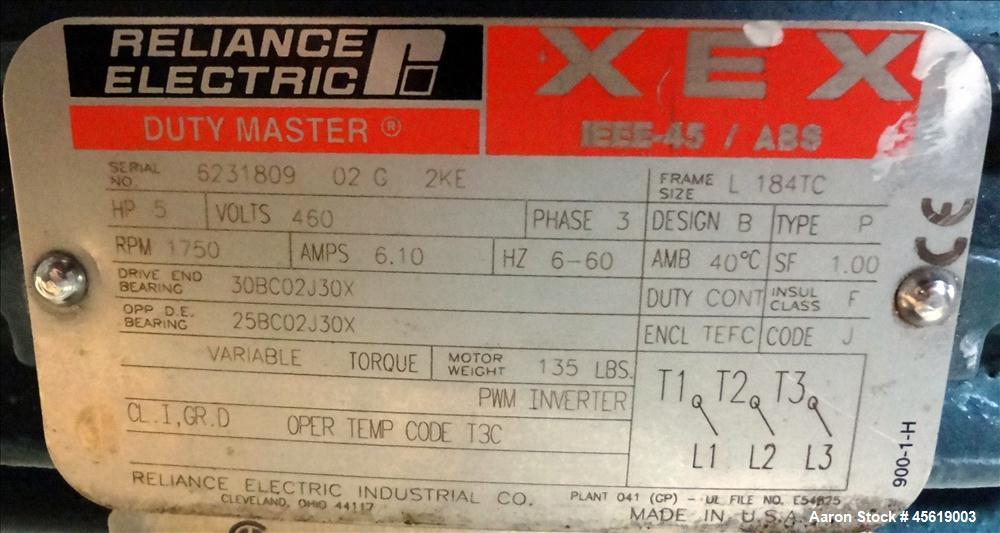

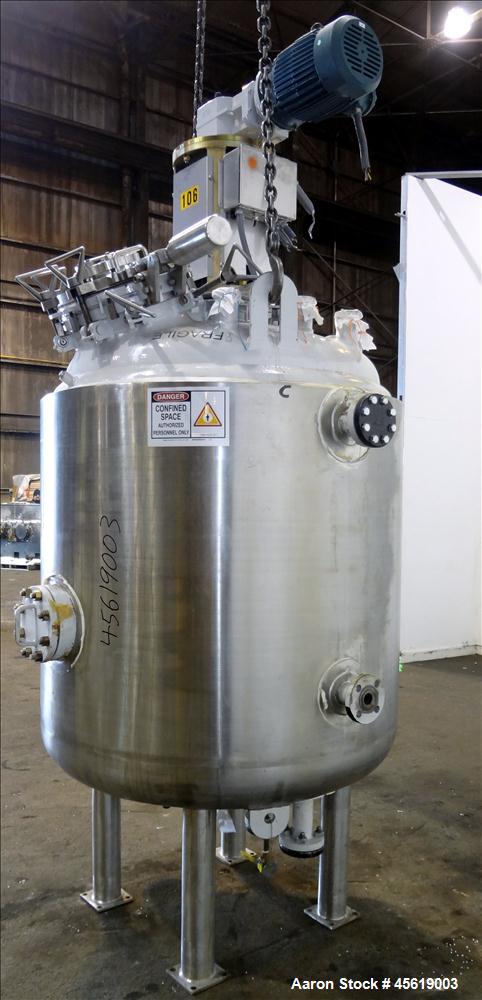

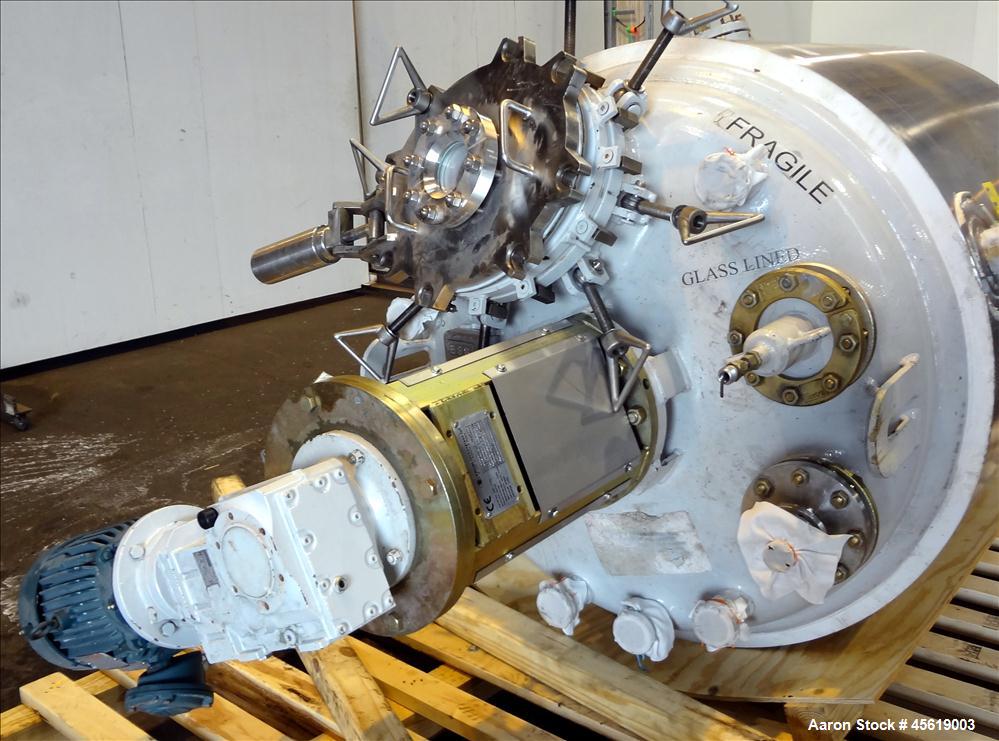

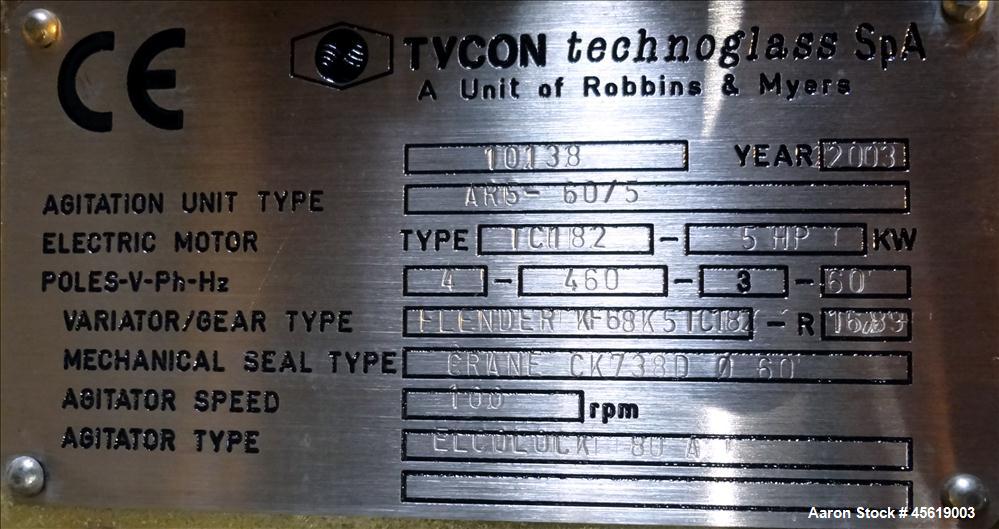

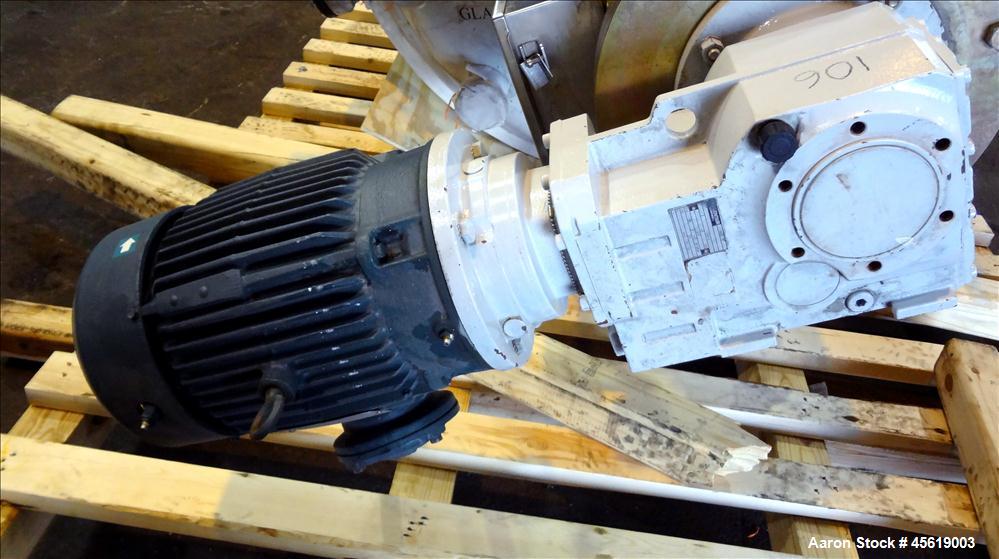

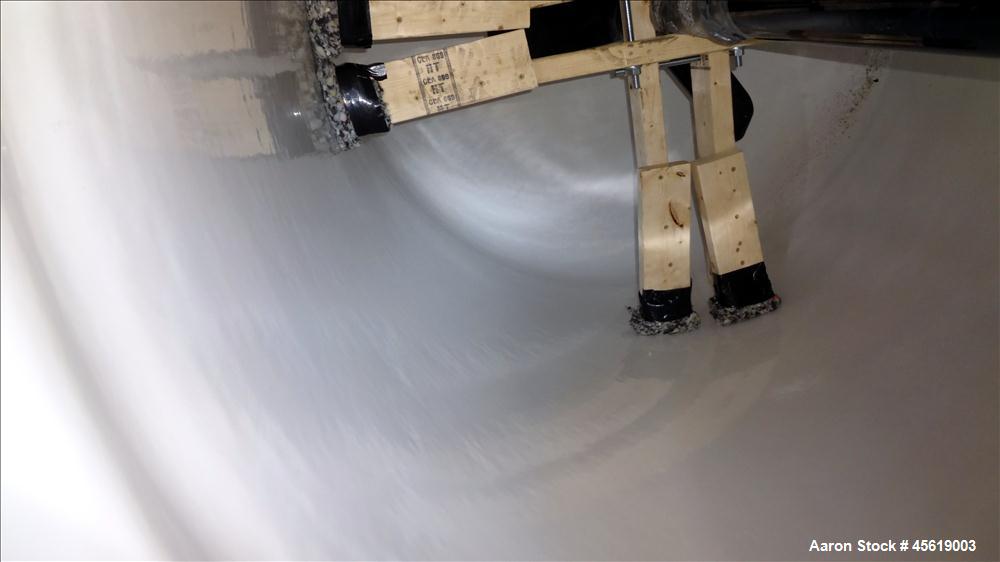

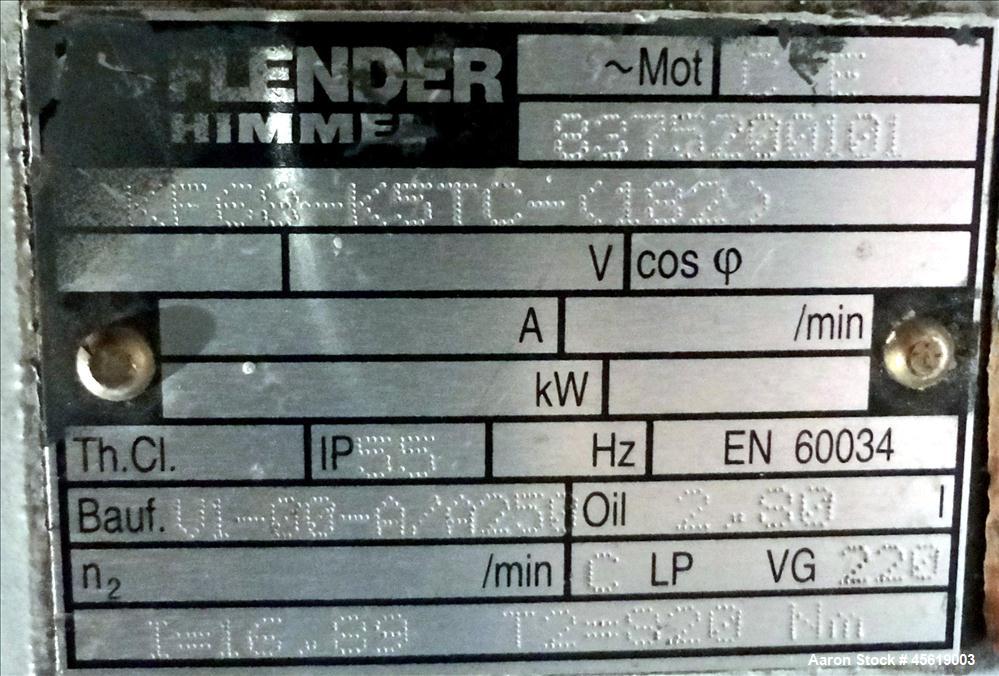

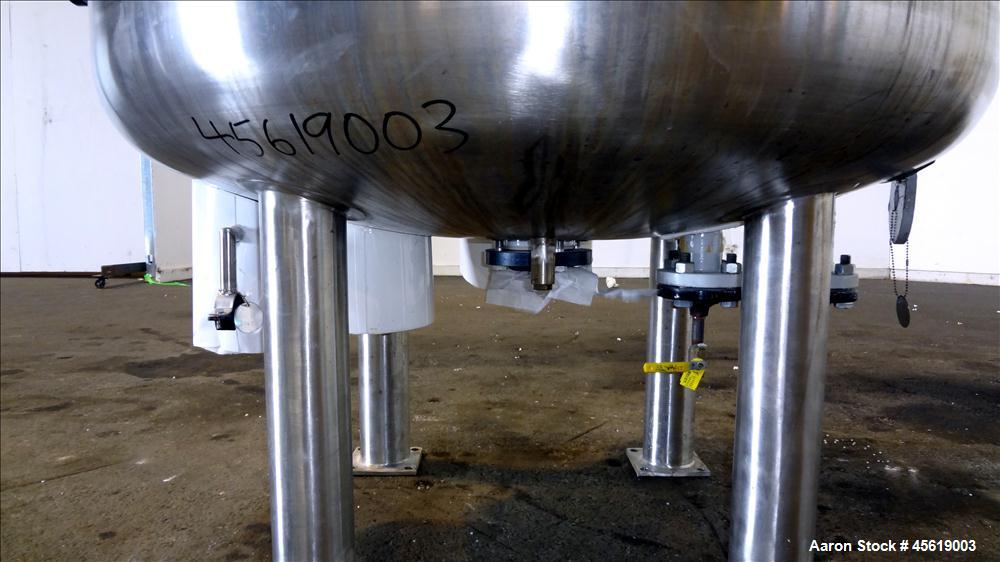

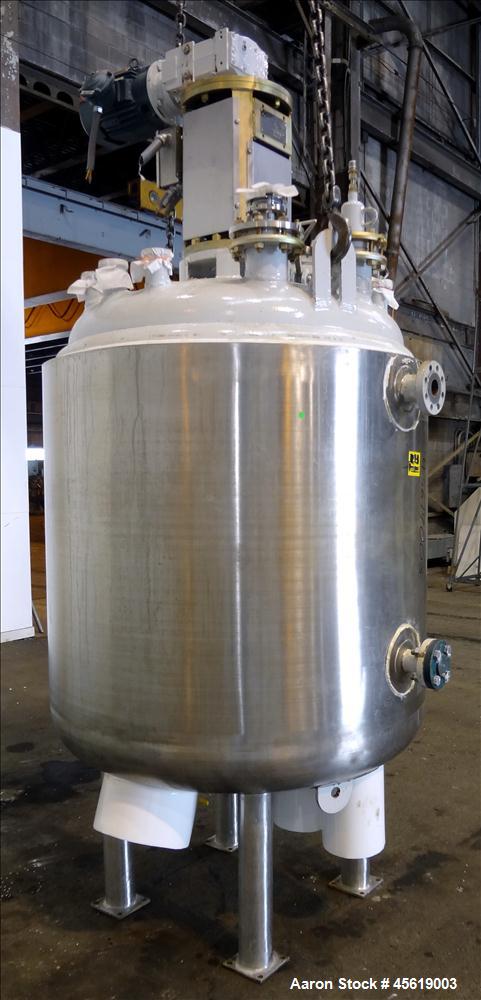

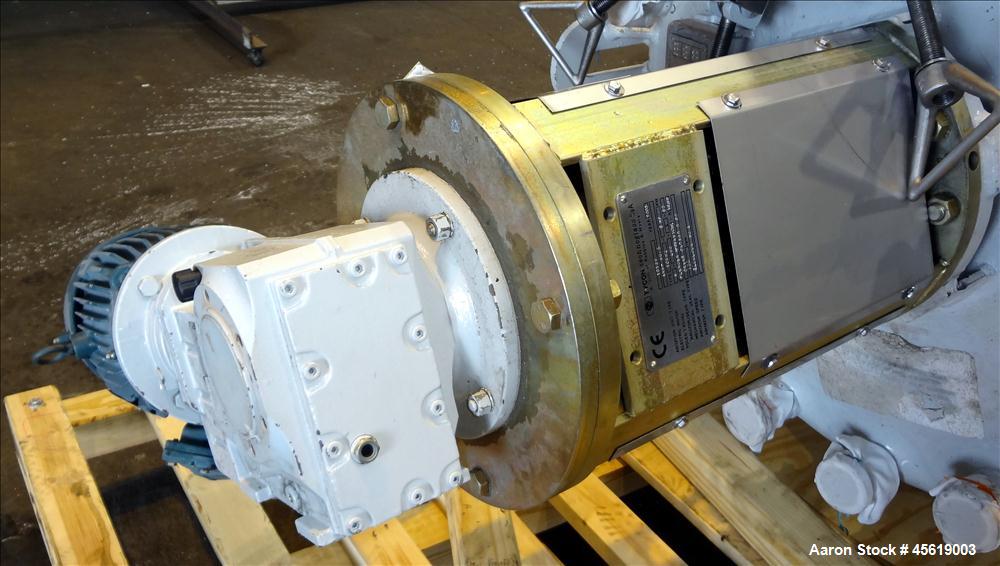

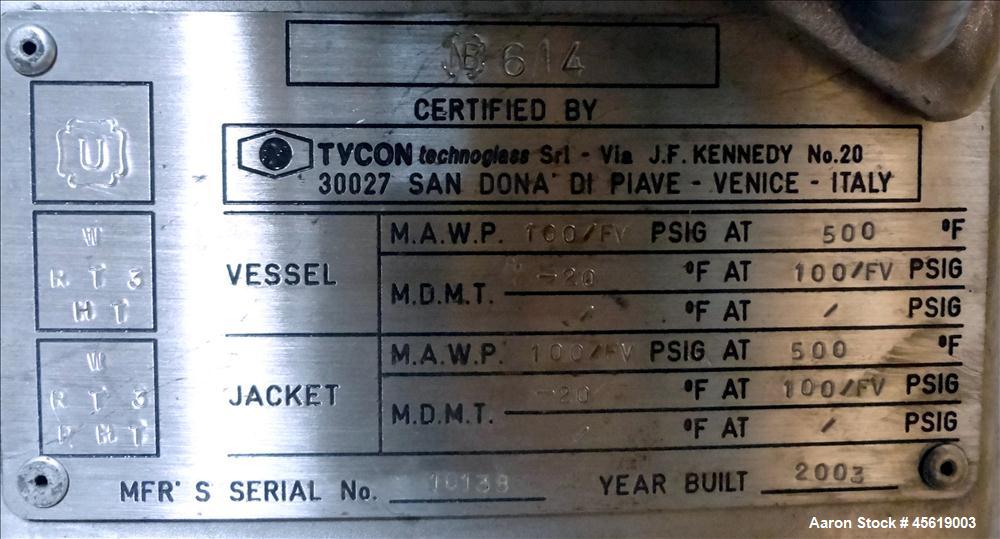

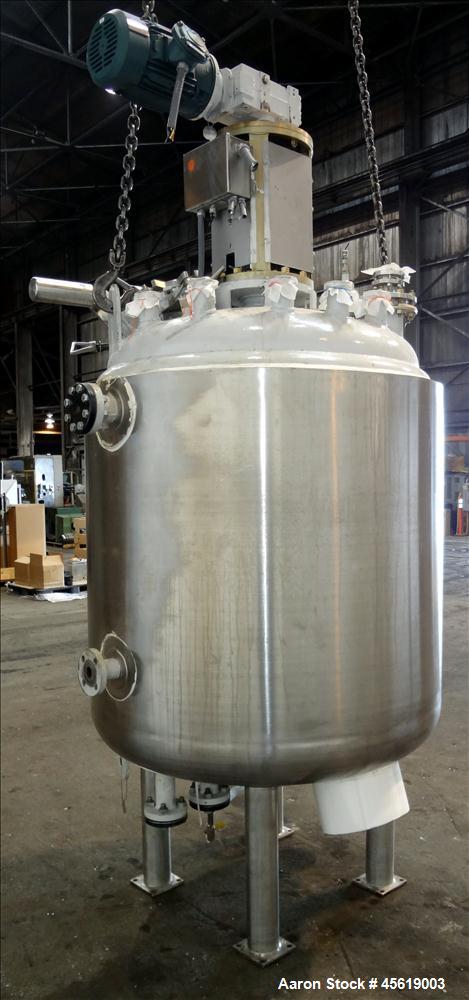

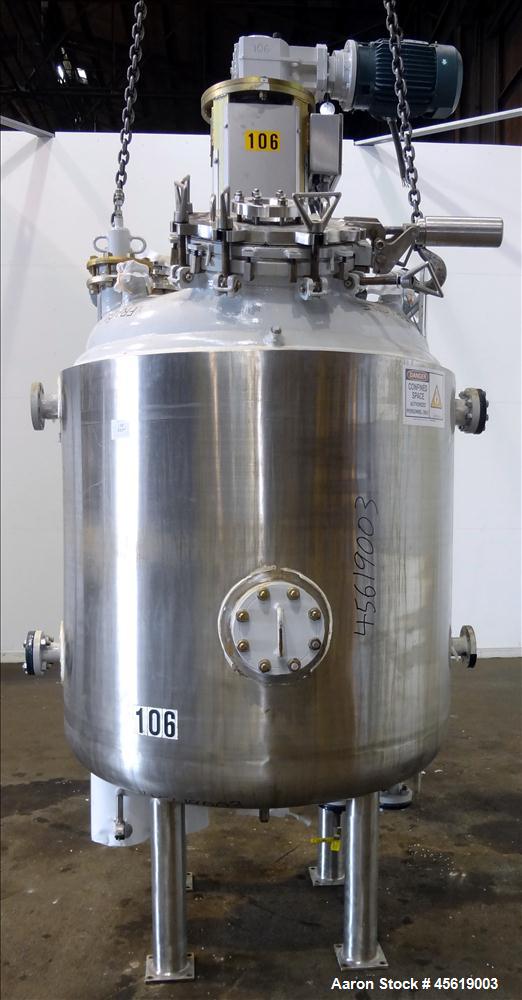

Used Tycon Technologies Glass Lined Reactor, 400 Gallon (1514 Liter), 809 White Glass, Vertical. 47.24" Diameter x 47.24" straight side, welded dished top and bottom. Internal rated 100/Full Vacuum psig at -20 to 500 degrees F. Carbon steel jacket rated 100/Full Vacuum psig at -20 to 500 degrees F. Top entering Tycon agitator, model AR5-60/5. (4) Blade crylock agitator, driven by a 5 hp, 3/60/460 volt, 1750 rpm XP motor thru a Flender reducer, ratio 16.89 to 1, approximate 100 output rpm, includes a mechanical seal. (1) Fin baffle, 316 stainless steel spray ball assembly. Openings top (7) 2", (2) 4", 14" x 18" oval man way with a 4" sight glass in the spring assist cover. 3" Center bottom outlet with valve. Mounted on (3) stainless steel legs. Reactor insulated with 3" thick foam glass, and 316L stainless steel sheathing. National Board# 614, serial# 10138, built 2003.
Used Tycon Technologies Glass Lined Reactor, 400 Gallon (1514 Liter), 809 White Glass, Vertical. 47.24" Diameter x 47.24" straight side, welded dished top and bottom. Internal rated 100/Full Vacuum psig at -20 to 500 degrees F. Carbon steel jacket rated 100/Full Vacuum psig at -20 to 500 degrees F. Top entering Tycon agitator, model AR5-60/5. (4) Blade crylock agitator, driven by a 5 hp, 3/60/460 volt, 1750 rpm XP motor thru a Flender reducer, ratio 16.89 to 1, approximate 100 output rpm, includes a mechanical seal. (1) Fin baffle, 316 stainless steel spray ball assembly. Openings top (7) 2", (2) 4", 14" x 18" oval man way with a 4" sight glass in the spring assist cover. 3" Center bottom outlet with valve. Mounted on (3) stainless steel legs. Reactor insulated with 3" thick foam glass, and 316L stainless steel sheathing. National Board# 614, serial# 10138, built 2003.
