Used- Dedietrich SA Glass Lined Lethal Service Reactor, 3000 gallon, 3009 white glass with calibration lines. Approximately ...
Stock# 40024124

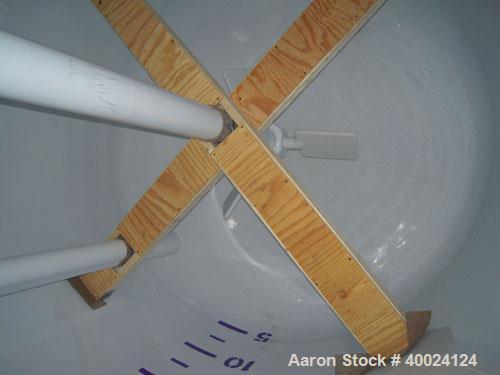

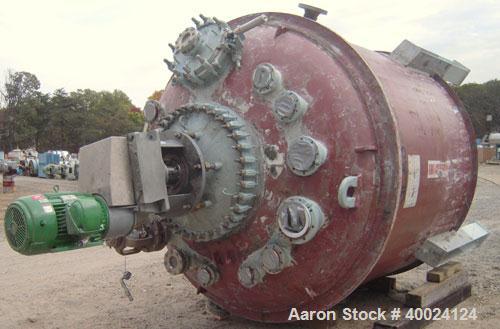

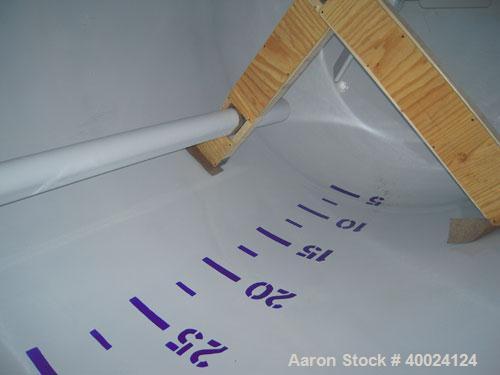

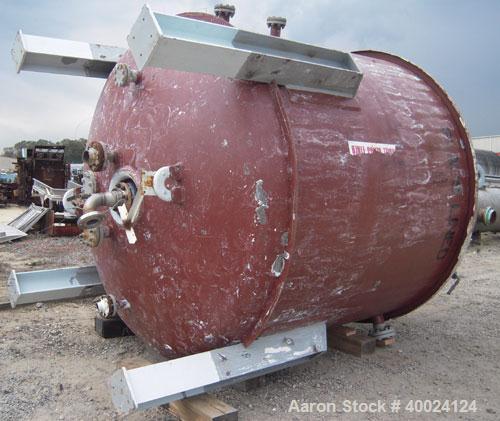

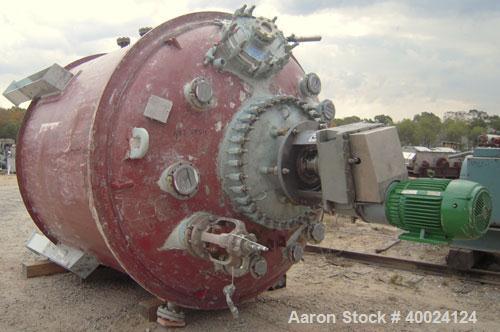

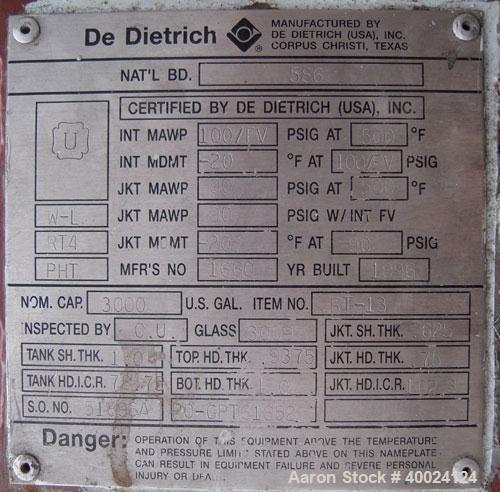

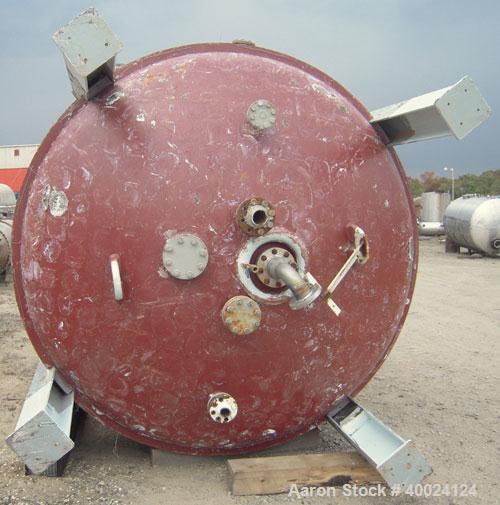

Used- Dedietrich SA Glass Lined Lethal Service Reactor, 3000 gallon, 3009 white glass with calibration lines. Approximately 98" diameter x 76" straight side, dished top and bottom. Internal rated 100/FV at 500 deg F, jacket rated 90 psi at 500 deg F. Dedietrich/Lightnin agitator, model 63Q12, double dry mechanical seal, ratio 17 to 1, output 100 rpm, Driven by a 20/10 hp, 3/60/460 volt, 1750/875 rpm XP motor. 41" diameter span Glaslock agitator, beavertail baffle. 4" off center bottom outlet. Mounted on 4 legs. Serial #1660, National Board #586, built 1996.
Used- Dedietrich SA Glass Lined Lethal Service Reactor, 3000 gallon, 3009 white glass with calibration lines. Approximately 98" diameter x 76" straight side, dished top and bottom. Internal rated 100/FV at 500 deg F, jacket rated 90 psi at 500 deg F. Dedietrich/Lightnin agitator, model 63Q12, double dry mechanical seal, ratio 17 to 1, output 100 rpm, Driven by a 20/10 hp, 3/60/460 volt, 1750/875 rpm XP motor. 41" diameter span Glaslock agitator, beavertail baffle. 4" off center bottom outlet. Mounted on 4 legs. Serial #1660, National Board #586, built 1996.
