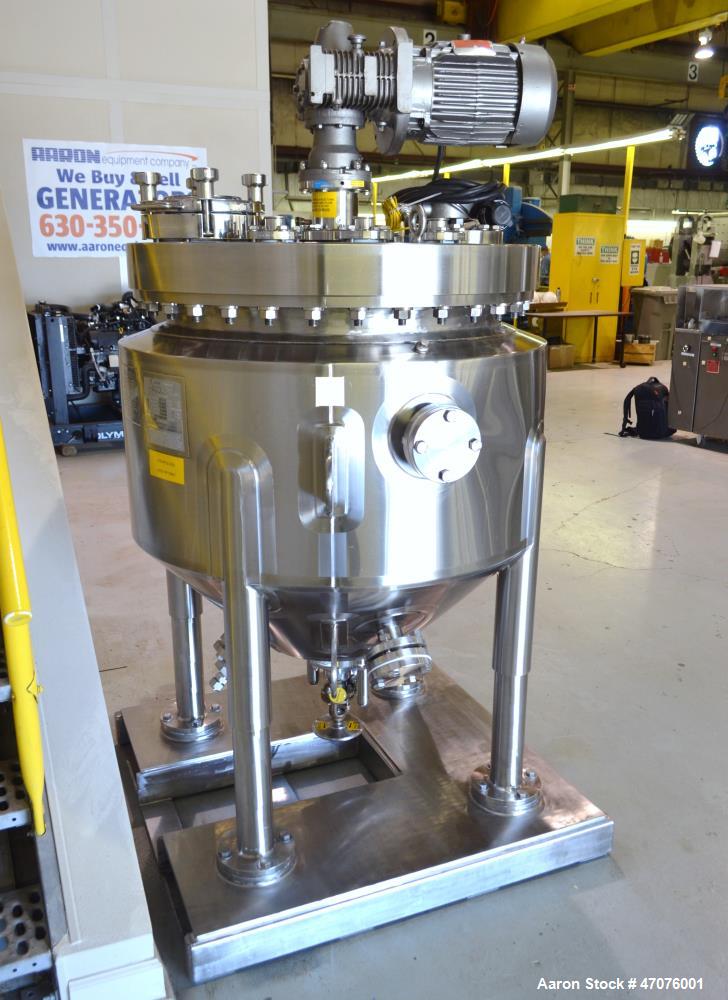

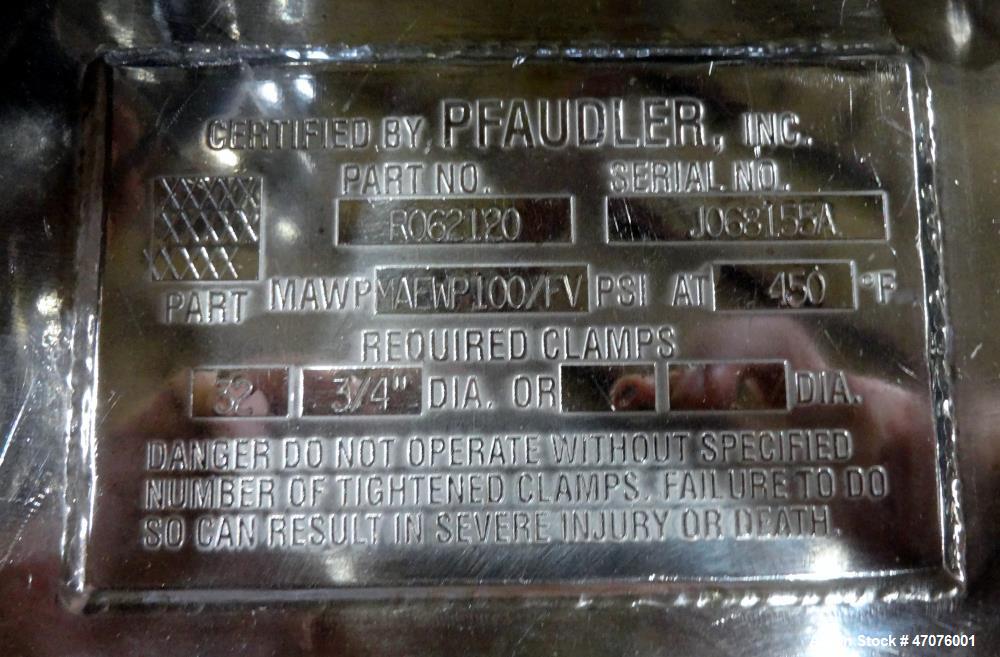

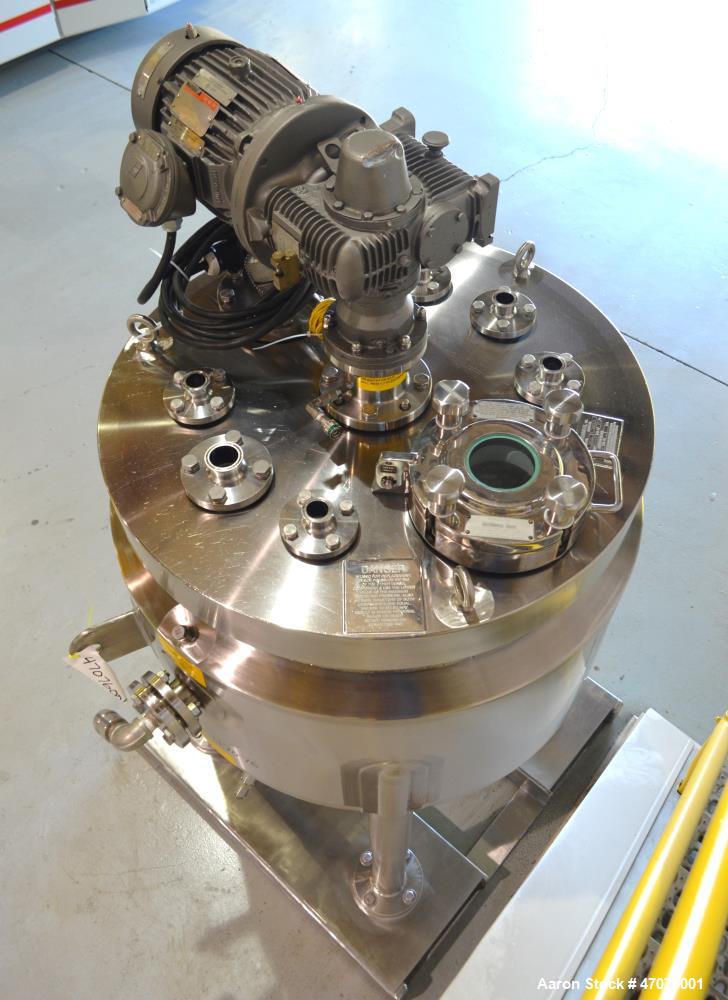

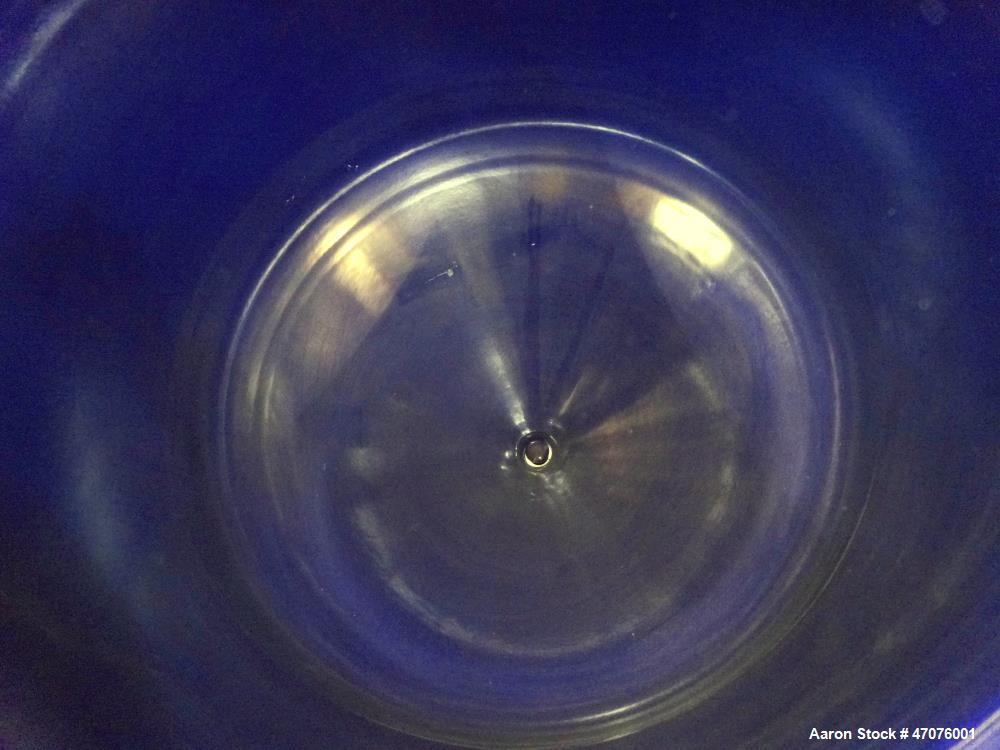

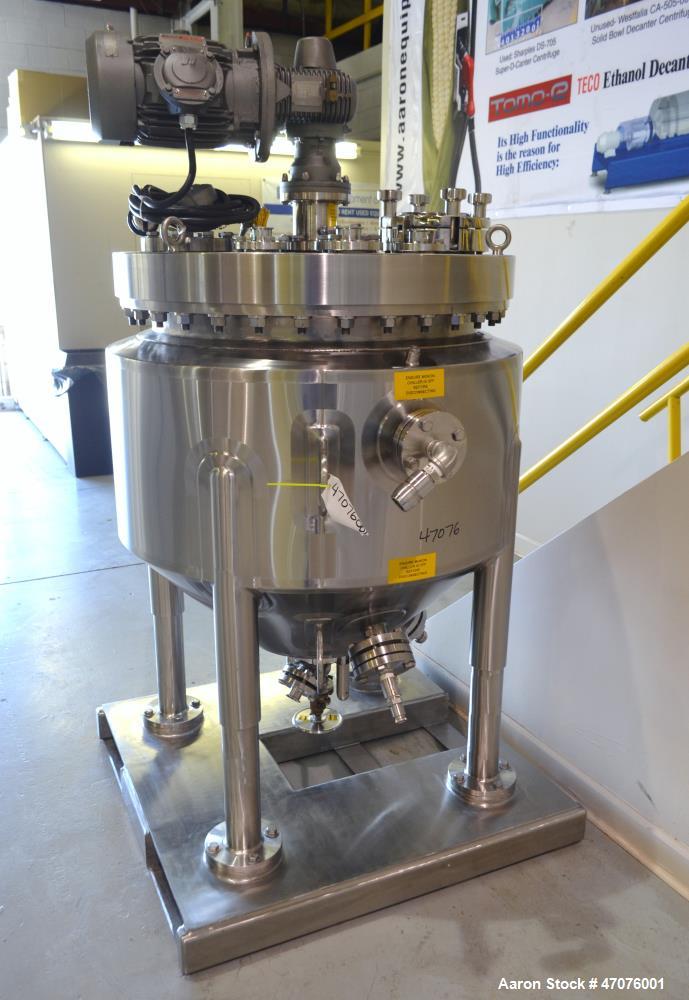

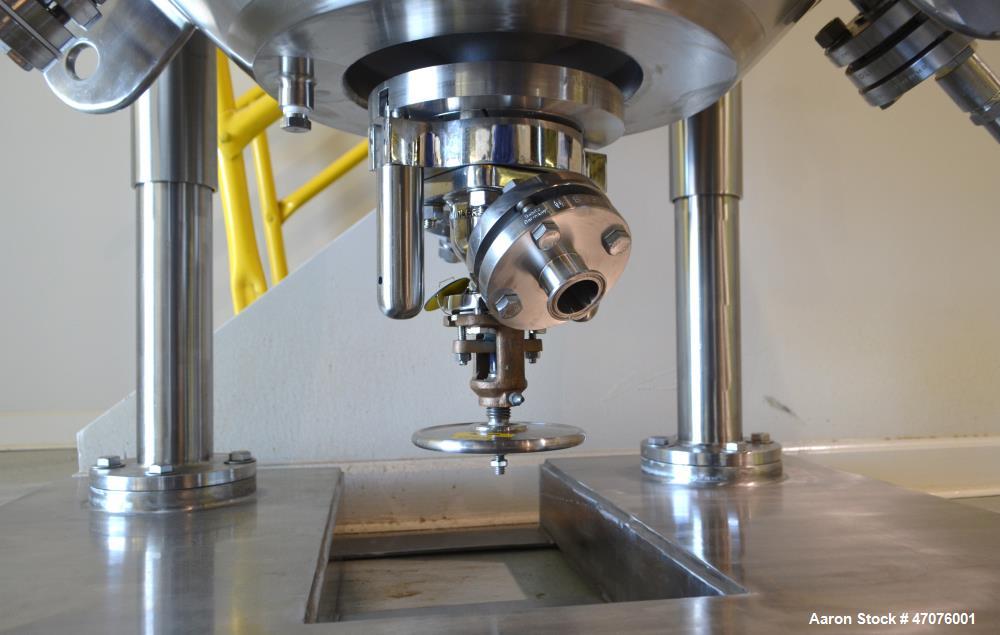

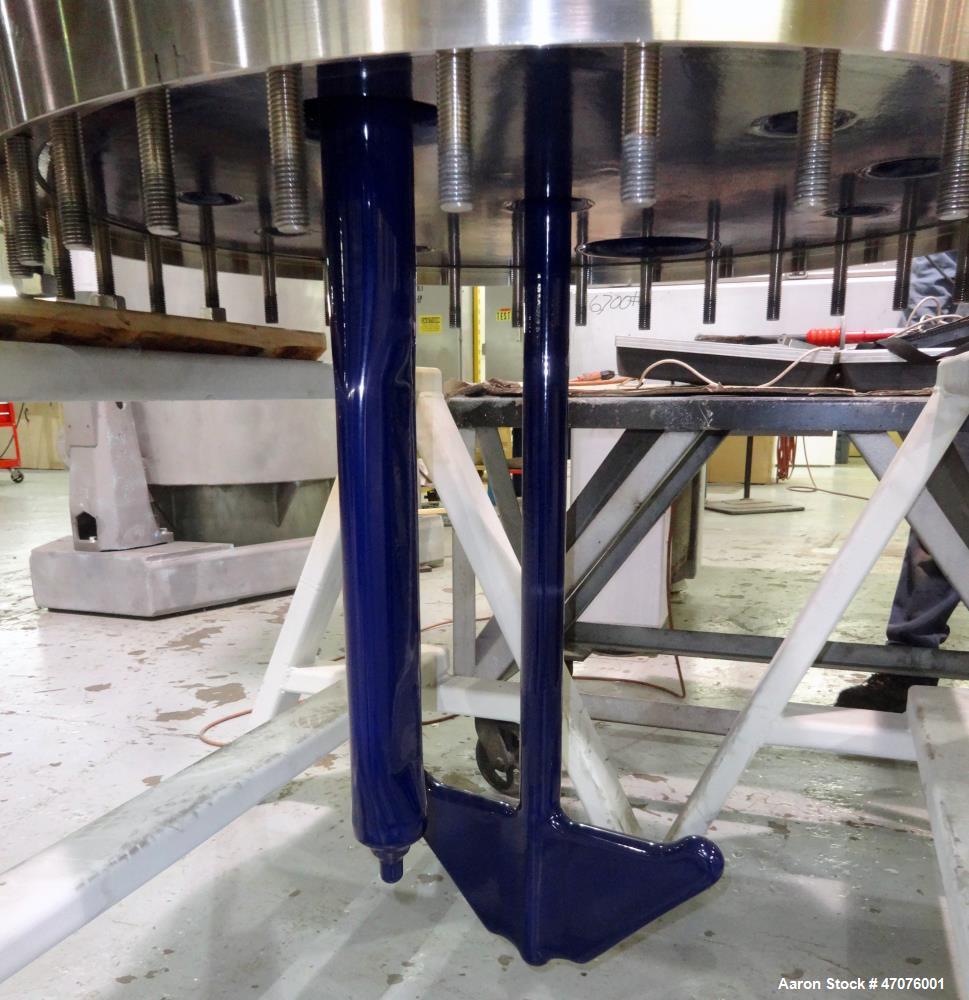

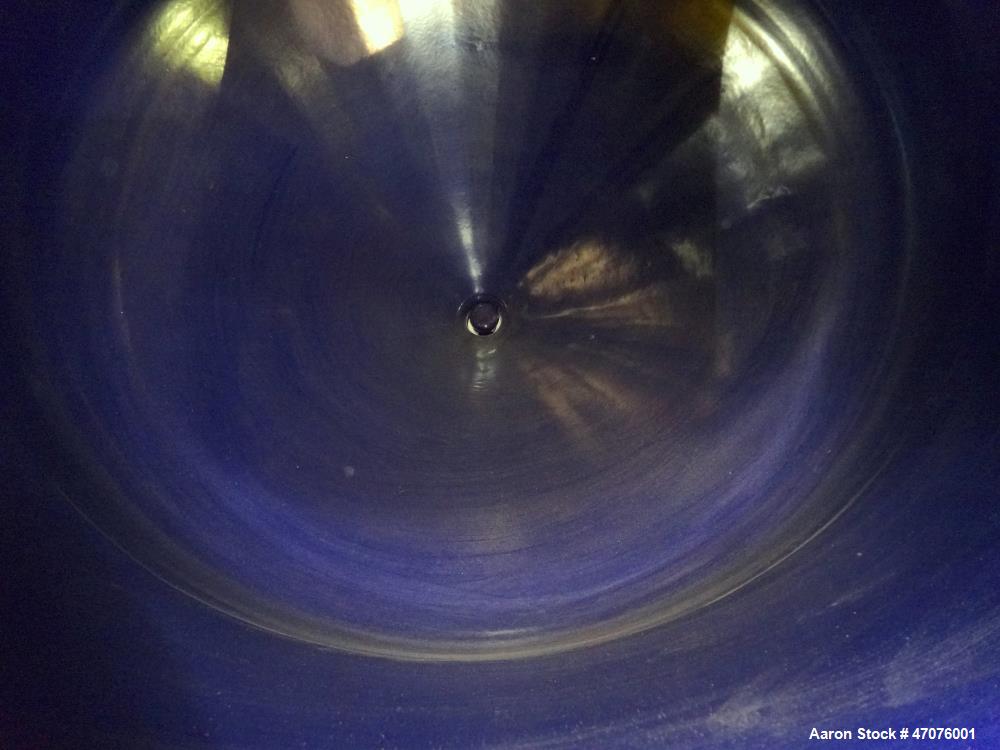

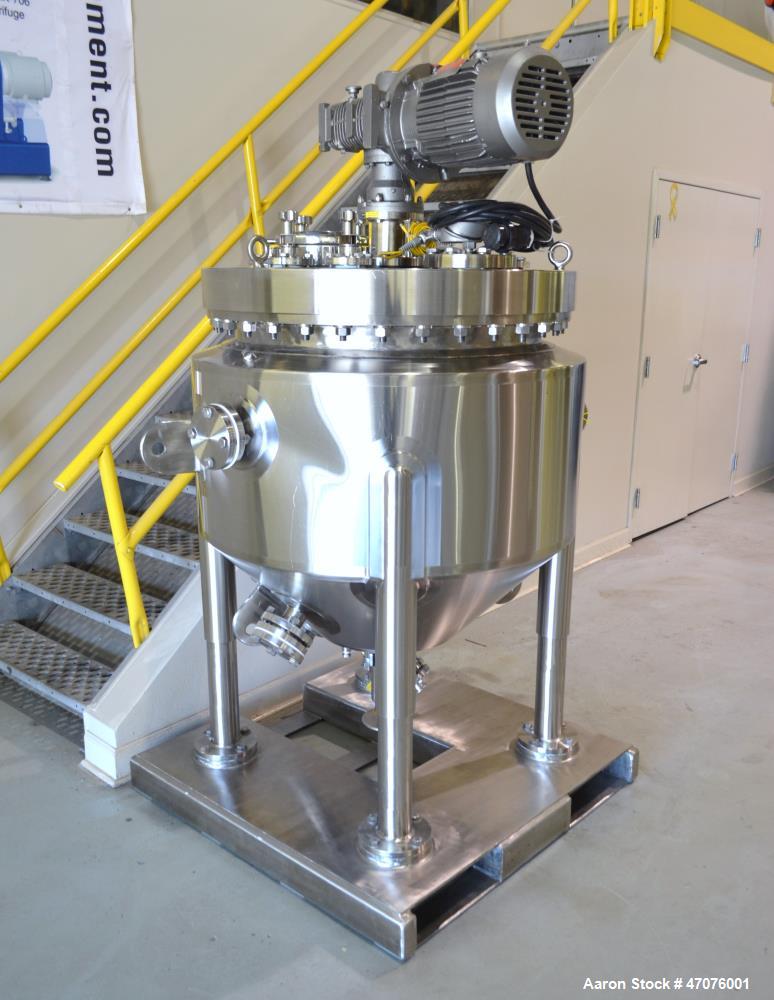

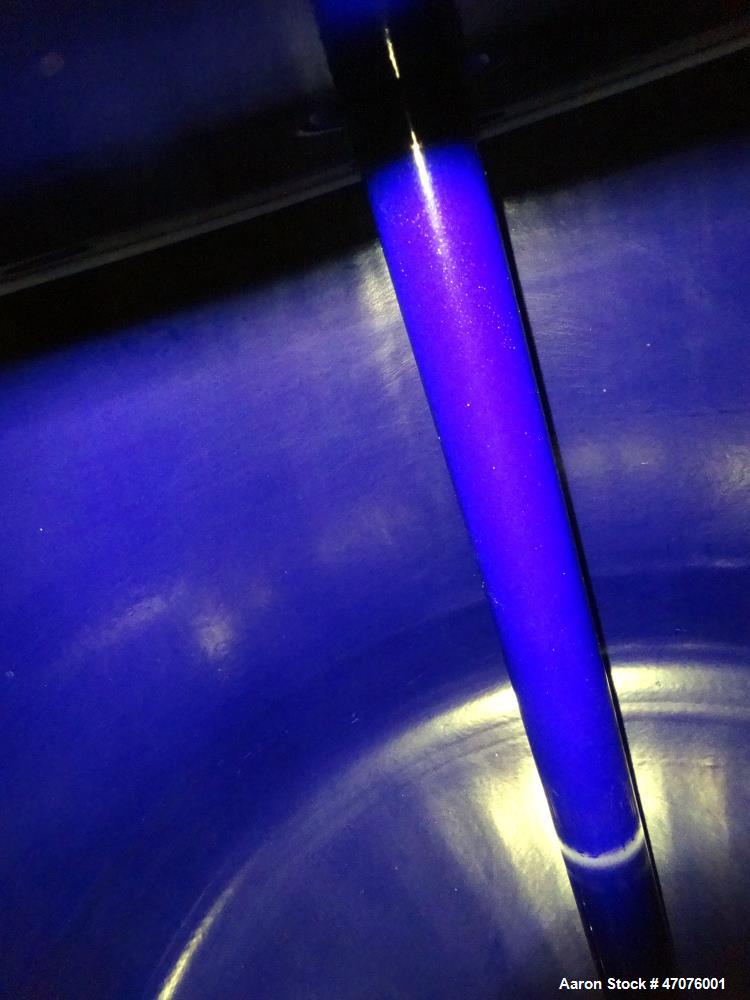

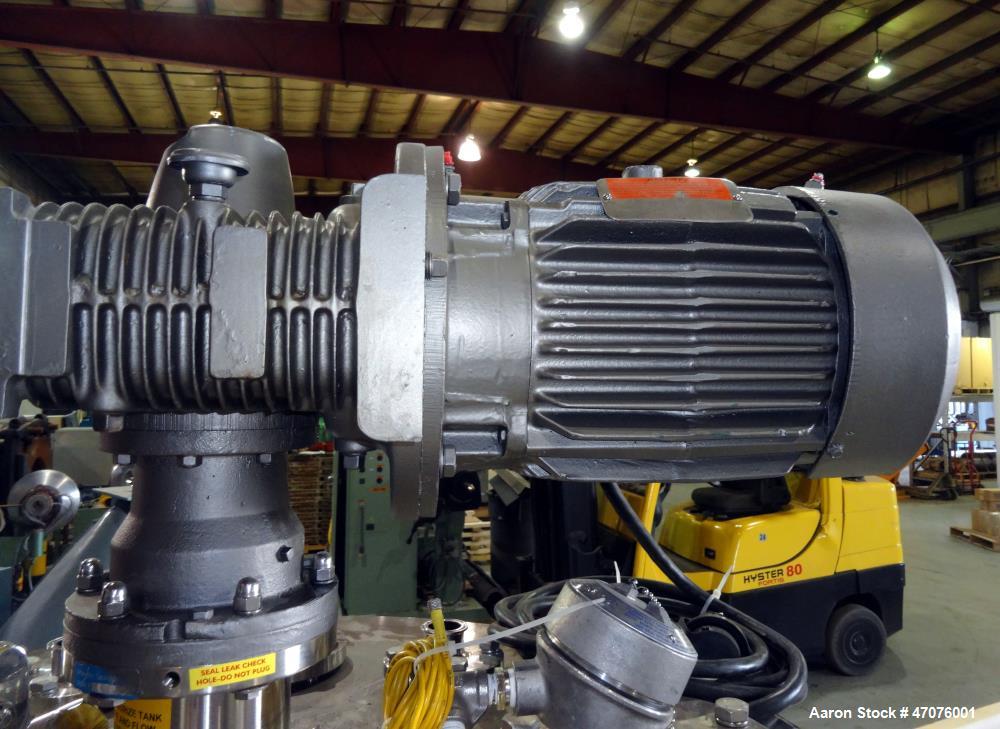

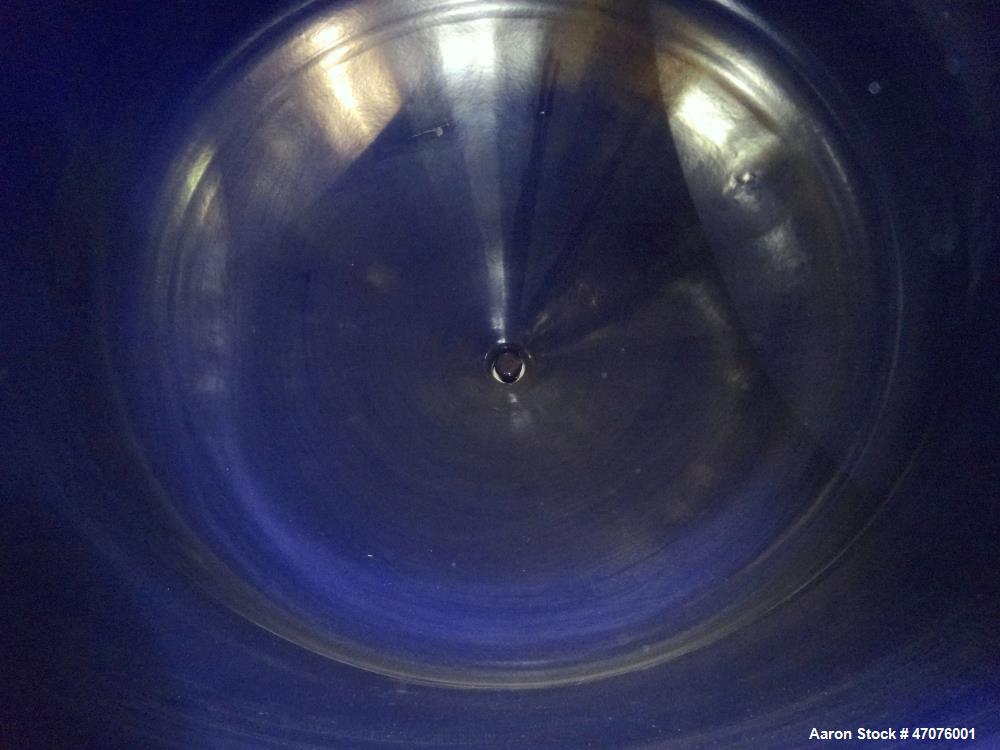

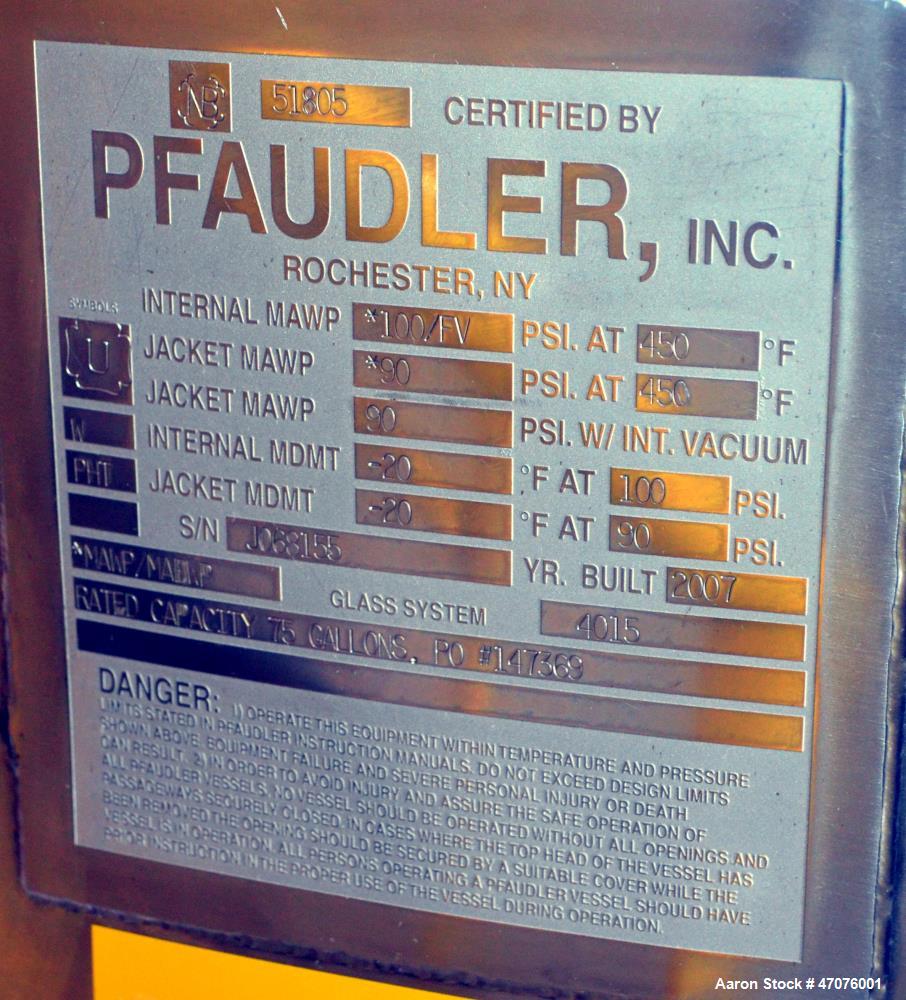

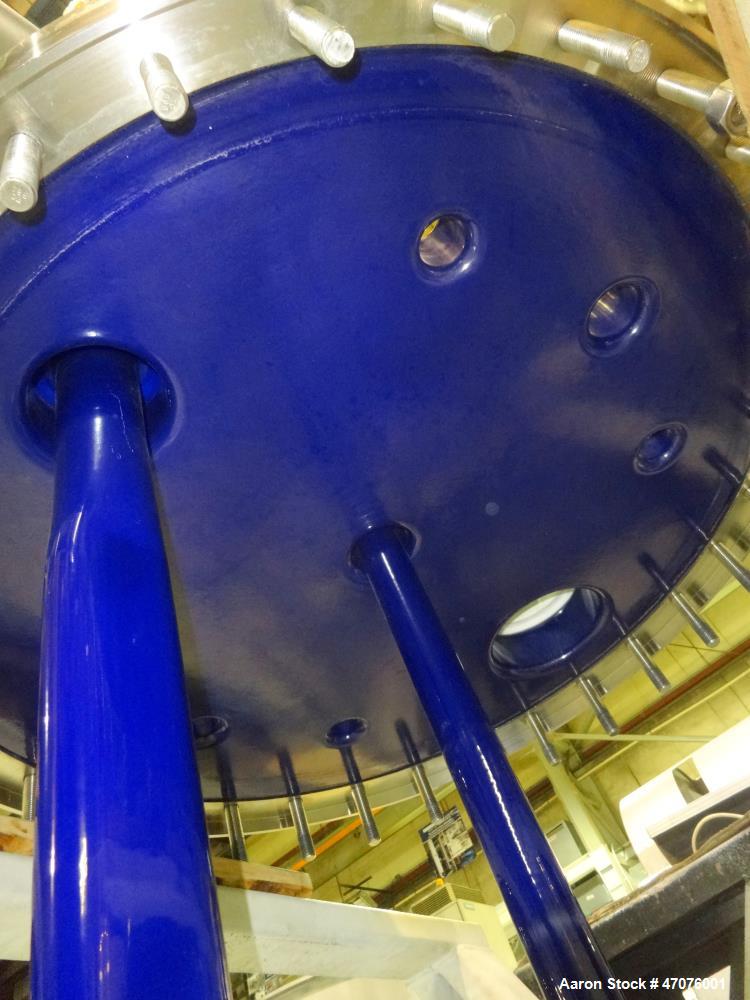

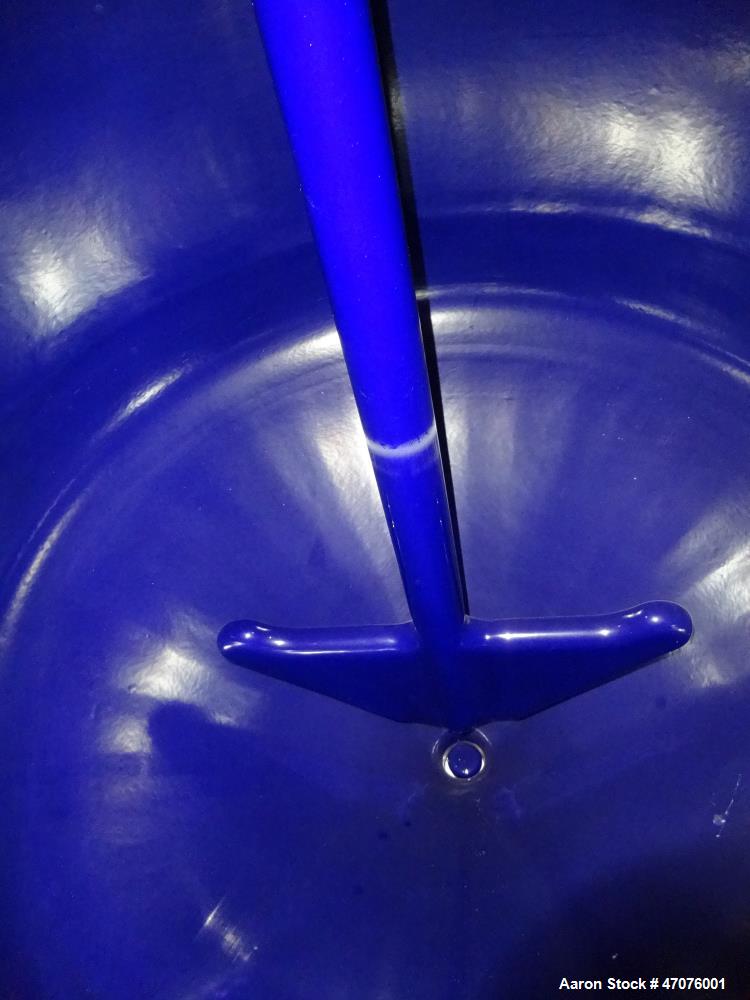

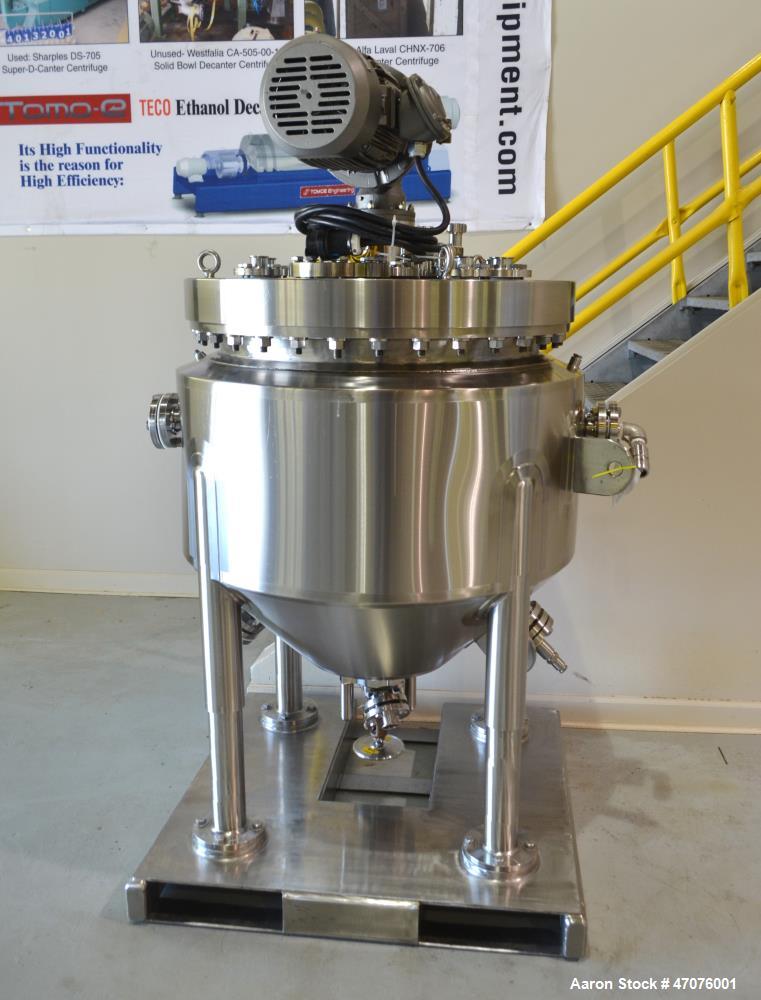

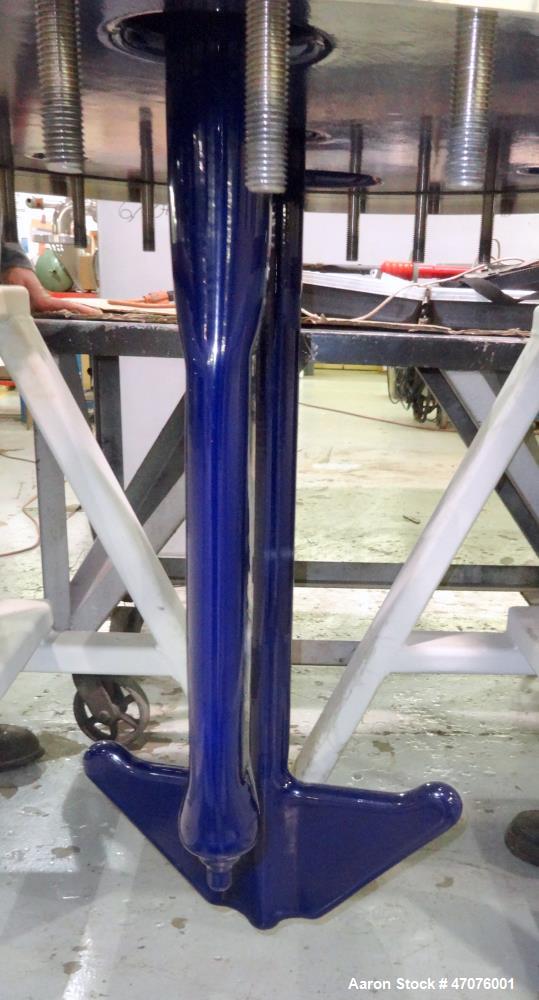

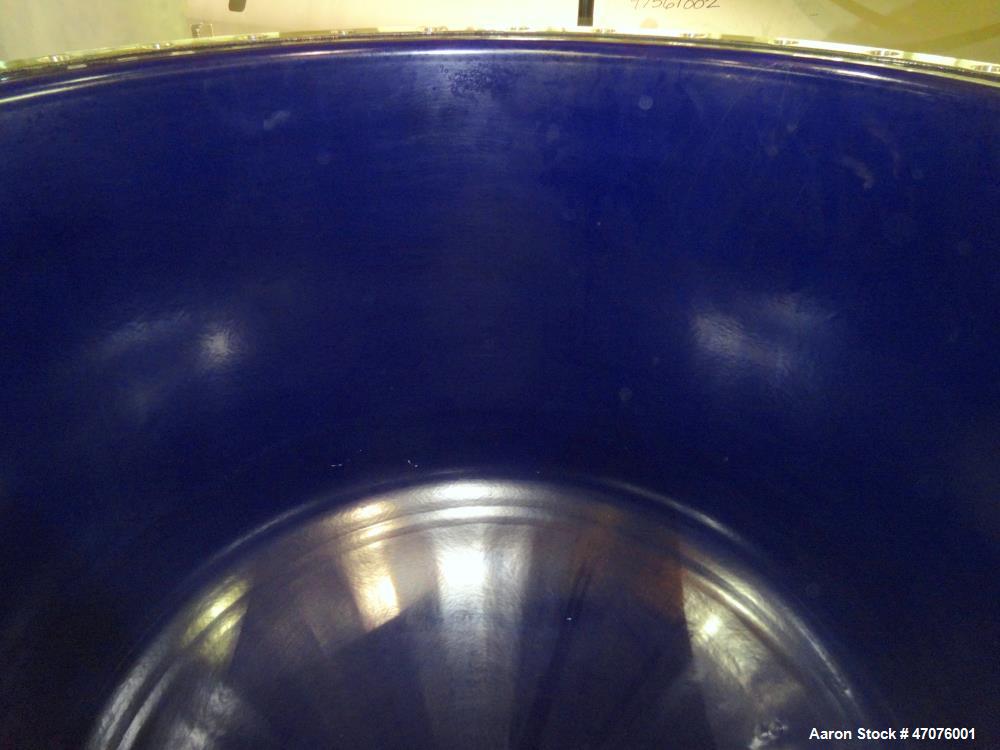

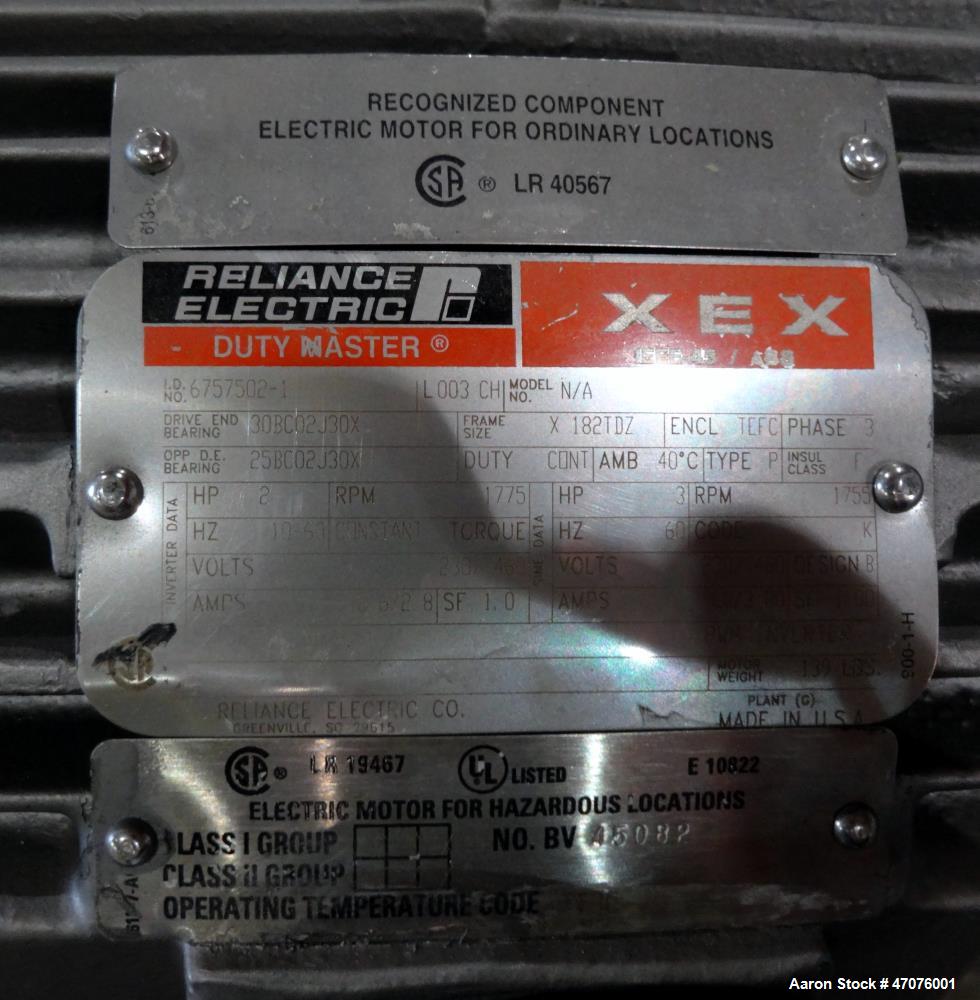

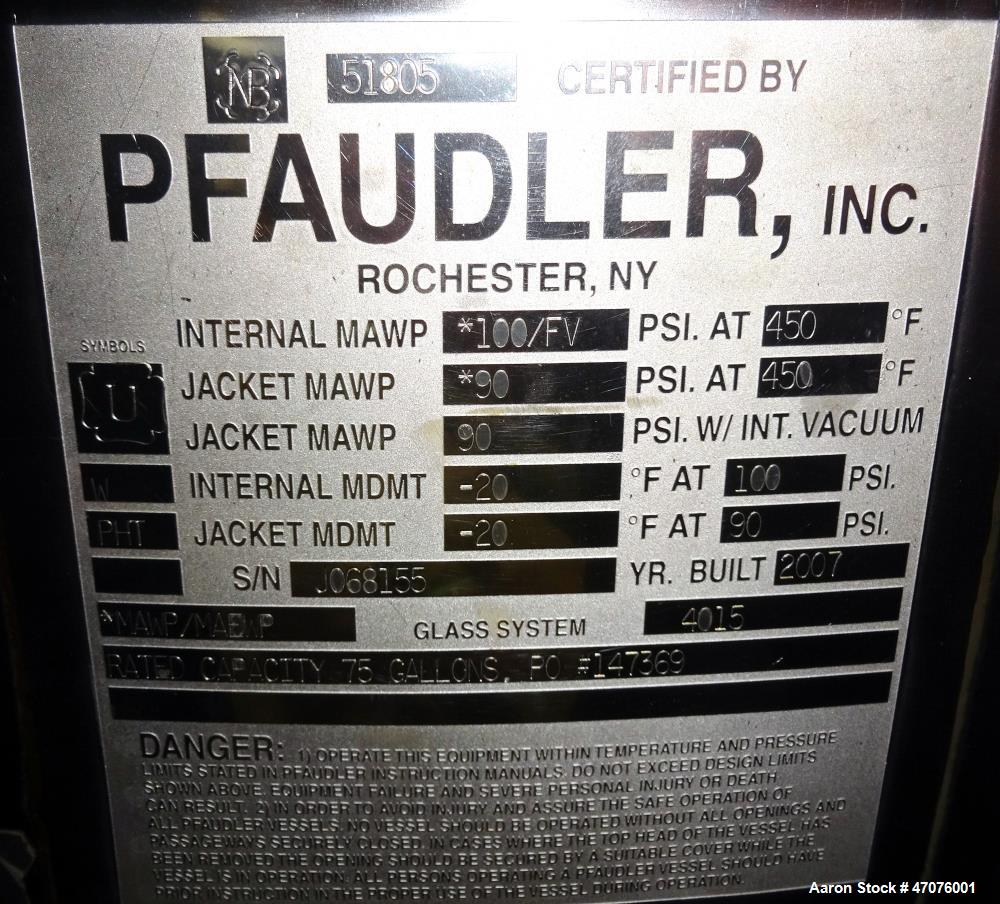

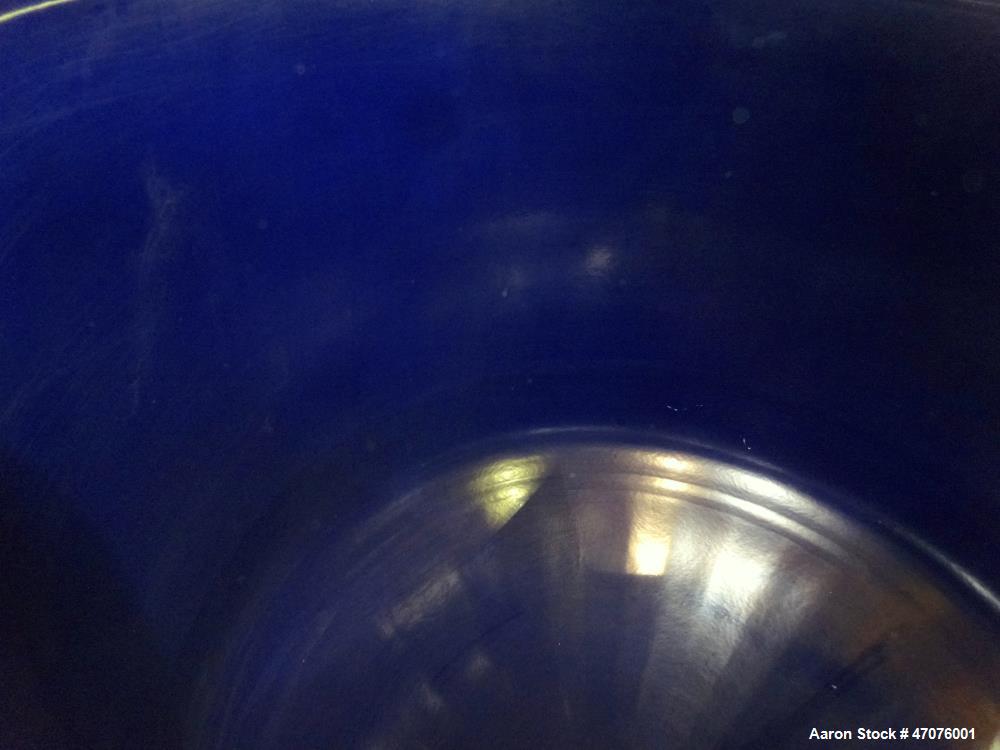

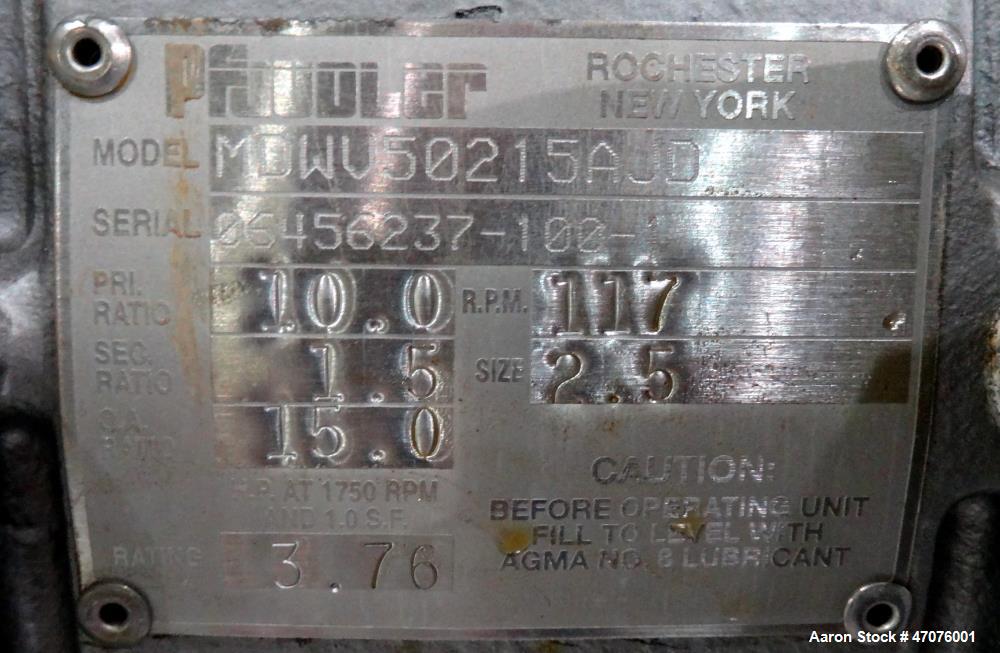

Used Pfaudler RX Series Pharmaceutical Glass Lined Reactor, 75 Gallon, Vertical. 4015 Blue glass. Approximately 30" diameter x 22" straight side, flat bolt on top, coned bottom. Internal rated 100/Full Vacuum at -20 to 450 degrees F. Jacket rated 90 psi with internal Full Vacuum at -20 to 450 degrees F. Paddle anchor style agitator, driven by a Pfaudler size 2.5, Model MDWV50215AJD, Serial# 06456237 with a cartridge seal. Driven by a 2-3hp/3/10-60/230/460 volt, 1775/1755 rpm XP motor. O.A. ratio 15 to 1. Reactor insulated with stainless steel sheathing. Openings top (5) 1-1/2" tri-clamp, 2" tri-clamp, 4" drive, approximate 4" blank, 6" hand hole with a sight glass cover. 1-1/2" Center bottom outlet. Mounted on 4 stainless steel legs bolted to a forklift base. Serial# J068155, National Board 51805, built 2007.
Used Pfaudler RX Series Pharmaceutical Glass Lined Reactor, 75 Gallon, Vertical. 4015 Blue glass. Approximately 30" diameter x 22" straight side, flat bolt on top, coned bottom. Internal rated 100/Full Vacuum at -20 to 450 degrees F. Jacket rated 90 psi with internal Full Vacuum at -20 to 450 degrees F. Paddle anchor style agitator, driven by a Pfaudler size 2.5, Model MDWV50215AJD, Serial# 06456237 with a cartridge seal. Driven by a 2-3hp/3/10-60/230/460 volt, 1775/1755 rpm XP motor. O.A. ratio 15 to 1. Reactor insulated with stainless steel sheathing. Openings top (5) 1-1/2" tri-clamp, 2" tri-clamp, 4" drive, approximate 4" blank, 6" hand hole with a sight glass cover. 1-1/2" Center bottom outlet. Mounted on 4 stainless steel legs bolted to a forklift base. Serial# J068155, National Board 51805, built 2007.
