Used: Pfaudler glass lined clamp top reactor, 200 gallon, model RT40-200-10-100, 9125 white glass. Approximately 40" diamete...
Stock# 40037050

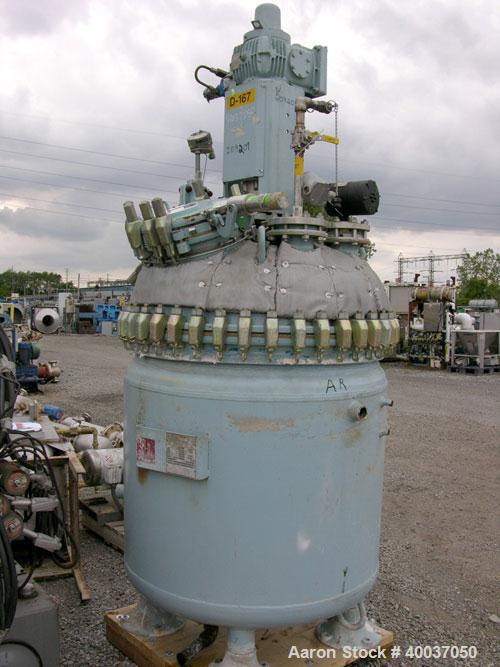

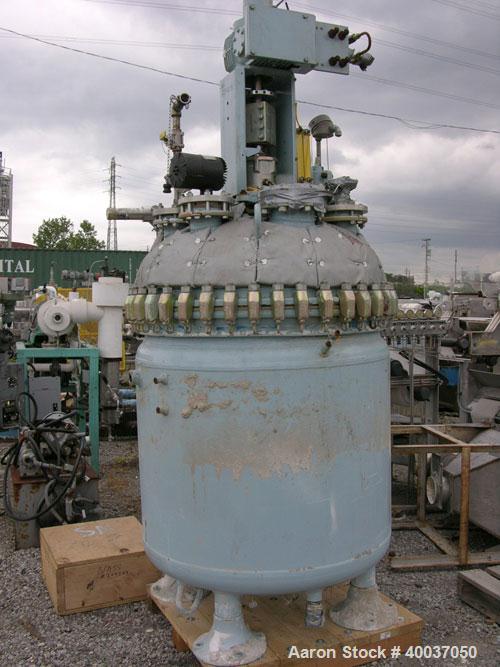

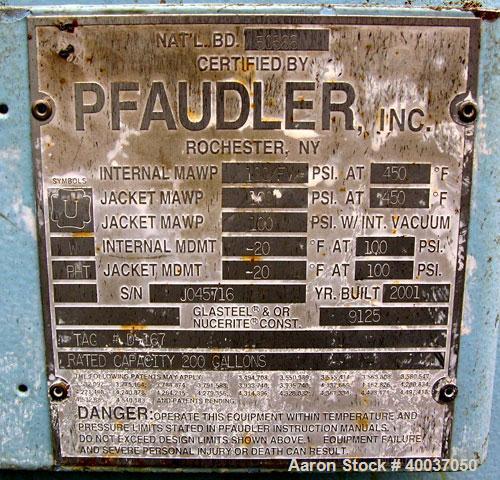

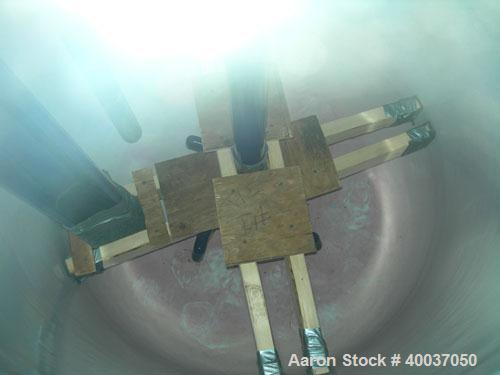

Used: Pfaudler glass lined clamp top reactor, 200 gallon, model RT40-200-10-100, 9125 white glass. Approximately 40" diameter x 45" straight side. Clamp dish top, dish bottom. Intenal rated 100/fv psi at 450 deg F, jacket rated 100 psi at 450 deg F. 3525 FDWV 52350-7B hydraulic drive, 15 to 1 ratio, no power pack. Mechanical seal on shaft, 18" diameter span 4 blade curve agitator, beavertail baffle. Openings: top (5) 4", 6", 12" x 16" manway with 4" sight glass and manway assist on cover; 3" bottom outlet. Mounted on legs. Built 2001.
Used: Pfaudler glass lined clamp top reactor, 200 gallon, model RT40-200-10-100, 9125 white glass. Approximately 40" diameter x 45" straight side. Clamp dish top, dish bottom. Intenal rated 100/fv psi at 450 deg F, jacket rated 100 psi at 450 deg F. 3525 FDWV 52350-7B hydraulic drive, 15 to 1 ratio, no power pack. Mechanical seal on shaft, 18" diameter span 4 blade curve agitator, beavertail baffle. Openings: top (5) 4", 6", 12" x 16" manway with 4" sight glass and manway assist on cover; 3" bottom outlet. Mounted on legs. Built 2001.
