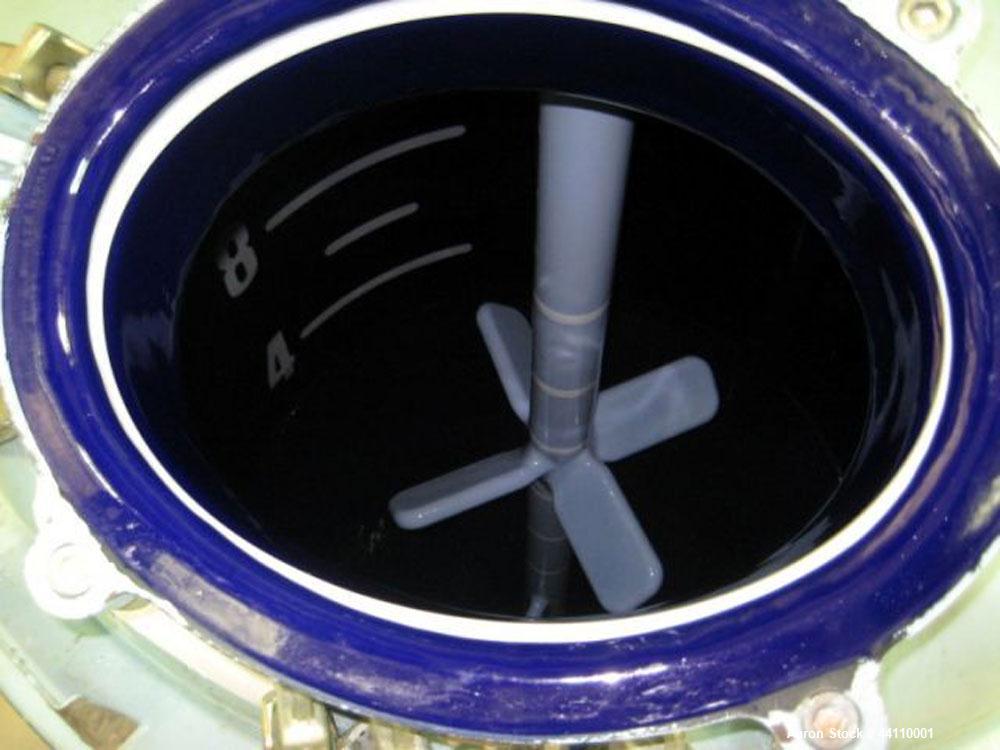

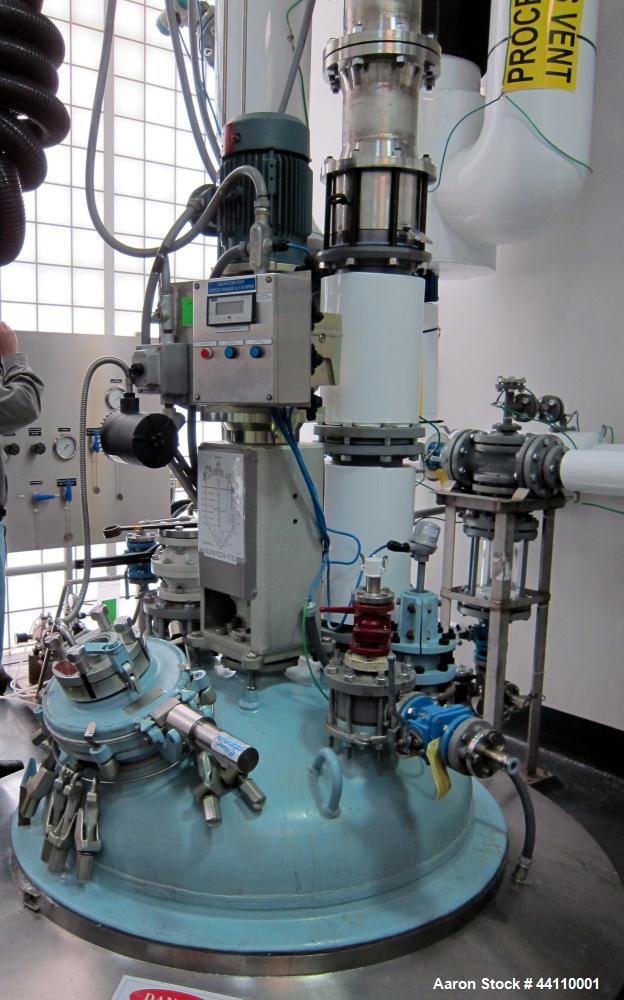

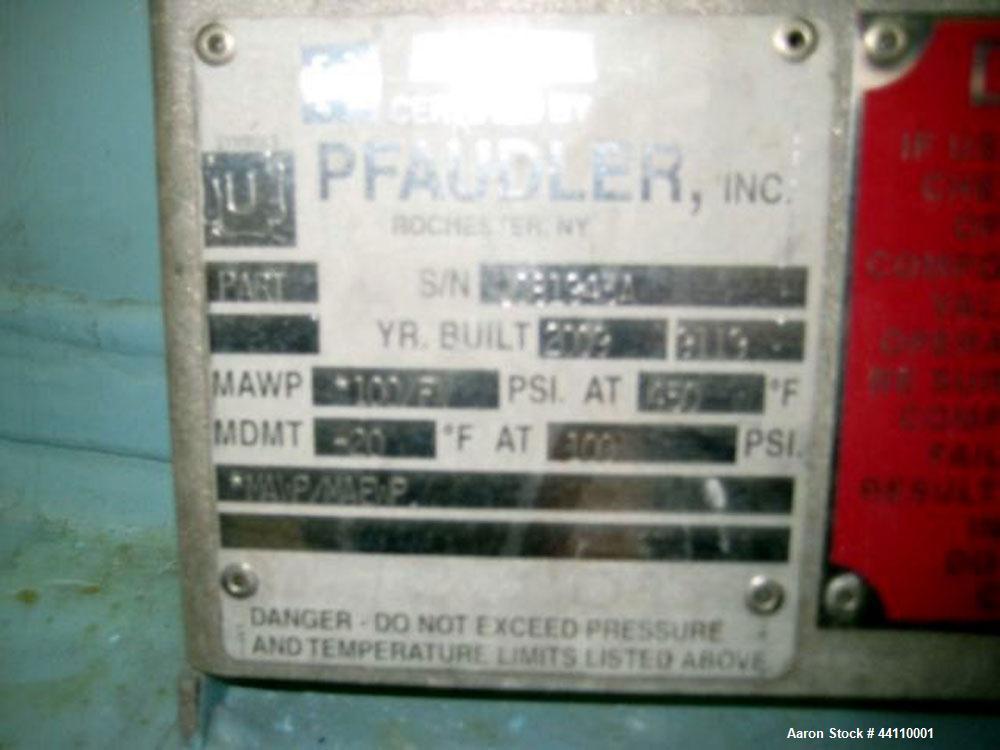

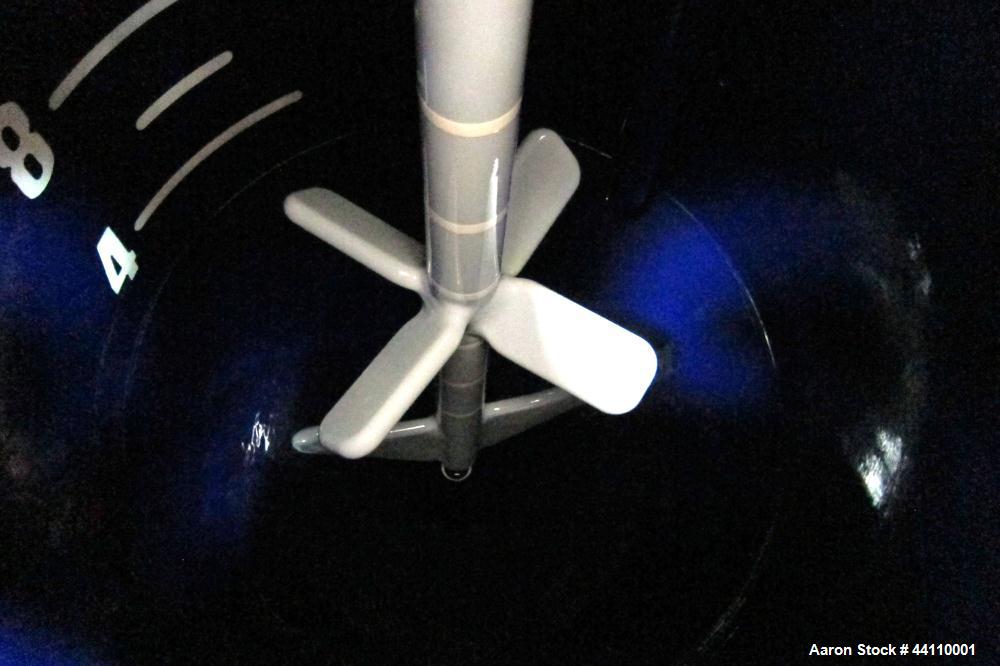

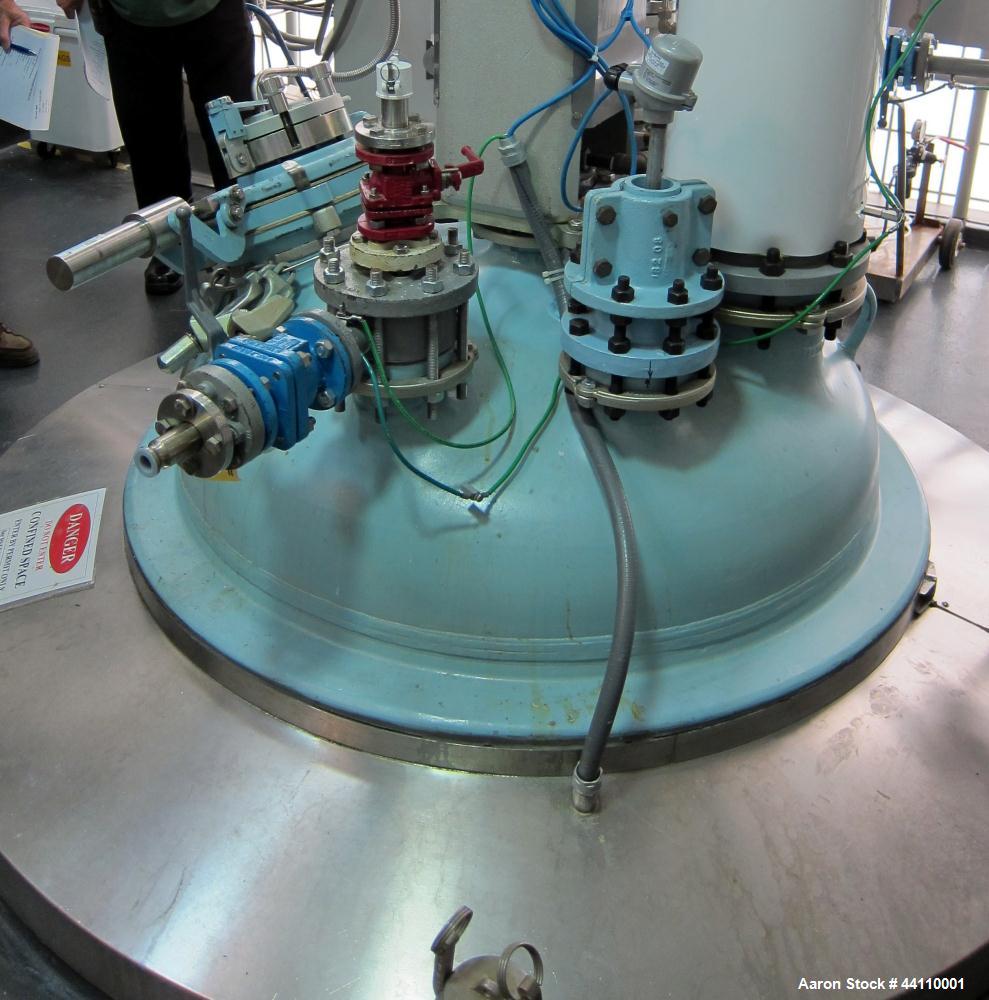

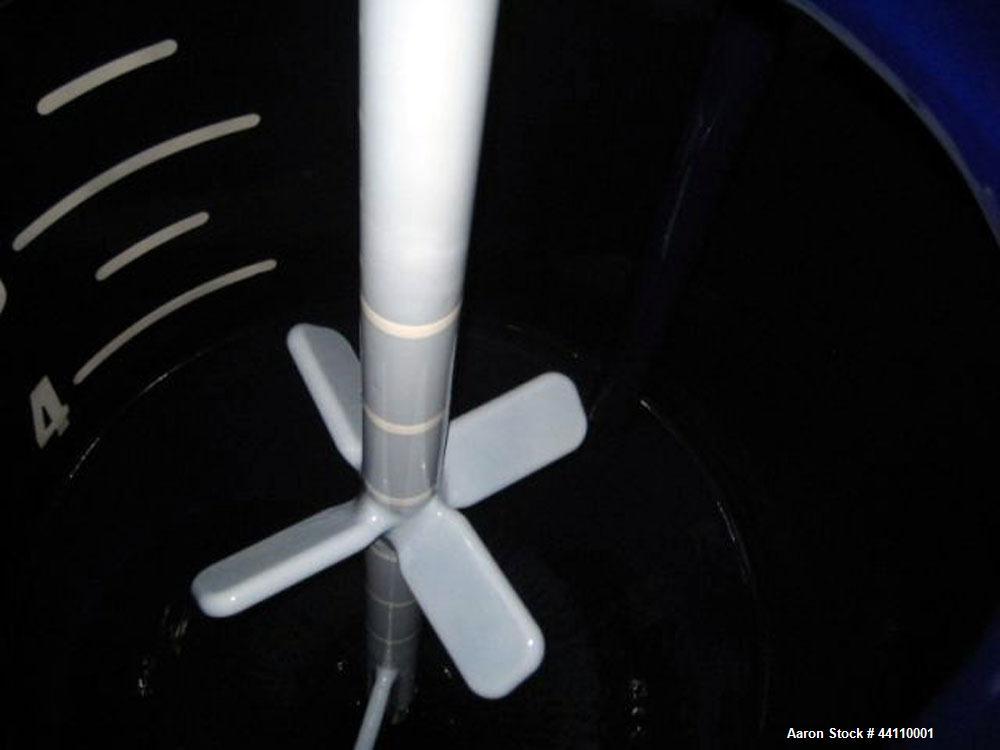

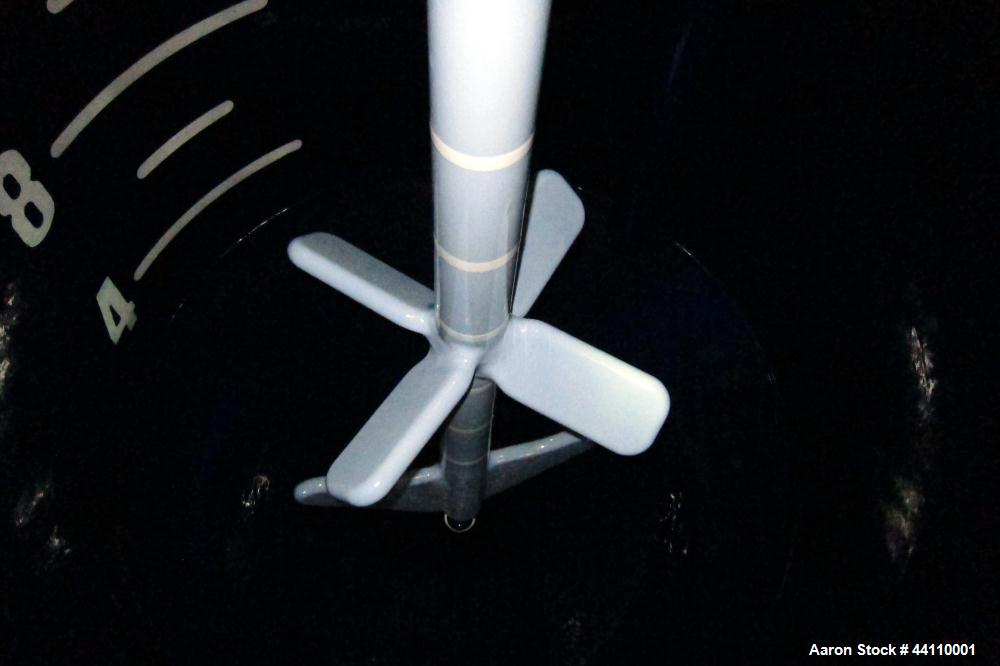

Used Pfaudler Glass Lined Reactor, 300 Gallon. Internal rated 100 psi & Full Vacuum at 450 degrees F, jacket rated 105 psi & Full Vacuum at 450 degrees F. Type 9119 Dark Blue Glass. Bolted top, Cone bottom. 316L Stainless Steel sheathing. Lug mounted. 48" ID x 37-3/8" straight side. VMX-250 drive assembly. Motor - 5 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle One fin baffle. Agitator dual flight, 22" span upper pitch blade turbine and 26" span chevron lower, designed for counter-clockwise rotation. Top Head Openings: (1) 4-3/8" drive nozzle, (1) 8" nozzle, (1) 6" nozzle, (2) 4" nozzles, (1) 3" nozzle. Bottom Head Openings: (1) 3" nozzle. Serial #J081943, National Board # 52254, Built 2009. Weight 4121 lbs. Previous Use: API Pilot Plant.
Used Pfaudler Glass Lined Reactor, 300 Gallon. Internal rated 100 psi & Full Vacuum at 450 degrees F, jacket rated 105 psi & Full Vacuum at 450 degrees F. Type 9119 Dark Blue Glass. Bolted top, Cone bottom. 316L Stainless Steel sheathing. Lug mounted. 48" ID x 37-3/8" straight side. VMX-250 drive assembly. Motor - 5 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle One fin baffle. Agitator dual flight, 22" span upper pitch blade turbine and 26" span chevron lower, designed for counter-clockwise rotation. Top Head Openings: (1) 4-3/8" drive nozzle, (1) 8" nozzle, (1) 6" nozzle, (2) 4" nozzles, (1) 3" nozzle. Bottom Head Openings: (1) 3" nozzle. Serial #J081943, National Board # 52254, Built 2009. Weight 4121 lbs. Previous Use: API Pilot Plant.
