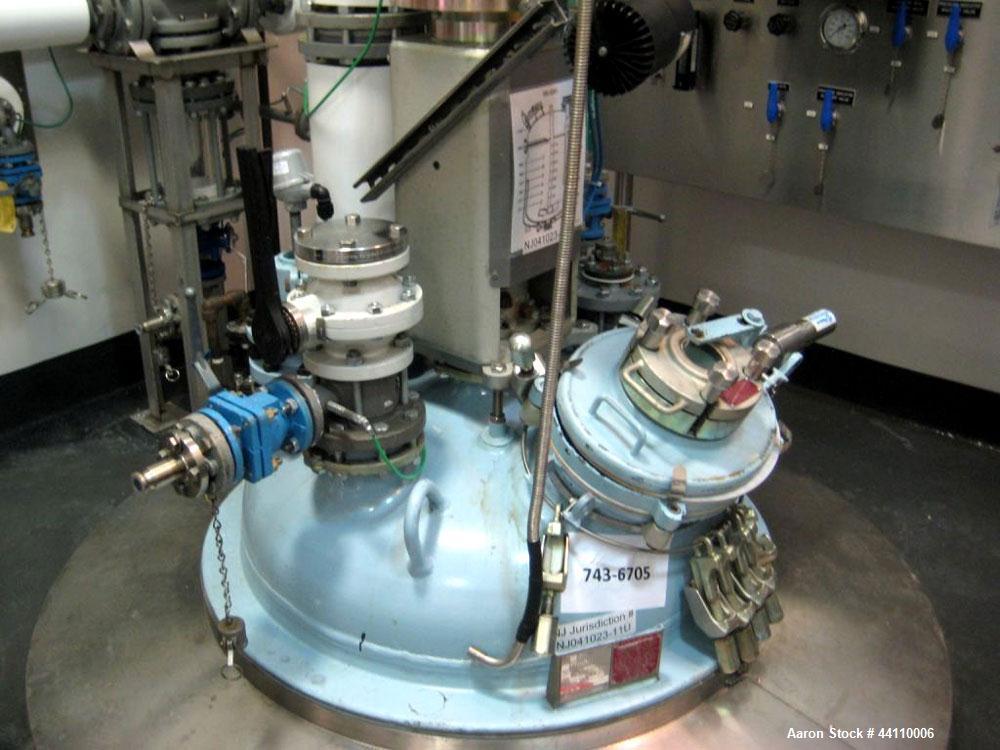

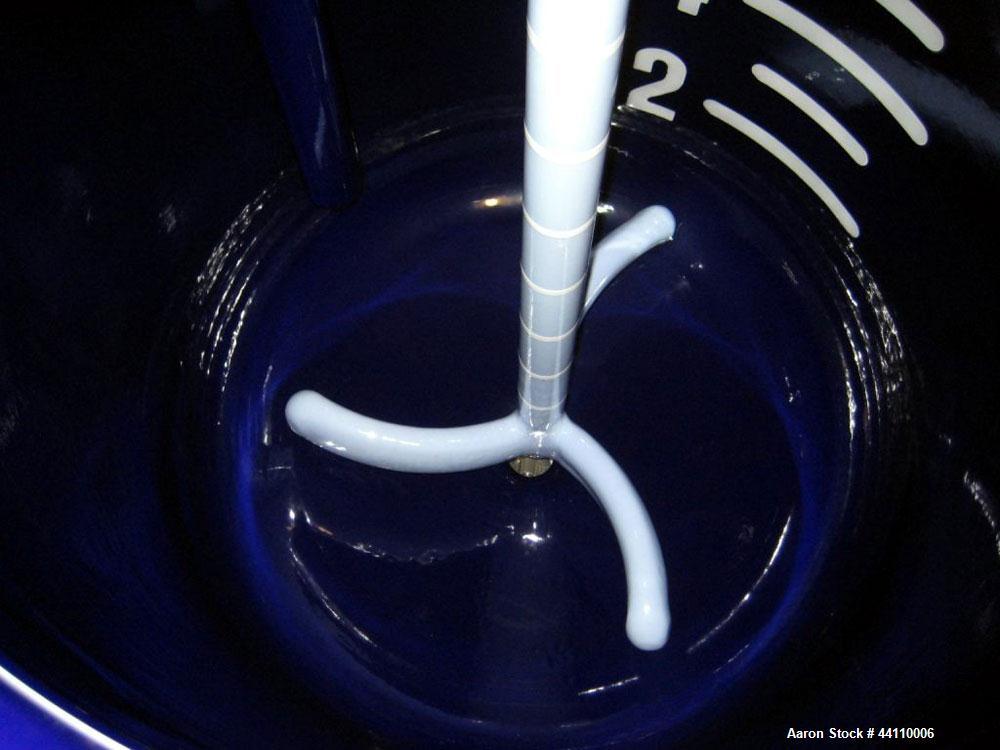

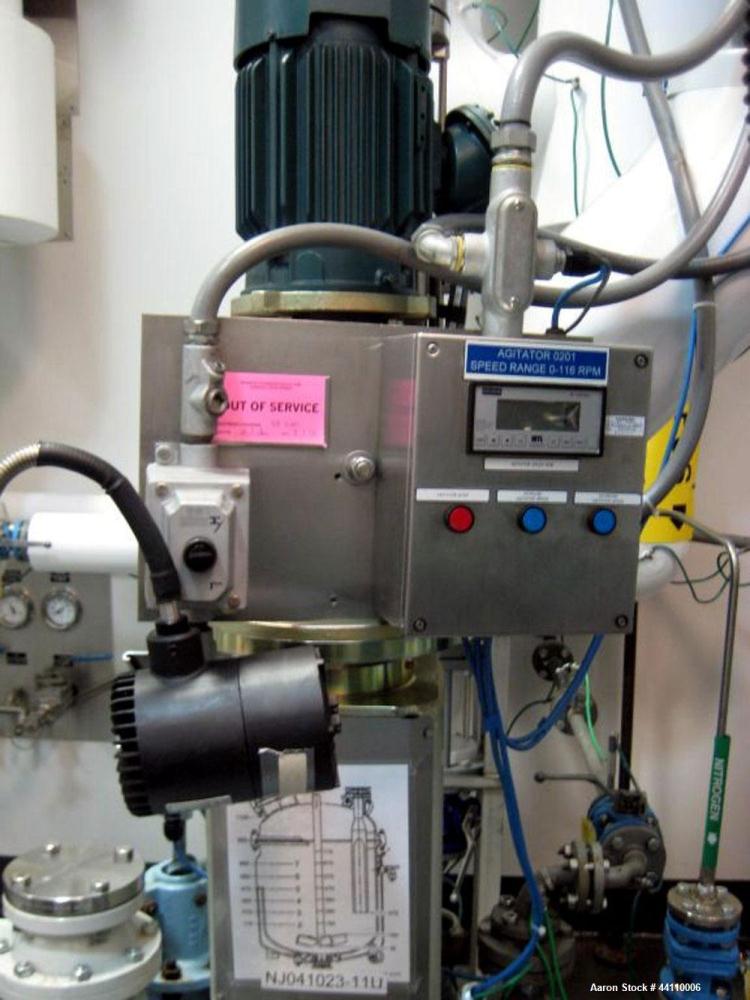

Used Pfaudler Glass Lined Reactor, 200 Gallon. Internal rated 100 psi & Full Vacuum at 450 degrees F, jacket rated 120 psi & Full Vacuum at 450 degrees F.Type 9119 Dark Blue Glass.Bolted top. 316L Stainless Steel sheathing. Lug mounted. 40" ID x 45 " deep. VMX-250 drive assembly. Motor - 3 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle One fin baffle. Agitator (3) blade retreat curve impeller. Top Head Openings: (1) 4 3/8" drive nozzle, (1) 6" nozzle, (3) 4" nozzles, (1) 3" nozzle. Bottom Head Openings: (1) 3" nozzle. Serial #J081942, National Board # 52252, Built 2009. Weight 2922 lbs. Previous Use: API Pilot Plant.
Used Pfaudler Glass Lined Reactor, 200 Gallon. Internal rated 100 psi & Full Vacuum at 450 degrees F, jacket rated 120 psi & Full Vacuum at 450 degrees F.Type 9119 Dark Blue Glass.Bolted top. 316L Stainless Steel sheathing. Lug mounted. 40" ID x 45 " deep. VMX-250 drive assembly. Motor - 3 hp, 3 phase, 60 hertz, 230/460 volt, 1800 RPM, explosion proof. Baffle One fin baffle. Agitator (3) blade retreat curve impeller. Top Head Openings: (1) 4 3/8" drive nozzle, (1) 6" nozzle, (3) 4" nozzles, (1) 3" nozzle. Bottom Head Openings: (1) 3" nozzle. Serial #J081942, National Board # 52252, Built 2009. Weight 2922 lbs. Previous Use: API Pilot Plant.
