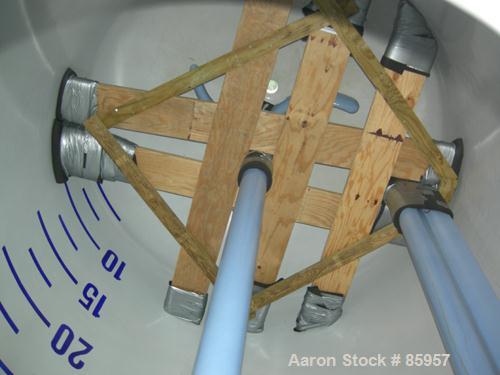

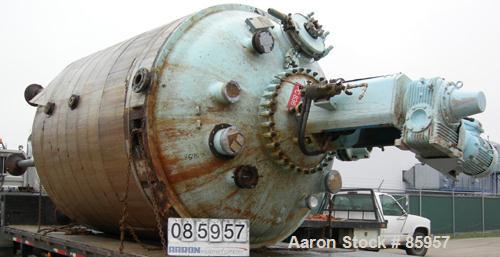

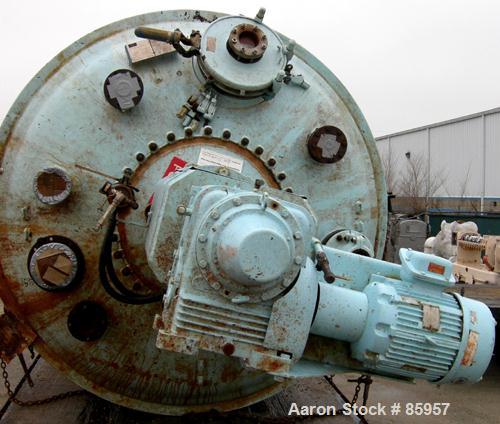

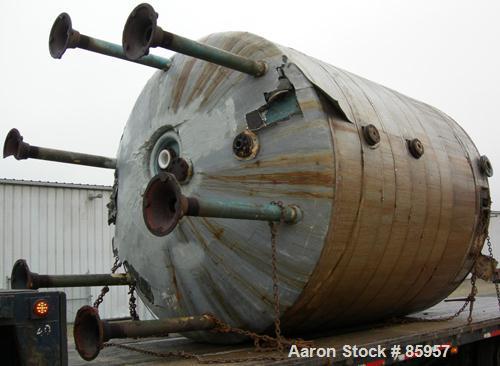

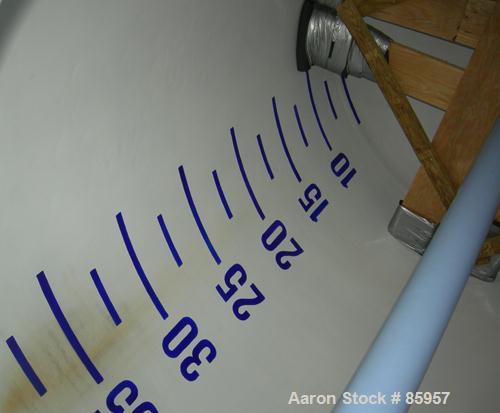

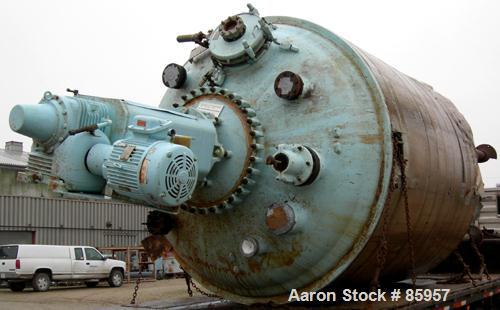

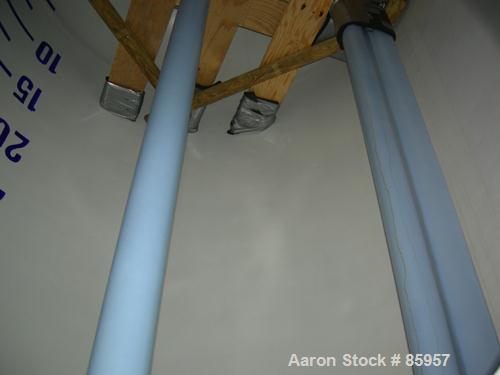

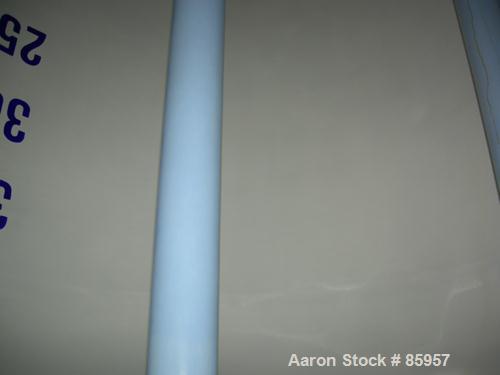

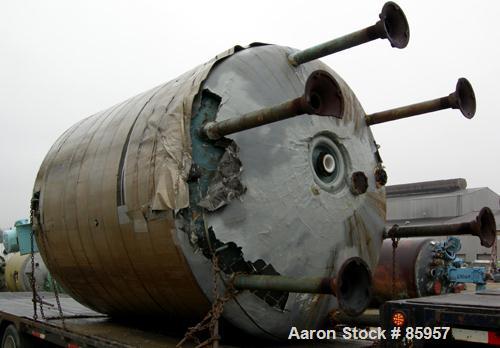

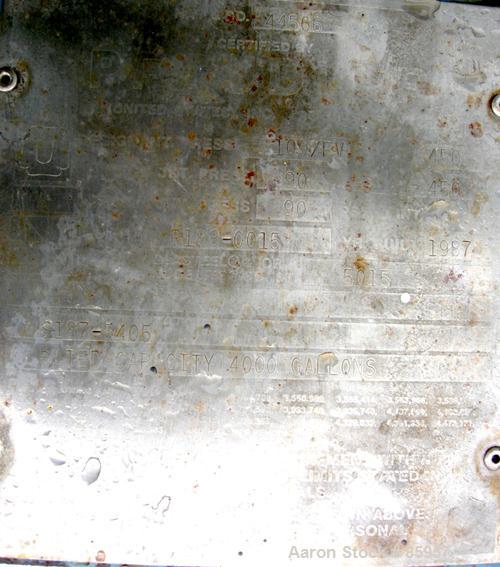

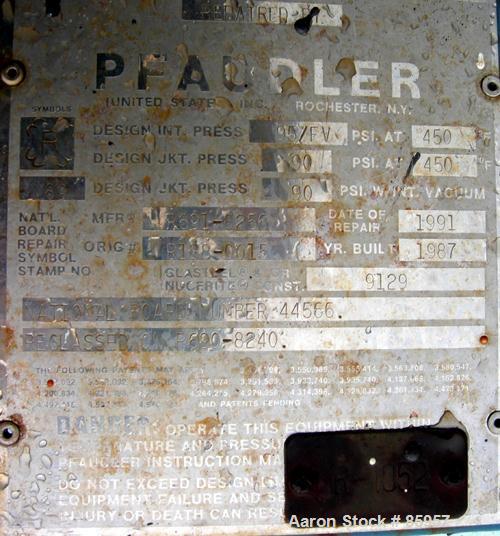

USED: Pfaudler 4000 gallon glass lined reactor, model RA-96. 96" diameter x 113" straight side. Internal rated 95 psi/full vacuum @ 450 deg F. Jacket rated 90 psi @ 450 deg F. Internal has pharmaceutical white glass with calibration lines. Drive assembly consists of a Pfaudler model 7.00 SRW drive with 3 blade retreat curve impeller, approximate 44" span and fin baffle. Double mechanical seal. 25 hp motor. Agitator rpm is 87.5 output. Standard top openings include the main 36" center drive cover, 18" manway, (4) 4", (2) 6" and (2) 8"; 4" center bottom opening. Vessel serial number is R188-0155. National Board #44566. Built in 1987. Reglassed by Pfaudler in 1991. New serial #R691-8256. Type 9121. Plug free. Vessel has been spark tested.
USED: Pfaudler 4000 gallon glass lined reactor, model RA-96. 96" diameter x 113" straight side. Internal rated 95 psi/full vacuum @ 450 deg F. Jacket rated 90 psi @ 450 deg F. Internal has pharmaceutical white glass with calibration lines. Drive assembly consists of a Pfaudler model 7.00 SRW drive with 3 blade retreat curve impeller, approximate 44" span and fin baffle. Double mechanical seal. 25 hp motor. Agitator rpm is 87.5 output. Standard top openings include the main 36" center drive cover, 18" manway, (4) 4", (2) 6" and (2) 8"; 4" center bottom opening. Vessel serial number is R188-0155. National Board #44566. Built in 1987. Reglassed by Pfaudler in 1991. New serial #R691-8256. Type 9121. Plug free. Vessel has been spark tested.
