Used- Pfaudler Glass Lined Clamp Top Reactor, 30 gallon, 9115 glass, vertical. Approximately 22" diameter x 22" straight sid...
Stock# 40037525

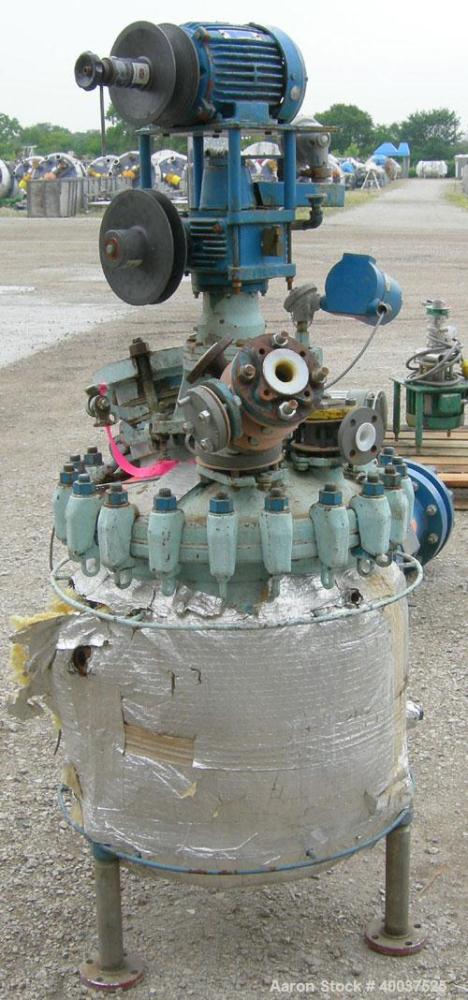

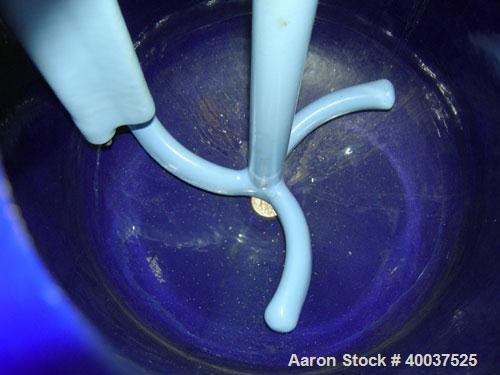

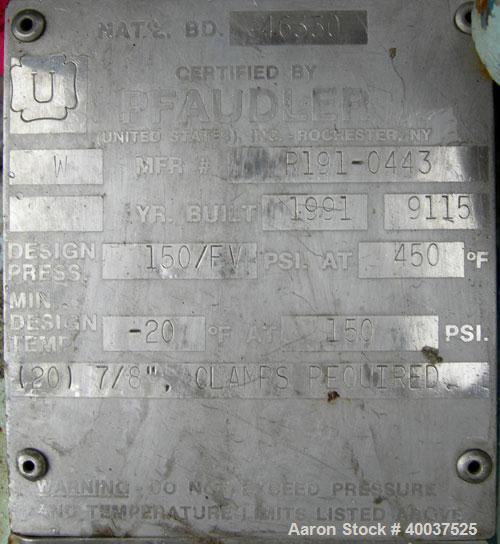

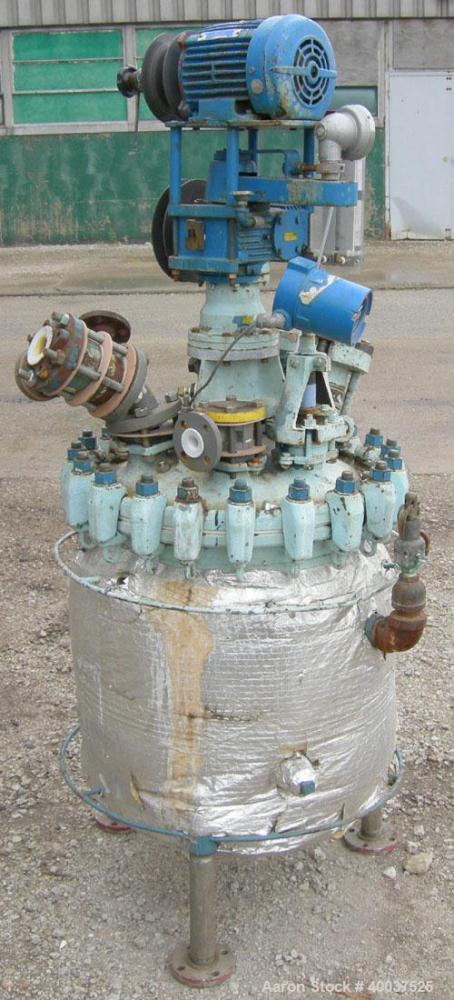

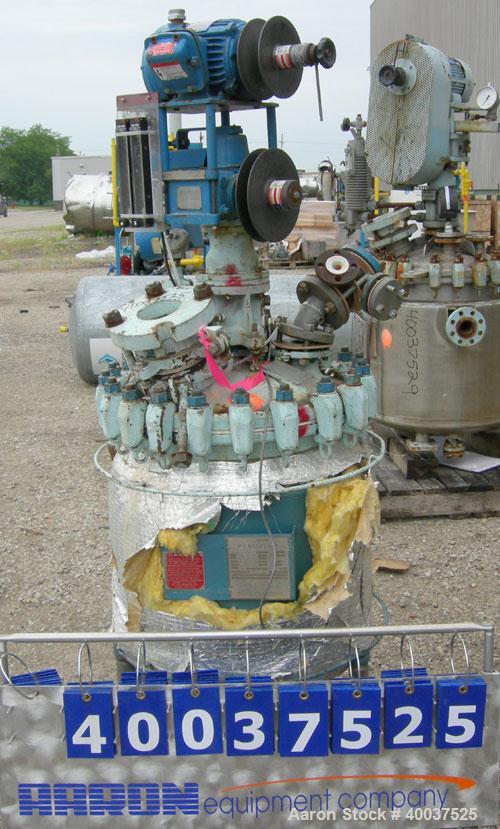

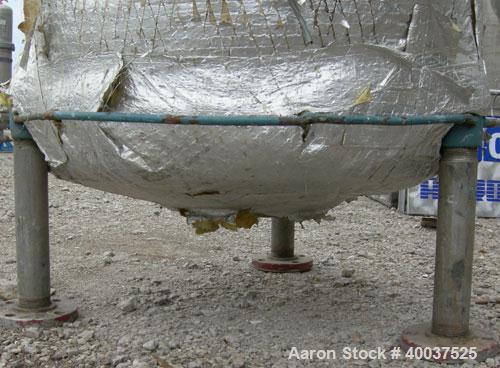

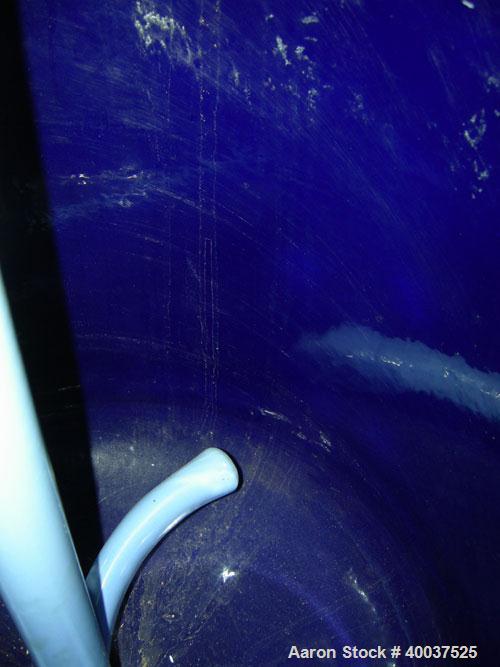

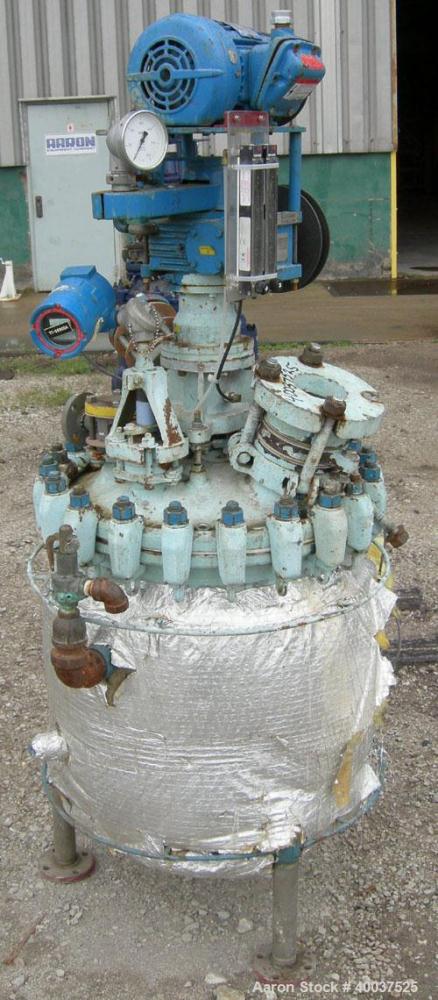

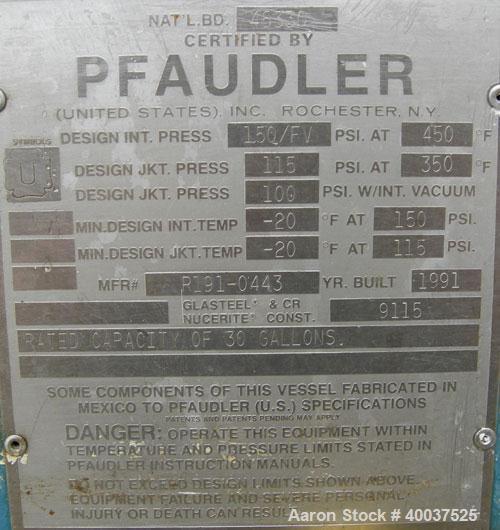

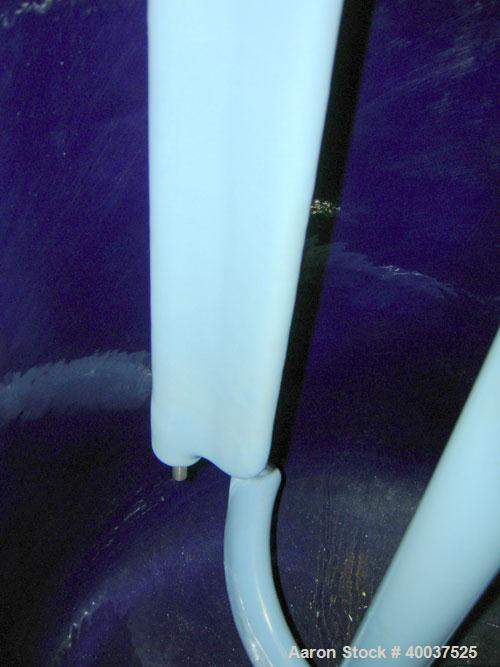

Used- Pfaudler Glass Lined Clamp Top Reactor, 30 gallon, 9115 glass, vertical. Approximately 22" diameter x 22" straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 450 deg F, jacket rated 115 psi at 350 deg F, 100 psi with internal vacuum. 3 blade retreat curve agitator blade, 2.5 DTW drive, 15 to 1 ratio, manual vari-speed. Driven by a 1 hp 3/60/230/460 volt, 1735 rpm xp motor. Baffle. Openings: top (3) 2", 4" hand hole with a sight glass cover; 2" bottom outlet. Mounted on 3 legs. Serial #R191-0443, National Board #46330, built 1991.
Used- Pfaudler Glass Lined Clamp Top Reactor, 30 gallon, 9115 glass, vertical. Approximately 22" diameter x 22" straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 450 deg F, jacket rated 115 psi at 350 deg F, 100 psi with internal vacuum. 3 blade retreat curve agitator blade, 2.5 DTW drive, 15 to 1 ratio, manual vari-speed. Driven by a 1 hp 3/60/230/460 volt, 1735 rpm xp motor. Baffle. Openings: top (3) 2", 4" hand hole with a sight glass cover; 2" bottom outlet. Mounted on 3 legs. Serial #R191-0443, National Board #46330, built 1991.
