Used- 2000 Gallon Pfaudler K Series Glass Lined Reactor, Model KC-78-2000-100-90
Stock# 40024094

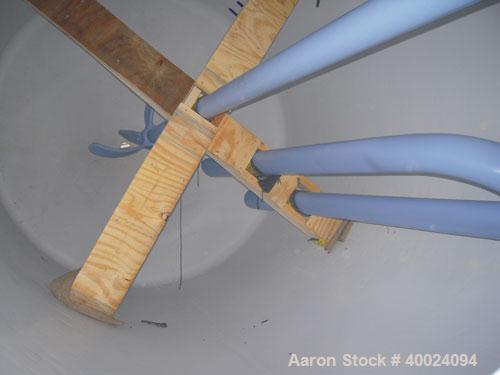

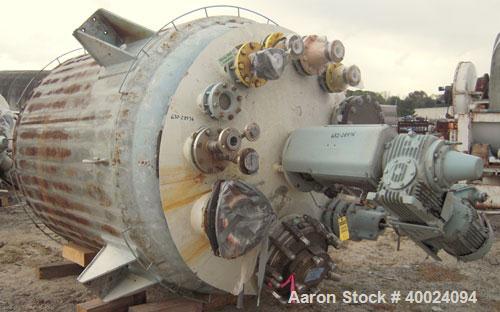

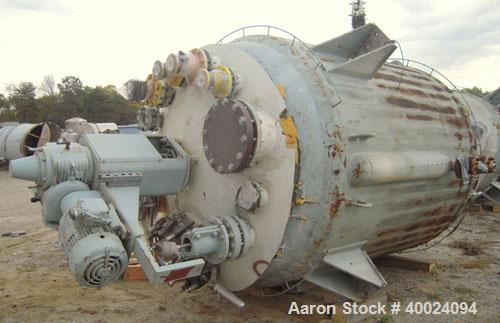

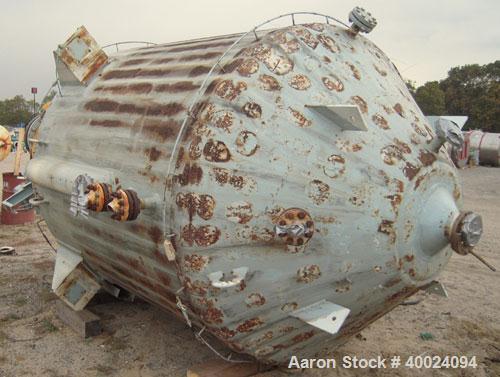

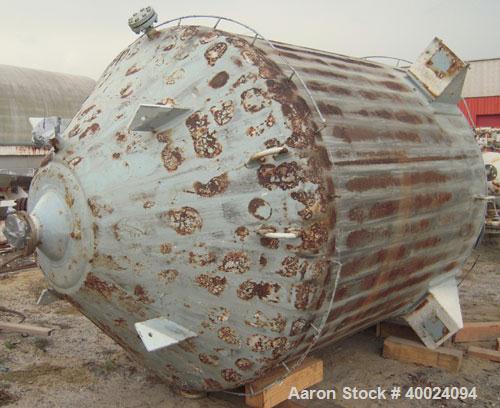

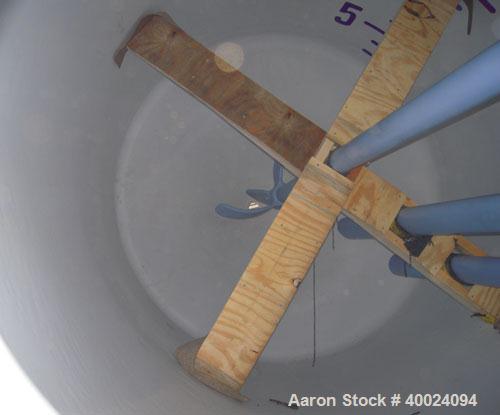

Used- Pfaudler K Series Glass Lined Reactor, 2000 gallon, 9129 white glass, model KC-78-2000-100-90. 78" diameter x 84" straight side, dished top coned bottom. Internal rated 100 psi/fv at -20 to 450 deg F, or 59 psi/fv at -40 to 450 deg F. Jacket rated 90 psi at -20 to 450 deg F, or 49/49 psi with fv at -40 to 450 deg F. 5RW drive with mechanical seal, ratio 18 to 1. Crylock agitator blade, H baffle, 15 hp, 3/60/230/ 460 volt, 1750 rpm xp motor. Calibration lines, side lugs. 18" manway, 4" center bottom outlet. Serial #R192-0125, National Board #47109, built 1993.
Used- Pfaudler K Series Glass Lined Reactor, 2000 gallon, 9129 white glass, model KC-78-2000-100-90. 78" diameter x 84" straight side, dished top coned bottom. Internal rated 100 psi/fv at -20 to 450 deg F, or 59 psi/fv at -40 to 450 deg F. Jacket rated 90 psi at -20 to 450 deg F, or 49/49 psi with fv at -40 to 450 deg F. 5RW drive with mechanical seal, ratio 18 to 1. Crylock agitator blade, H baffle, 15 hp, 3/60/230/ 460 volt, 1750 rpm xp motor. Calibration lines, side lugs. 18" manway, 4" center bottom outlet. Serial #R192-0125, National Board #47109, built 1993.
