Used: Pfaudler K series glass lined dual rated, lethal service reactor, 1500 gallon, 9129 white glass, model KC-78-1500-100-...
Stock# 40024091

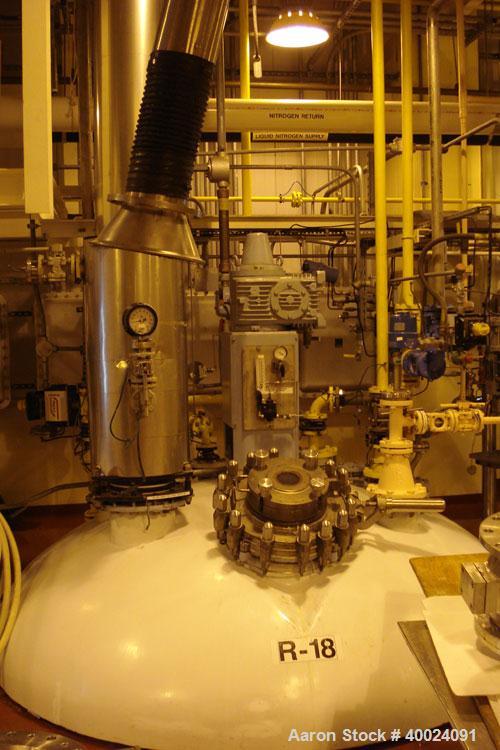

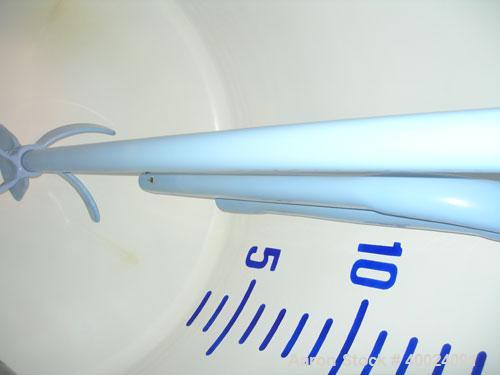

Used: Pfaudler K series glass lined dual rated, lethal service reactor, 1500 gallon, 9129 white glass, model KC-78-1500-100-90. 78" diameter x 65" straight side, dished top,coned bottom. Internal rated 100 psi/fv at -20 to 450 deg.f., or 59psi/fv at -40 to 450 deg.f.. Jacket rated 90 psi with fv at -20 to 450 deg.f., or 49/49 psi with fv at -40 to 450 deg.f.. 5SRW drive with mechanical seal, ratio 15 to 1. 33" span crylock agitator blade with tickle anchor, H baffle, 15hp, 3/60/230/460 volt, 1800 rpm XP motor. Calibration lines, side lugs.18" manway, 4" center bottom outlet. Serial# R192-0120, National Board# 47117, built 1993.
Used: Pfaudler K series glass lined dual rated, lethal service reactor, 1500 gallon, 9129 white glass, model KC-78-1500-100-90. 78" diameter x 65" straight side, dished top,coned bottom. Internal rated 100 psi/fv at -20 to 450 deg.f., or 59psi/fv at -40 to 450 deg.f.. Jacket rated 90 psi with fv at -20 to 450 deg.f., or 49/49 psi with fv at -40 to 450 deg.f.. 5SRW drive with mechanical seal, ratio 15 to 1. 33" span crylock agitator blade with tickle anchor, H baffle, 15hp, 3/60/230/460 volt, 1800 rpm XP motor. Calibration lines, side lugs.18" manway, 4" center bottom outlet. Serial# R192-0120, National Board# 47117, built 1993.
