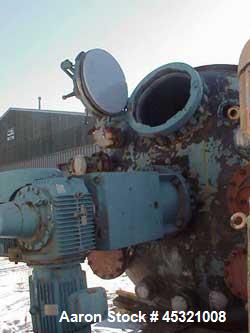

Used Pfaudler K Series Glass Lined Reactor, 5000 Gallon, Model K-102-5000. 5015 Blue glass. 102" Diameter x 138" straight side, dished top and bottom. Internal rated 100 psi/full vacuum at 450 degrees F, jacket is dual rated 90/90/FV at 350 degrees F, or 90/80/FV at 450 degrees F. Pfaudler 7RWFFG agitator drive, Cryolock 44" span CBT, crack at the weld area, 108 rpm flange mounted fin baffle with RTD, dip pipe mounted in 6" nozzle, 6 x 4 flush valve mounted in 6" center bottom outlet. Top head openings: (1) 24" quick opening spring balanced manway assembly, (1) 12", (1) 10", (1) 8", (2) 6" and (5) 4" nozzles. EX-PF 30 hp 3/60/575 volt motor.
Used Pfaudler K Series Glass Lined Reactor, 5000 Gallon, Model K-102-5000. 5015 Blue glass. 102" Diameter x 138" straight side, dished top and bottom. Internal rated 100 psi/full vacuum at 450 degrees F, jacket is dual rated 90/90/FV at 350 degrees F, or 90/80/FV at 450 degrees F. Pfaudler 7RWFFG agitator drive, Cryolock 44" span CBT, crack at the weld area, 108 rpm flange mounted fin baffle with RTD, dip pipe mounted in 6" nozzle, 6 x 4 flush valve mounted in 6" center bottom outlet. Top head openings: (1) 24" quick opening spring balanced manway assembly, (1) 12", (1) 10", (1) 8", (2) 6" and (5) 4" nozzles. EX-PF 30 hp 3/60/575 volt motor.
