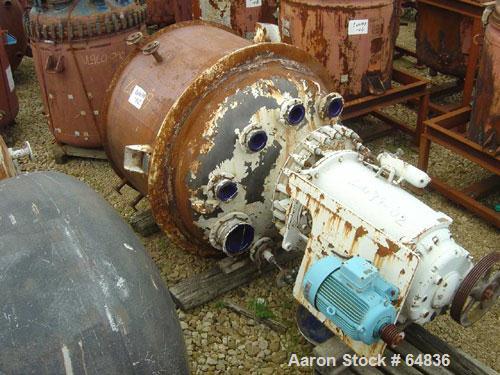

Used Pfaudler Glass Lined Reactor, type E300Q. Total capacity 822 gallons (3110 liters). Working capacity 793 gallons (3000 liters). 66.3" diameter x 70.2" straight side (1700 mm dia x 1800 mm st side). Inside rated for 90 psi (6 bar) and full vacuum at 392 deg F (200 deg C). Jacket pressure is 90 psi (6 bar). Welded top cover. Anchor agitator driven by a VS40 drive, belt driven by an 8.1 hp/5.2 kw/500 volt/50 cycle/3 ph XP motor. (1) 17.6" x 13.7" oval manway (450 mm x350 mm).
Used Pfaudler Glass Lined Reactor, type E300Q. Total capacity 822 gallons (3110 liters). Working capacity 793 gallons (3000 liters). 66.3" diameter x 70.2" straight side (1700 mm dia x 1800 mm st side). Inside rated for 90 psi (6 bar) and full vacuum at 392 deg F (200 deg C). Jacket pressure is 90 psi (6 bar). Welded top cover. Anchor agitator driven by a VS40 drive, belt driven by an 8.1 hp/5.2 kw/500 volt/50 cycle/3 ph XP motor. (1) 17.6" x 13.7" oval manway (450 mm x350 mm).
