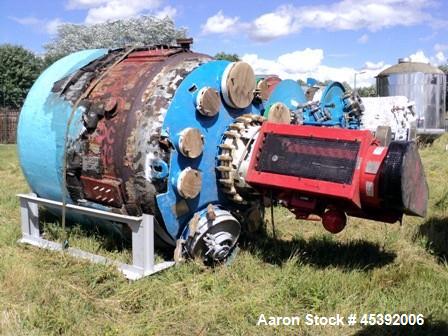

Used Pfaudler-Balfour Glass Lined Reactor, 8000 Liter (2113 gallon) Working Capacity, Model CE8000, Nucerite 8000 White Glass. Approximately 2200mm (86.6”) diameter x 3000mm (118") over welded dished top and bottom heads. Internal rated 6.9 bar/Full Vacuum design pressure at -40 to 200 degrees C., jacket rated 6.2 bar/full vacuum design pressure at -40 to 175 degrees C. Unit has top entry 3 blade retreat curve white glass agitator with top mounted drive 7/11 kW, 3/50/400 volt, 1480/740 rpm motor with VSO 32 gearbox, ratio 5 to 1, approximate 125 rpm. Includes a Schuf Hastelloy discharge valve. Provision for side lugs.
Used Pfaudler-Balfour Glass Lined Reactor, 8000 Liter (2113 gallon) Working Capacity, Model CE8000, Nucerite 8000 White Glass. Approximately 2200mm (86.6”) diameter x 3000mm (118") over welded dished top and bottom heads. Internal rated 6.9 bar/Full Vacuum design pressure at -40 to 200 degrees C., jacket rated 6.2 bar/full vacuum design pressure at -40 to 175 degrees C. Unit has top entry 3 blade retreat curve white glass agitator with top mounted drive 7/11 kW, 3/50/400 volt, 1480/740 rpm motor with VSO 32 gearbox, ratio 5 to 1, approximate 125 rpm. Includes a Schuf Hastelloy discharge valve. Provision for side lugs.
