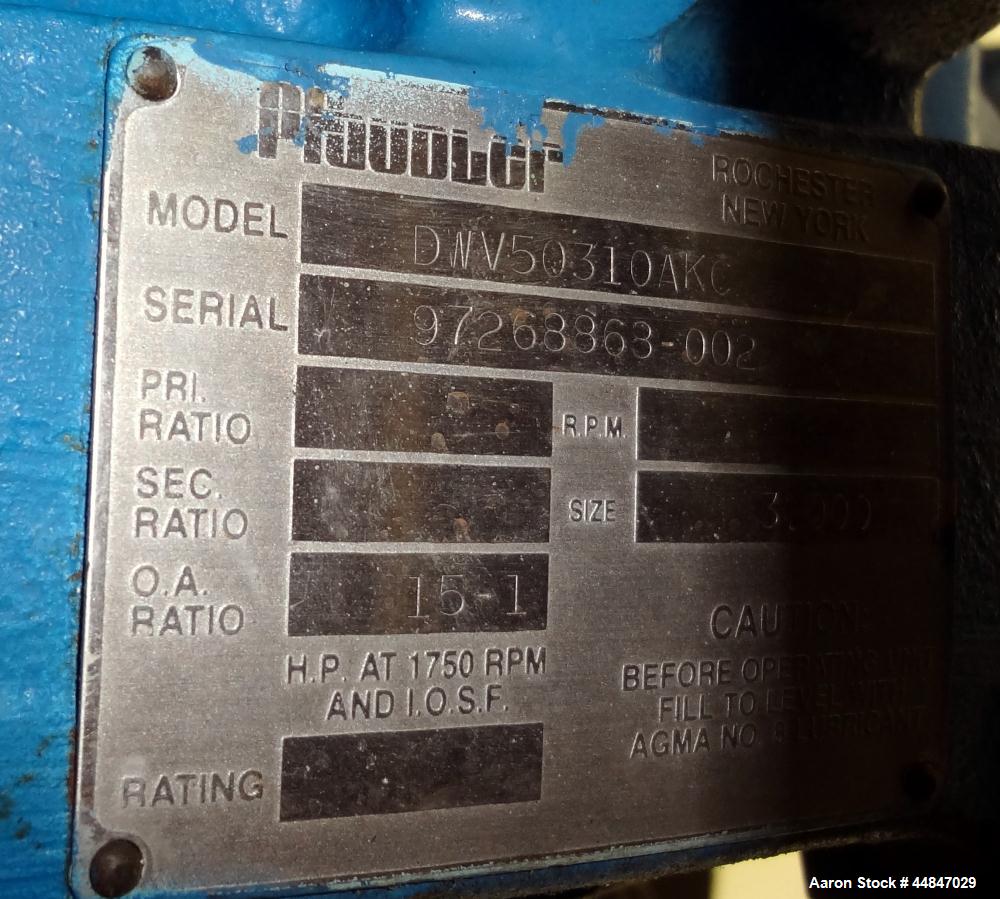

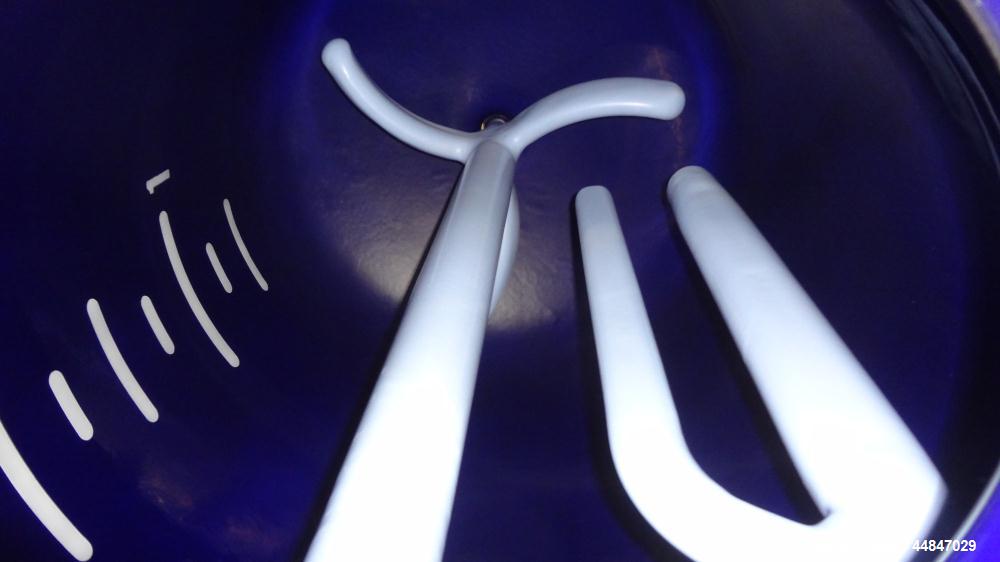

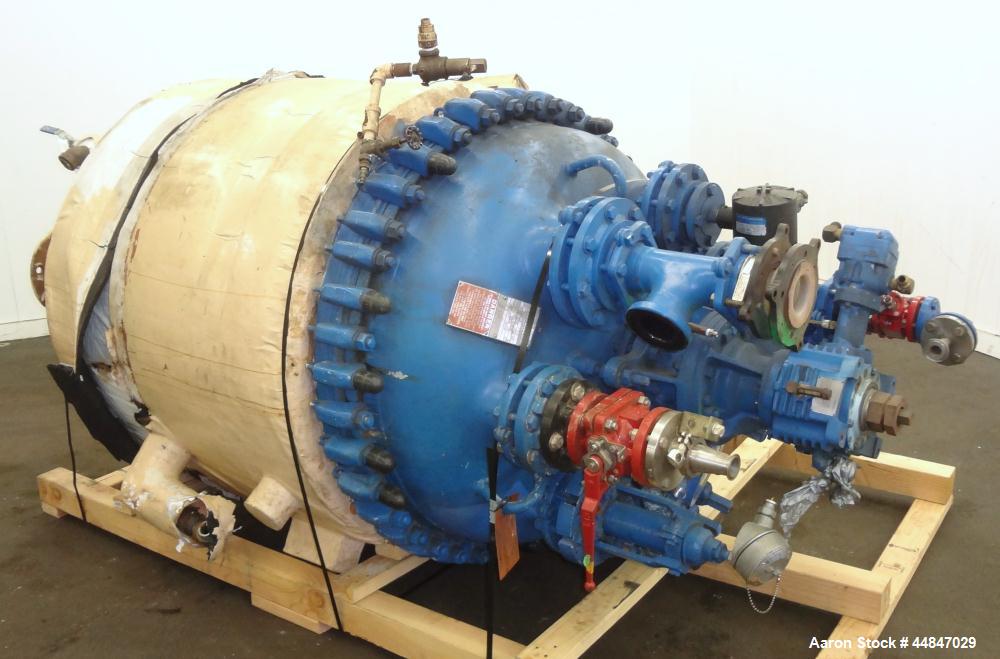

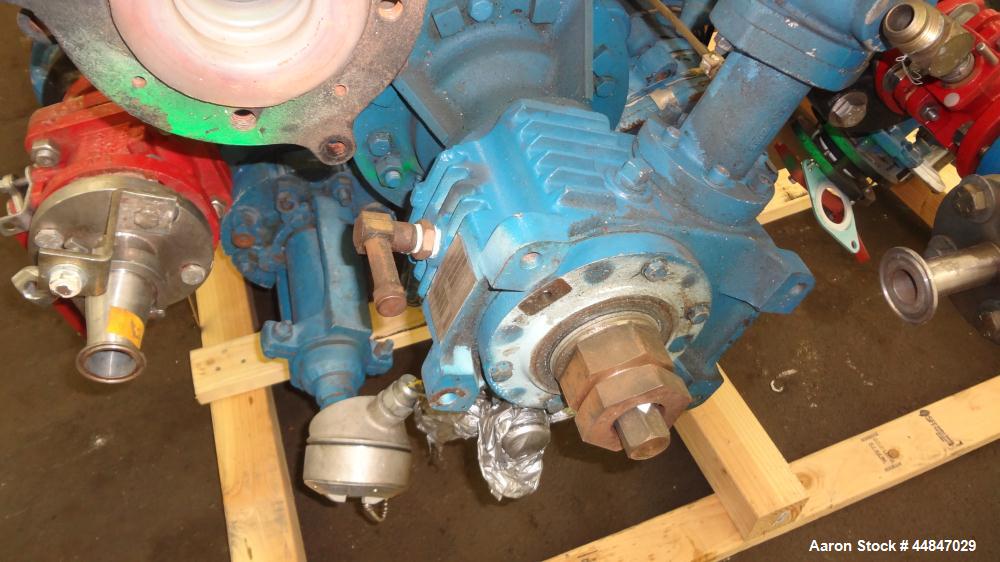

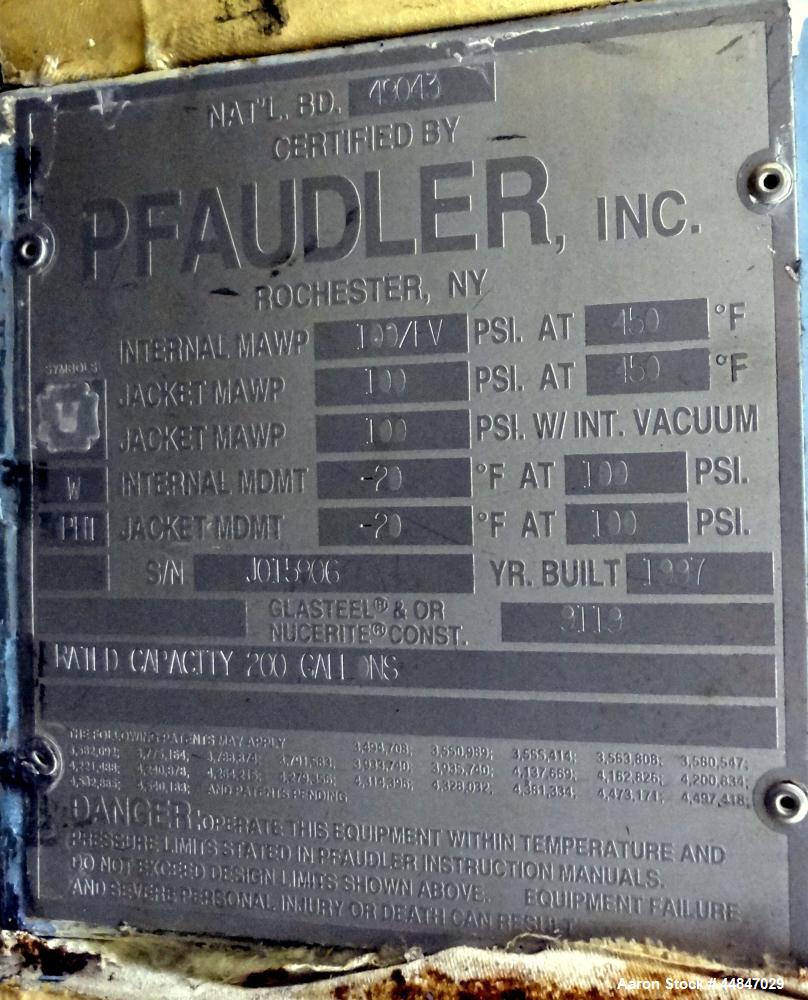

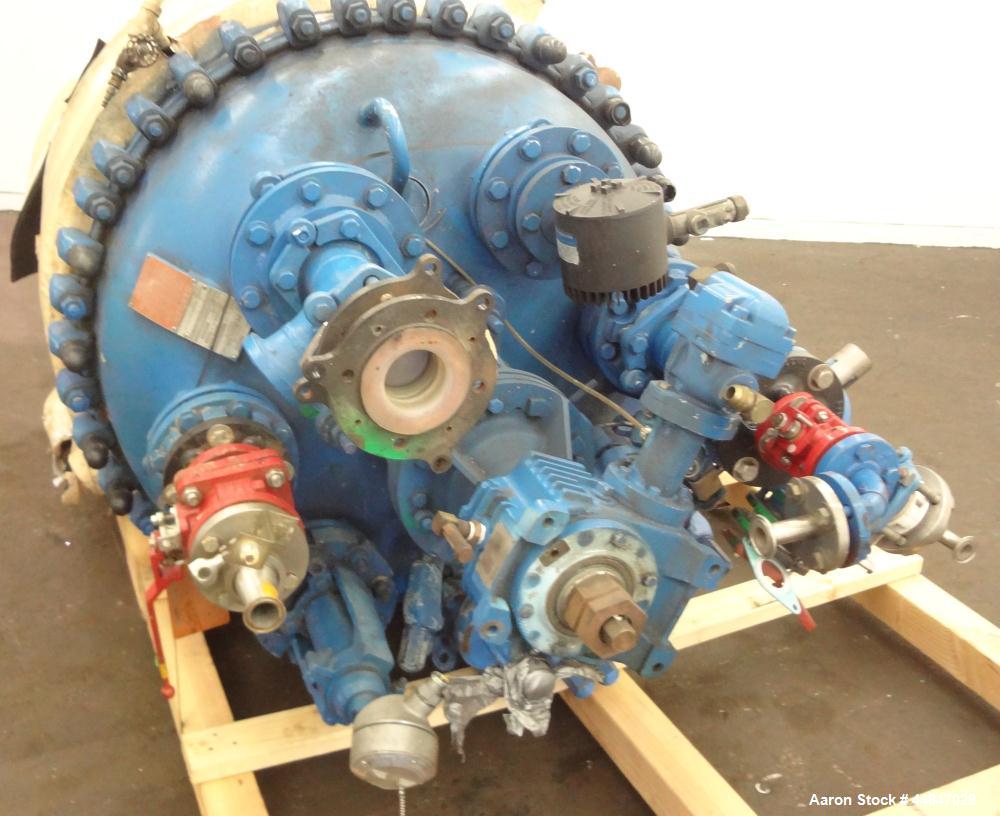

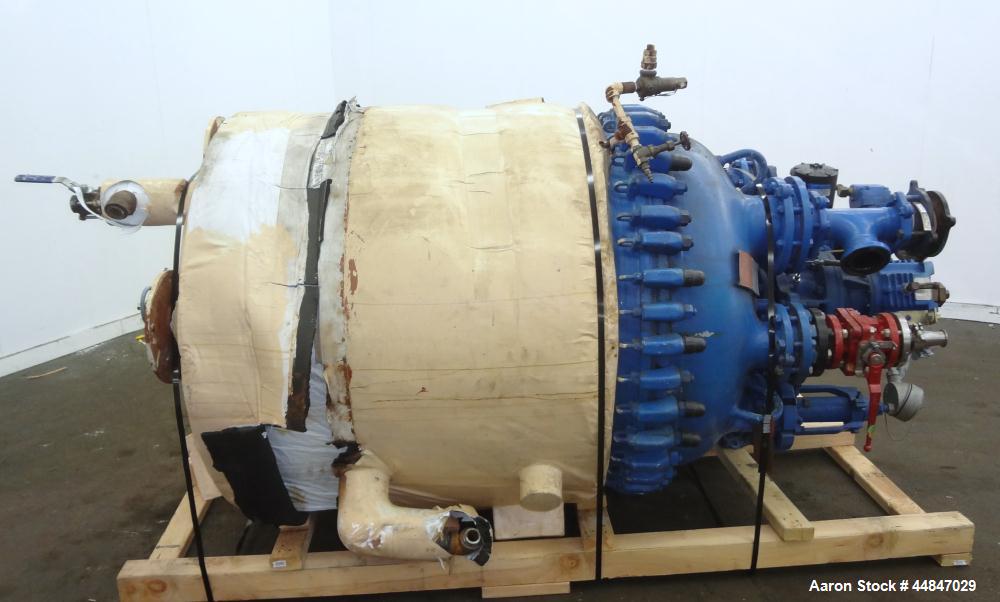

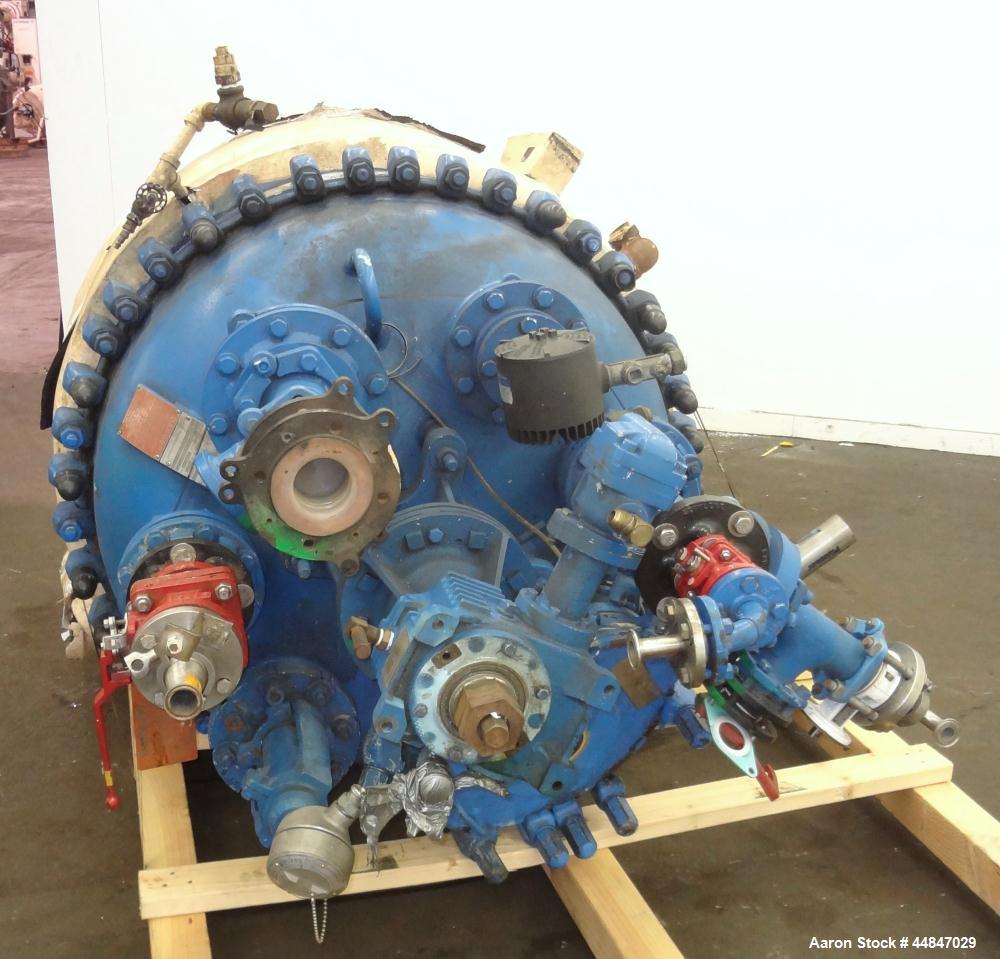

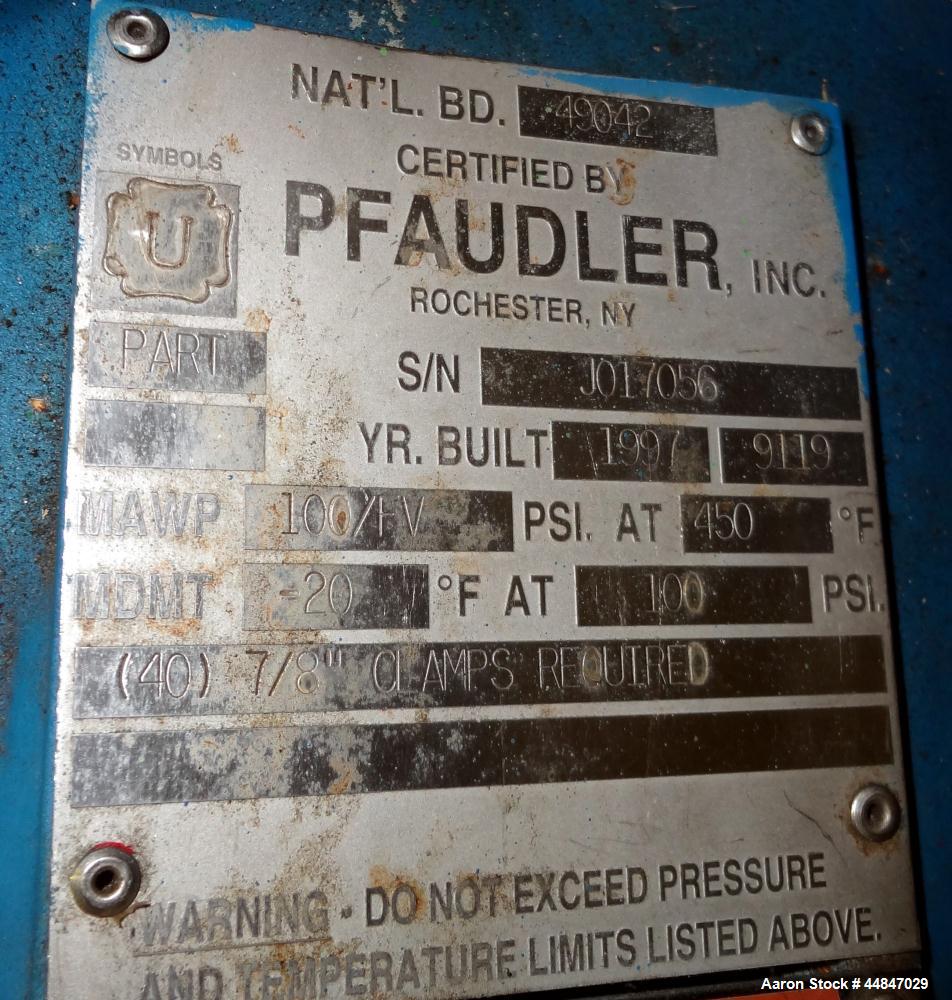

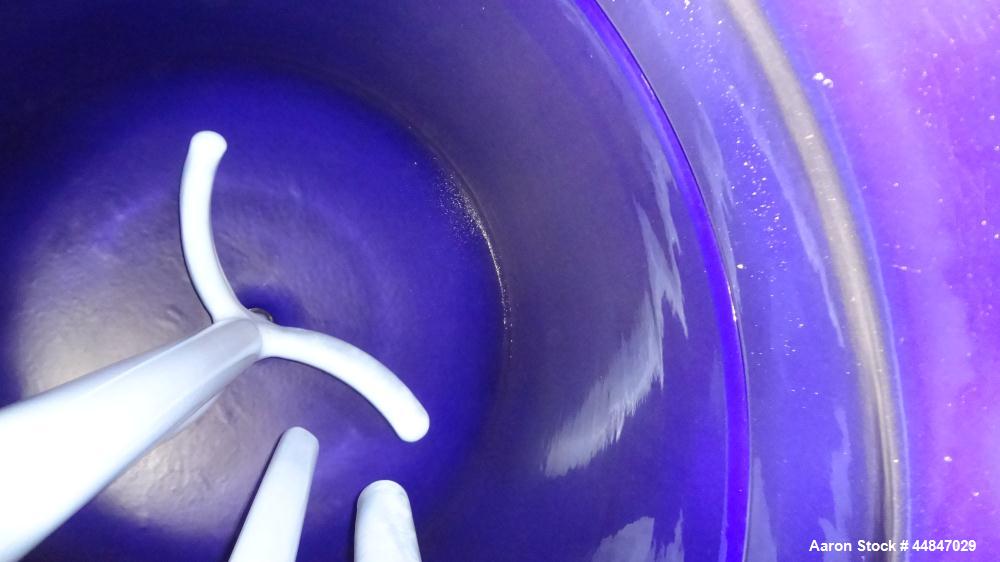

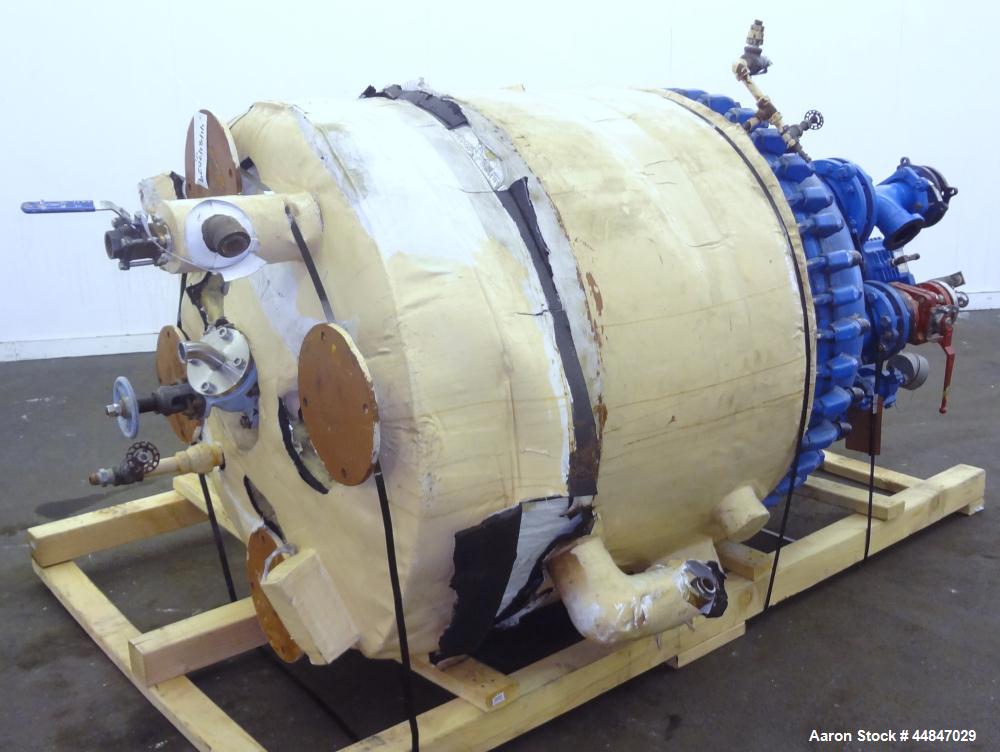

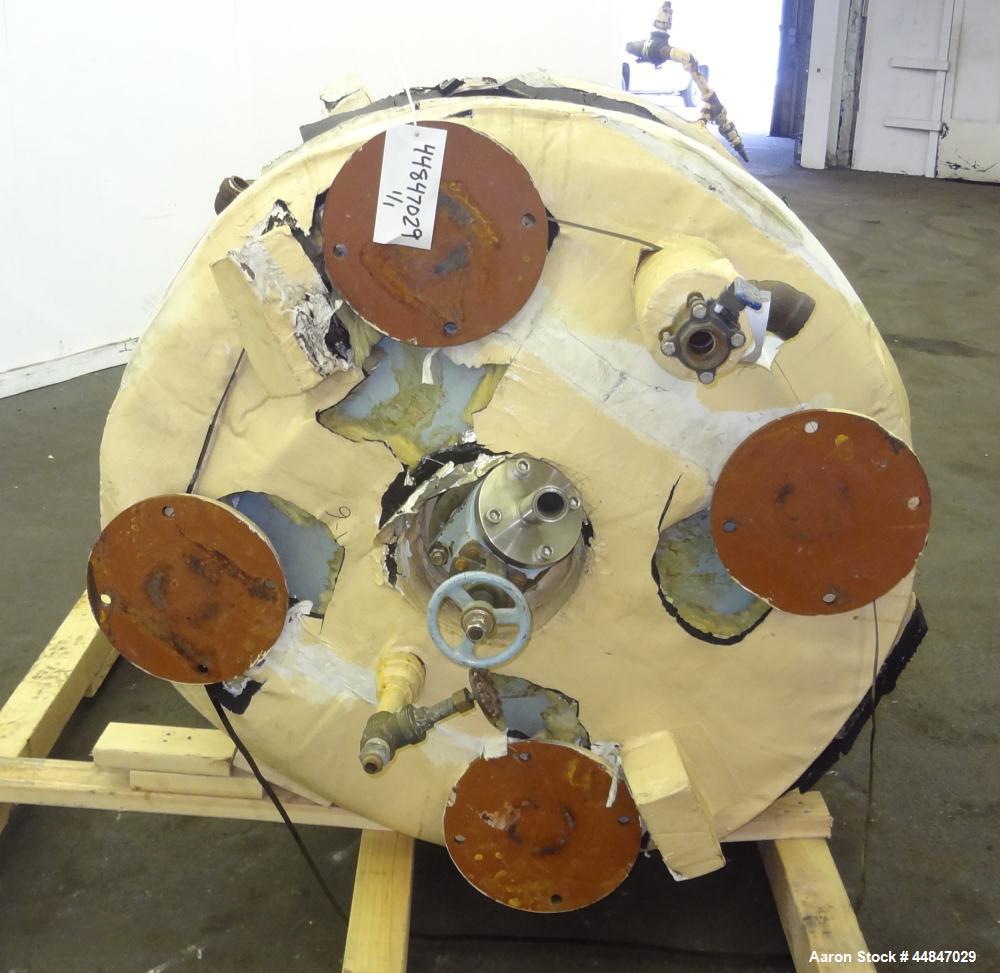

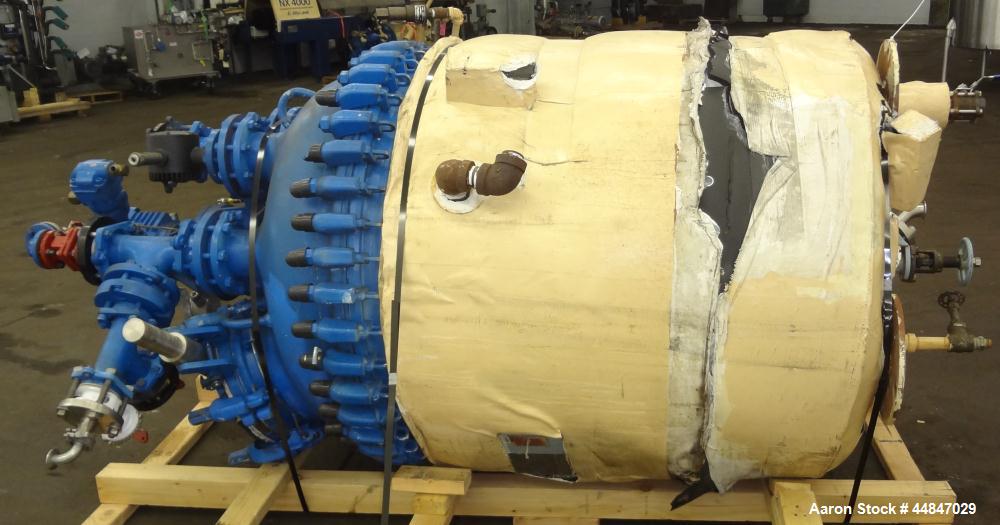

Used Pfaudler Clamp Top Glass Lined Reactor, 200 Gallons, 9115 Blue Glass, Vertical. Approximately 40" diameter x 36" straight side, dished clamp top, dish bottom. Internal rated 100/full vacuum psi at -20 to 450 degrees F, carbon steel jacket rated 100 psi at -20 to 350 degrees F, 100 psi with internal vacuum. (1) H" baffle, side calibration markings, 3 blade retreat curve agitator driven by a Pfaudler drive, size 3, model DWV5031CAKC, serial #97268868-002, ratio 15 to 1, set up for hydraulic drive, no power pack. Openings: top (4) 4", 6", 12" X 16" oval manway with assist cover: 3" center bottom outlet. Provision for 4 legs. National Board #49043, serial #J015906, built 1997.
