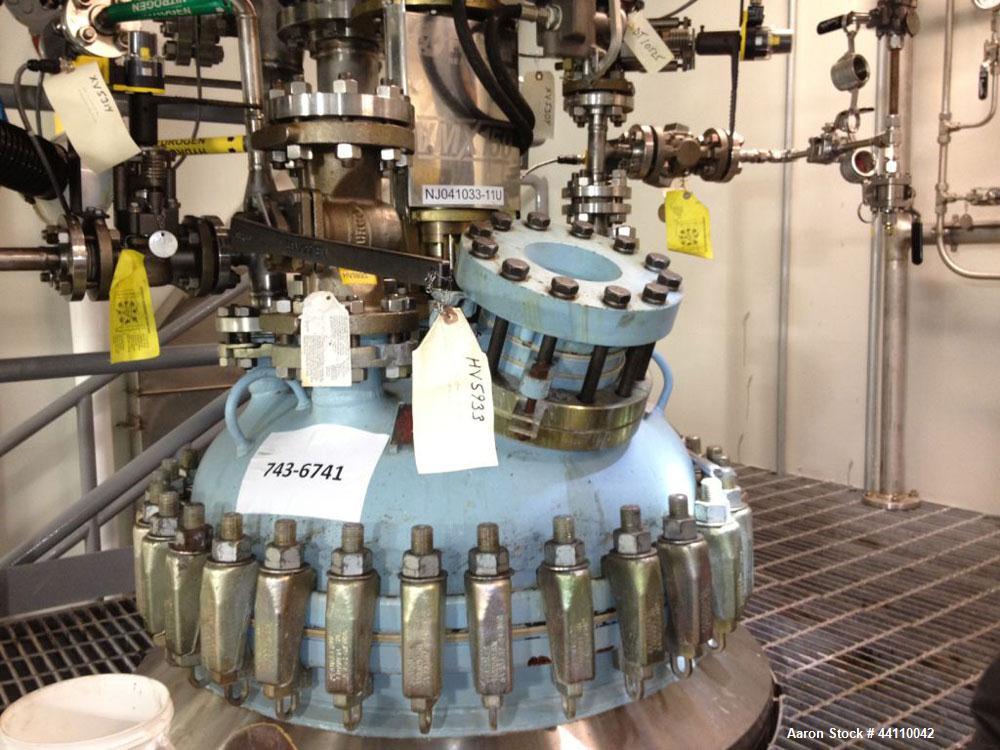

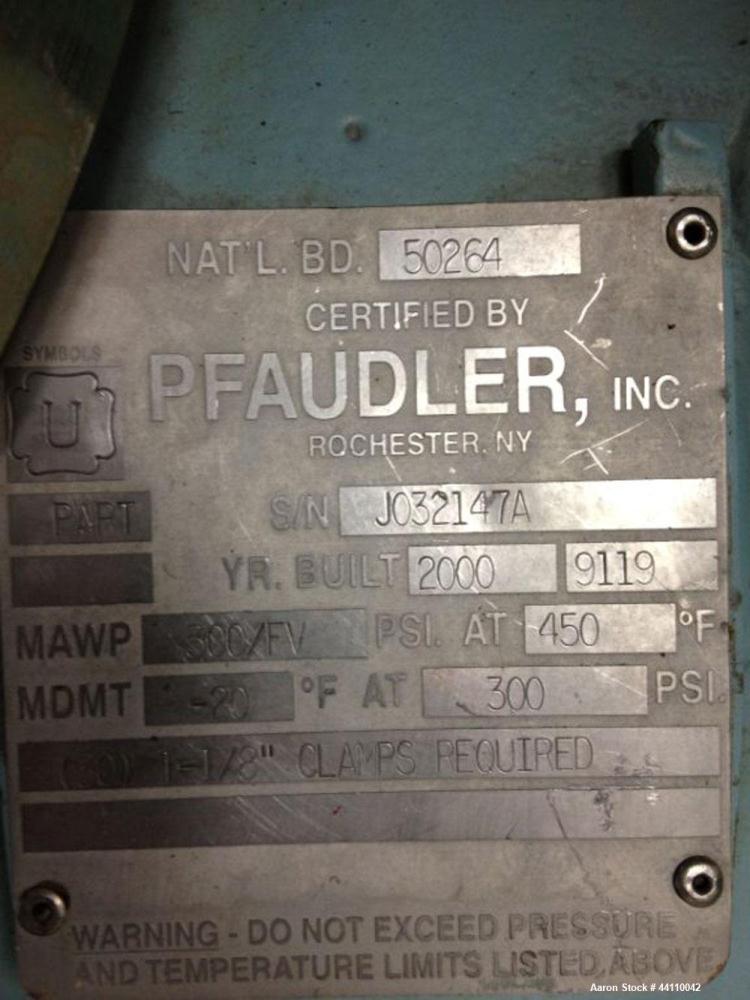

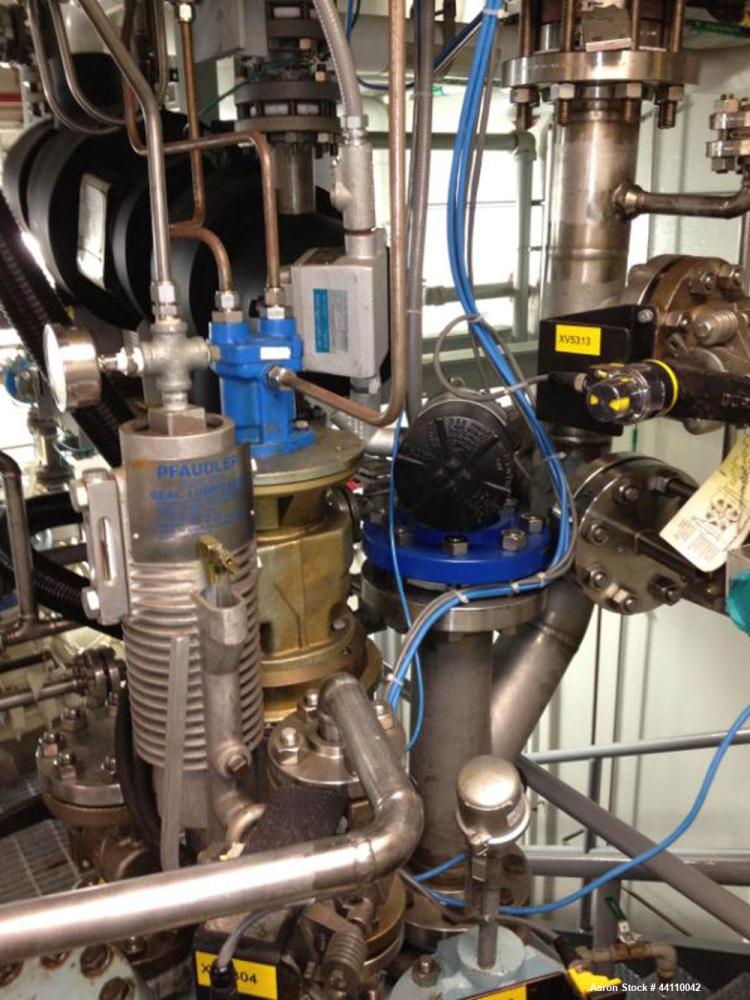

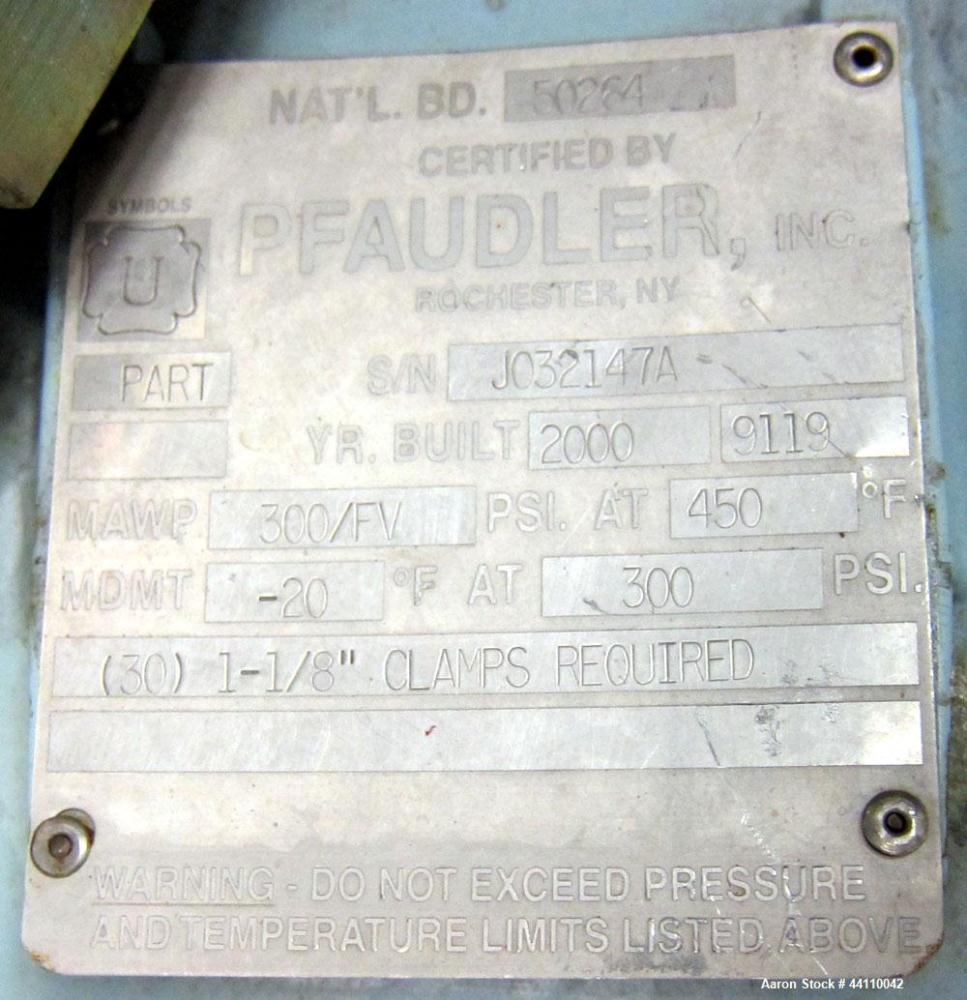

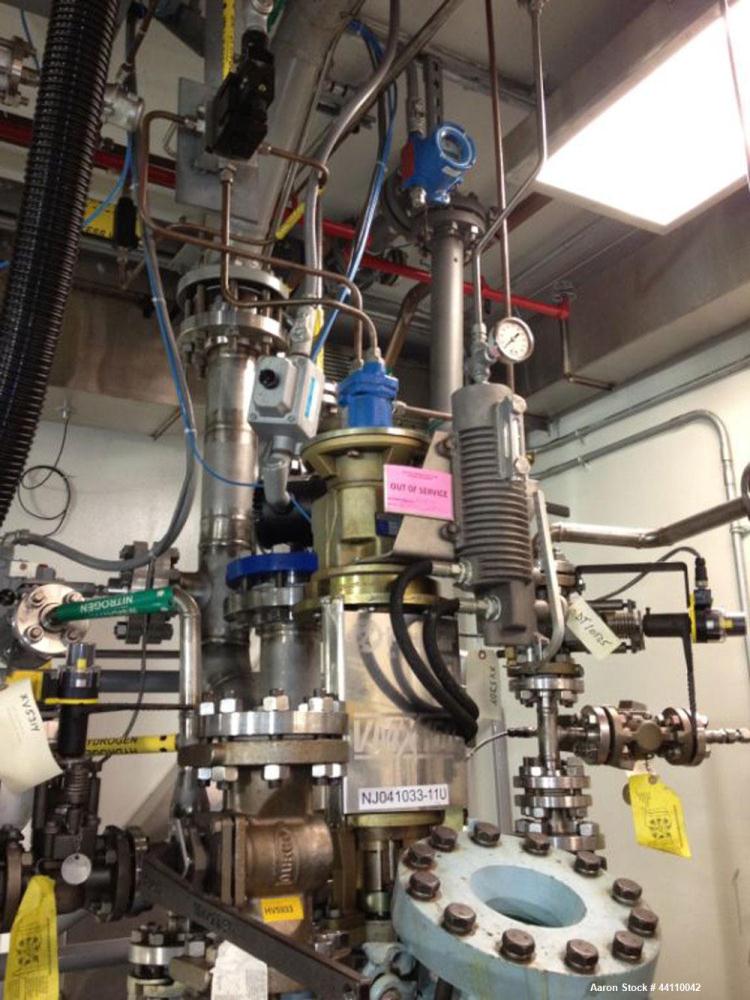

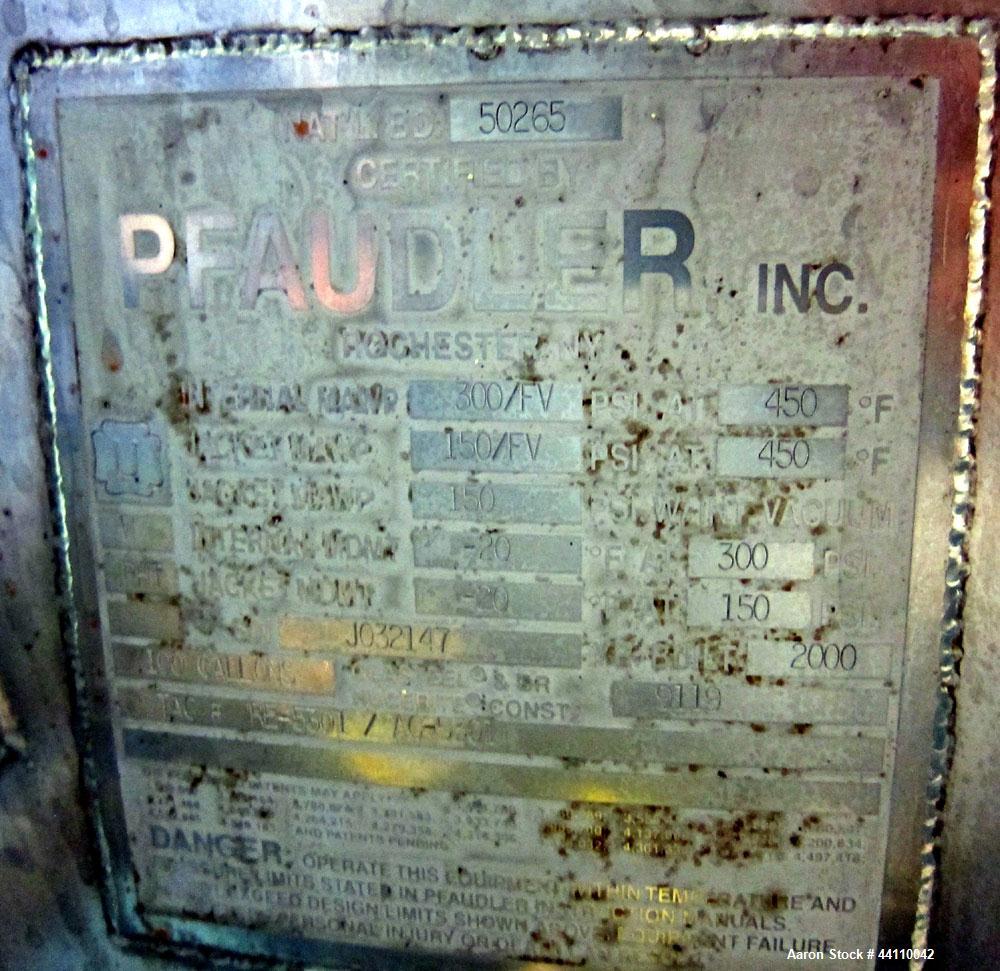

Used Pfaudler Glass Lined Reactor, 100 Gallon. Internal rated 300 psi & Full Vacuum at 450 degrees F, jacket rated 150 psi & Full Vacuum at 450 degrees F. Type 9119 Dark Blue Glass. Clamped top. 316L Stainless Steel sheathing. Lug mounted. 32” ID x 36 1/” deep. VMX-150 drive assembly. Motor - 2 hp Vickers hydraulic motor. Baffle – One concave baffle. Agitator – (1) single flight curved blade turbine. Top Head Openings: (1) 6” handhole, (1) 2 3/8” drive nozzle, (2) 4” nozzles, (1) 3” nozzle, (2) 2” nozzles. Bottom Head Openings: (1) 3” nozzle. Serial #J032147, National Board # 50265, Built 2000. Weight – 3100 lbs. Previous Use: API Pilot Plant. (note: shares hydraulic system with #6742)
Used Pfaudler Glass Lined Reactor, 100 Gallon. Internal rated 300 psi & Full Vacuum at 450 degrees F, jacket rated 150 psi & Full Vacuum at 450 degrees F. Type 9119 Dark Blue Glass. Clamped top. 316L Stainless Steel sheathing. Lug mounted. 32” ID x 36 1/” deep. VMX-150 drive assembly. Motor - 2 hp Vickers hydraulic motor. Baffle – One concave baffle. Agitator – (1) single flight curved blade turbine. Top Head Openings: (1) 6” handhole, (1) 2 3/8” drive nozzle, (2) 4” nozzles, (1) 3” nozzle, (2) 2” nozzles. Bottom Head Openings: (1) 3” nozzle. Serial #J032147, National Board # 50265, Built 2000. Weight – 3100 lbs. Previous Use: API Pilot Plant. (note: shares hydraulic system with #6742)
