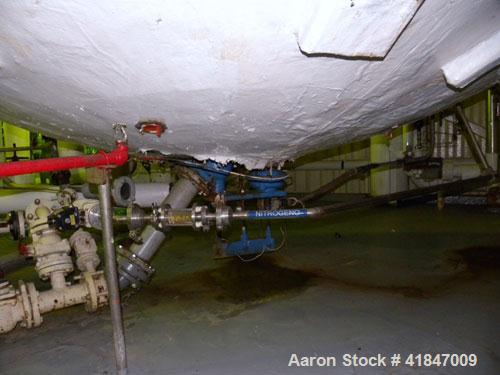

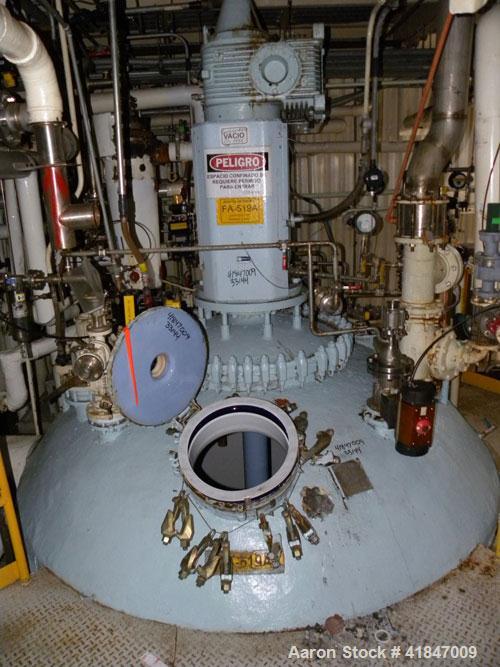

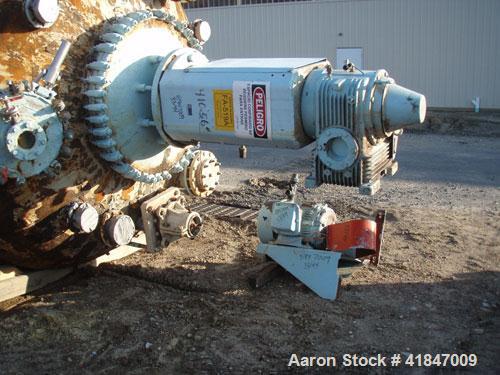

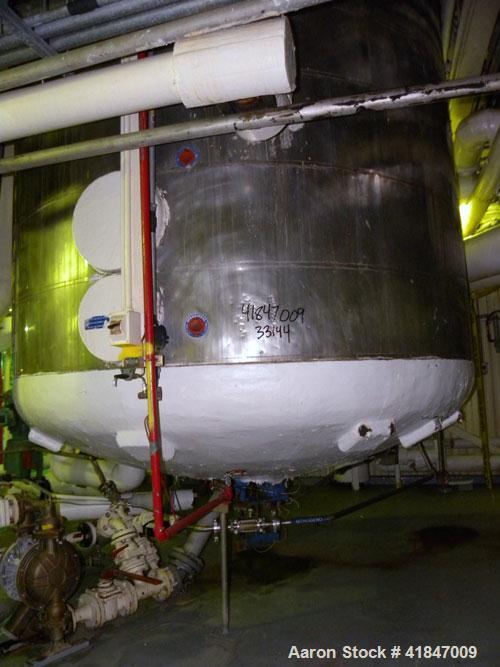

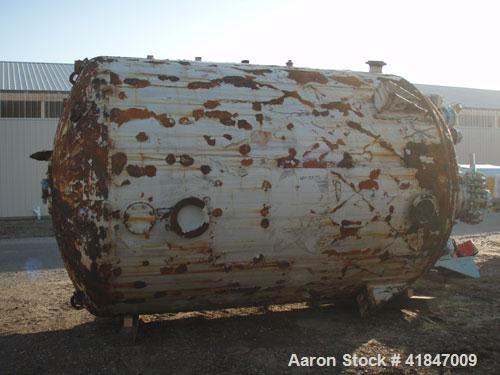

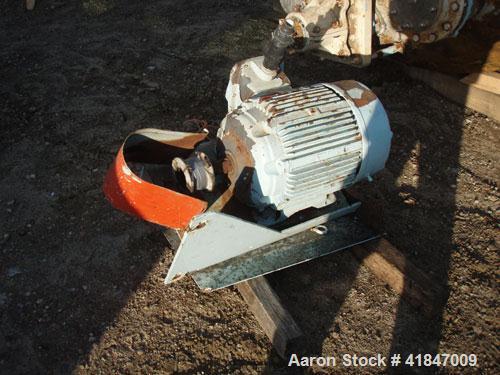

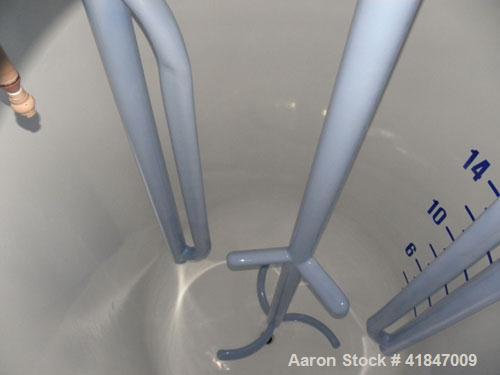

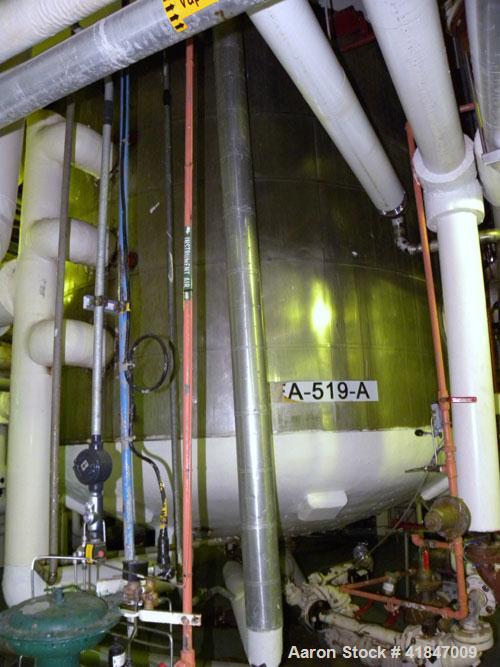

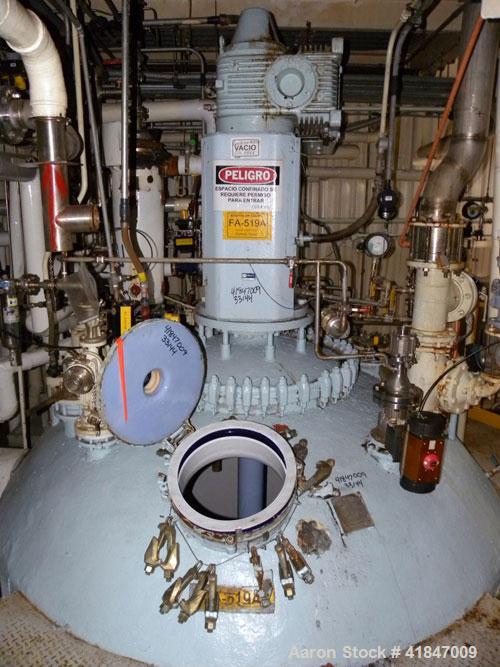

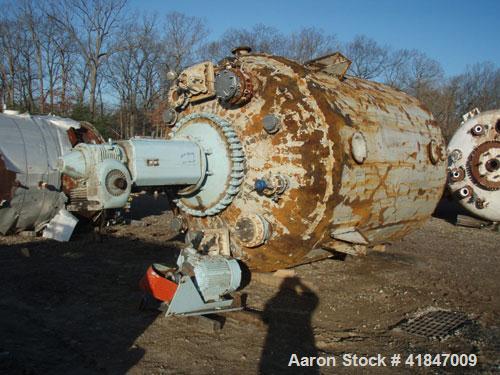

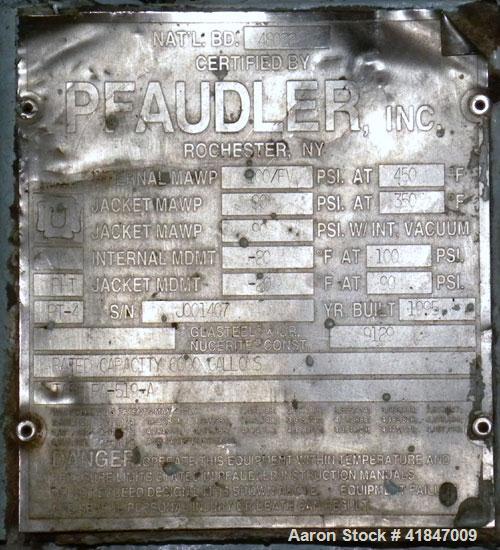

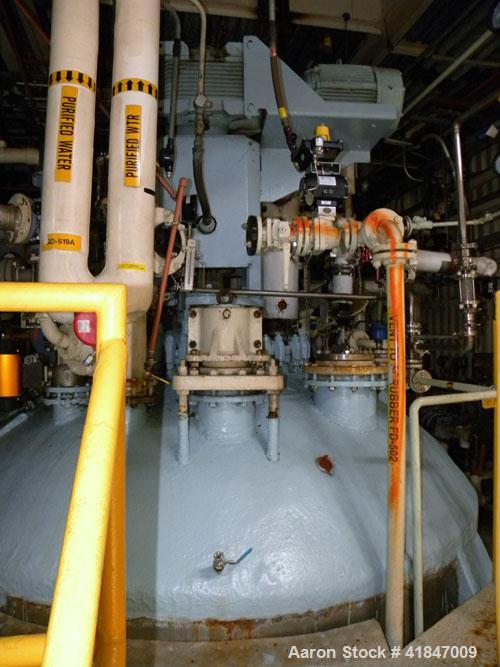

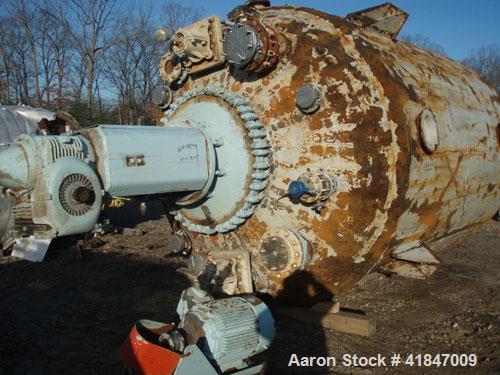

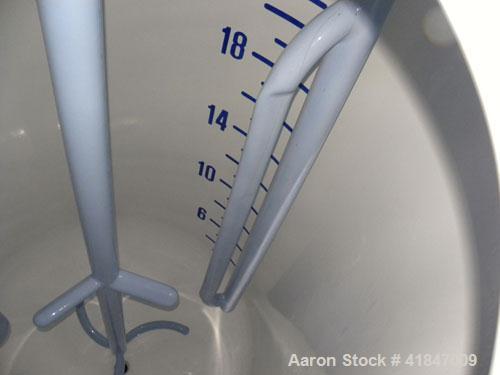

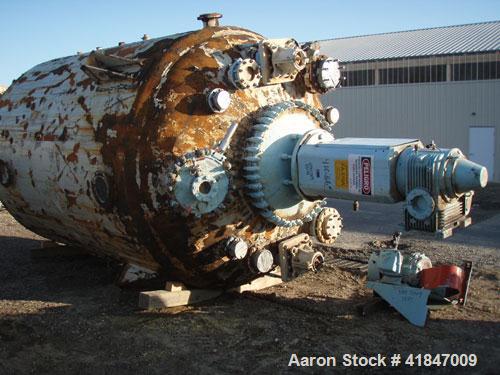

Used Pfaudler Glass Lined Reactor, 6000 Gallon, 9129 White Glass With Calibration Lines, Vertical. Approximately 108" diameter x 144" straight side. Dished top and bottom. Internal rated 100/FV psi at –20 to 350 deg F, carbon steel jacket rated 90 psi at –20 to 350 deg F. Pfaudler agitator, model WFDWV52800-7B, ratio 17 to 1, with mechanical seal. (2) H baffles, 3 blade RCI, driven by a 50 hp, 3/60/230/460 volt, 1770 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #J001407, National Board #48022, built 1995.
Used Pfaudler Glass Lined Reactor, 6000 Gallon, 9129 White Glass With Calibration Lines, Vertical. Approximately 108" diameter x 144" straight side. Dished top and bottom. Internal rated 100/FV psi at –20 to 350 deg F, carbon steel jacket rated 90 psi at –20 to 350 deg F. Pfaudler agitator, model WFDWV52800-7B, ratio 17 to 1, with mechanical seal. (2) H baffles, 3 blade RCI, driven by a 50 hp, 3/60/230/460 volt, 1770 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #J001407, National Board #48022, built 1995.
