Used: Pfaudler glass lined clamp top reactor, 10 gallon, 9115 glass, vertical. Approximately 16" diameter x 16" straight sid...
Stock# 40037530

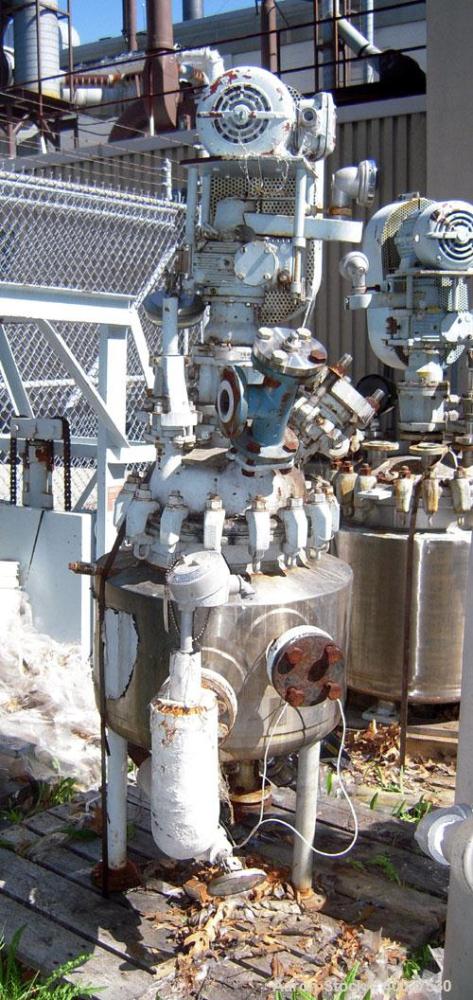

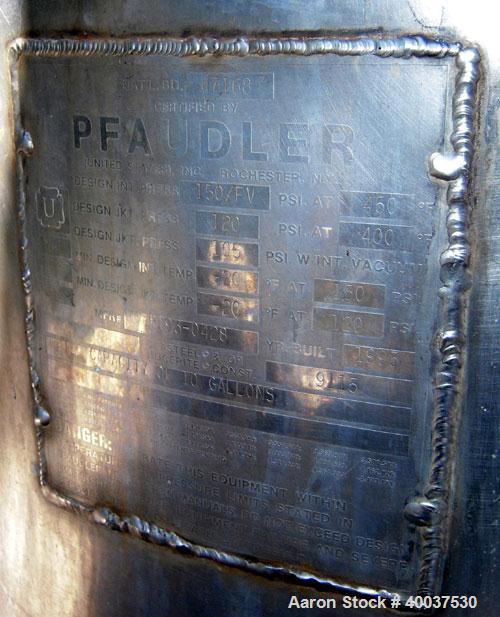

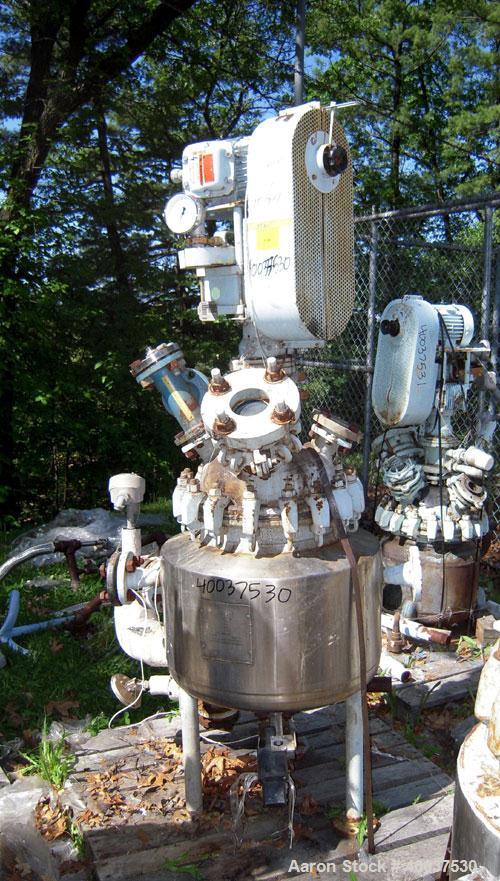

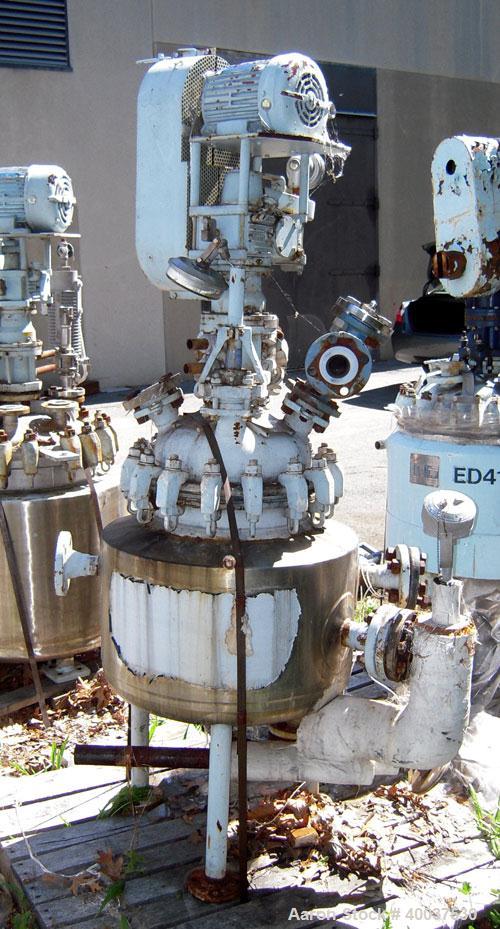

Used: Pfaudler glass lined clamp top reactor, 10 gallon, 9115 glass, vertical. Approximately 16" diameter x 16" straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 450 deg.f., jacket rated 120 psi at 400 deg.f., 105 psi with internal vacuum. Agitator blade, 2.5 TW drive, 10 to 1 ratio, manual vari-speed. Driven by a 2hp 3/60/230/460 volt, 1720 rpm xp motor. Baffle. Openings top (3)2", 4" hand hole with a sight glass cover, 2" bottom outlet. Stainless steel sheathing. Mounted on 3 legs. Serial# R193-0428, National Board# 47168, built 1993.
Used: Pfaudler glass lined clamp top reactor, 10 gallon, 9115 glass, vertical. Approximately 16" diameter x 16" straight side, clamp dished top, dished bottom. Internal rated 150/fv psi at 450 deg.f., jacket rated 120 psi at 400 deg.f., 105 psi with internal vacuum. Agitator blade, 2.5 TW drive, 10 to 1 ratio, manual vari-speed. Driven by a 2hp 3/60/230/460 volt, 1720 rpm xp motor. Baffle. Openings top (3)2", 4" hand hole with a sight glass cover, 2" bottom outlet. Stainless steel sheathing. Mounted on 3 legs. Serial# R193-0428, National Board# 47168, built 1993.
