Used- Pfaudler 3000 Gallon Glass Lined Reactor Body with Covers. Model RA-96. 96" Diameter x 77" Straight Side. Dished Heads...
Stock# 40037068

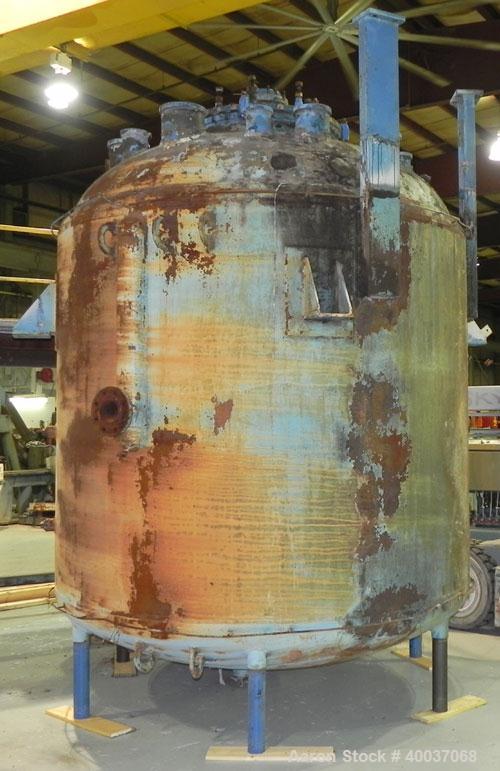

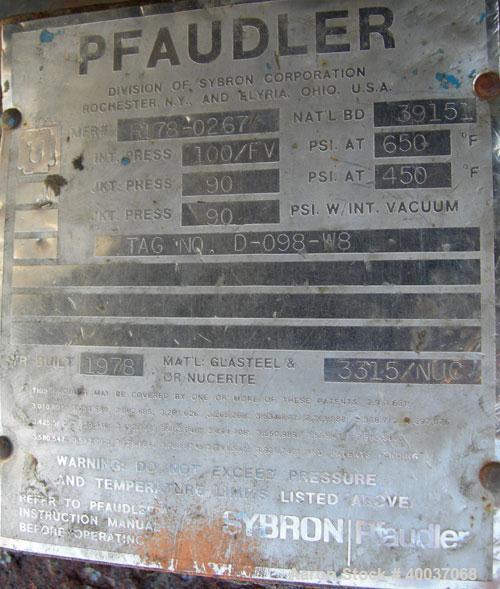

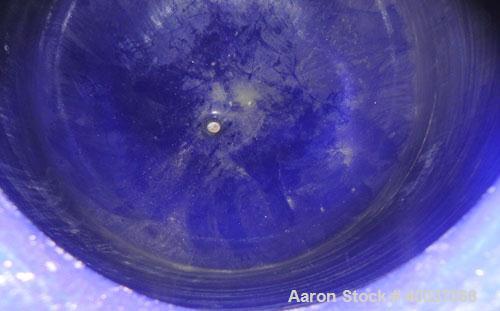

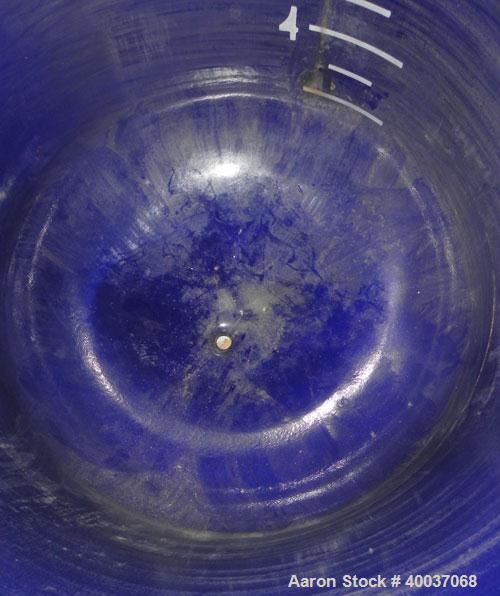

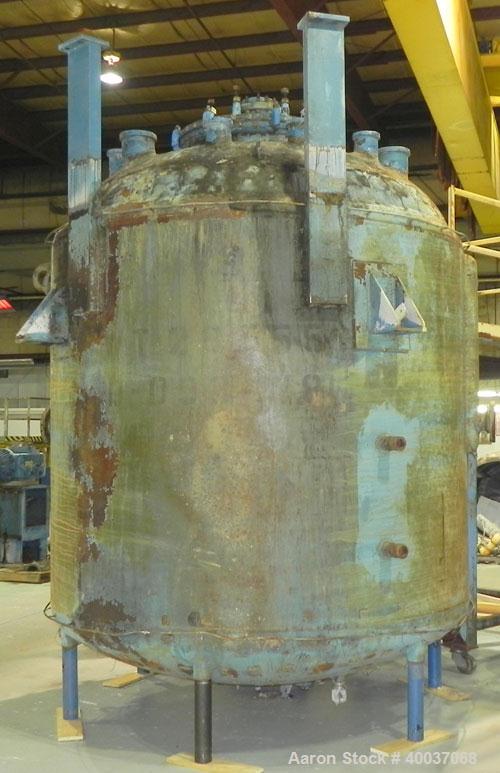

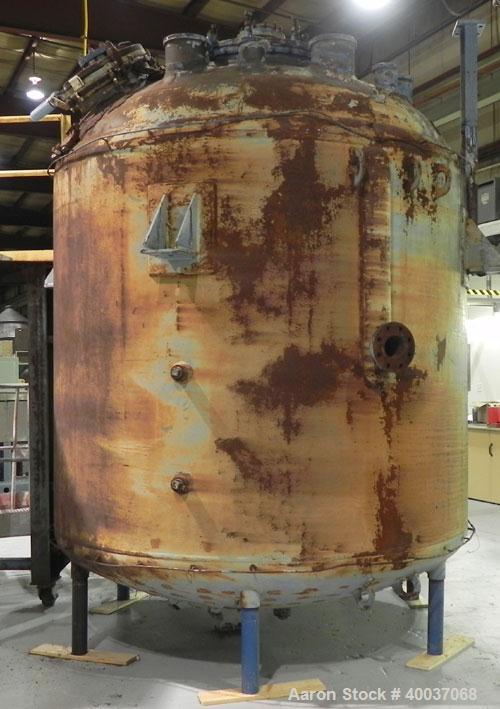

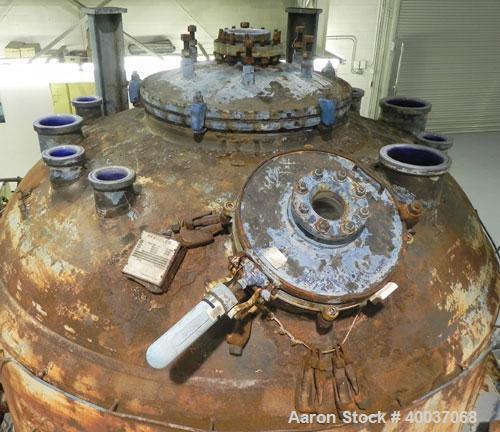

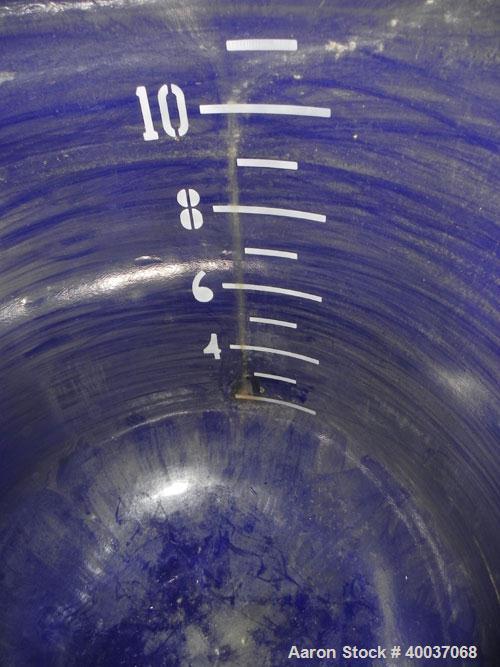

Used- Pfaudler 3000 Gallon Glass Lined Reactor Body with Covers. Model RA-96. 96" Diameter x 77" Straight Side. Dished Heads. Internal Rated 100 PSI/Full Vacuum @ 650 Deg. F. Jacket Rated 90 PSI @ 450 Deg. F. Top Openings Include: 36" Center opening for drive assembly with Cover, 18" Manway with Cover, (6) 4", (2) 6" and (2) 8". 4" Center Bottom Outlet. (1) 3/4" Tantalum Plug located on bottom of shell 12" up from weld line. Installed in December of 2010. Vessel has passed spark test in December of 2010. Good Fire Polish. Minor Staining on side wall. Vessel was built in 1978. National Board # 39151. Serial # R178-0267. Type 3315 Glass with Nucerite Flanges. Side Lug Supports and Provision for pipe legs.
Used- Pfaudler 3000 Gallon Glass Lined Reactor Body with Covers. Model RA-96. 96" Diameter x 77" Straight Side. Dished Heads. Internal Rated 100 PSI/Full Vacuum @ 650 Deg. F. Jacket Rated 90 PSI @ 450 Deg. F. Top Openings Include: 36" Center opening for drive assembly with Cover, 18" Manway with Cover, (6) 4", (2) 6" and (2) 8". 4" Center Bottom Outlet. (1) 3/4" Tantalum Plug located on bottom of shell 12" up from weld line. Installed in December of 2010. Vessel has passed spark test in December of 2010. Good Fire Polish. Minor Staining on side wall. Vessel was built in 1978. National Board # 39151. Serial # R178-0267. Type 3315 Glass with Nucerite Flanges. Side Lug Supports and Provision for pipe legs.
