Used- Pfaudler Clamp Top Glass Lined Reactor, 200 gallon, 5025 white glass. Approximately 42" diameter x 32" straight side, ...
Stock# 40024012

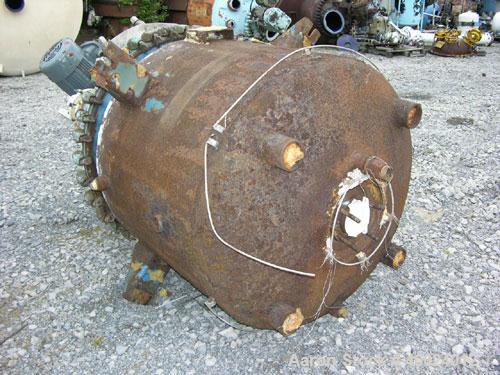

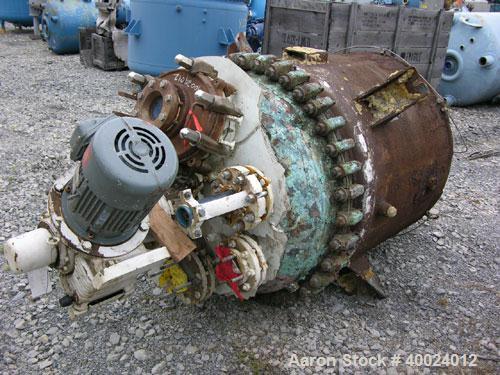

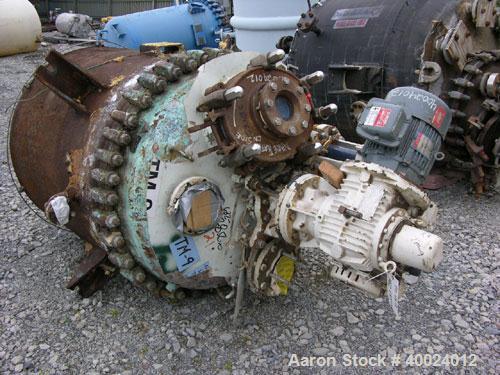

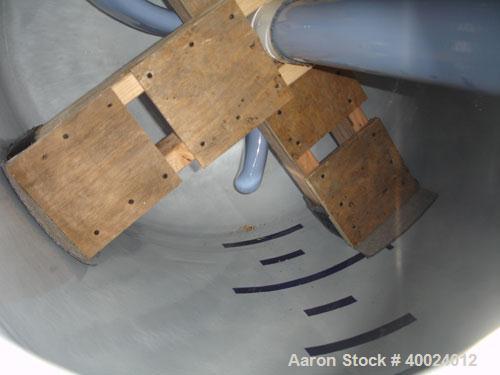

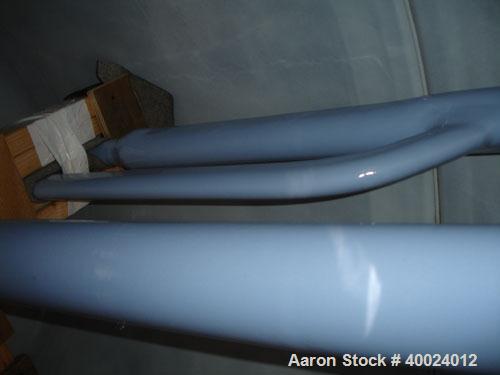

Used- Pfaudler Clamp Top Glass Lined Reactor, 200 gallon, 5025 white glass. Approximately 42" diameter x 32" straight side, clamp dished top, dished bottom. Internal rated 100 psi/ FV at 450 deg F, jacket rated 90 psi at 350 deg F. Pfaudler 4 DTW drive with mechanical seal, 15 to 1 ratio, 5/2.5 hp, 3/60/460 volt, 1780/860 rpm motor. 3 blade retreat curve agitator, H baffle, calibration lines. Top manway, bottom outlet. Serial# E183-0377, National Board# 42319, built 1983.
Used- Pfaudler Clamp Top Glass Lined Reactor, 200 gallon, 5025 white glass. Approximately 42" diameter x 32" straight side, clamp dished top, dished bottom. Internal rated 100 psi/ FV at 450 deg F, jacket rated 90 psi at 350 deg F. Pfaudler 4 DTW drive with mechanical seal, 15 to 1 ratio, 5/2.5 hp, 3/60/460 volt, 1780/860 rpm motor. 3 blade retreat curve agitator, H baffle, calibration lines. Top manway, bottom outlet. Serial# E183-0377, National Board# 42319, built 1983.
