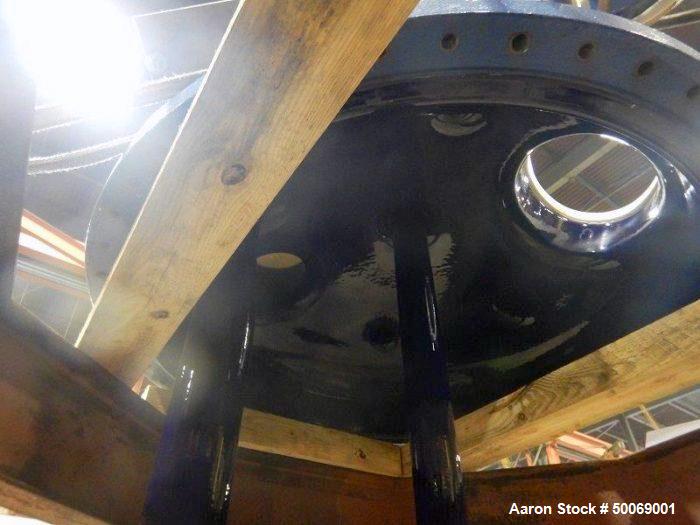

Used- De Dietrich FTJ Bolt Top Glass Lined Reactor, 300 Gallon

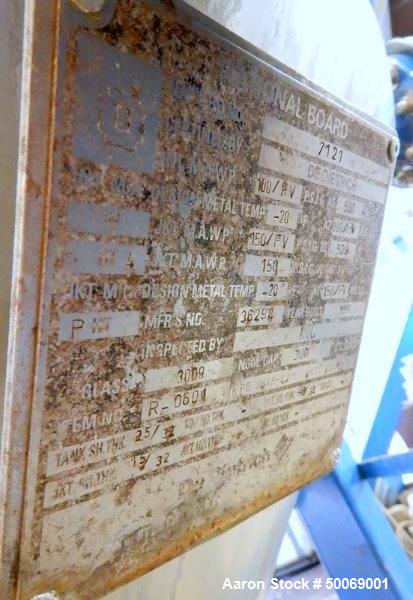

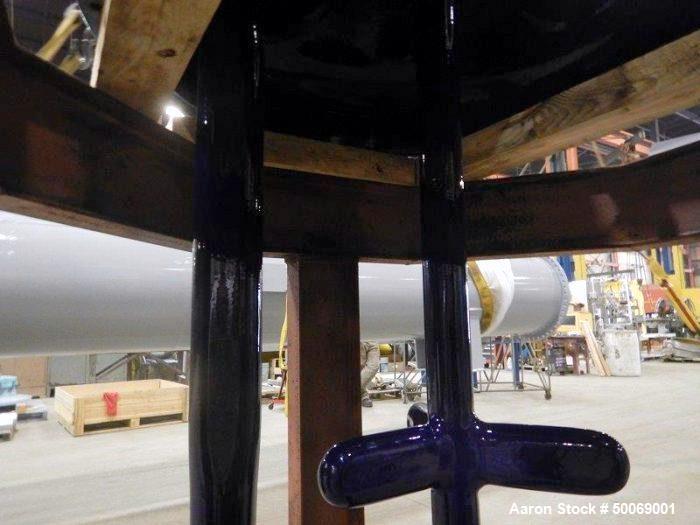

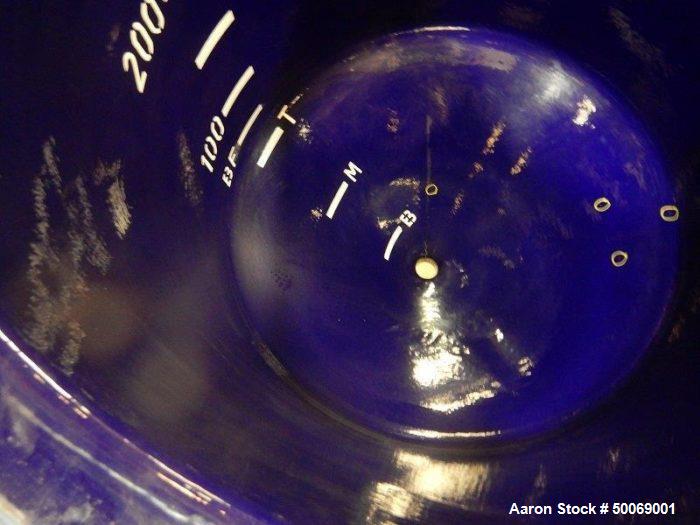

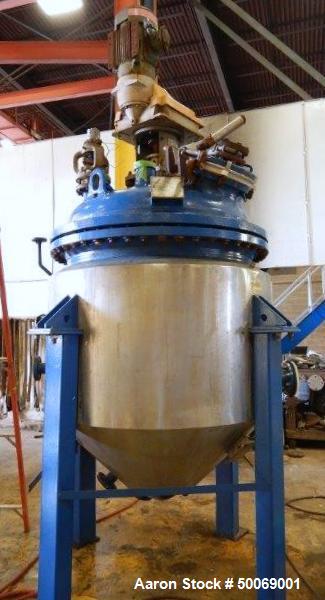

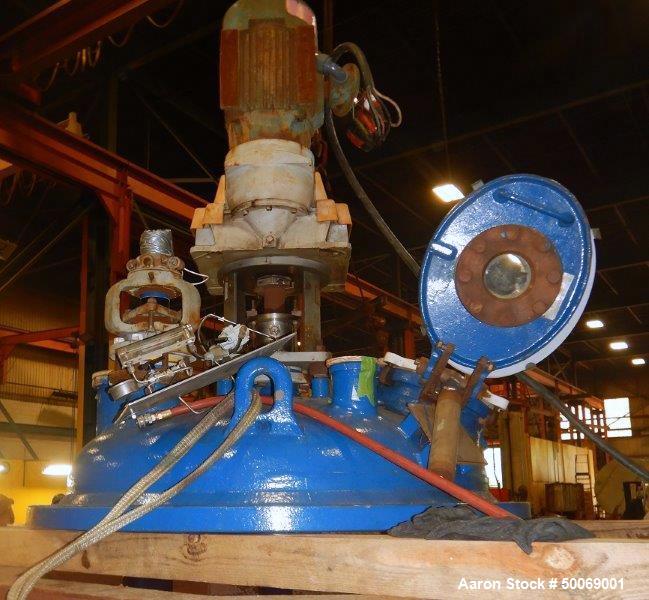

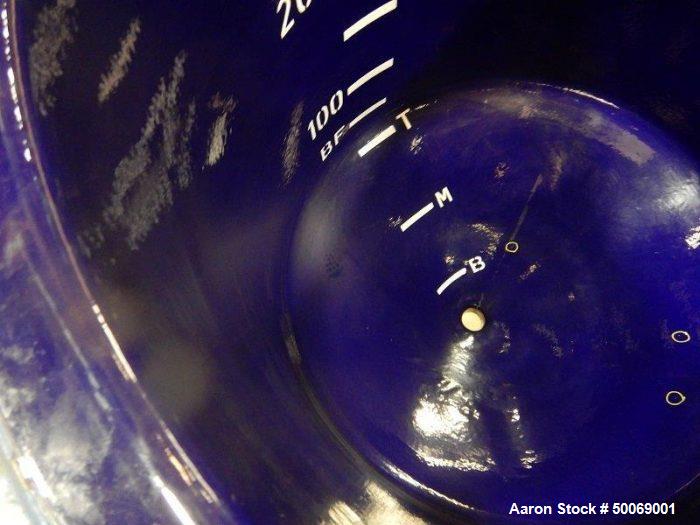

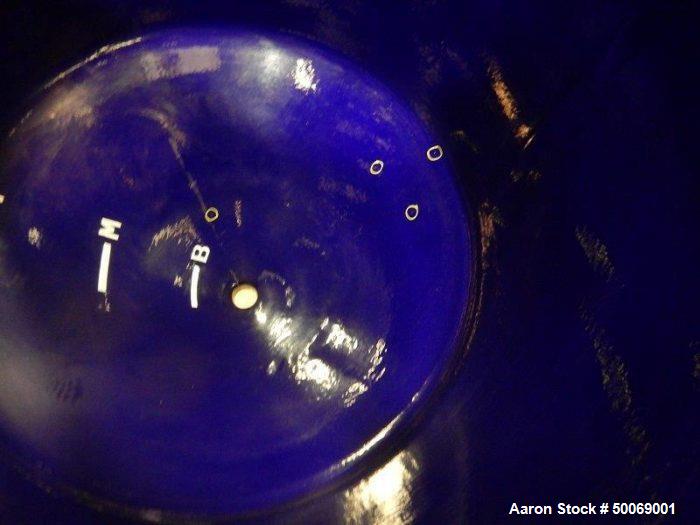

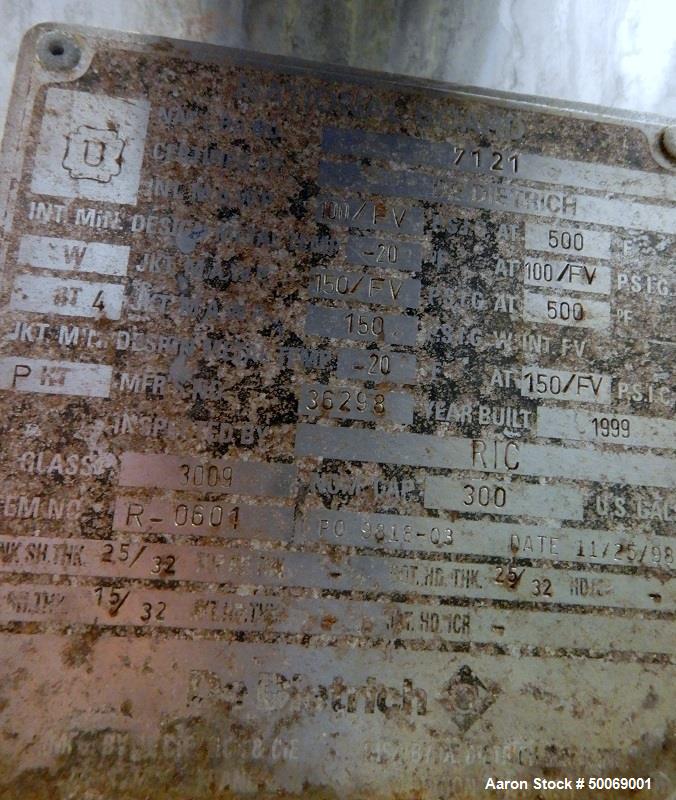

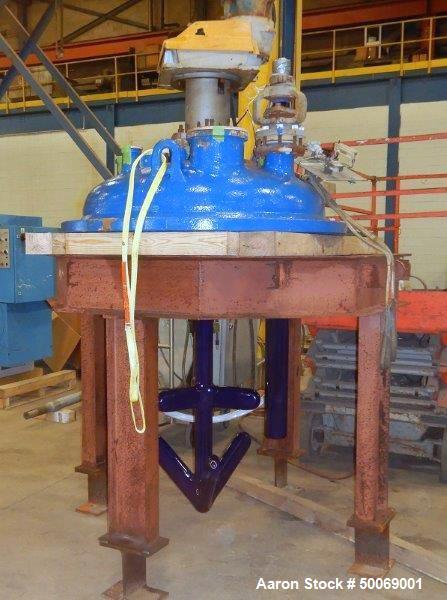

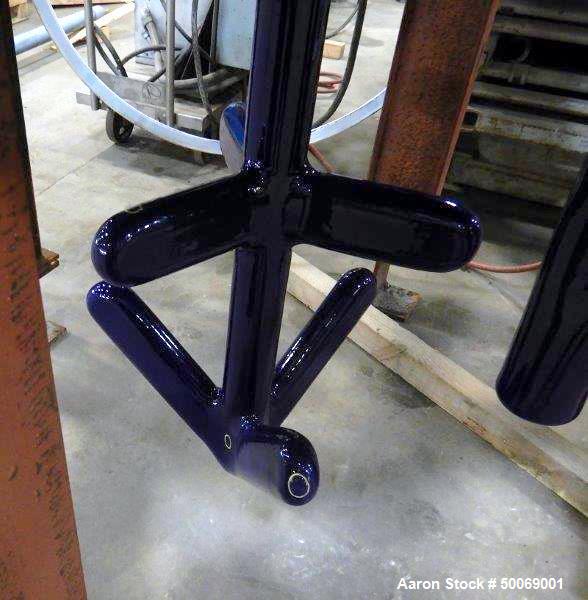

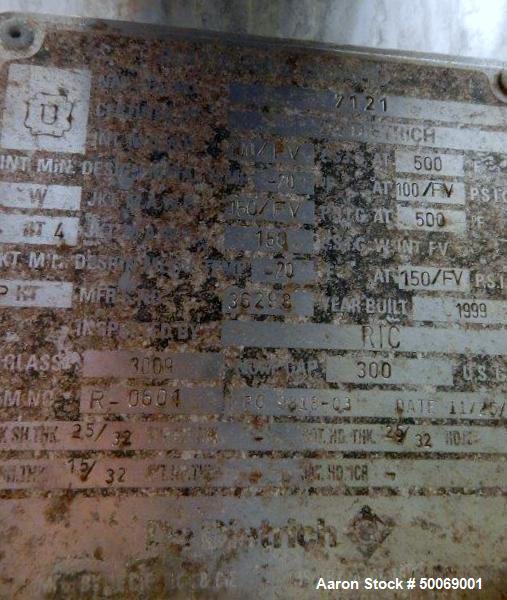

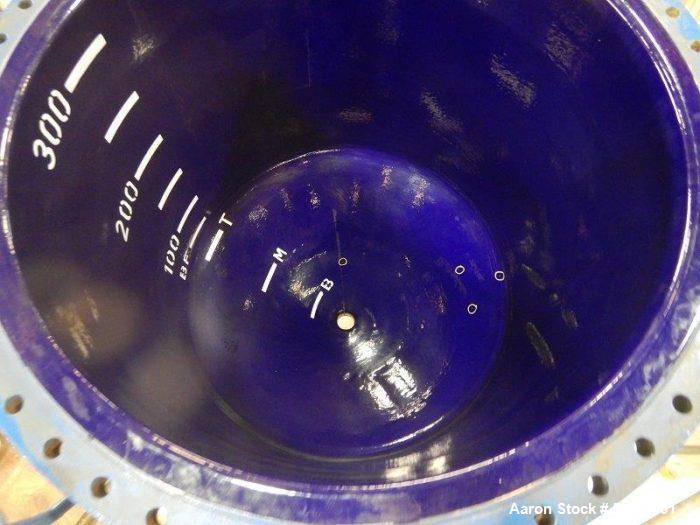

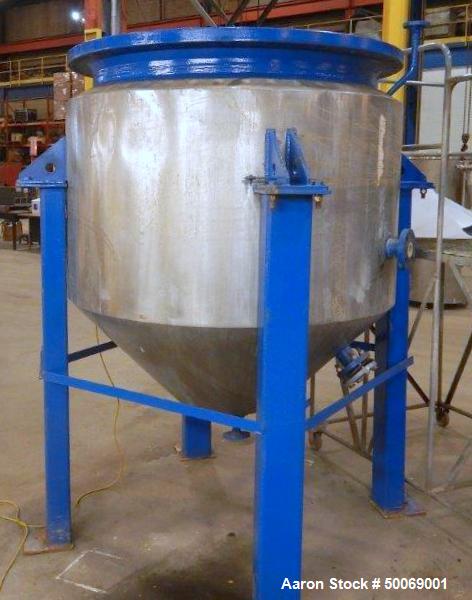

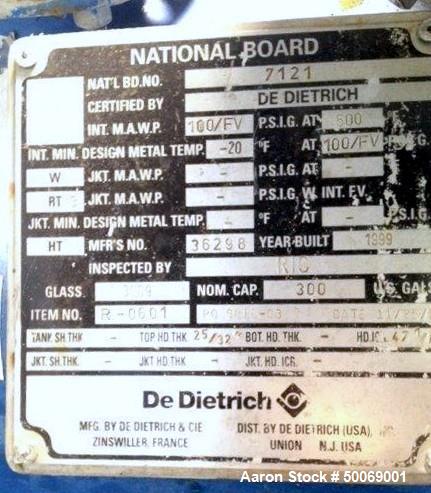

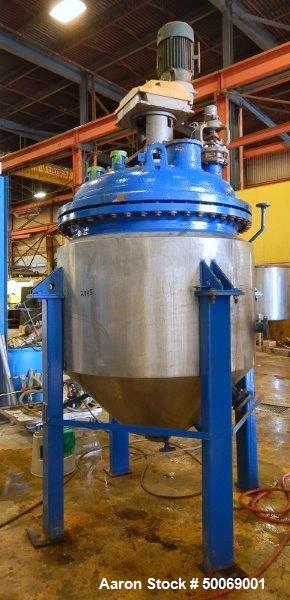

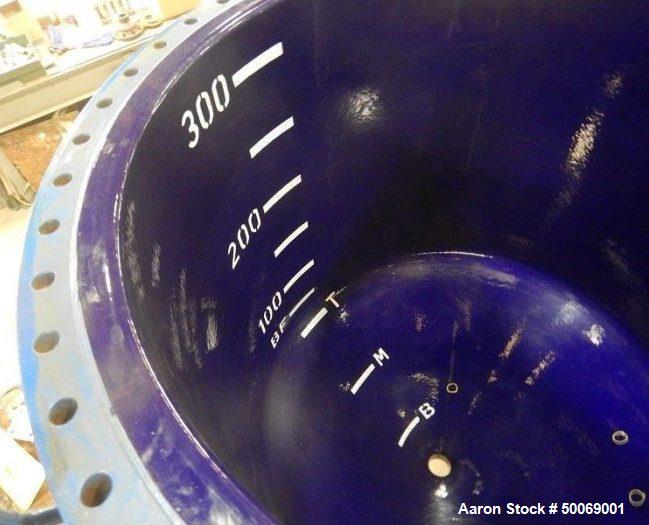

Used- De Dietrich FTJ Bolt Top Glass Lined Reactor, 300 Gallon, 3009 Blue Glass With Calibration Lines. Approximately 47" diameter x 37" straight side, dished bolt top, 23" coned bottom. Internal rated 100/FV psi at -20 to 500 degrees F. Carbon steel jacket rated 150/FV psi at -20 to 500 degrees F. Top entering Dedietrich Series 60 Drive. 7.5 HP with Anchor agitator. Openings top oval manway, 3" center bottom outlet. Side lug mounts with bolt on legs. Serial# 36298, National Board# 7121, Built 1999.
