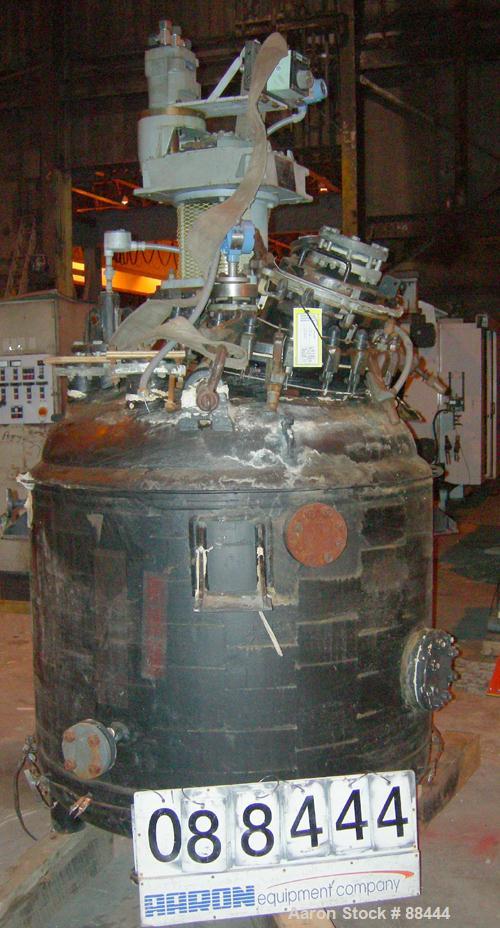

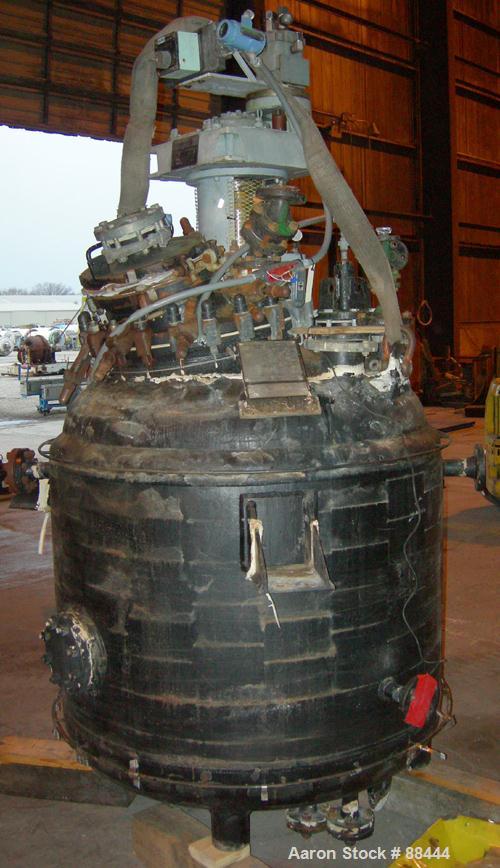

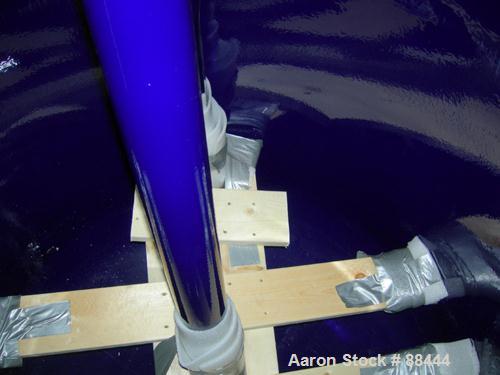

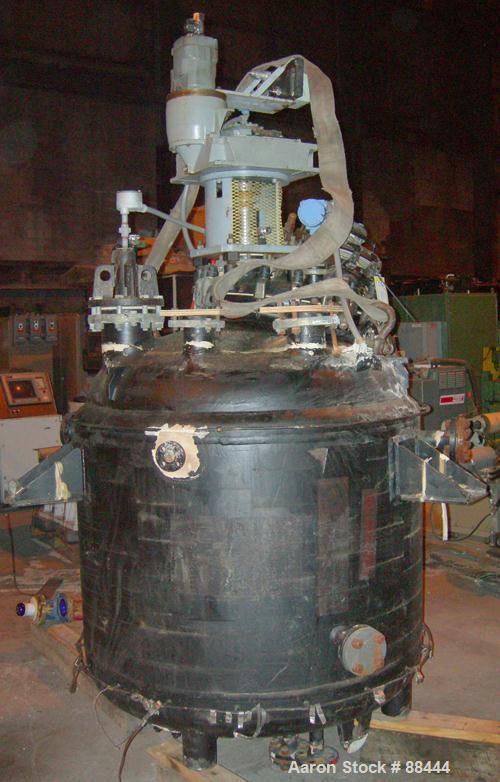

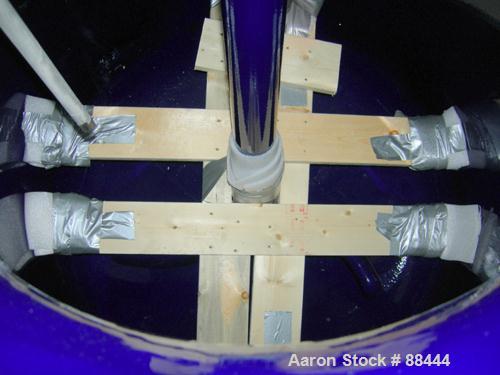

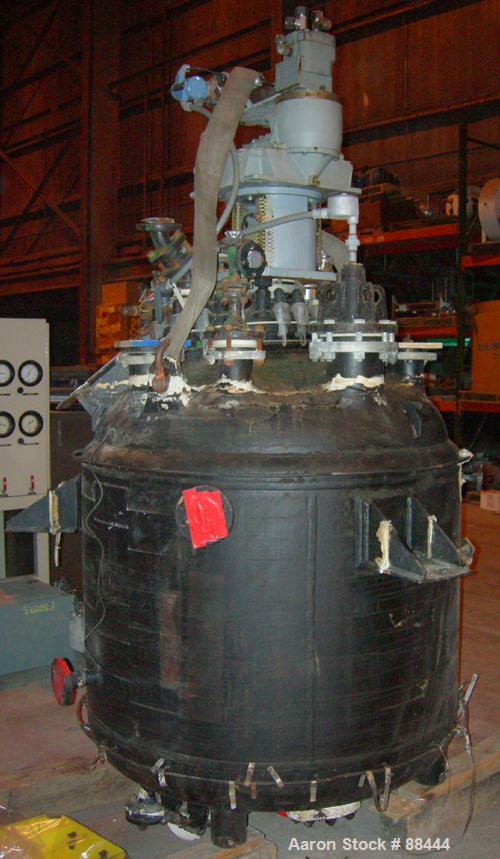

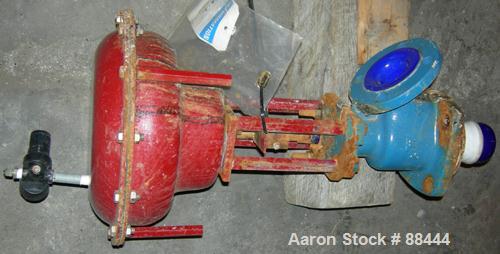

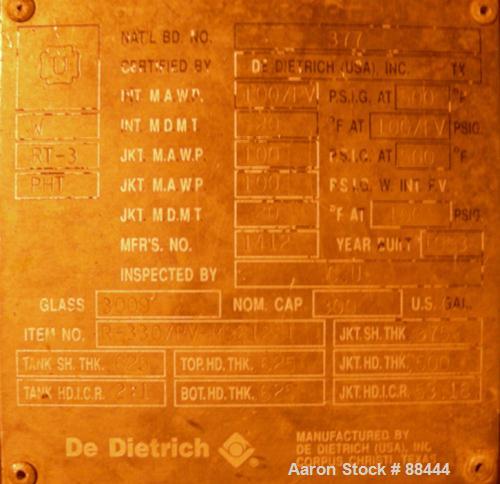

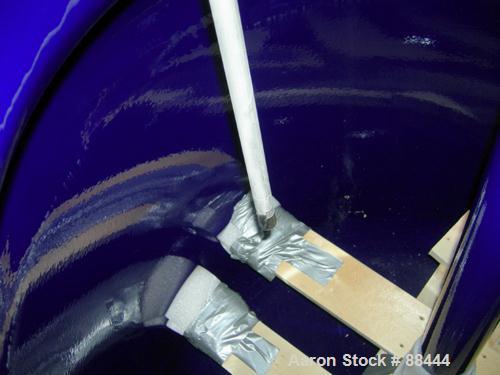

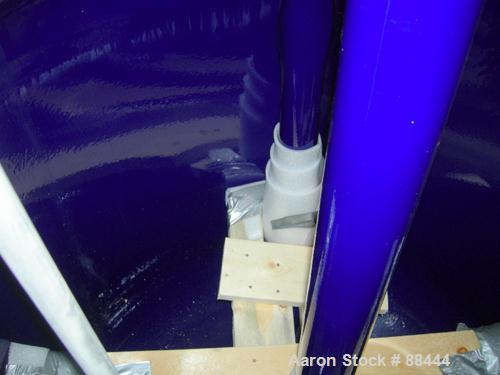

USED: Dedietrich 300 gallon glass lined reactor, model SA-300. Type 3009 glass. 48" diameter. Dished heads. Internal rated 100 PSI/FV at 500 degrees F. Jacket rated 100 PSI at 500 degrees F. 3 blade retreat curve impeller agitator driven by a Dedietrich model 610-06 drive, 14.06:1 ratio, 125 rpm output with flo control, rated for 7.5 hp. Includes beaver tail baffle with Thermowell. Top openings: (2) 4", (2) 3", 6", 24" great cover with a 12" x 16" manway with sightglass. INcludes an air acutated bottom flush valve. Mounted on 3 side lug supports. Provisions for 4 threaded pipe legs.
