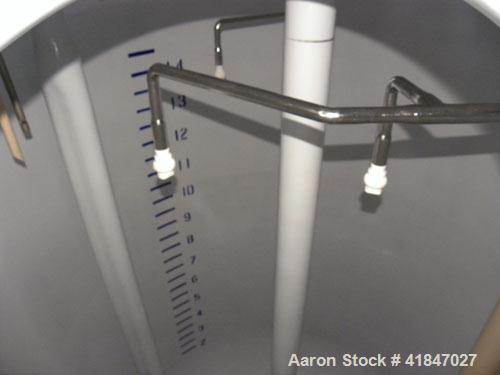

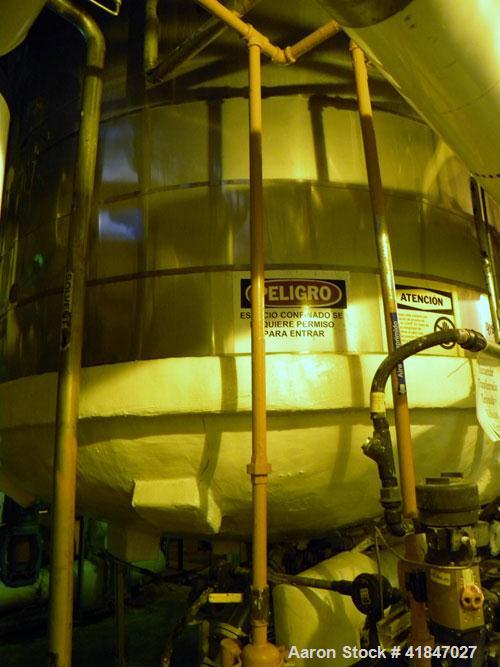

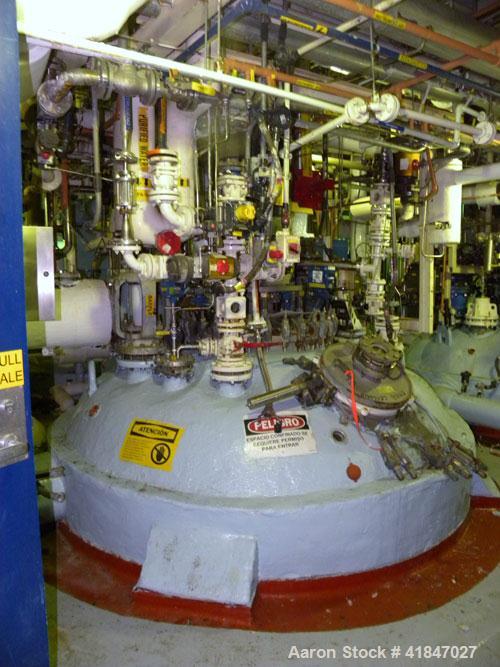

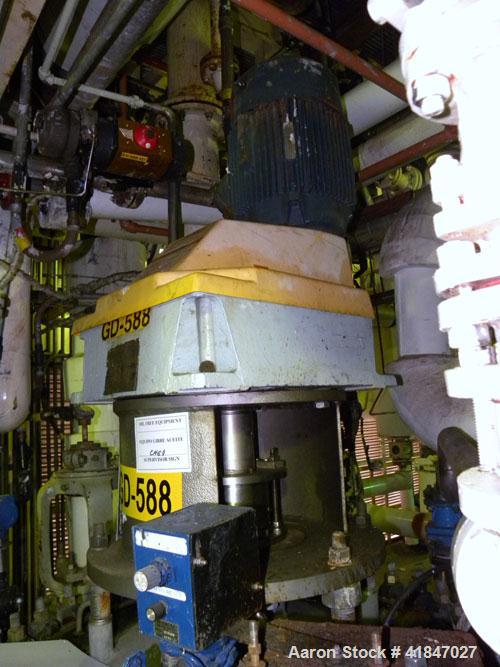

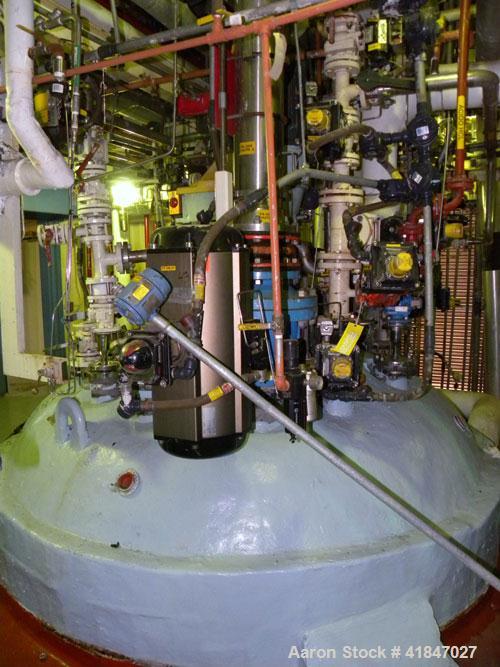

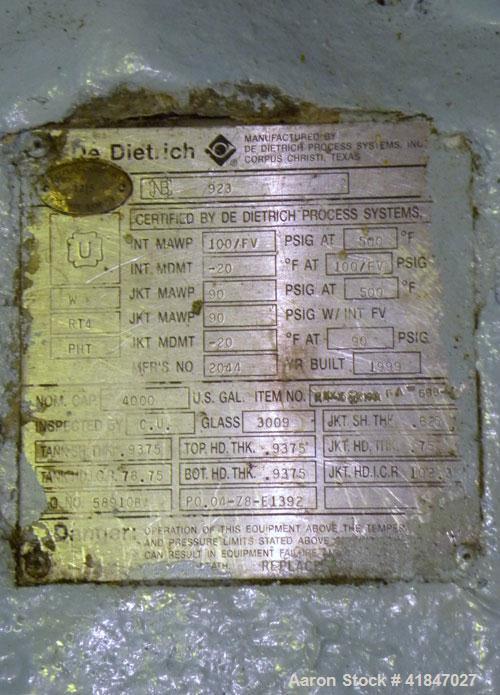

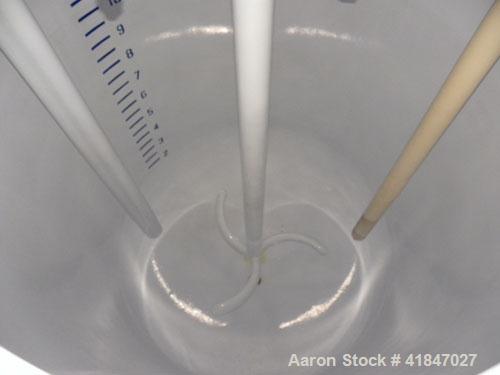

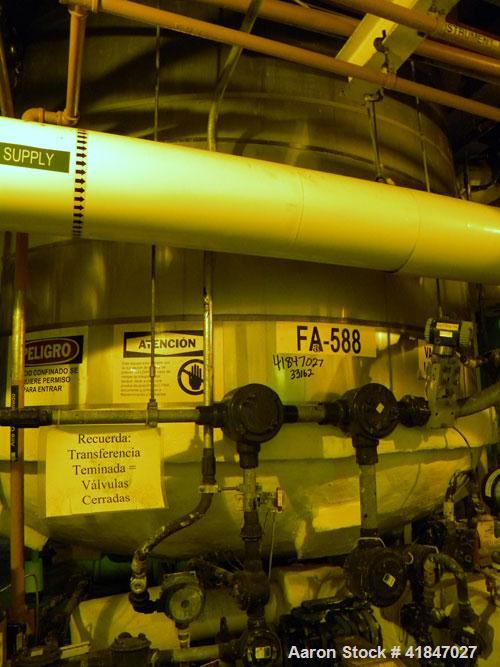

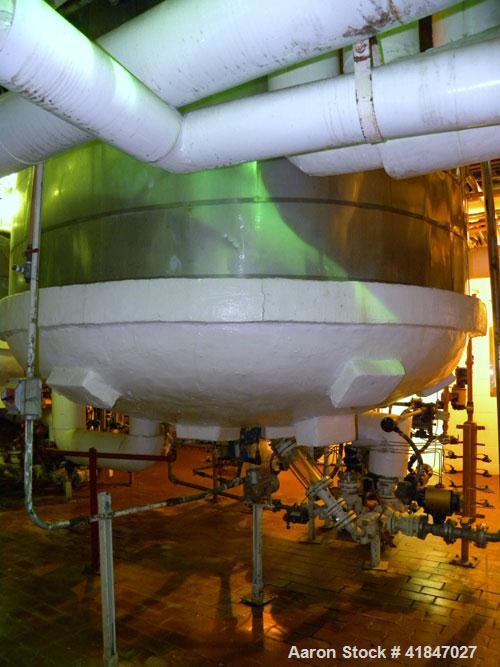

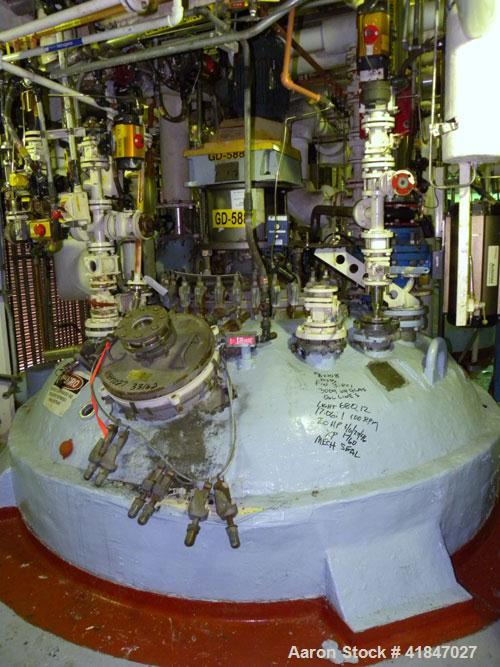

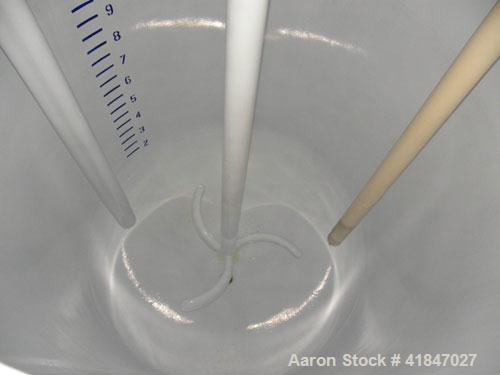

Used Dedietrich Glass Lined Reactor, 4000 Gallon, Model SA, 3009 White Glass With Calibration Lines, Vertical. Approximately 96" diameter x 108" straight side, dished top and bottom. Internal rated 100/FV at –20 to 500 deg F, carbon steel jacket rated 90 psi at –20 to 500 deg F. Dedietrich/Lightnin agitator, model 68Q12, mechanical seal, ratio 17.06 to 1, output 100 rpm. Fin baffle, 3 blade Crylock, driven by a 20 hp, 3/60/230-460 volt, 1760 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #2044, National Board #923, built 1999.
Used Dedietrich Glass Lined Reactor, 4000 Gallon, Model SA, 3009 White Glass With Calibration Lines, Vertical. Approximately 96" diameter x 108" straight side, dished top and bottom. Internal rated 100/FV at –20 to 500 deg F, carbon steel jacket rated 90 psi at –20 to 500 deg F. Dedietrich/Lightnin agitator, model 68Q12, mechanical seal, ratio 17.06 to 1, output 100 rpm. Fin baffle, 3 blade Crylock, driven by a 20 hp, 3/60/230-460 volt, 1760 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #2044, National Board #923, built 1999.
