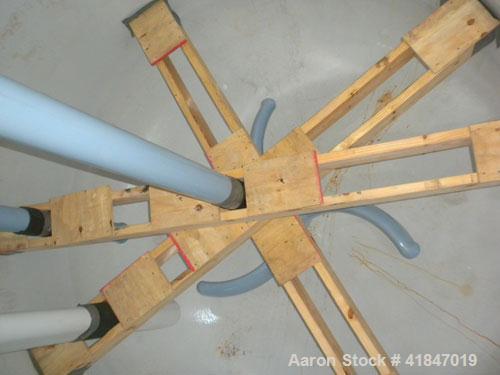

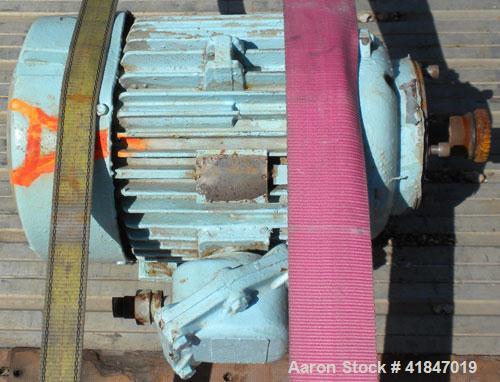

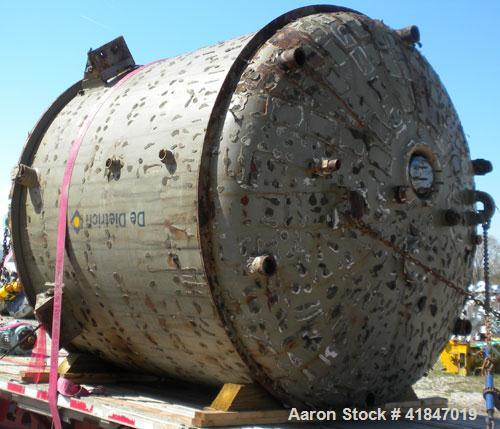

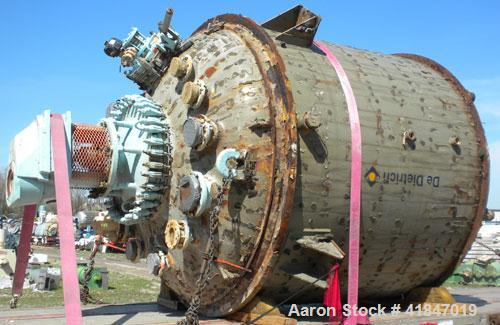

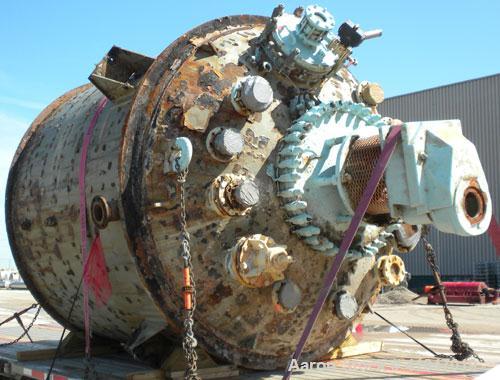

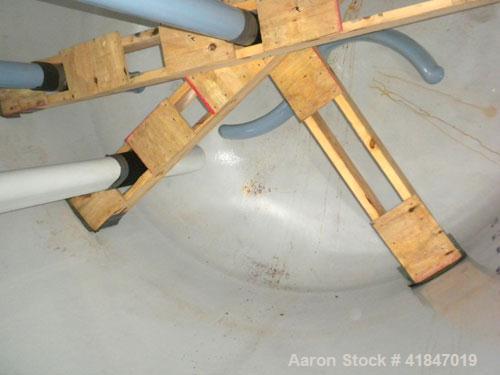

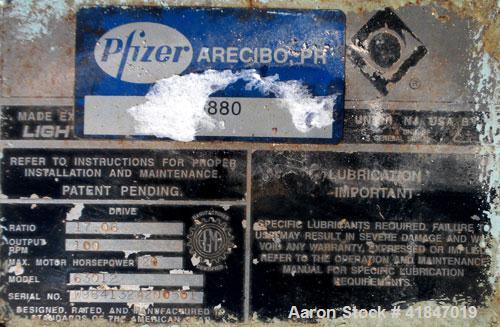

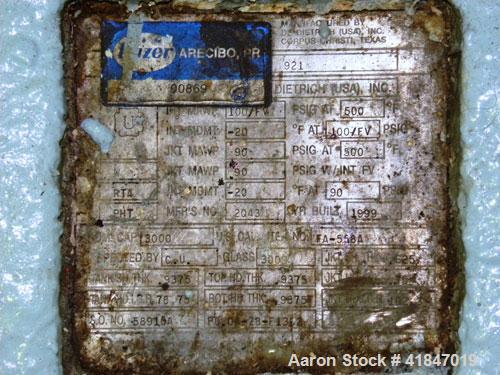

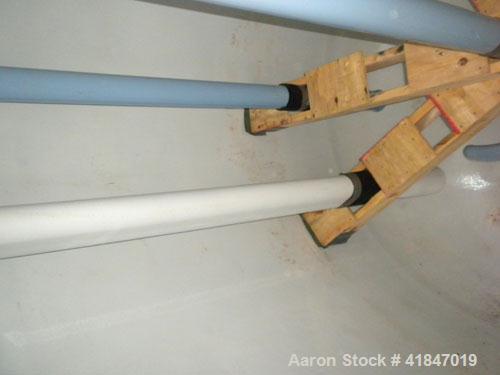

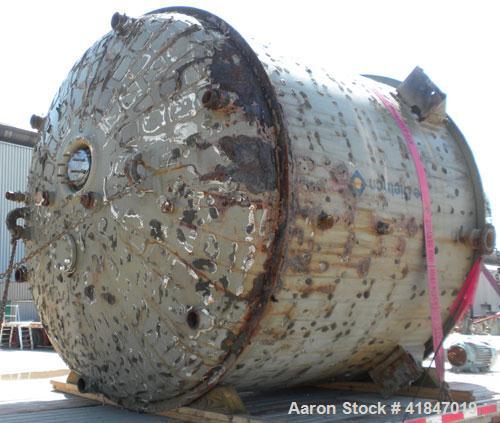

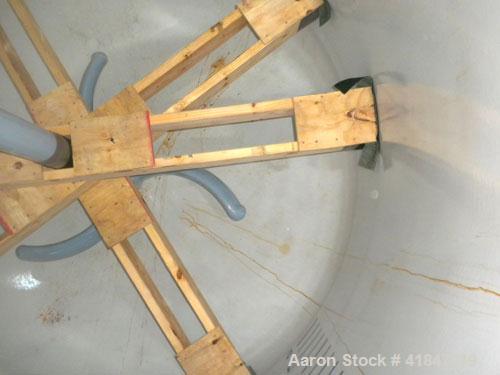

Used De Dietrich Glass Lined Reactor, 3000 gallon, model SA, 3009 white glass with calibration lines, vertical. Approximately 98'' diameter x 76'' straight side, dished top and bottom. Internal rated 100/FV at –20 to 500 deg F, carbon steel jacket rated 90 psi at –20 to 500 deg F. Dedietrich/Lightnin agitator, model 63Q12, mechanical seal, ratio 17.06 to 1, output 100 rpm. Fin baffle, 3 blade RCI, driven by a 20 hp, 3/60/230/460 volt, 1765 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #2043, National Board #921, built 1999.
Used De Dietrich Glass Lined Reactor, 3000 gallon, model SA, 3009 white glass with calibration lines, vertical. Approximately 98'' diameter x 76'' straight side, dished top and bottom. Internal rated 100/FV at –20 to 500 deg F, carbon steel jacket rated 90 psi at –20 to 500 deg F. Dedietrich/Lightnin agitator, model 63Q12, mechanical seal, ratio 17.06 to 1, output 100 rpm. Fin baffle, 3 blade RCI, driven by a 20 hp, 3/60/230/460 volt, 1765 rpm XP motor. Top 18’’ manway, bottom outlet. Side lug mounts. Serial #2043, National Board #921, built 1999.
