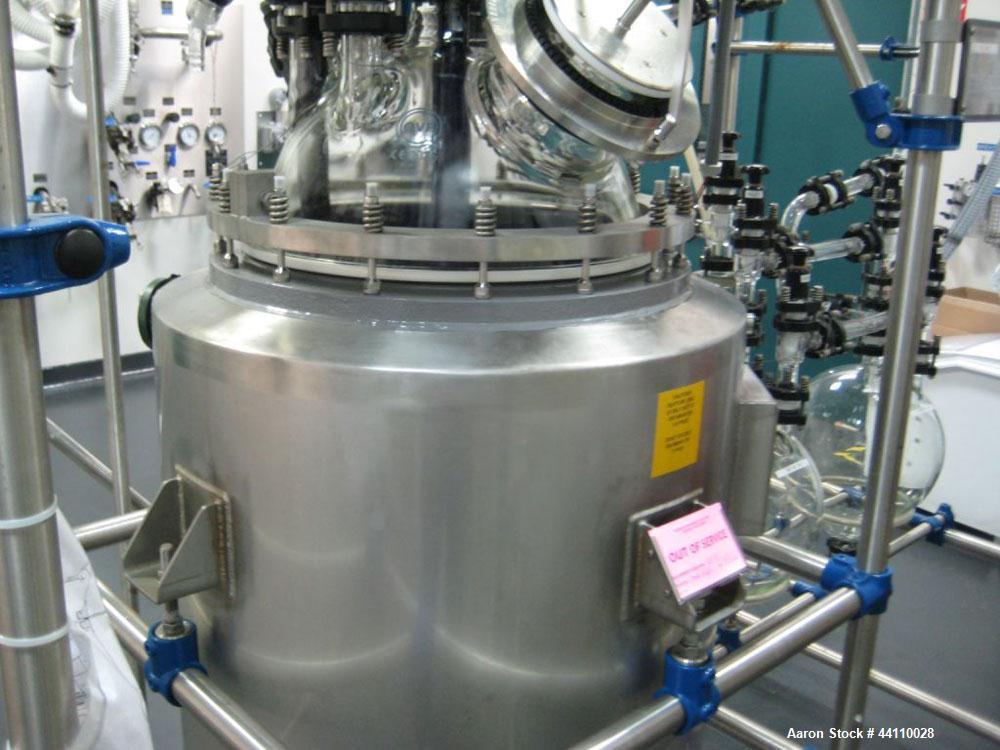

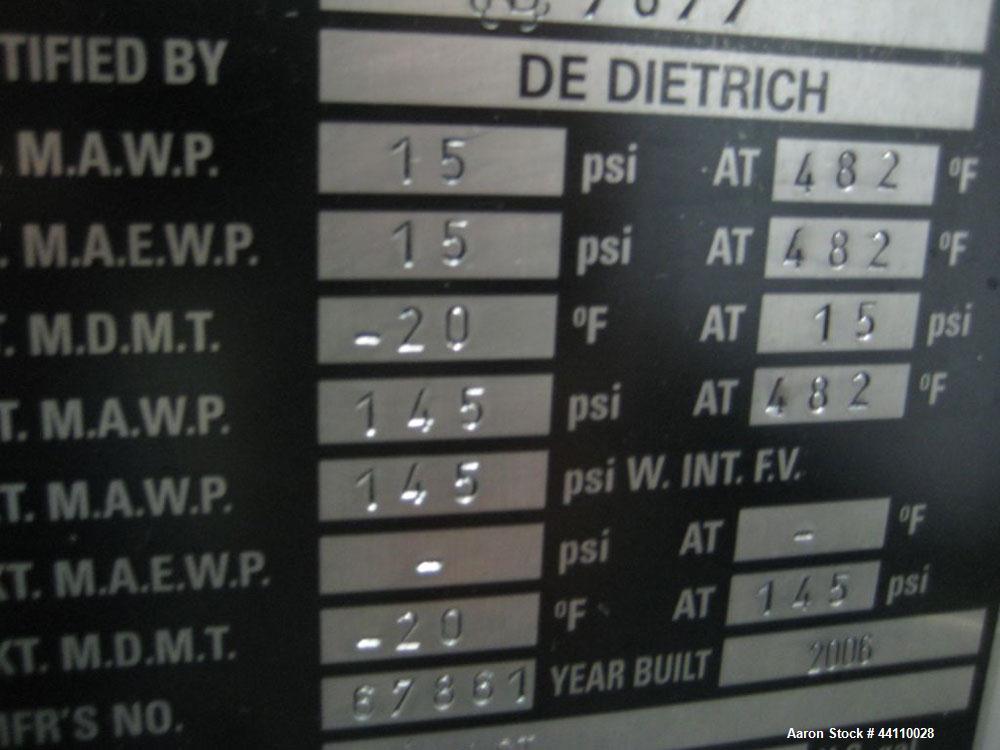

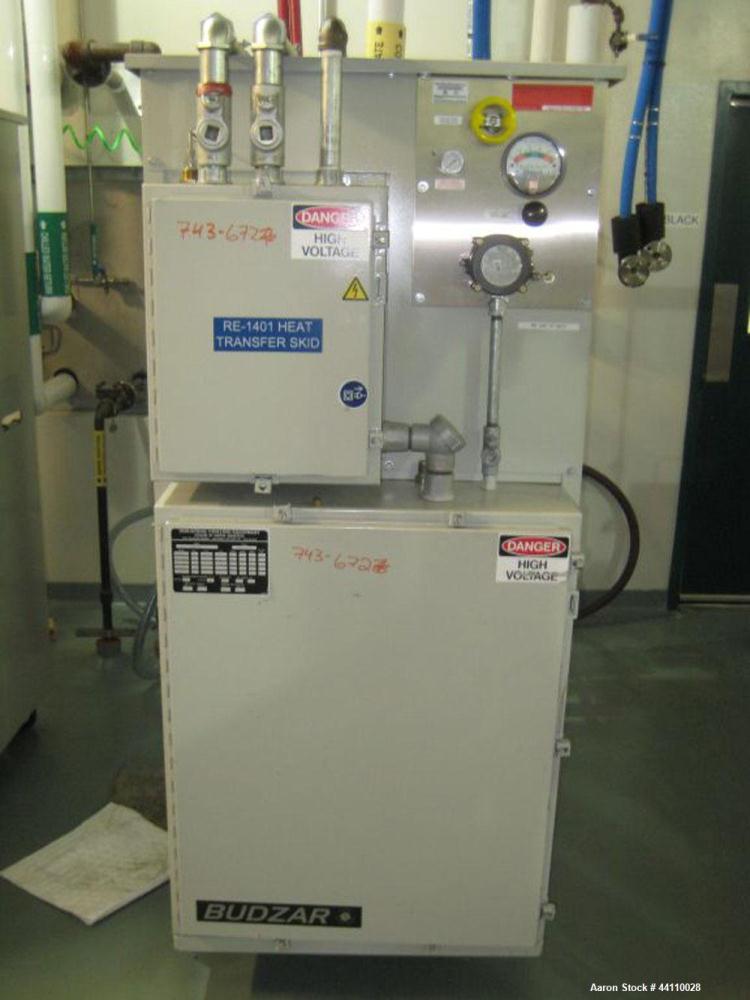

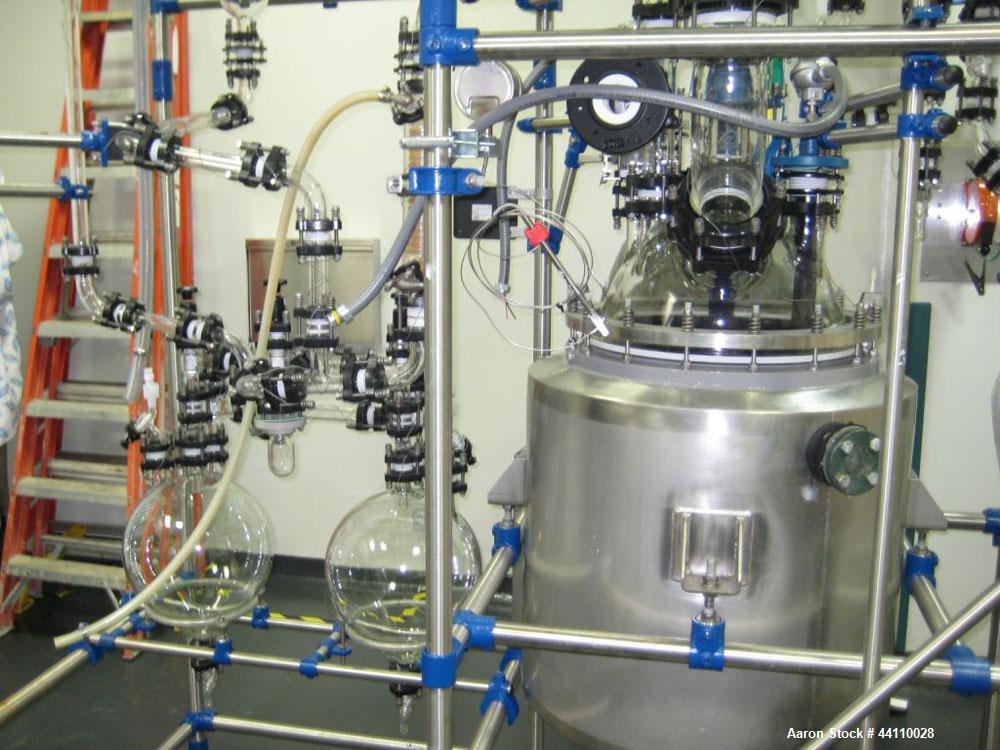

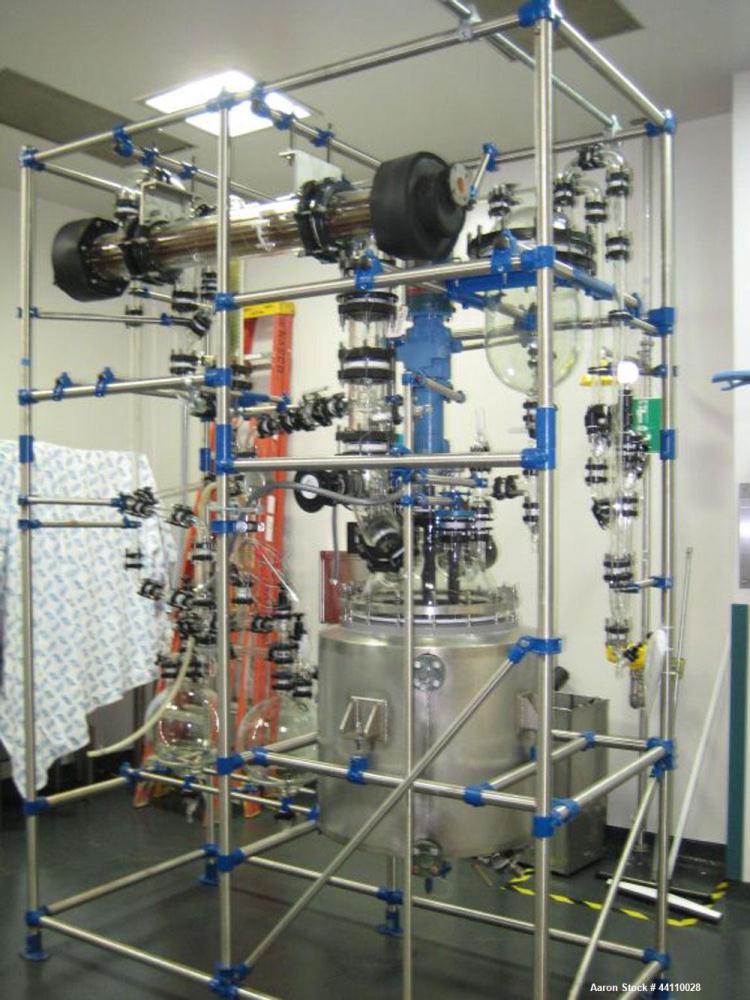

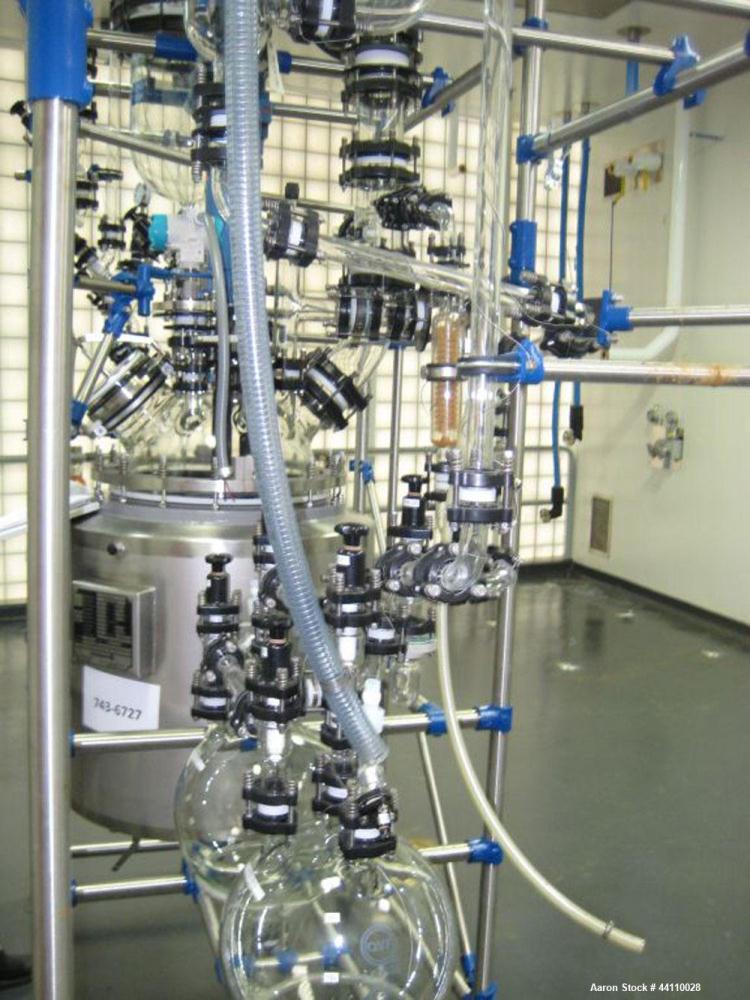

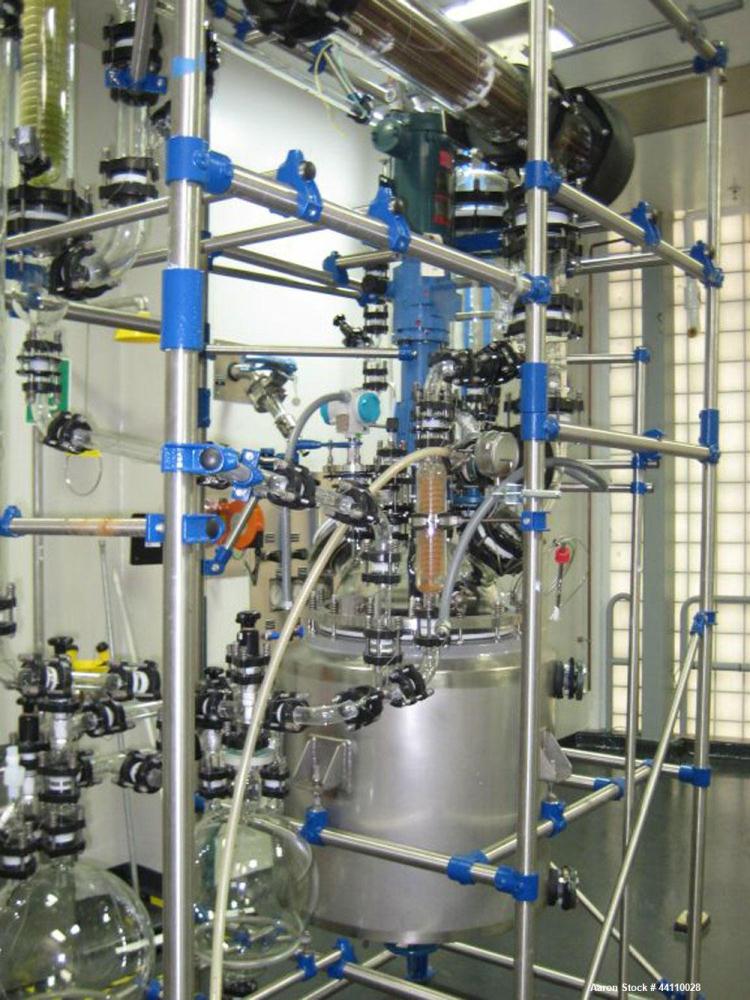

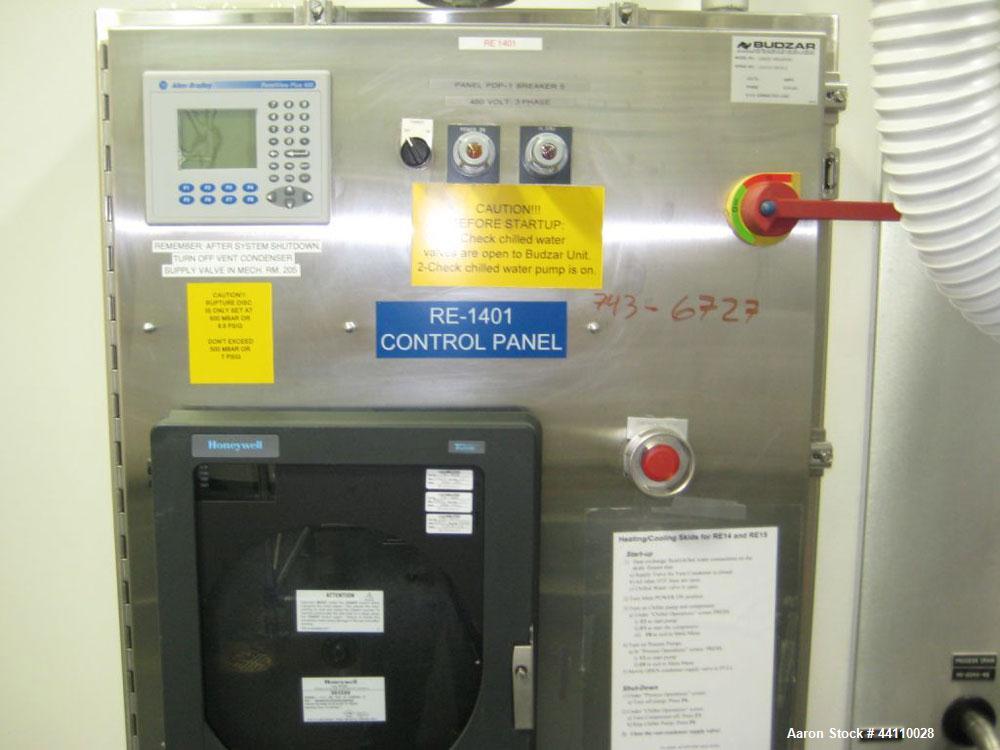

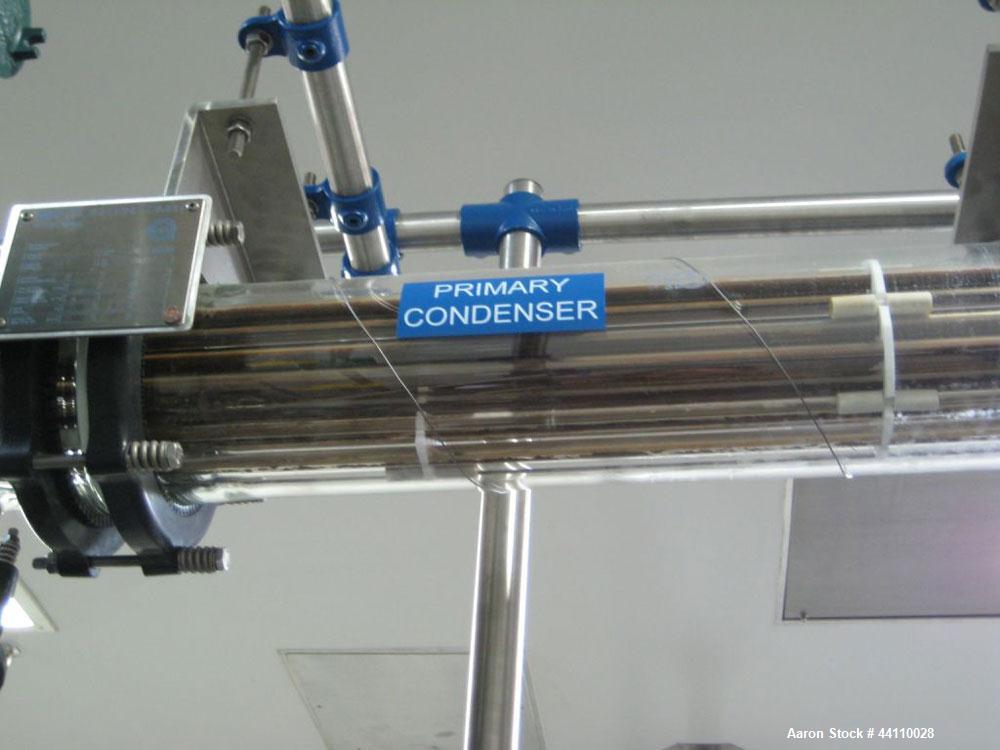

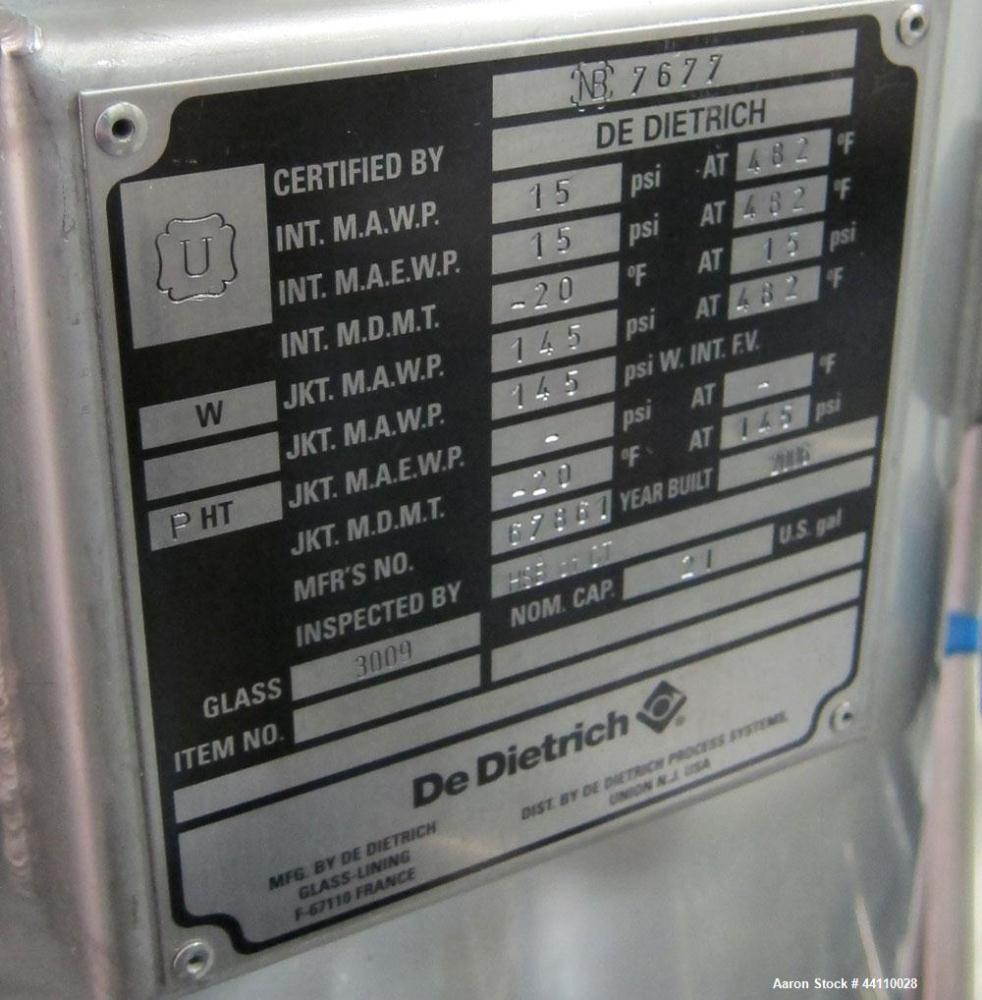

Unused- DeDietrich Glass Lined Reactor, 21 Gallon. Internal rated 15 psi & Full Vacuum at 482 degrees F, jacket rated 145 psi & Full Vacuum at 482 degrees F. Type 3009 Glass. QVF top. 304 Stainless Steel sheathing. Lug mounted. 18" OD x 23 27/64" deep. Variable speed drive. Motor - 1 hp, 3 phase, 60 hertz, 230/460 volt, 1140 RPM, explosion proof. Agitator (3) blade turbine. Serial #67861, National Board # 7677, Built 2006. With (2) 20 liter QVF receivers, (1) QVF vent condenser, (1) 20 liter QVF load tank, (1) horizontal shell & tube primary condenser, and (1) Heat Transfer Skid (Mfg by Budzar Industries, Model LTW-12-5C, S# 200602-10679-1, 3/60/460V, 10hp compressor, 3 hp chill pump, 2 hp proc. Pump, 12KW heater, 500 transfer va, max working pressure 400 psi high side, 150 psi low side, refrigerant R404A).
Unused- DeDietrich Glass Lined Reactor, 21 Gallon. Internal rated 15 psi & Full Vacuum at 482 degrees F, jacket rated 145 psi & Full Vacuum at 482 degrees F. Type 3009 Glass. QVF top. 304 Stainless Steel sheathing. Lug mounted. 18" OD x 23 27/64" deep. Variable speed drive. Motor - 1 hp, 3 phase, 60 hertz, 230/460 volt, 1140 RPM, explosion proof. Agitator (3) blade turbine. Serial #67861, National Board # 7677, Built 2006. With (2) 20 liter QVF receivers, (1) QVF vent condenser, (1) 20 liter QVF load tank, (1) horizontal shell & tube primary condenser, and (1) Heat Transfer Skid (Mfg by Budzar Industries, Model LTW-12-5C, S# 200602-10679-1, 3/60/460V, 10hp compressor, 3 hp chill pump, 2 hp proc. Pump, 12KW heater, 500 transfer va, max working pressure 400 psi high side, 150 psi low side, refrigerant R404A).
