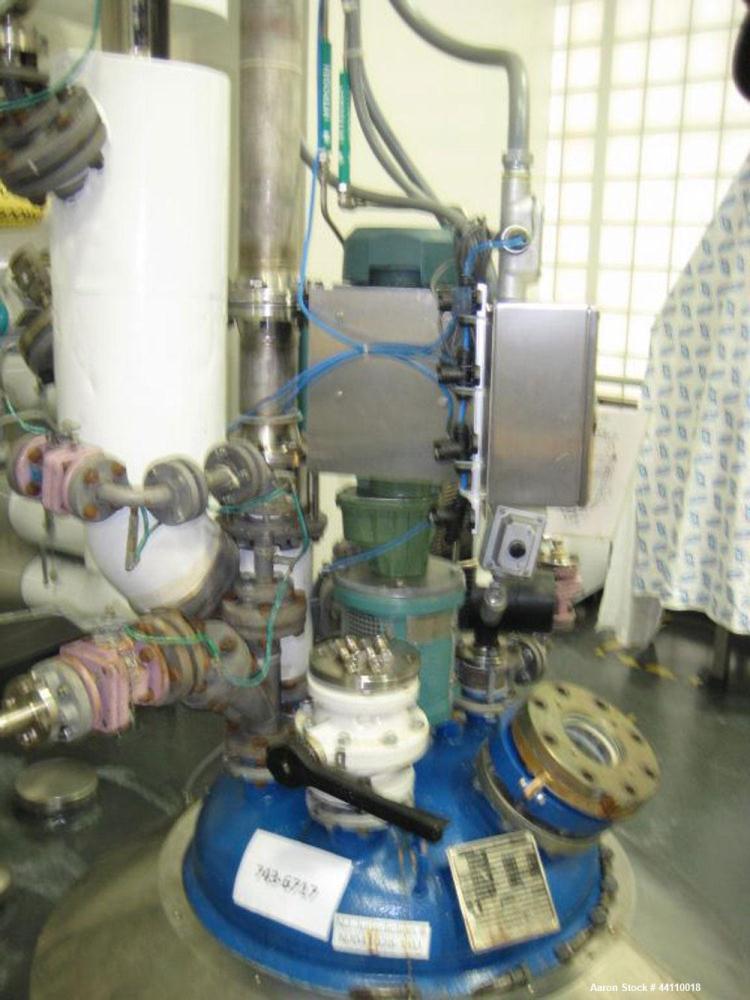

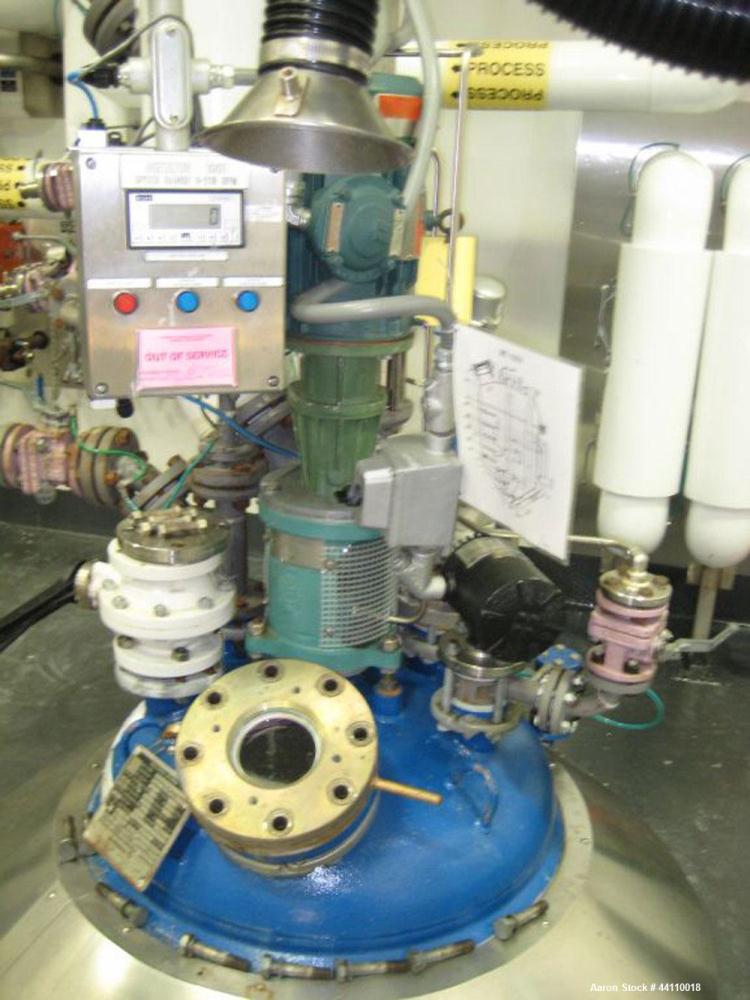

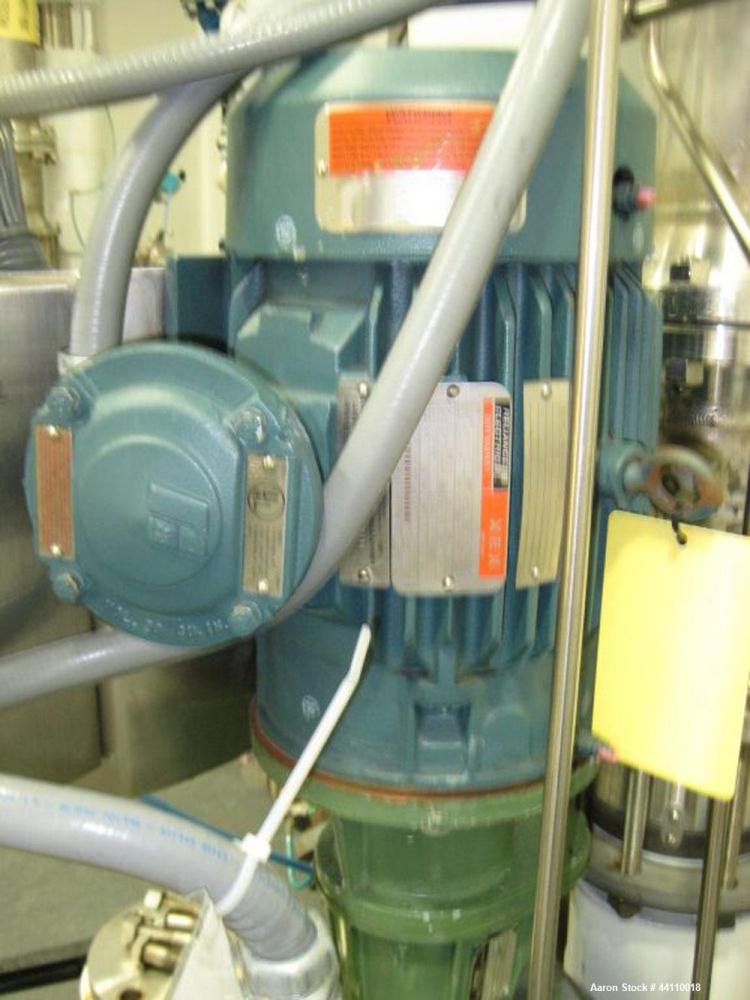

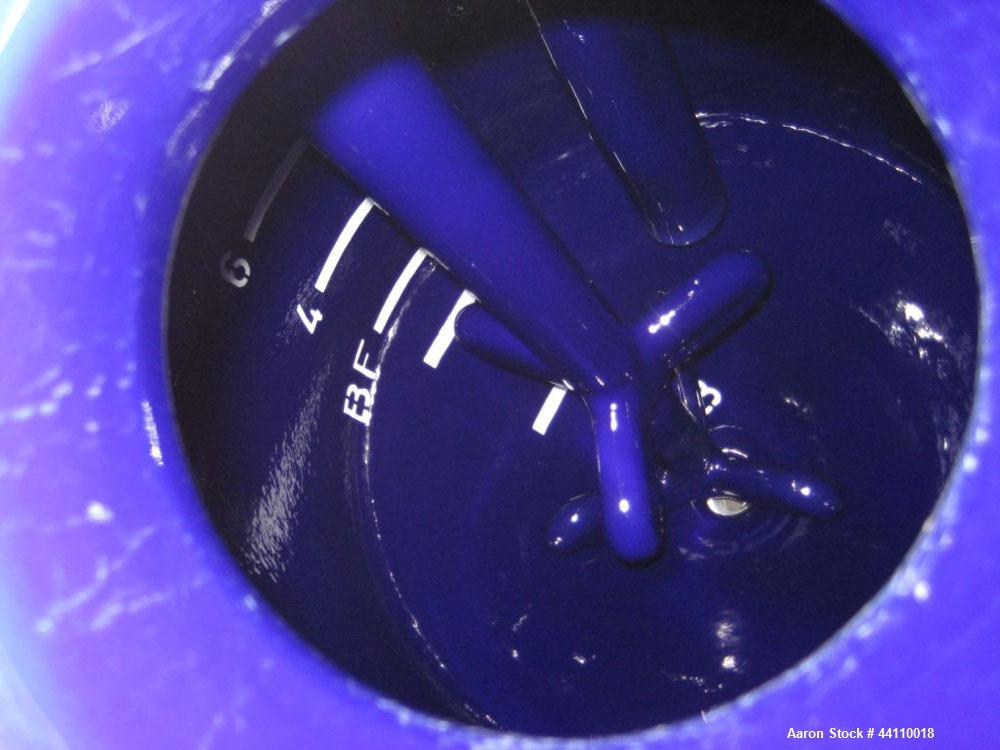

Used DeDietrich Glass Lined Reactor, 100 Gallon. Internal rated 100 psi & Full Vacuum at 500 degrees F, jacket rated 150 psi & Full Vacuum at 500 degrees F. Type 3009 Blue Glass. Bolted top, welded cone bottom. 32" ID x 55 3/16". 304 Stainless Steel sheathing. Lug mounted. Lenze fixed speed gear drive assembly. Motor 3 hp, 3 phase, 60 hertz, 460 volt, 1750 RPM. Baffle Beavertail with DR-Tip. Agitator (3) blade chevron lower tier, (3) blade turbine upper tier. (1) 6" handhole; (2) 4" inlet/outlet; (1) 3" inlet/outlet; (1) 2 " inlet/outlet; (2) 2" inlet/outlet; (1) 3" center bottom outlet. Serial #36300, National Board # 7120, Built 1999. Weight 2260 lbs. Previous Use: API Pilot Plant.
