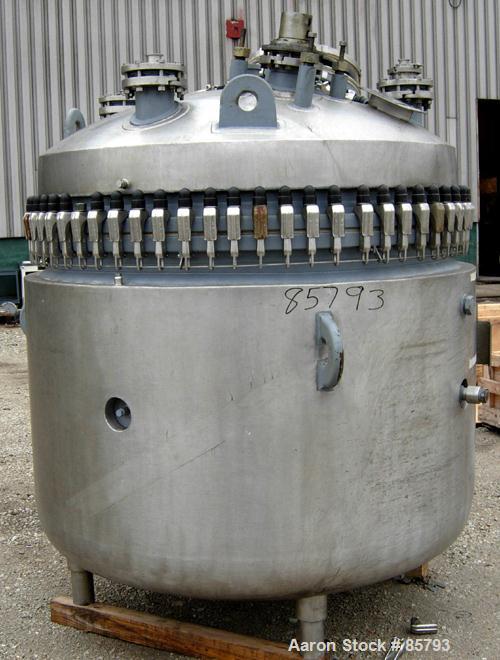

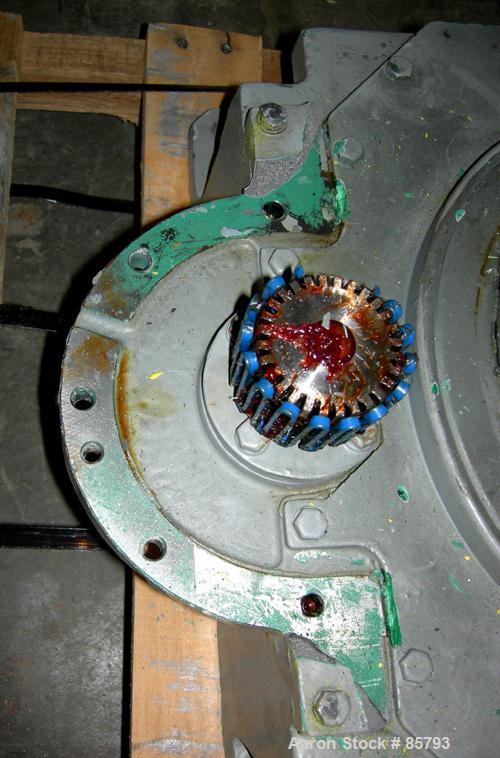

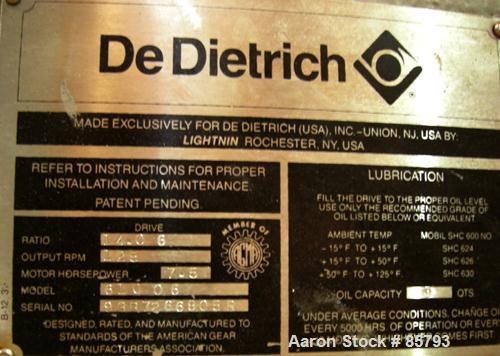

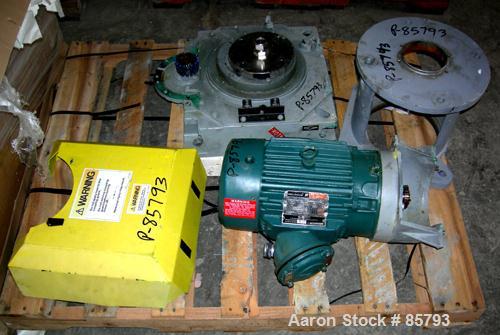

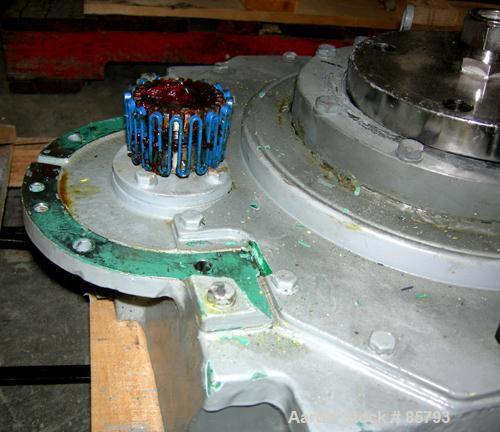

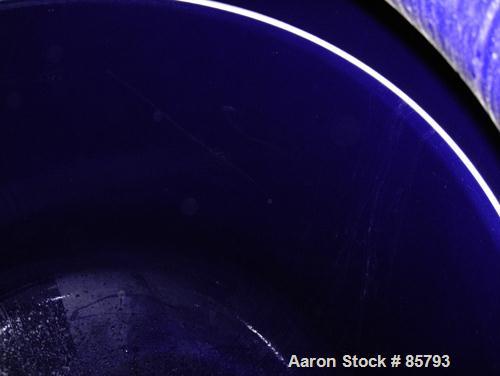

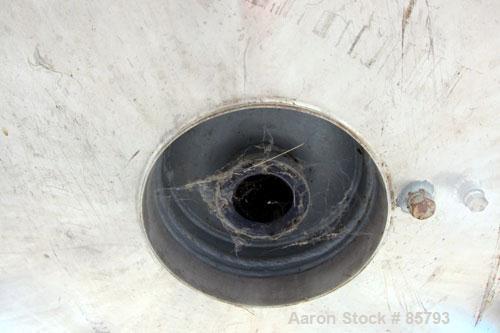

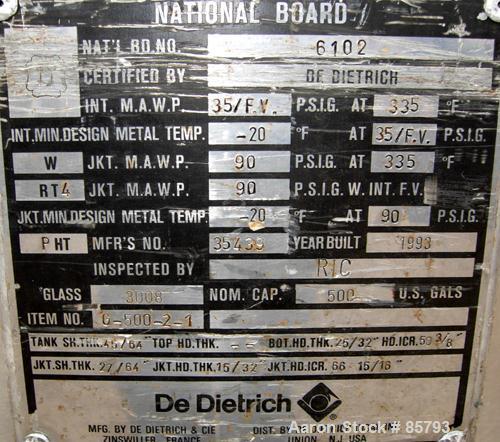

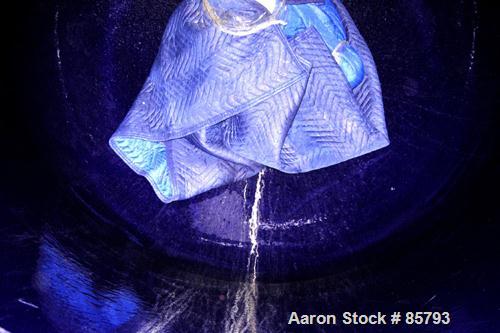

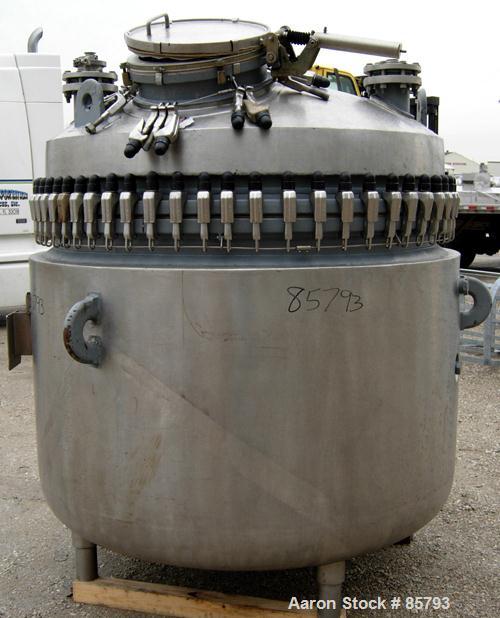

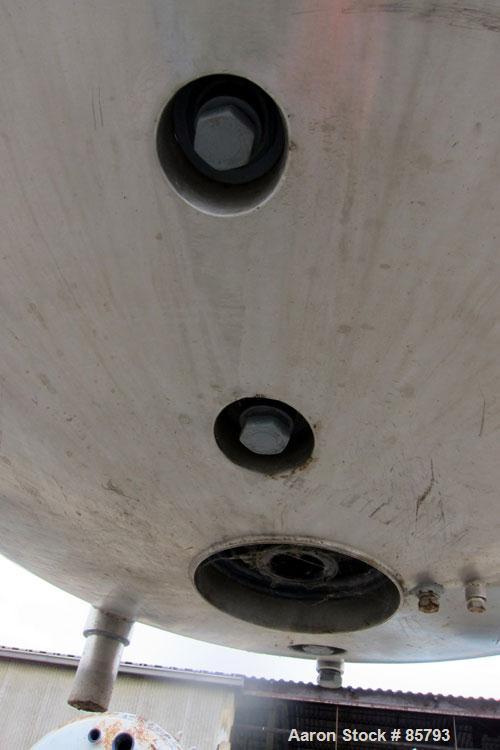

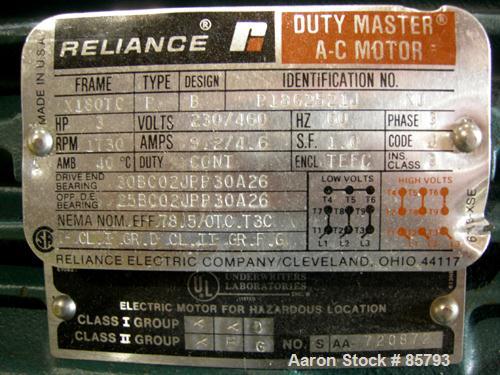

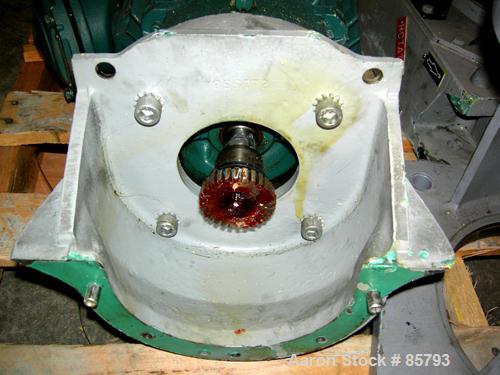

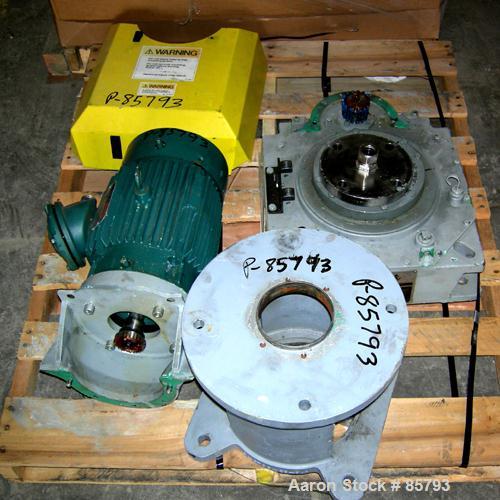

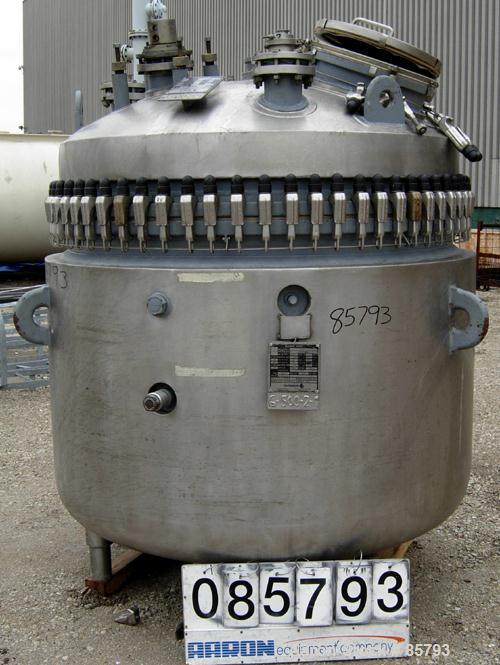

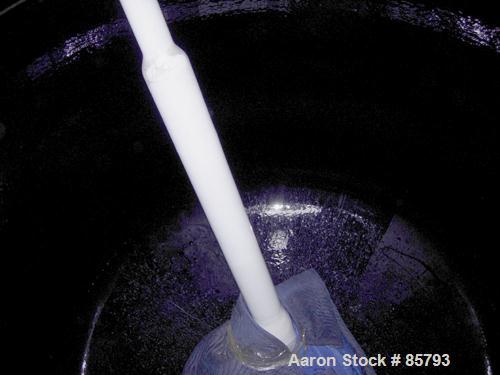

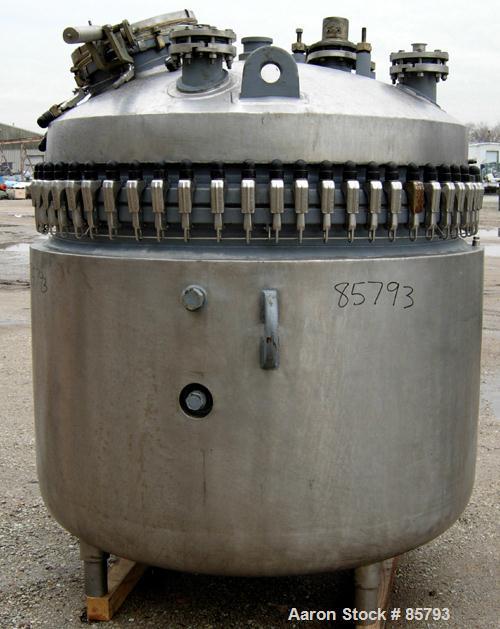

Used De Dietrich Glass Lined Reactor, 500 Gallon, 3008 Glass, Vertical. Approximately 62" diameter x 54" straight side, bolt-on dished top, dish bottom. Internal rated 35 PSI/FV at 335 Degrees F, carbon steel jacket rated 90 PSI at 335 Degrees F. Stainless steel sheathing, off center 3 blade agitator, Dedietrich/Lightnin agitator, model 61006, ratio 14.06:1, output RPM 125, driven by a 3 HP, 3/60/230/460 Volt XP motor. Openings: top (4) 4", 3", 17" manway; 3" center bottom outlet. Mounted on 4 stainless steel legs.
Used De Dietrich Glass Lined Reactor, 500 Gallon, 3008 Glass, Vertical. Approximately 62" diameter x 54" straight side, bolt-on dished top, dish bottom. Internal rated 35 PSI/FV at 335 Degrees F, carbon steel jacket rated 90 PSI at 335 Degrees F. Stainless steel sheathing, off center 3 blade agitator, Dedietrich/Lightnin agitator, model 61006, ratio 14.06:1, output RPM 125, driven by a 3 HP, 3/60/230/460 Volt XP motor. Openings: top (4) 4", 3", 17" manway; 3" center bottom outlet. Mounted on 4 stainless steel legs.
