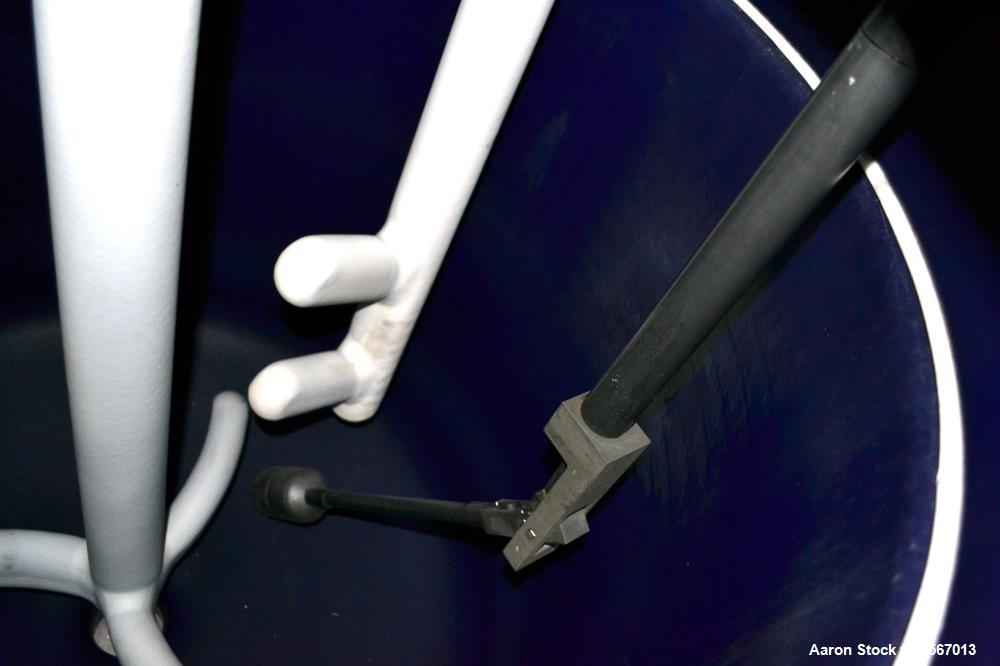

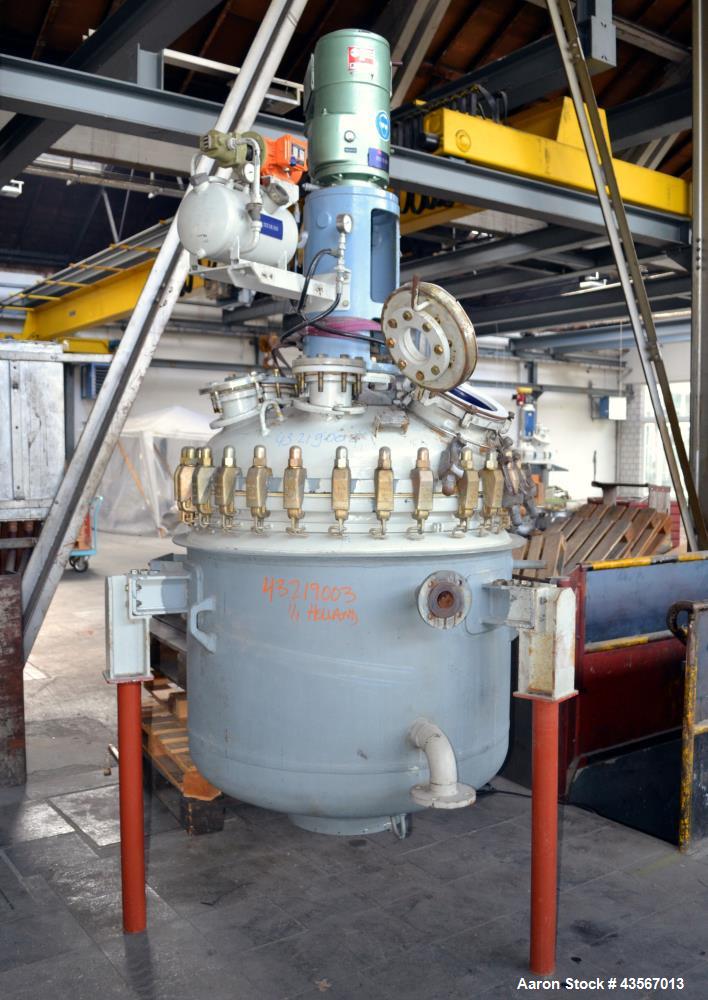

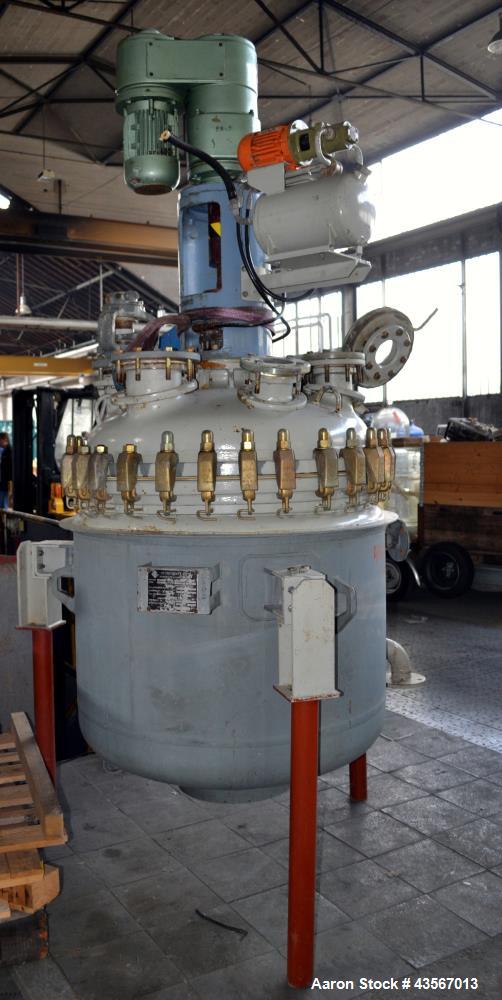

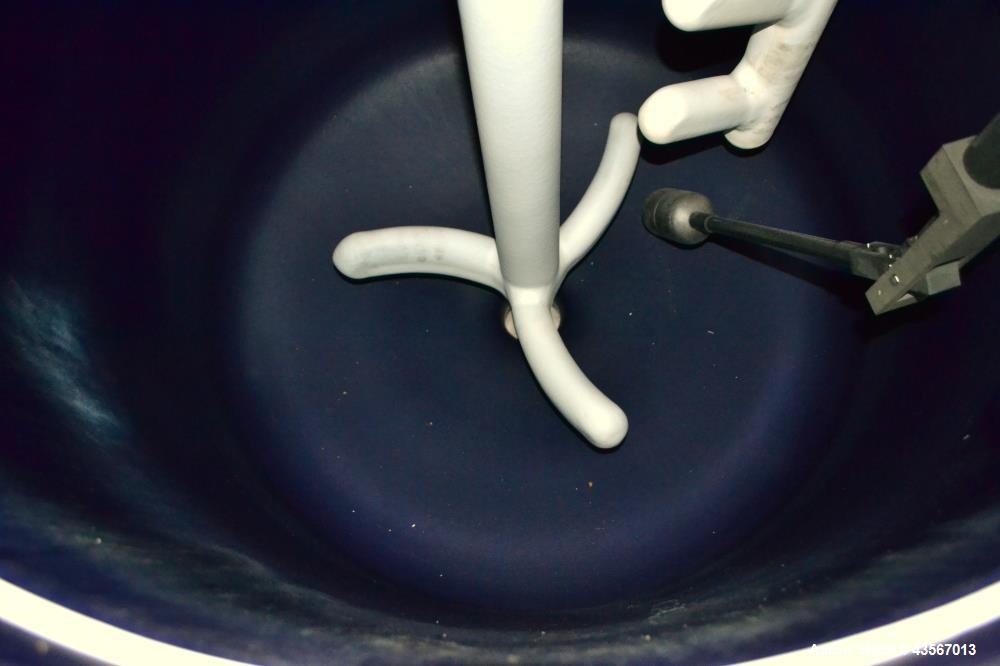

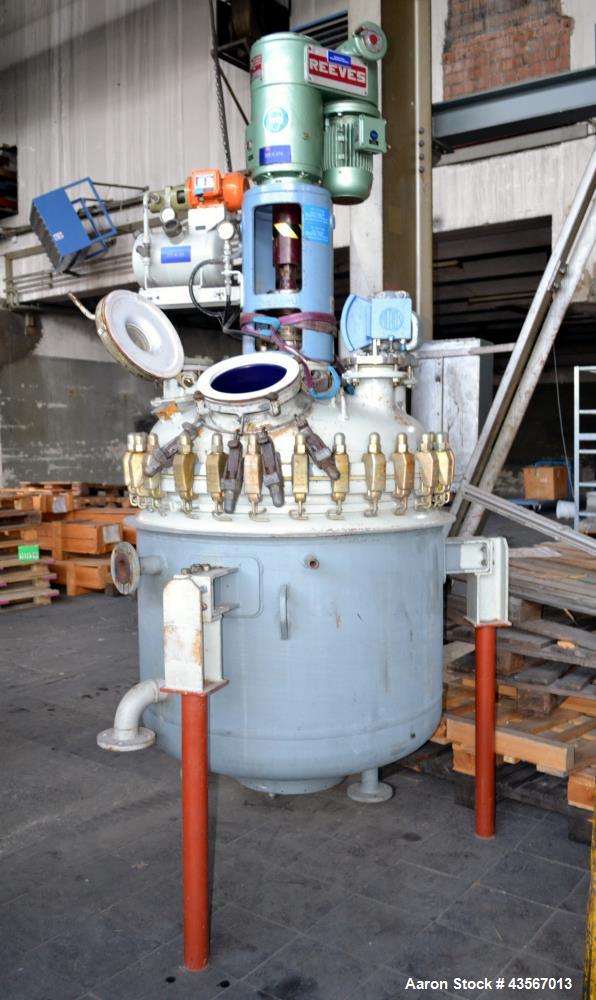

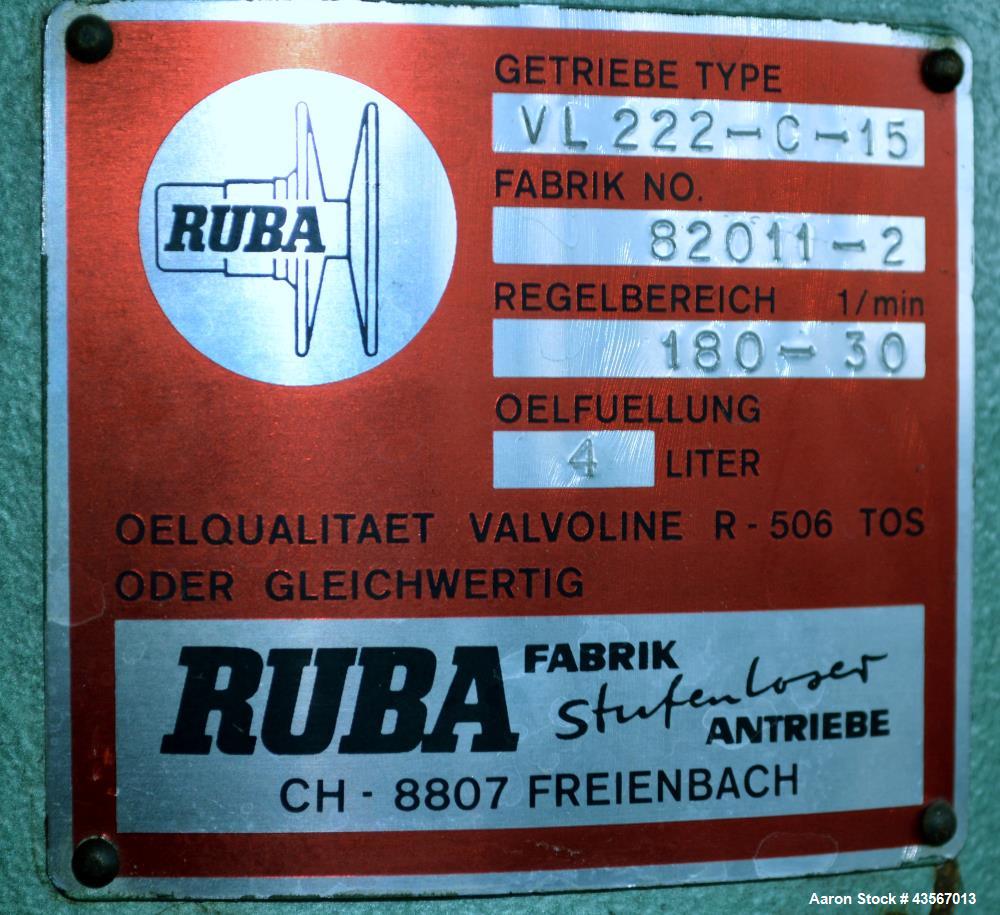

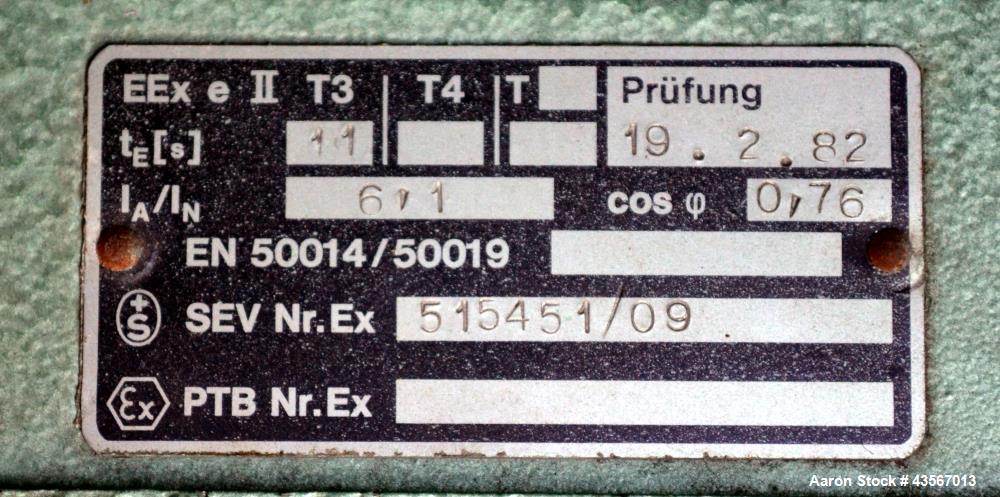

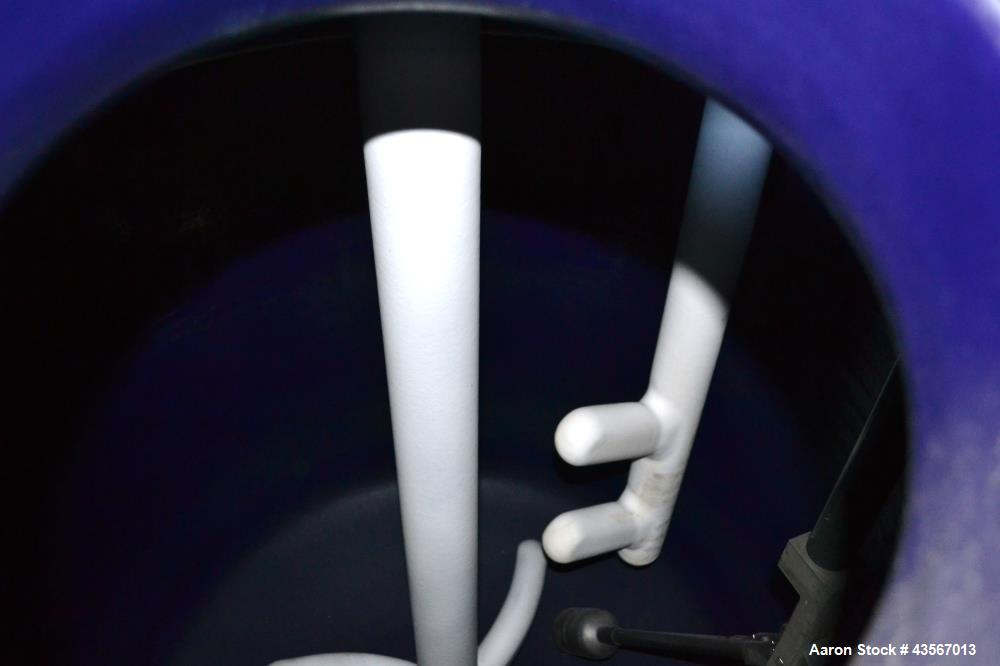

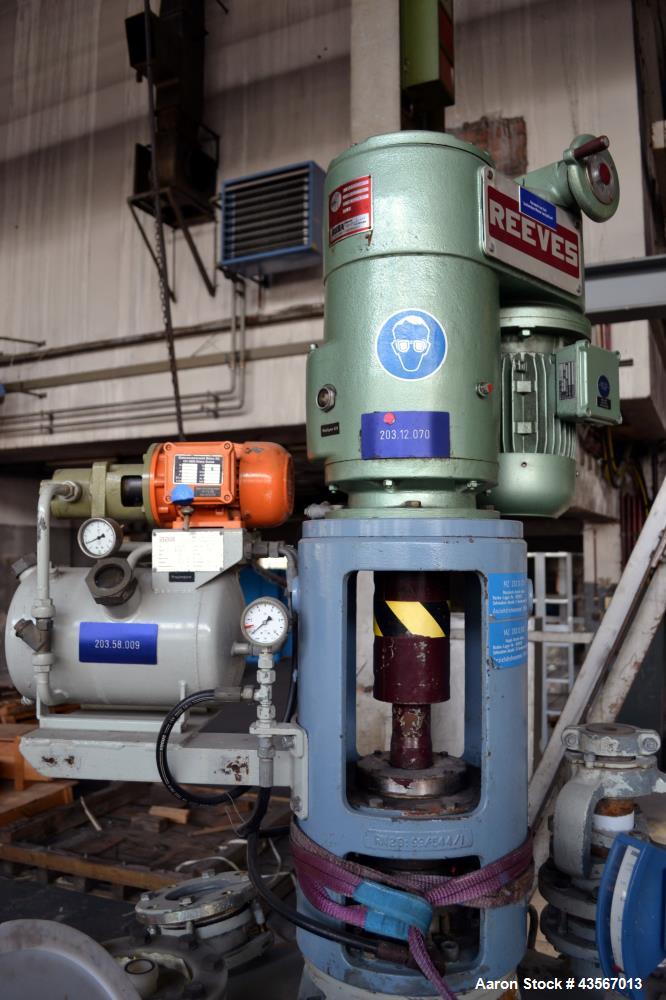

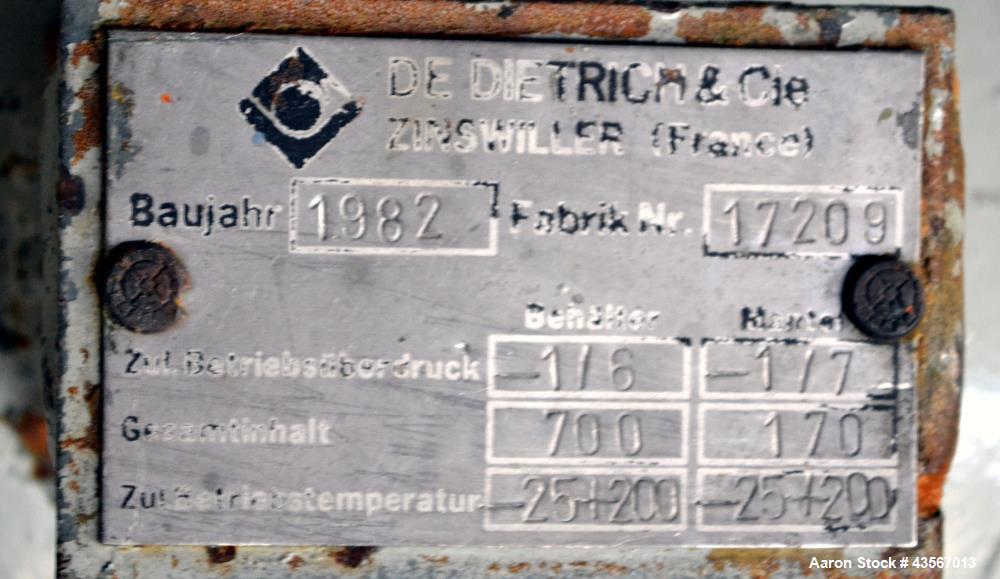

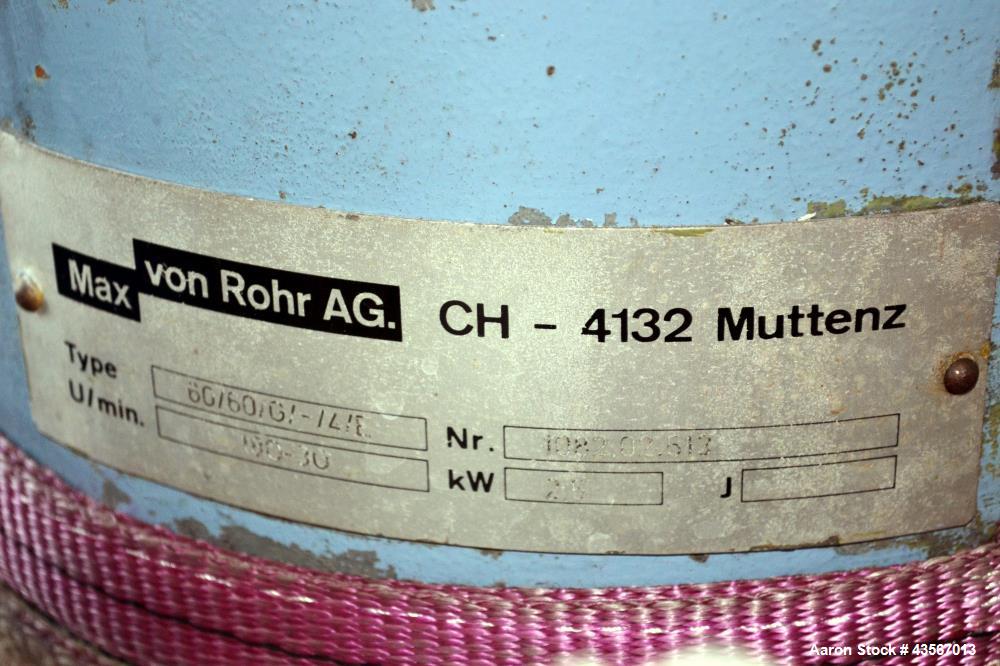

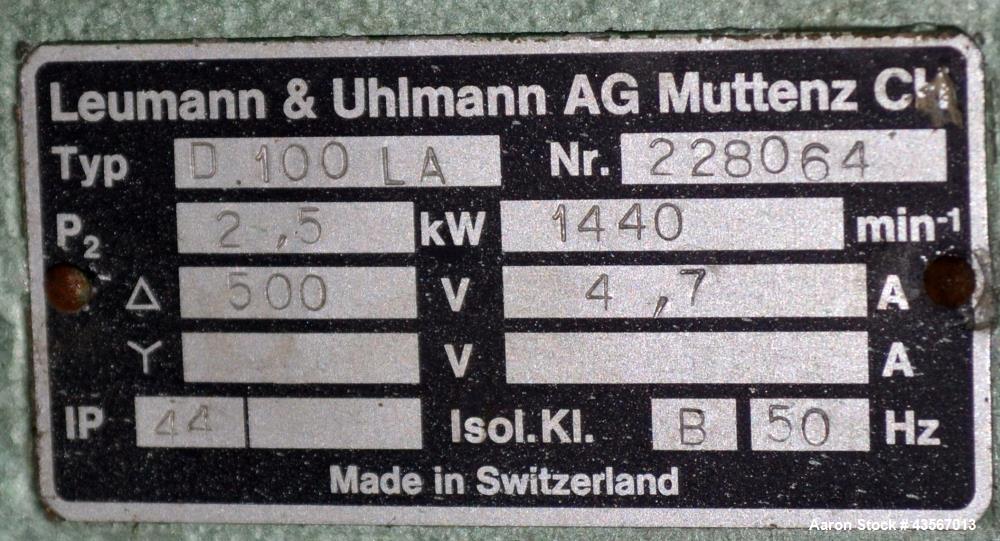

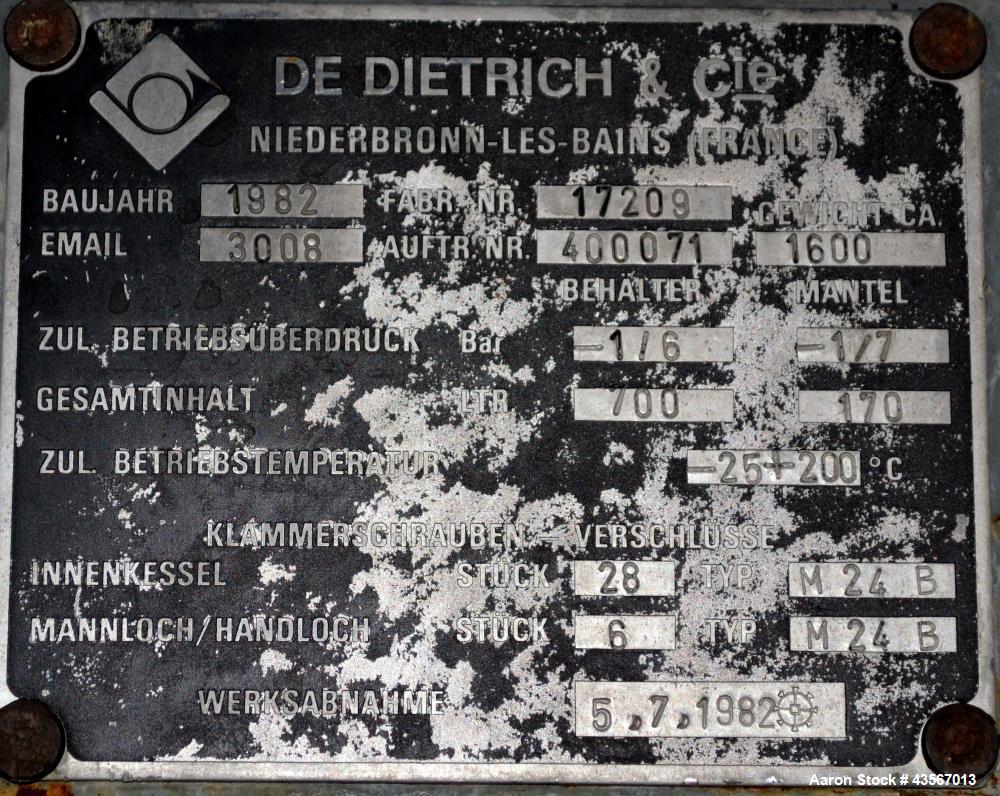

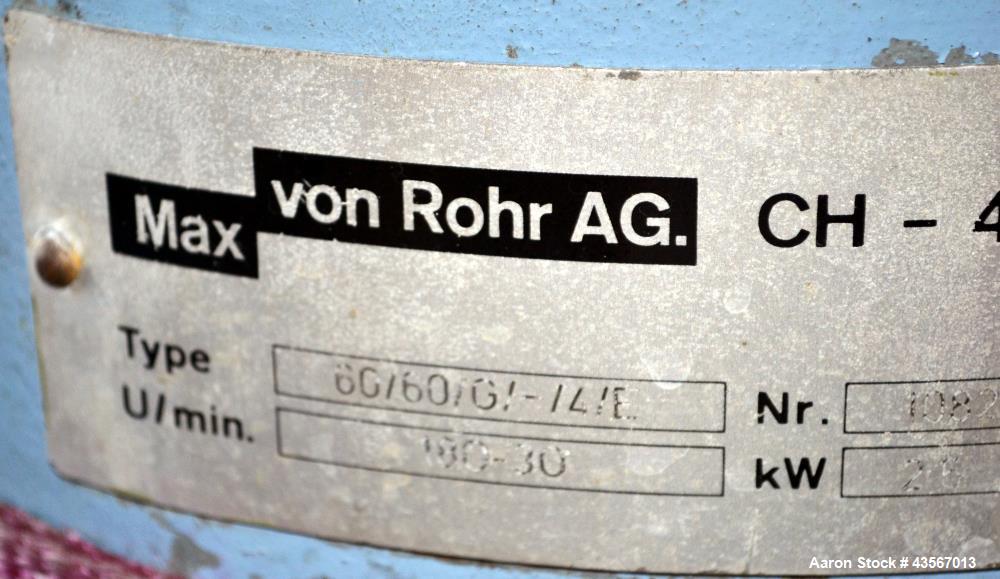

Used De Dietrich Glass Lined Reactor, 700 Liter (184.97 Gallon), 3008 Blue Glass, Vertical. Approximately 38" diameter x 32" straight side. Dished clamp on top, dished bottom. Internal rated -1/6 bar ( -14.5/87 psi) at –25 to 200 degrees C (-13 to 392 F). Carbon steel jacket rated -1/7 bar (-14.5/101.5 psi) at –25 to 200 degrees C (-13 to 392 F). Max Von Rohr AG agitator, type 60/60/G/-/4/E, rpm approximate 180-30. 2 Finger up baffle, 3 blade RCI, driven by a 2.5kw (3.25 hp), 3/50/500 volt, 1440 rpm variable speed motor. Openings top (4) 3’’, 6’’, 10’’ hand hole with a 3’’ sight glass in the cover. 4’’ Bottom outlet. Mounted on lugs and legs.
