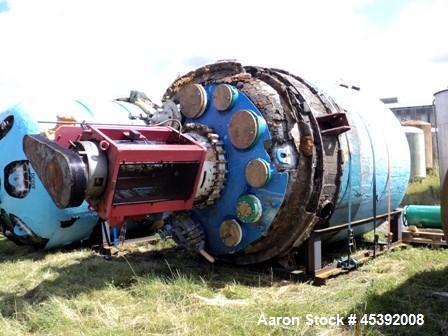

Used Pfaudler-Balfour Model Ce16000 Type Nucerite 8000 White Glass Lined Vertical Reactor With Blue Graduation Lines. 16000 litre (4227 gallon) working capacity and 18180 litre (4803 gallon) total capacity. Internal 2600mm (102.36") diameter x 4435mm (174.6") over dished ends. Has welded dished top and bottom heads. Internal rated full vacuum/6.9 bar design pressure at -40/+200 degrees C. External mild steel jacket 1394 litre (54.88") capacity with 29.5 square meter heat transfer area rated rated full vacuum/6.2 bar design pressure at -40/+200 degreses C. Has top entry 3-blade retreat curve white glass lined agitator. Belt driven by 22/15 kw 415 volt 3/50 1470/730 rpm motor via vso 64 drive rated 5/1 reduction ratio at approximately 90 rpm. Has white glass lined beavertail baffle and schuf hastelloy discharge valve. Mounted on (4) lugs. Year 1988
Used Pfaudler-Balfour Model Ce16000 Type Nucerite 8000 White Glass Lined Vertical Reactor With Blue Graduation Lines. 16000 litre (4227 gallon) working capacity and 18180 litre (4803 gallon) total capacity. Internal 2600mm (102.36") diameter x 4435mm (174.6") over dished ends. Has welded dished top and bottom heads. Internal rated full vacuum/6.9 bar design pressure at -40/+200 degrees C. External mild steel jacket 1394 litre (54.88") capacity with 29.5 square meter heat transfer area rated rated full vacuum/6.2 bar design pressure at -40/+200 degreses C. Has top entry 3-blade retreat curve white glass lined agitator. Belt driven by 22/15 kw 415 volt 3/50 1470/730 rpm motor via vso 64 drive rated 5/1 reduction ratio at approximately 90 rpm. Has white glass lined beavertail baffle and schuf hastelloy discharge valve. Mounted on (4) lugs. Year 1988
