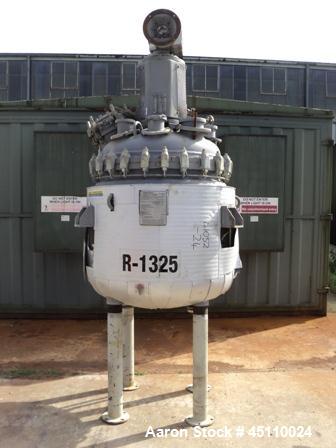

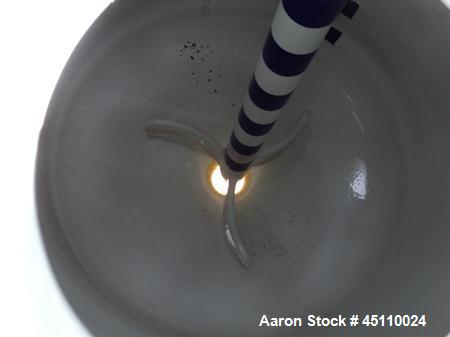

Used Pfaudler-Balfour Reactor, Model AE630, Type 9125, White Glass Lined, Vertical, Blue Graduation Lines. Has 166 gallon (630 liter) working capacity and 228 gallon (865 liter) total capacity. Internal 39.37” (1000mm) diameter x 51.57” (1310mm) over dished ends. Has clamped dished top and welded dished bottom heads. Internal rated full vacuum/95 psi (6.6 bar) design pressure at -20.2/392 degrees F ( -29/+200 degree C). Carbon steel jacket 40 gallons (151 liter) capacity with 34.45 square foot (3.2 square meter) heat transfer area rated 95 psi (6.6 bar) design pressure at -20.2/392 degrees F (-29/+200 degree C). Has white glass lined 3-blade retreat curve agitator with blue graduation lines direct driven by 5.5 kw 400 volt 3/50, 1440 rpm frequency inverter rated motor via type vso 3 drive. No baffle. Includes Technoglass dn100/80 manually and pneumatically operated white glass lined bottom outlet valve with tantalum tip. Mounted on 3-lugs.
Used Pfaudler-Balfour Reactor, Model AE630, Type 9125, White Glass Lined, Vertical, Blue Graduation Lines. Has 166 gallon (630 liter) working capacity and 228 gallon (865 liter) total capacity. Internal 39.37” (1000mm) diameter x 51.57” (1310mm) over dished ends. Has clamped dished top and welded dished bottom heads. Internal rated full vacuum/95 psi (6.6 bar) design pressure at -20.2/392 degrees F ( -29/+200 degree C). Carbon steel jacket 40 gallons (151 liter) capacity with 34.45 square foot (3.2 square meter) heat transfer area rated 95 psi (6.6 bar) design pressure at -20.2/392 degrees F (-29/+200 degree C). Has white glass lined 3-blade retreat curve agitator with blue graduation lines direct driven by 5.5 kw 400 volt 3/50, 1440 rpm frequency inverter rated motor via type vso 3 drive. No baffle. Includes Technoglass dn100/80 manually and pneumatically operated white glass lined bottom outlet valve with tantalum tip. Mounted on 3-lugs.
