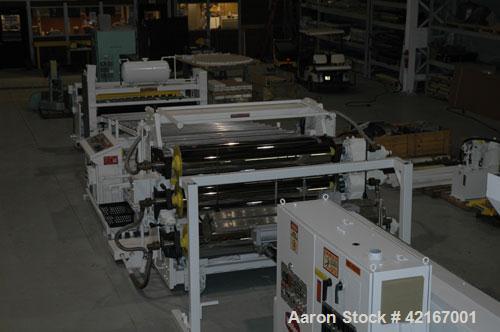

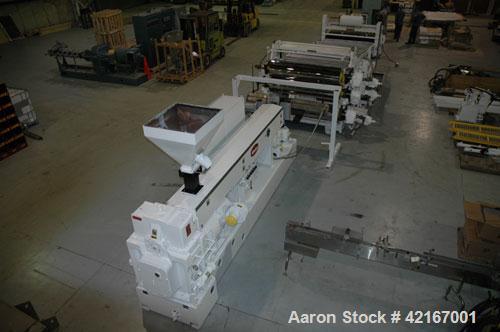

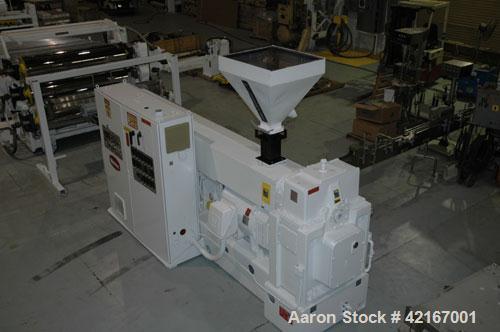

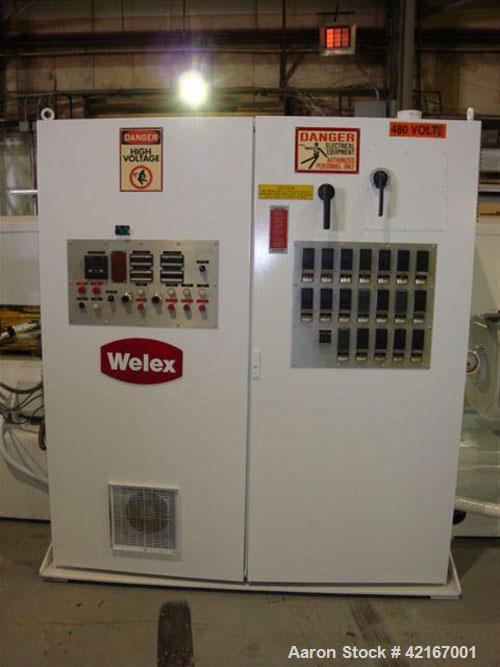

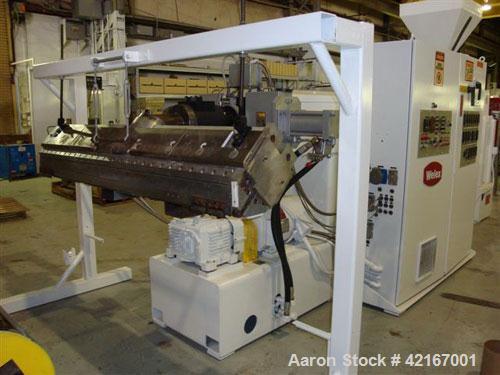

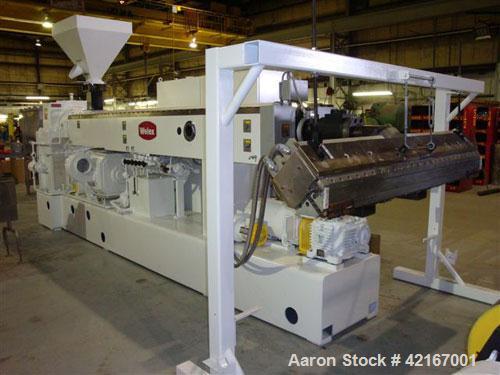

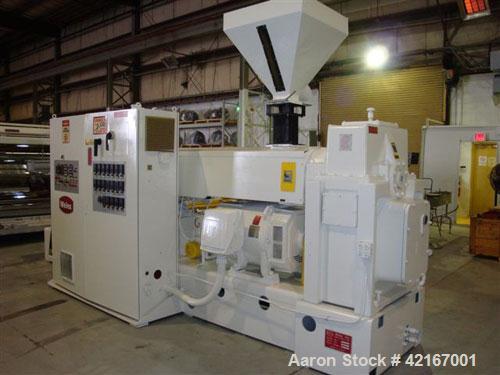

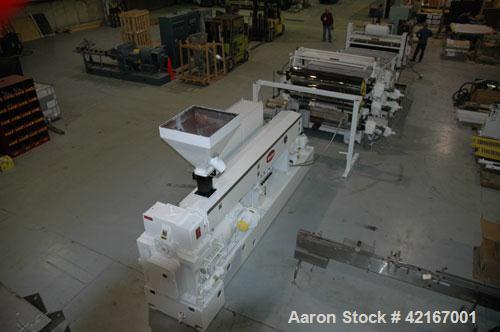

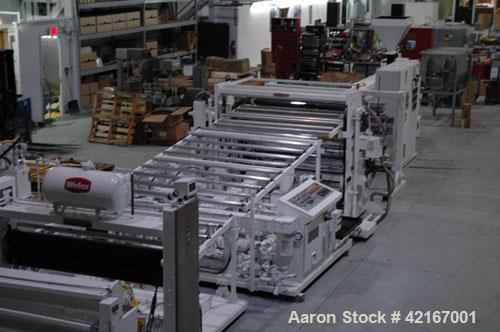

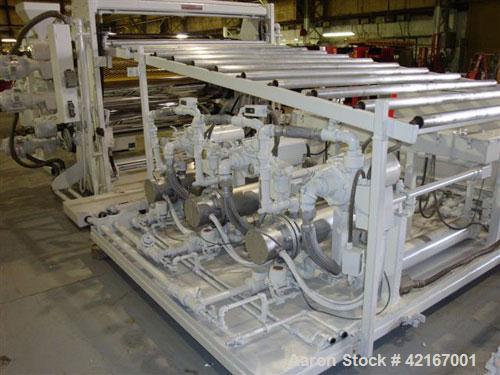

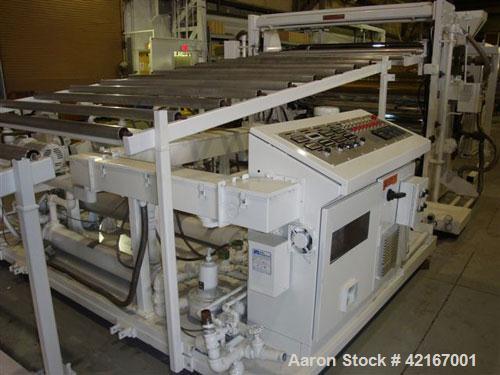

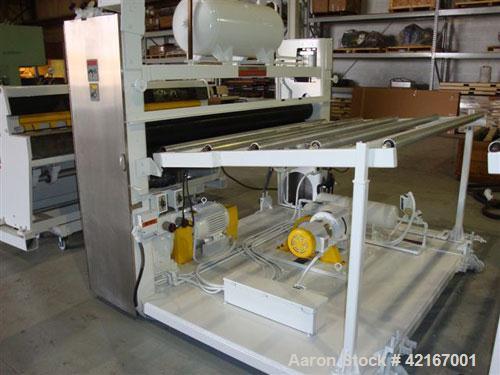

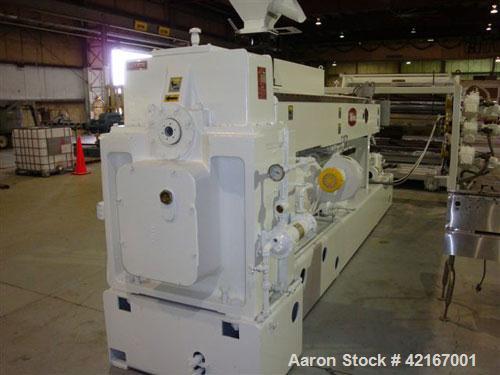

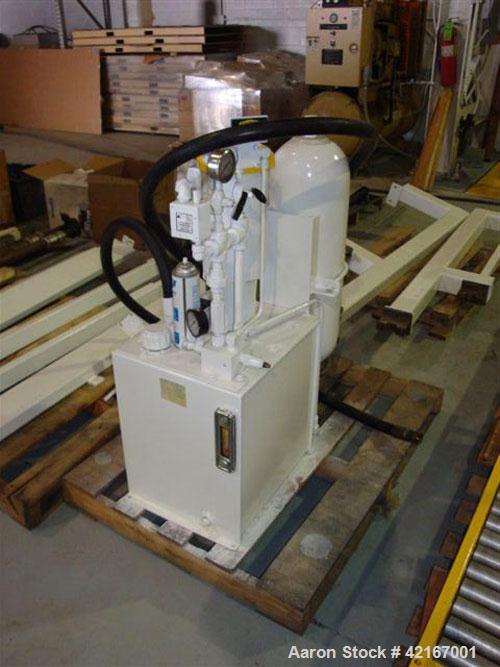

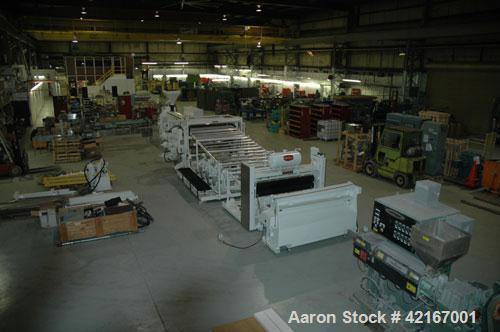

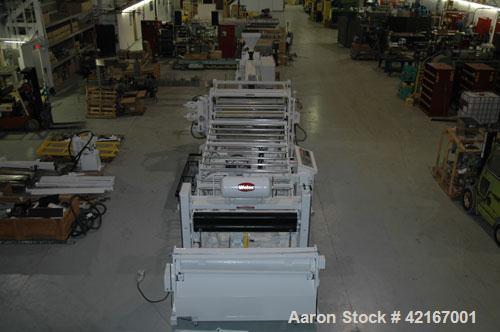

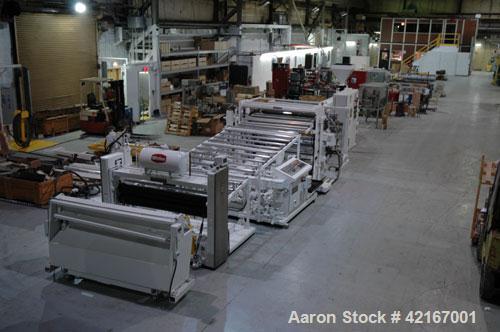

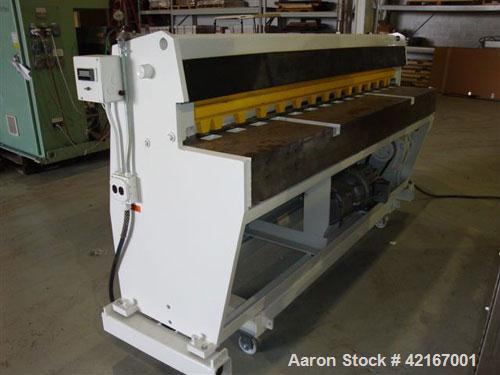

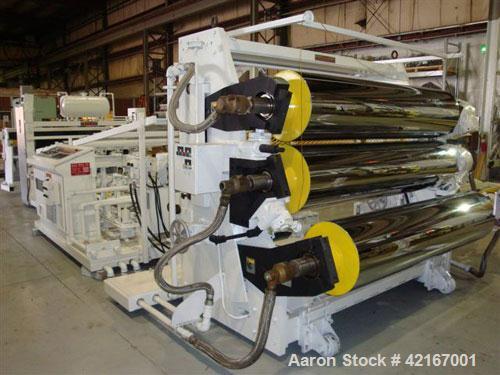

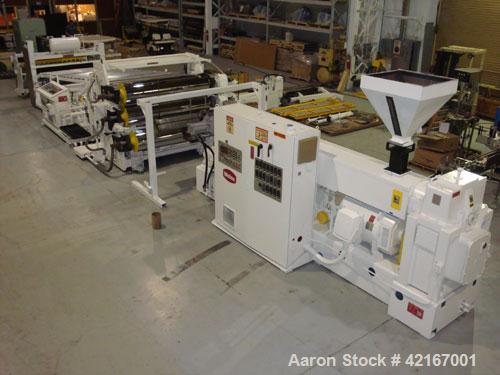

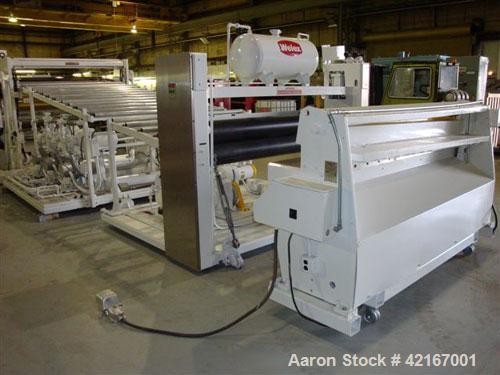

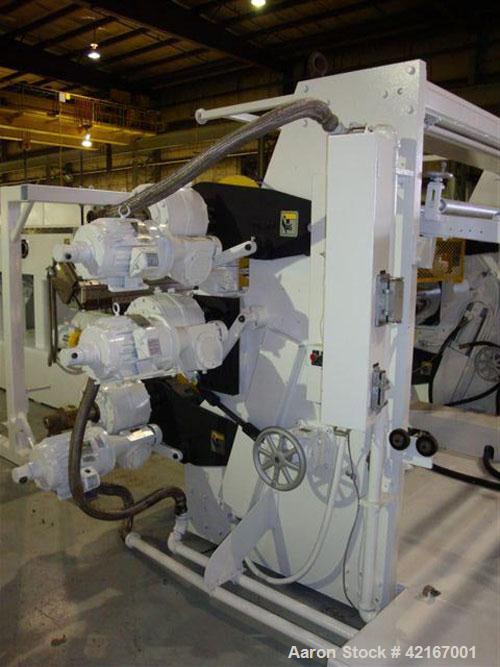

Used Welex “J” Style 78” Wide Sheet Line, Consisting Of: (1) Welex 4.5” extruder single screw extruder, 30:1 L/D ratio, side vented. Barrel is electrically heated and water cooled. Gearbox rated 263 hp having a 17.55:1 gearbox ratio. Motor is direct connected under barrel, 250 hp 1750 RPM DC. Unitized control panel equipped with 14 solid state digital controllers including drive for main motor and gear pump, screen changer hydraulics. Both drives are manufactured by Mentor II. (1) 4.5” hydraulically operated slide plate screen changer including hydraulic power unit. (1) unitized to extruder frame 20 hp DC gear pump. (1) EDI flex lip 77” wide sheet die (other widths available). Also included removable die cart. (1) Welex model 17.75 x 78 three roll “J” sheet stack equipped with 18” x 78” wide individually driven rolls. Hydraulically operated closure and self-contained cooling / heating system. Unitized control panel that operates sheet stack and pull rolls measuring 8” dia x 78” wide and cooling system. Unit also includes inline edge trimming, and shear.
Used Welex “J” Style 78” Wide Sheet Line, Consisting Of: (1) Welex 4.5” extruder single screw extruder, 30:1 L/D ratio, side vented. Barrel is electrically heated and water cooled. Gearbox rated 263 hp having a 17.55:1 gearbox ratio. Motor is direct connected under barrel, 250 hp 1750 RPM DC. Unitized control panel equipped with 14 solid state digital controllers including drive for main motor and gear pump, screen changer hydraulics. Both drives are manufactured by Mentor II. (1) 4.5” hydraulically operated slide plate screen changer including hydraulic power unit. (1) unitized to extruder frame 20 hp DC gear pump. (1) EDI flex lip 77” wide sheet die (other widths available). Also included removable die cart. (1) Welex model 17.75 x 78 three roll “J” sheet stack equipped with 18” x 78” wide individually driven rolls. Hydraulically operated closure and self-contained cooling / heating system. Unitized control panel that operates sheet stack and pull rolls measuring 8” dia x 78” wide and cooling system. Unit also includes inline edge trimming, and shear.
