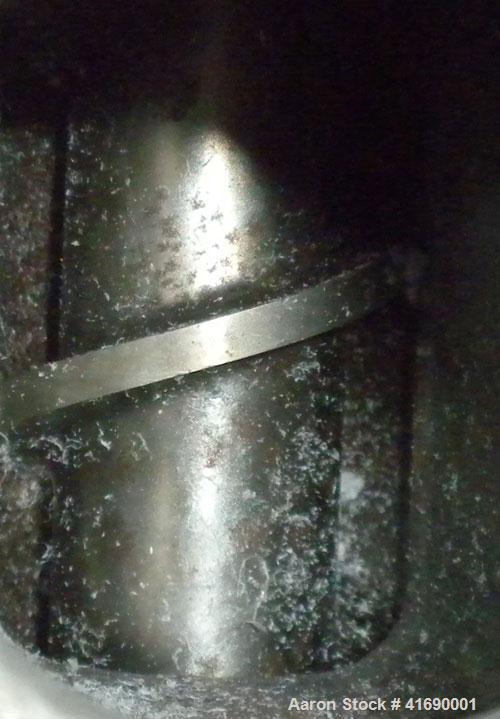

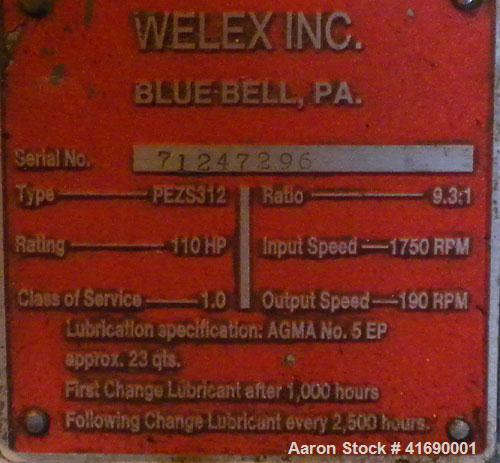

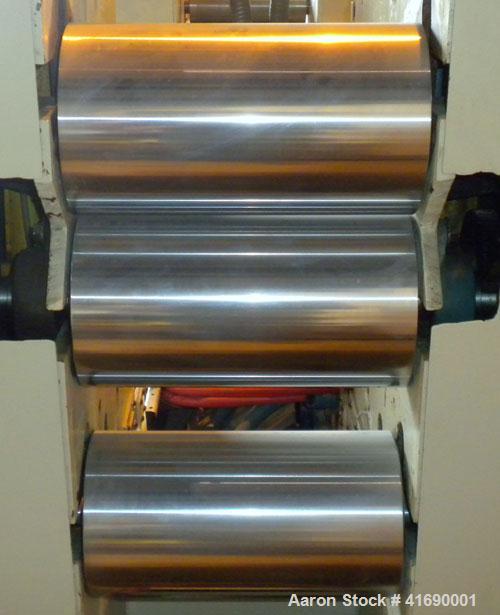

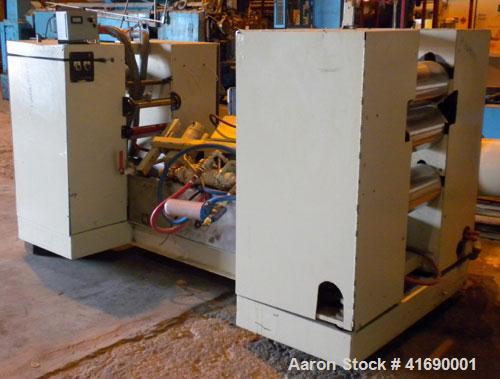

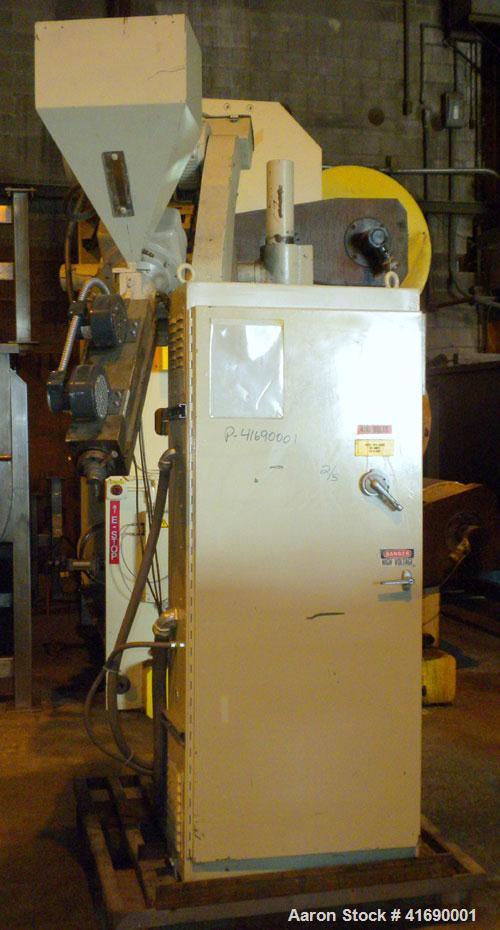

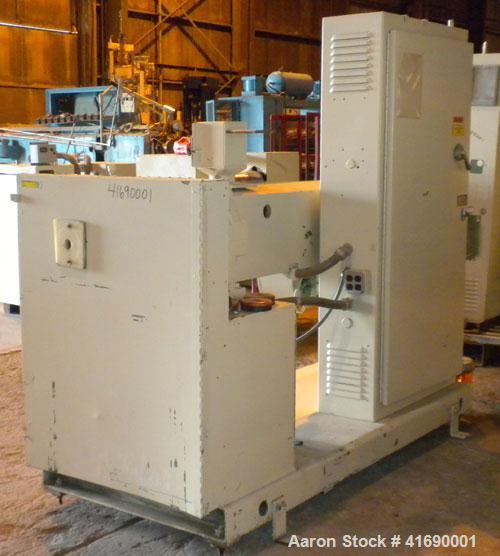

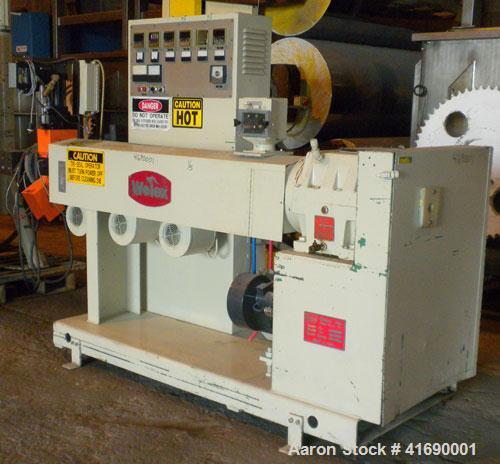

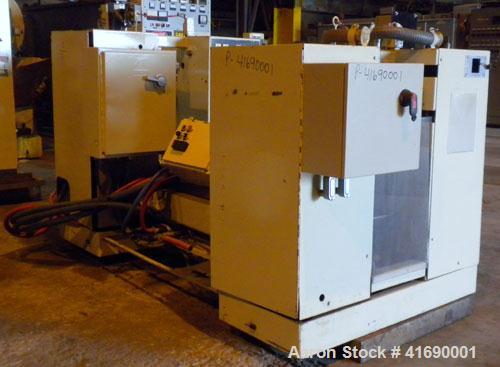

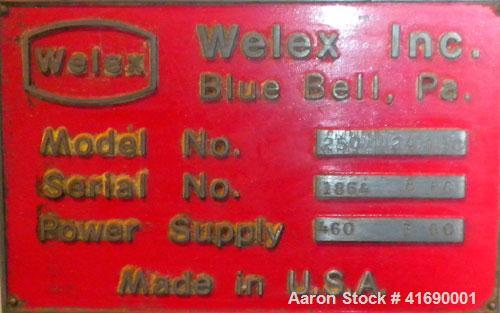

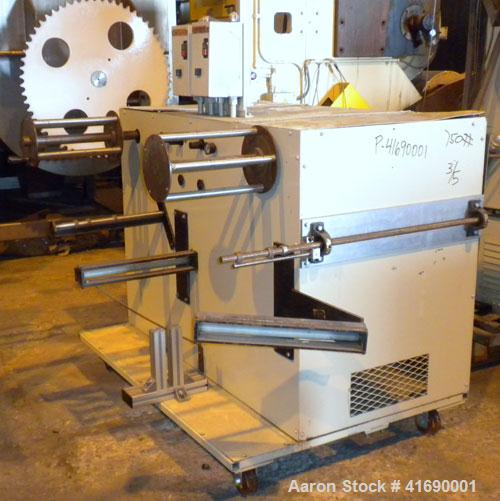

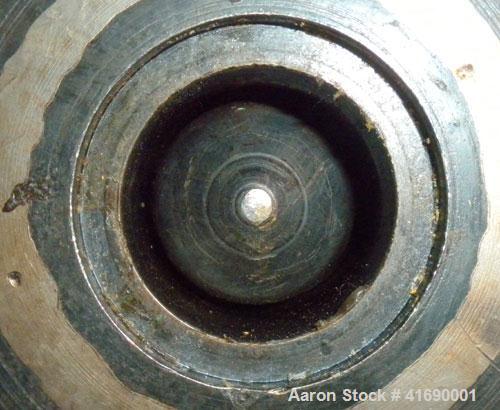

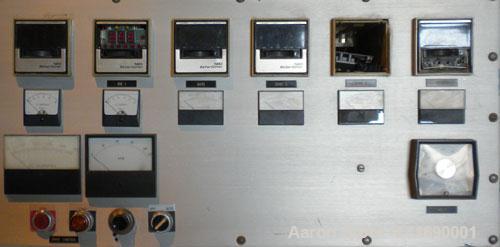

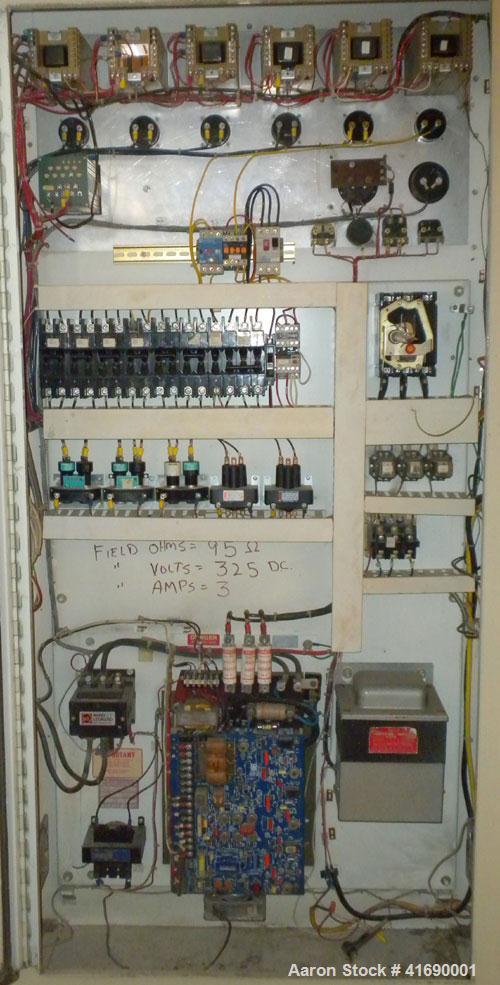

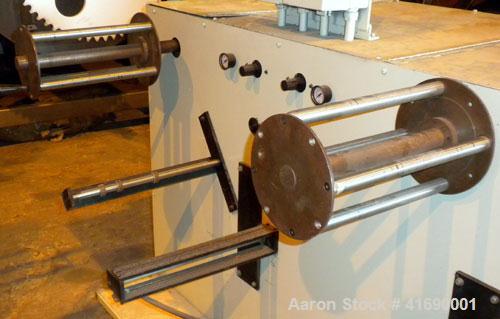

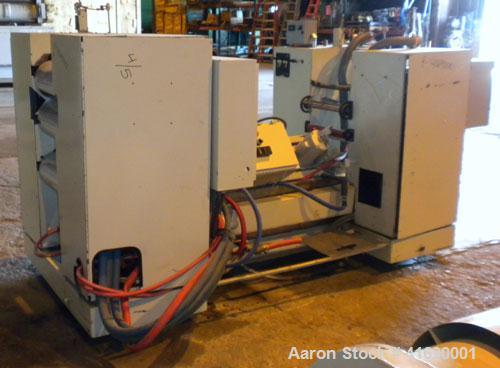

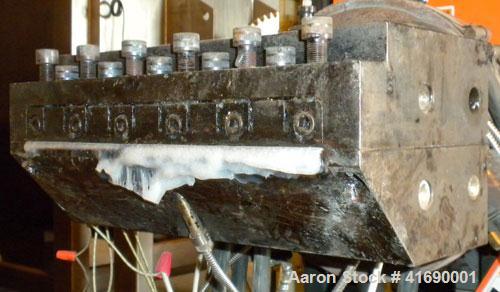

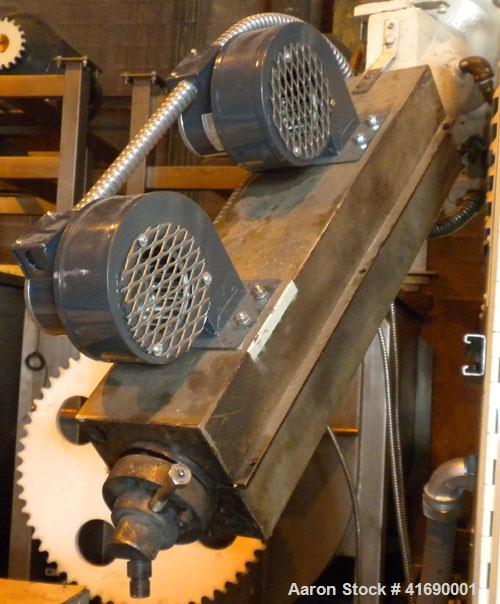

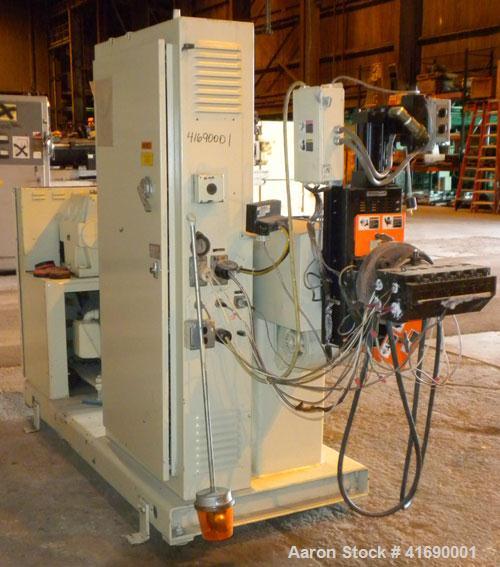

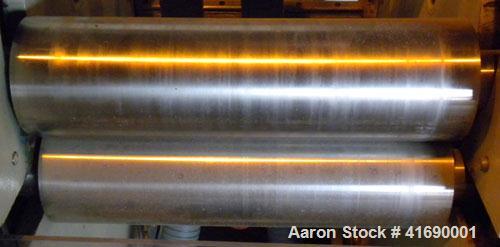

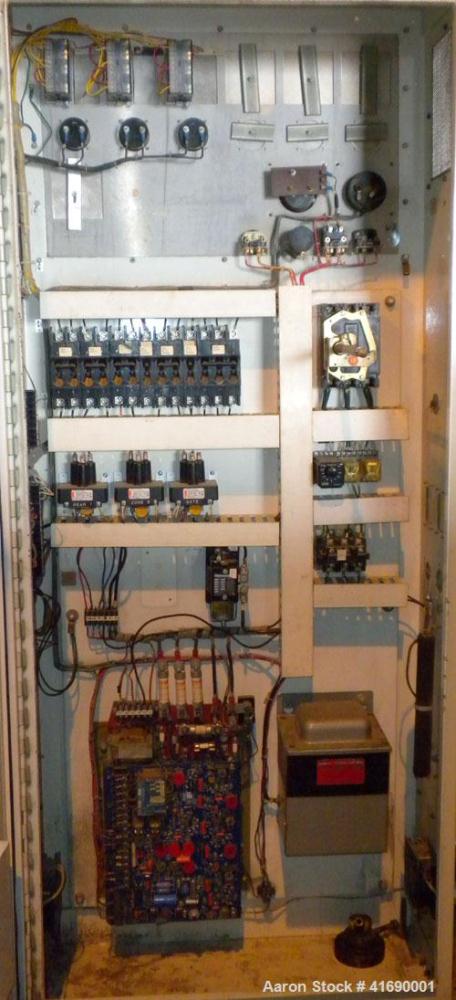

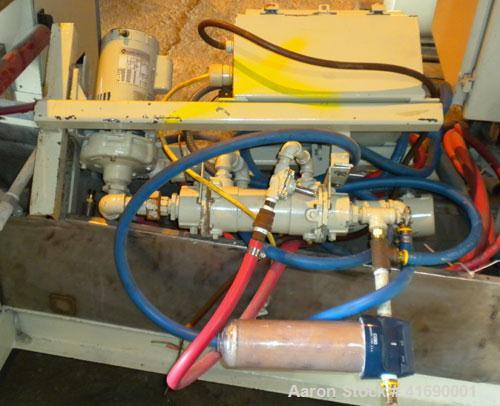

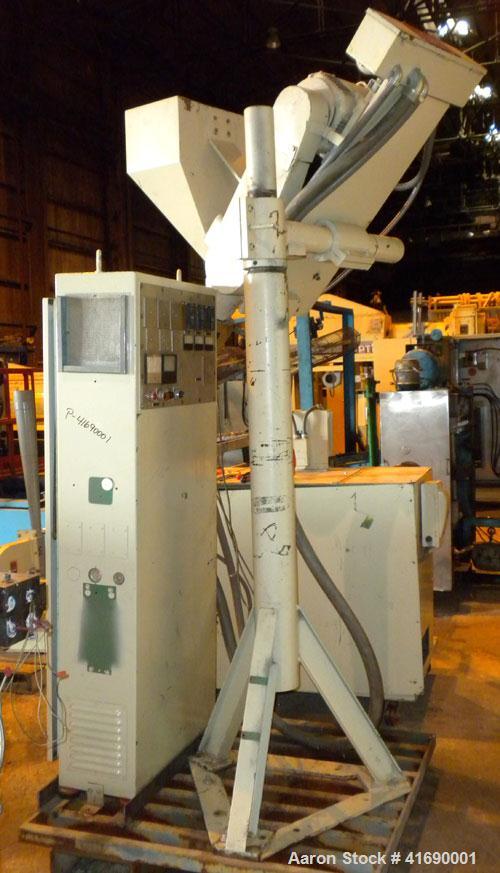

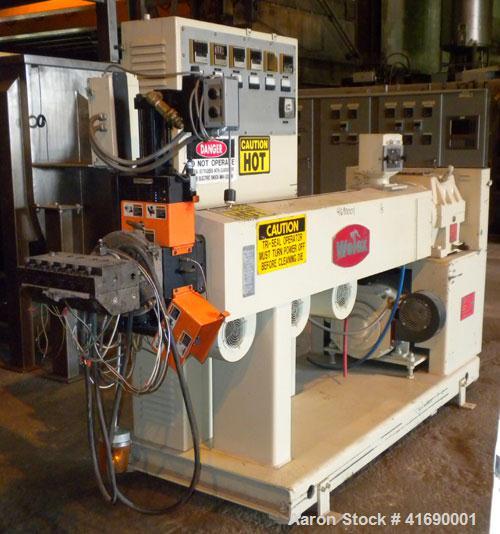

Used Welex Sheet Line Consisting Of: (1) Welex 2-1/2" single screw extruder, model 250 24:1AC, serial #1864 8-80, approximate 24 to 1 L/D ratio, 3 zone non-vented barrel, electrically heated, air cooled. Water cooled feed throat with magnet. Approximate 44-3/4" centerline height. Driven by a 40 hp, 500 volt, 1750 rpm DC motor thru a gearbox, ratio 9.3 to 1. Includes a control panel with Barber-Coleman 580 controllers, 1 missing. (1) Dynisco hydraulic screen changer, model EH-25, serial #EH25054, no power pack. (1) Welex 1-1/4’’ pedestal mounted single screw co-extruder, approximate 24 to 1 L/D ratio. Electrically heated, air cooled 2 zone non-vented barrel. Driven by a 10 hp, 500 volt DC motor thru a reducer, no ratio. Includes a control panel. (1) 12" wide sheet die. (1) Welex 3 roll sheet stack with (3) 8" diameter x 14" wide chrome plated cored rolls, driven by a 1 hp DC gear motor. Includes a pump, heat exchanger and control panel. (1) Cooling section, (1) 14’’ pull roll stand with (2) 4" diameter x 14" wide chrome plated rolls, pneumatically adjustable, requires motor. (1) Dual station winder, approximate capacity roll 14’’ wide x 24’’ diameter, each station driven by a 1/3 hp motor and (1) Quickdraft 2 hp blower.
Used Welex Sheet Line Consisting Of: (1) Welex 2-1/2" single screw extruder, model 250 24:1AC, serial #1864 8-80, approximate 24 to 1 L/D ratio, 3 zone non-vented barrel, electrically heated, air cooled. Water cooled feed throat with magnet. Approximate 44-3/4" centerline height. Driven by a 40 hp, 500 volt, 1750 rpm DC motor thru a gearbox, ratio 9.3 to 1. Includes a control panel with Barber-Coleman 580 controllers, 1 missing. (1) Dynisco hydraulic screen changer, model EH-25, serial #EH25054, no power pack. (1) Welex 1-1/4’’ pedestal mounted single screw co-extruder, approximate 24 to 1 L/D ratio. Electrically heated, air cooled 2 zone non-vented barrel. Driven by a 10 hp, 500 volt DC motor thru a reducer, no ratio. Includes a control panel. (1) 12" wide sheet die. (1) Welex 3 roll sheet stack with (3) 8" diameter x 14" wide chrome plated cored rolls, driven by a 1 hp DC gear motor. Includes a pump, heat exchanger and control panel. (1) Cooling section, (1) 14’’ pull roll stand with (2) 4" diameter x 14" wide chrome plated rolls, pneumatically adjustable, requires motor. (1) Dual station winder, approximate capacity roll 14’’ wide x 24’’ diameter, each station driven by a 1/3 hp motor and (1) Quickdraft 2 hp blower.
