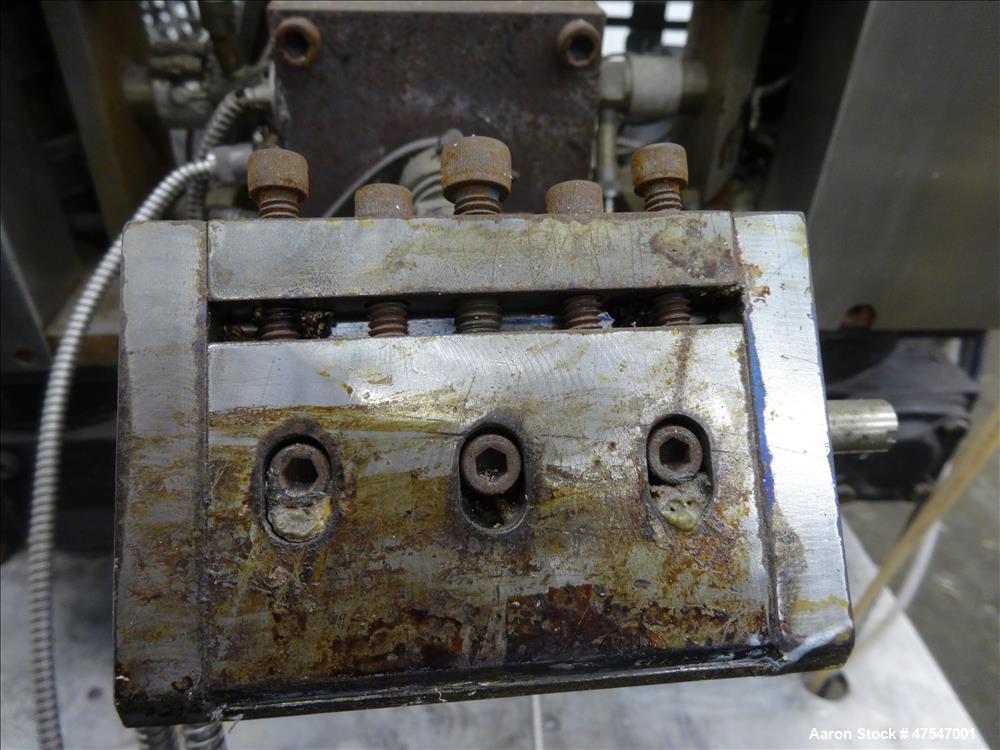

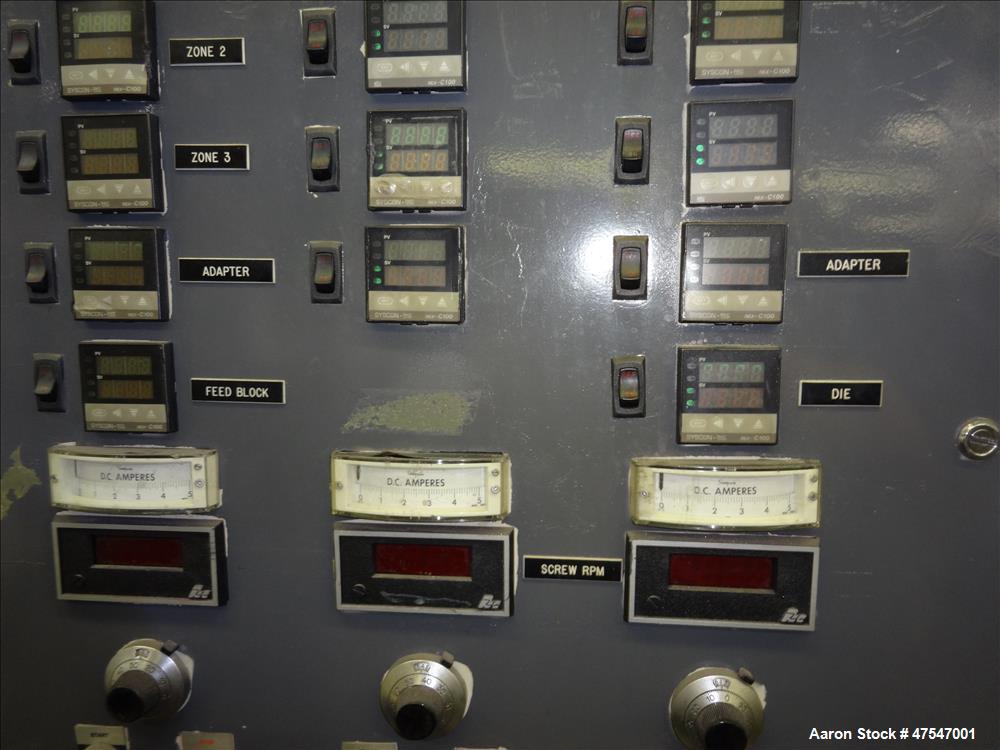

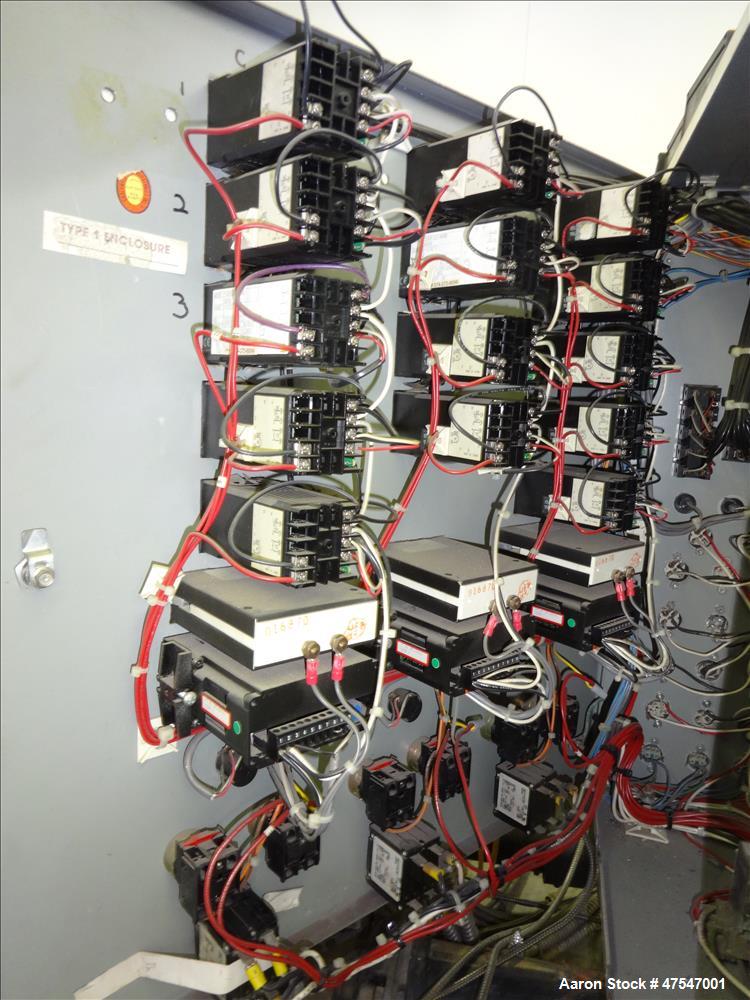

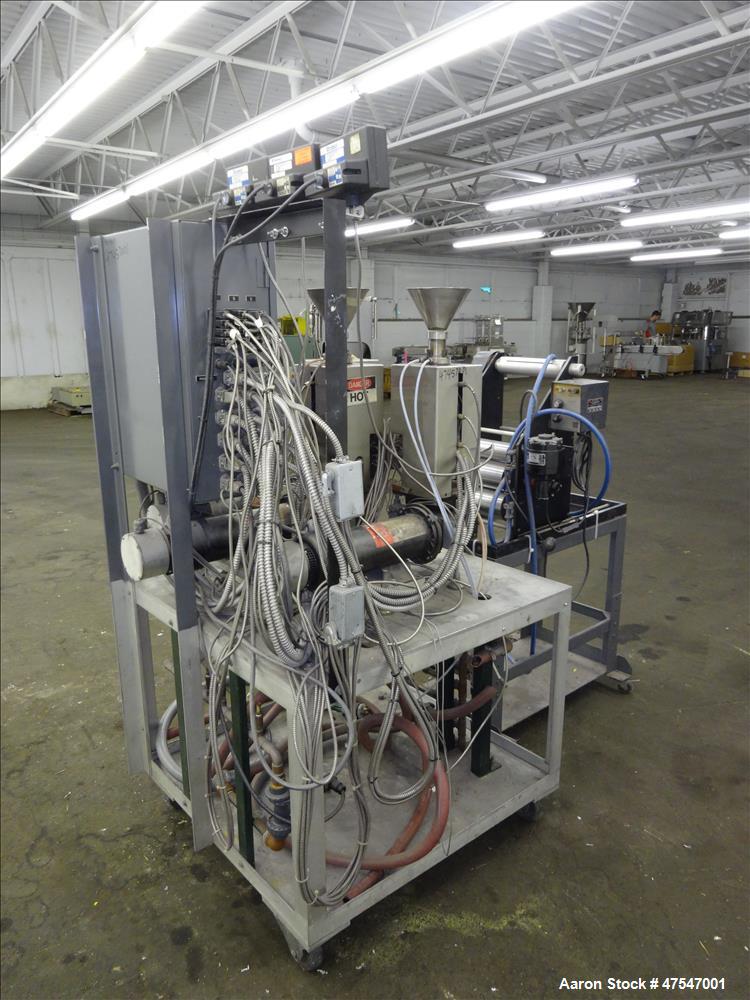

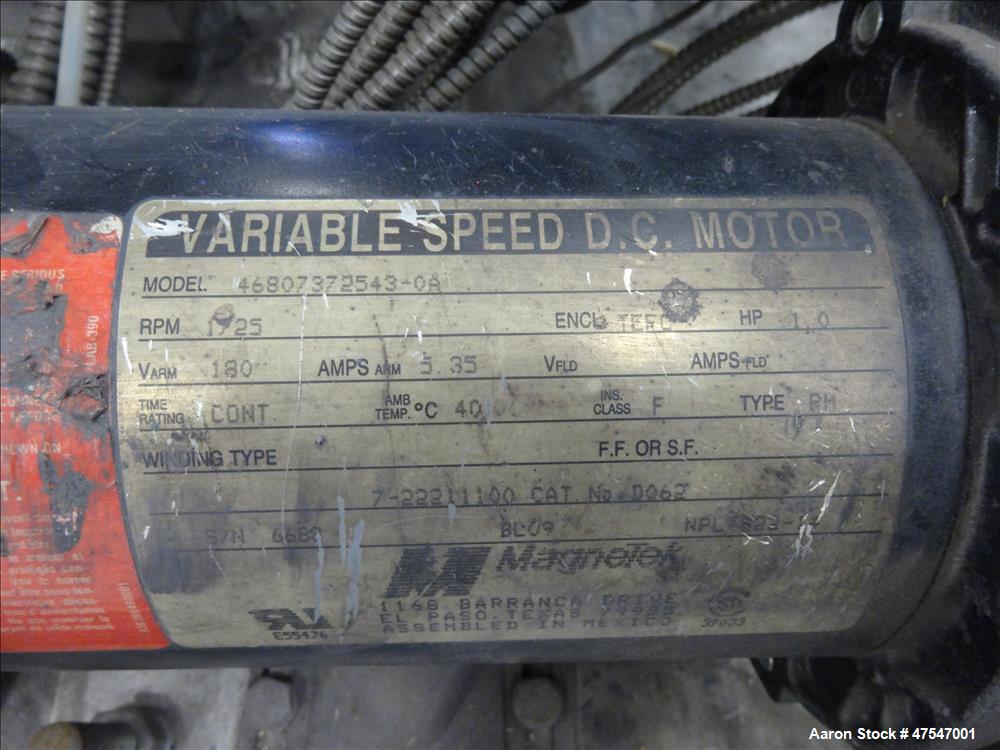

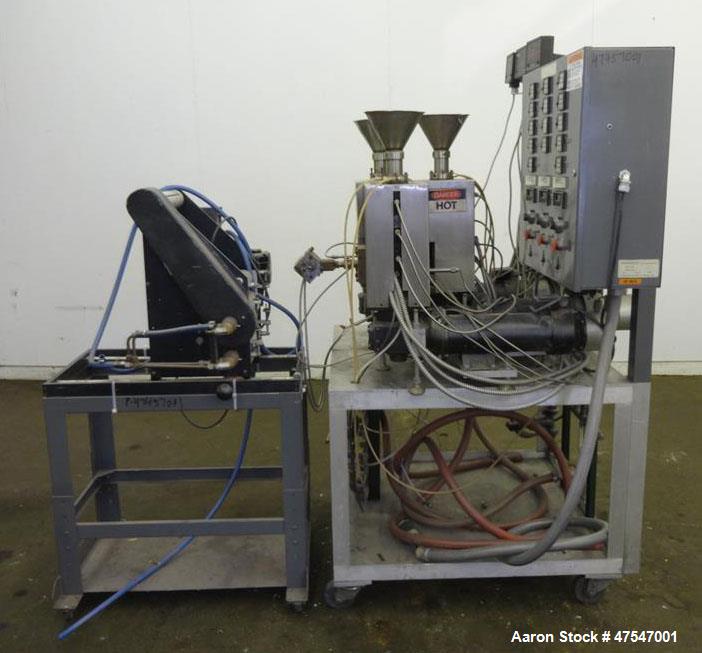

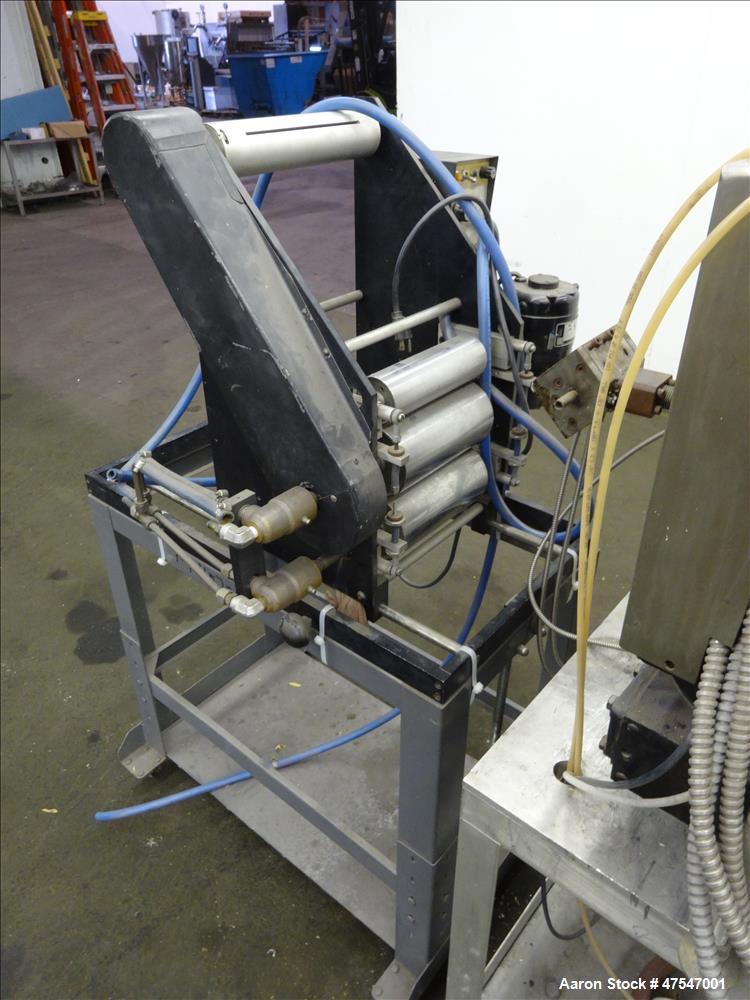

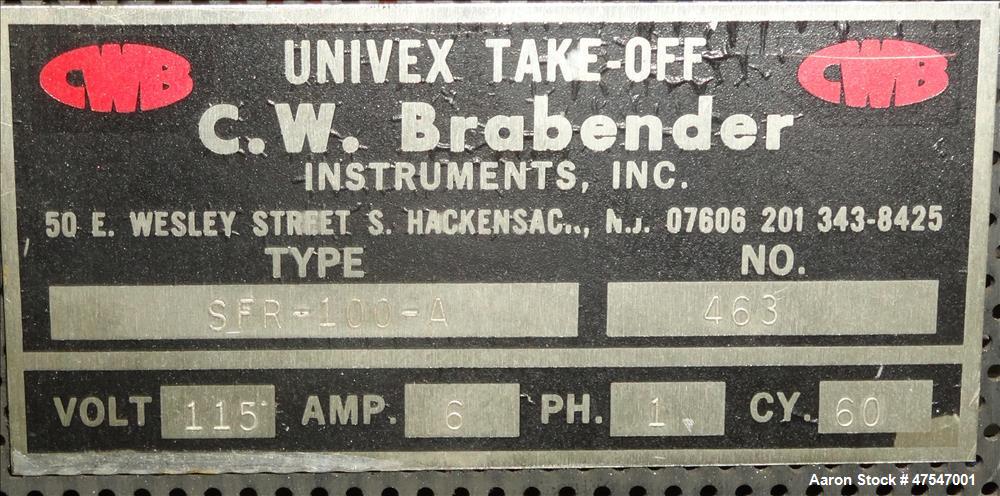

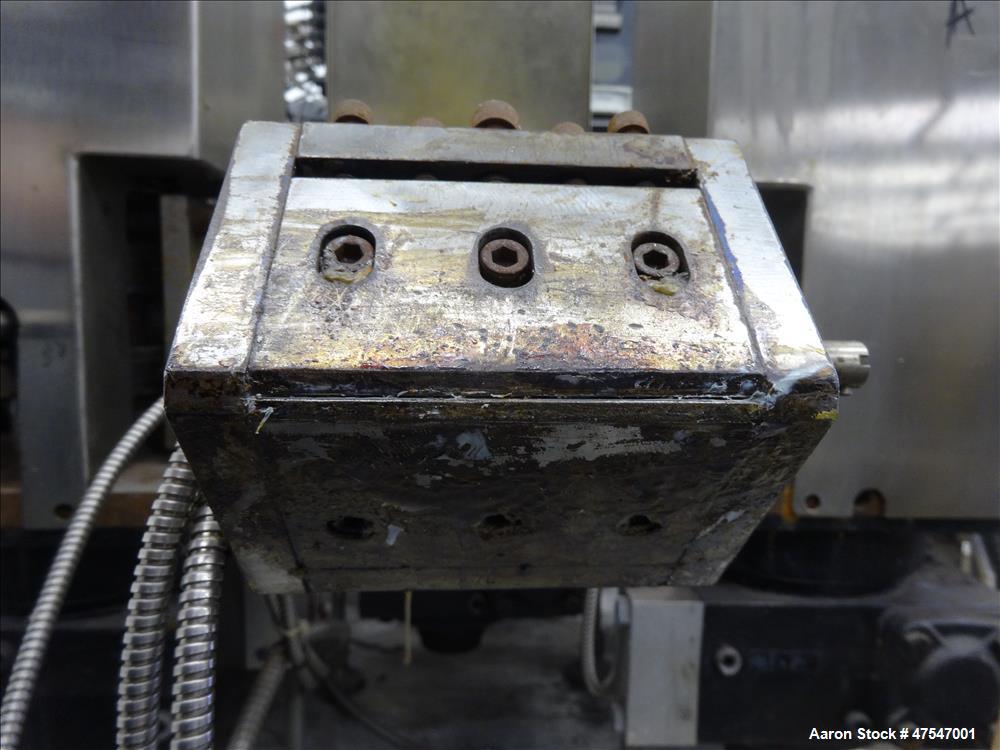

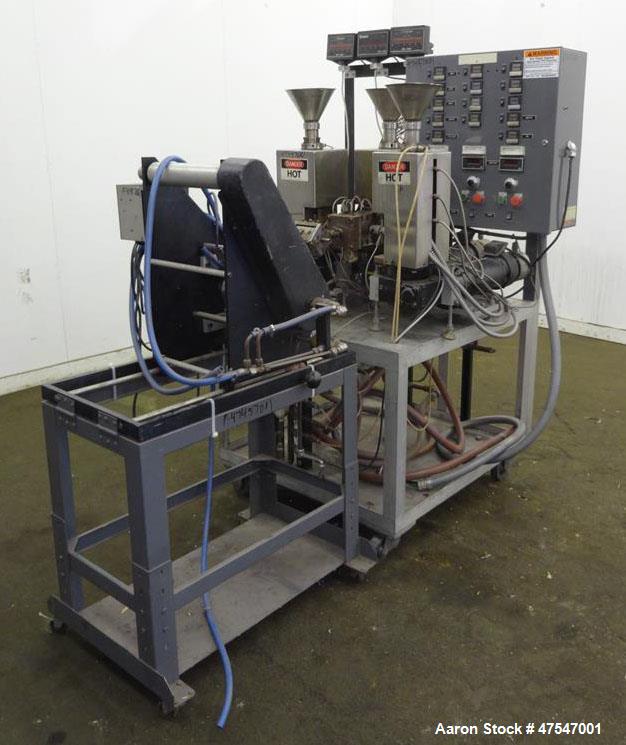

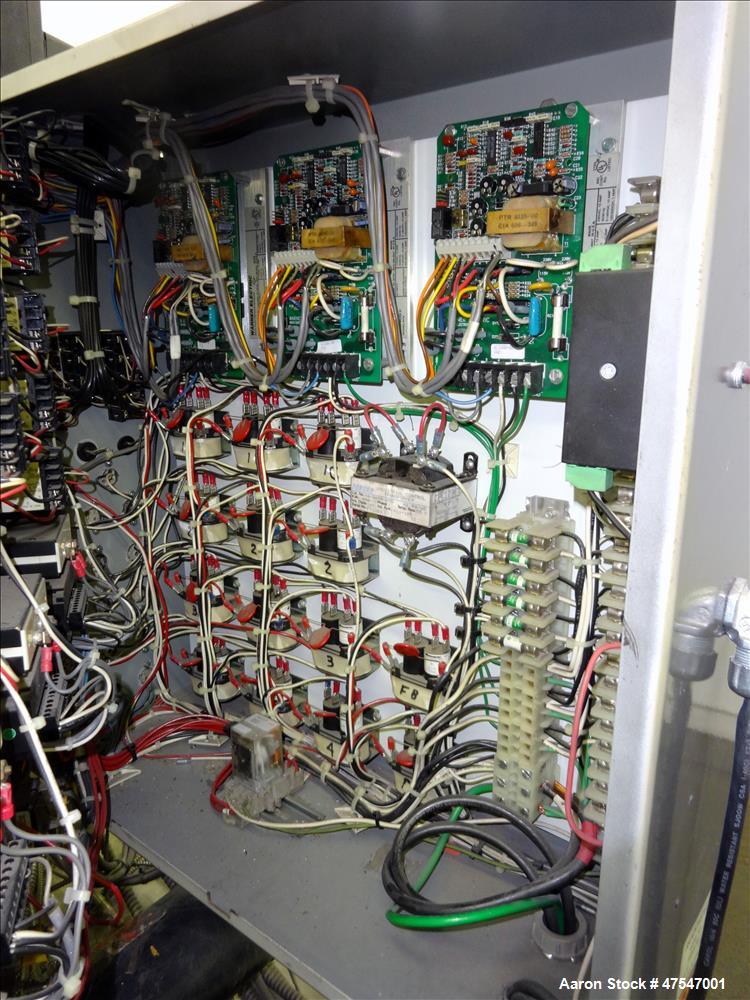

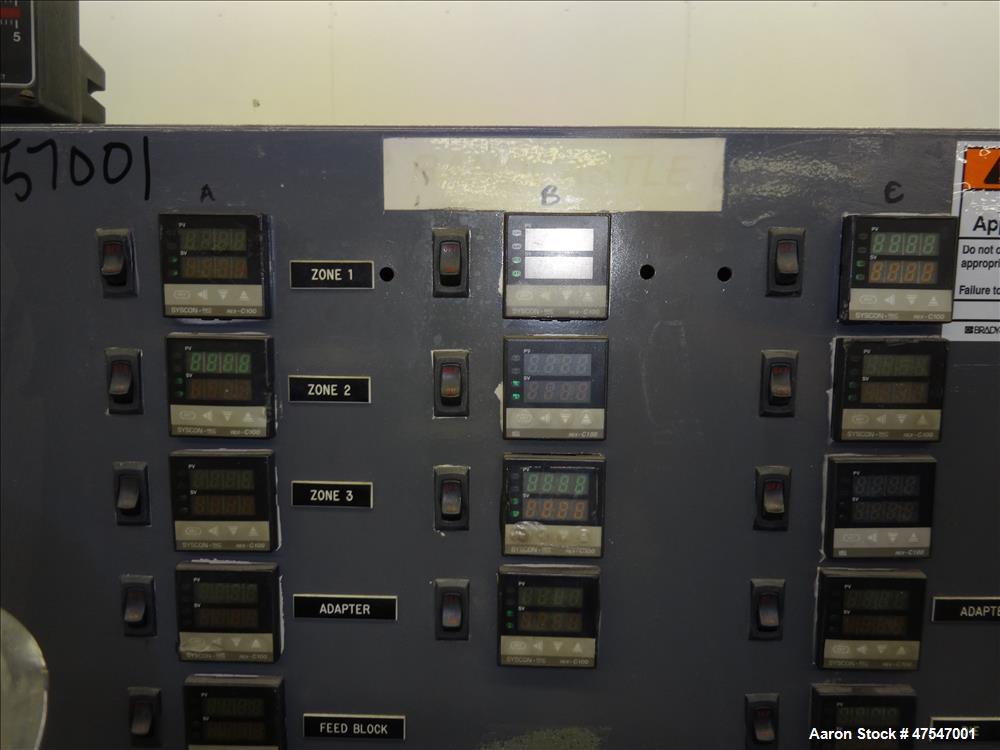

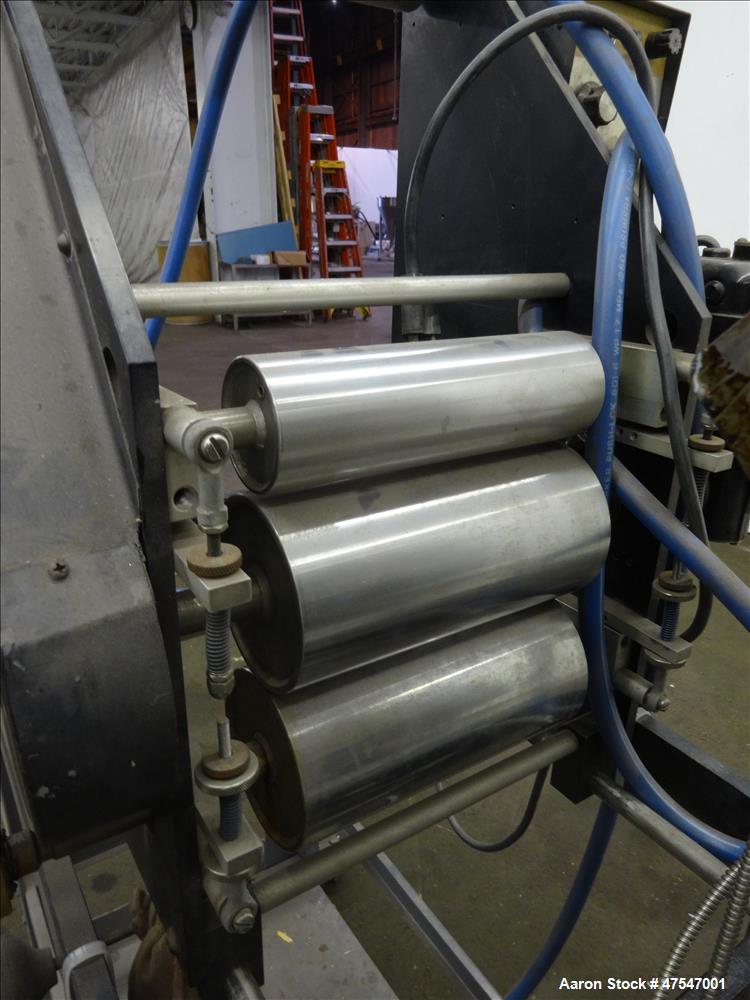

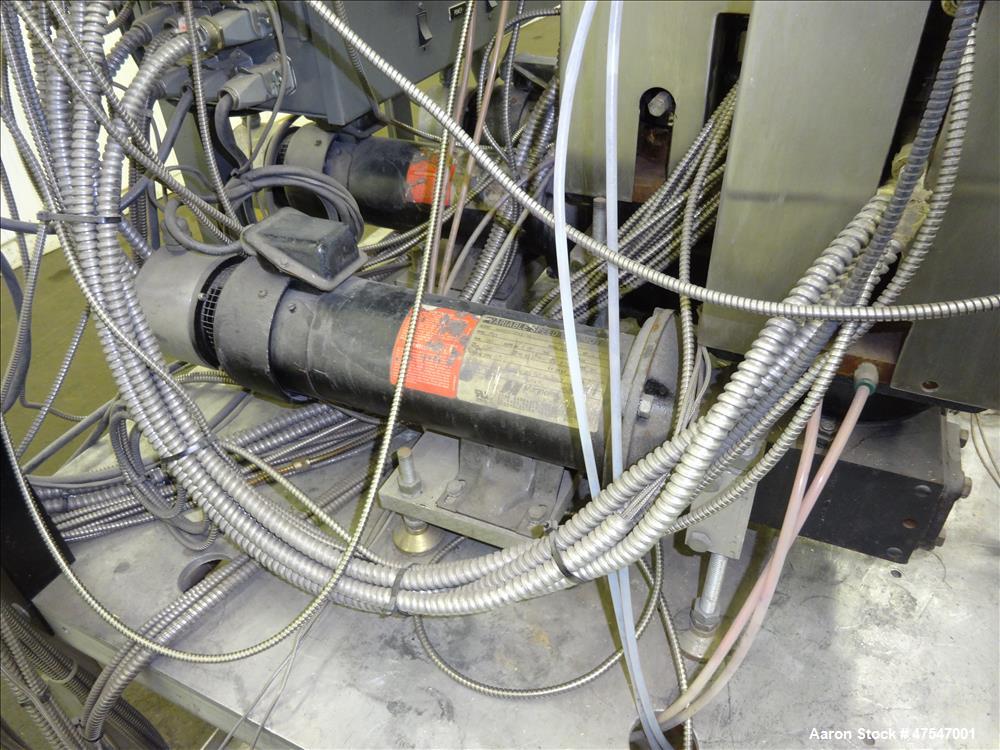

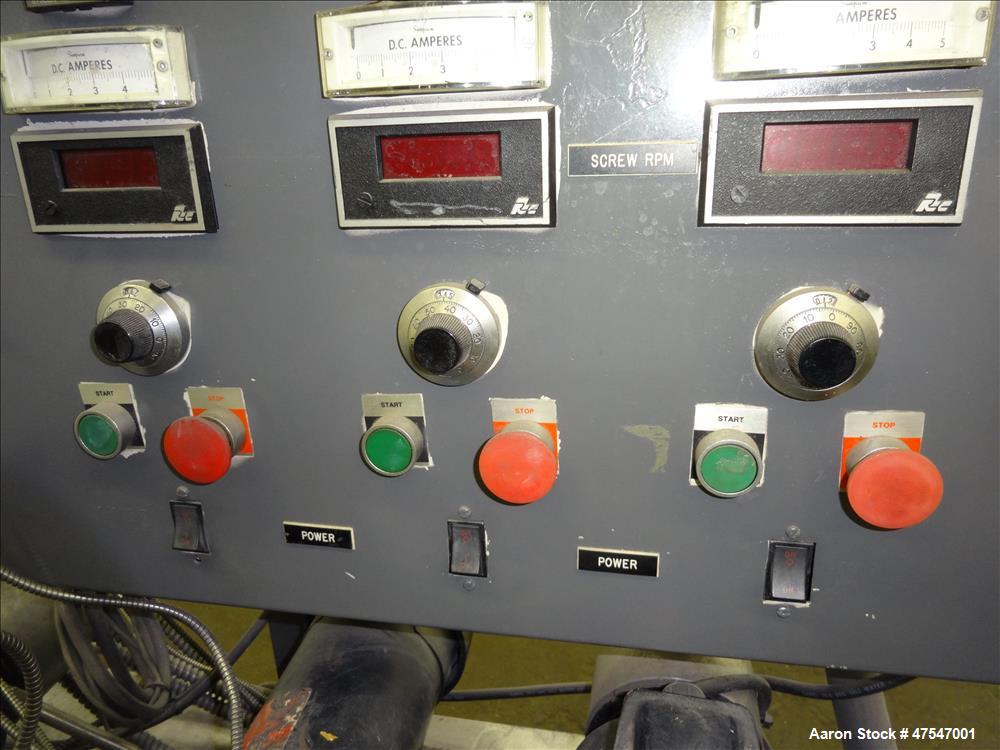

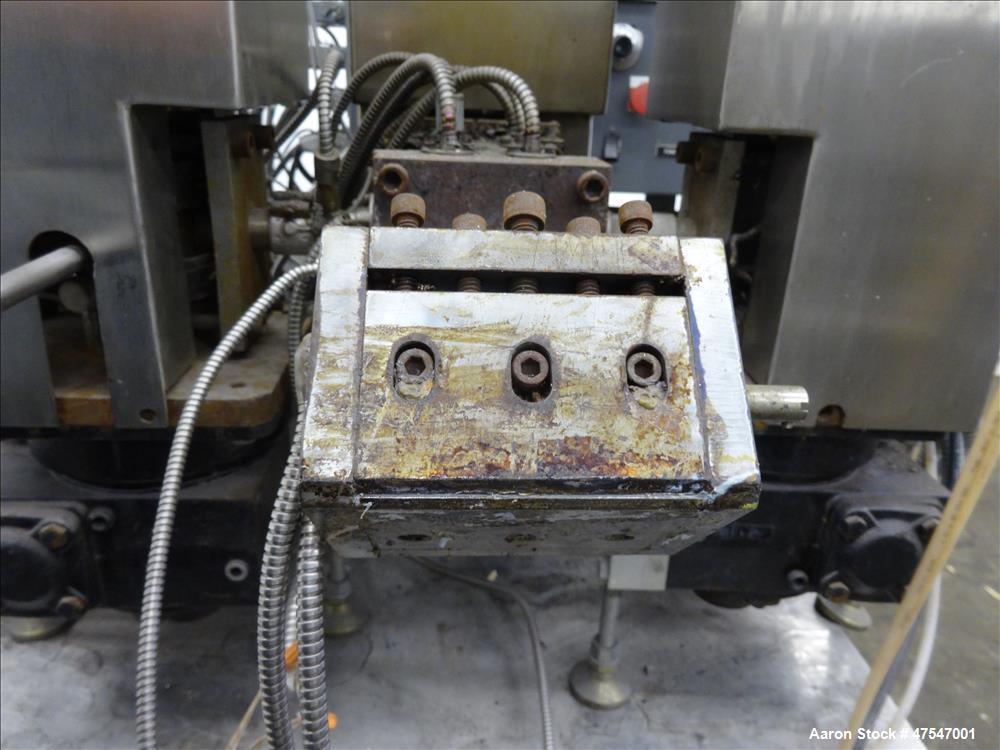

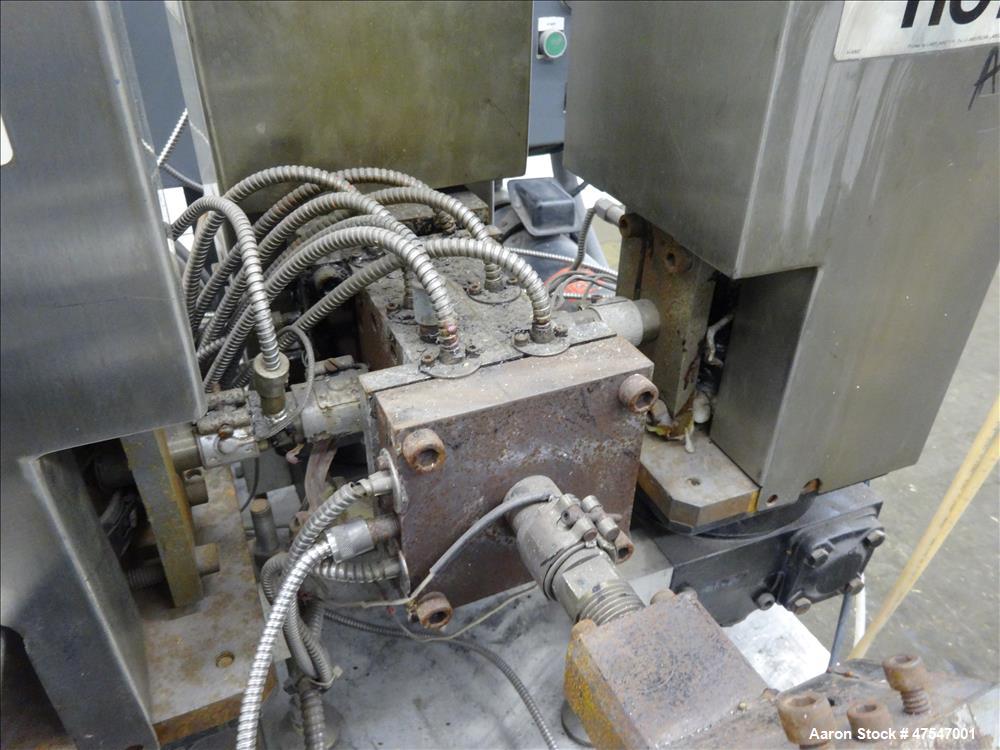

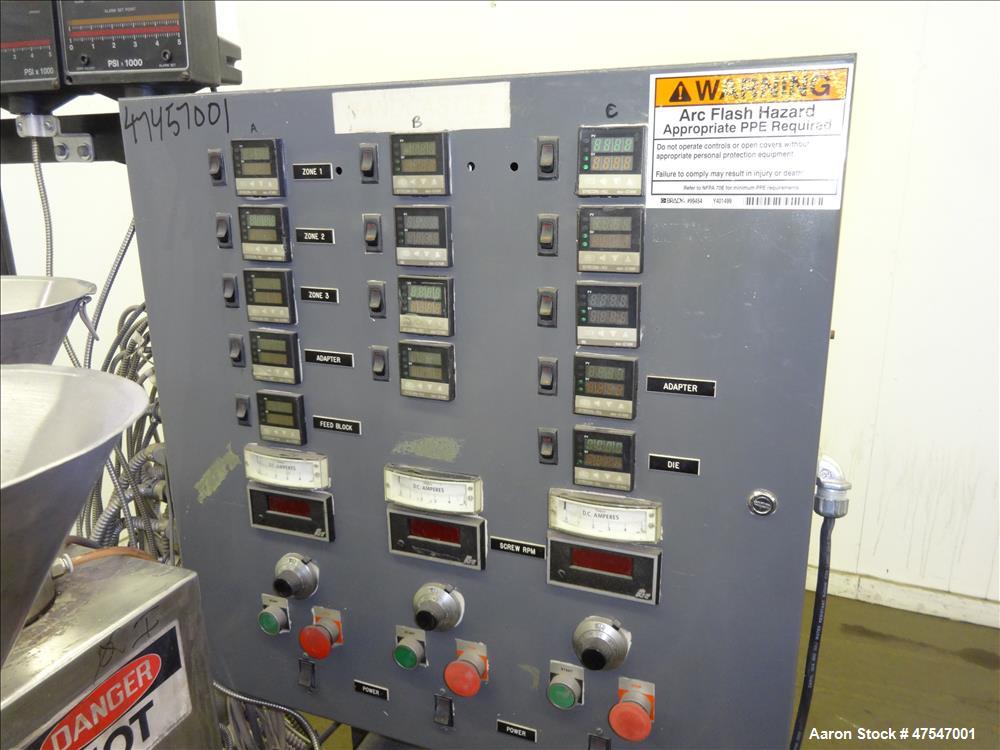

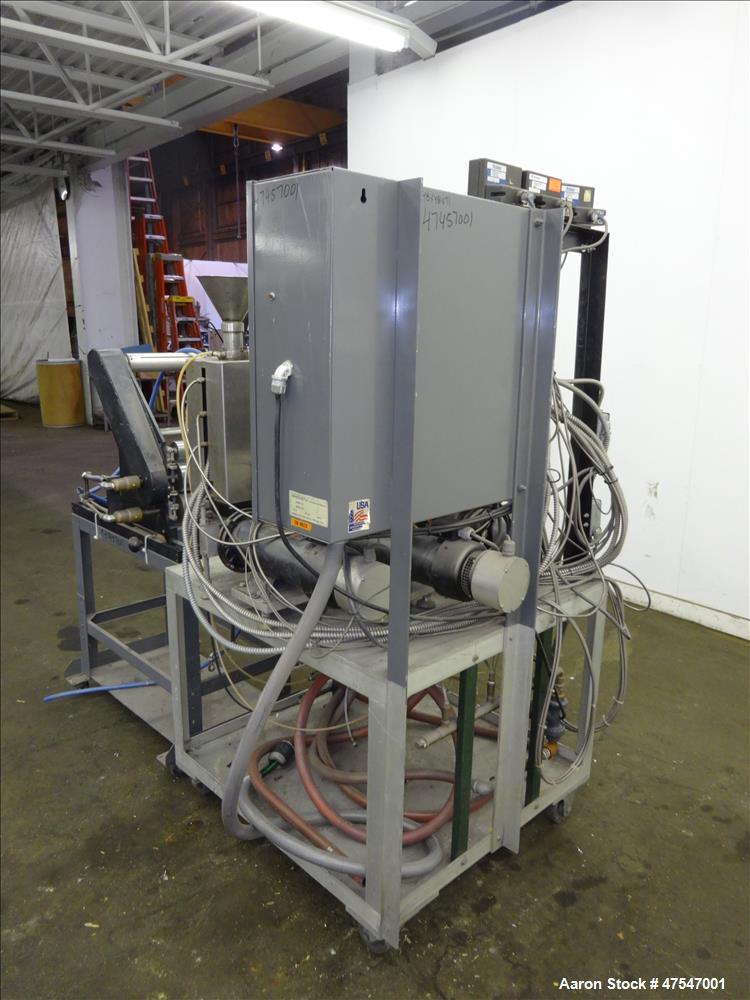

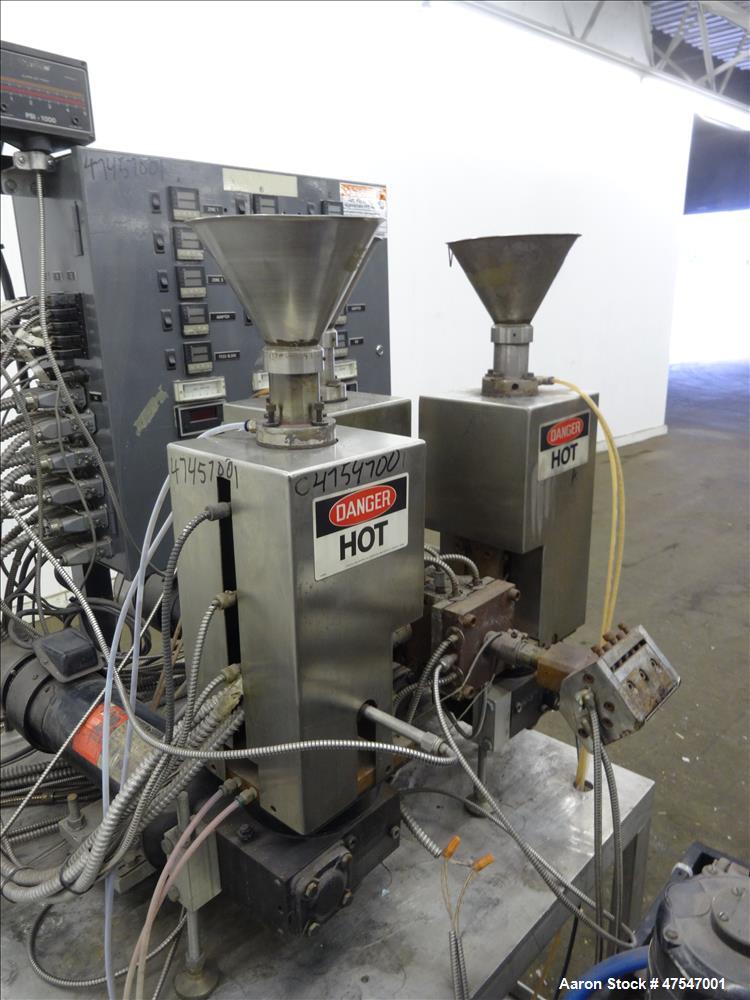

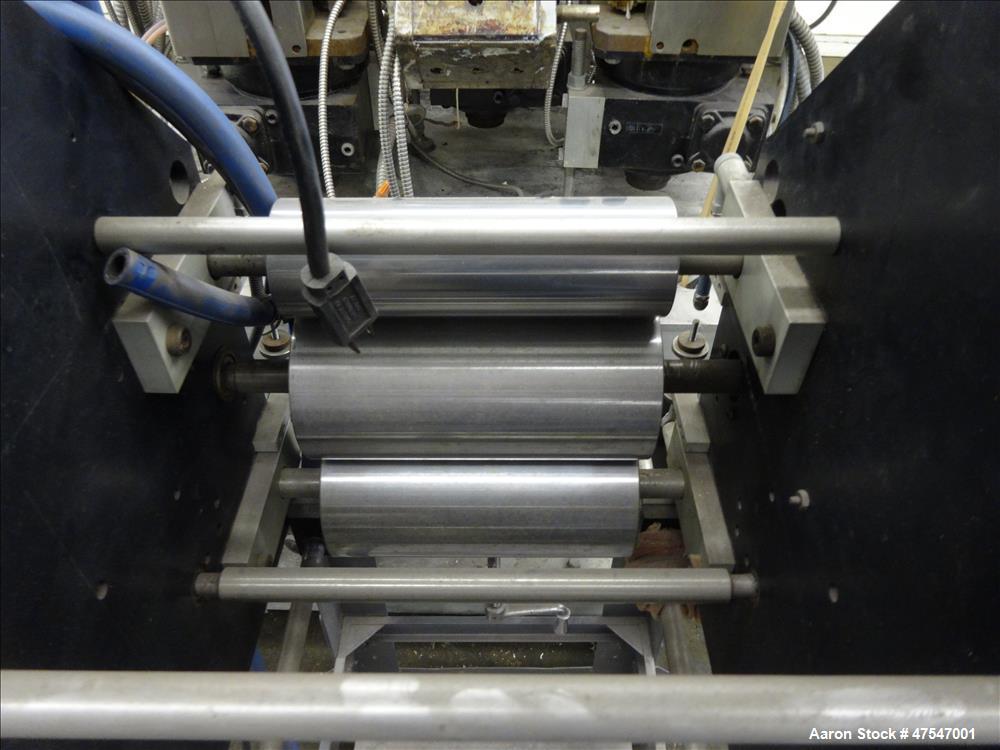

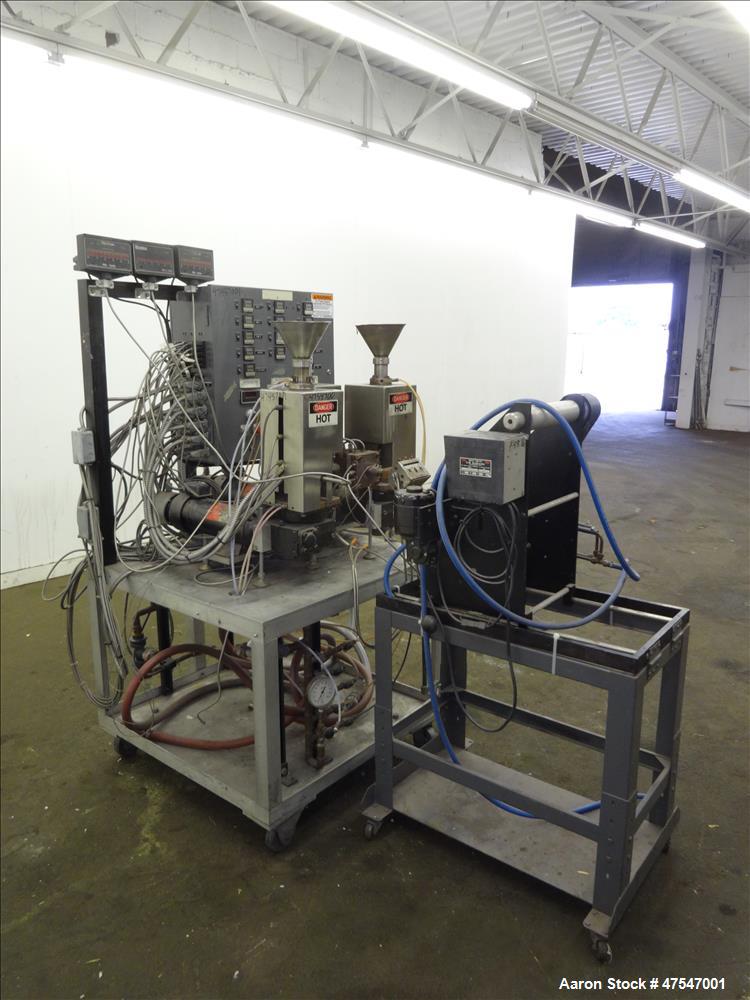

Used Randcastle Extrusion System 3 Layer Co-Extrusion Sheet Line Consisting of: (3) Randcastle Extrusion System 1/2" diameter vertical Microtruders, Model 0500. Each approximate 24 to 1 L/D ratio. Electrically heated, air cooled 3 zone non-vented barrels. Water cooled feed throats with hoppers. Each driven by a 1 hp, 180 volt, 1725 rpm DC gear motors, ratio 15 to 1. (1) Extruder is missing the screw. (1) 3 Station die block, (1) approximate 3" wide sheet die, (1) C.W. Brabender take-off, Model SFR-100, Serial# 463. (2) Approximate 8" wide x 4" diameter chrome plated cored rolls, (1) idler roll, (1) take-up roll. Driven by a 1/20 hp, 115 volt gear motor, mounted on casters. (1) Main control panel with Syscon temperature controllers, and (3) Warner Electrical Model 161S DC drives. Extruders mounted on a stand with casters.
Used Randcastle Extrusion System 3 Layer Co-Extrusion Sheet Line Consisting of: (3) Randcastle Extrusion System 1/2" diameter vertical Microtruders, Model 0500. Each approximate 24 to 1 L/D ratio. Electrically heated, air cooled 3 zone non-vented barrels. Water cooled feed throats with hoppers. Each driven by a 1 hp, 180 volt, 1725 rpm DC gear motors, ratio 15 to 1. (1) Extruder is missing the screw. (1) 3 Station die block, (1) approximate 3" wide sheet die, (1) C.W. Brabender take-off, Model SFR-100, Serial# 463. (2) Approximate 8" wide x 4" diameter chrome plated cored rolls, (1) idler roll, (1) take-up roll. Driven by a 1/20 hp, 115 volt gear motor, mounted on casters. (1) Main control panel with Syscon temperature controllers, and (3) Warner Electrical Model 161S DC drives. Extruders mounted on a stand with casters.
