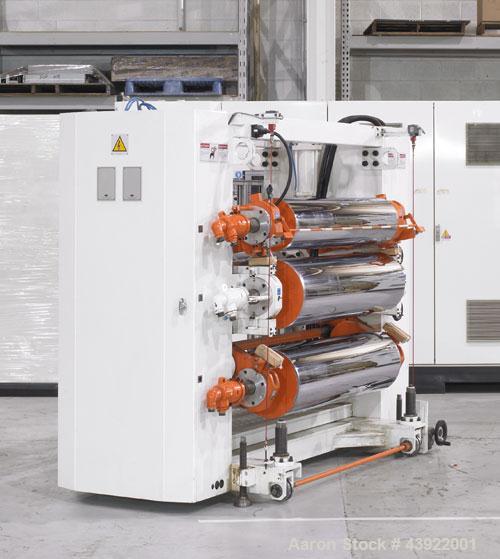

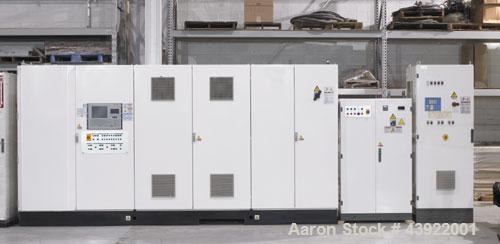

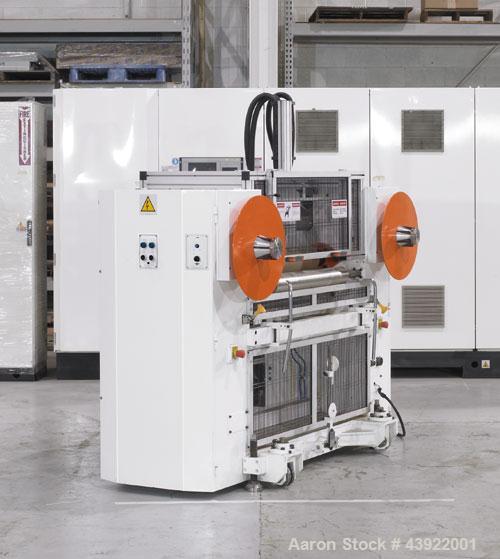

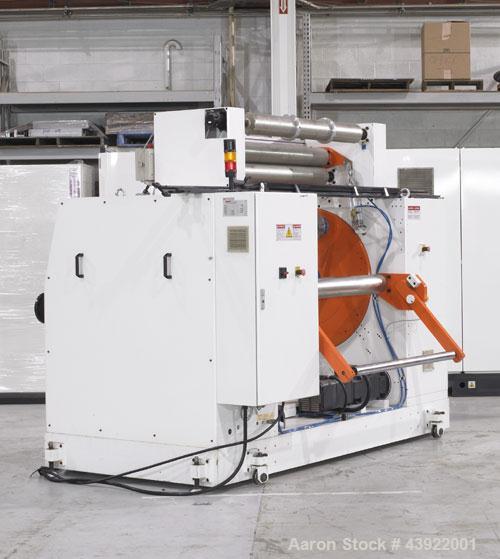

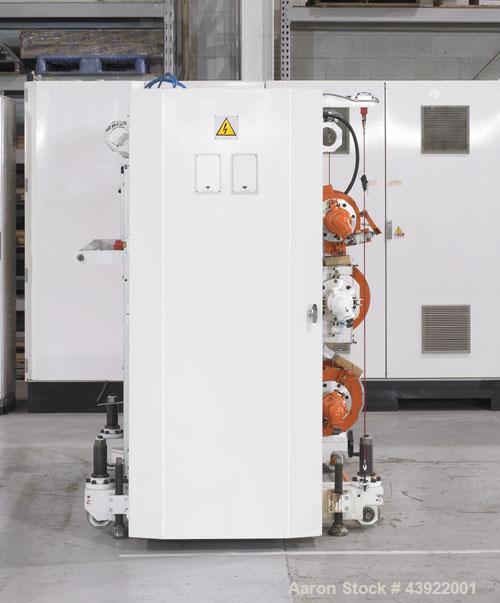

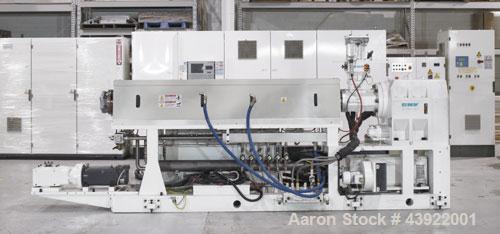

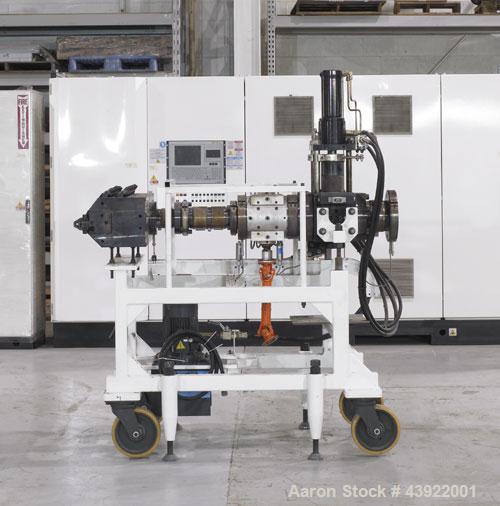

Used OMV Sheet Extrusion Line Consisting Of: (1) OMV 80mm (3.14”) single screw extruder, model D80AR+GP+CAL/TRA, approximate 32 to 1 L/D ratio. Electrically heated, water cooled 6 zone non-vented barrel. Water cooled feed throat with an approximate 46” diameter hopper. Approximate 47” centerline height. Driven by a 0.490/110 kw, 310 volt, 2540 rpm motor with gearbox, serial# 01259, built 2004. (1) Maag gear pump, model CSC-096, serial# 213080, driven by a 9kw motor with reducer, (1) Approximate 31” wide adjustable width sheet die, model 750/L5-R-CR, serial# 0406009. (1) OMV winder, model AVV1000, serial#01191, built 2004. Approximate 51” wide, (1) OMV Three roll Calender, Chrome measures top roll is 10.77" diameter, middle and bottom chrome rolls are 13.91" diameter all rolls areapproximate 47-1/4” wide, (1) haul off two rubber rolls approximate 8" diameter x 47" wide having (2) adjustable slitting stations, (1) belt conveyor, and (4) Control panels.
Used OMV Sheet Extrusion Line Consisting Of: (1) OMV 80mm (3.14”) single screw extruder, model D80AR+GP+CAL/TRA, approximate 32 to 1 L/D ratio. Electrically heated, water cooled 6 zone non-vented barrel. Water cooled feed throat with an approximate 46” diameter hopper. Approximate 47” centerline height. Driven by a 0.490/110 kw, 310 volt, 2540 rpm motor with gearbox, serial# 01259, built 2004. (1) Maag gear pump, model CSC-096, serial# 213080, driven by a 9kw motor with reducer, (1) Approximate 31” wide adjustable width sheet die, model 750/L5-R-CR, serial# 0406009. (1) OMV winder, model AVV1000, serial#01191, built 2004. Approximate 51” wide, (1) OMV Three roll Calender, Chrome measures top roll is 10.77" diameter, middle and bottom chrome rolls are 13.91" diameter all rolls areapproximate 47-1/4” wide, (1) haul off two rubber rolls approximate 8" diameter x 47" wide having (2) adjustable slitting stations, (1) belt conveyor, and (4) Control panels.
