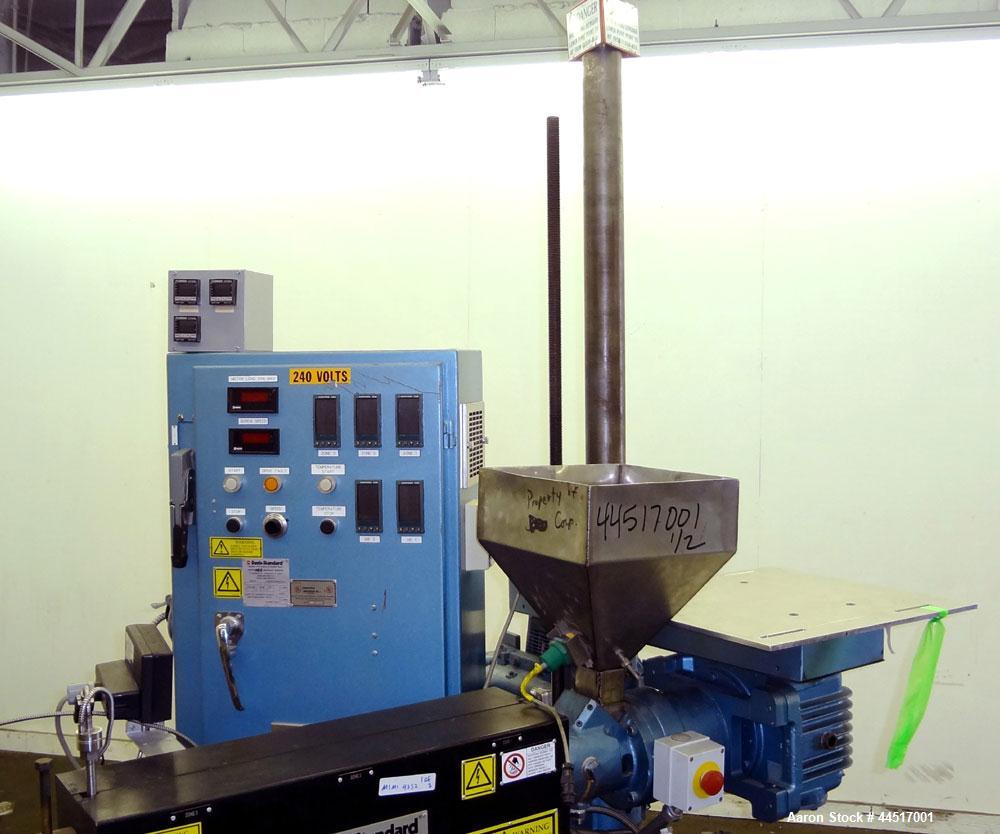

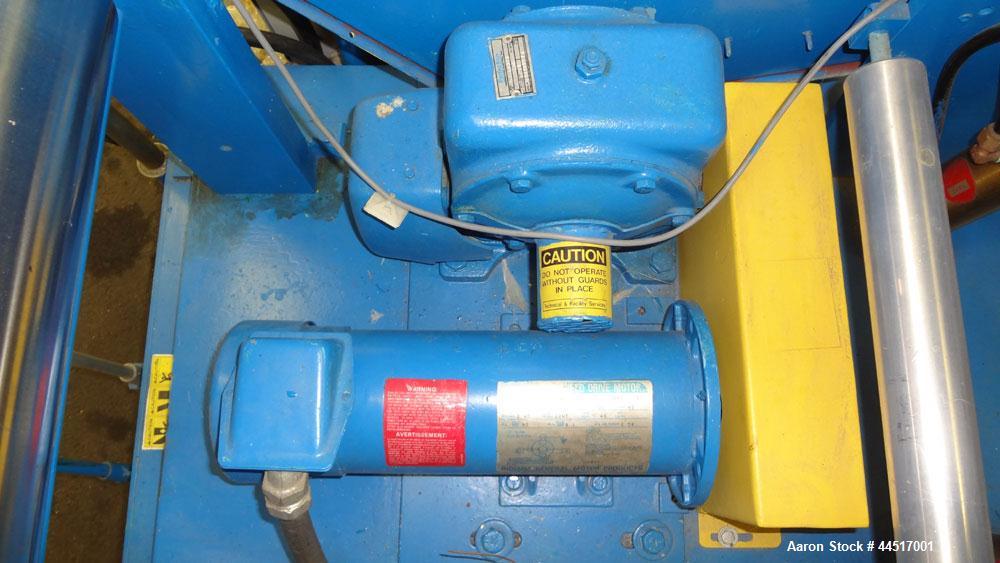

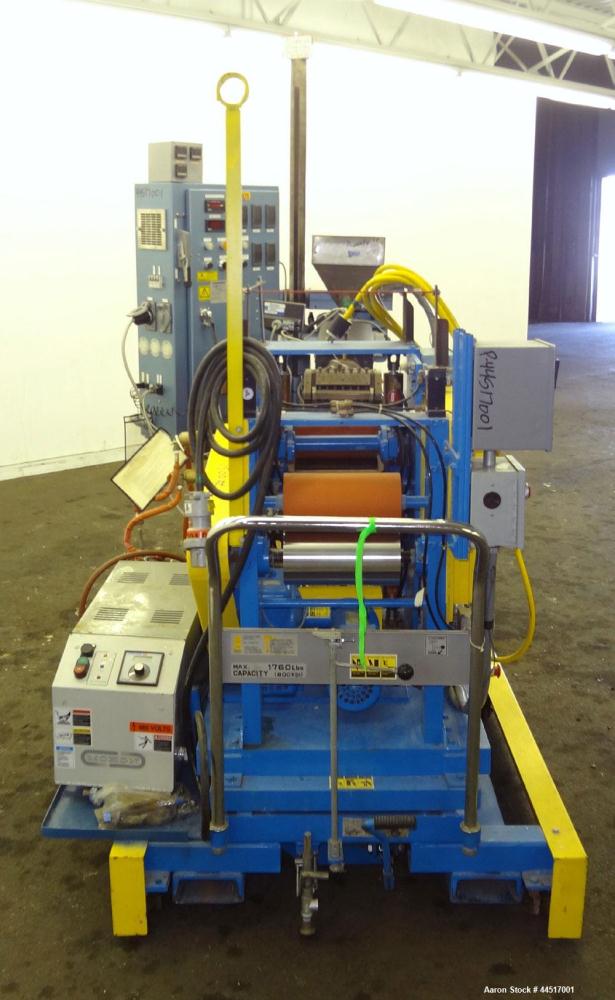

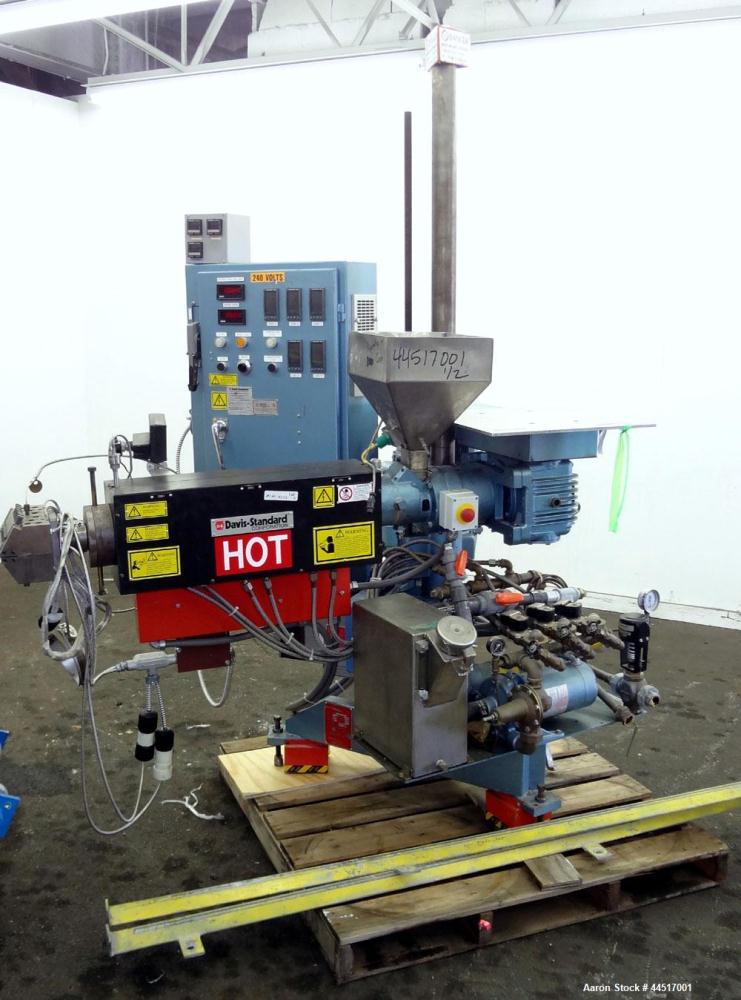

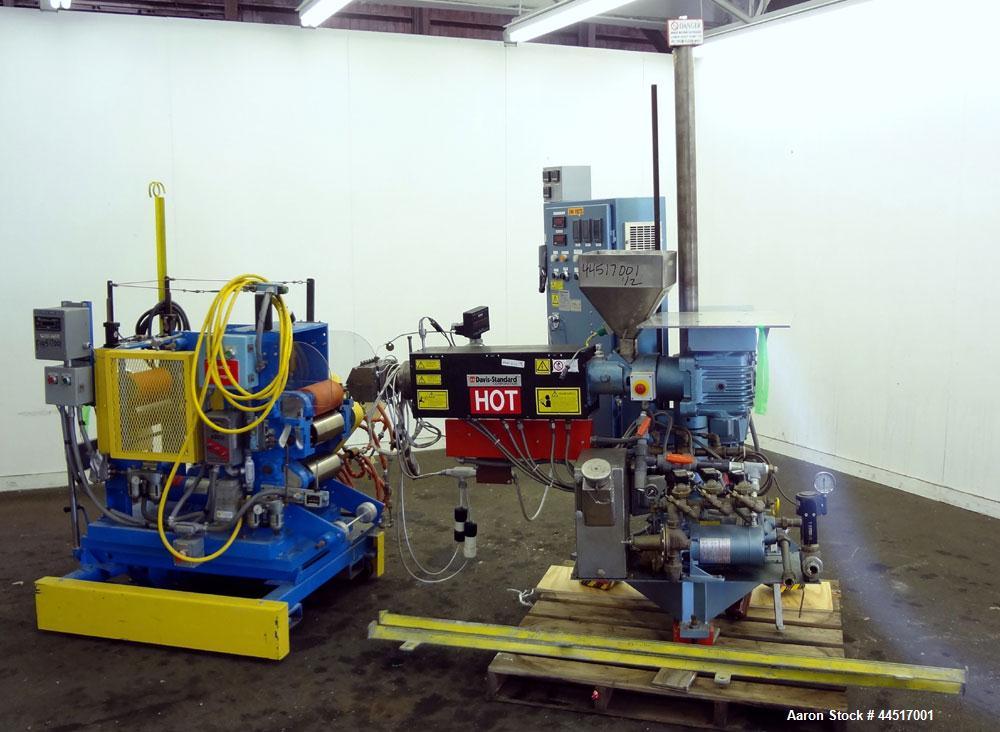

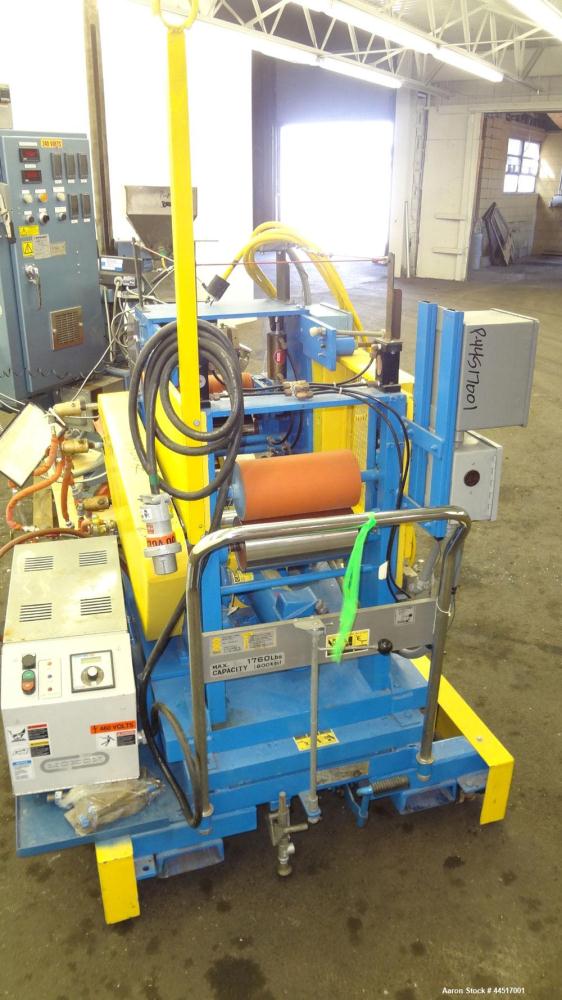

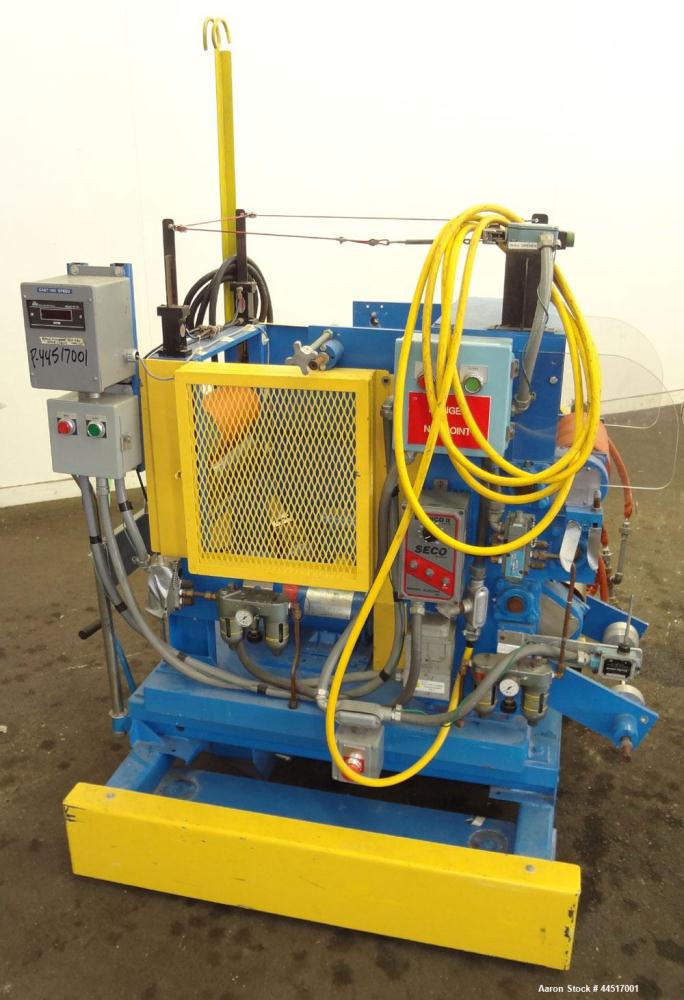

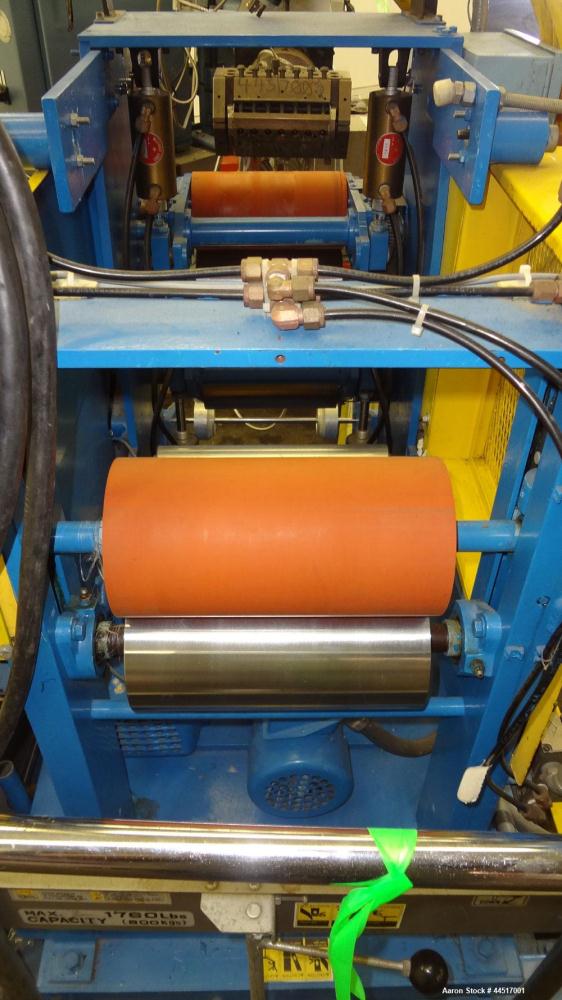

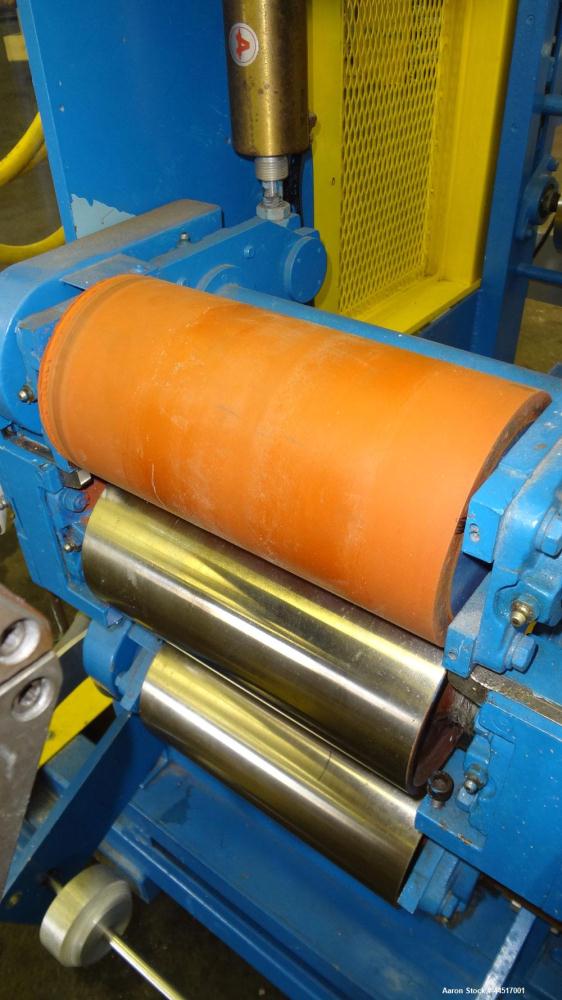

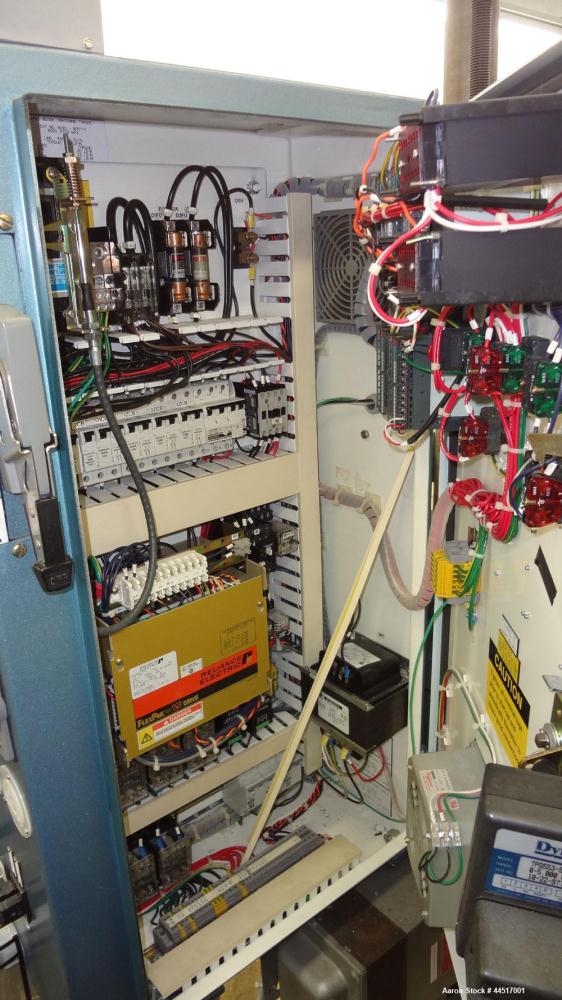

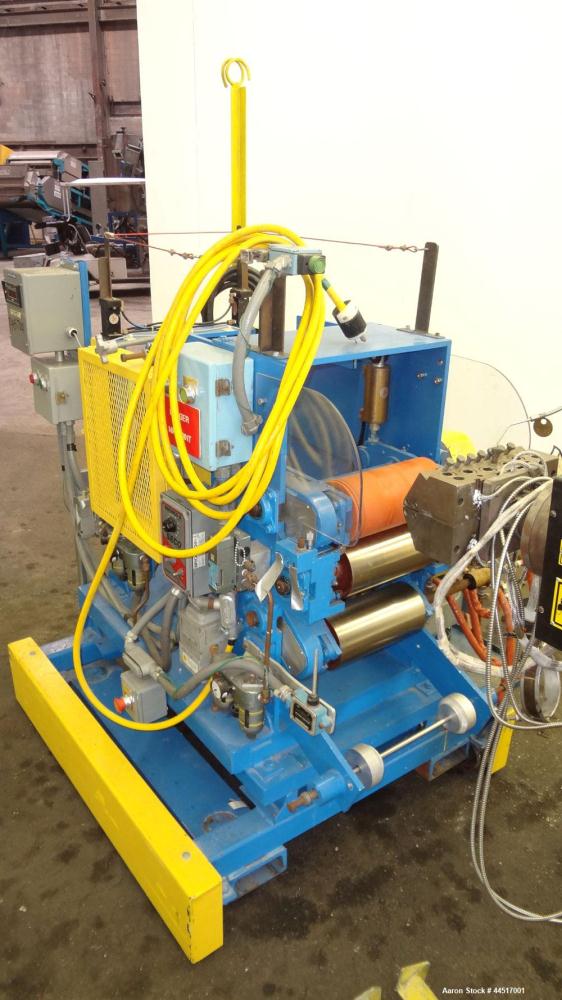

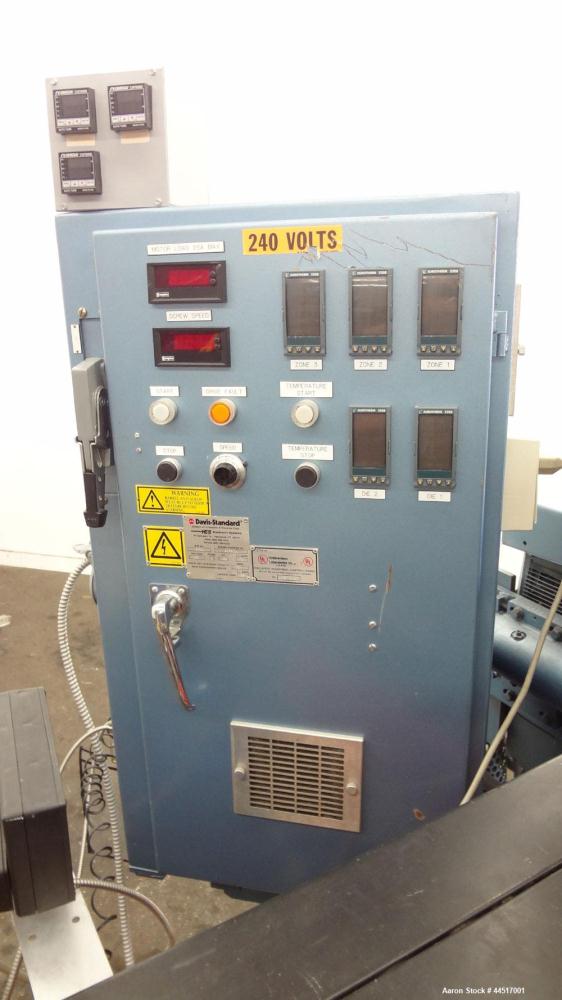

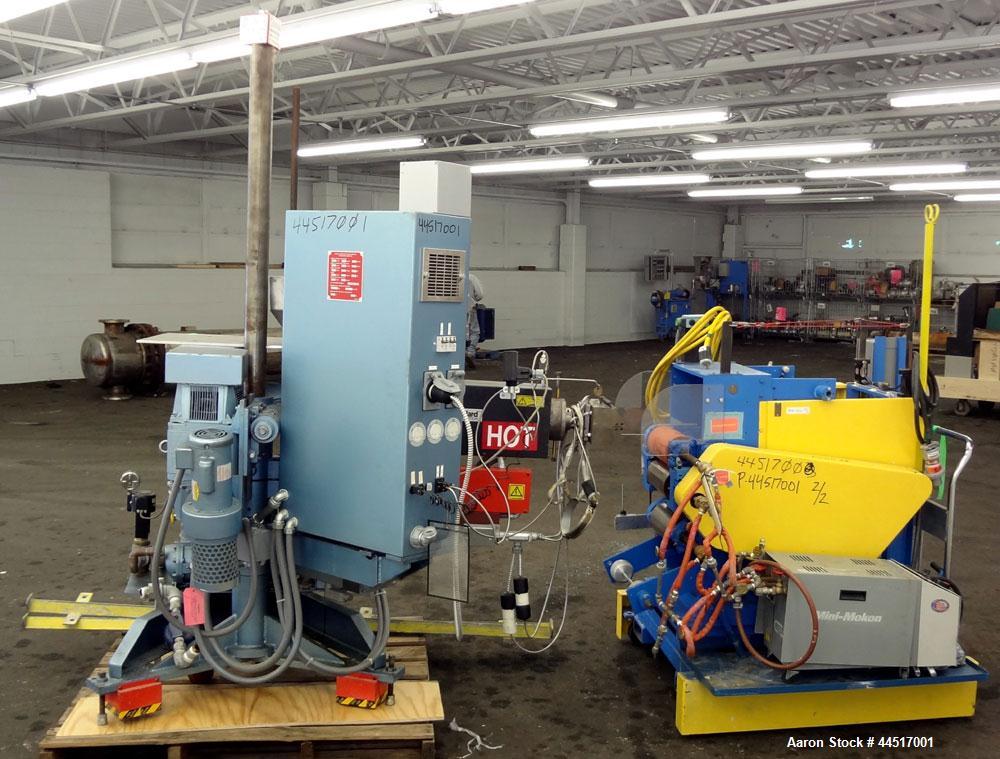

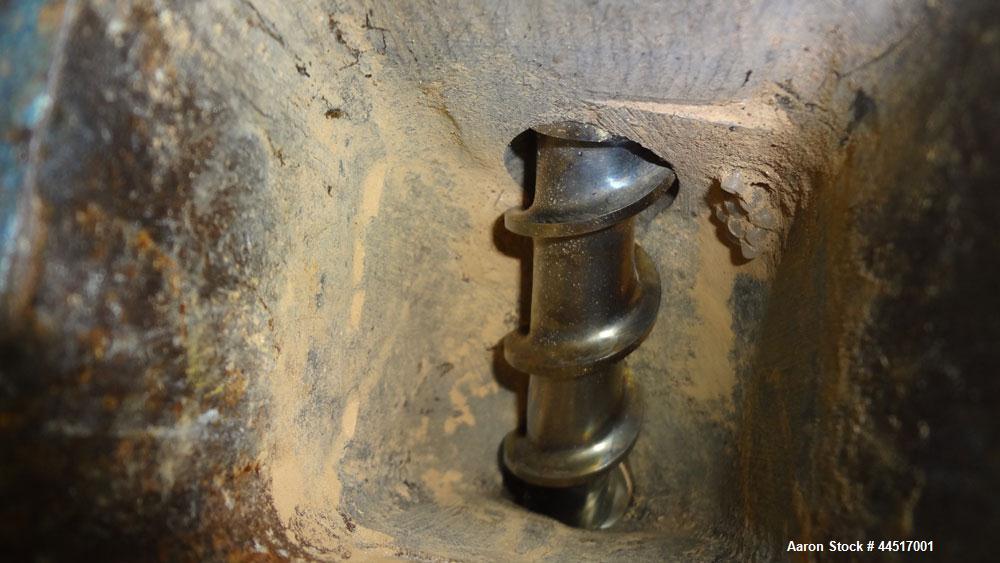

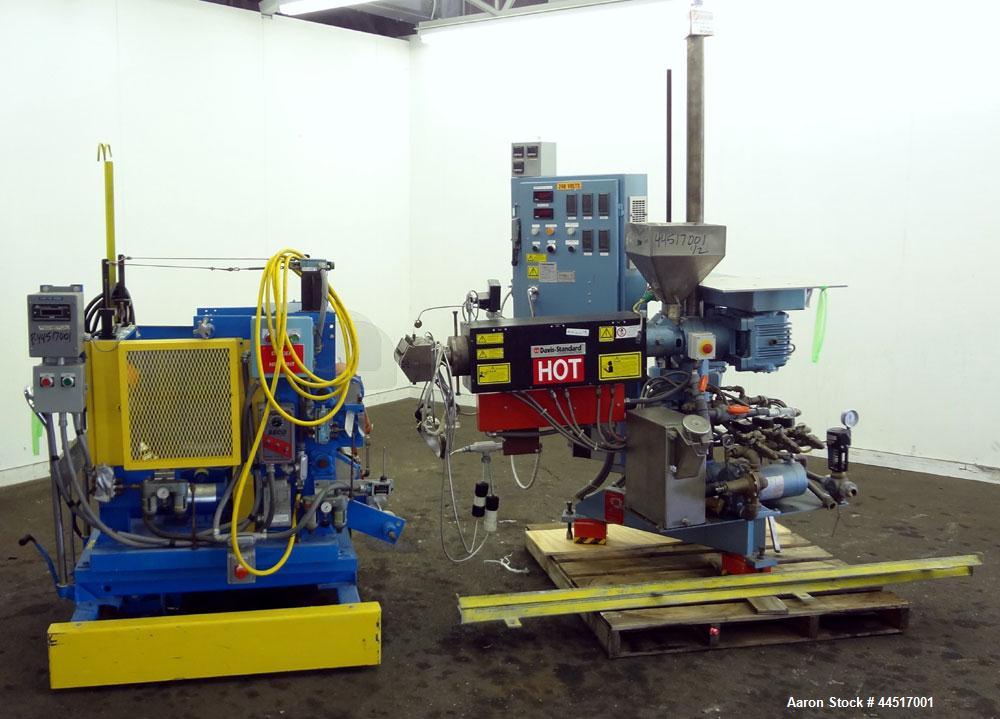

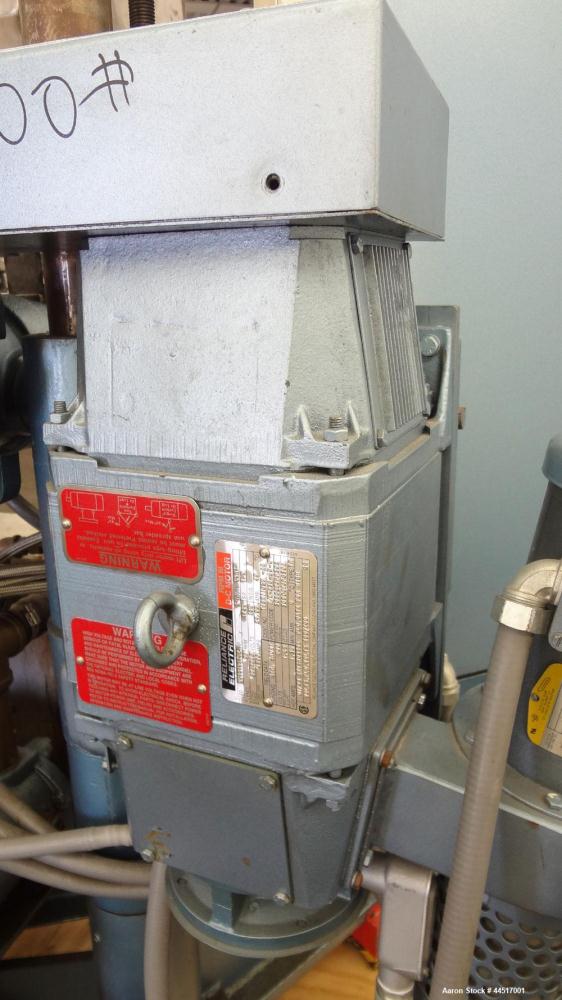

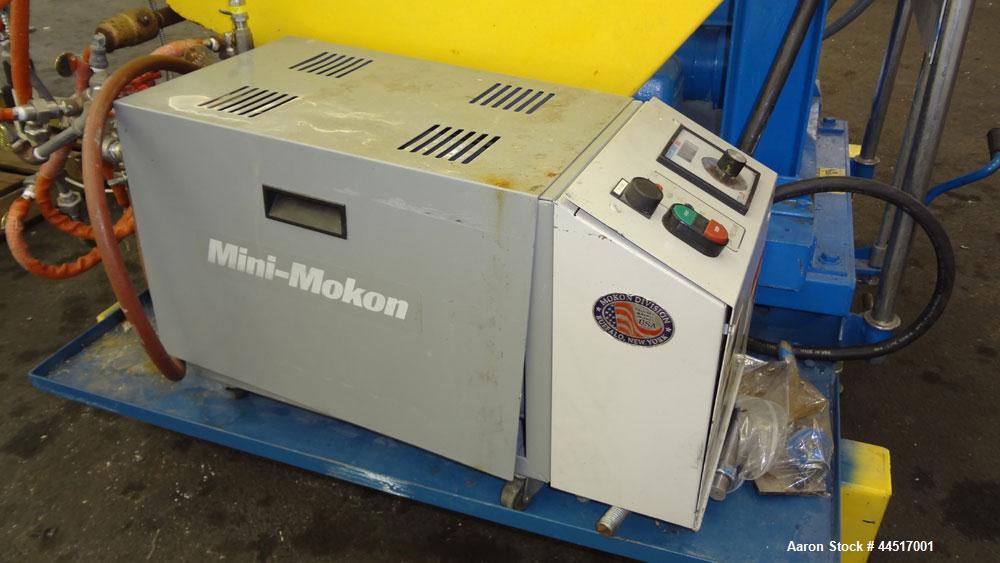

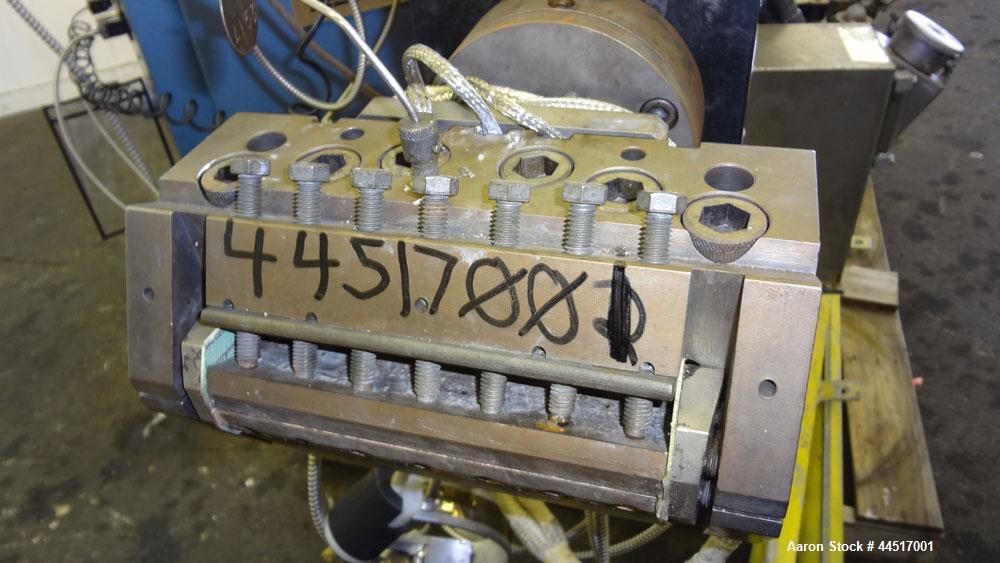

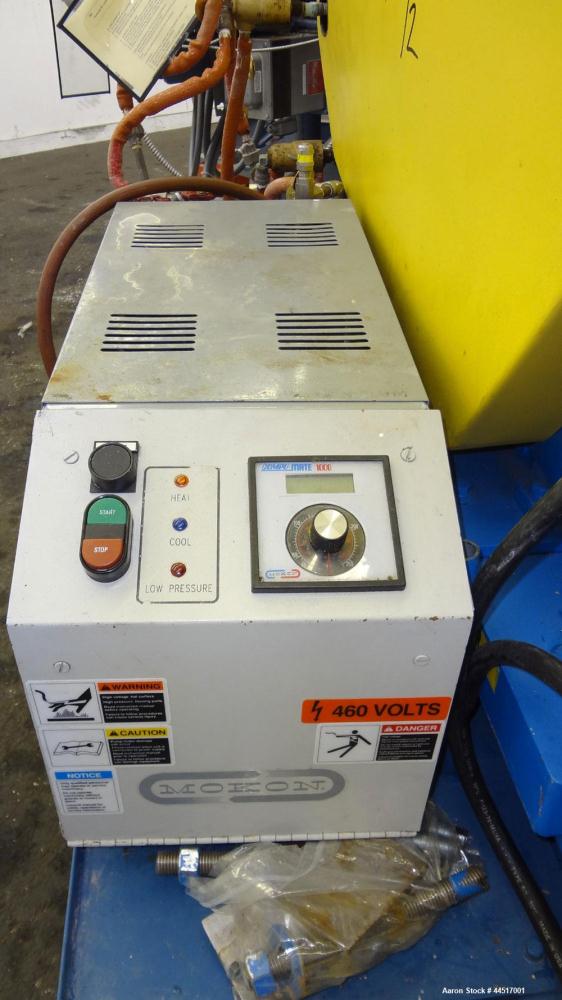

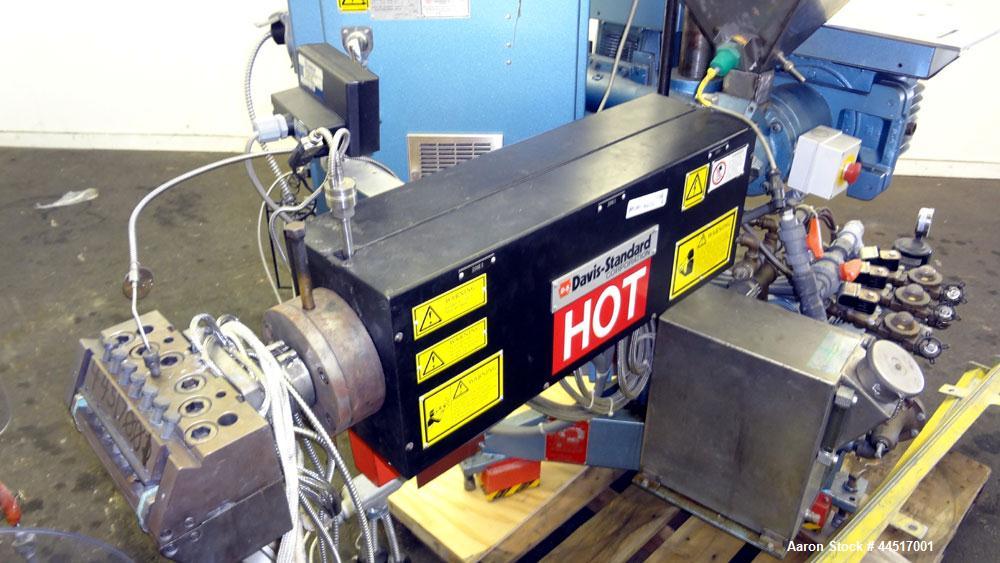

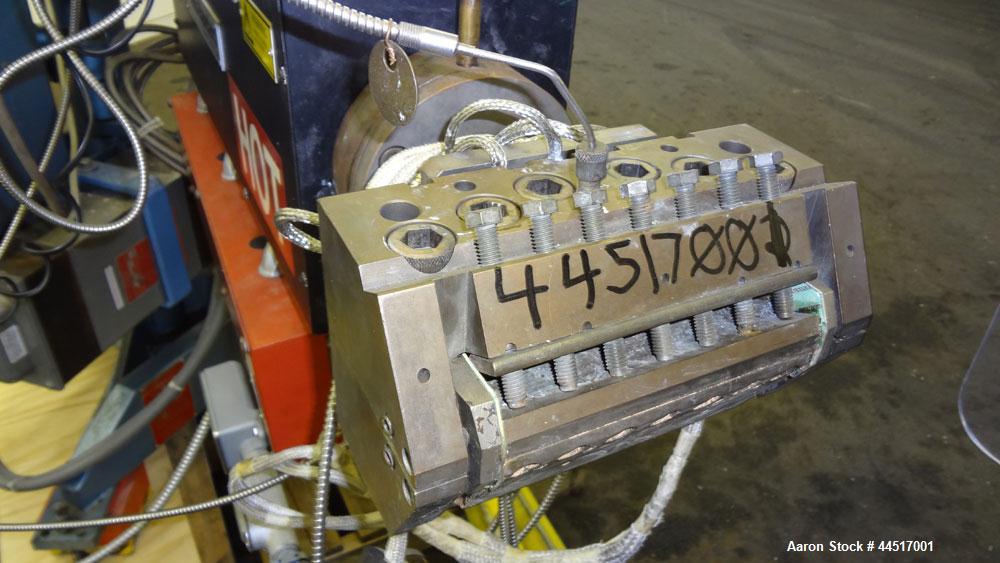

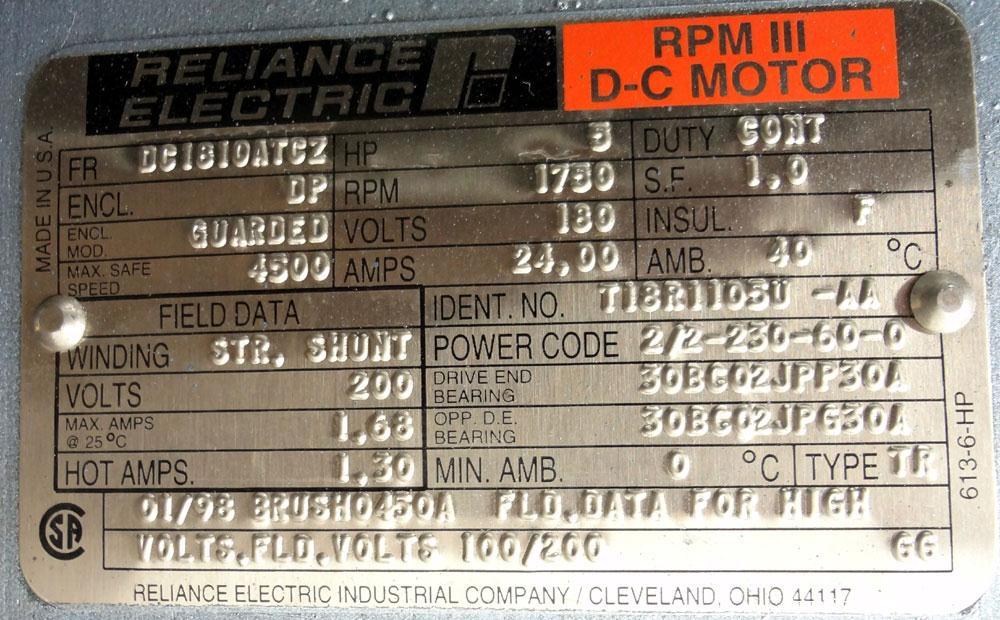

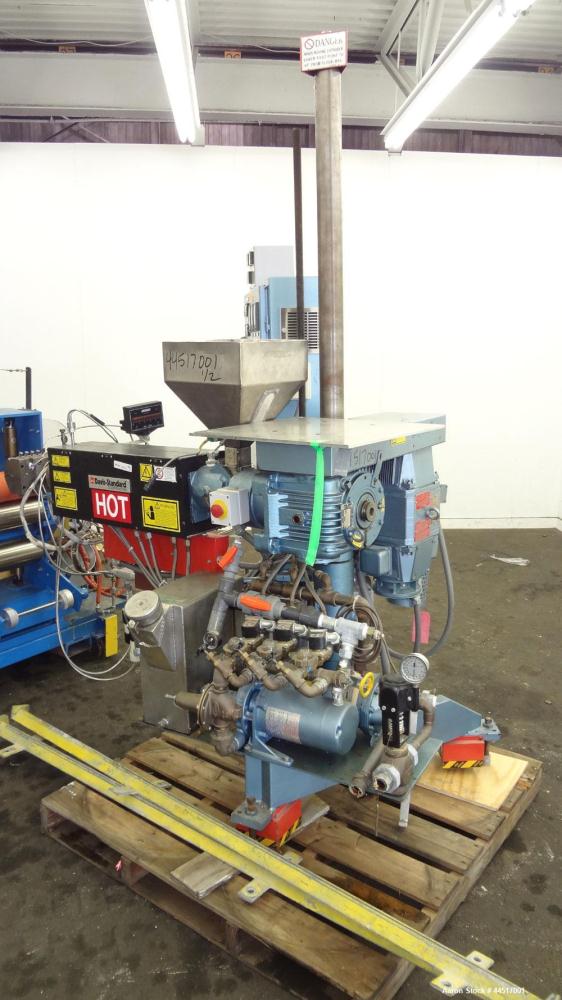

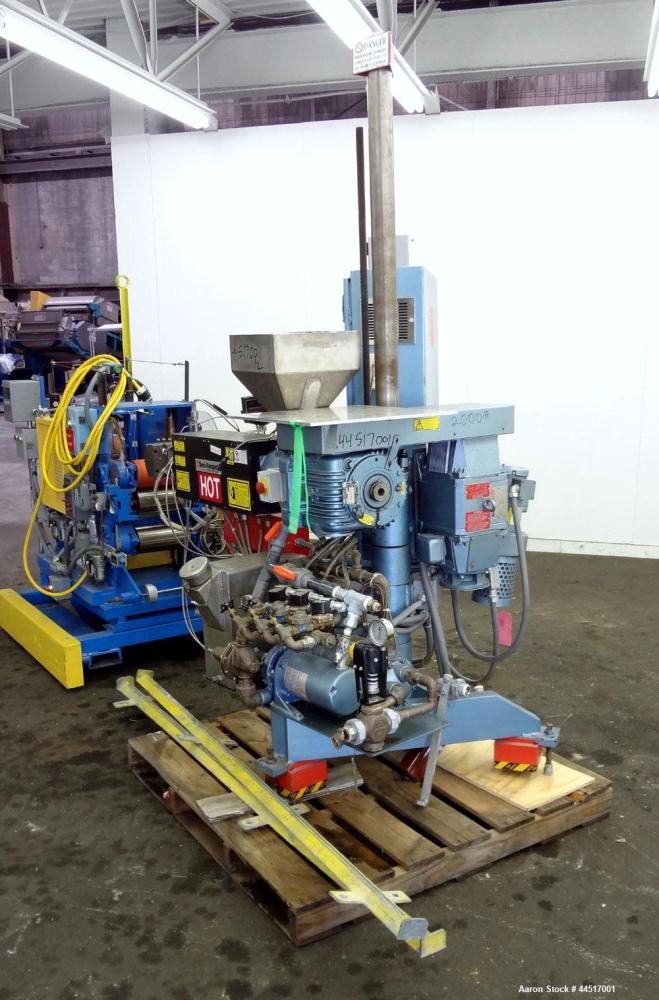

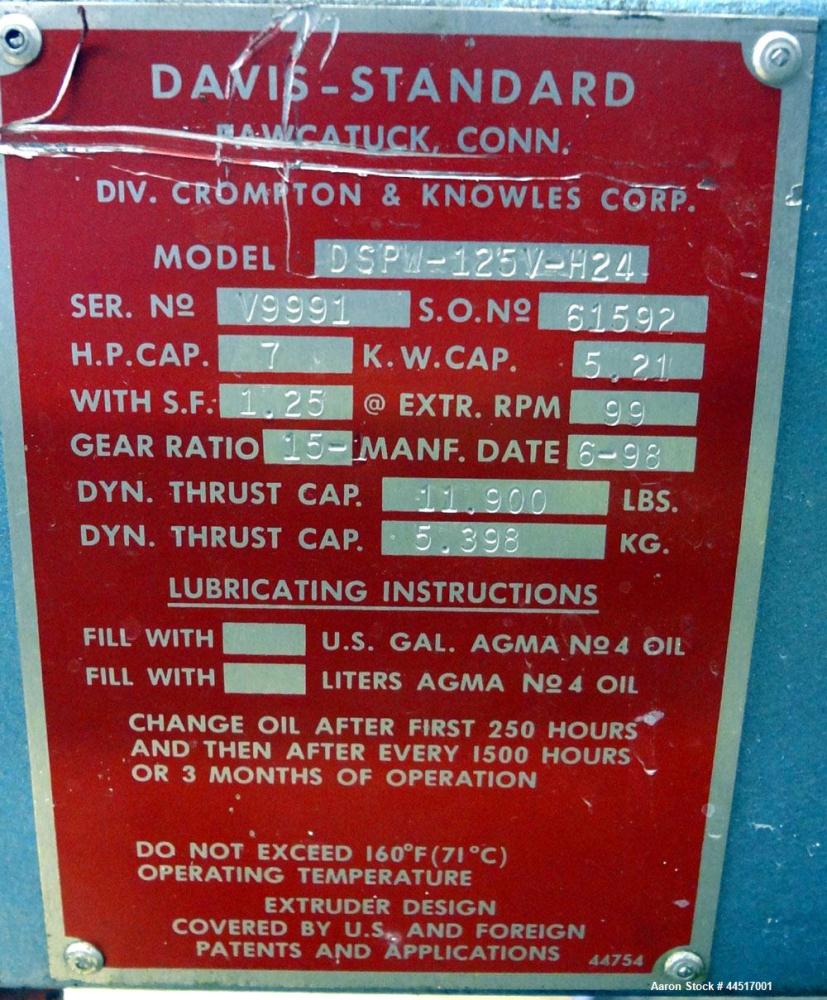

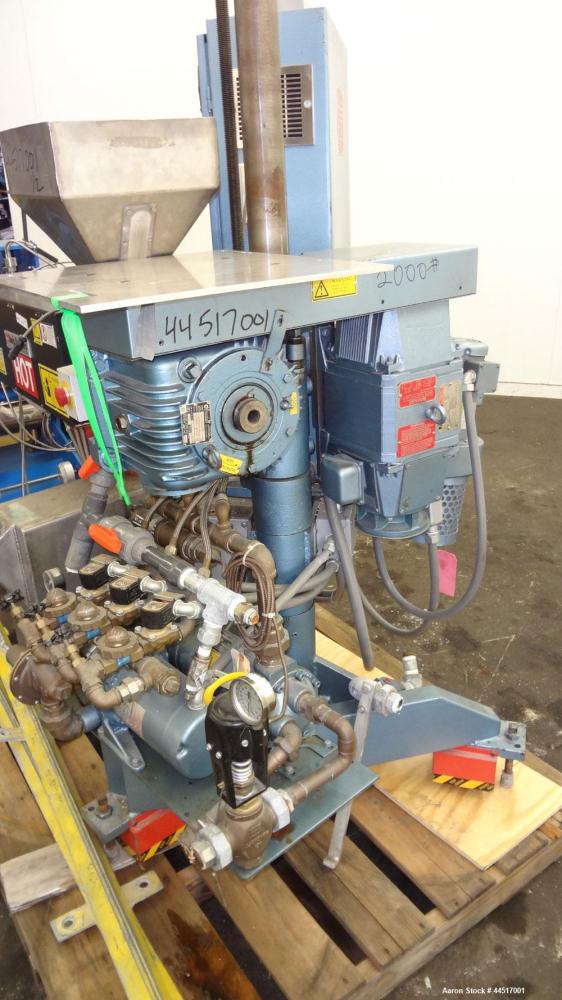

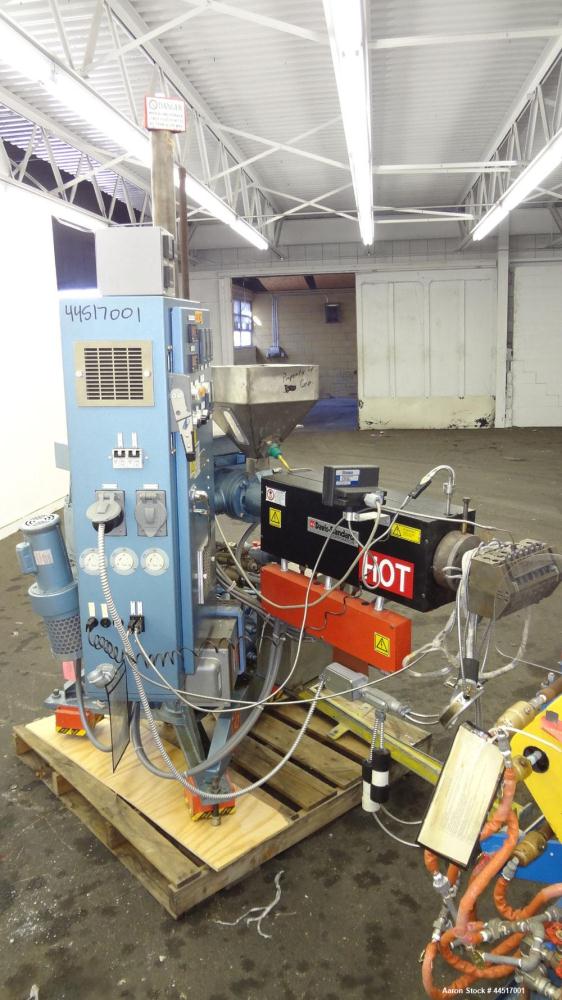

Used Davis Standard 7" Wide Sheet Line consisting of: (1) Davis Standard 1-1/4" pedestal mounted single screw rxtruder, model DSPW-125V-H24, serial #V9991, SO #61592, built 1998. Approximate 24 to 1 L/D ratio. Electrically heated, water cooled 3 zone non-vented barrel with a closed loop water system, with pump, tank, and heat exchanger. Adjustable centerline height, water cooled feed throat with hopper. Driven by a 5 hp, 180 volt, 1750 rpm DC motor thru an Ex-Cell-O cone drive, ratio 15 to 1. Includes a control panel with Eurotherm controllers, Reliance FlexPak Plus VS drive, and a 6 kva transformer. (1) 7" Wide sheet die, (1) Davis Standard 3 roll sheet stack, with (2) 5" diameter x 10" wide chrome plated cored rolls, (1) 5" diameter x 10" wide cored rubber roll, (2) pull rolls, (1) chrome, (1) rubber, all driven by a 1 hp, 180 volt DC gear motor. Includes a Mokon temperature controller, model MM4H04-01, serial #63036, rated 4 kw, maximum temperature 250 degrees F. Mounted on a cart.
Used Davis Standard 7" Wide Sheet Line consisting of: (1) Davis Standard 1-1/4" pedestal mounted single screw rxtruder, model DSPW-125V-H24, serial #V9991, SO #61592, built 1998. Approximate 24 to 1 L/D ratio. Electrically heated, water cooled 3 zone non-vented barrel with a closed loop water system, with pump, tank, and heat exchanger. Adjustable centerline height, water cooled feed throat with hopper. Driven by a 5 hp, 180 volt, 1750 rpm DC motor thru an Ex-Cell-O cone drive, ratio 15 to 1. Includes a control panel with Eurotherm controllers, Reliance FlexPak Plus VS drive, and a 6 kva transformer. (1) 7" Wide sheet die, (1) Davis Standard 3 roll sheet stack, with (2) 5" diameter x 10" wide chrome plated cored rolls, (1) 5" diameter x 10" wide cored rubber roll, (2) pull rolls, (1) chrome, (1) rubber, all driven by a 1 hp, 180 volt DC gear motor. Includes a Mokon temperature controller, model MM4H04-01, serial #63036, rated 4 kw, maximum temperature 250 degrees F. Mounted on a cart.
