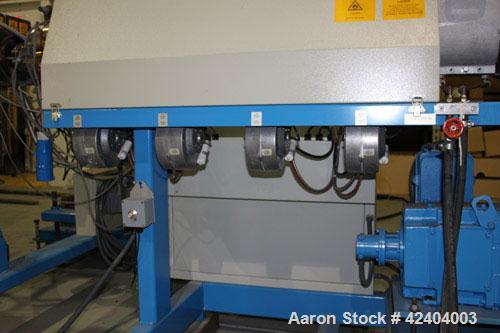

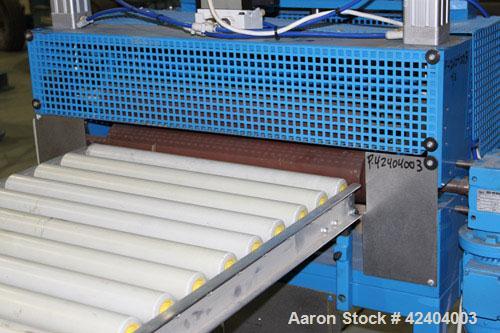

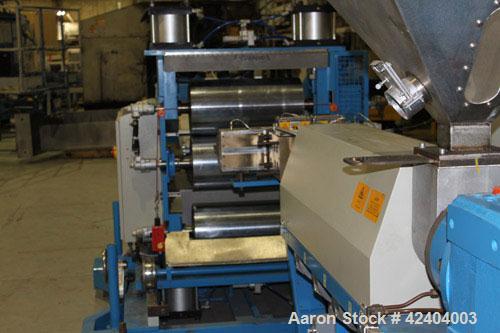

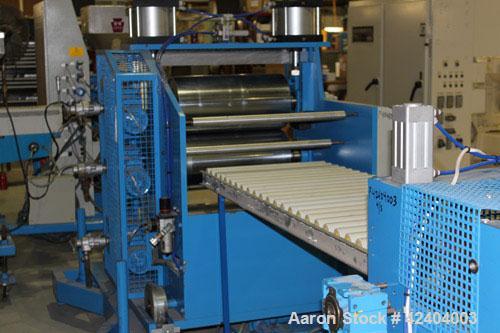

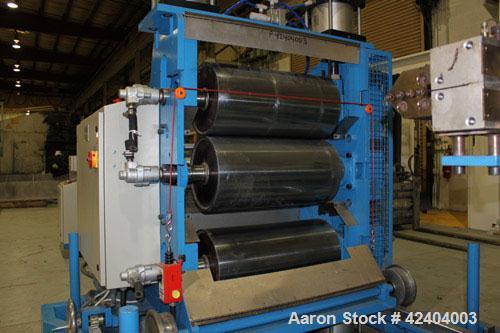

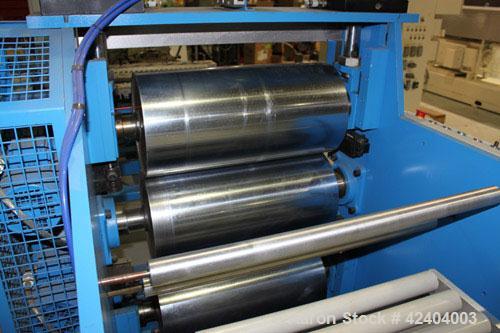

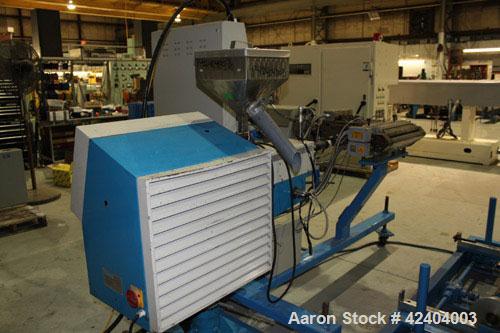

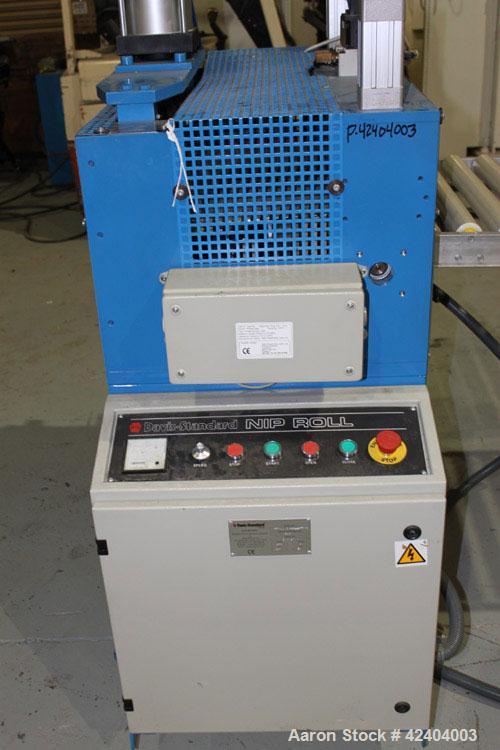

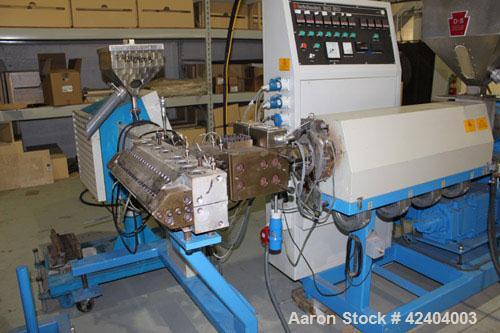

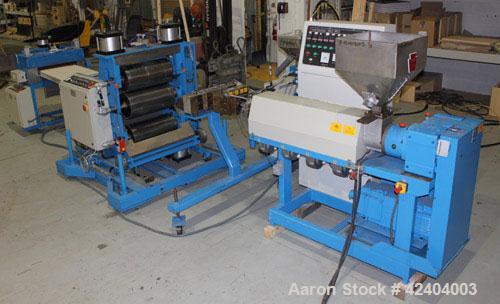

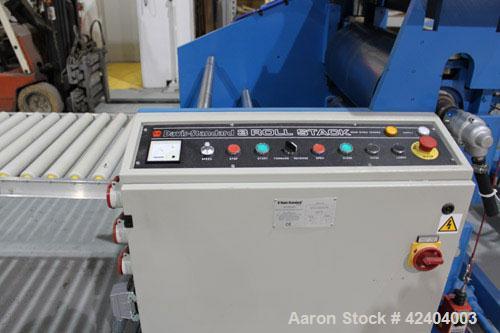

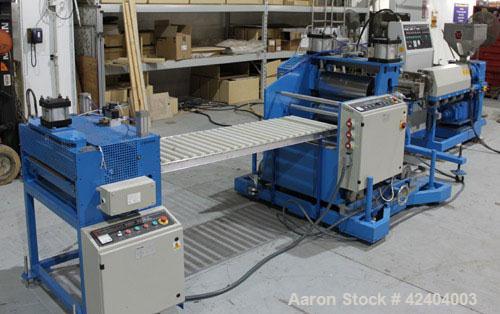

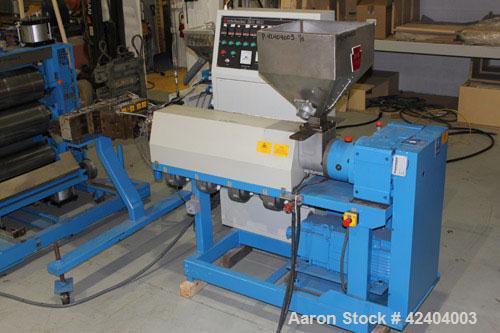

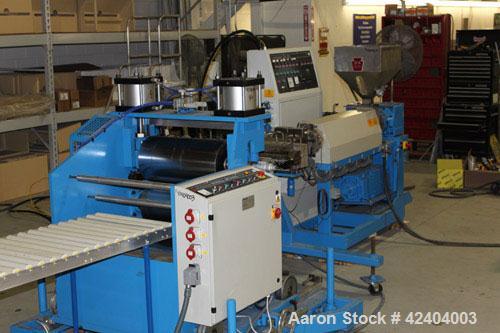

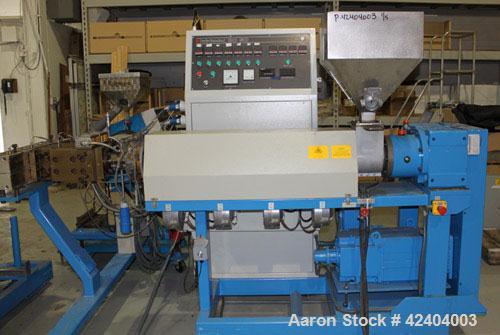

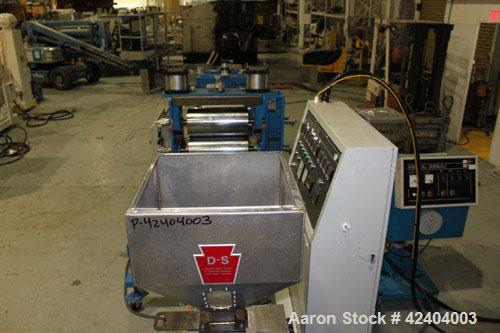

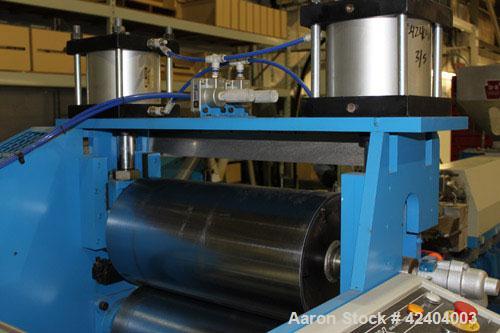

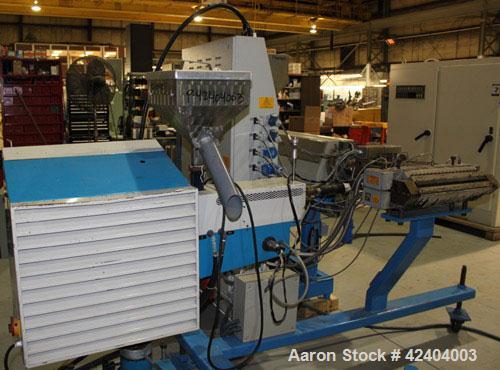

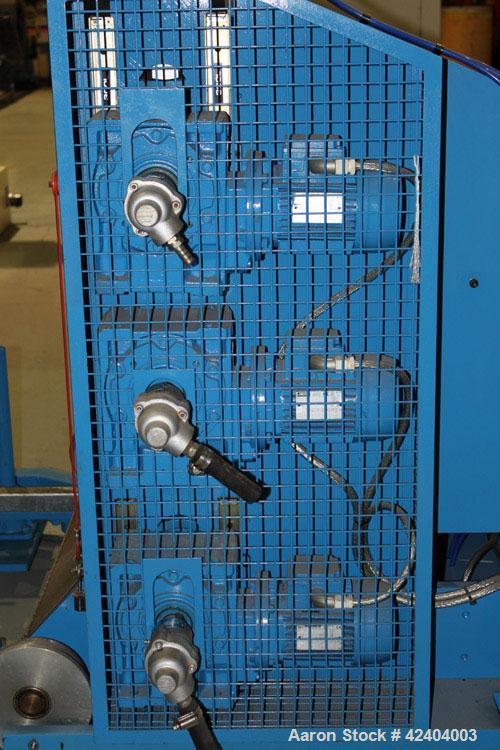

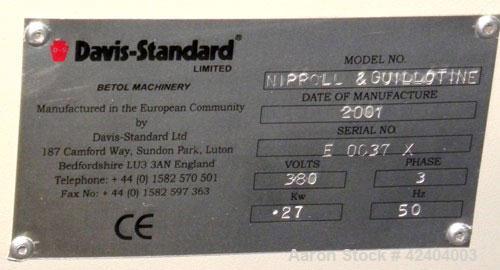

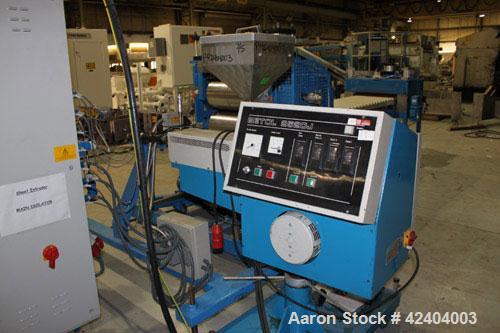

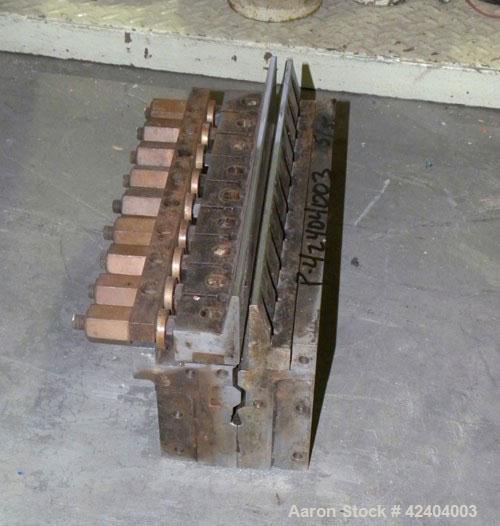

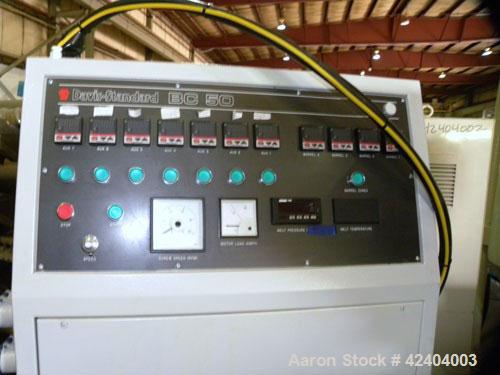

Used Davis Standard 50mm (19.6’’) Co-Extrusion Sheet Line Consisting Of: (1) Davis Standard 50mm (2") diameter single screw extruder, model BC50, approximate 24:1 L/D ratio, electrically heated, air cooled, non-vented 4 zone barrel. Water cooled feed with hopper. Driven by a 22KW (30hp), 440 volt, 1500 rpm motor thru a gearbox. Includes a control panel with temperature controllers, mounted on a frame, built 2002. Includes (1) Die block, (1) Betol 25mm (0.98’’) single screw co-extruder, model 2520J, serial# A5335. Approximate 24 to 1 L/D ratio. Electrically heated, air cooled 3 zone non-vented barrel. Water cooled feed throat with a hopper, driven by an approximate 3kw motor, mounted on a base with casters. (1) EDI 500mm (19.6’’) wide Ultraflex 100 sheet die, serial# 01-22254. (1) Davis Standard 3-Roll Stack. (3) 12’’ Diameter x 23-5/8’’ wide pneumatically adjustable chrome plated cored rolls. Each roll driven by a 0.37 kw (.5hp) gear motor, (1) Approximate 78’’ long roller cooling conveyor, and a control panel, serial# E 0037 W, built 2001. (1) Davis Standard nip roll stand with (2) 4’’ diameter x 23-1/2’’ wide pneumatically adjustable rubber rolls, driven by a 0.27kw gear motor, with a 23-1/2’’ wide air operated guillotine blade. Mounted on a frame with casters, serial# E 0037 X, built 2001. (1) 14" Wide die.
Used Davis Standard 50mm (19.6’’) Co-Extrusion Sheet Line Consisting Of: (1) Davis Standard 50mm (2") diameter single screw extruder, model BC50, approximate 24:1 L/D ratio, electrically heated, air cooled, non-vented 4 zone barrel. Water cooled feed with hopper. Driven by a 22KW (30hp), 440 volt, 1500 rpm motor thru a gearbox. Includes a control panel with temperature controllers, mounted on a frame, built 2002. Includes (1) Die block, (1) Betol 25mm (0.98’’) single screw co-extruder, model 2520J, serial# A5335. Approximate 24 to 1 L/D ratio. Electrically heated, air cooled 3 zone non-vented barrel. Water cooled feed throat with a hopper, driven by an approximate 3kw motor, mounted on a base with casters. (1) EDI 500mm (19.6’’) wide Ultraflex 100 sheet die, serial# 01-22254. (1) Davis Standard 3-Roll Stack. (3) 12’’ Diameter x 23-5/8’’ wide pneumatically adjustable chrome plated cored rolls. Each roll driven by a 0.37 kw (.5hp) gear motor, (1) Approximate 78’’ long roller cooling conveyor, and a control panel, serial# E 0037 W, built 2001. (1) Davis Standard nip roll stand with (2) 4’’ diameter x 23-1/2’’ wide pneumatically adjustable rubber rolls, driven by a 0.27kw gear motor, with a 23-1/2’’ wide air operated guillotine blade. Mounted on a frame with casters, serial# E 0037 X, built 2001. (1) 14" Wide die.
