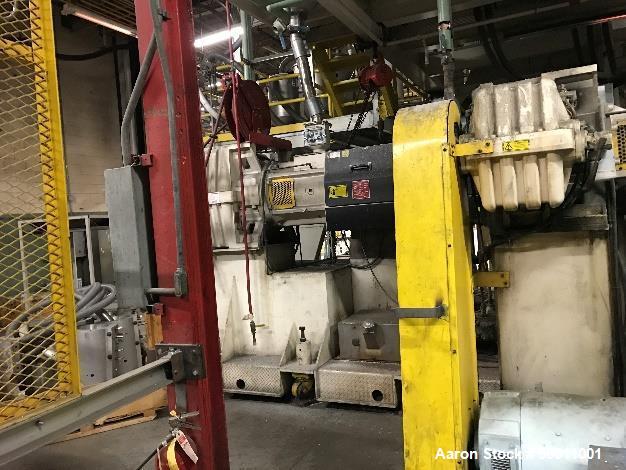

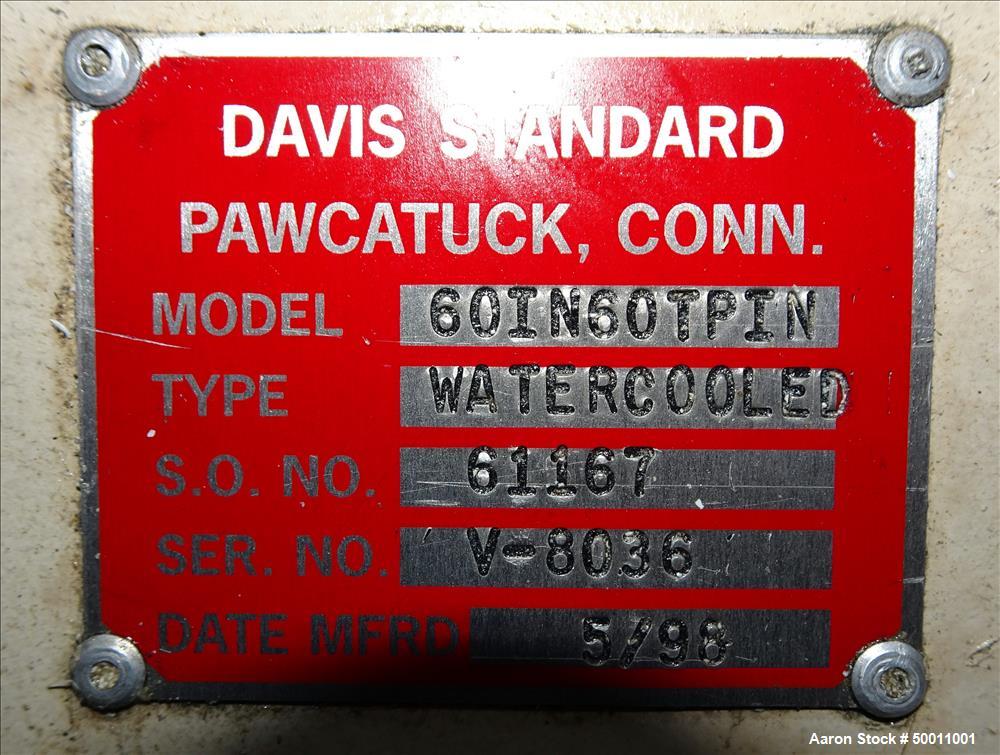

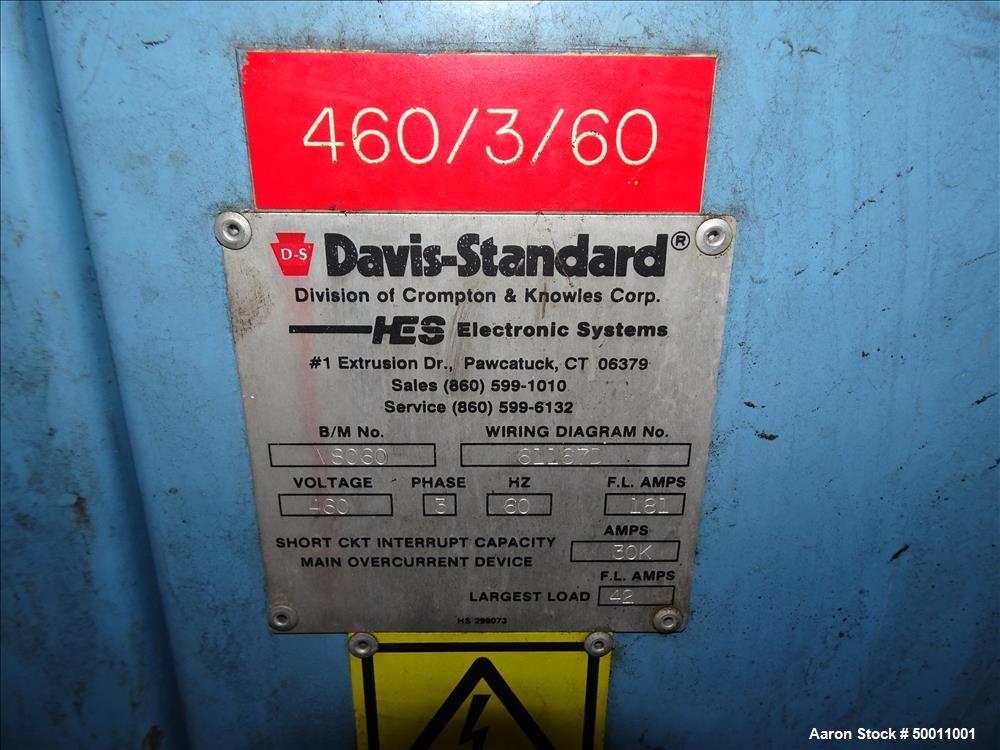

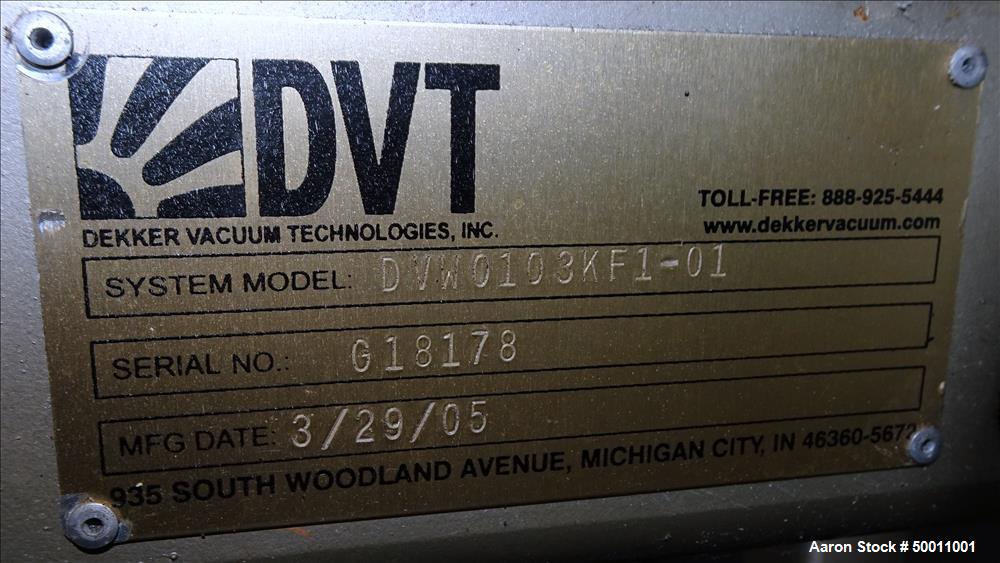

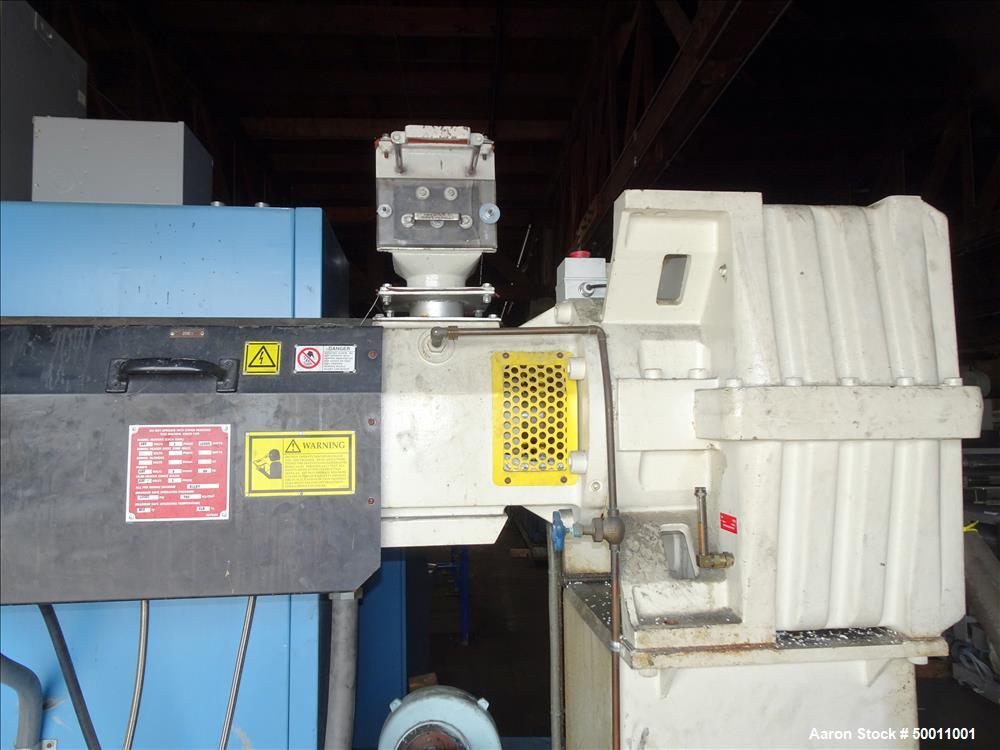

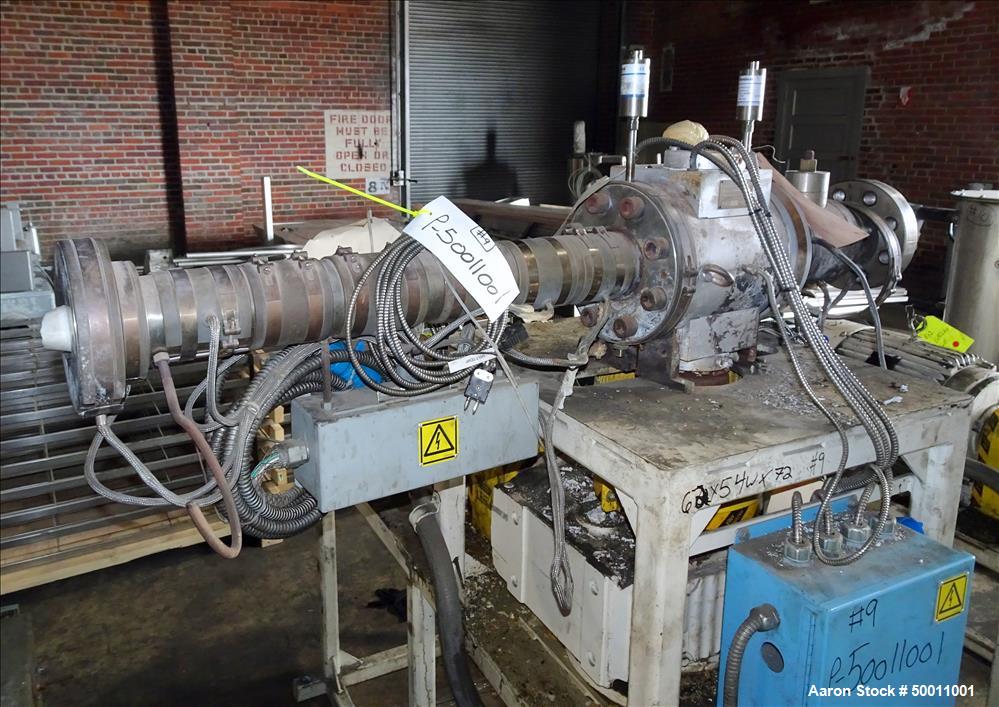

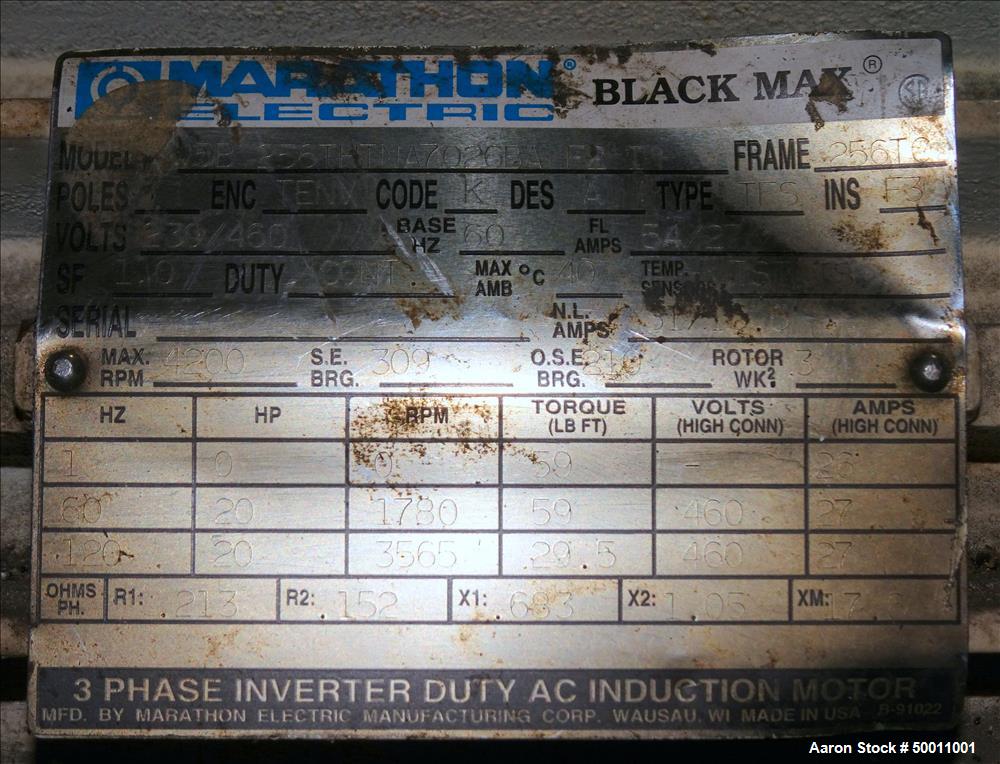

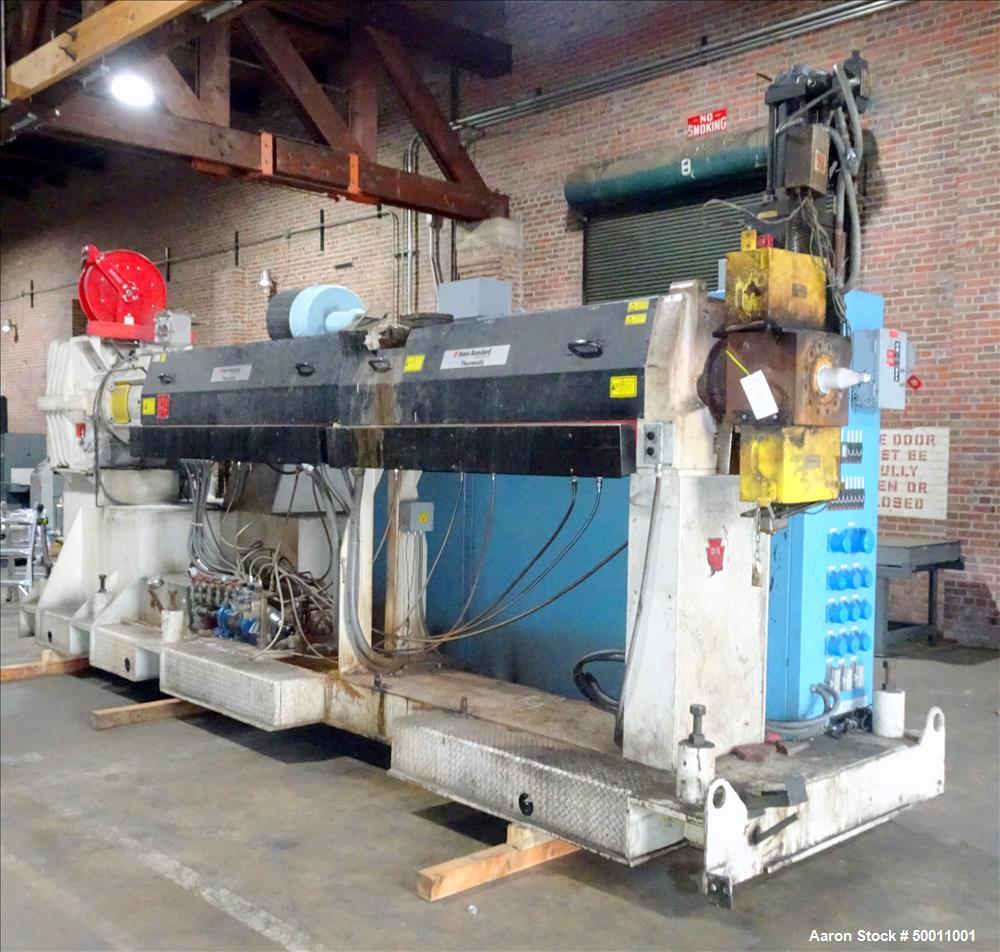

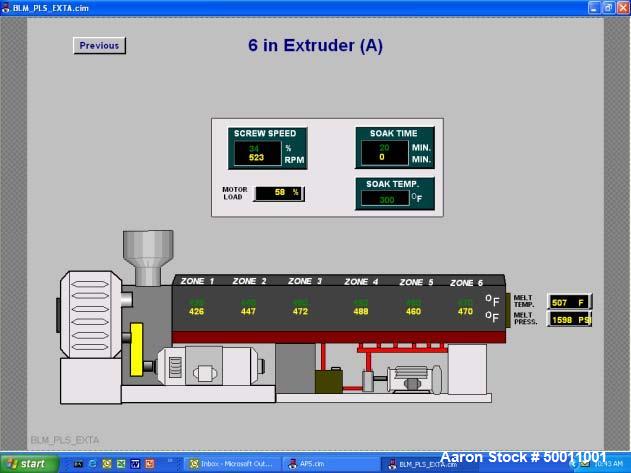

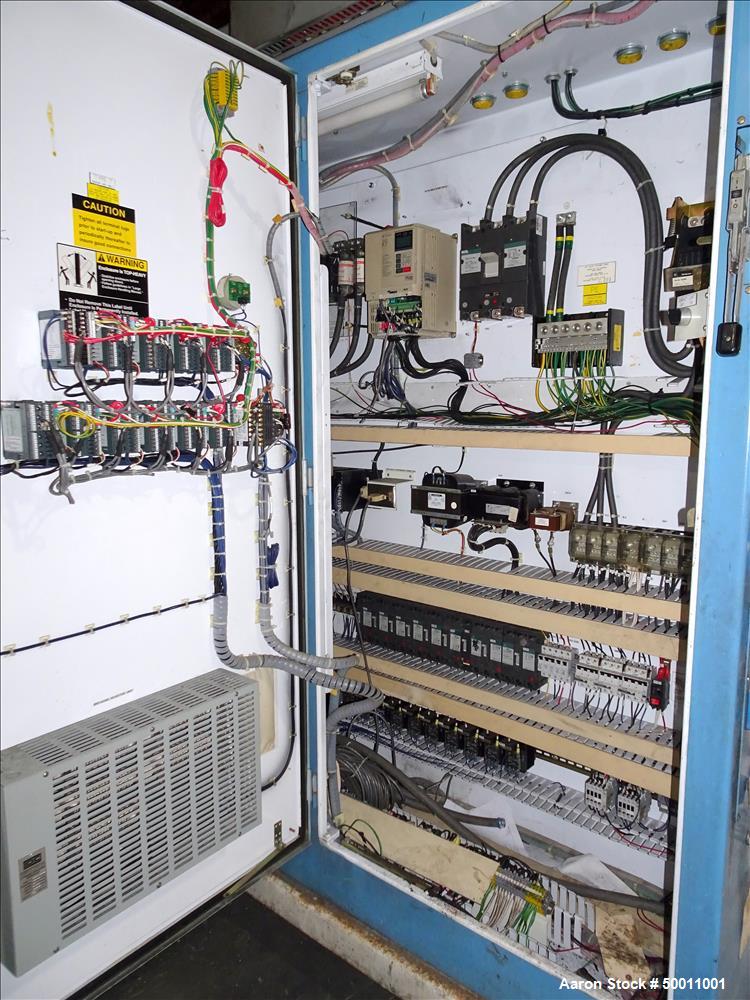

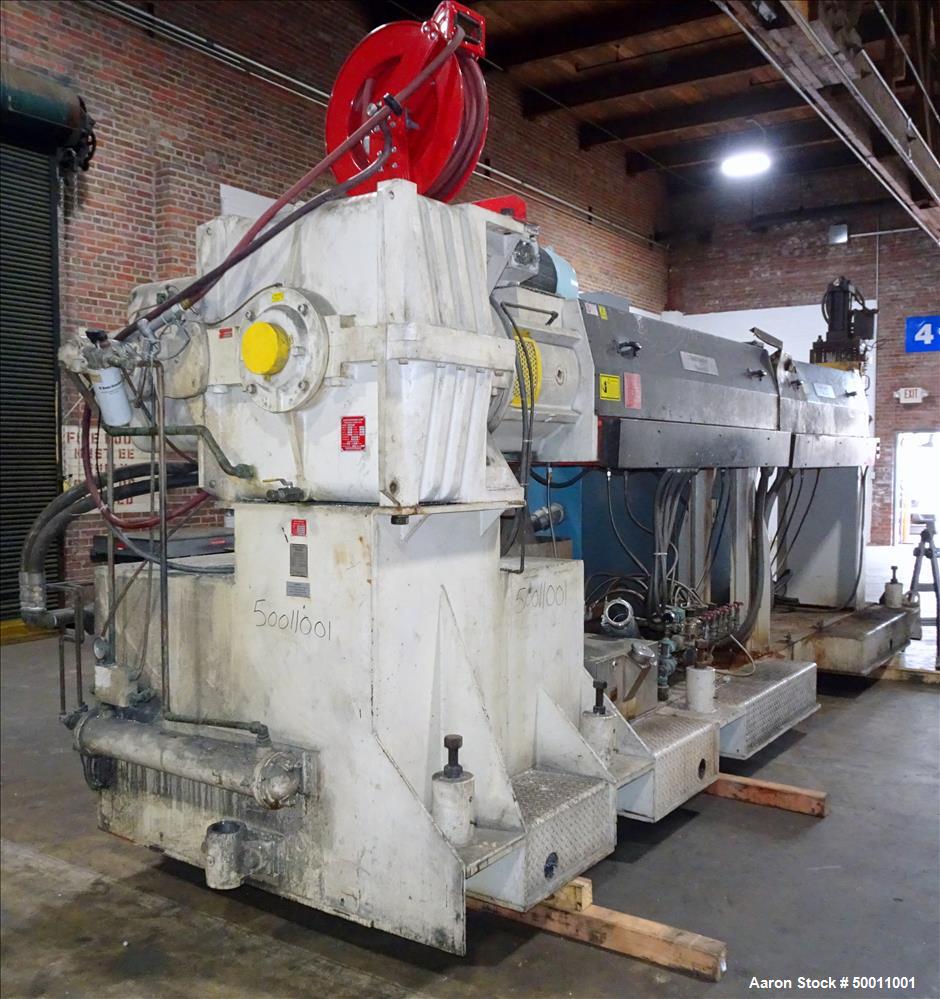

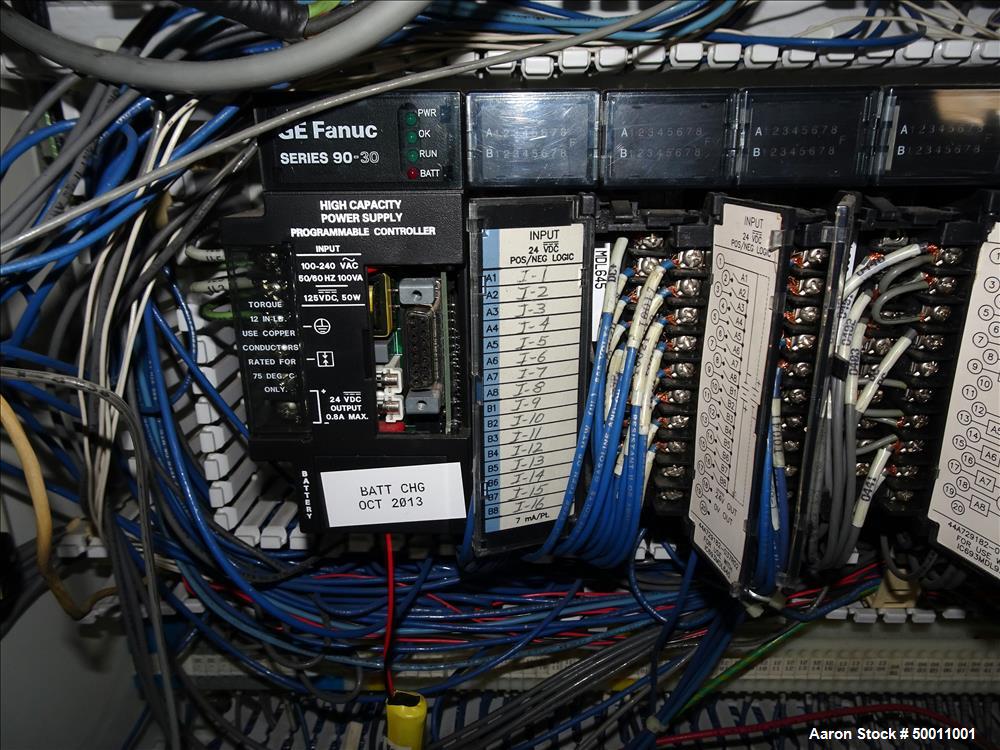

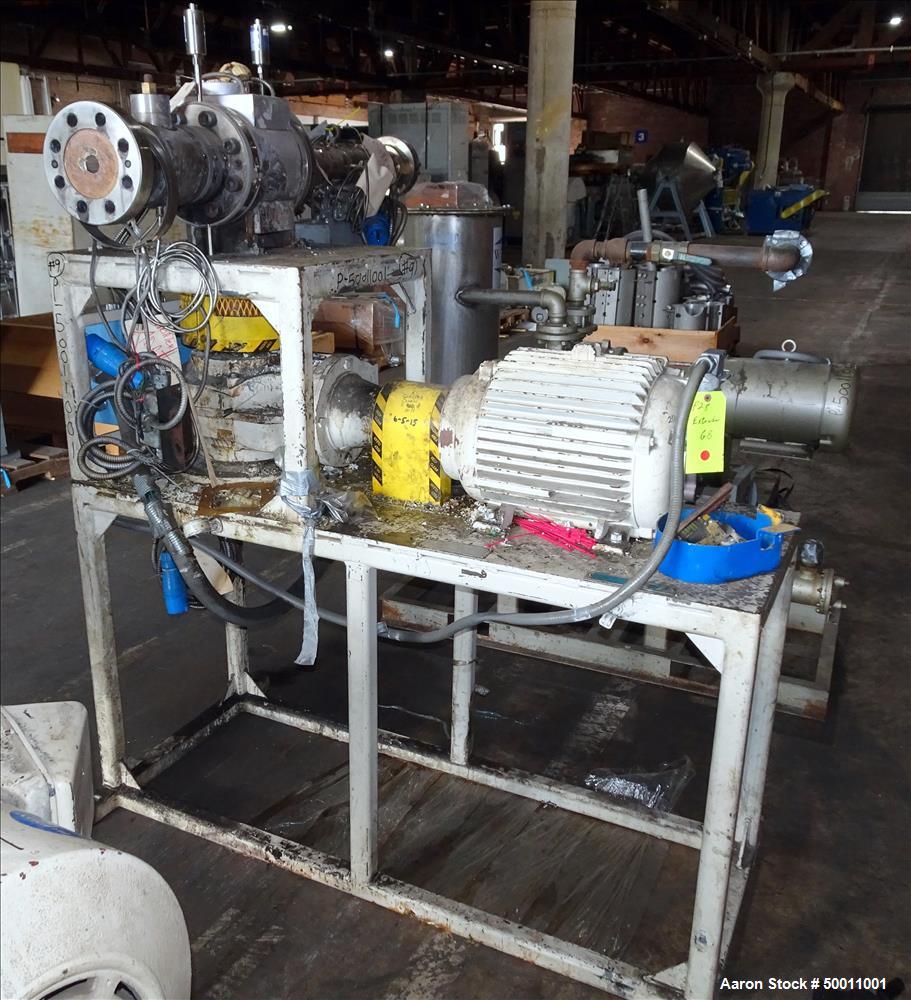

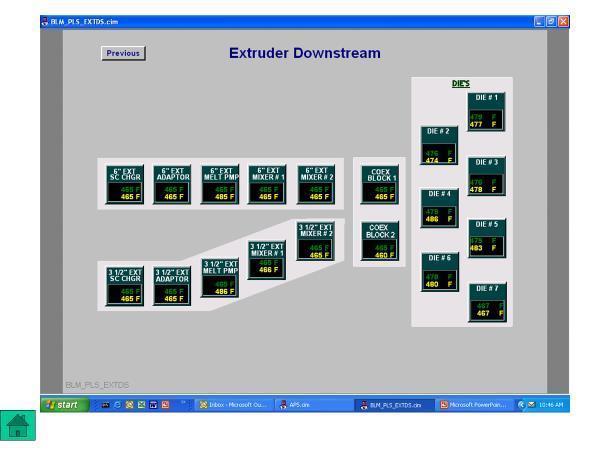

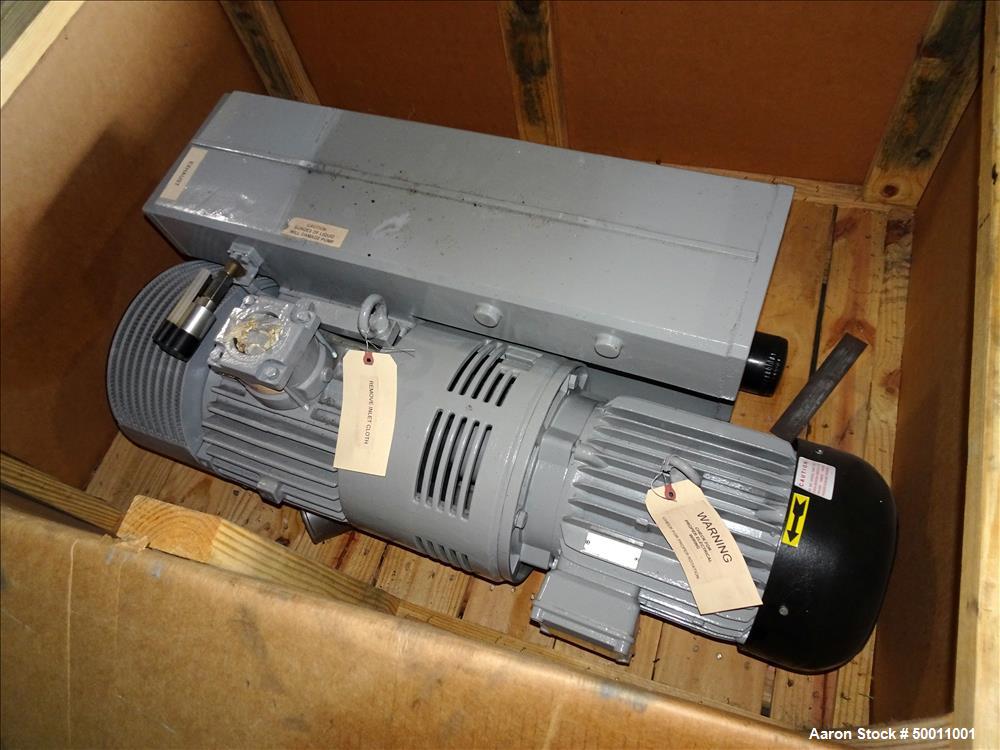

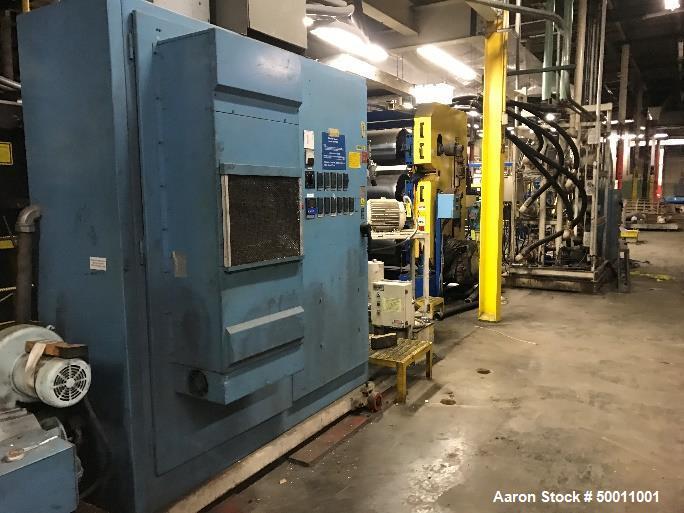

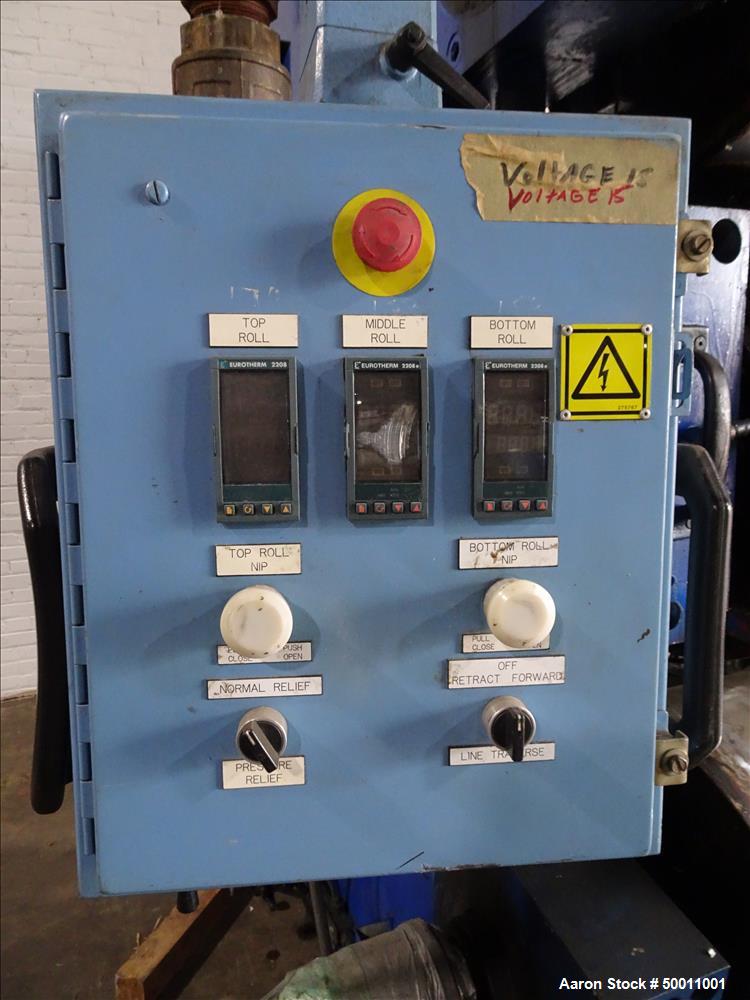

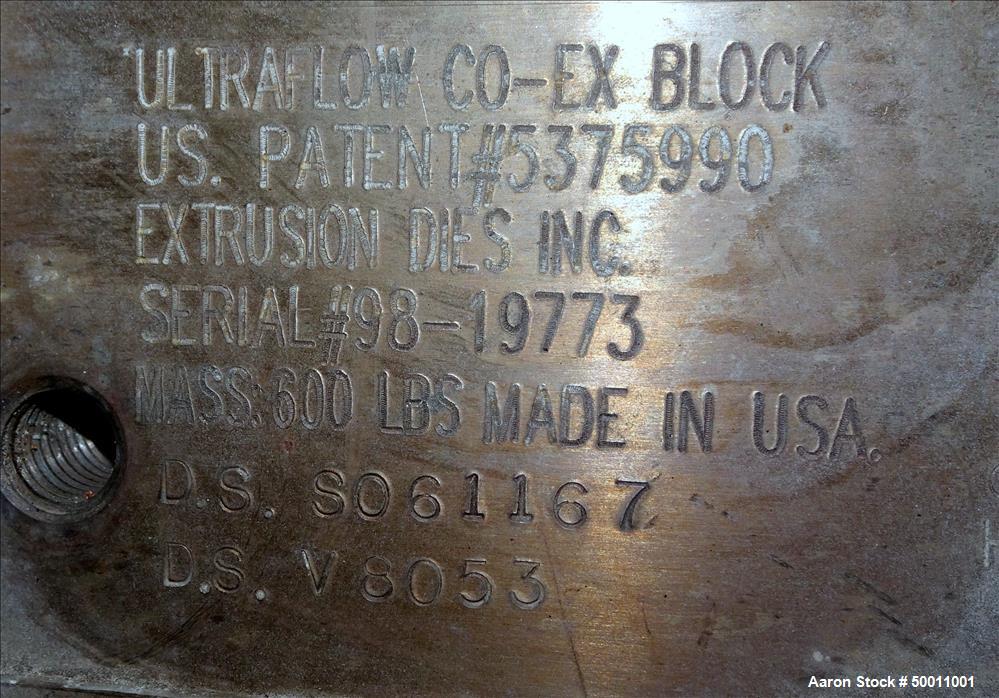

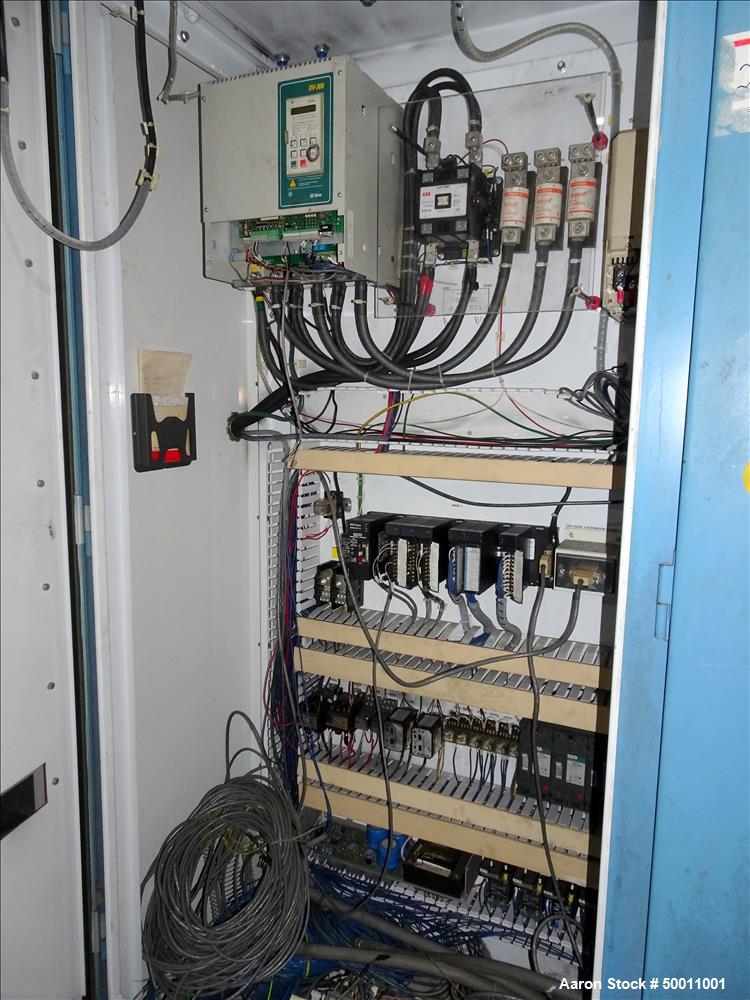

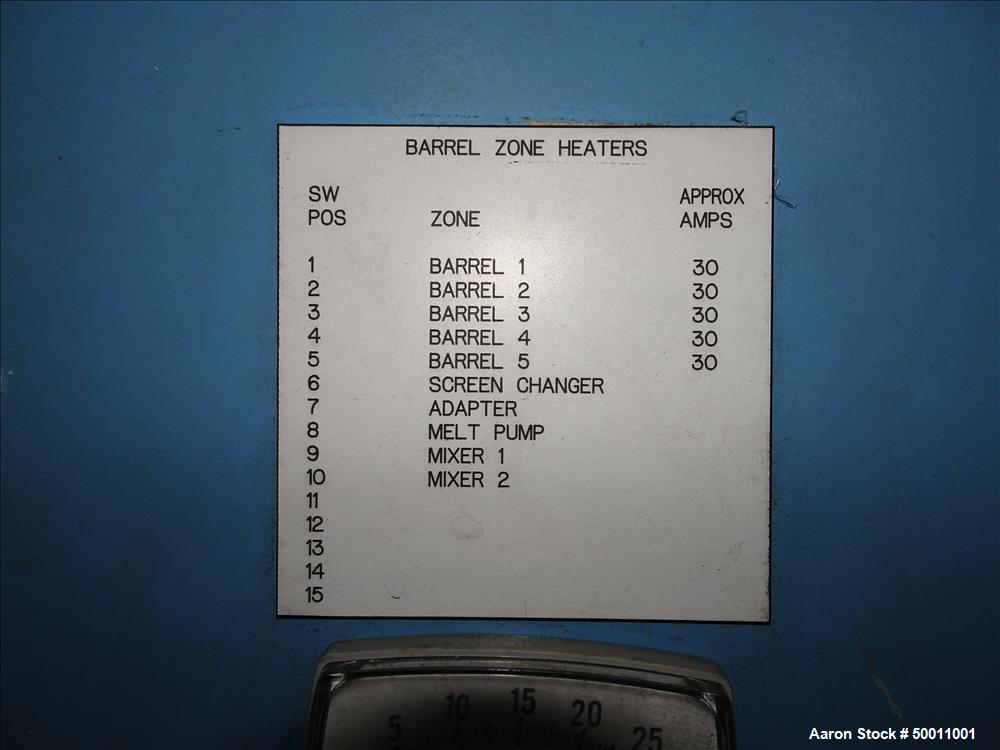

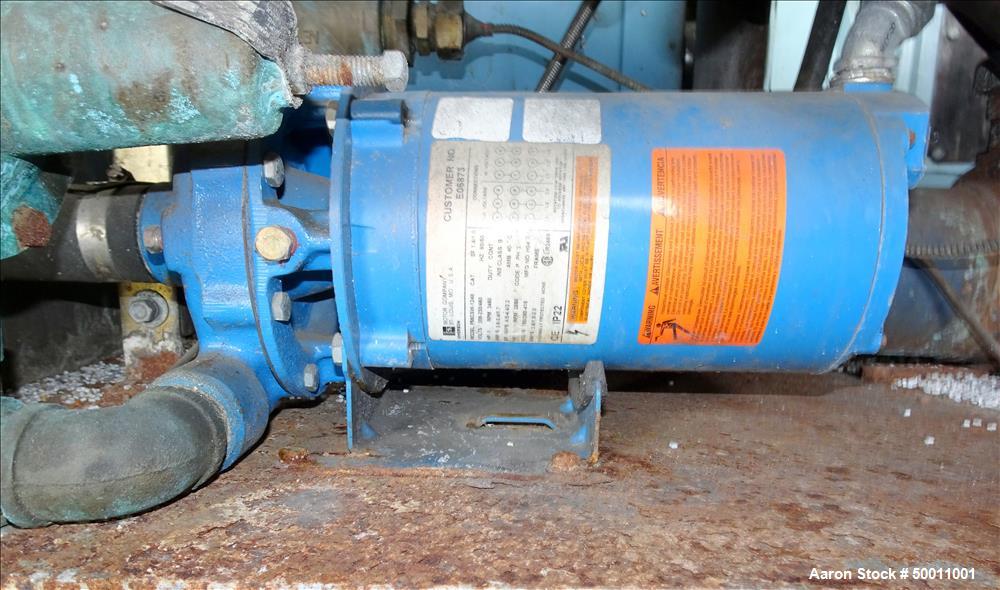

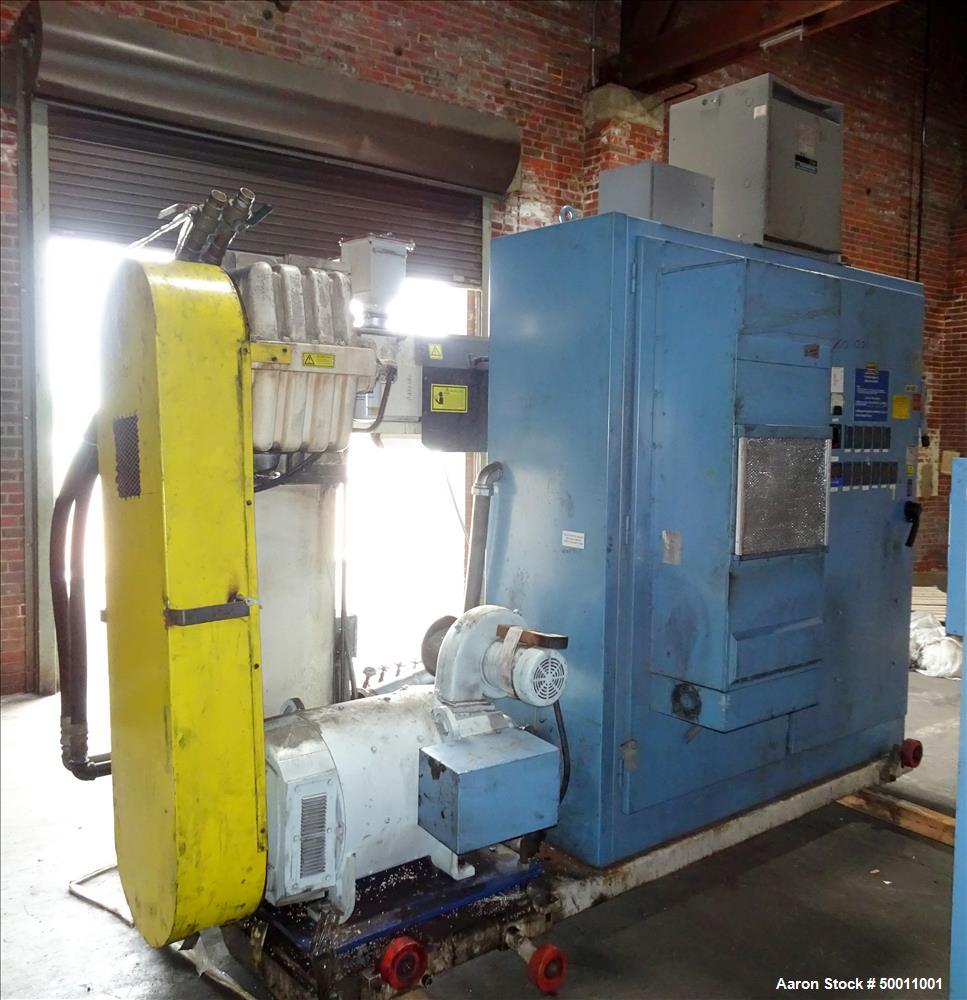

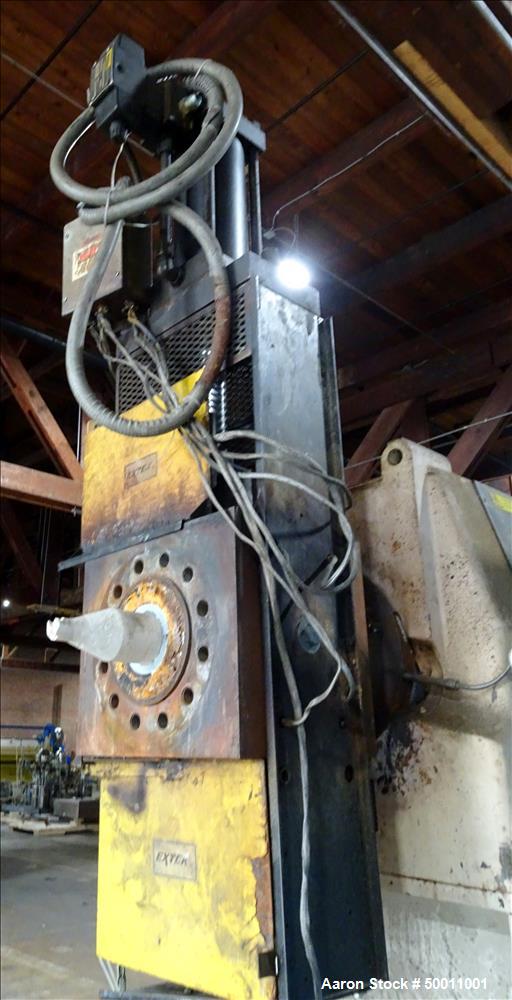

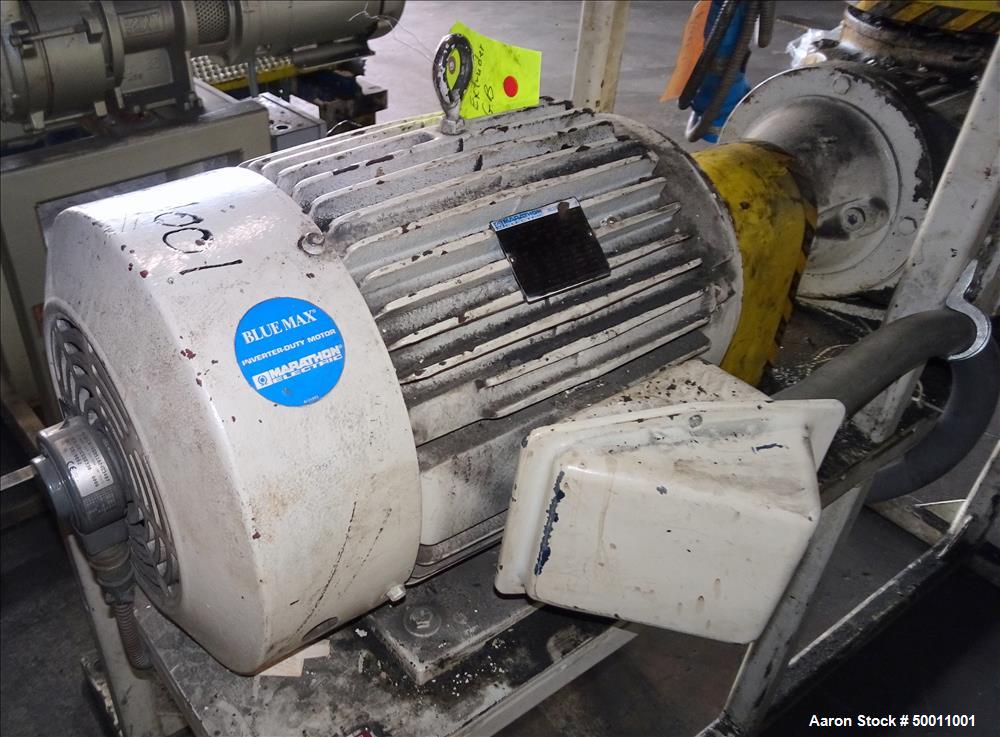

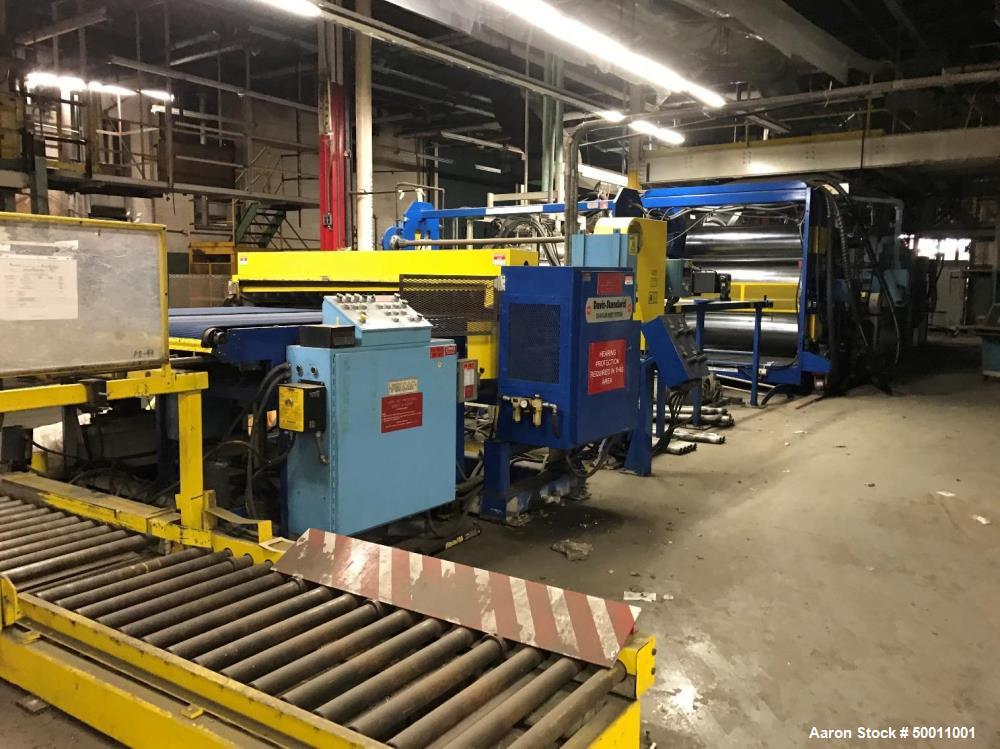

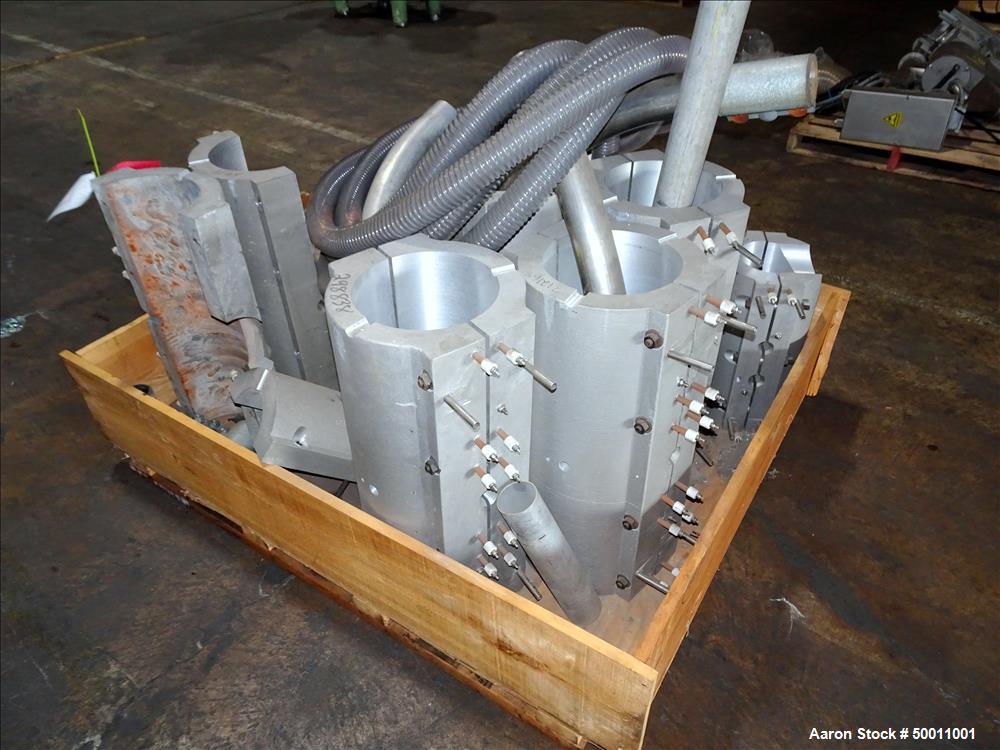

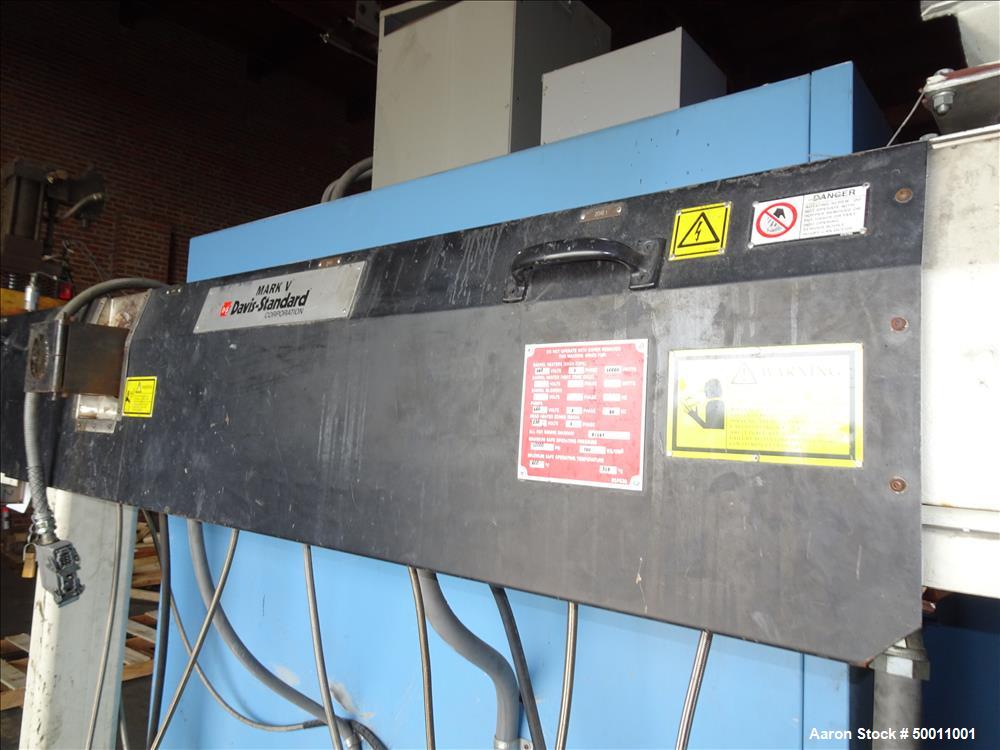

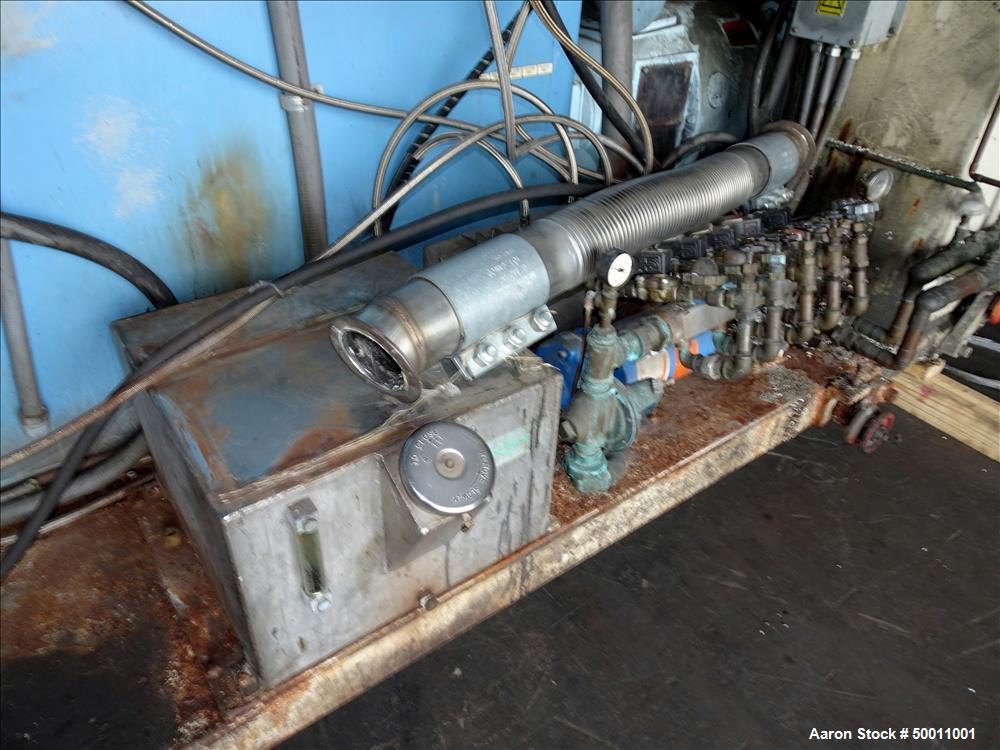

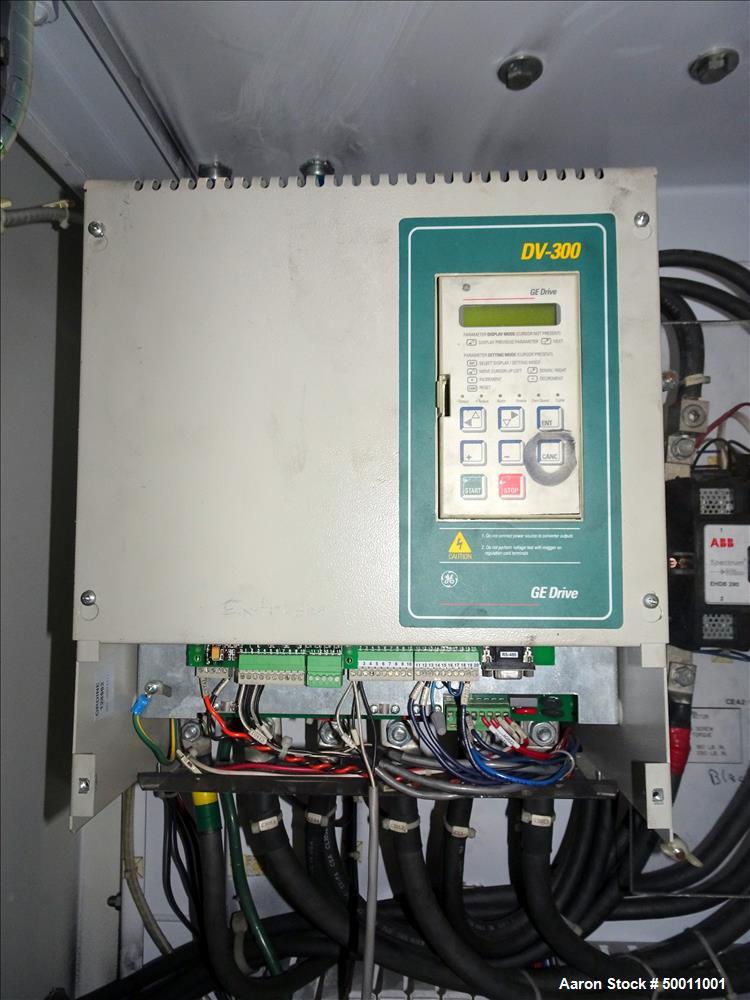

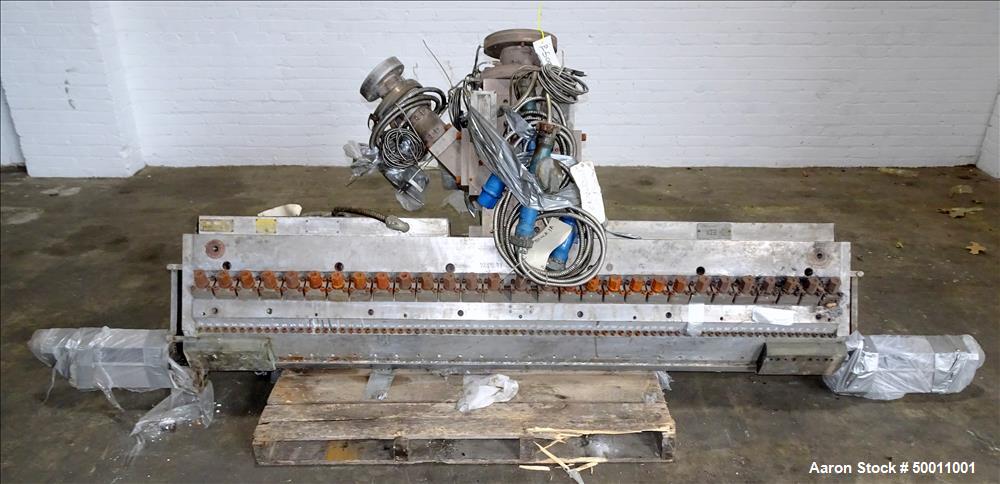

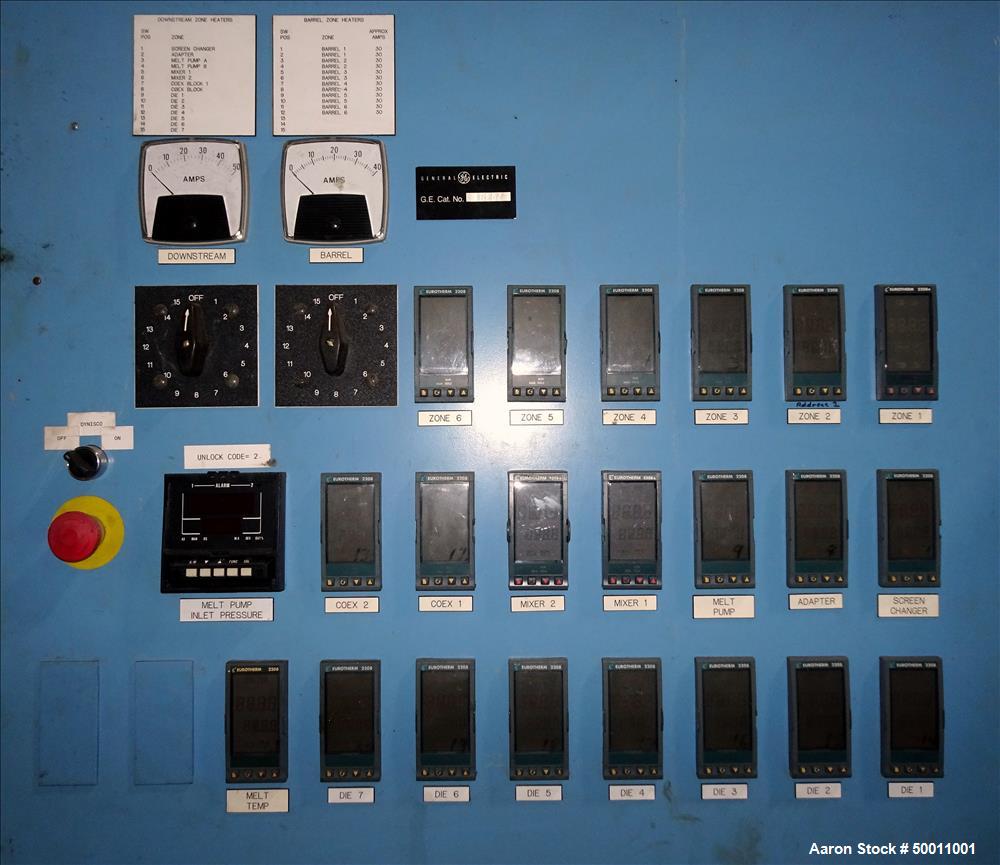

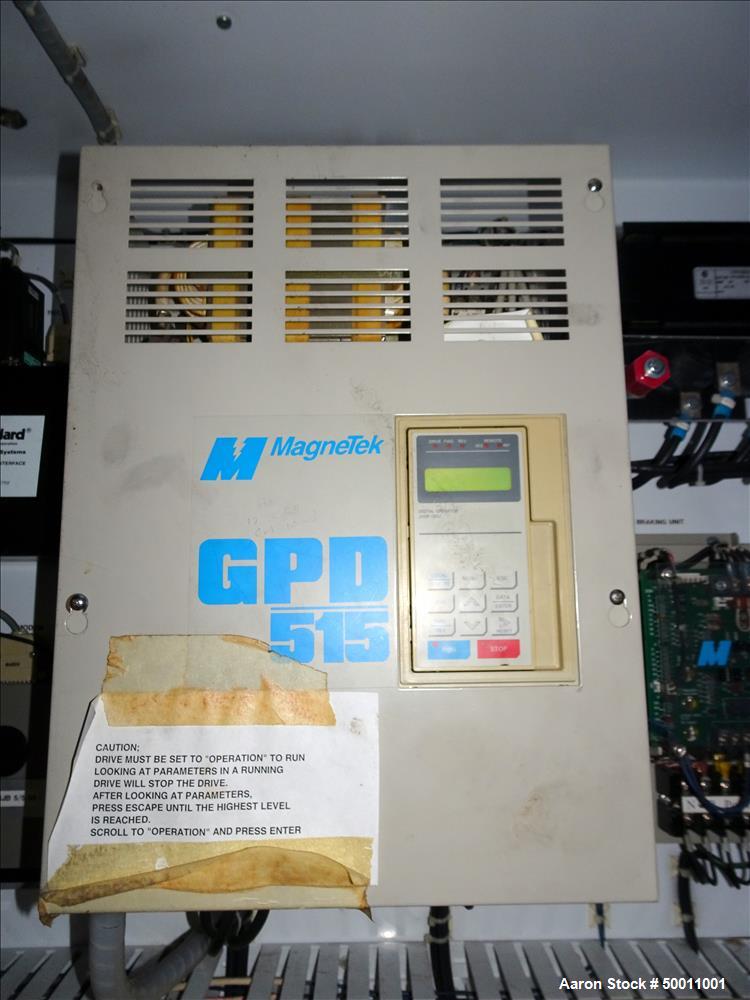

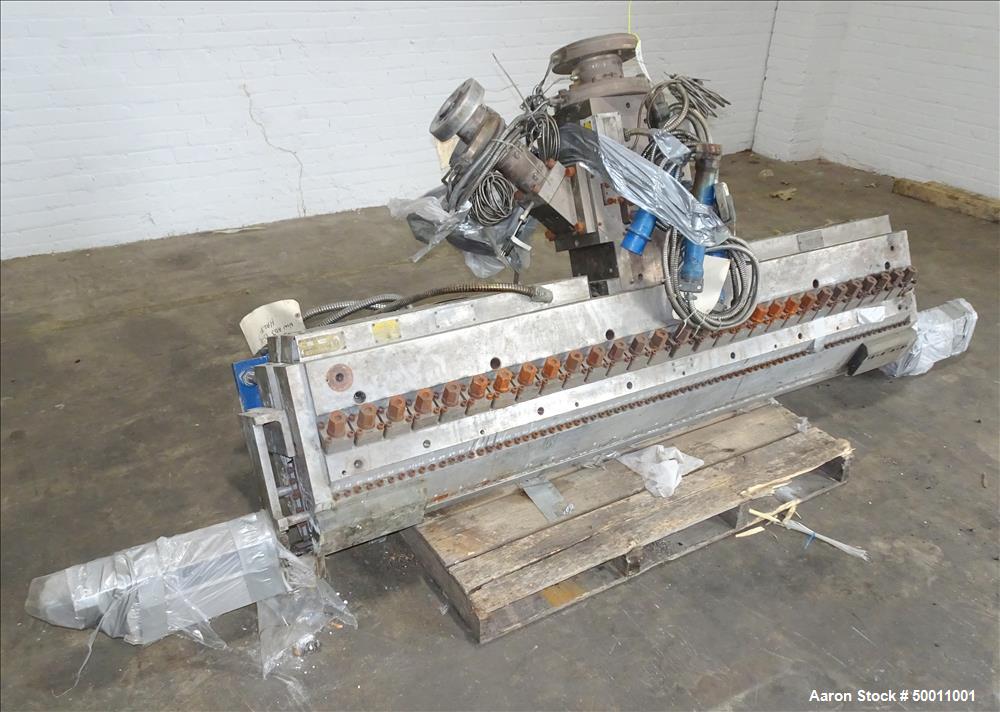

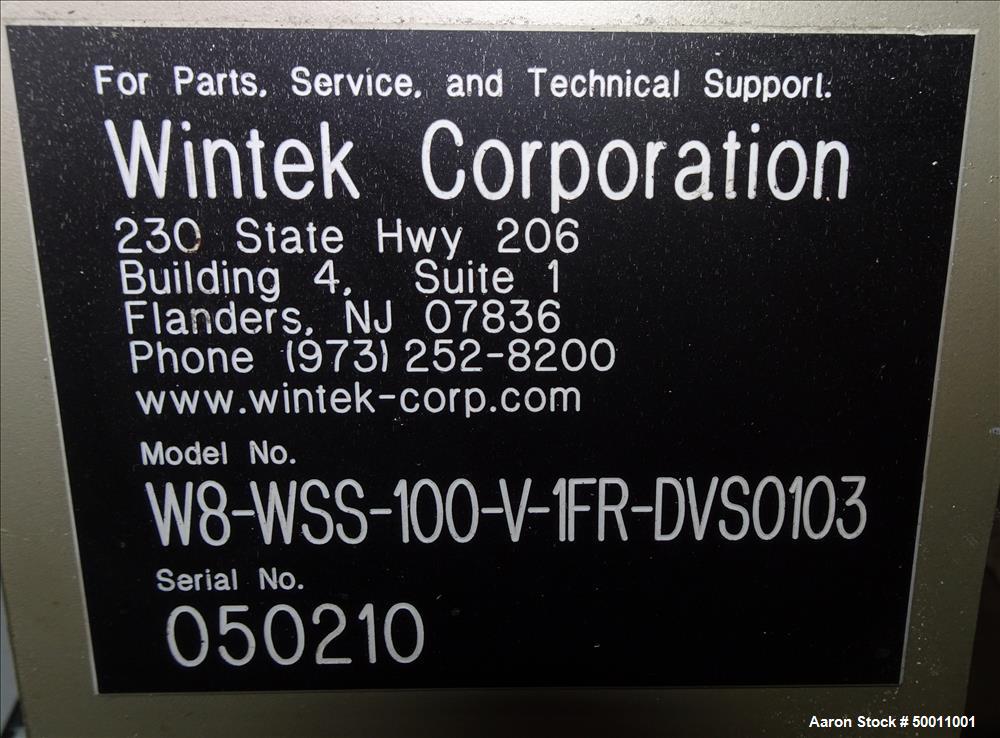

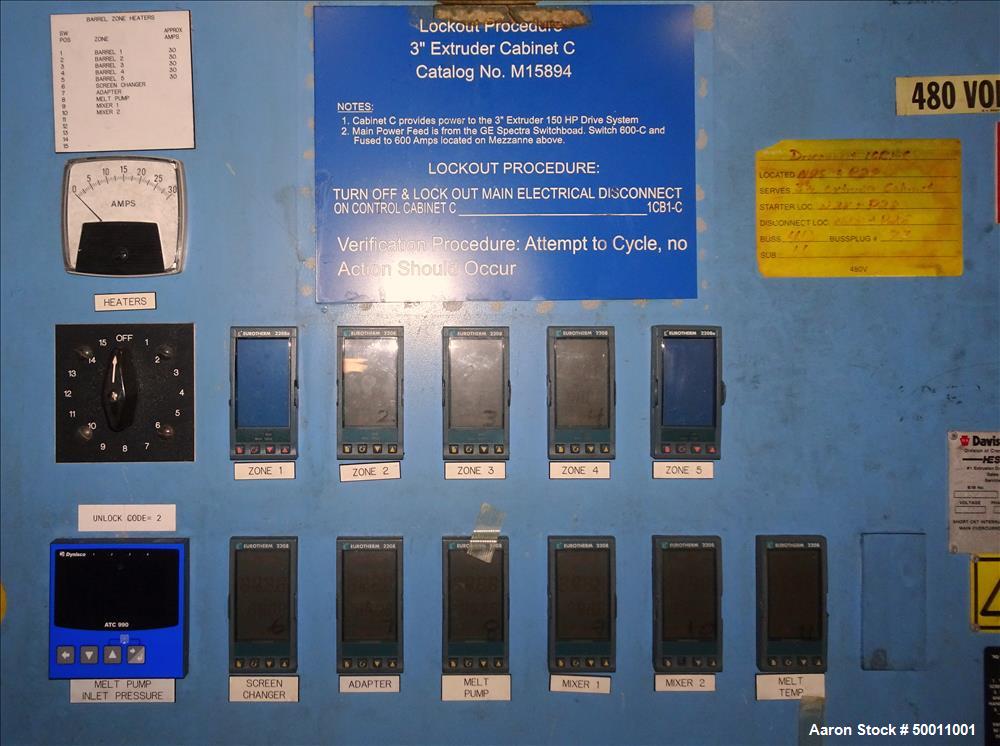

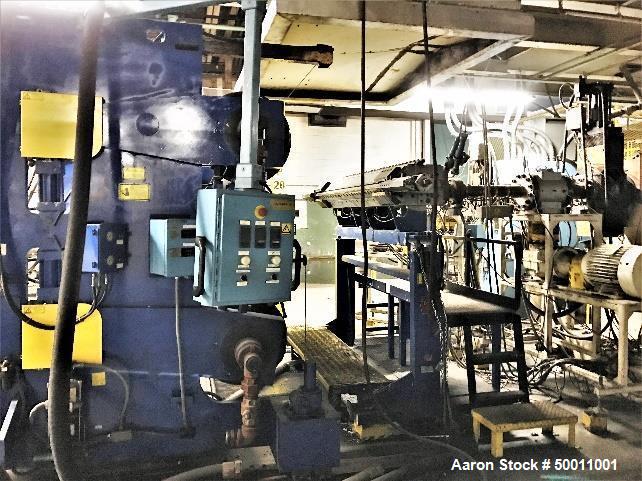

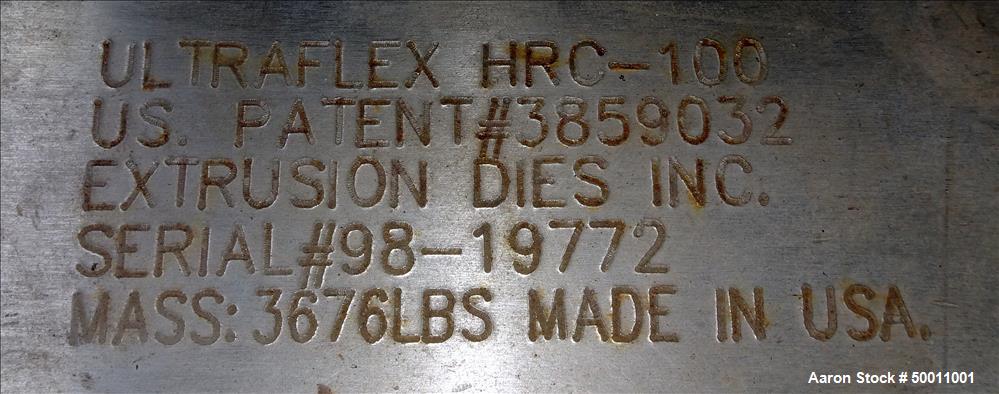

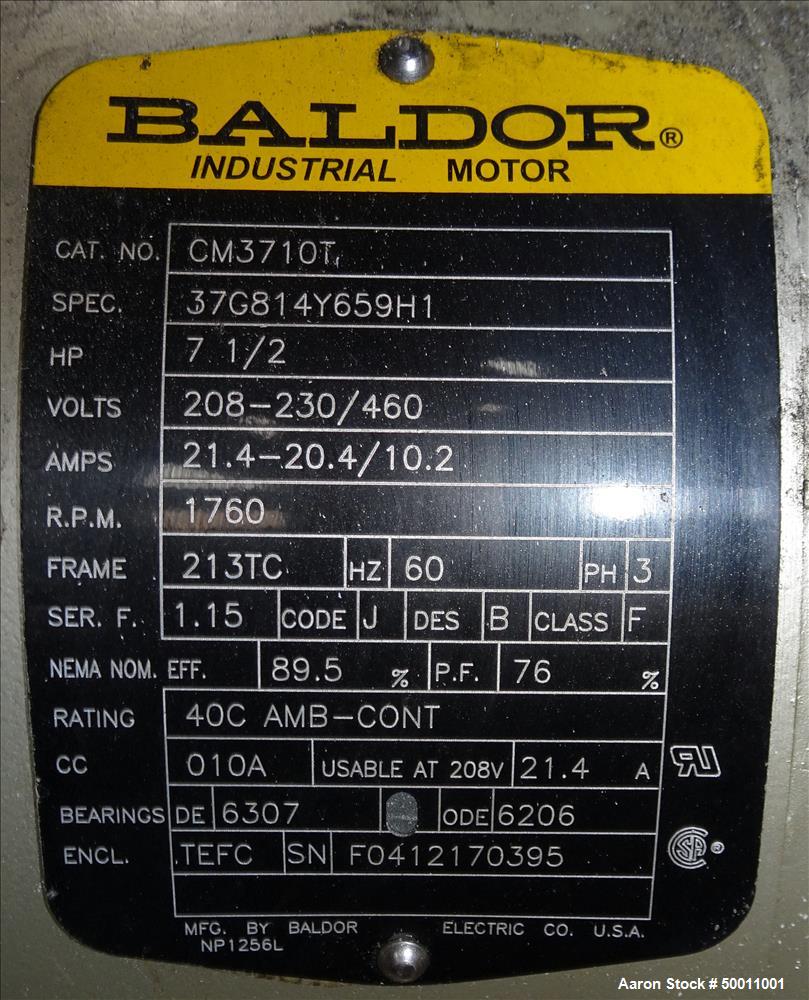

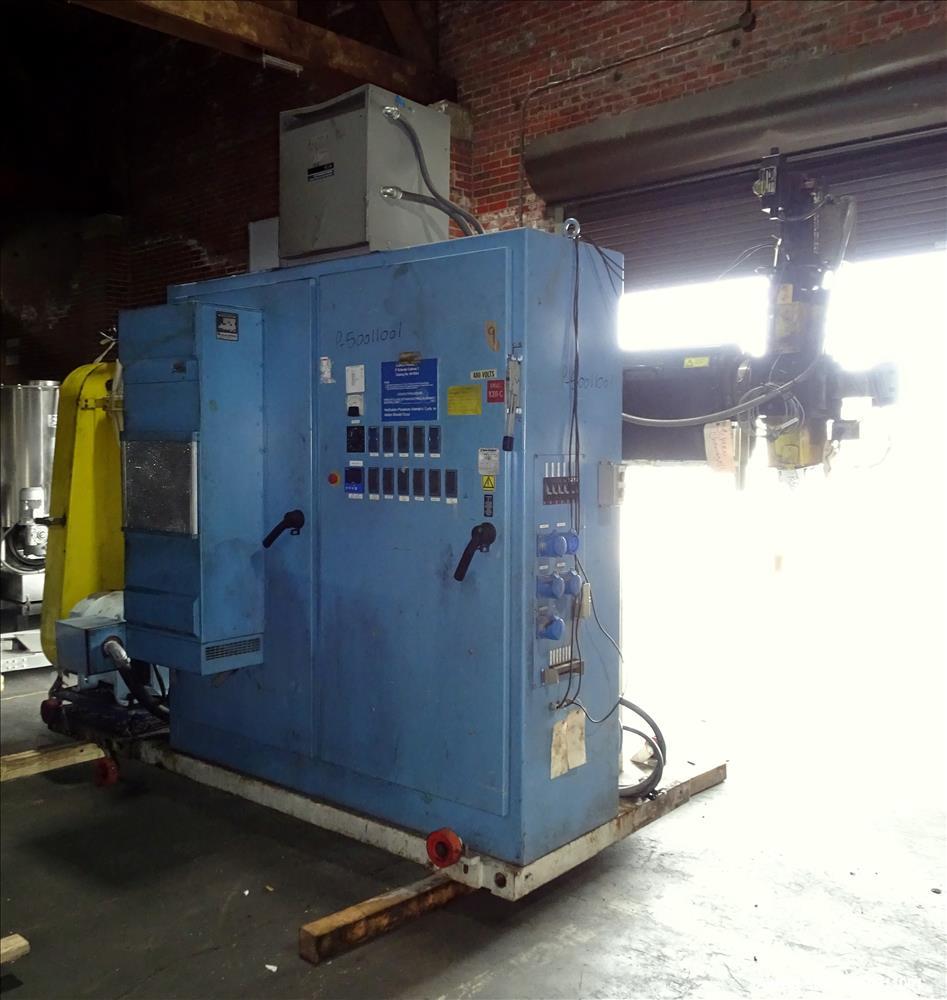

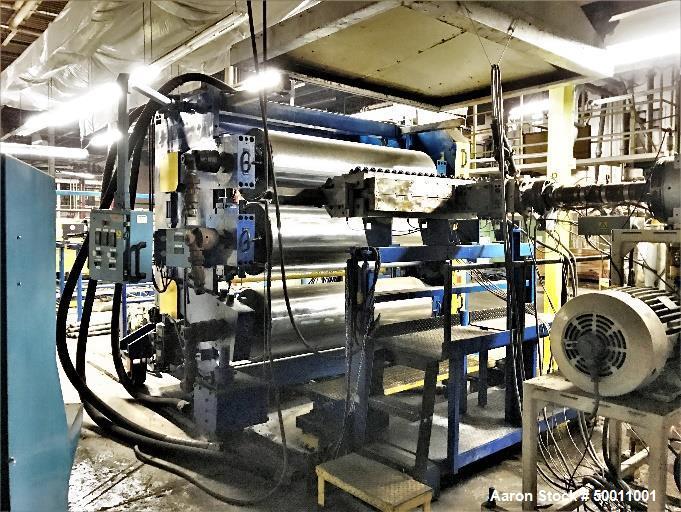

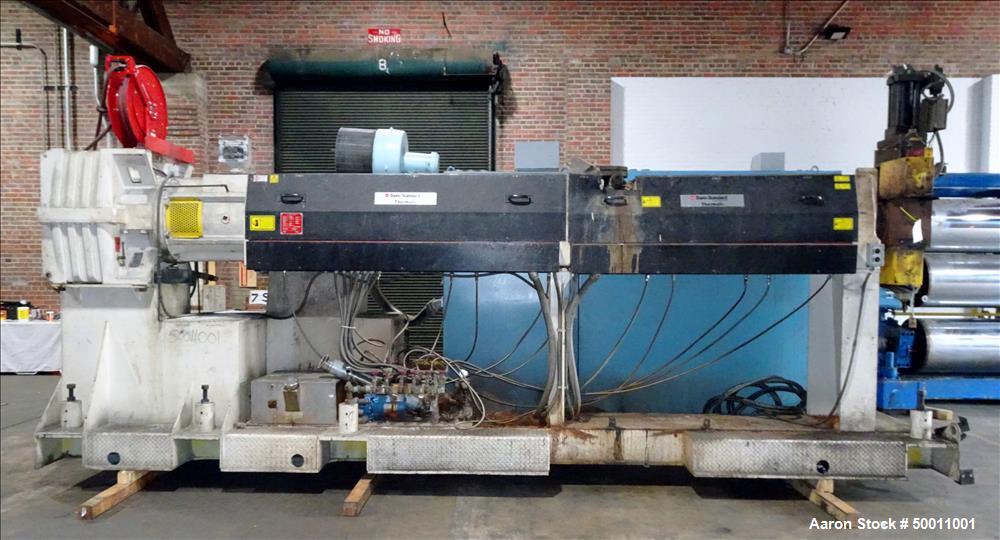

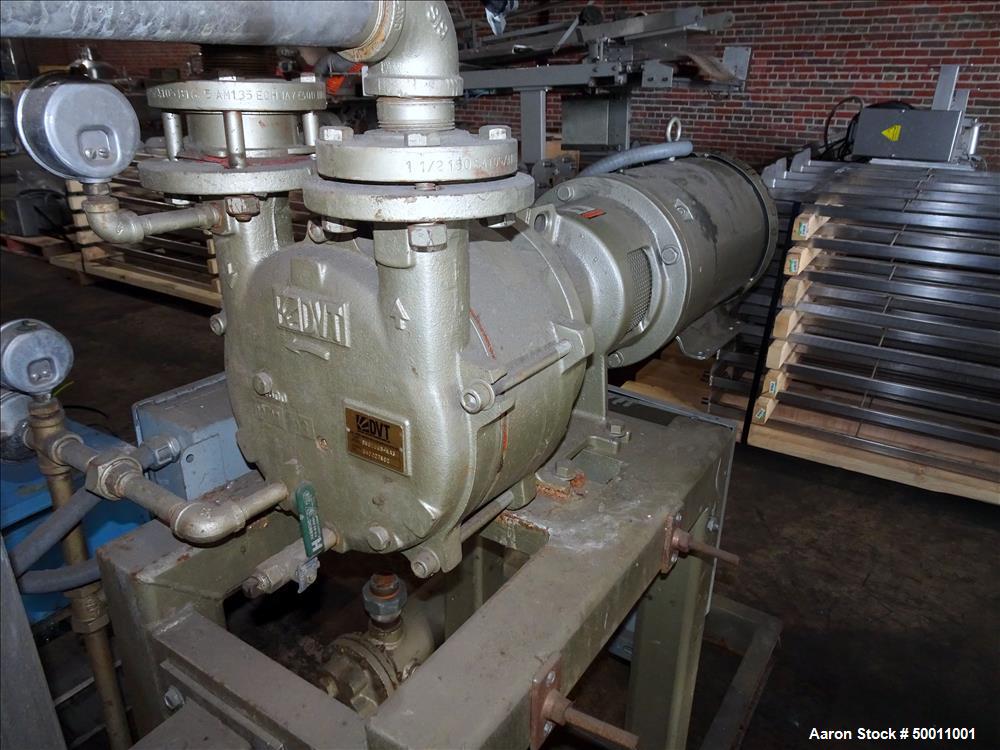

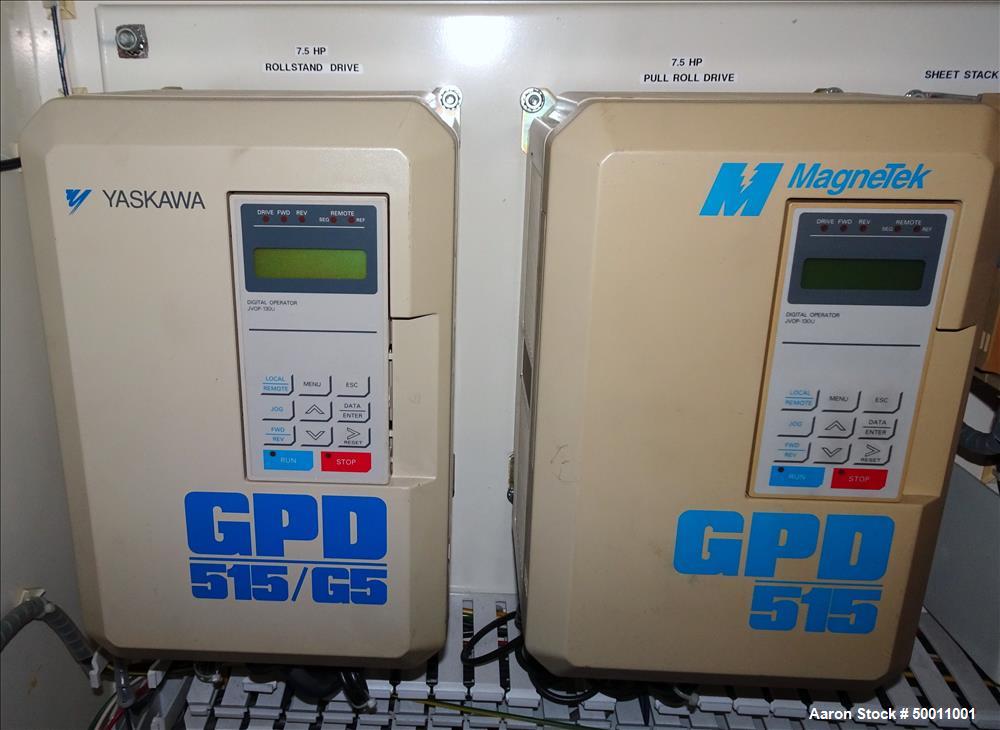

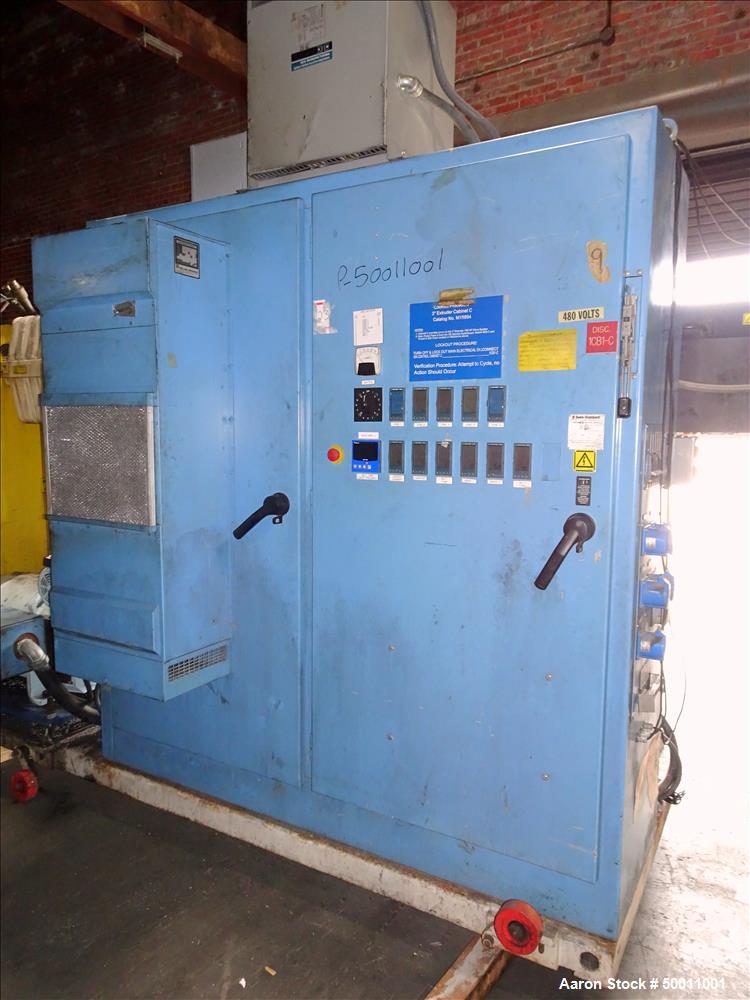

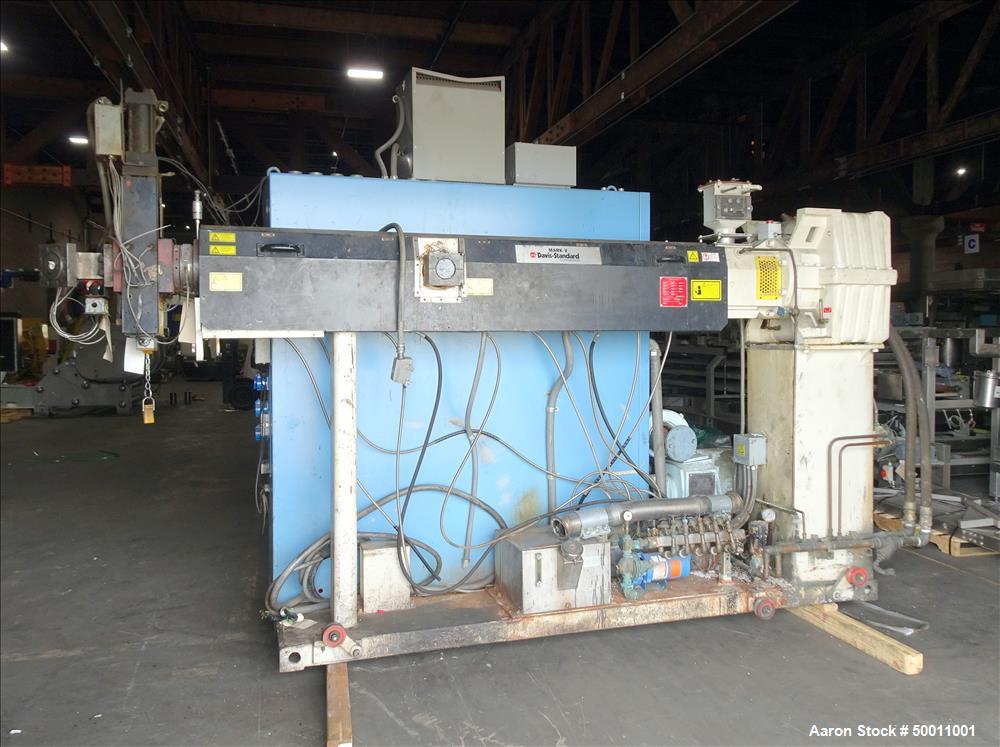

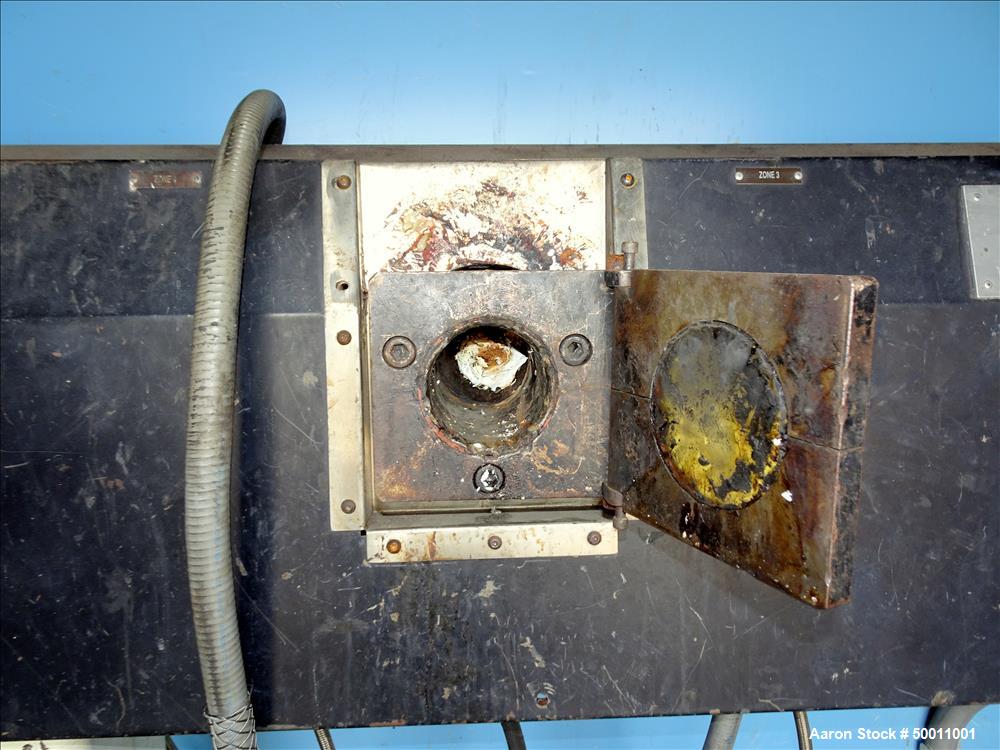

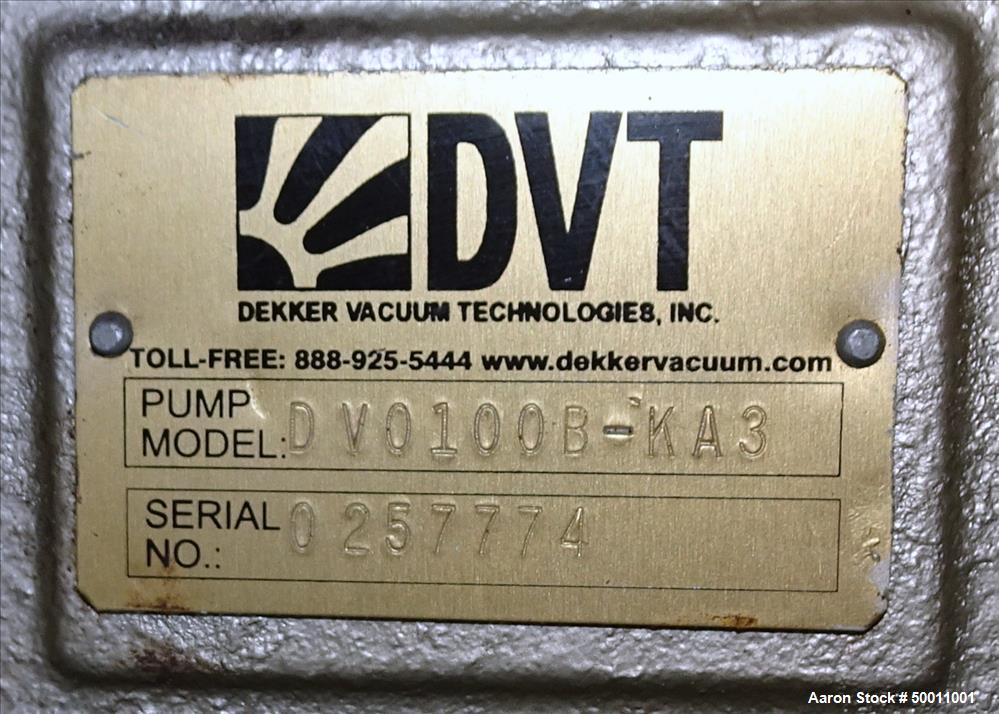

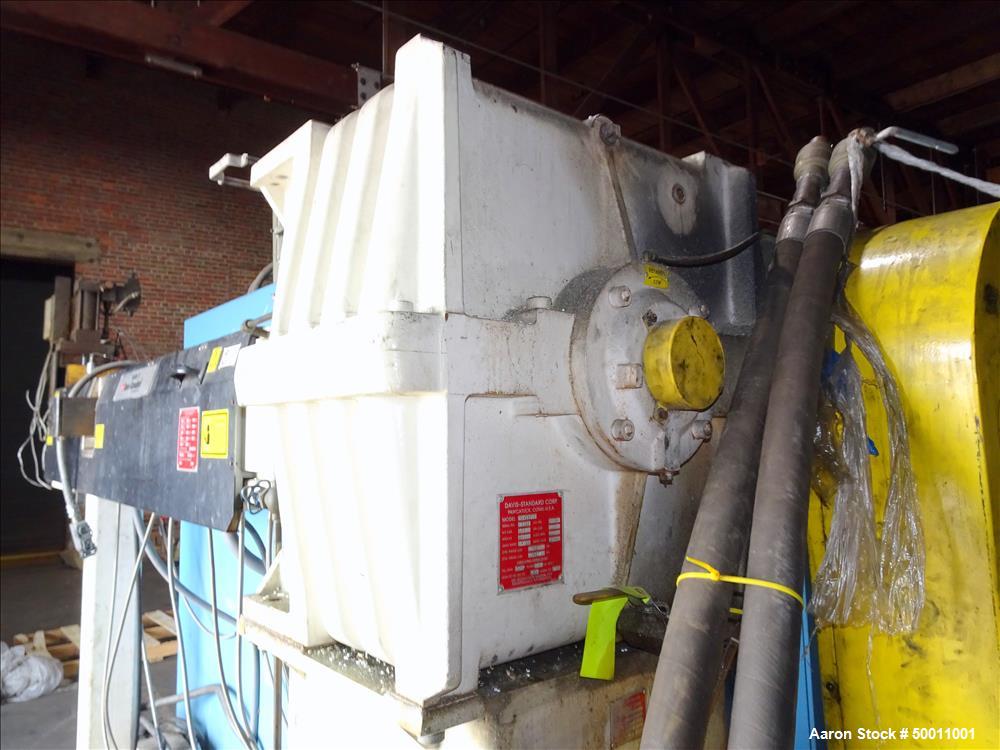

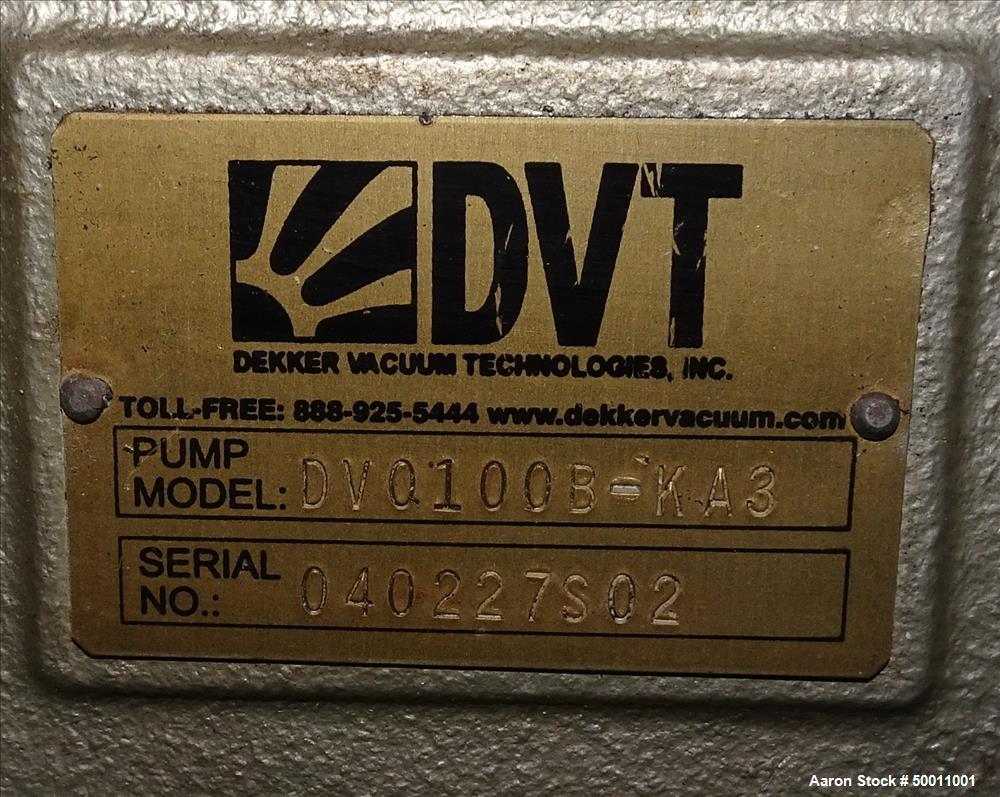

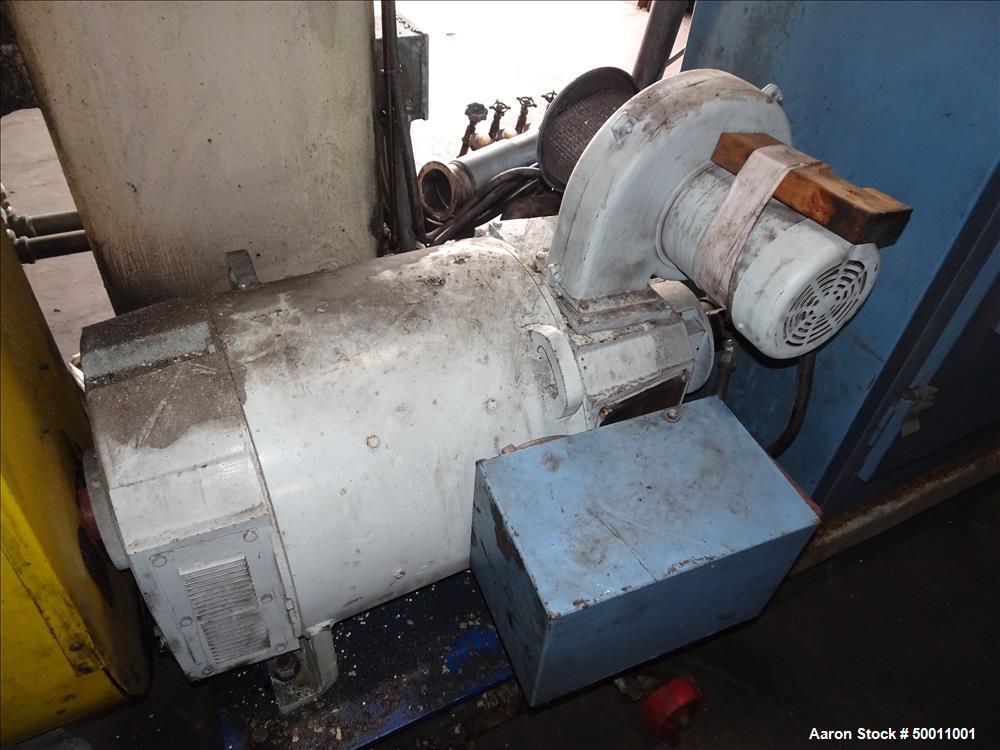

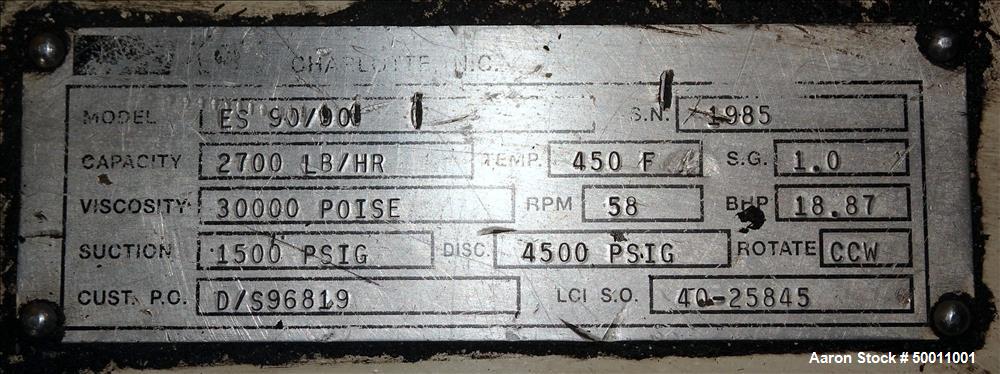

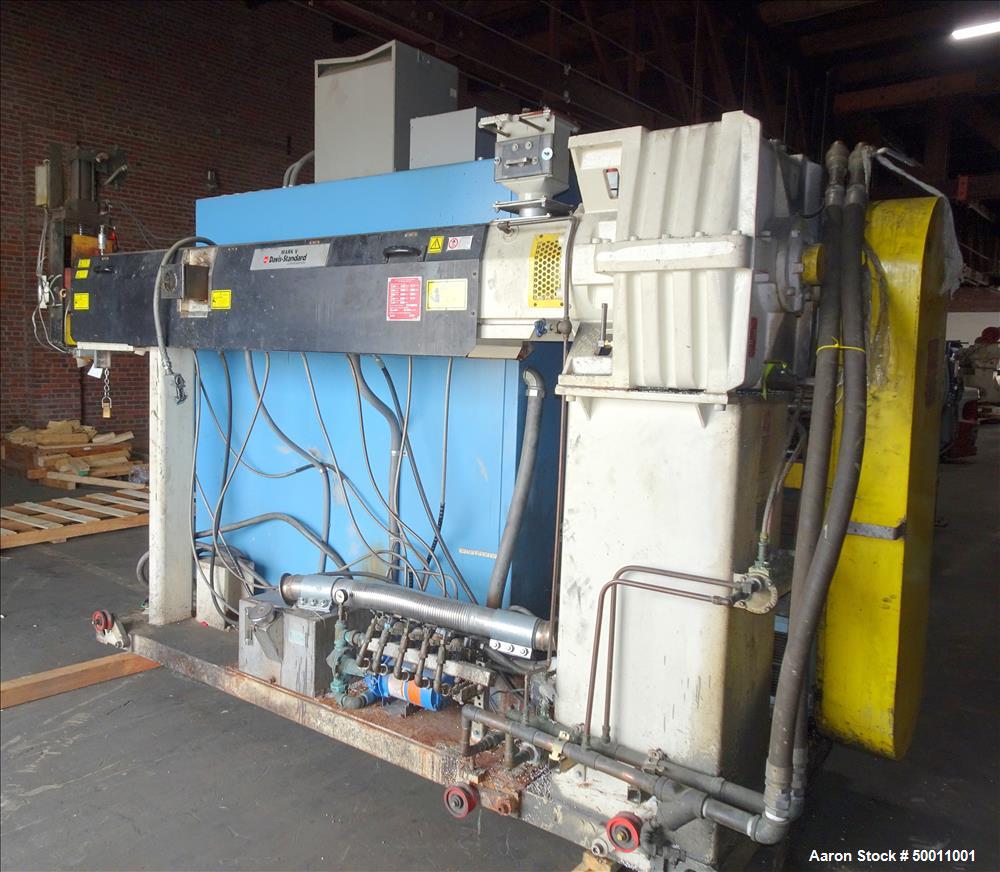

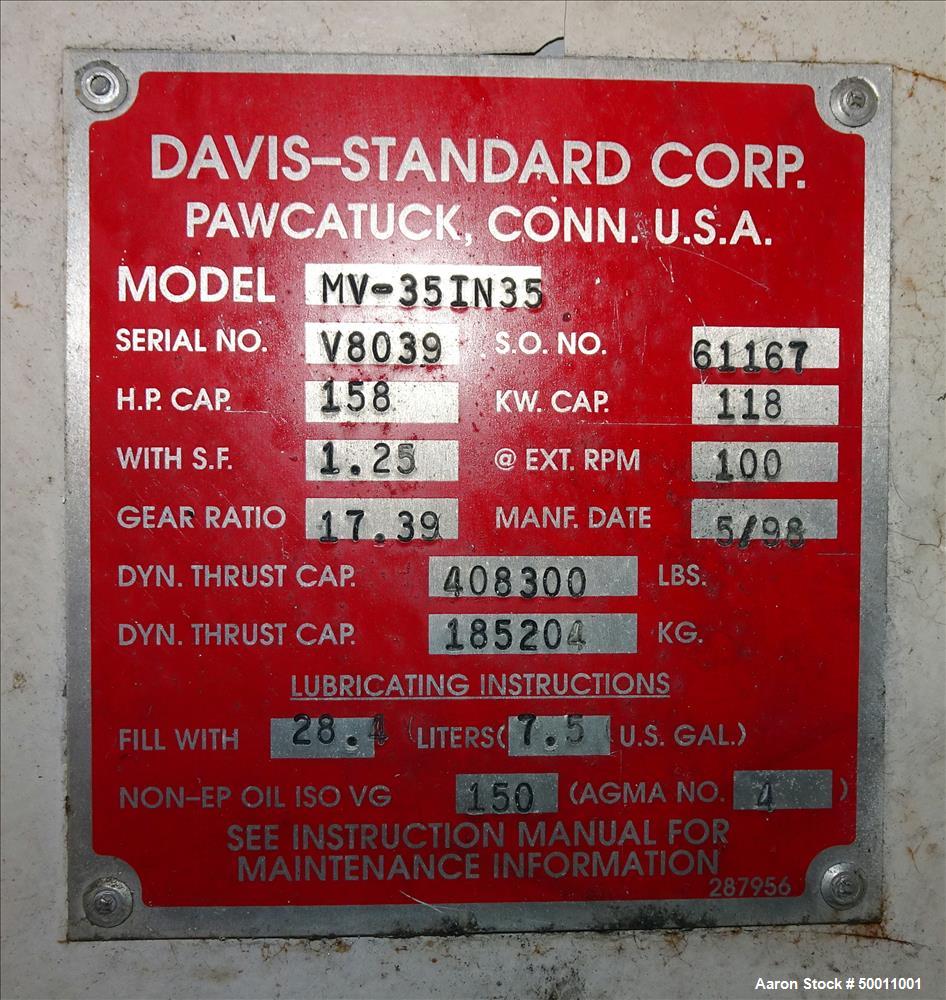

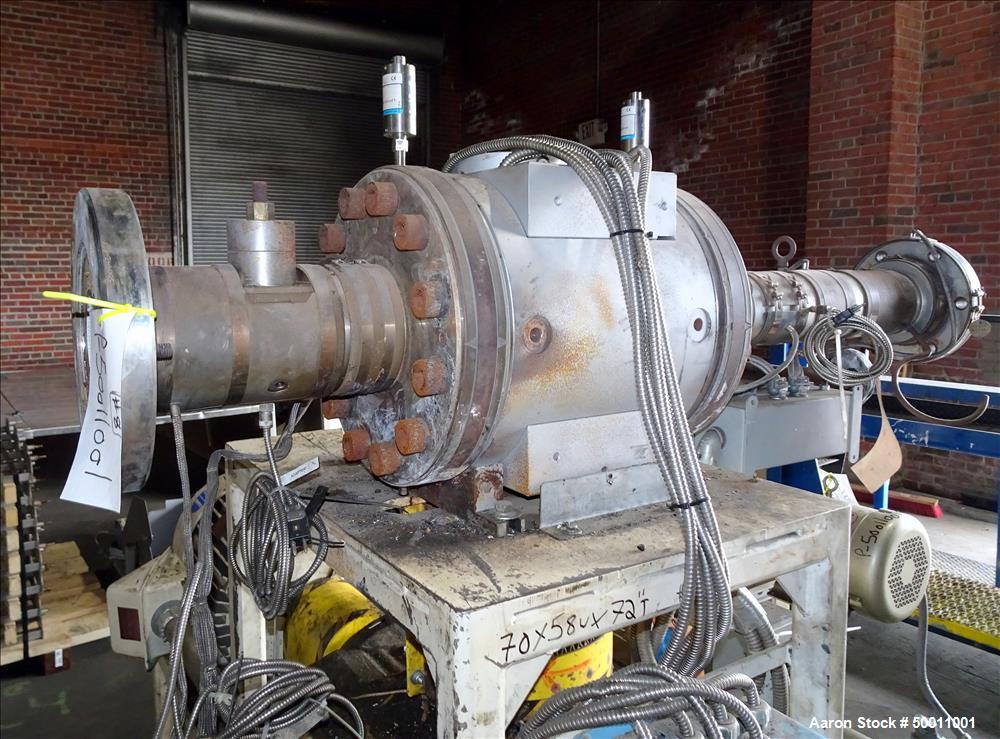

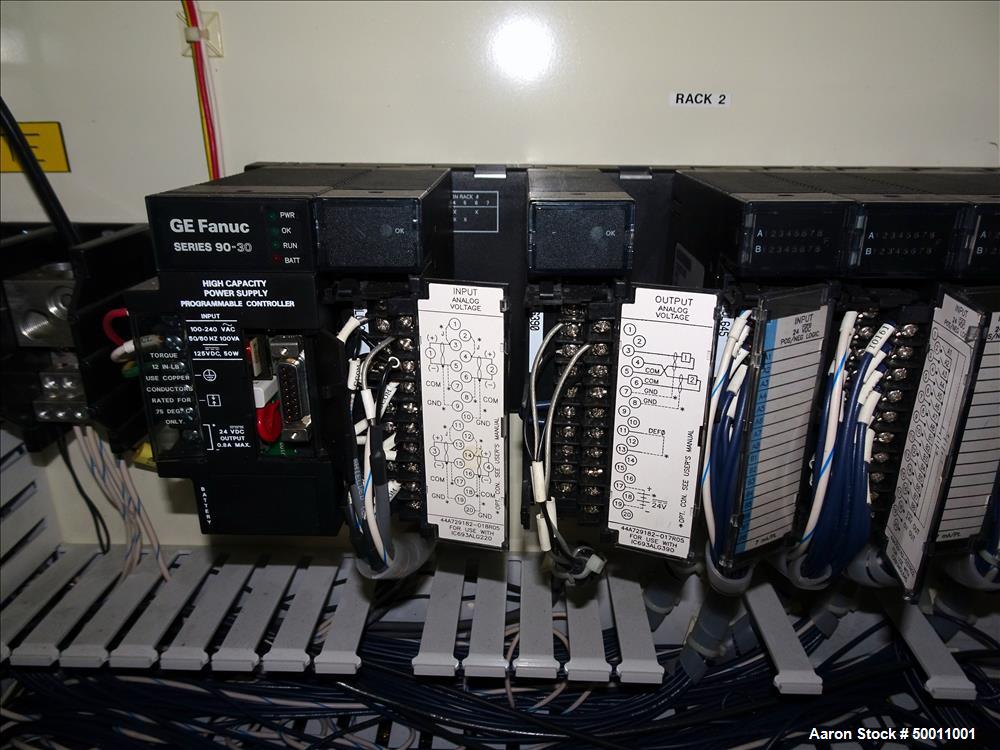

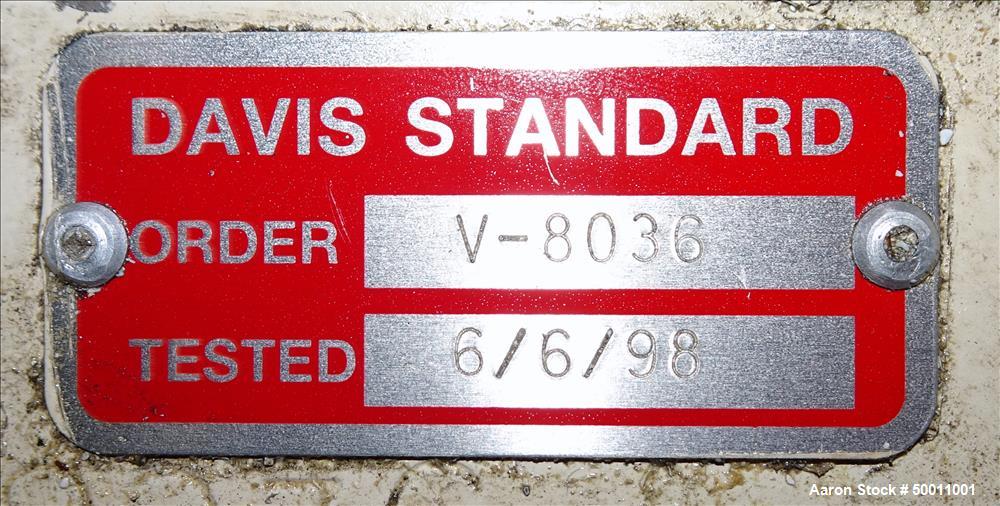

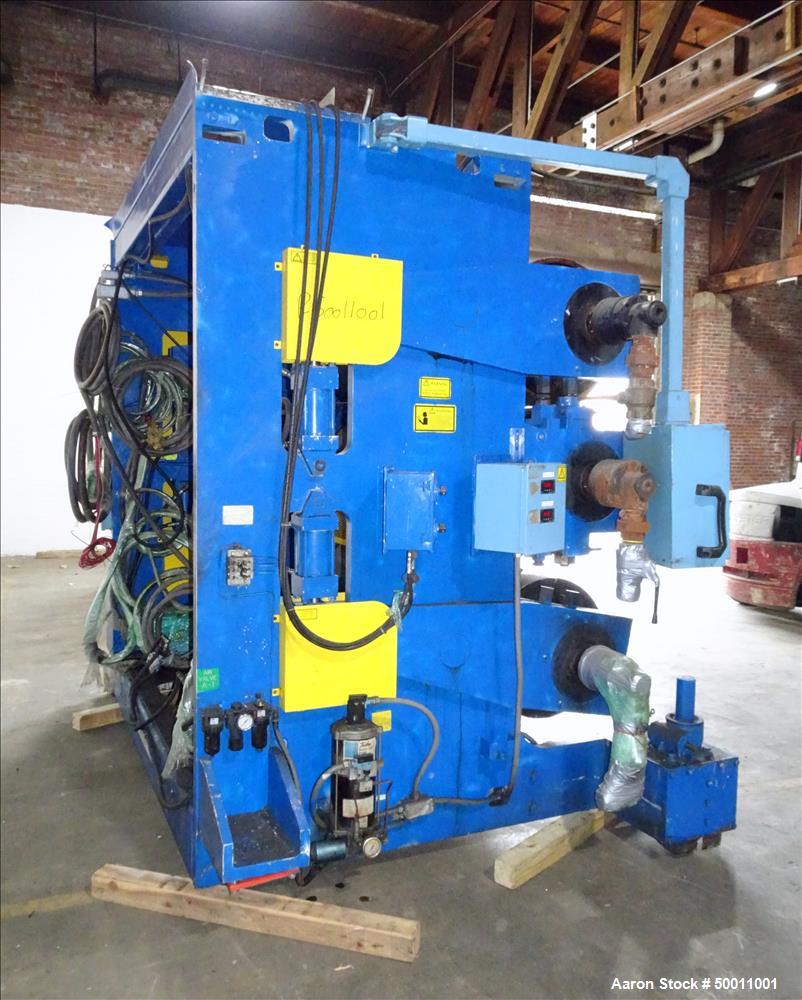

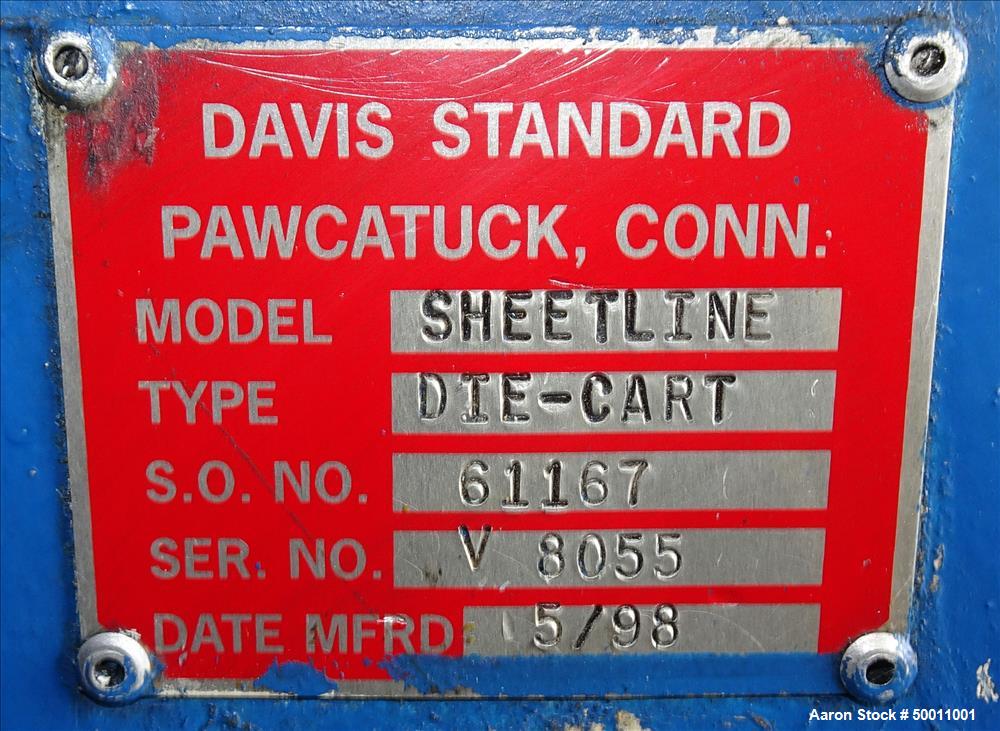

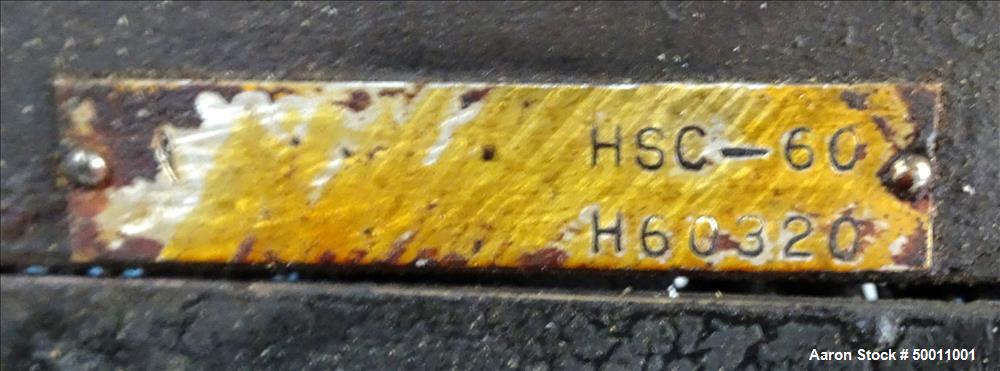

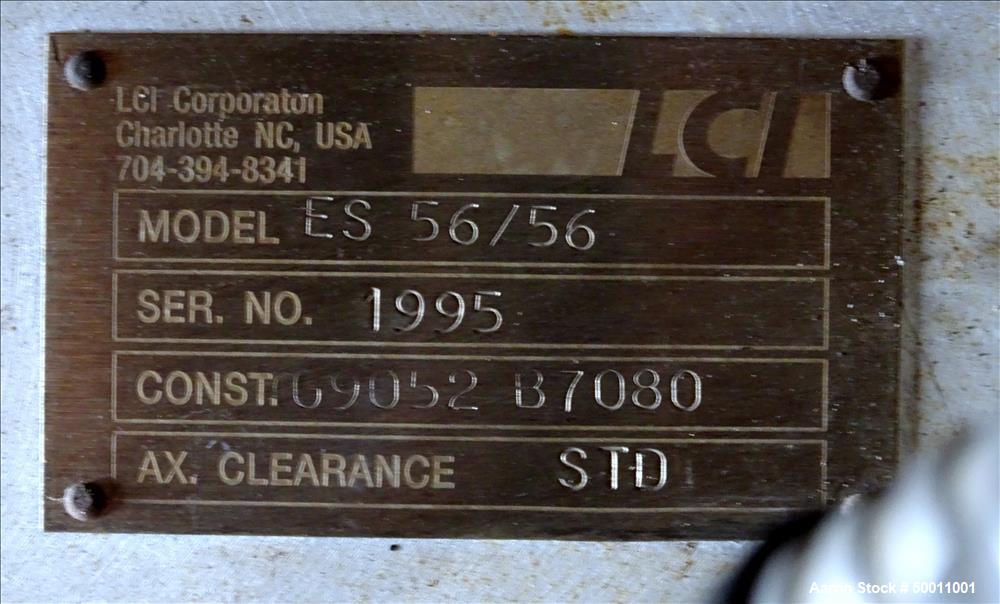

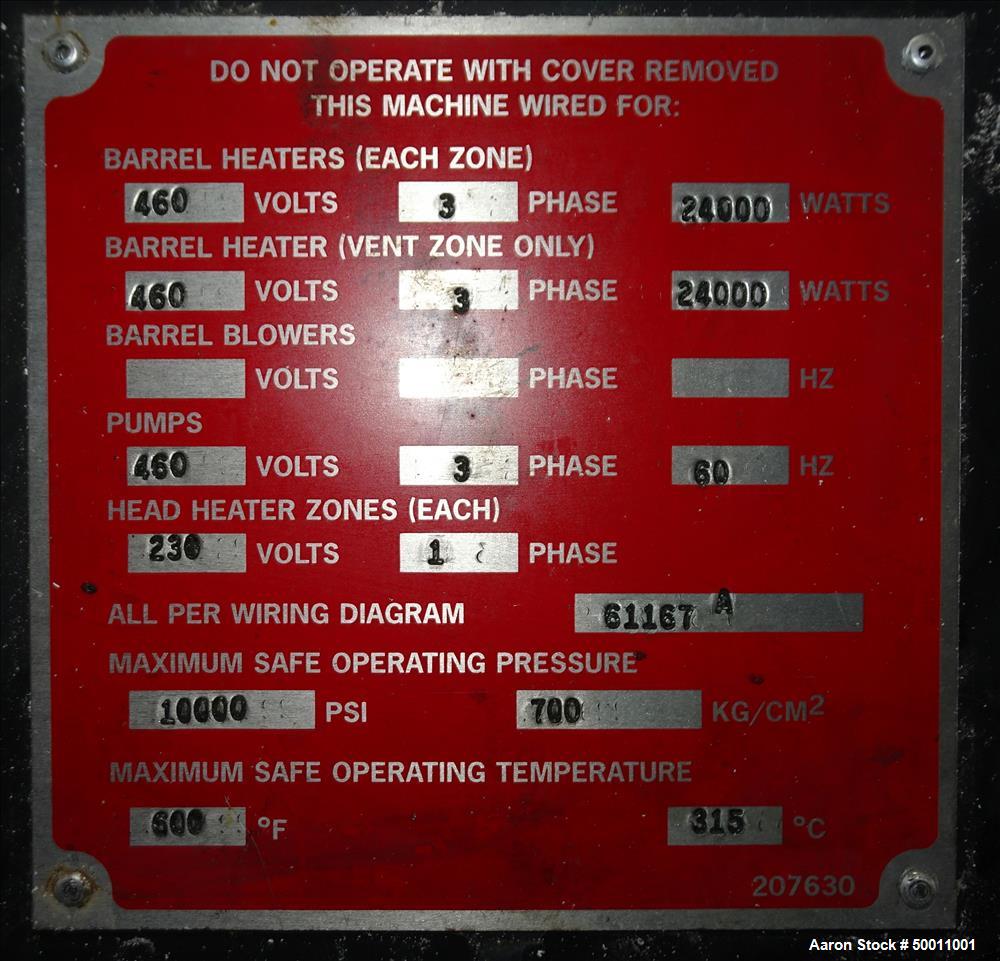

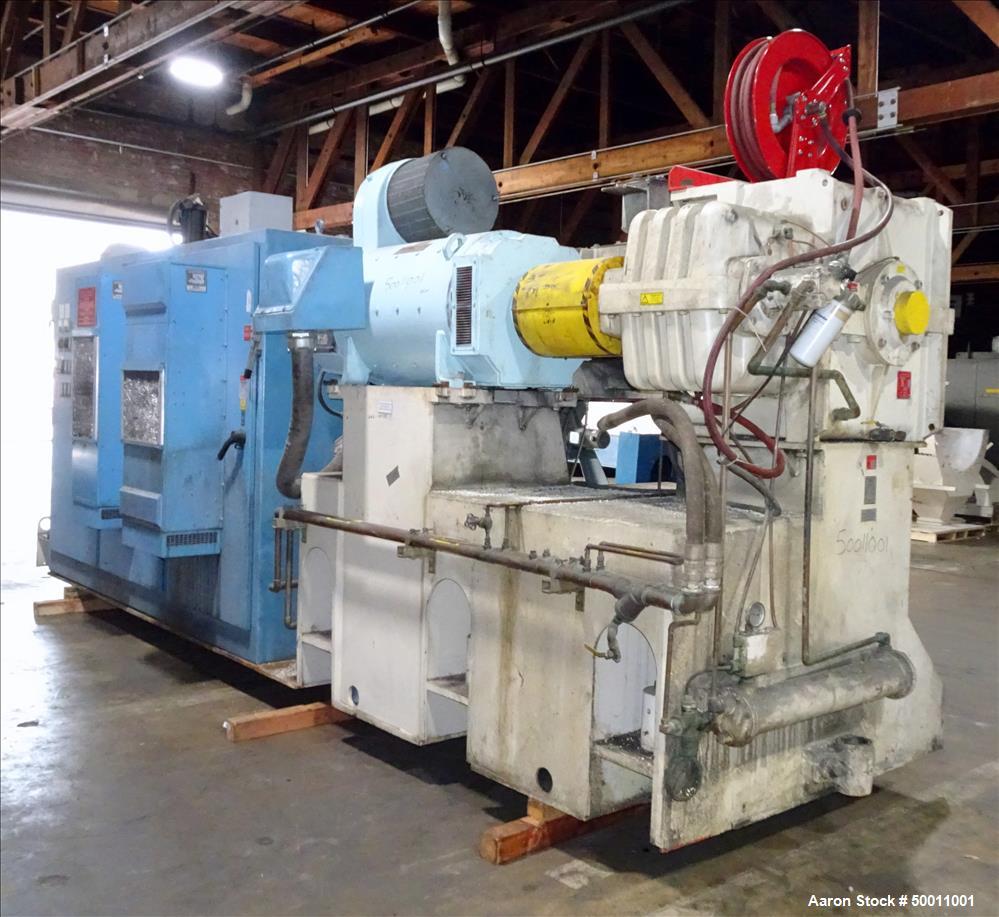

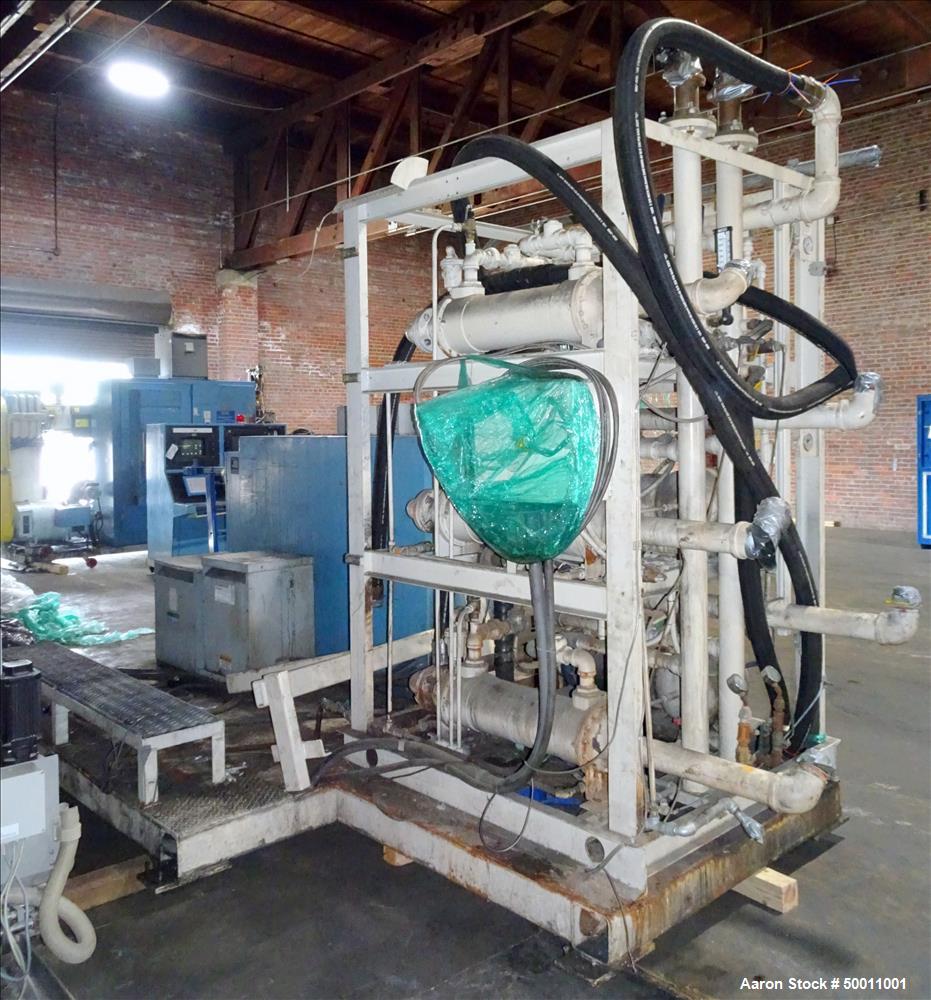

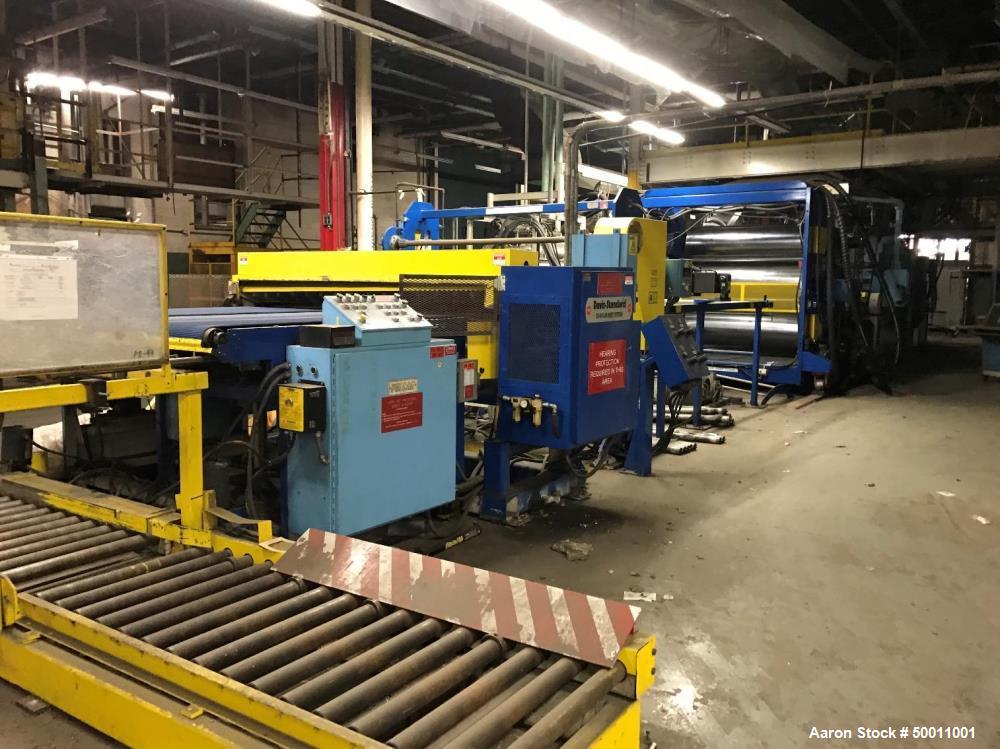

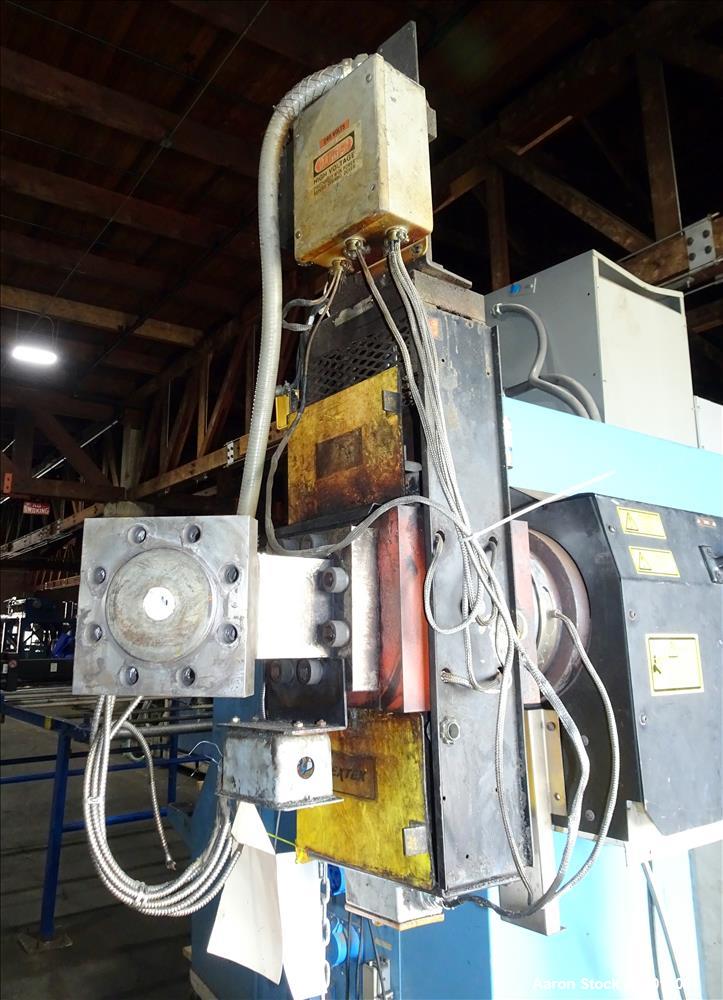

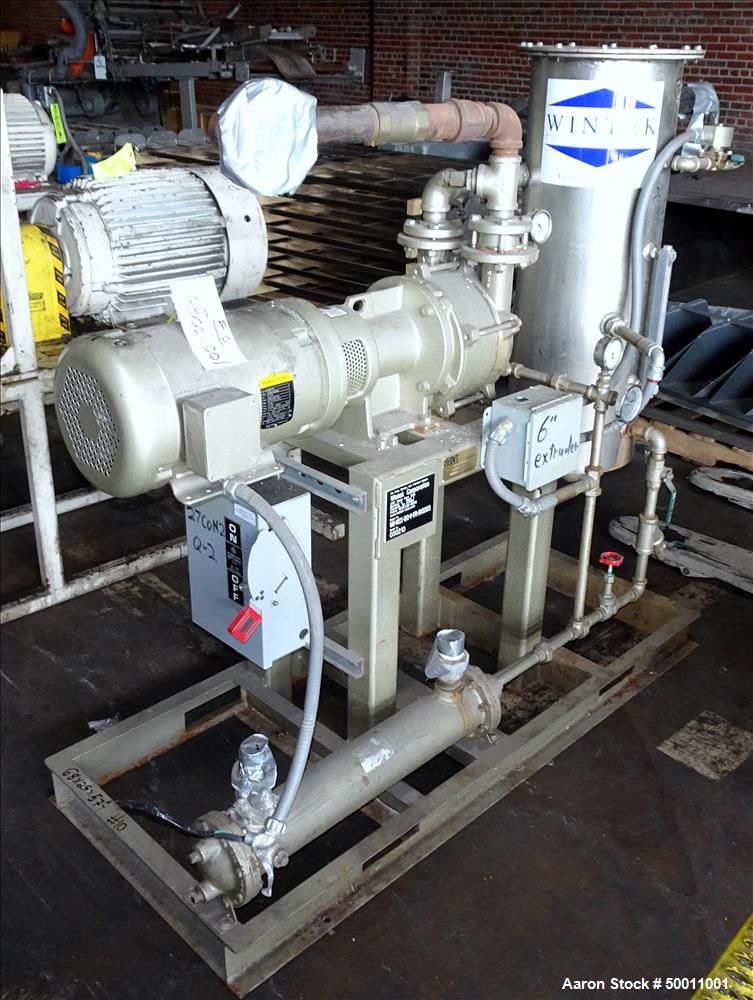

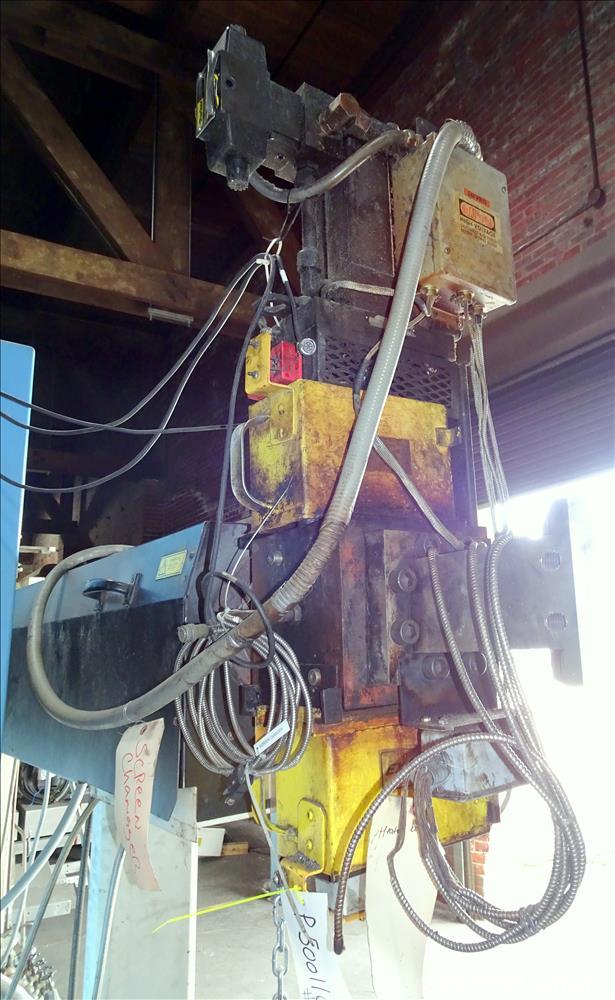

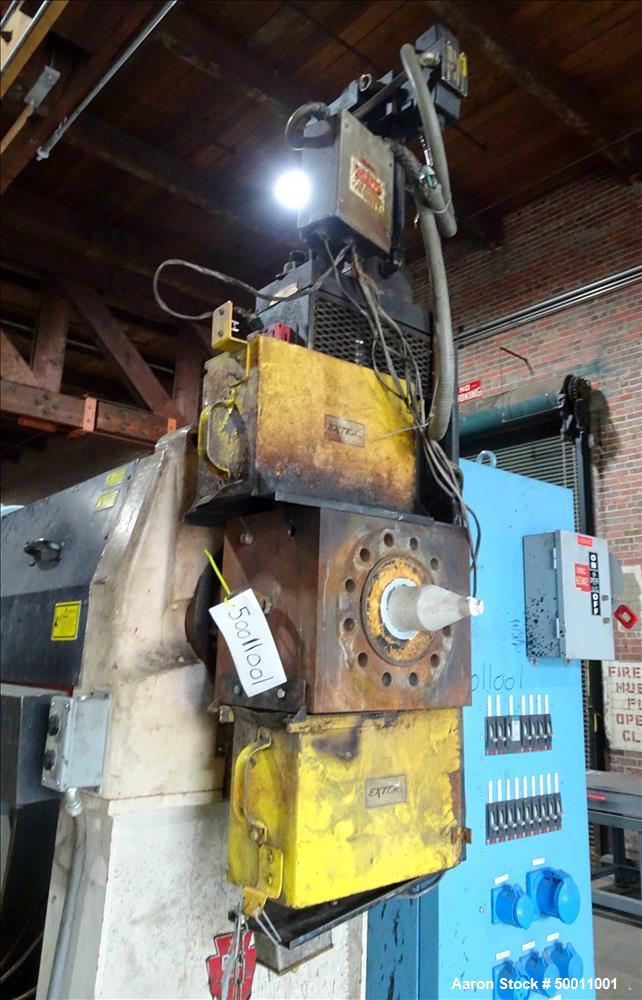

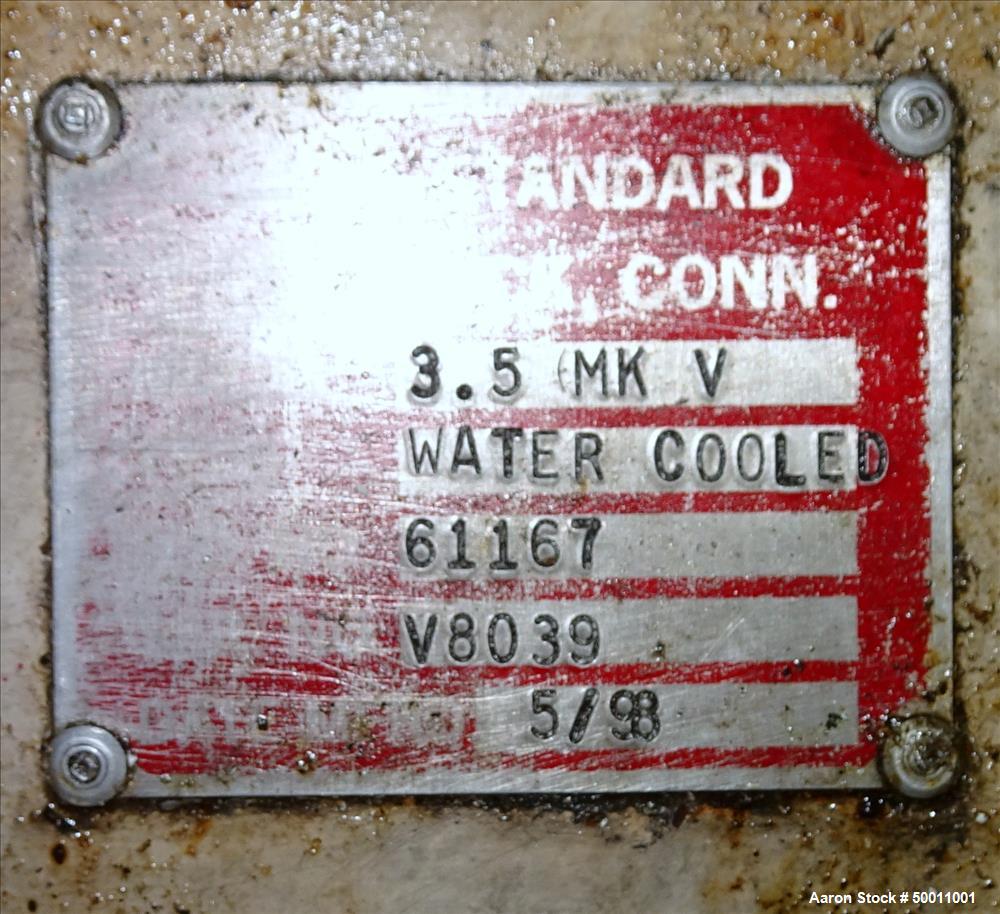

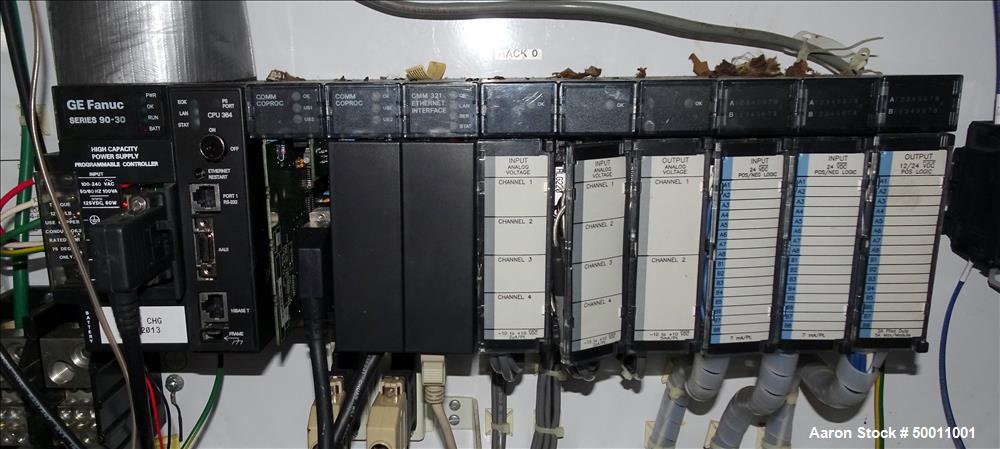

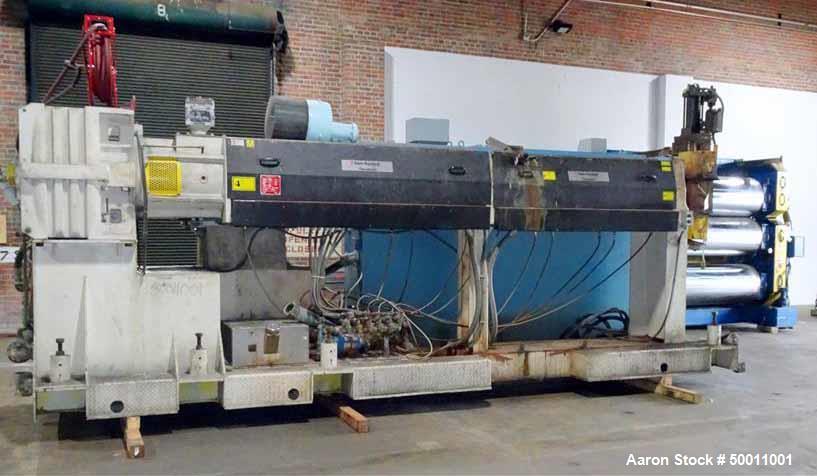

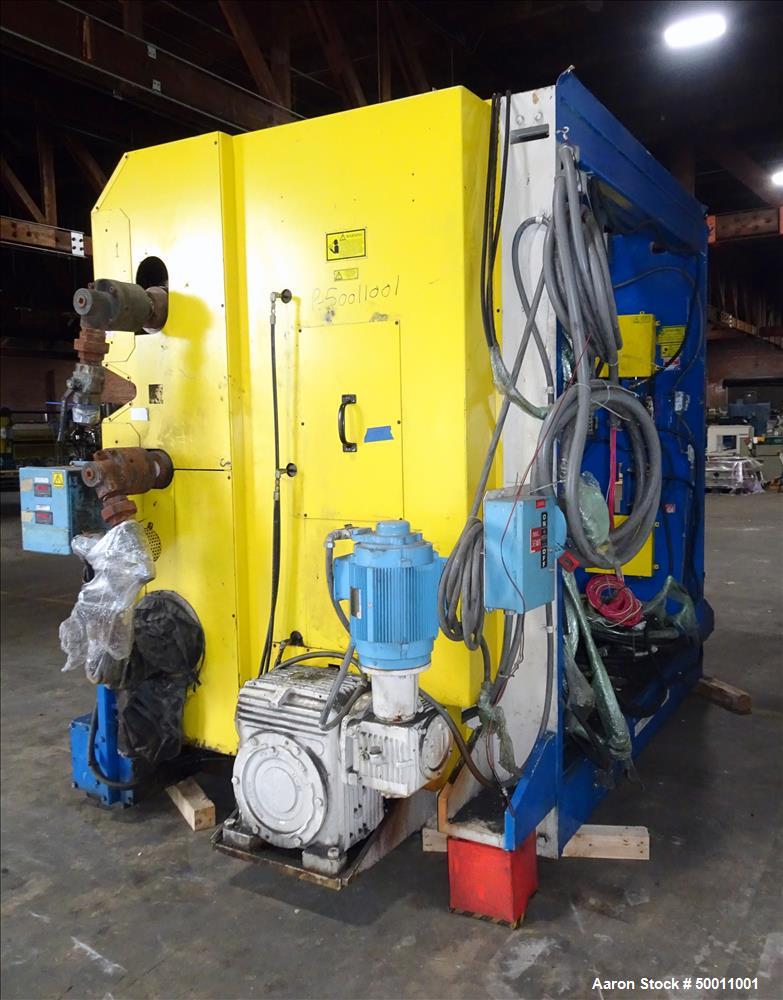

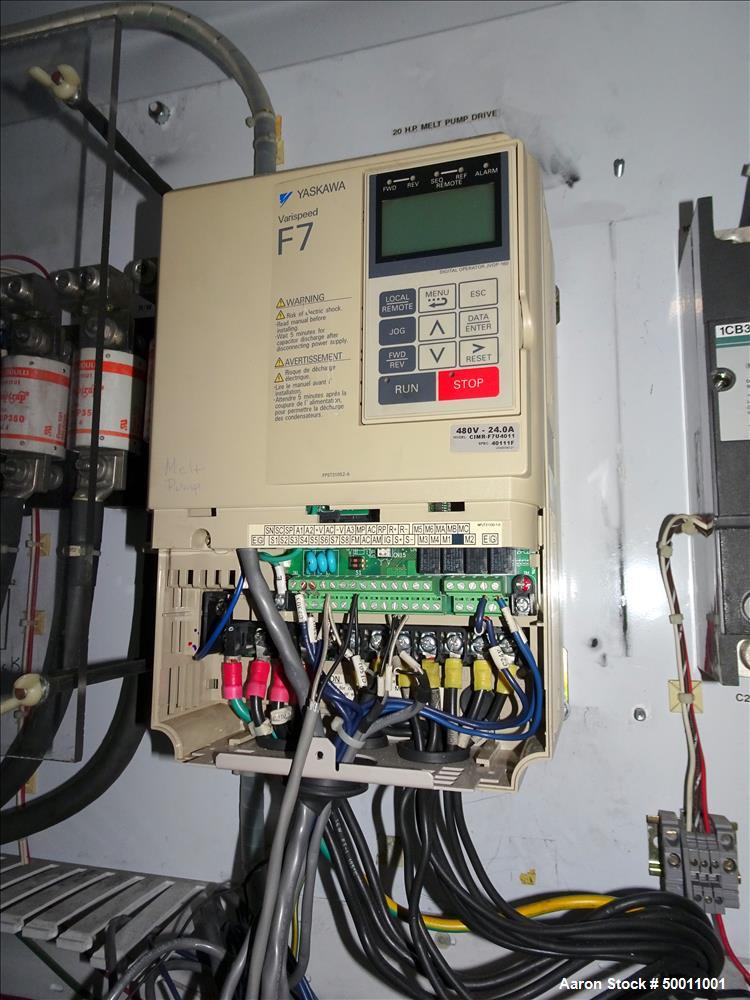

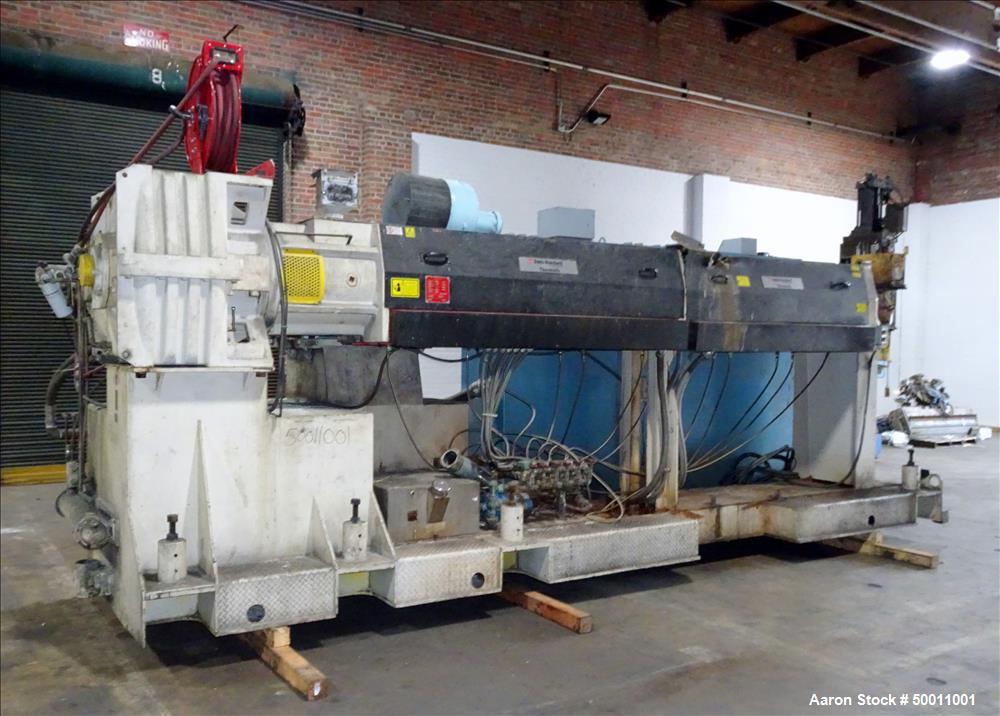

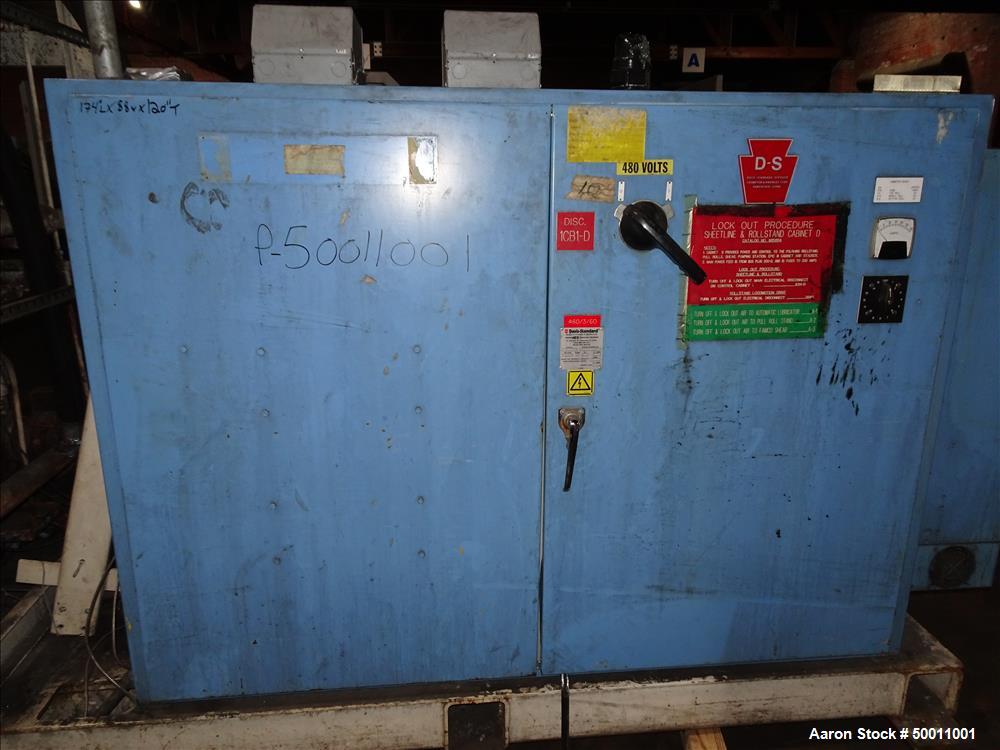

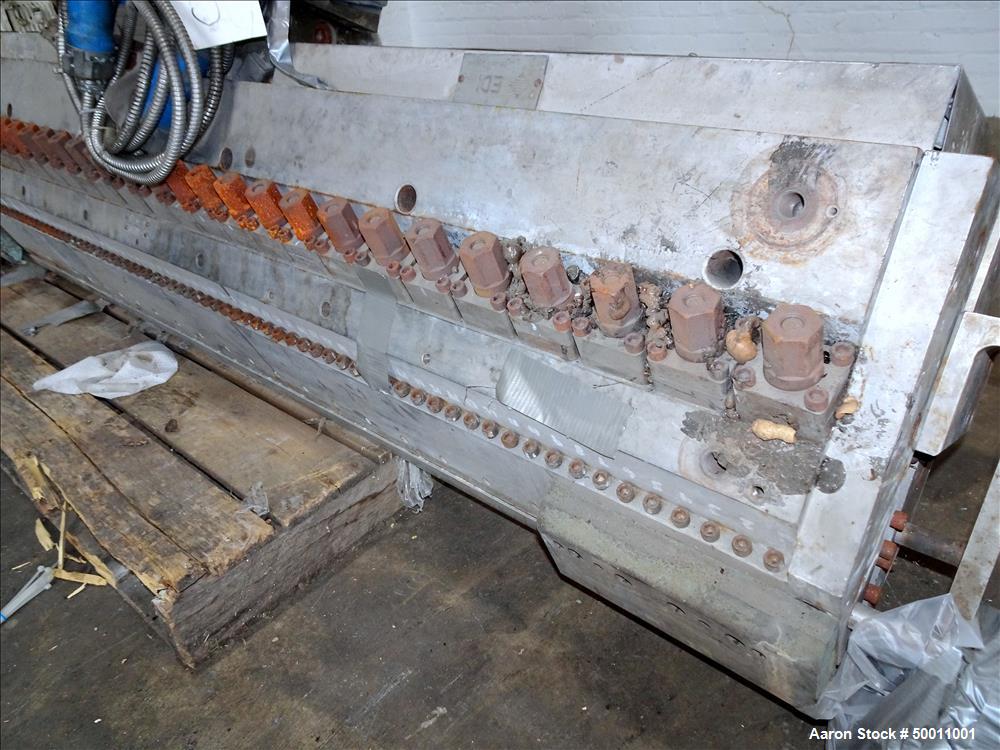

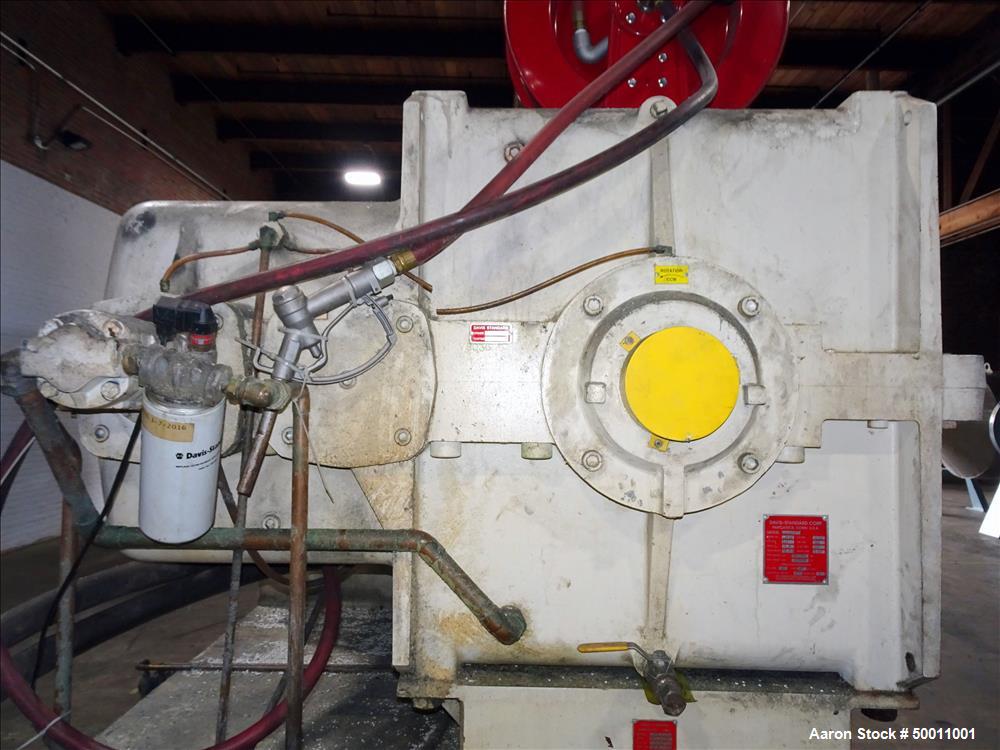

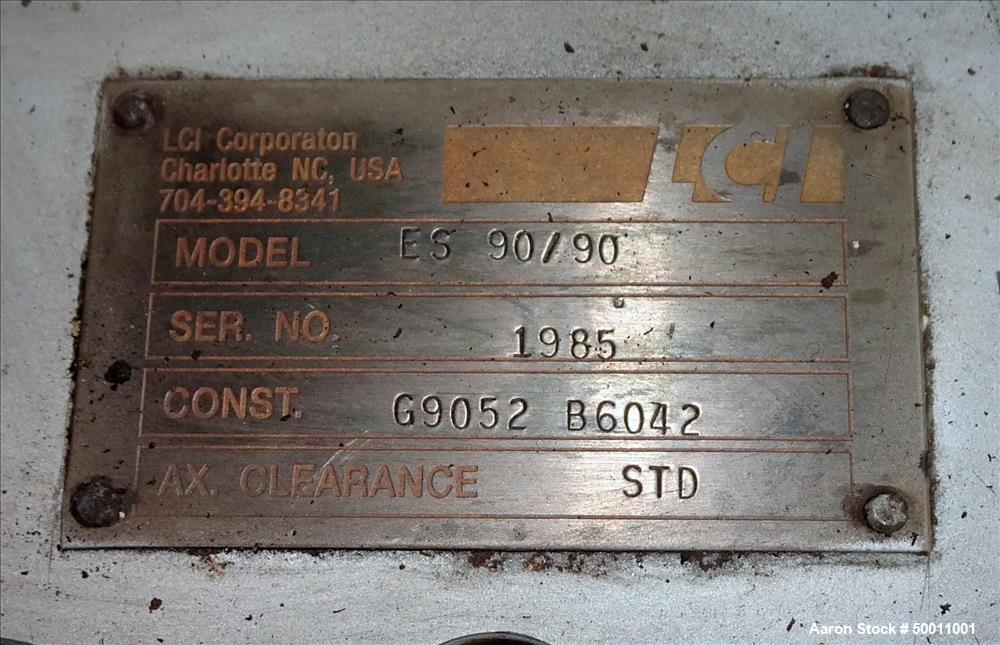

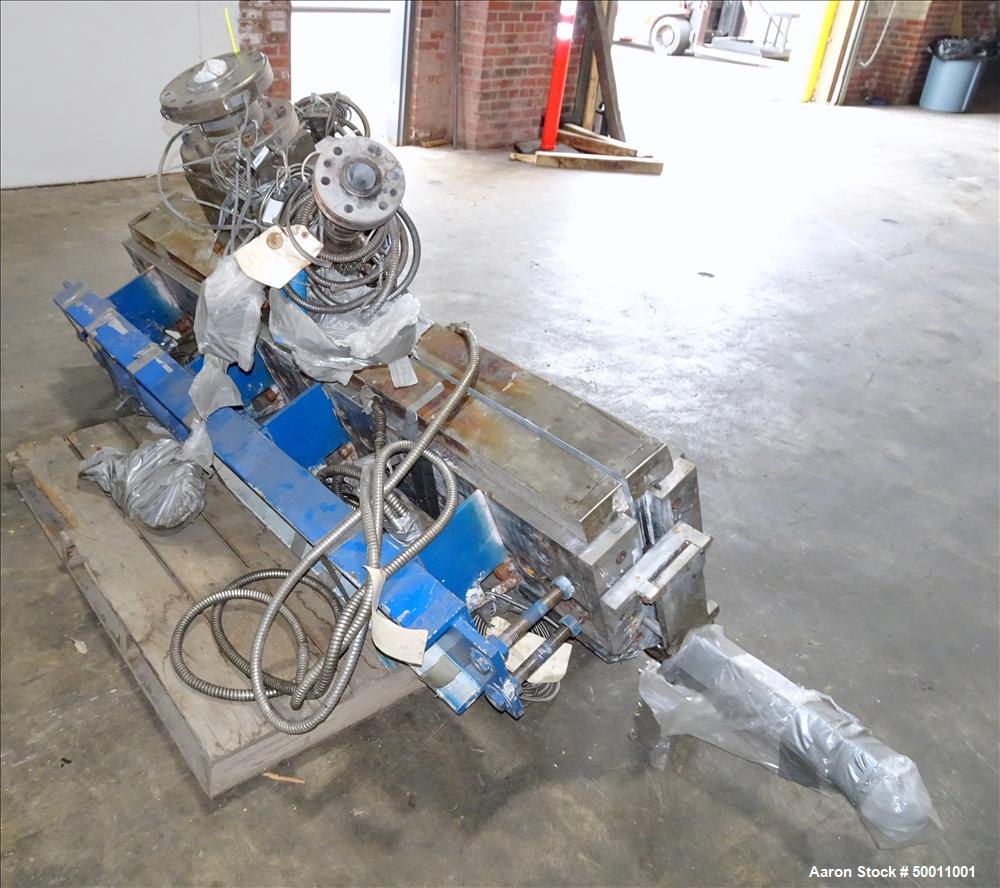

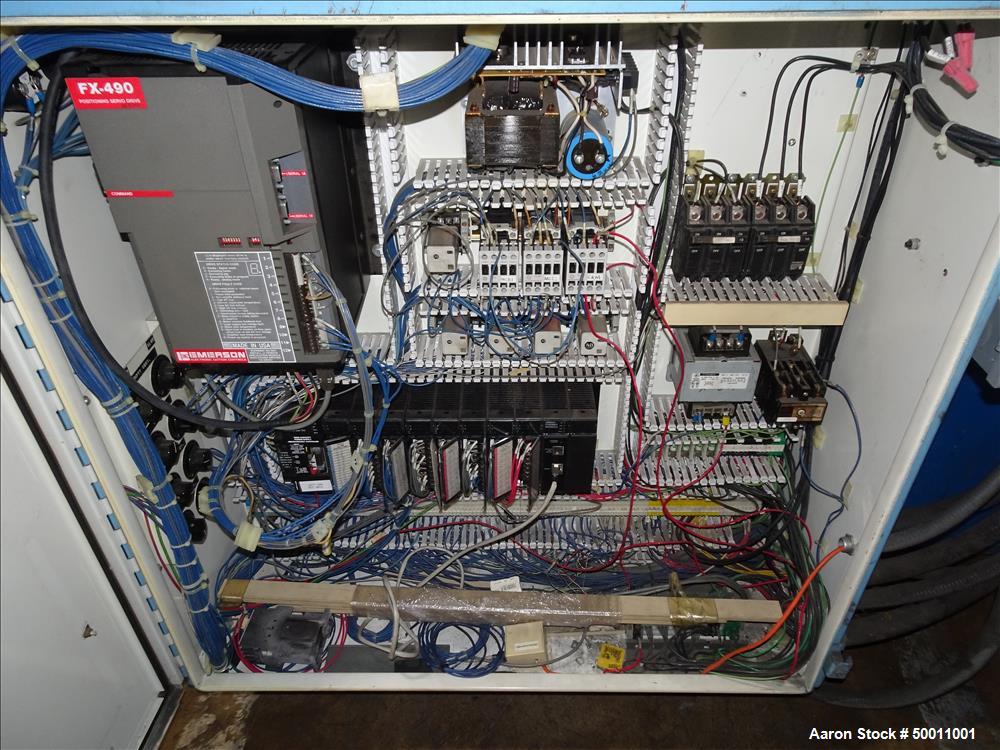

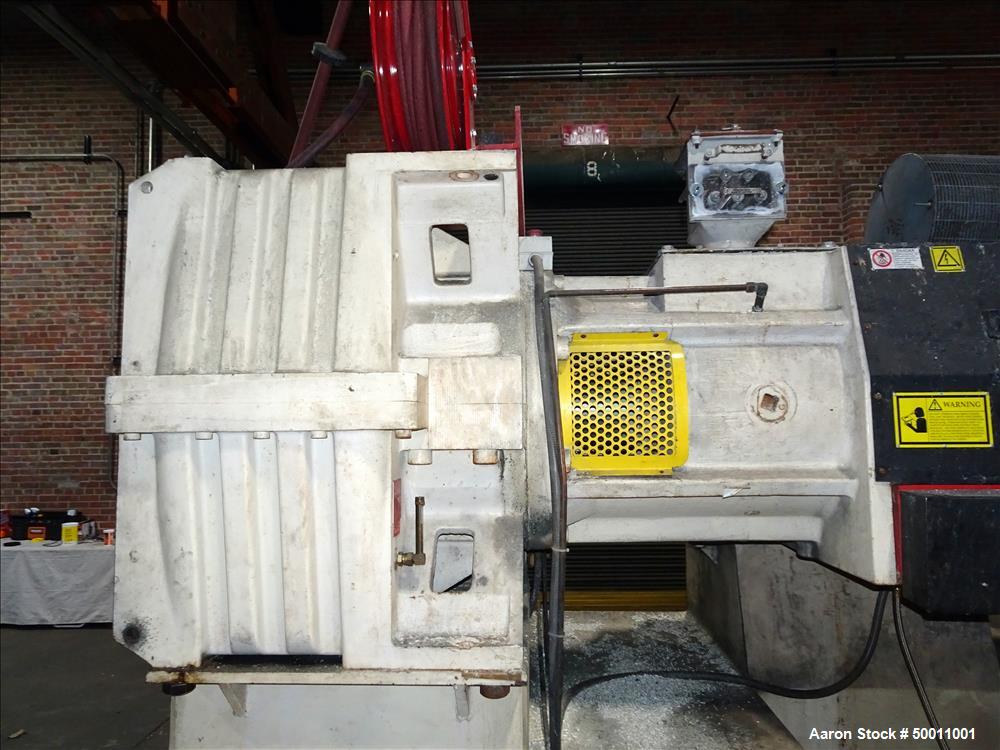

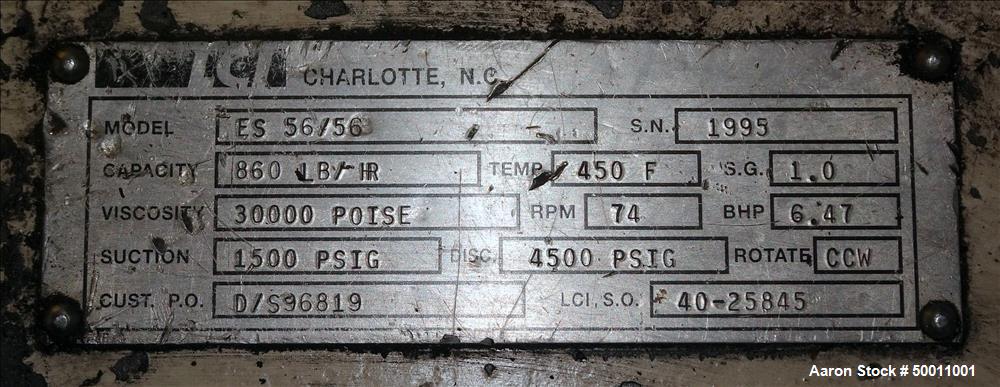

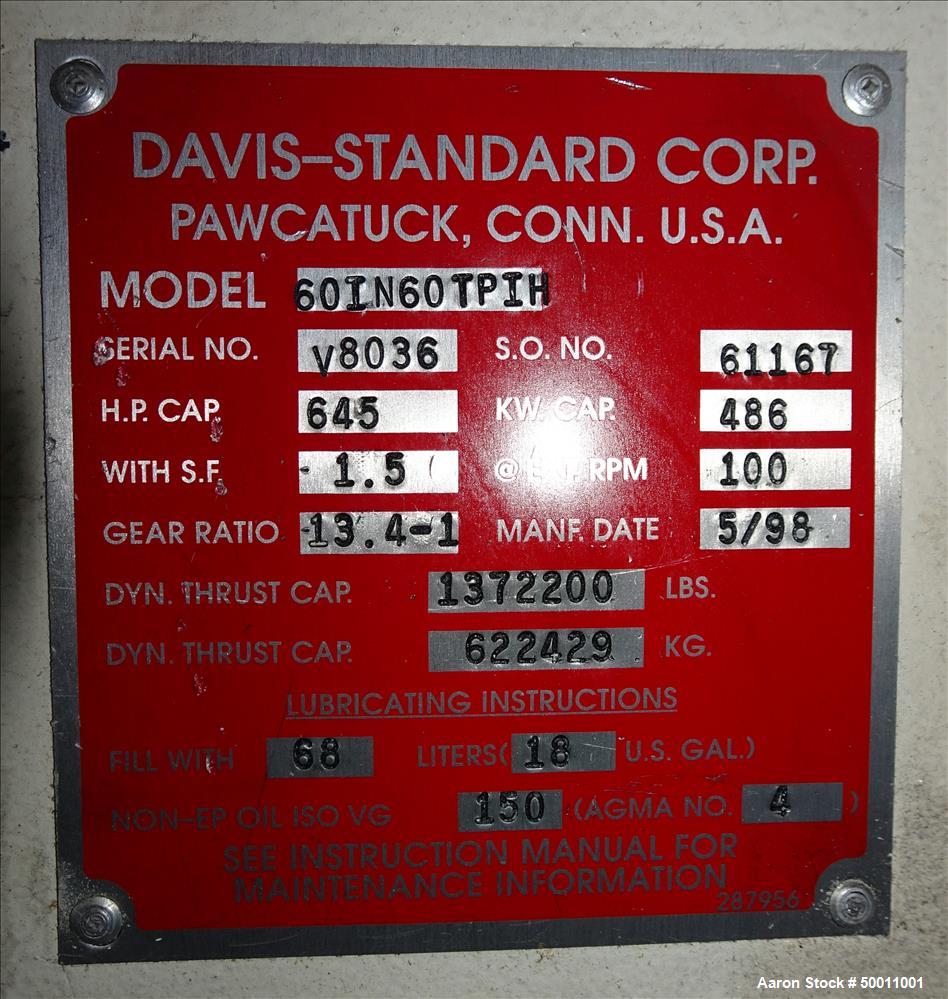

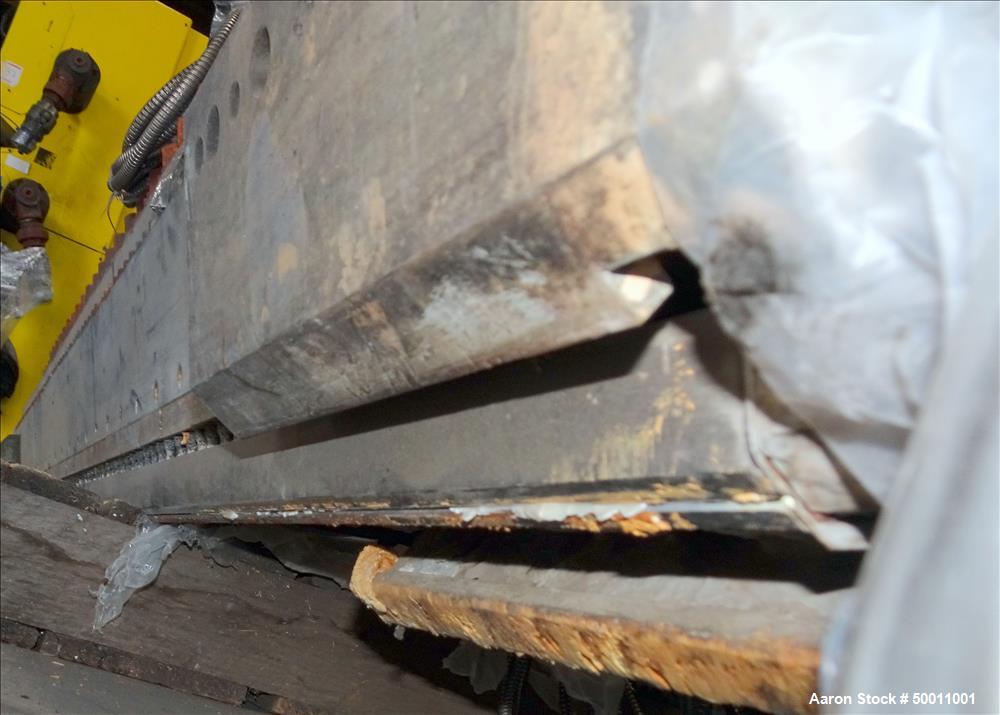

Used- Davis Standard Co-Extrusion 78" Wide Sheet Line. Consisting of the following: Davis Standard 6" Extruder Model # 60IN60TPIH, Serial # V8036, SO # 61167, Built 5/98. 30:1 L/D Ratio, top vented barrel. Electrically heated, water cooled. Unit direct connected to 400 hp DC motor and Drive Gearbox rated to 645 hp, 1.5 service factor, 13.4:1 ratio, screw rpm is 100. Unit included a unitized control panel having 6 barrel zones, 15 downstream zones, all are Eurotherm digital controllers, GE Fanuc 90-30 PLC, Magnetek GPD 5/5 drive, GE DV-300 Drive. Extek 6" hydraulically operated slide plate screen changer, Model HSC-60, Serial # H60320. LCI Corp melt pump, Model ES 90/90, Serial # 1985. Wintek Corp/DVT vacuum system, with Model DV0100B-KA3 pump, driven by a 7-1/2 hp motor. Die block. Co Extruder Davis Standard 3.5" Extruder Model # MV-35IN35, Serial # V8039, SO # 61167, Built 5/98. 30:1 L/D ratio side vented barrel. Electrically heated and water cooled. Unit Direct connected 150 hp DC Motor thru Gearbox having 17.39:1 ratio, 158 hp capacity, 1.254 service factor, 100 rpm screw speed. Unitized control panel with Eurotherm temperature controllers (5) barrel zones, (6) downstream zones, GE Fanuc 90-30 PLC, Yasakawa Varispeed F7 VFD, GE DV-300 Drive. Extek 3.5" hydraulically operated slide plate screen changer, Model HSC-35, Serial # H35338. LCI Corp melt pump, Model ES 56/56, Serial # 1995. Wintek Corp/DVT vacuum system, with Model DV0100B-KA3 pump, driven by a 7-1/2 hp motor. Both extruder connect thru EDI Ultraflow Co-EX die block to EDI Ultraflex HRC-100 78" wide Restrictor bar sheet die and manual deckling option, mass 3676 pounds, Serial # 98-19772 with die cart. Davis Standard 24" x 78" three roll chrome downstack operation. Hydraulic roll adjustment. Rolls are driven by a common 7.5 hp, 3/60/460 volt, 1762/3525 rpm gearmotor, 200 to 1 ratio. Eurotherm temperature controllers for rolls. Water cooled rolls with DS water system consisting of (3) centrifugal 10 hp pumps, (3) heat exchanger with unitized control with (2) Yasakawa GPD515/65 drive for rollstand and pull roll, Magnetek GPD333 drive for sheet stack locomotive, GE Fanuc 90-30 PLC. Miller fluid power hydraulic power unit. Conveying section including a NDC Technologies Model T2-65 scanning device, Serial # 4752. Davis Standard Haul Off rubber pull roll stand, (2) approximate 8" diameter x 78" wide rubber rolls, driven by a 7.5 hp gearmotor, 143.47 to 1 ratio Seria l# V-8056, S.O.# 61167, built 5/98. Davis Standard (Famco) shear, Model P-1496WG, .25 plastic capacity, driven by 5 hp motor, Serial # S-05986361. Vulcan sheet stacker, (2) 36" wide x 72" long conveyor belts driven by 1 hp motor, has Emerson FX-490 servo drive, GE fanuc 90-30 PLC. Includes power take off table.
