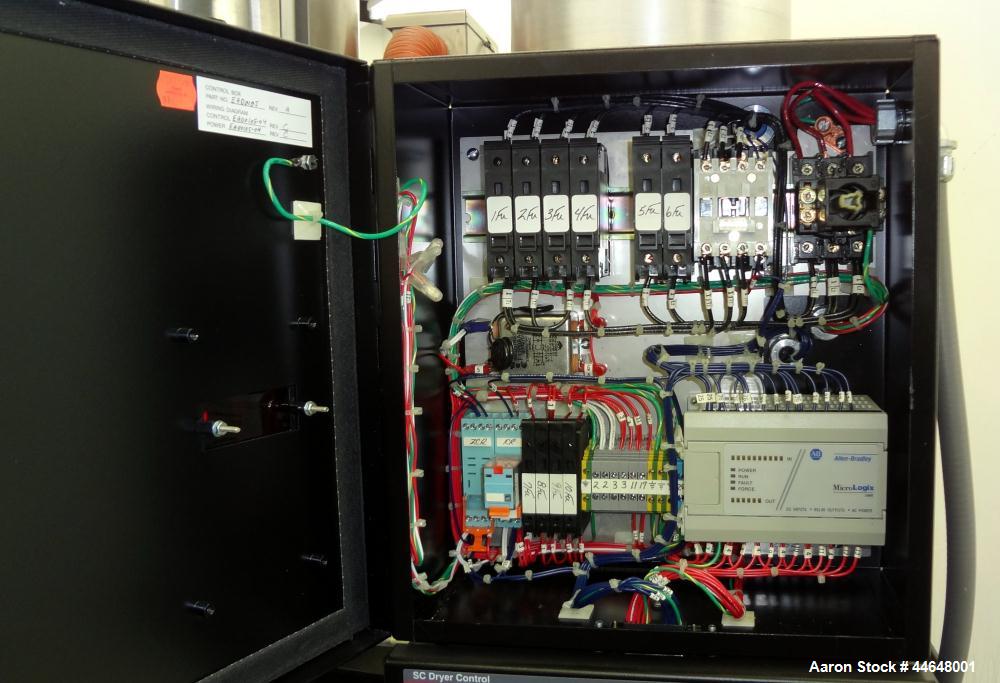

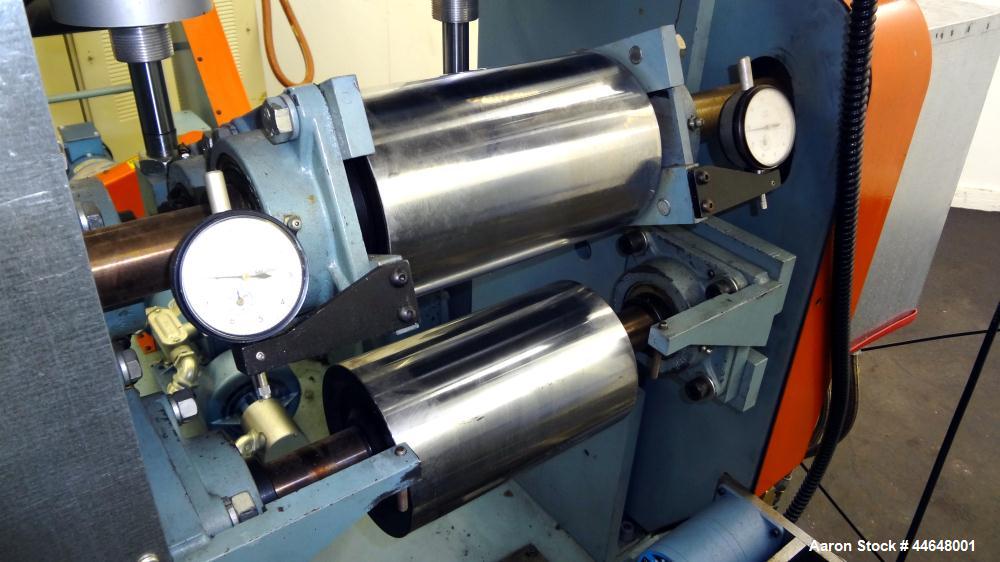

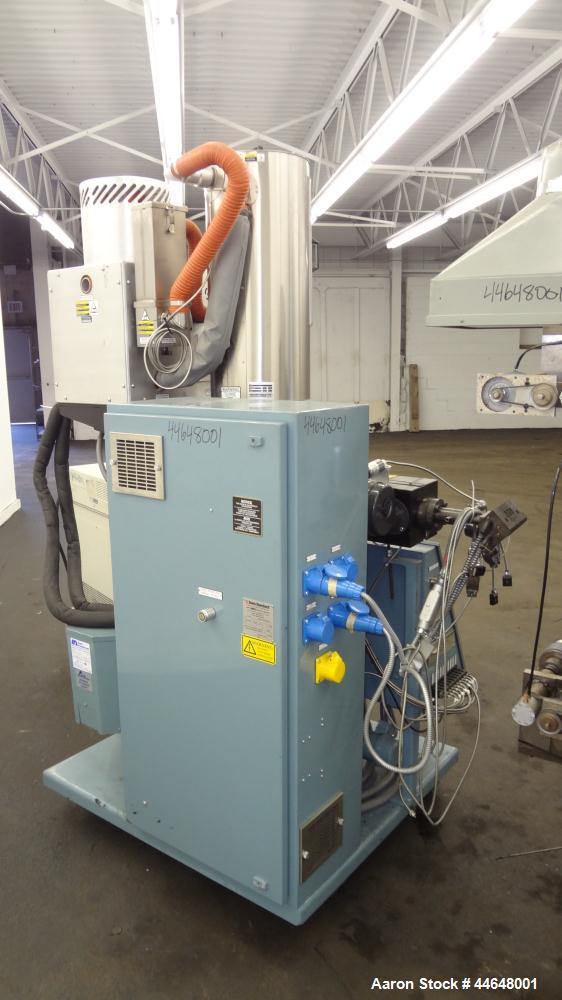

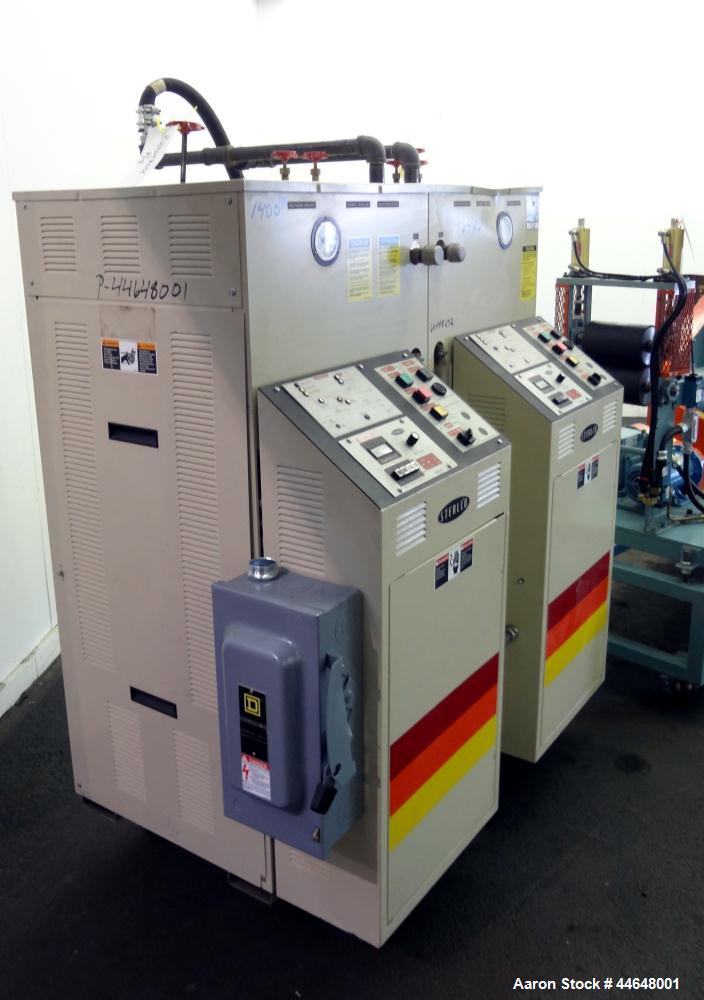

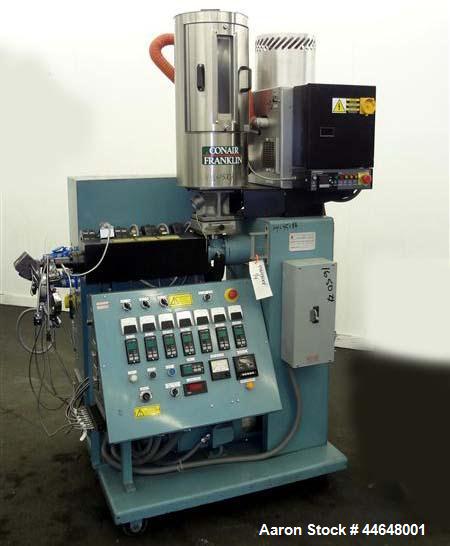

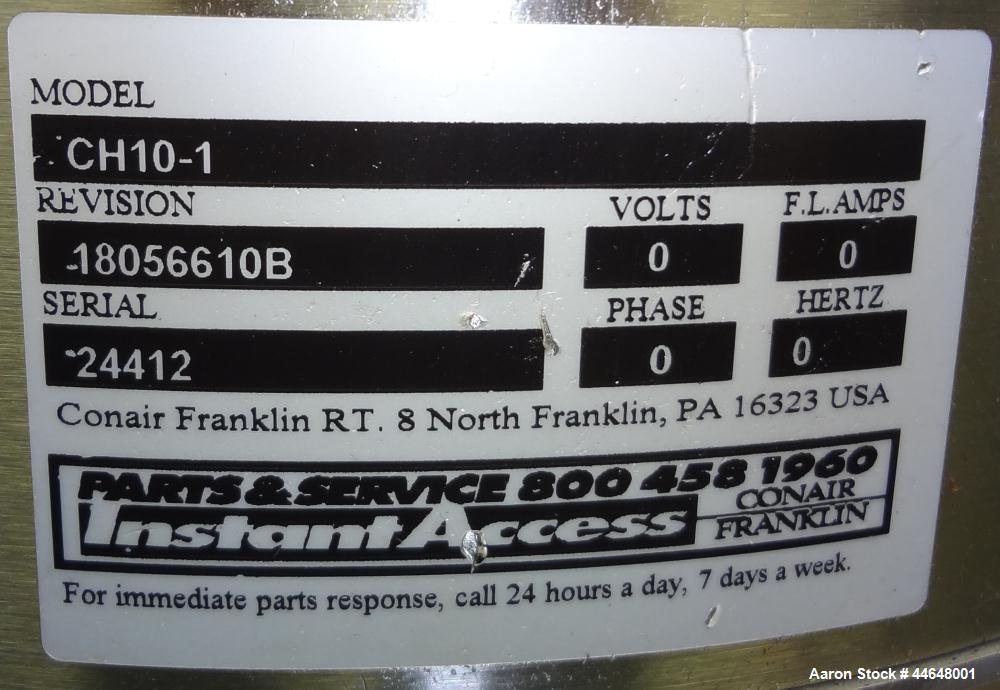

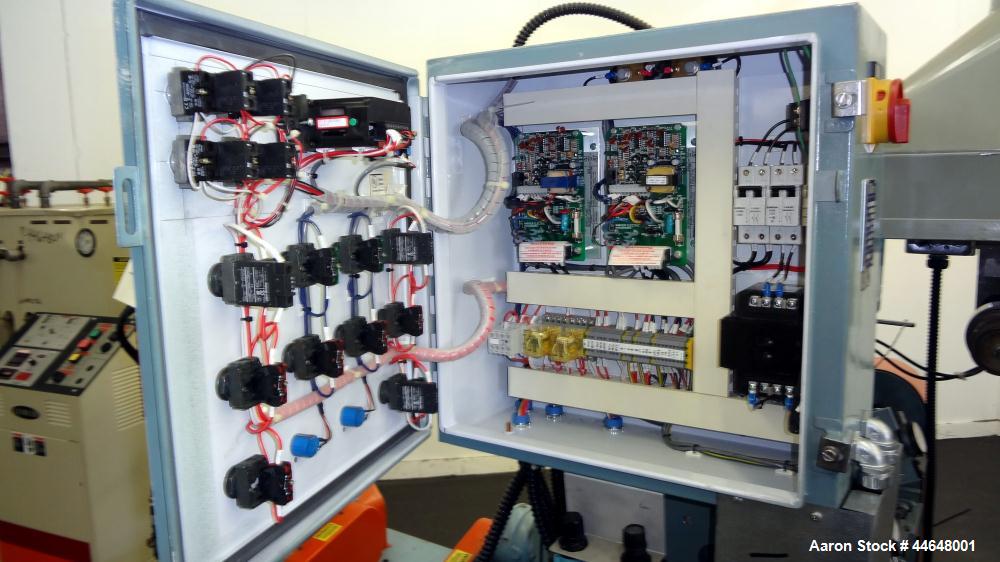

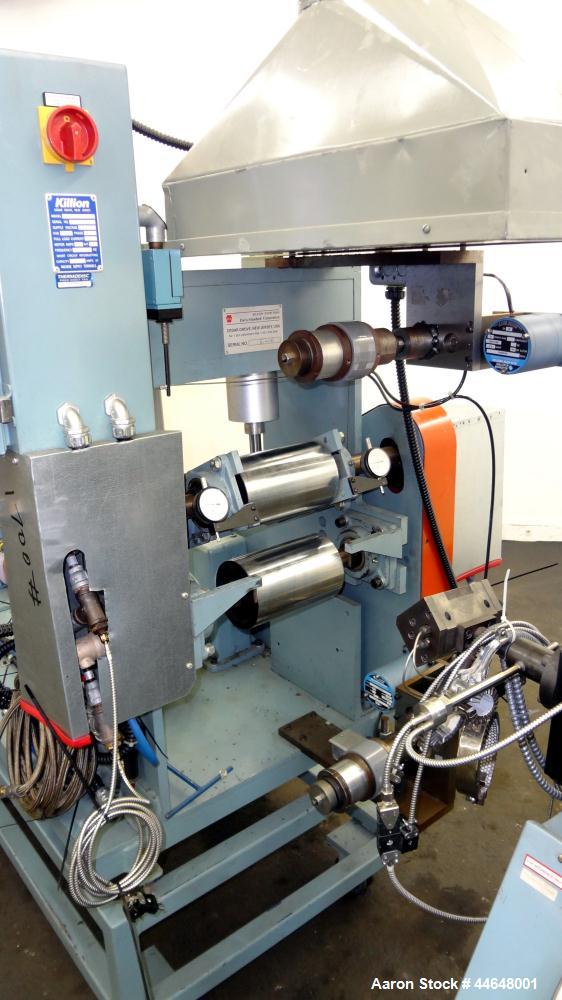

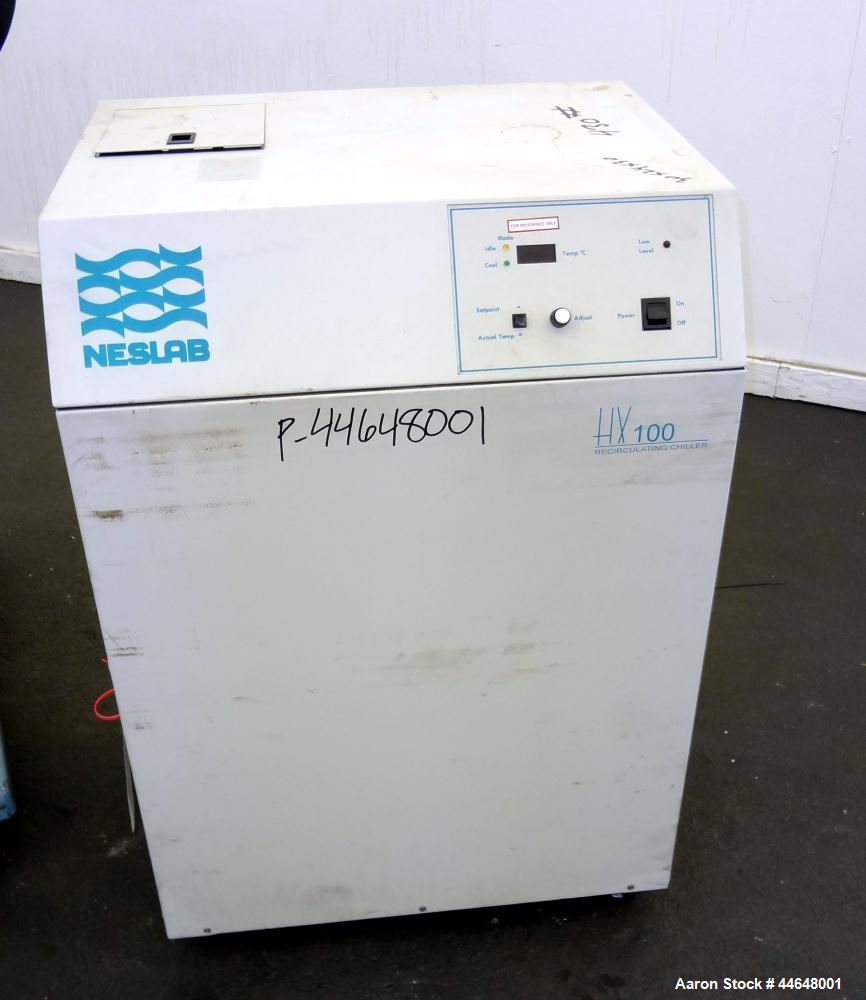

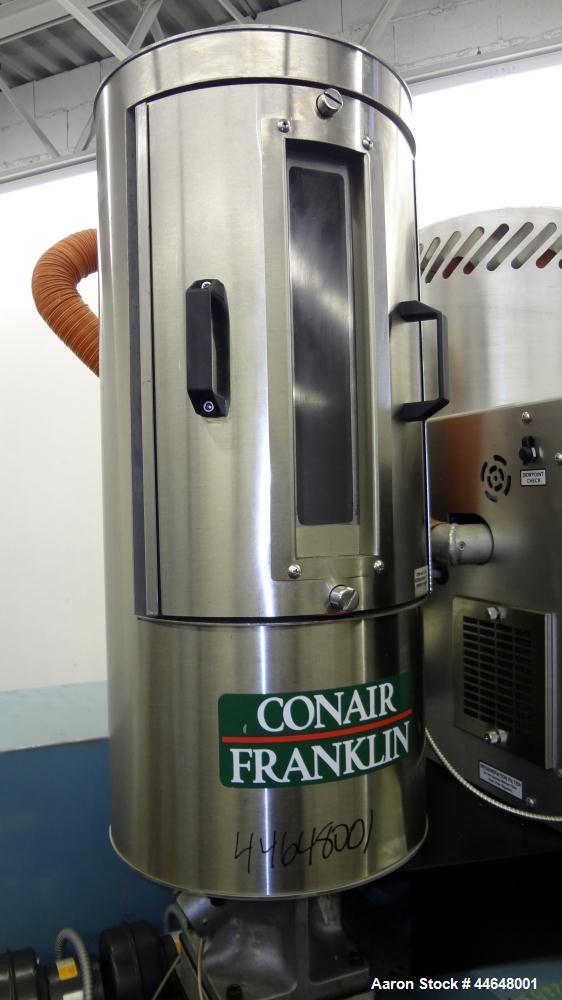

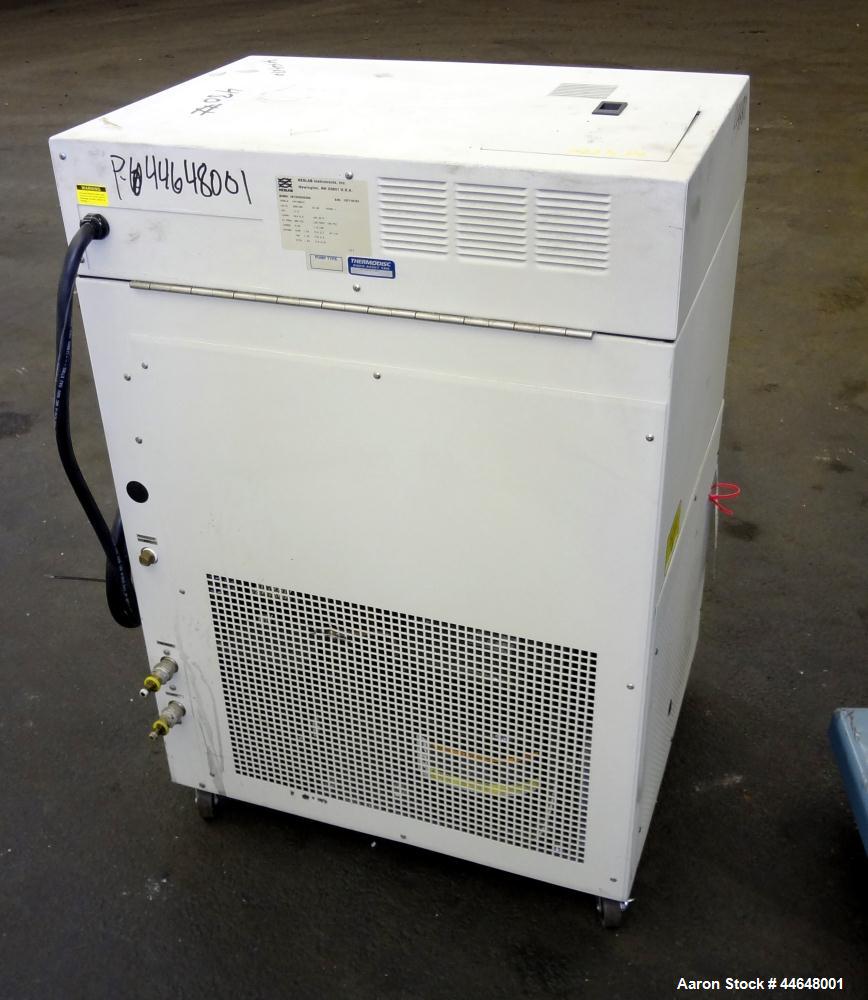

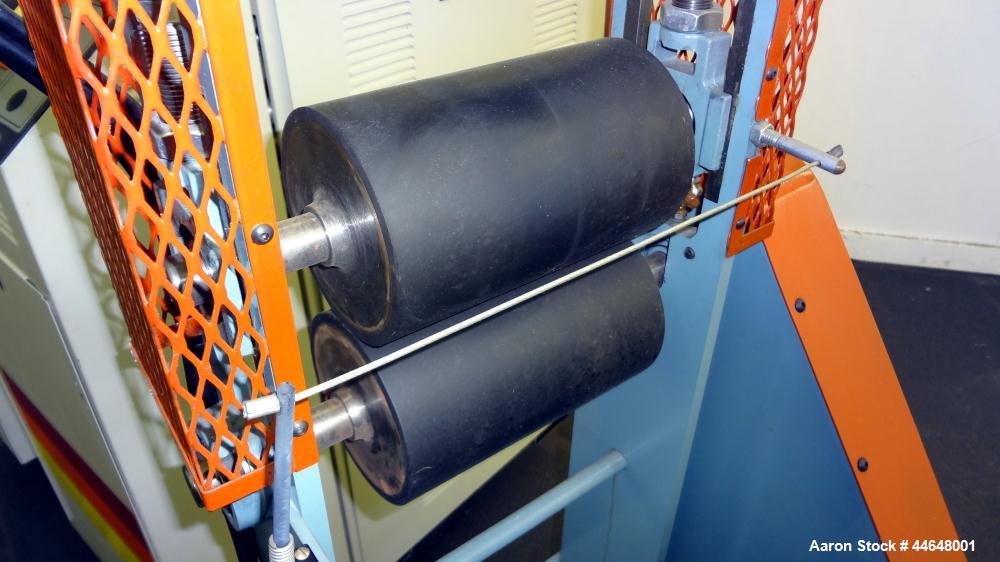

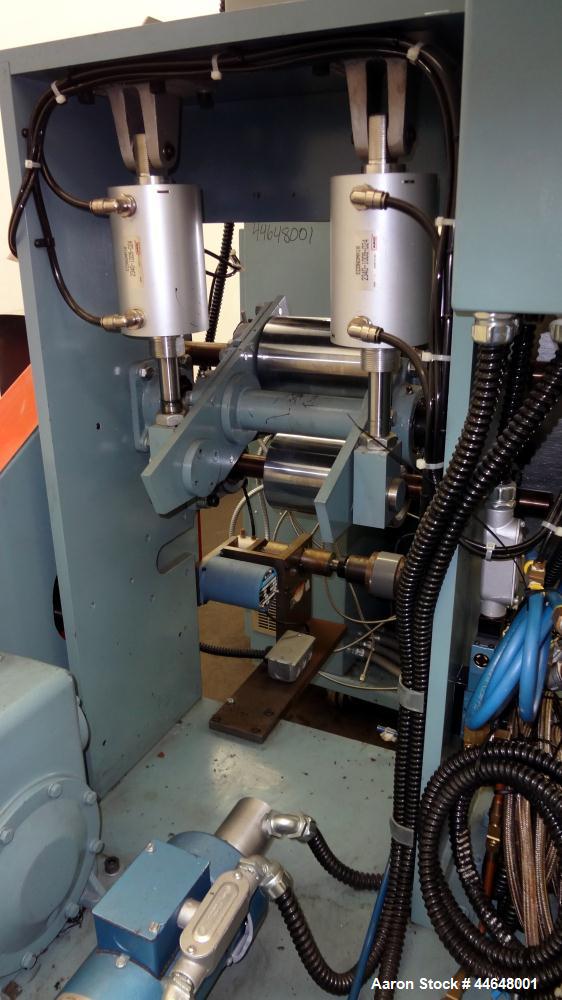

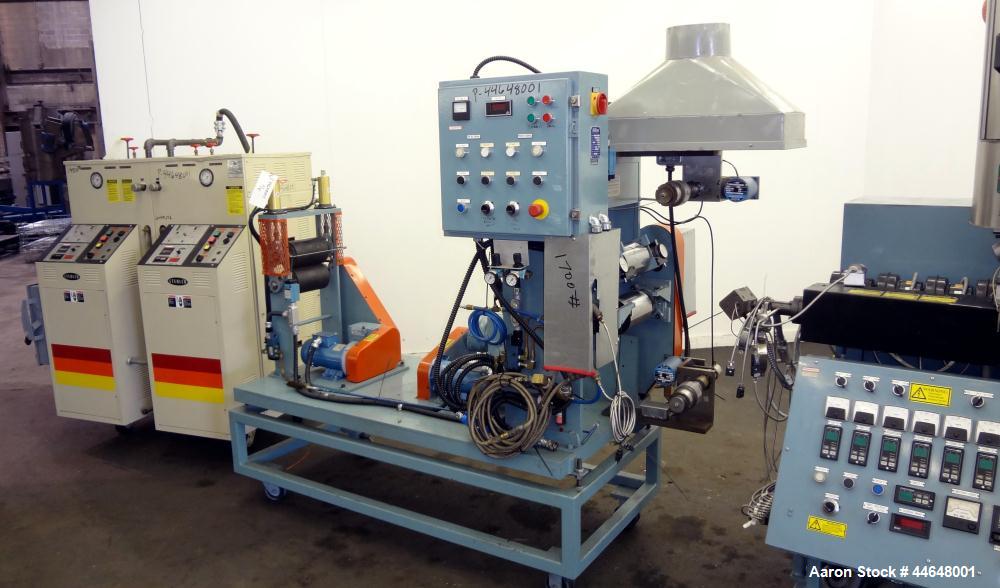

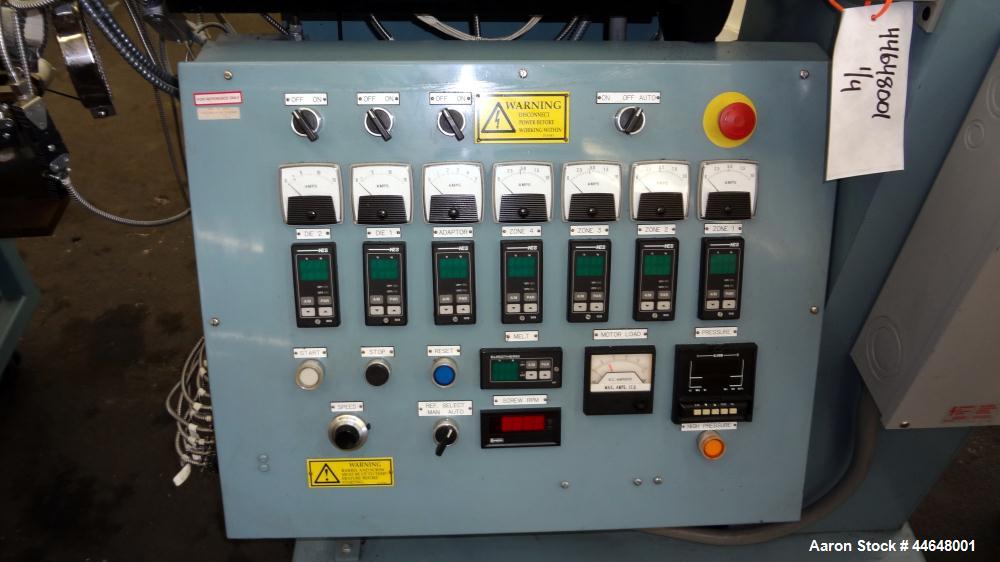

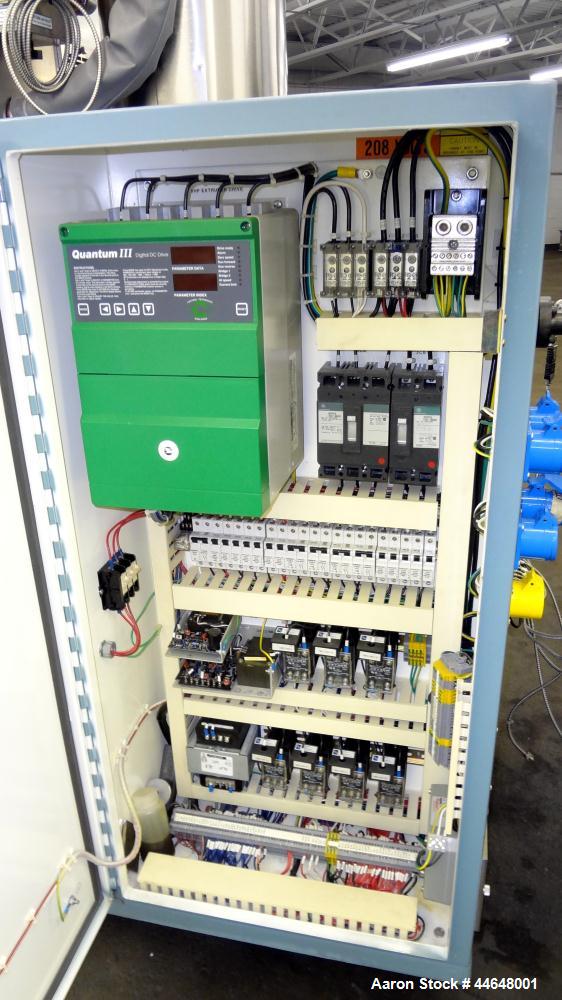

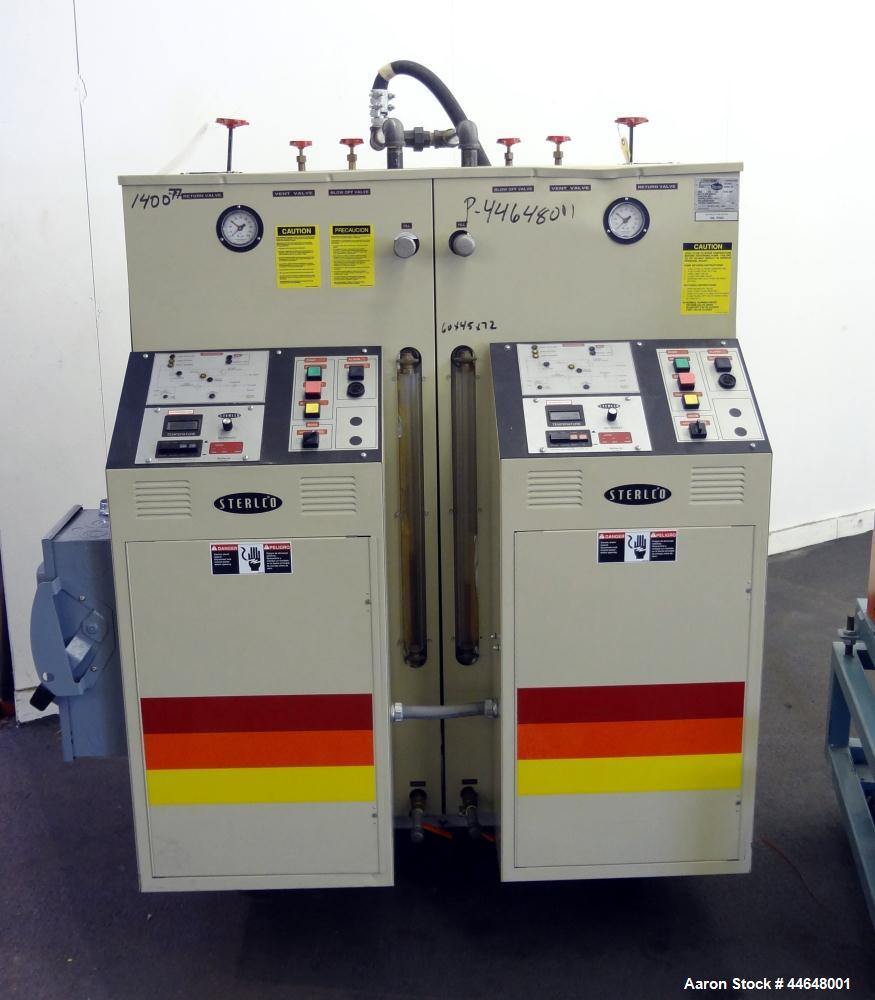

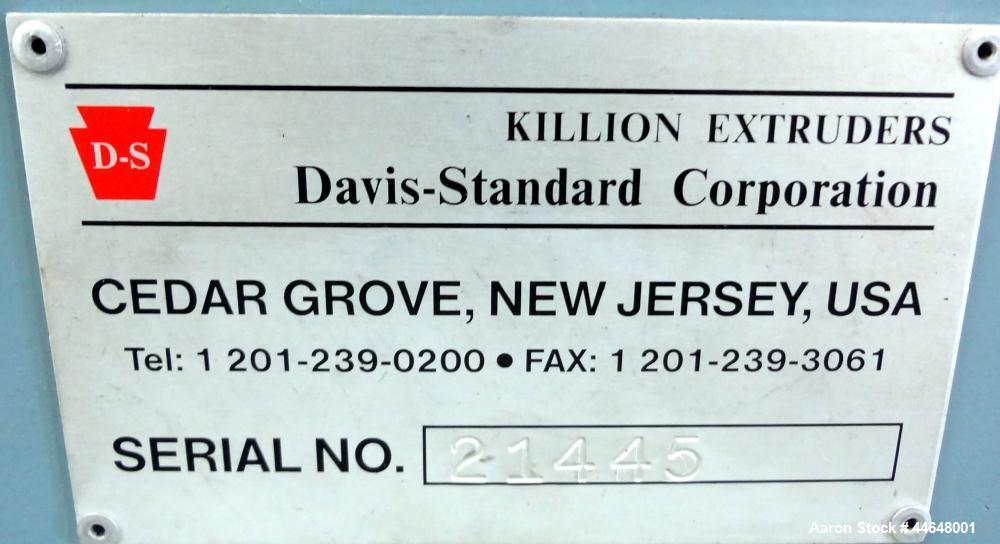

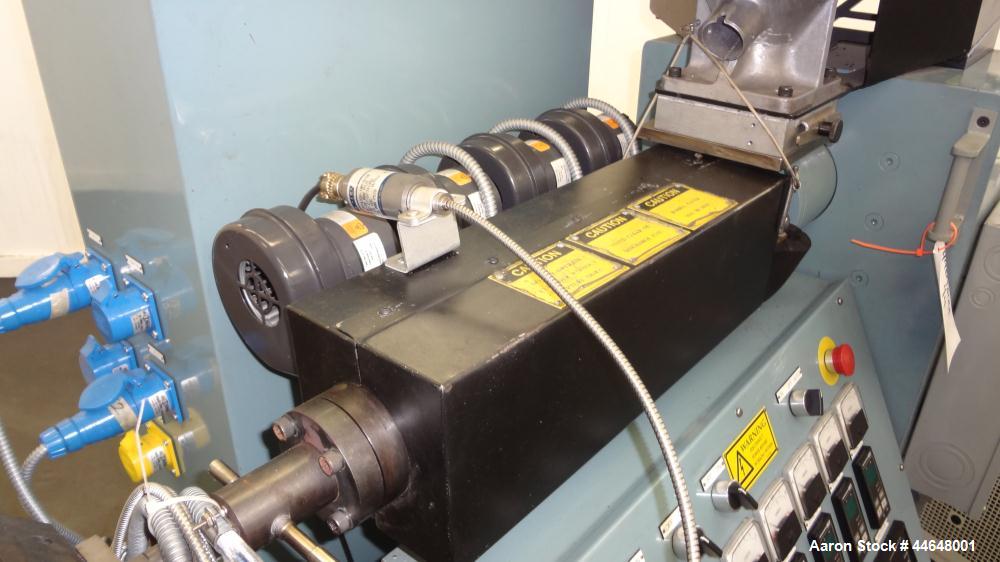

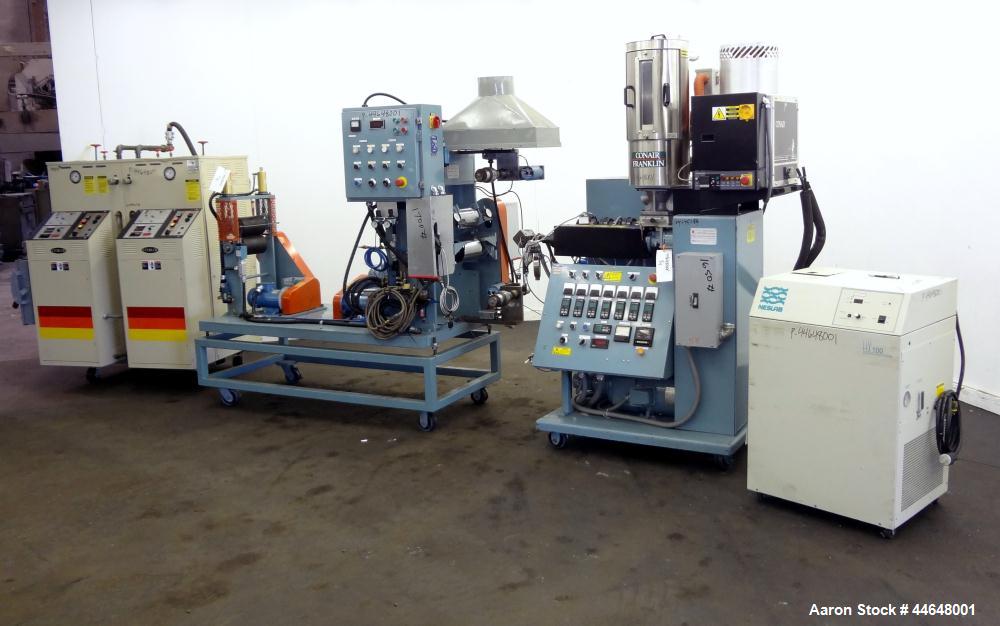

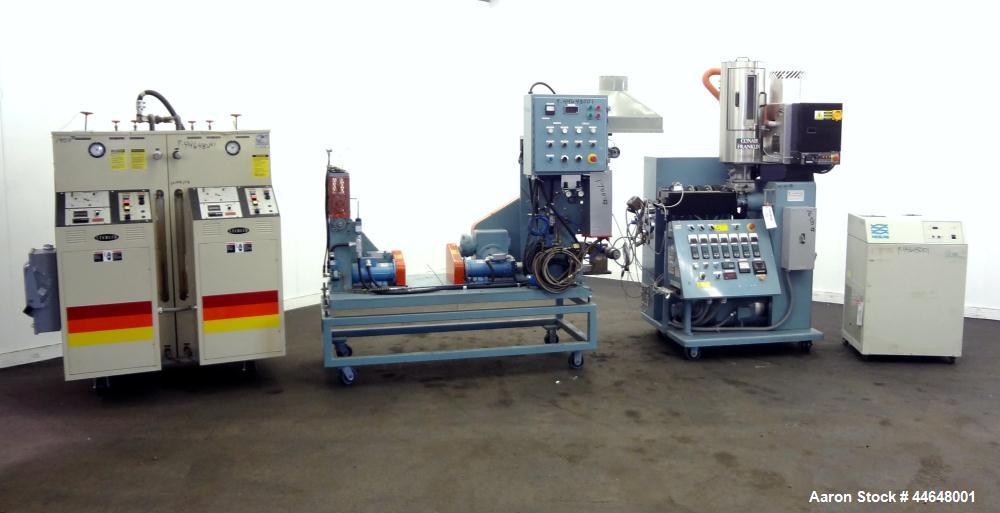

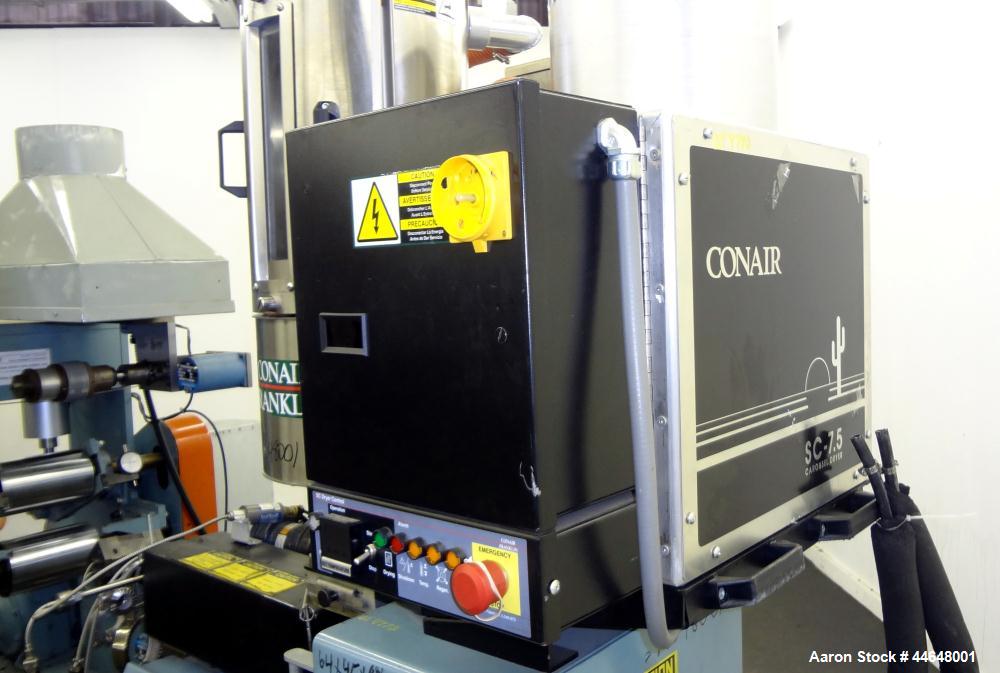

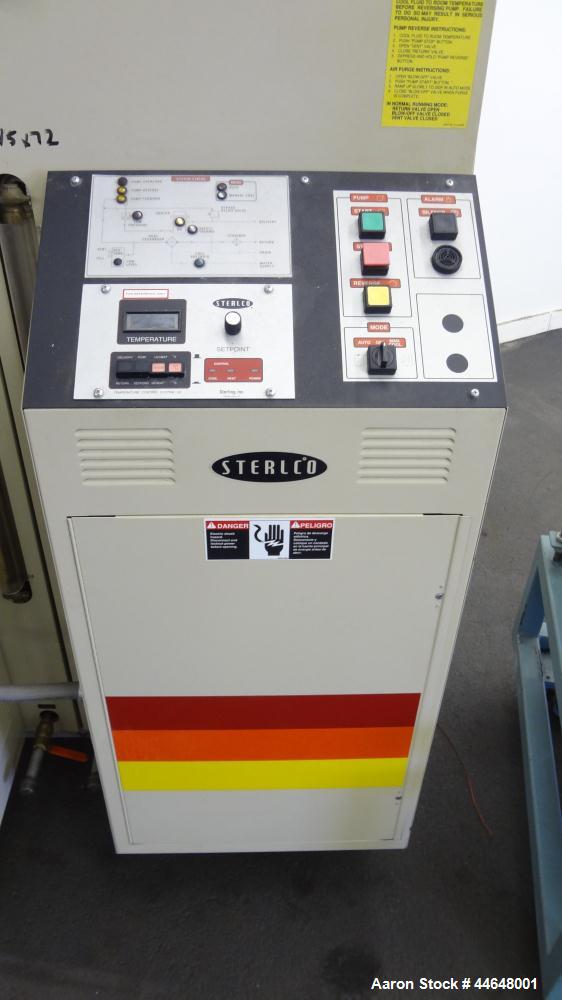

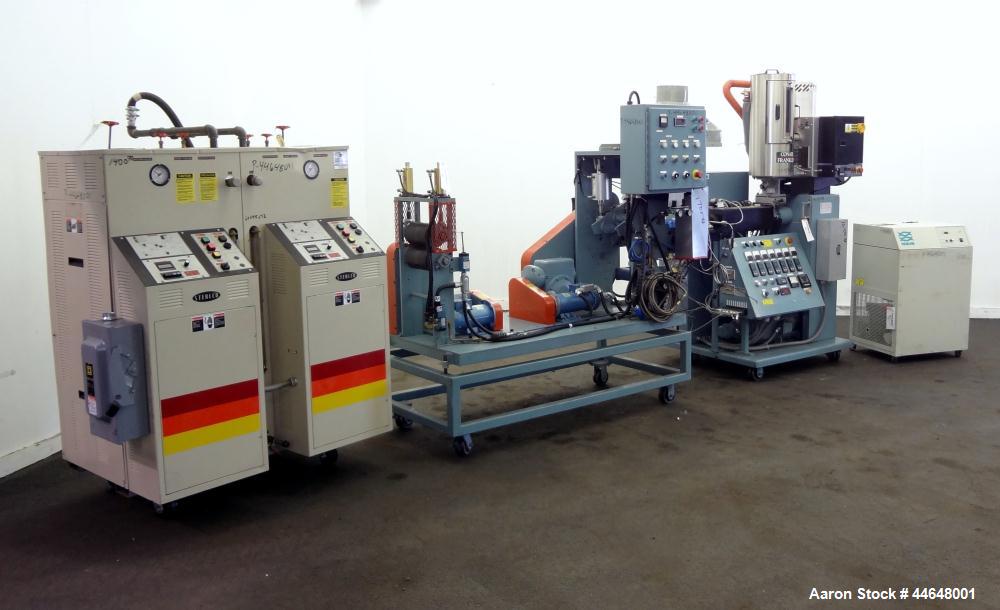

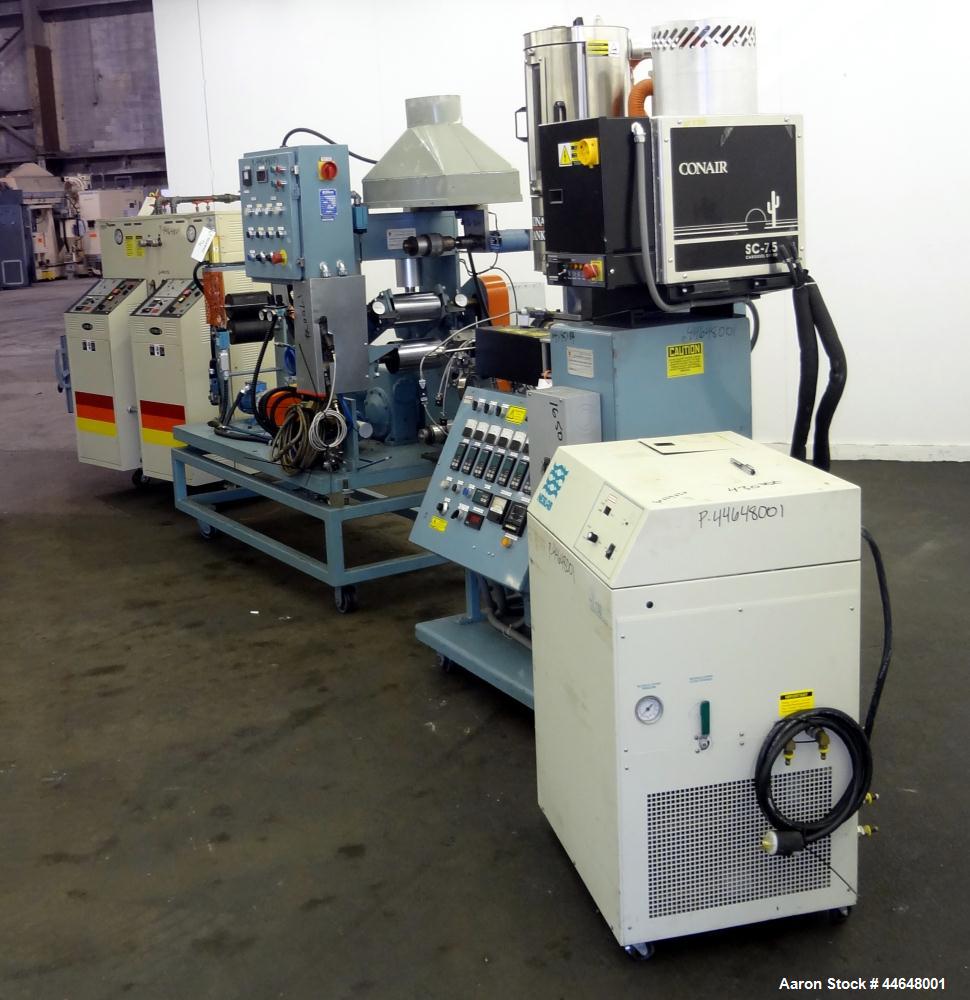

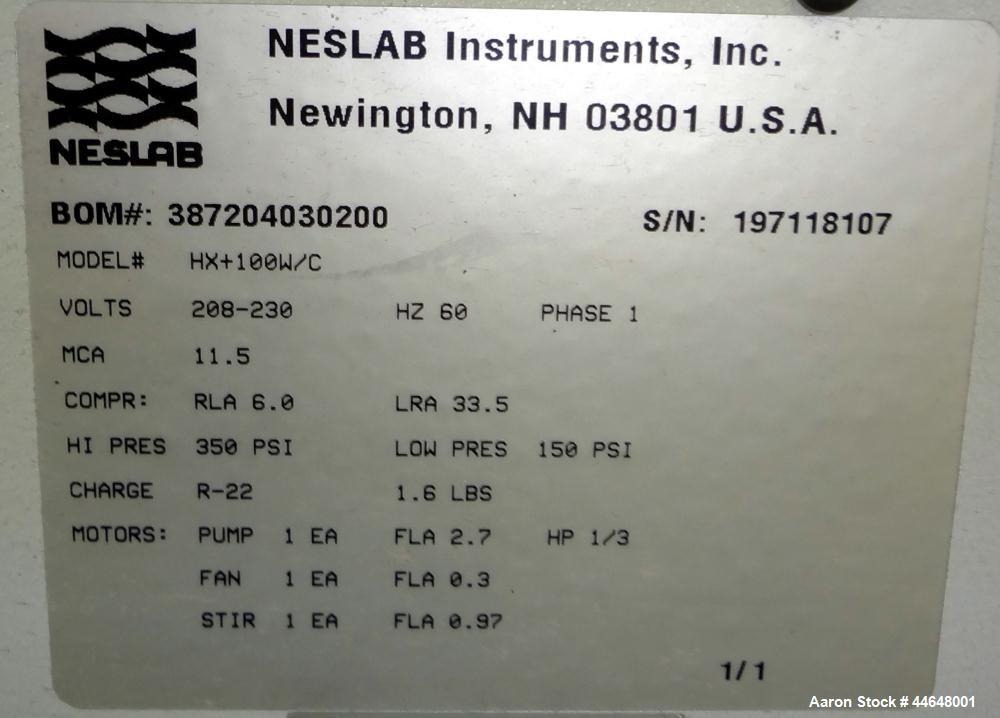

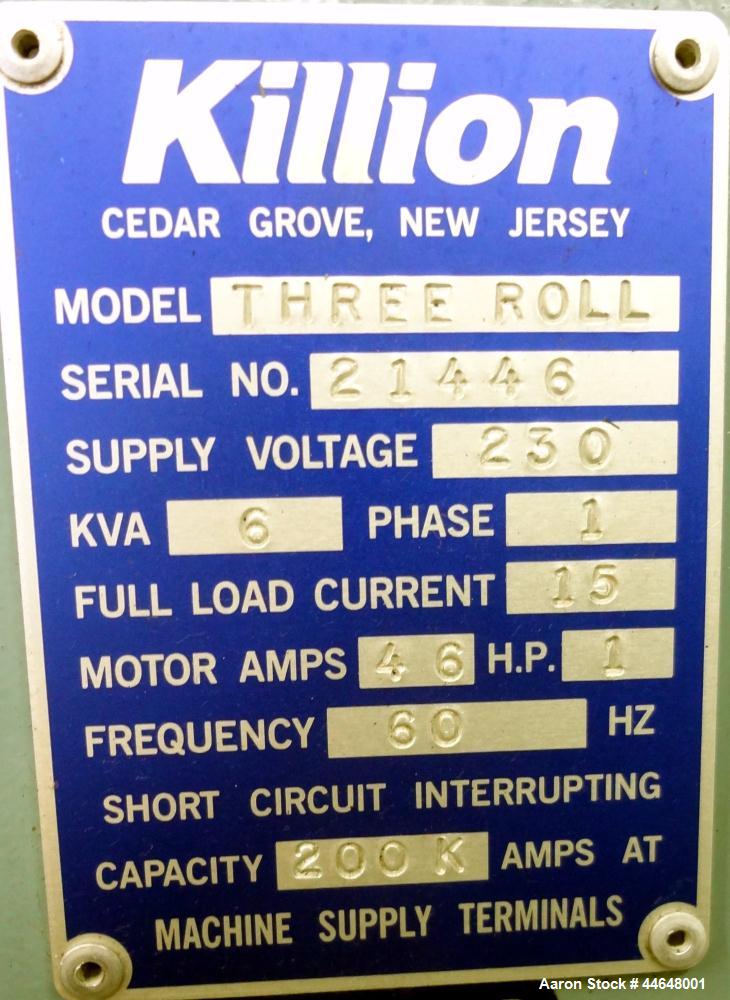

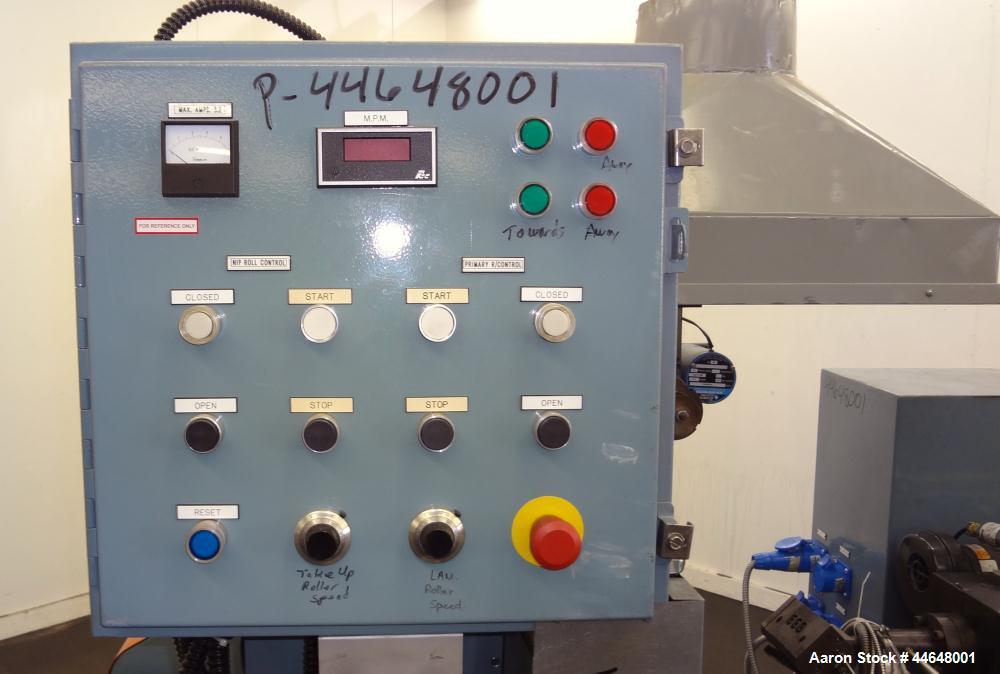

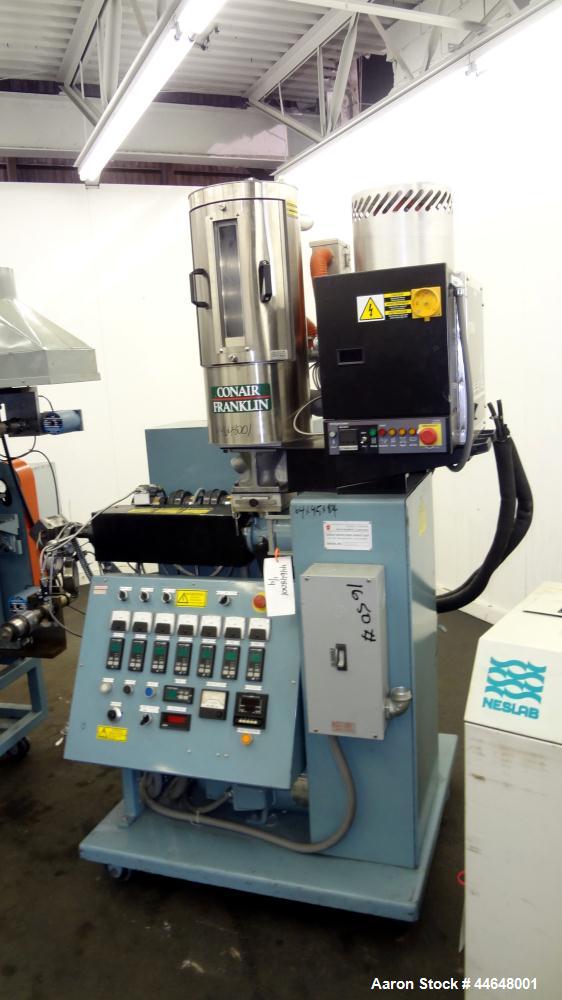

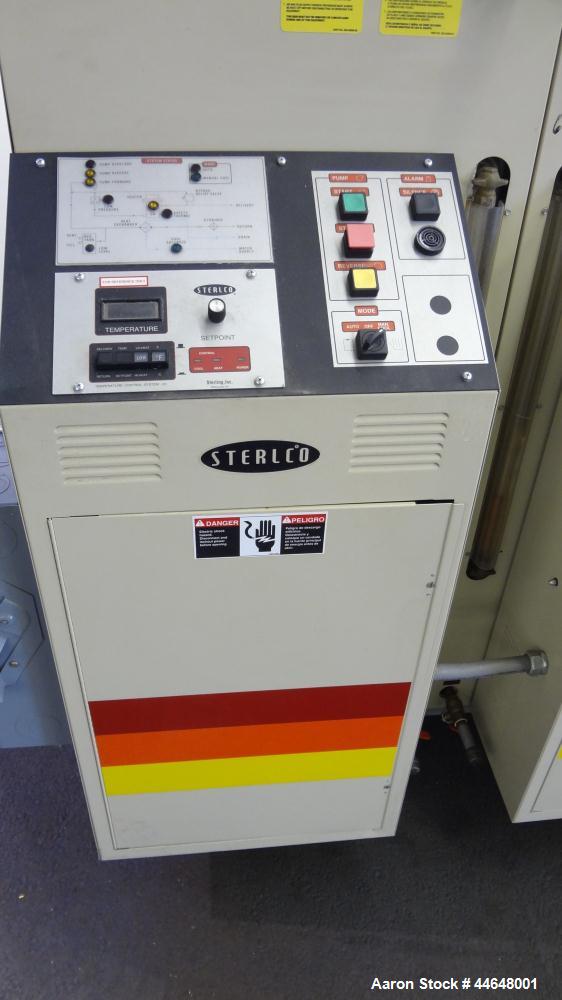

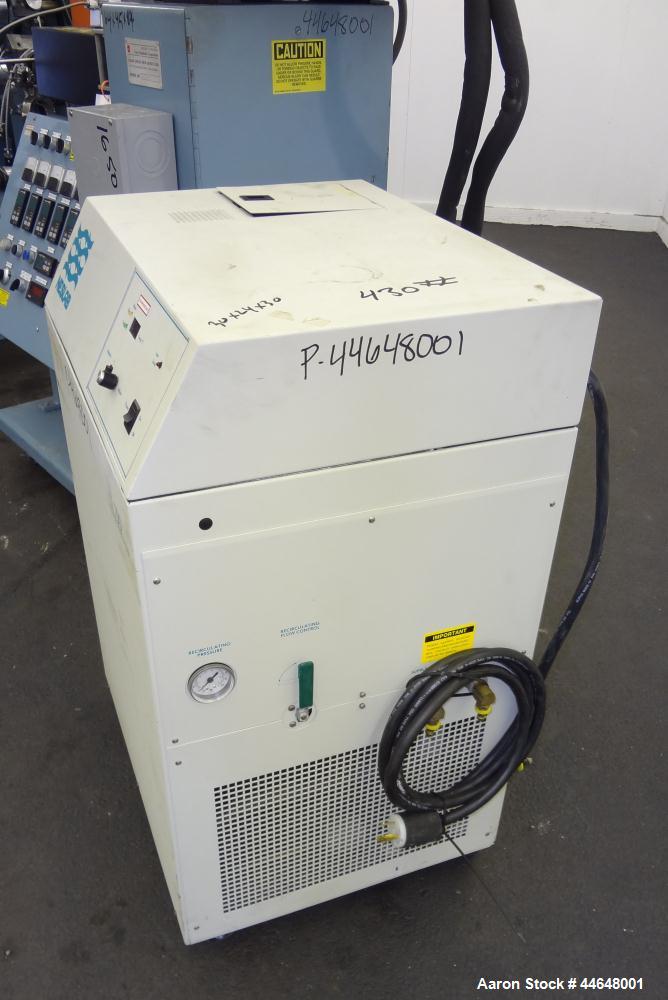

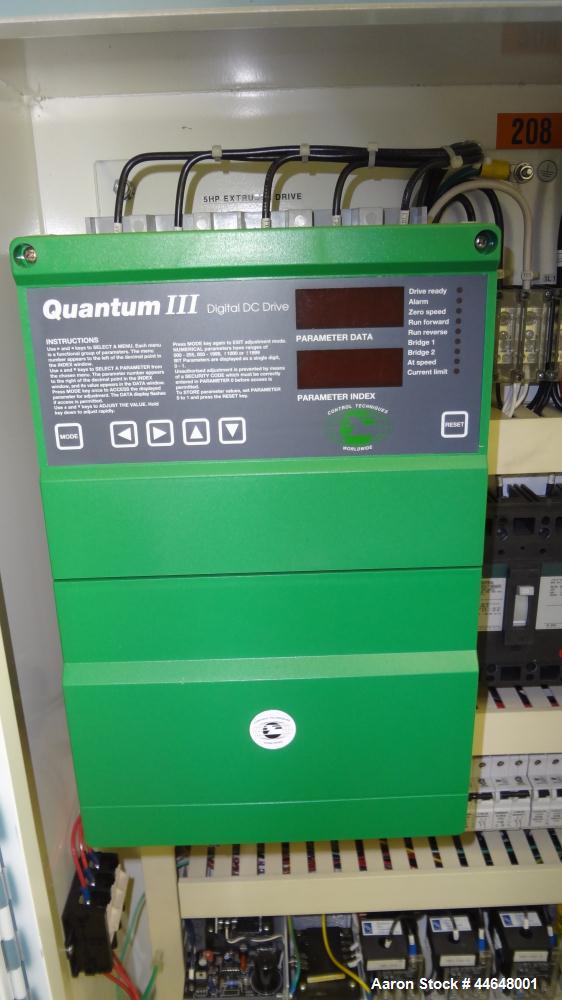

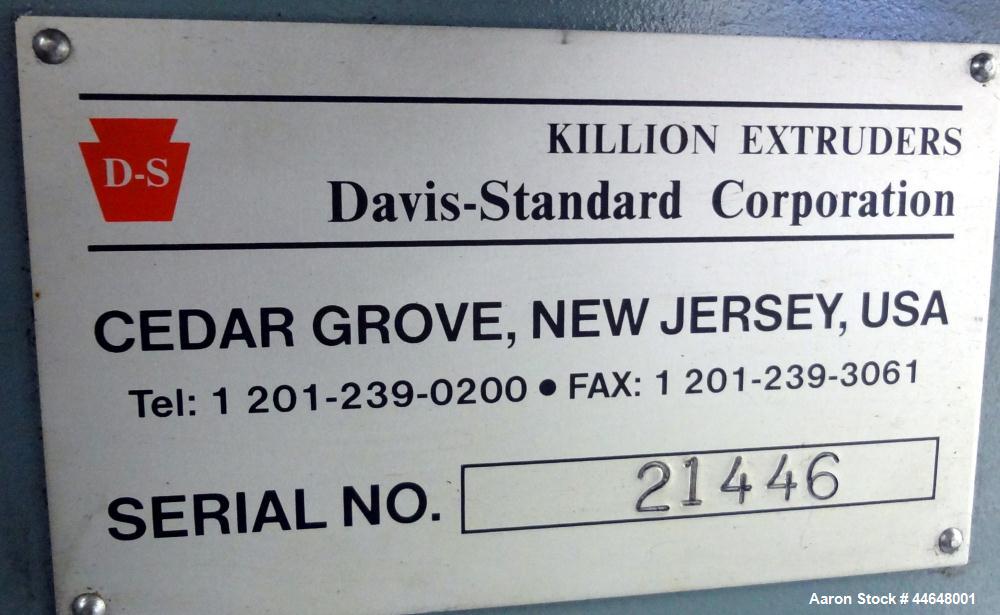

Used Davis Standard Killion 2” Wide Sheet Line Consisting Of: (1) Davis Standard Killion 1” single screw extruder, approximately 24 to 1 L/D ratio. Electrically heated, air-cooled 4 zone non-vented barrel. Water cooled feed throat. Approximately 42” centerline height. Driven by a 5 hp, 240 volt, 1750 rpm DC gear motor thru a Dodge TXT2 torque arm reducer. Includes an operator panel with HES controllers, a control panel with a Quantum III digital DC drive, and a 10 KVA transformer. Mounted on a base with casters, serial# 21445. (1) Conair Franklin SC-7.5 Carousel Dryer, approximate 7.5 cfm, drying temperature range 150 to 375 degrees F, (1) Conair model CH10-1 drying hopper, volume 1 cubic feet. (1) Neslab recirculating chiller, model HX100, serial# 197118107, mounted on casters. (1) Davis Standard Killion 2 roll sheet stack. (2) Chrome cored rolls, approximate 5” diameter x 8” wide, pneumatically adjustable, driven by an a 1 hp DC gear motor, (2) end mounted rubber pull rolls, each 5” diameter x 8” wide, driven by a 3/4 hp DC gear motor. Mounted on a frame with casters, serial# 21446. (1) Sterlco dual temperature controller, model S9026-J, serial# 97C5327. (2) 12kW heaters. Mounted on casters.
Used Davis Standard Killion 2” Wide Sheet Line Consisting Of: (1) Davis Standard Killion 1” single screw extruder, approximately 24 to 1 L/D ratio. Electrically heated, air-cooled 4 zone non-vented barrel. Water cooled feed throat. Approximately 42” centerline height. Driven by a 5 hp, 240 volt, 1750 rpm DC gear motor thru a Dodge TXT2 torque arm reducer. Includes an operator panel with HES controllers, a control panel with a Quantum III digital DC drive, and a 10 KVA transformer. Mounted on a base with casters, serial# 21445. (1) Conair Franklin SC-7.5 Carousel Dryer, approximate 7.5 cfm, drying temperature range 150 to 375 degrees F, (1) Conair model CH10-1 drying hopper, volume 1 cubic feet. (1) Neslab recirculating chiller, model HX100, serial# 197118107, mounted on casters. (1) Davis Standard Killion 2 roll sheet stack. (2) Chrome cored rolls, approximate 5” diameter x 8” wide, pneumatically adjustable, driven by an a 1 hp DC gear motor, (2) end mounted rubber pull rolls, each 5” diameter x 8” wide, driven by a 3/4 hp DC gear motor. Mounted on a frame with casters, serial# 21446. (1) Sterlco dual temperature controller, model S9026-J, serial# 97C5327. (2) 12kW heaters. Mounted on casters.
