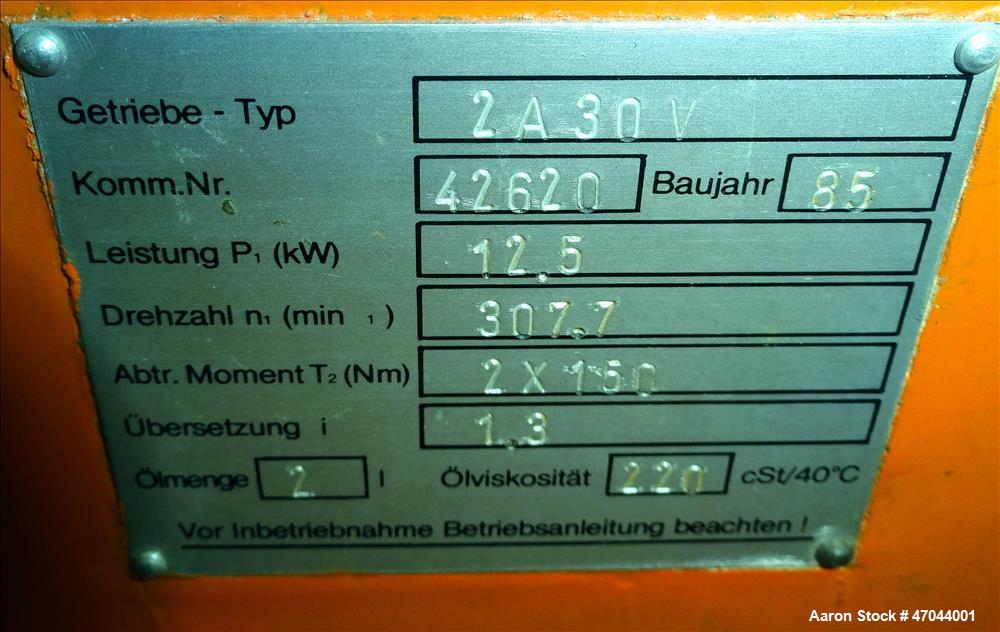

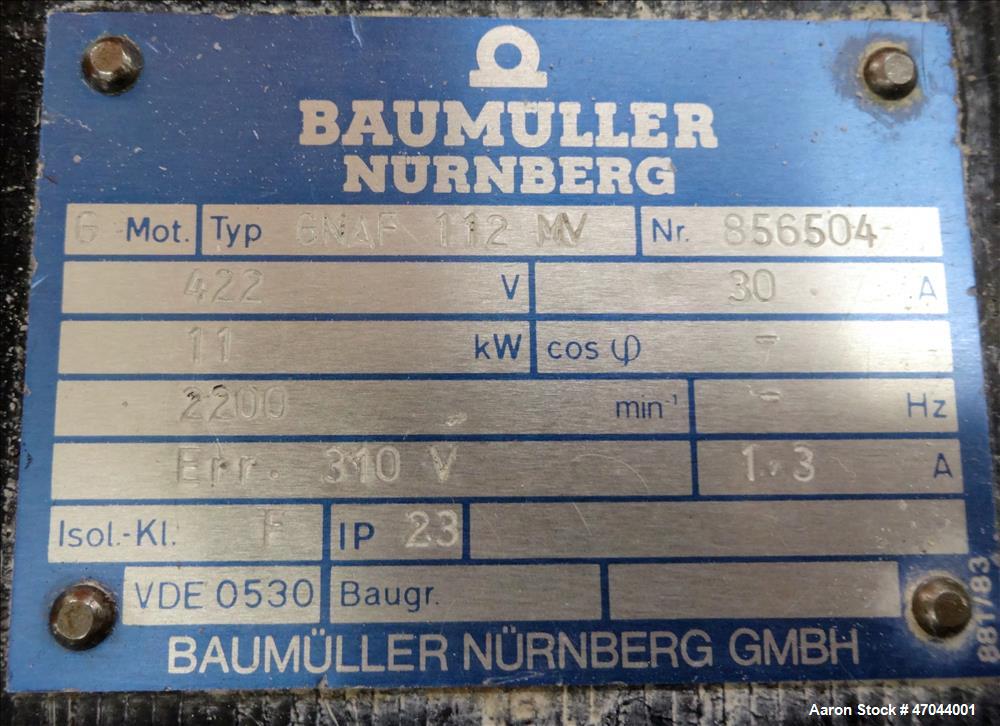

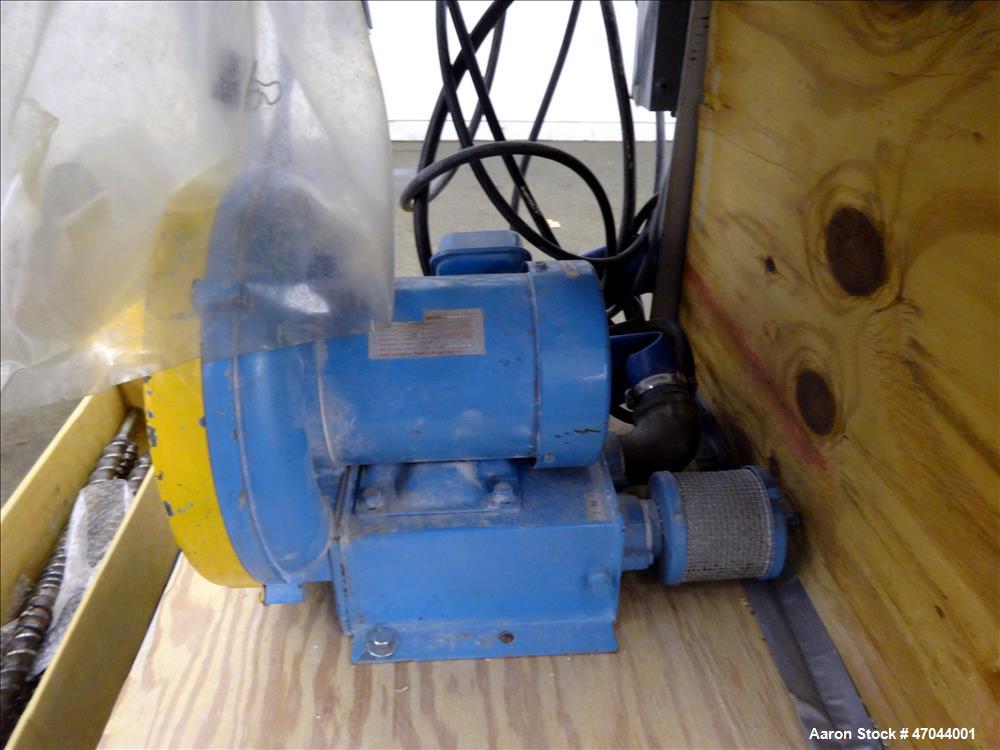

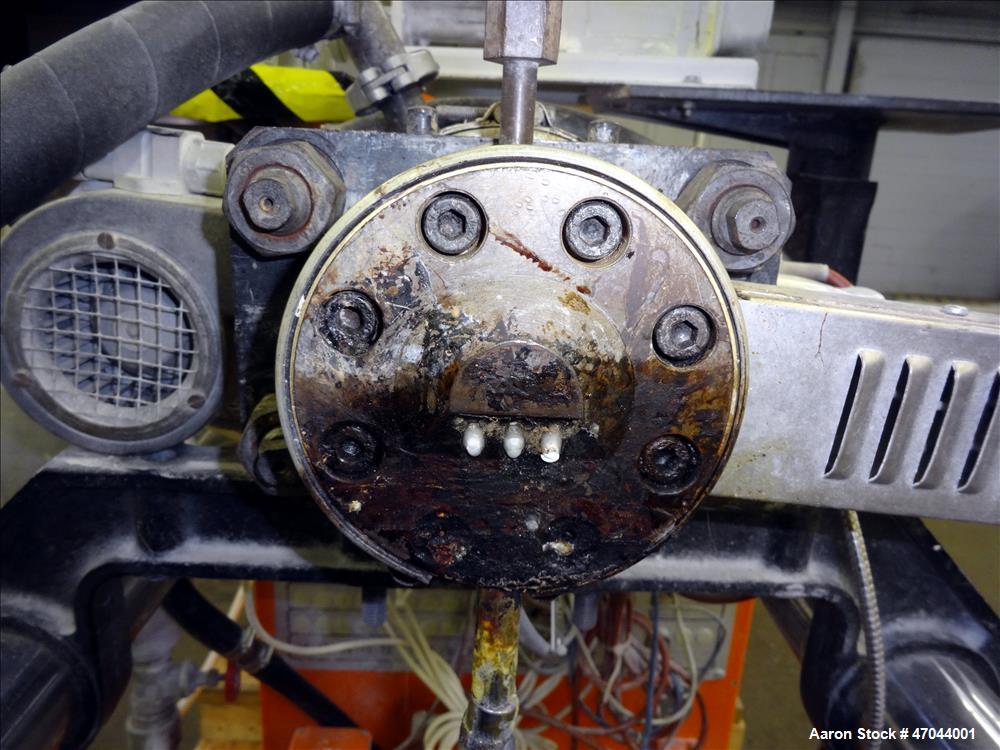

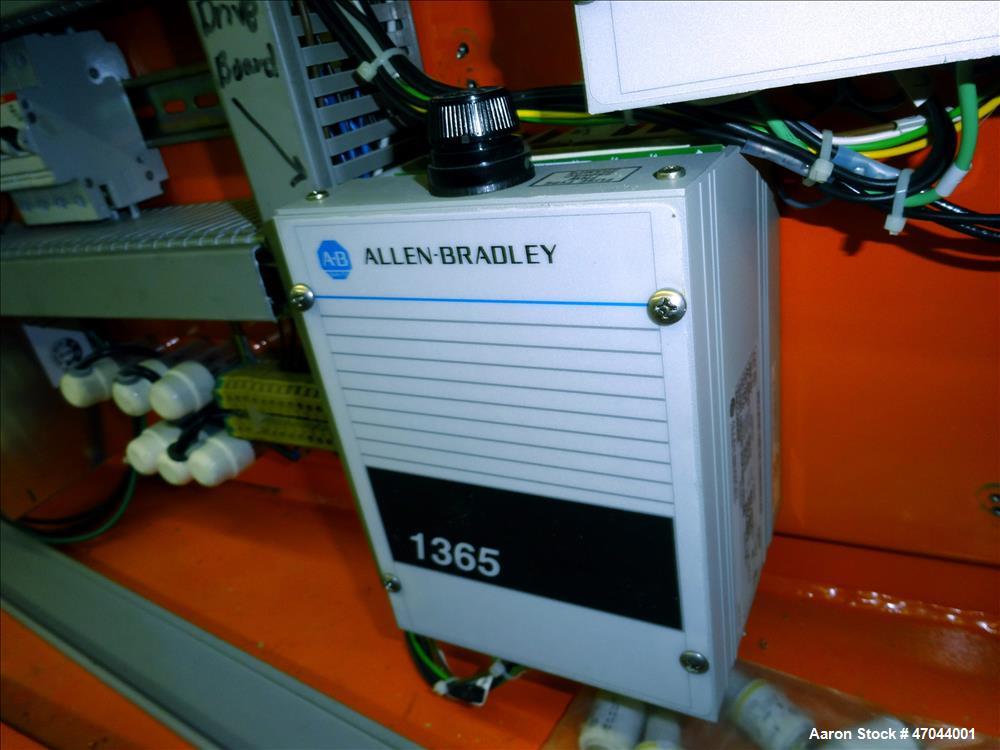

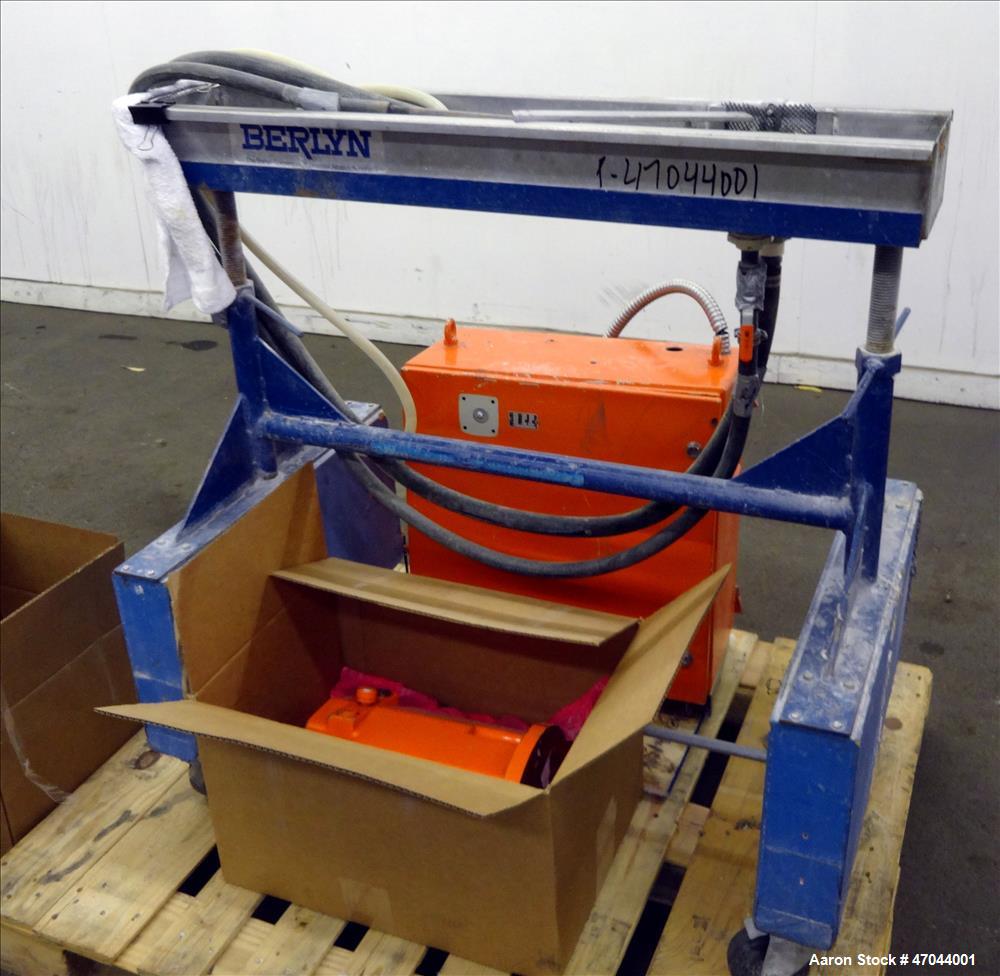

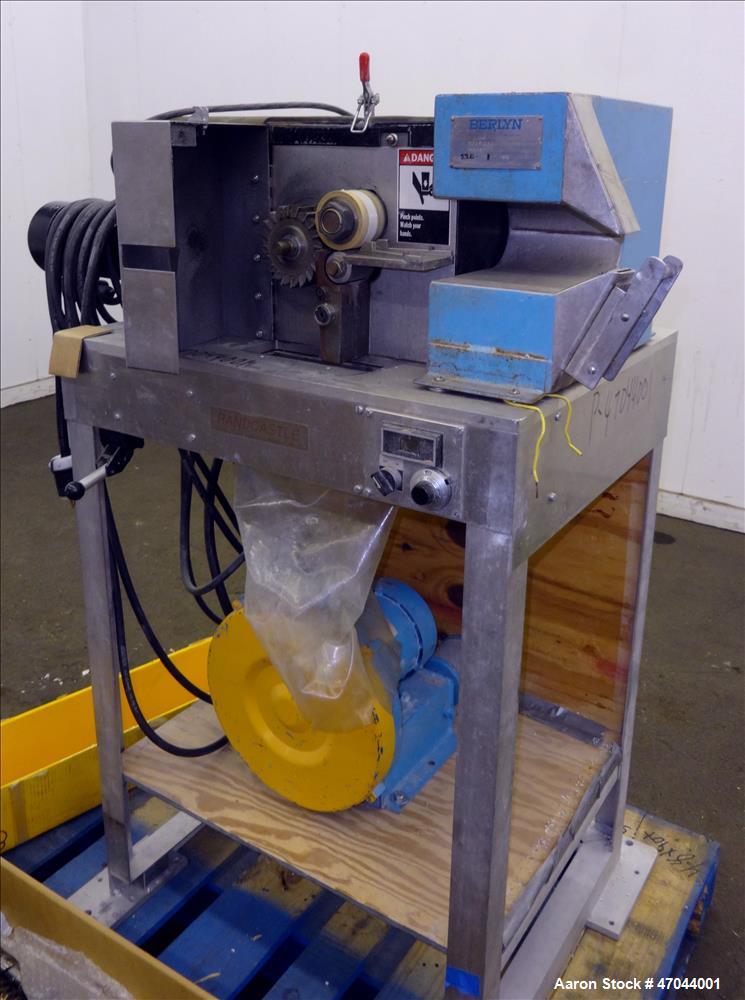

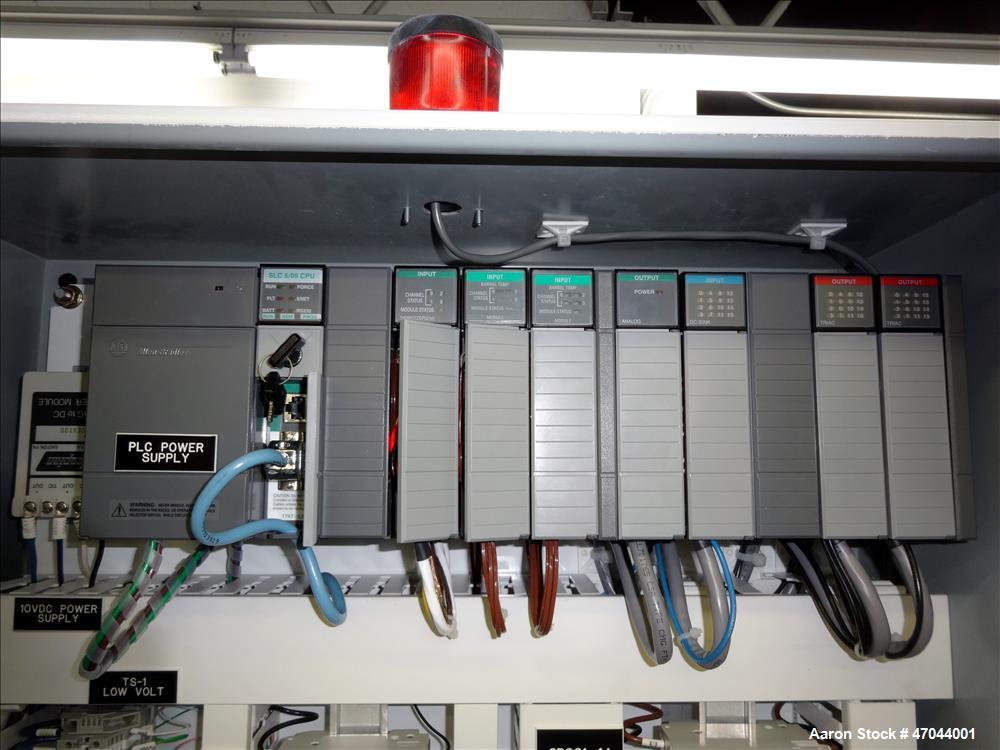

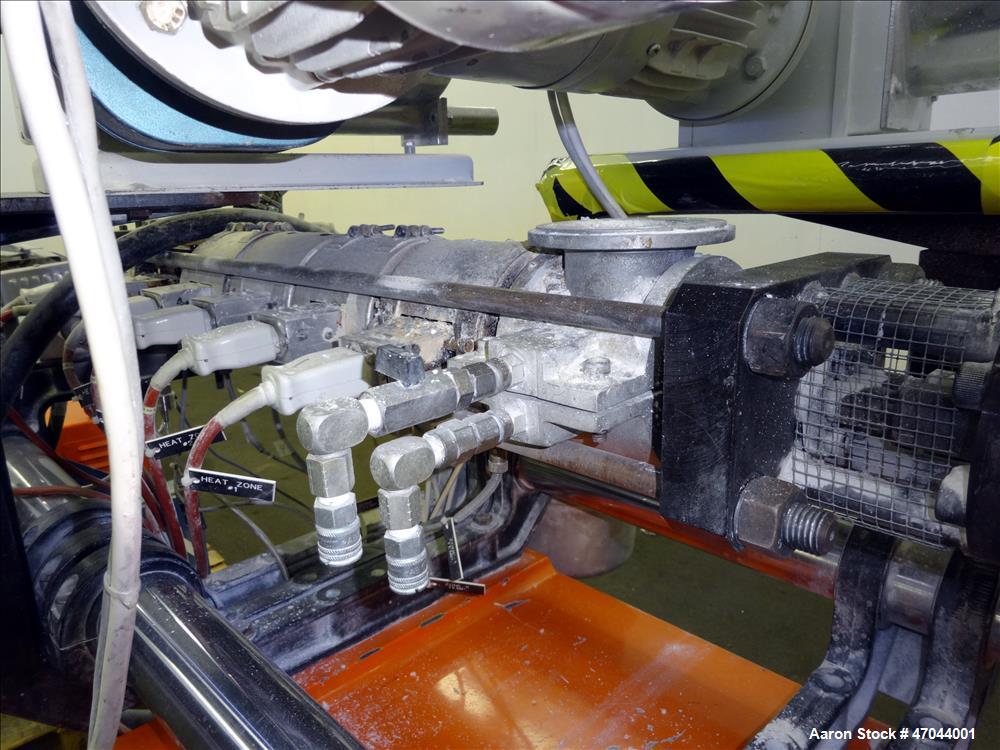

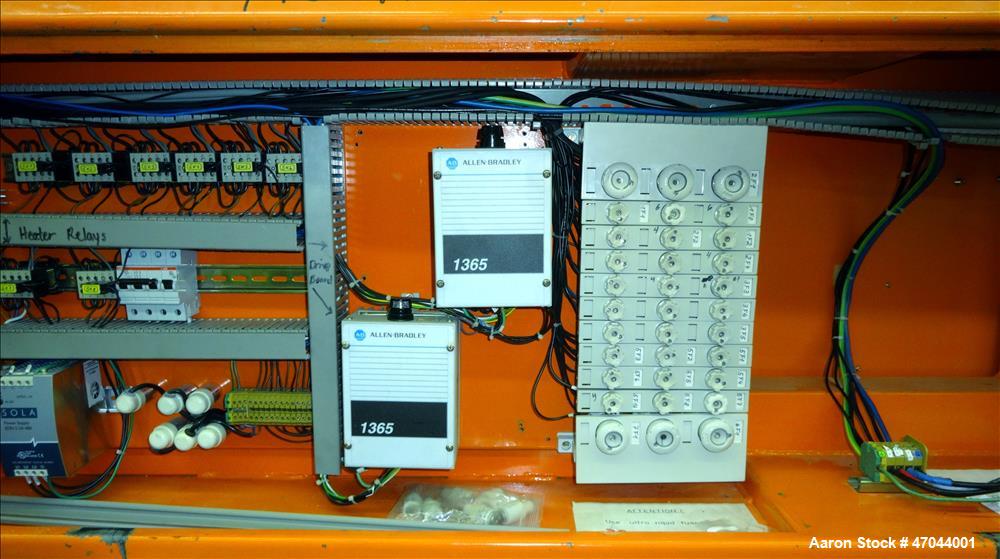

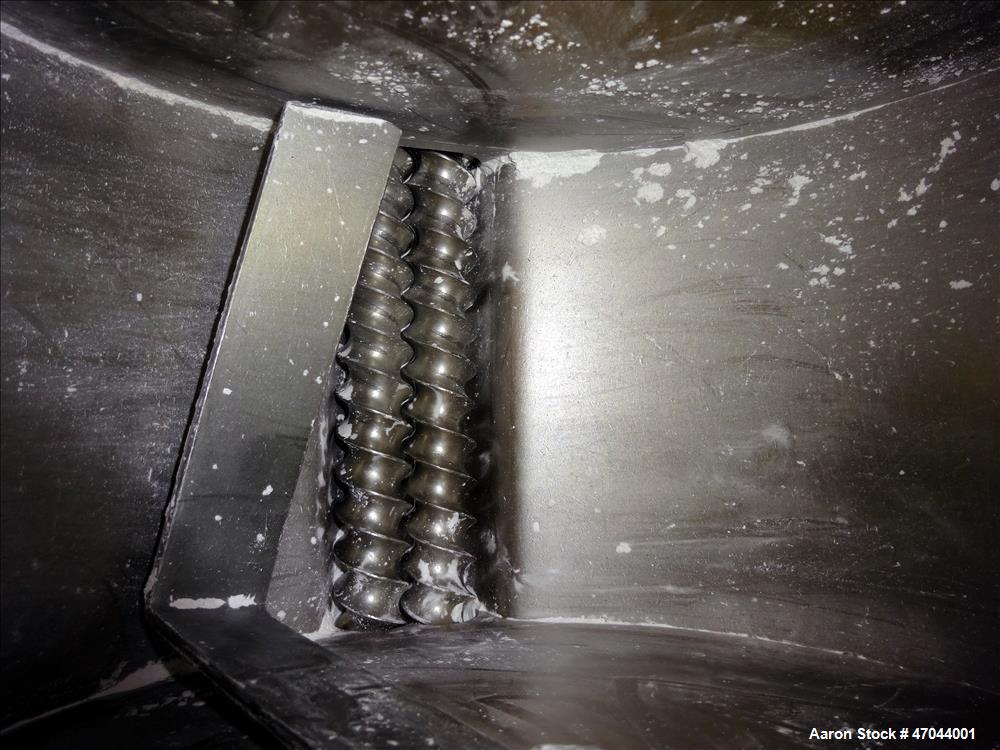

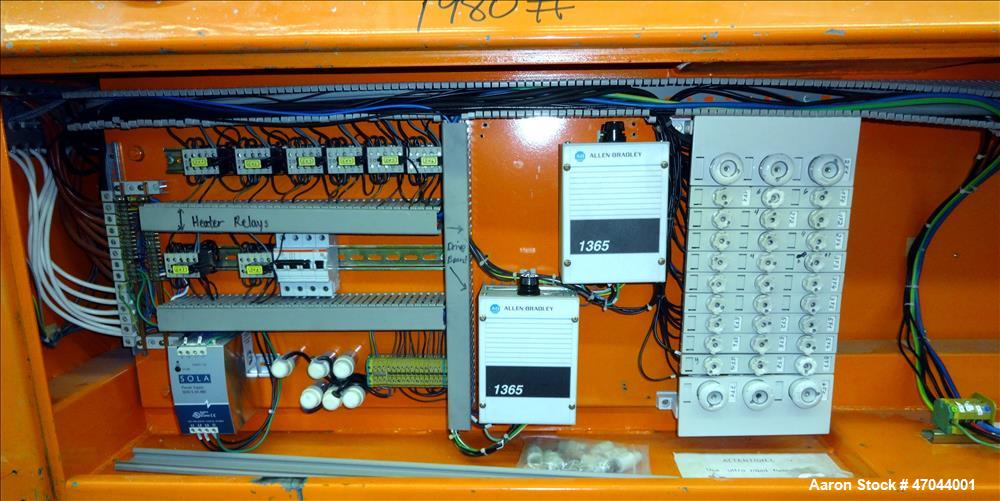

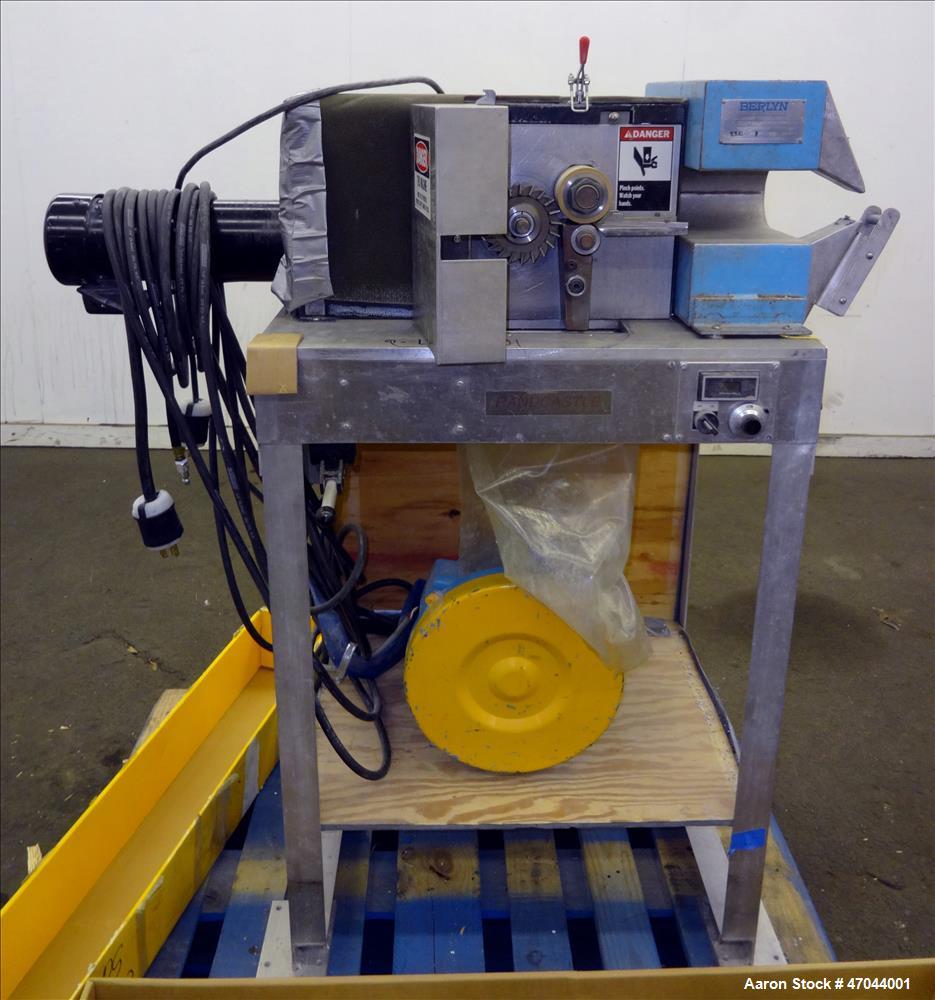

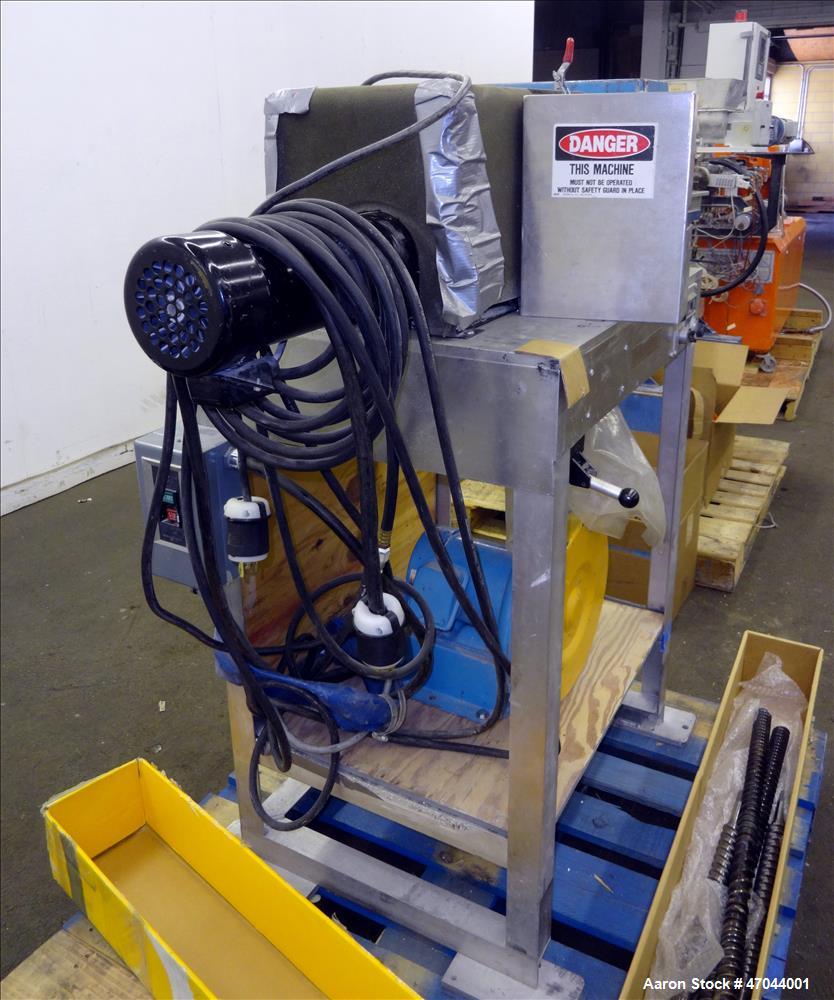

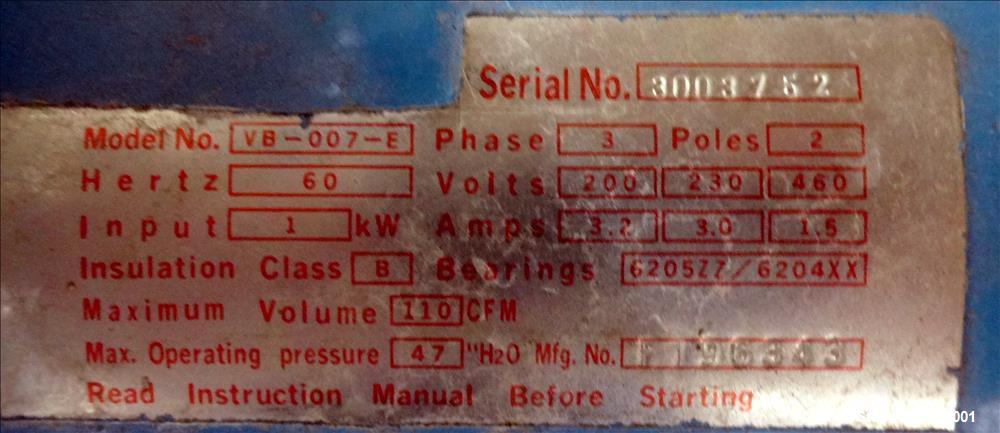

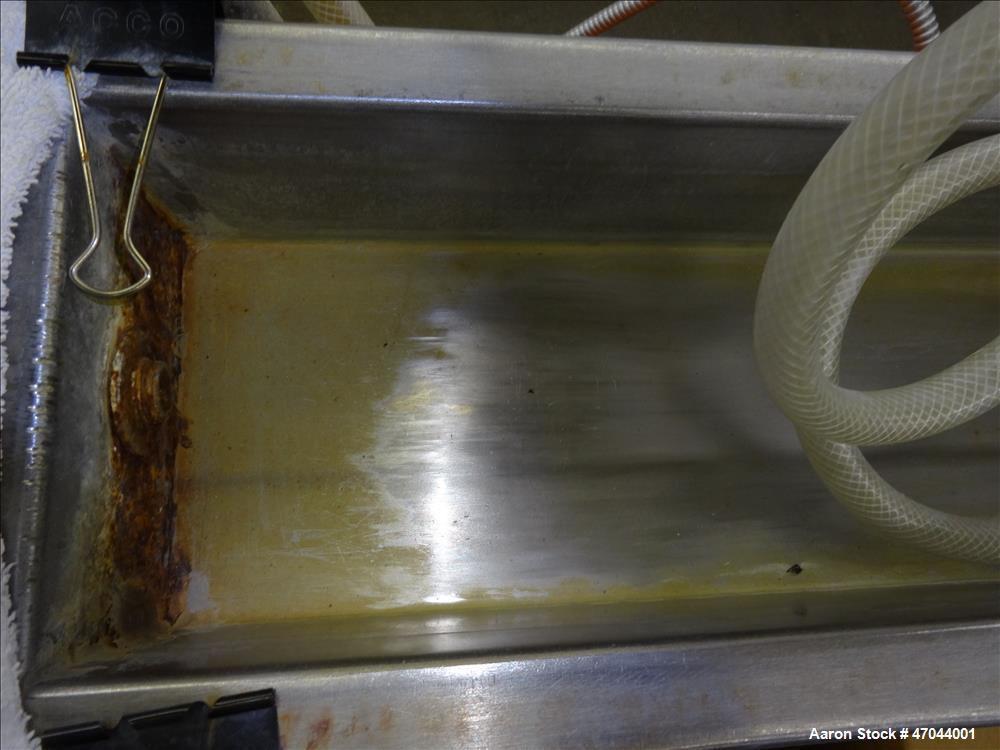

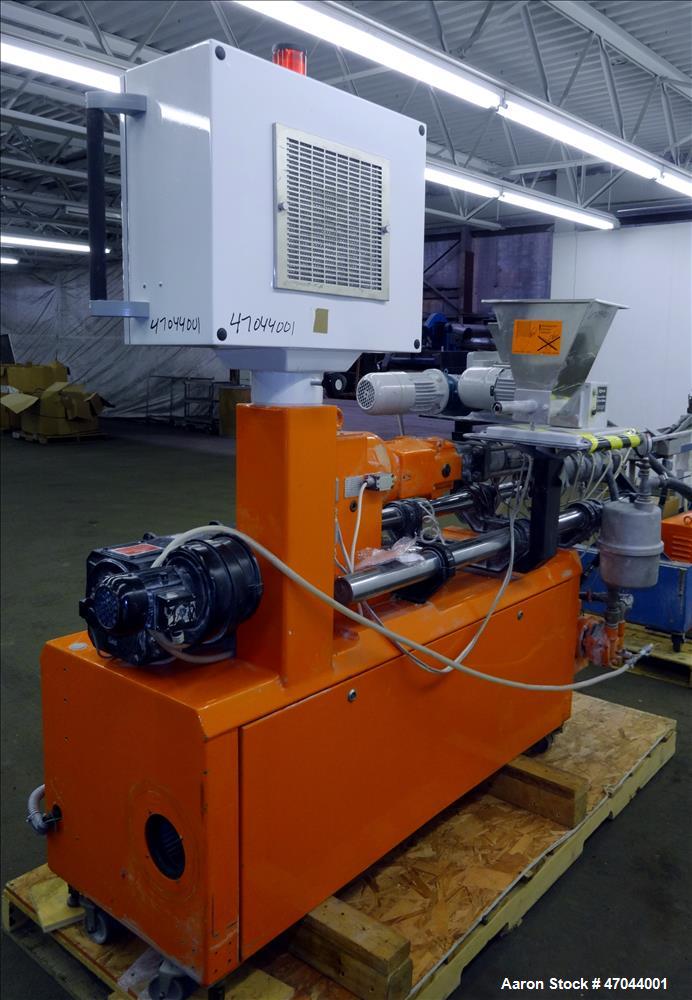

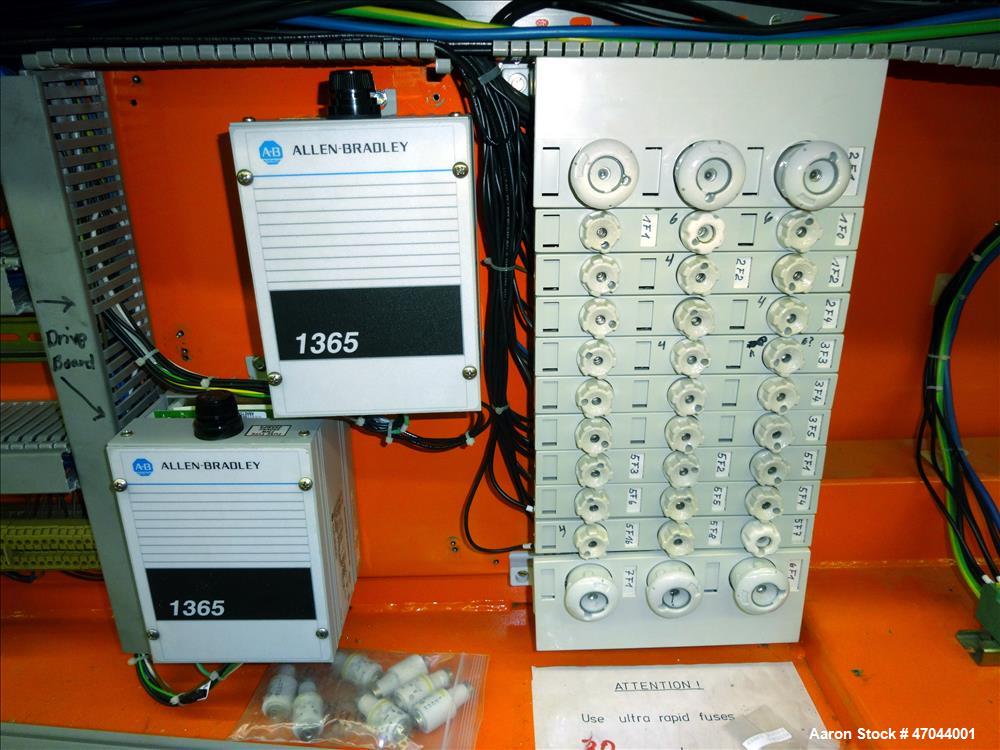

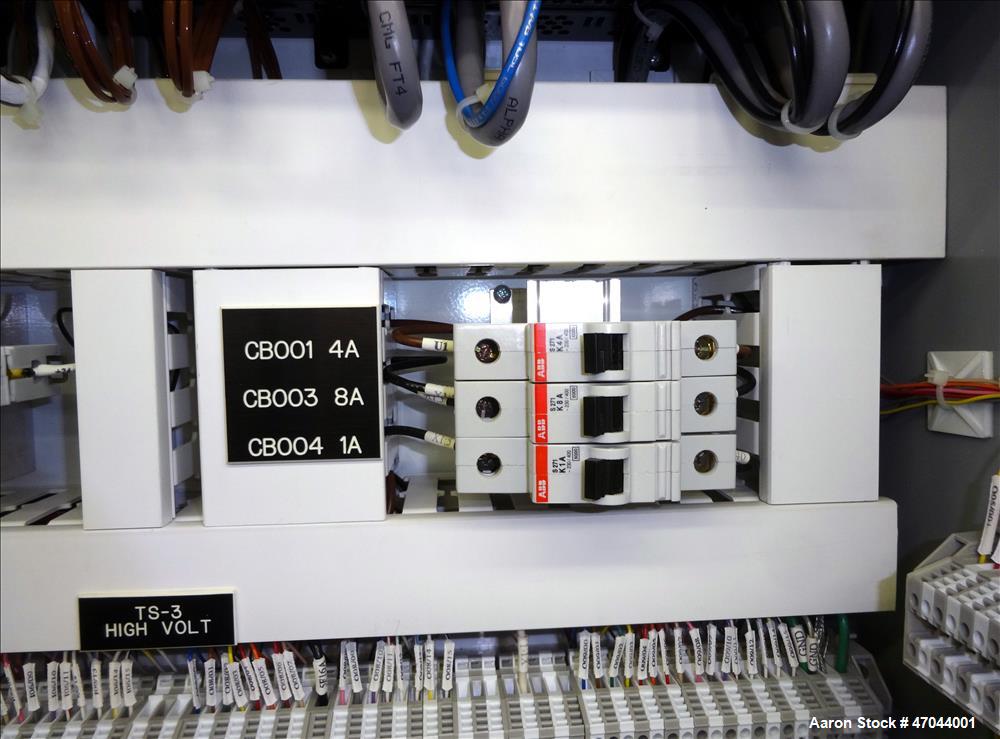

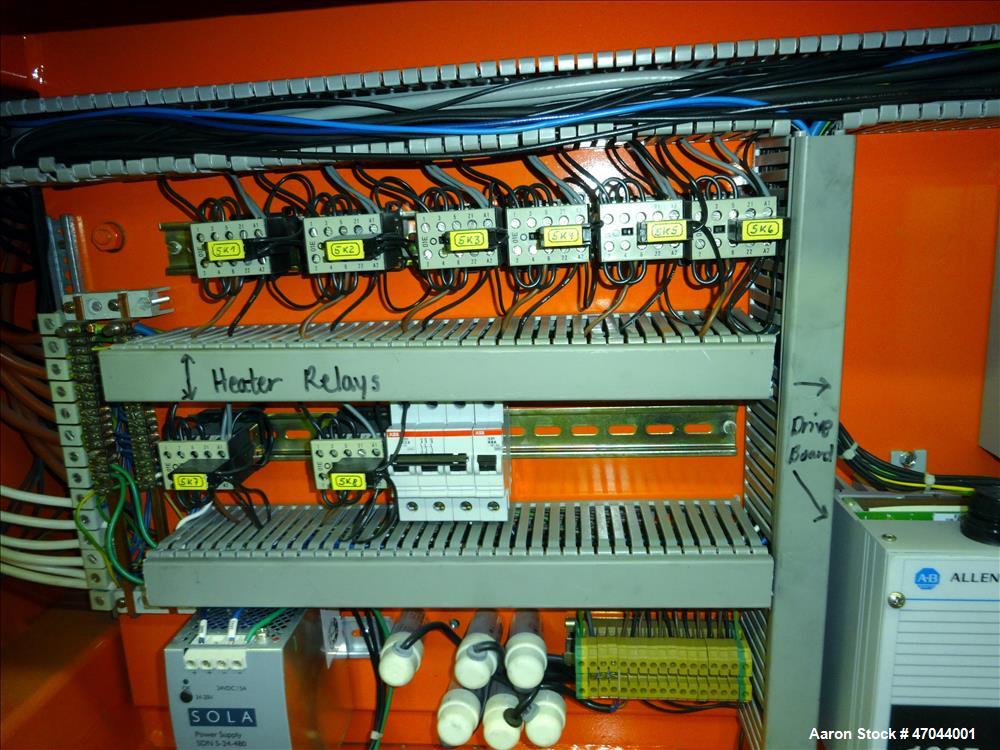

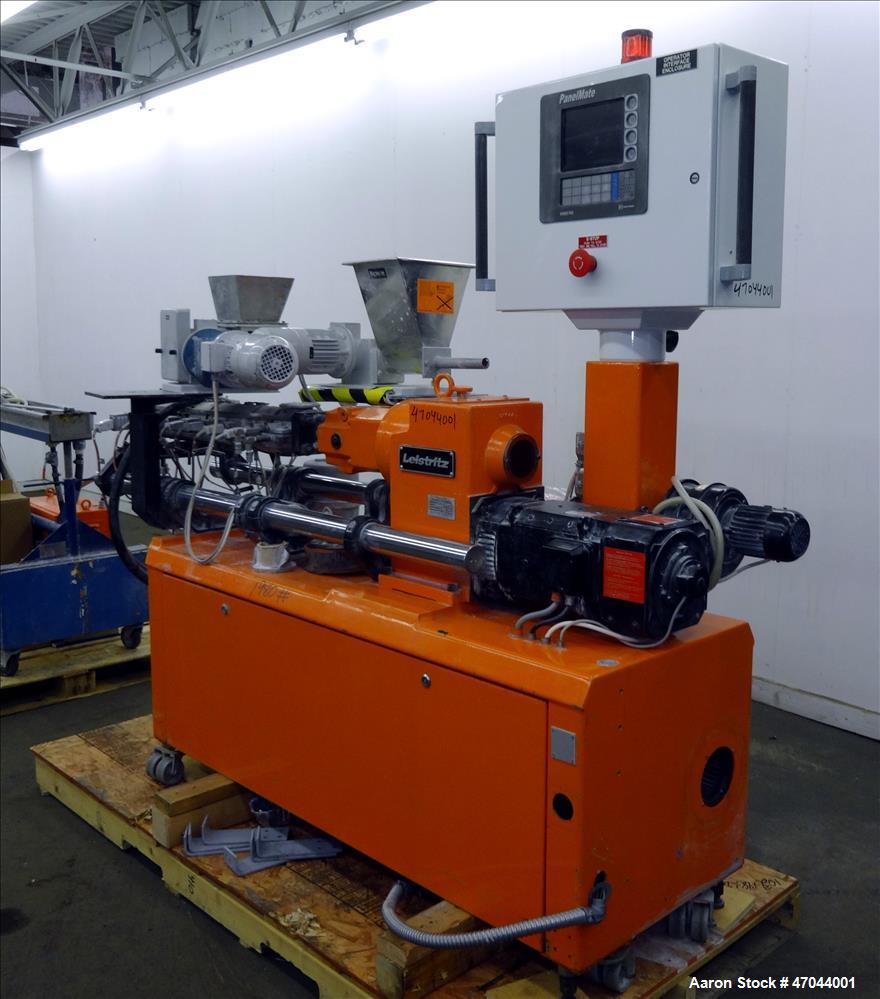

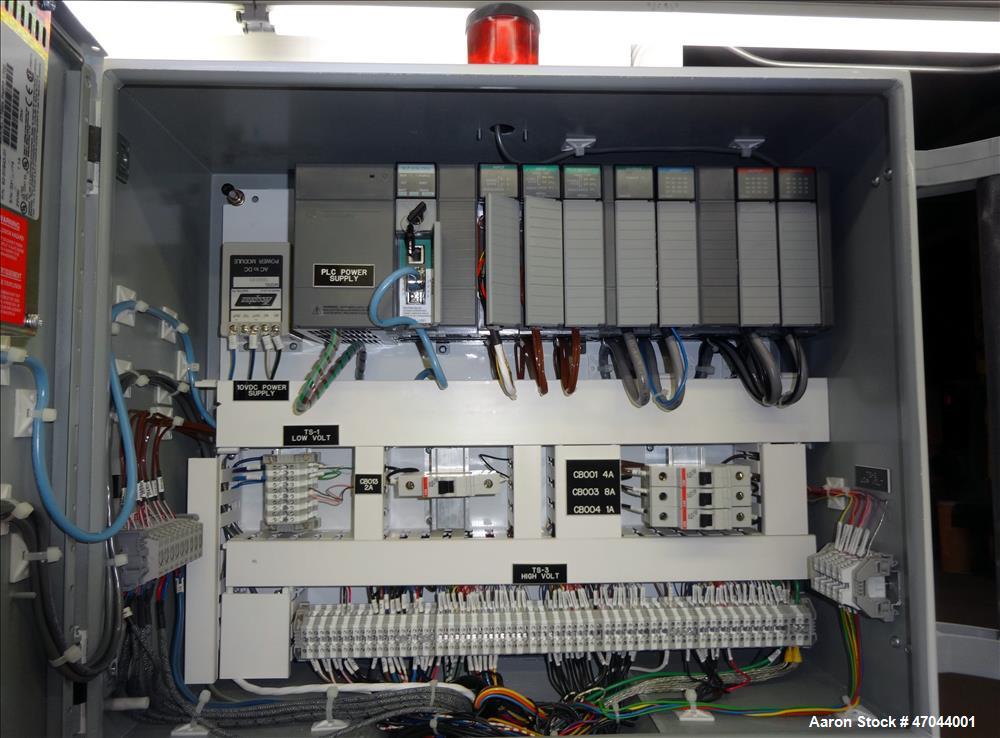

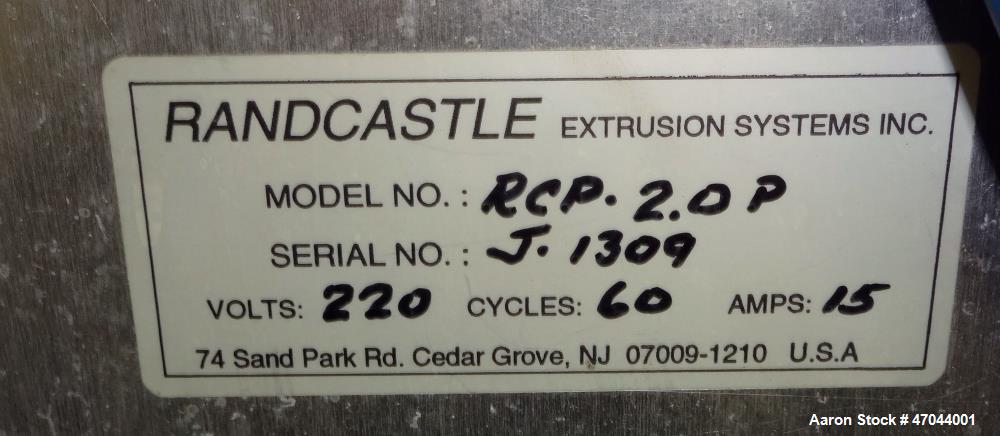

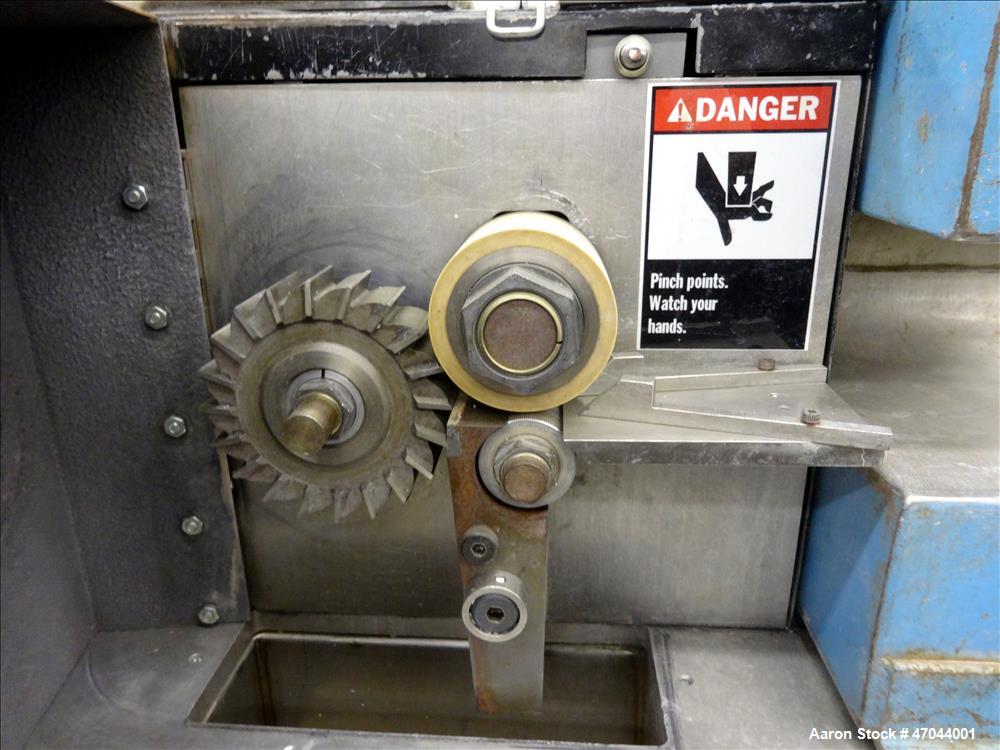

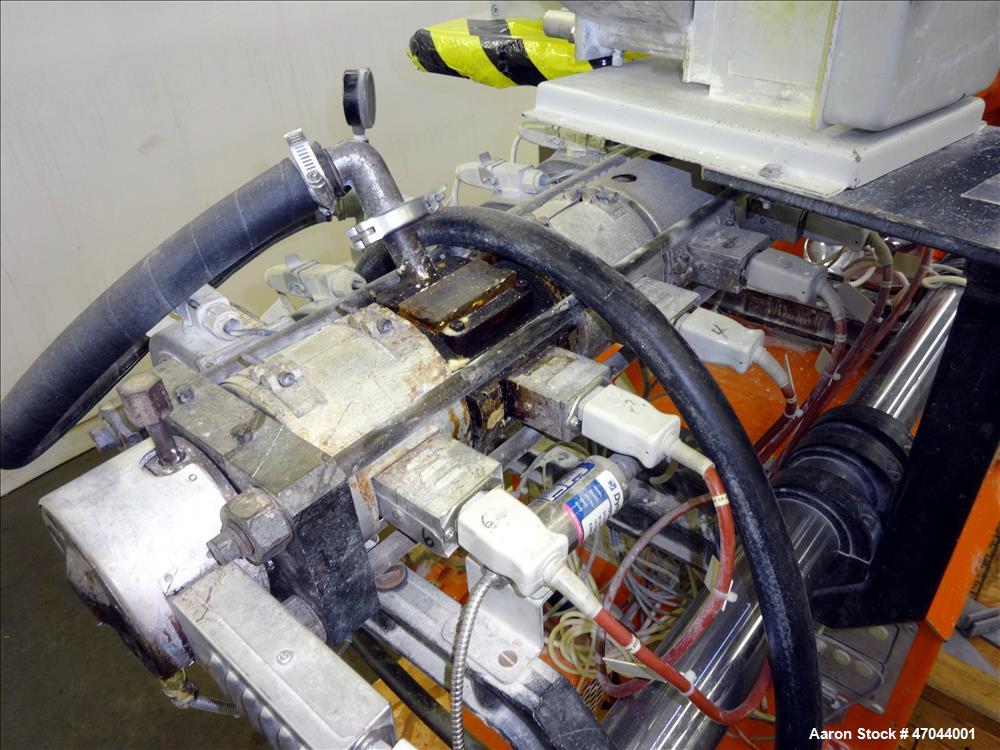

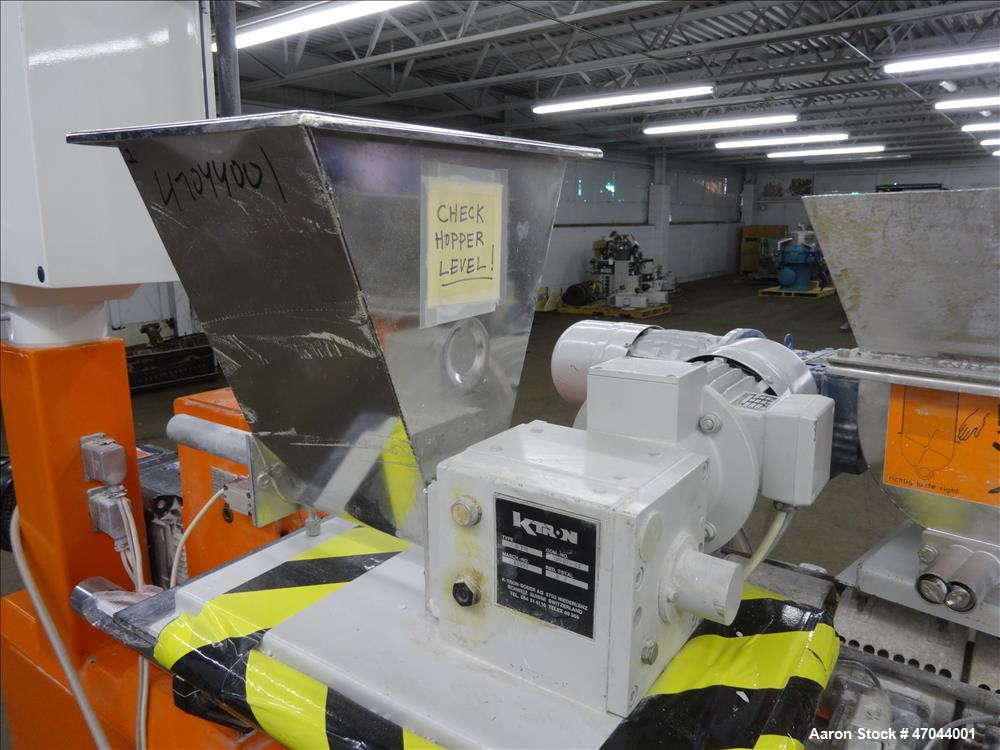

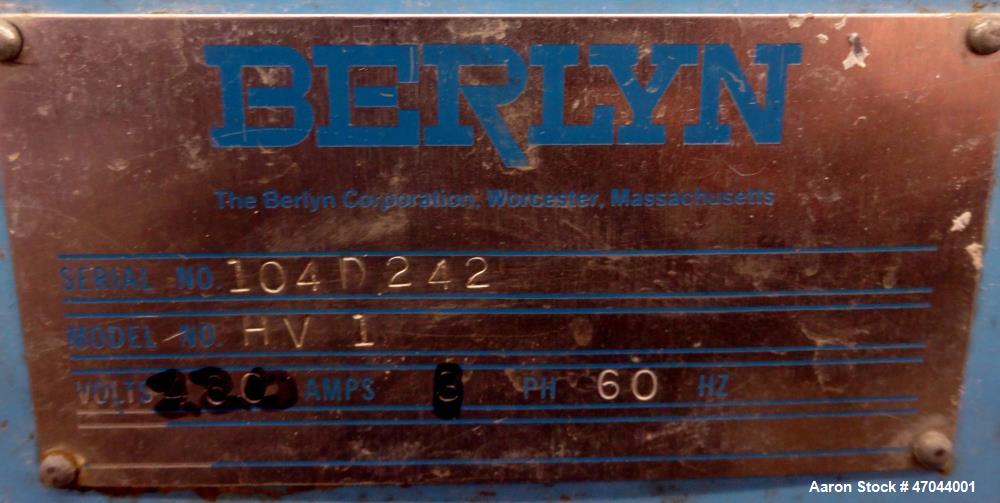

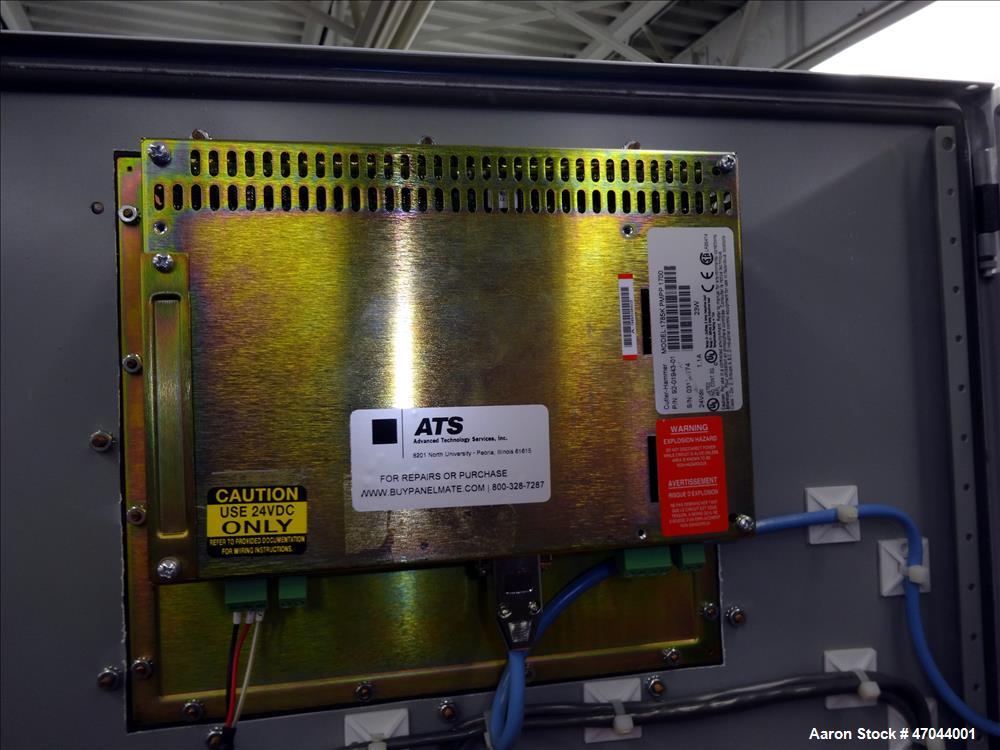

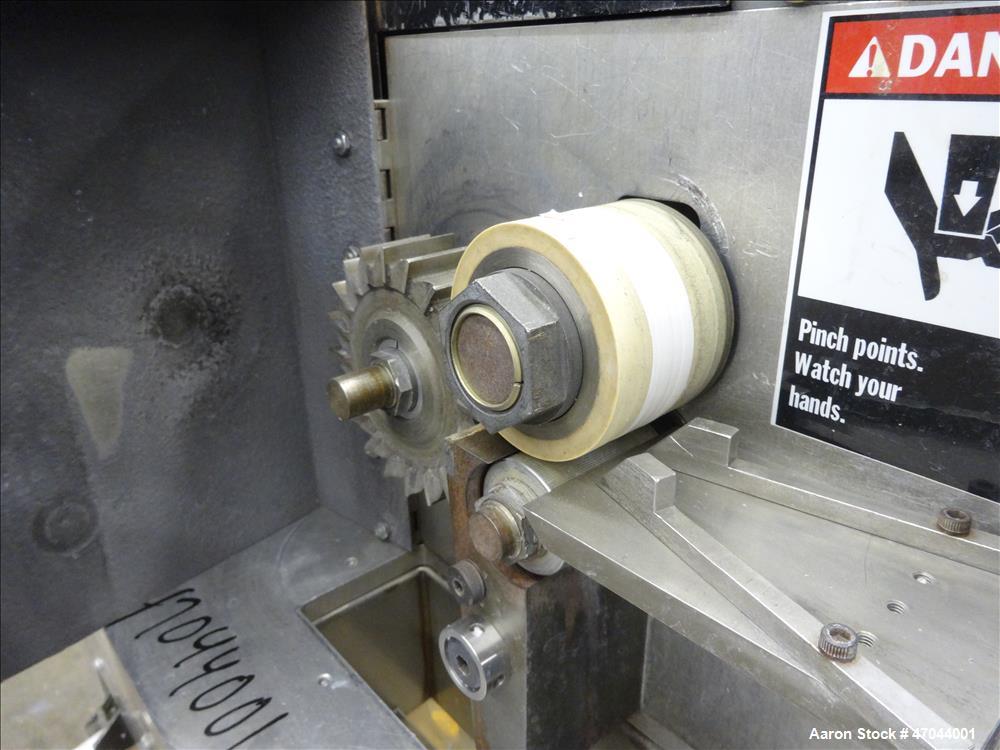

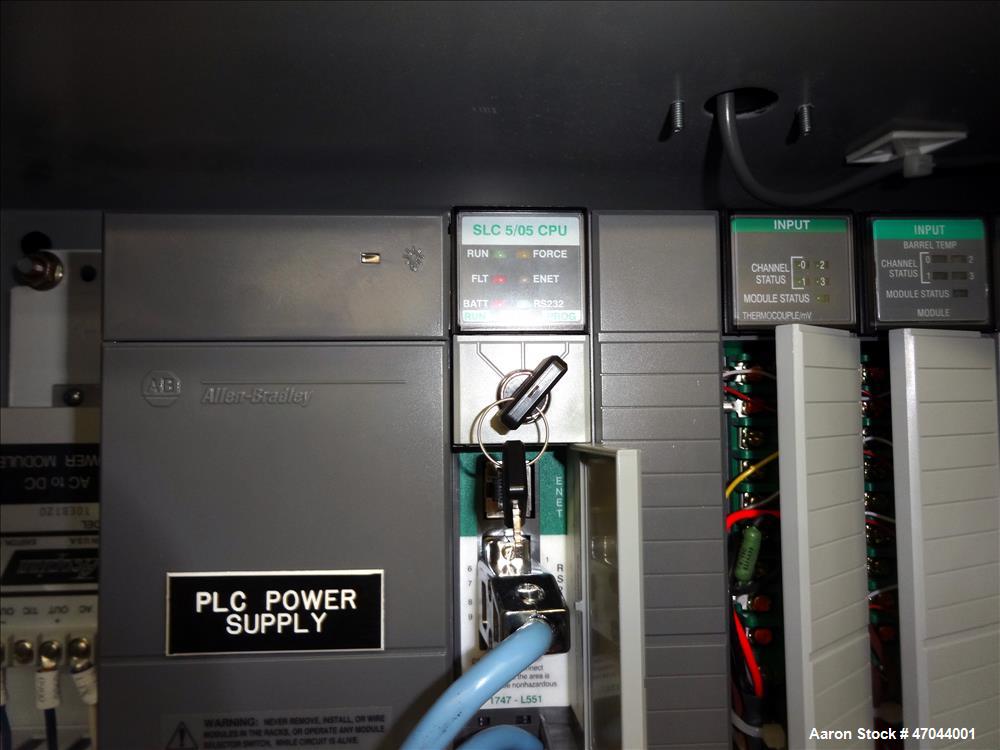

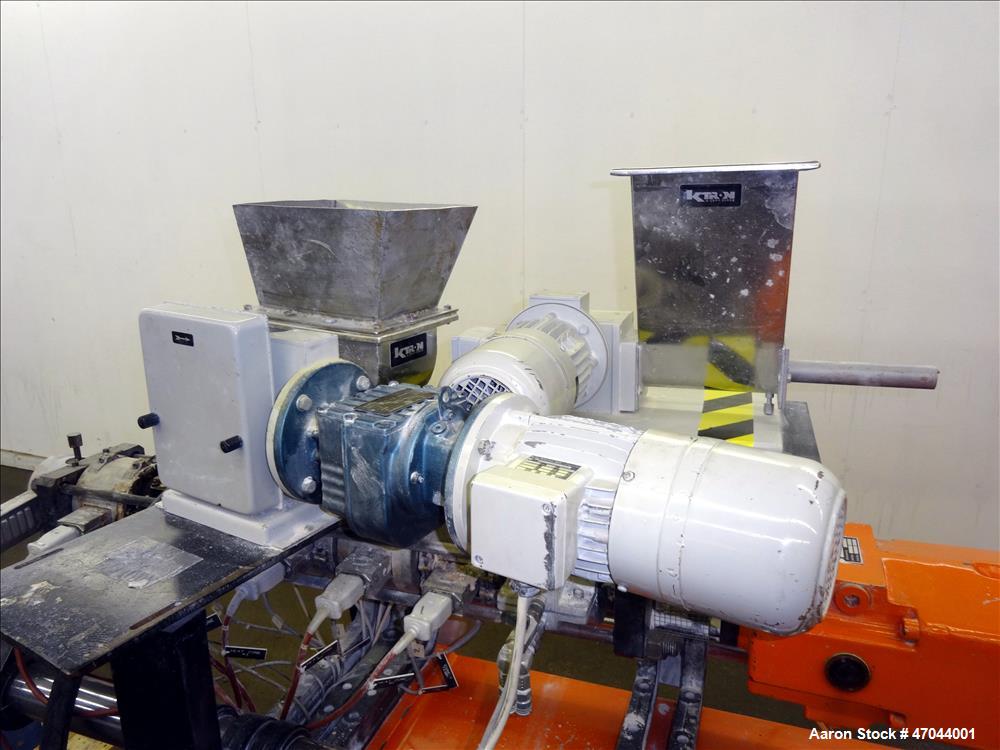

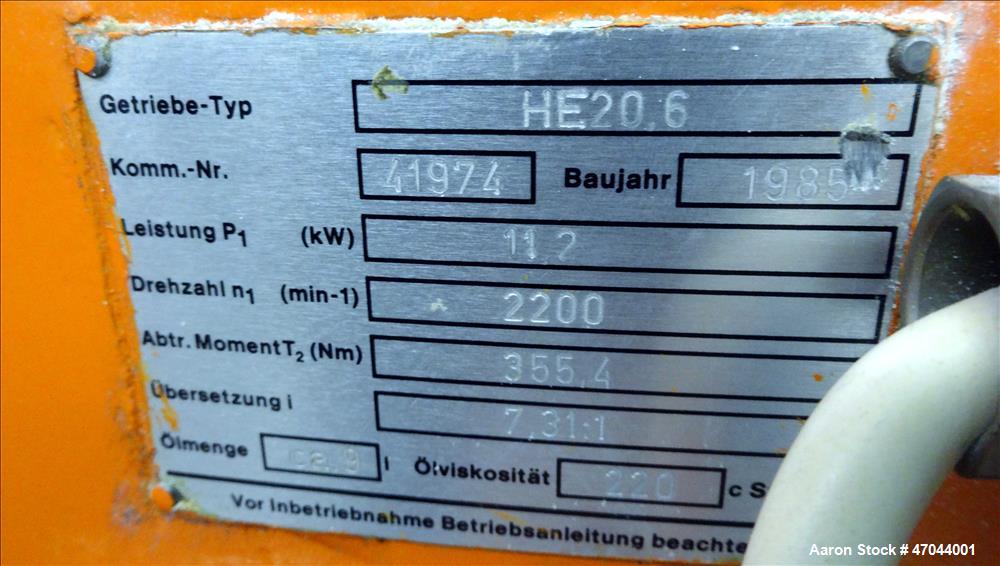

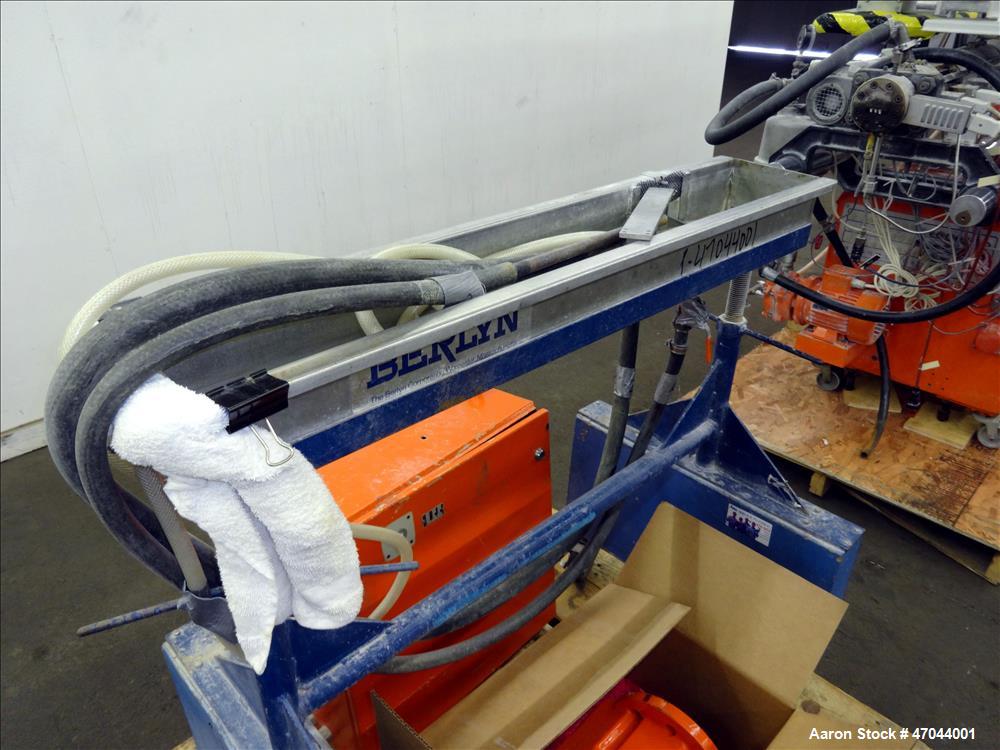

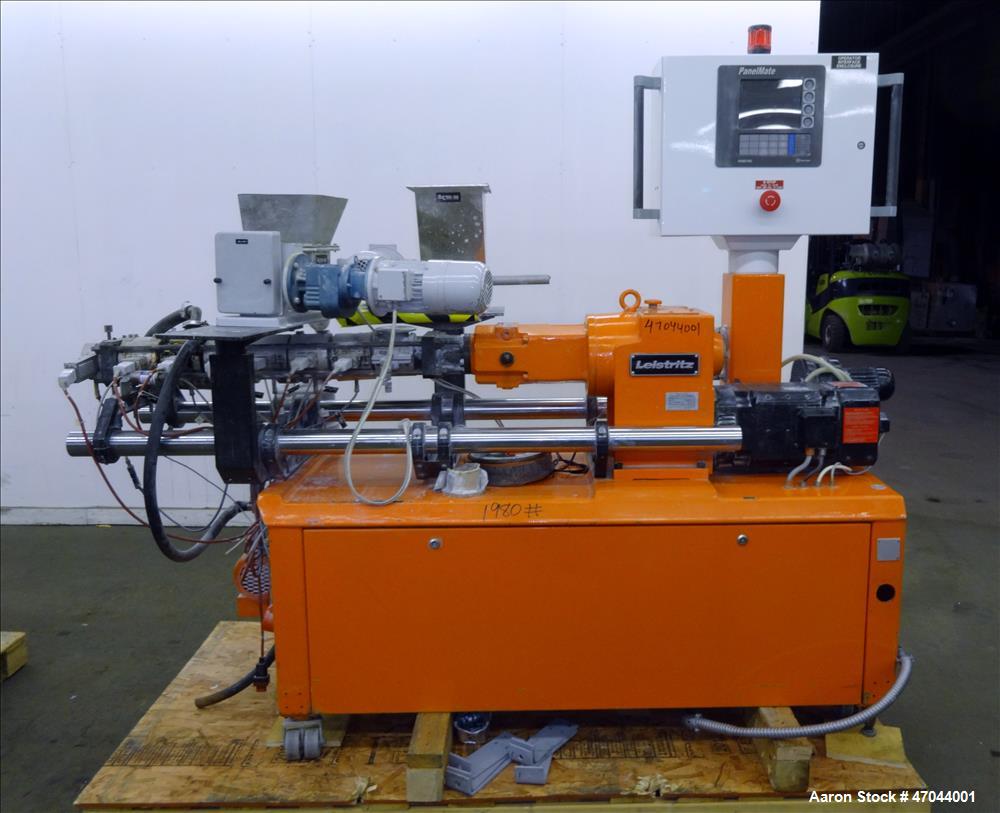

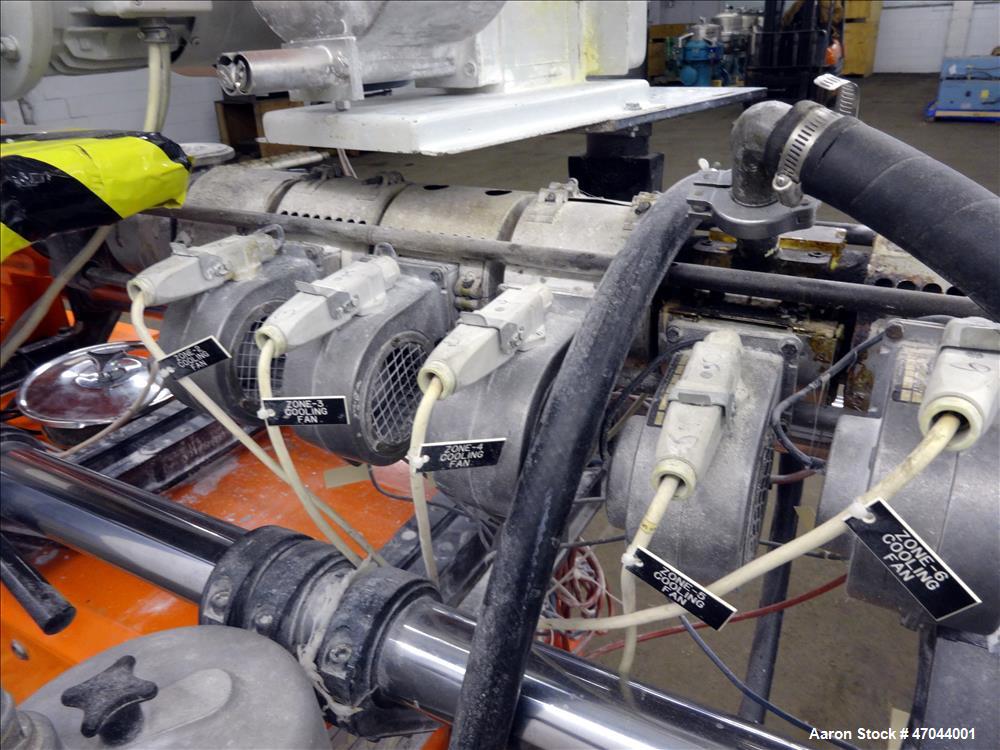

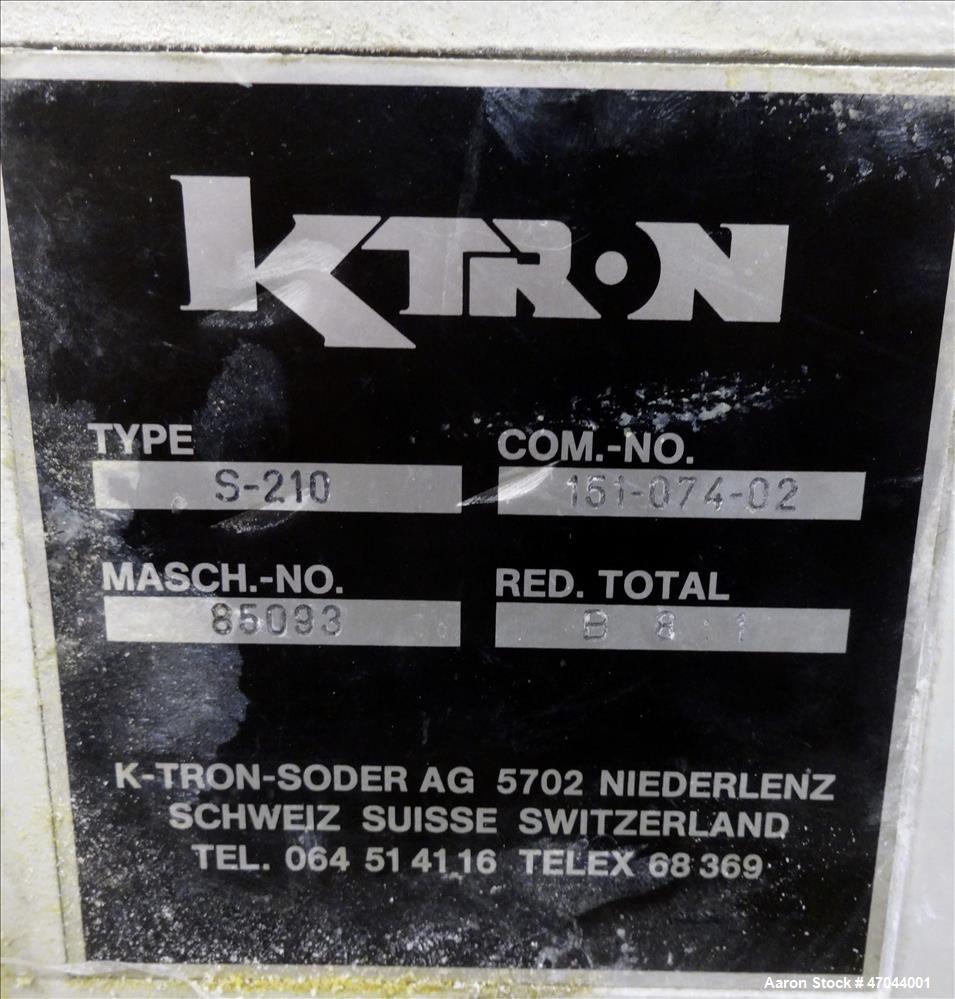

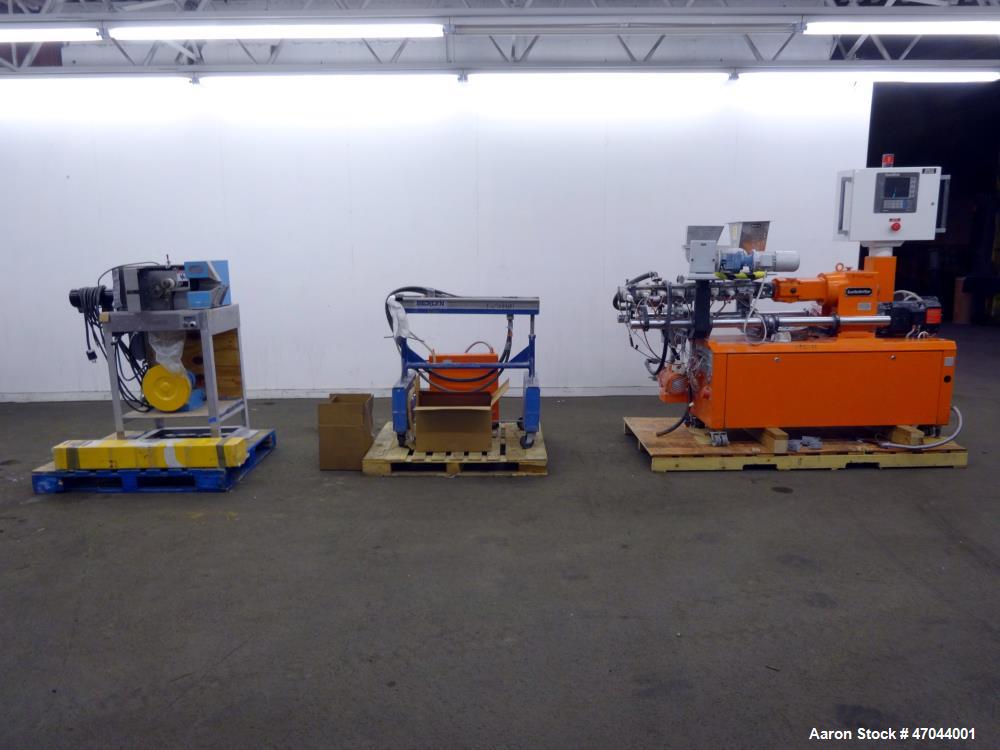

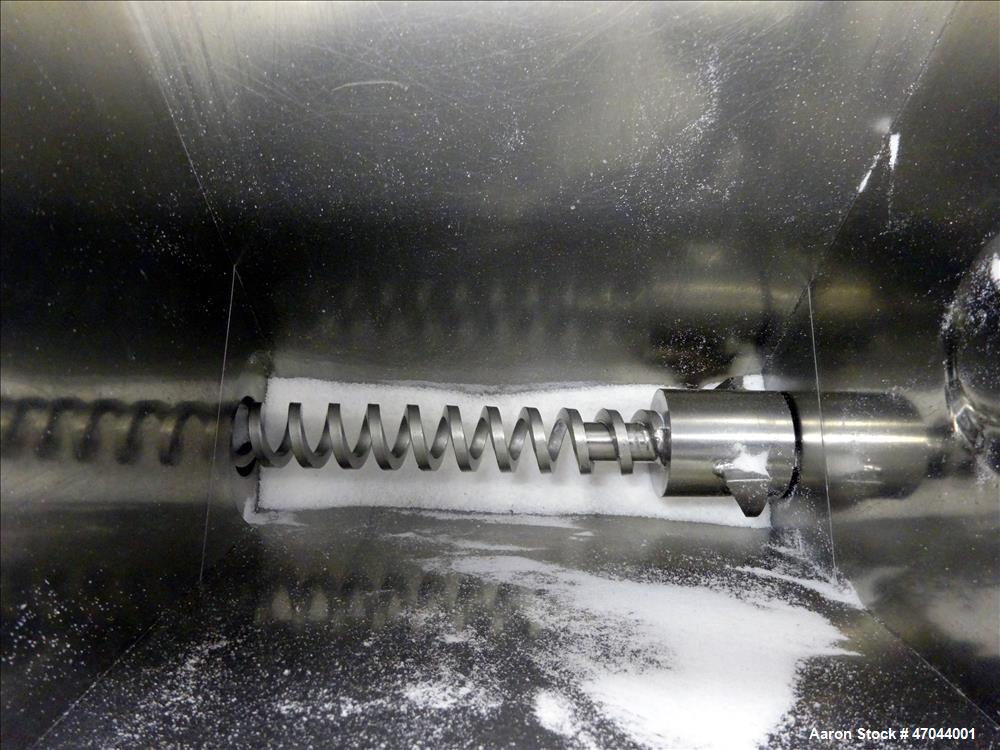

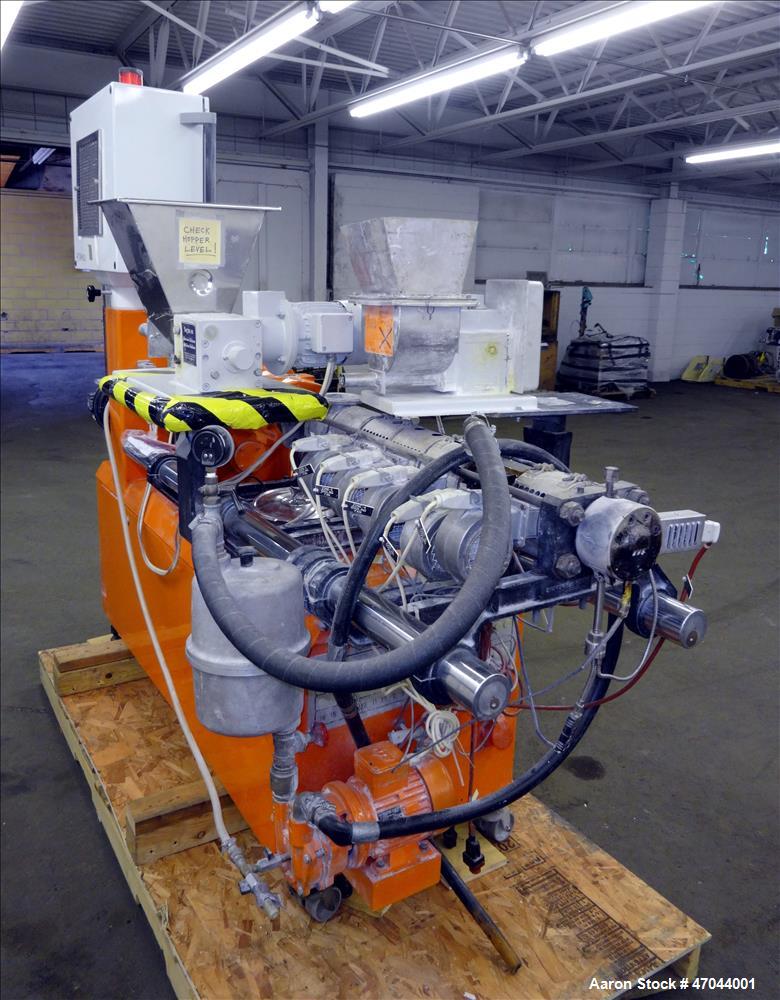

Used Leistritz Twin Screw Pelletizing Line Consisting Of: (1) Leistritz 34mm Twin Screw Extruder, Model LSM 30.34. Approximate 24 to 1 L/D ratio. 6 Barrel zones electrically heated, air cooled, (1) top vented with a Sihi model LRKA-10603 vacuum pump driven by a 1.1kw motor, (1) jacketed feed section with (1) K-Tron model S-210 single screw feeder, (1) K-Tron model T-20 twin screw feeder. Approximate 41" centerline height. Extruder driven by an 11kw, 422 volt, 2200 rpm motor with a counter-rotating gearbox ratio 7.31 to 1. (1) Additional gearbox to make extruder co-rotating, 8.6 to 1 ratio, approximate 255 rpm. (1) Cutler-Hammer PanelMate Power Pro operator panel with an Allen-Bradley SLC 5-05 CPU controller. Bottom control panel with (2) Allen-Bradley 1365 controllers. Serial#330.1320.01. (1) 3 Hole strand die, (1) Berlyn model WTS64 304 stainless steel water bath, approximate 4" wide x 39" long x 6-1/2" deep, serial# 104D240. (1) Berlyn model HV1 air stripper, serial# 104D242, with a 1kw blower. (1) Randcastle model RCP-2.0P pelletizer, serial# J-1309. Approximate 2" wide fixed blade helical rotor, (1) rubber, (1) metal pull roll with motor. Tag indicates that unit is all 240 volt 60hz hook up. Can confirm upon test run.
