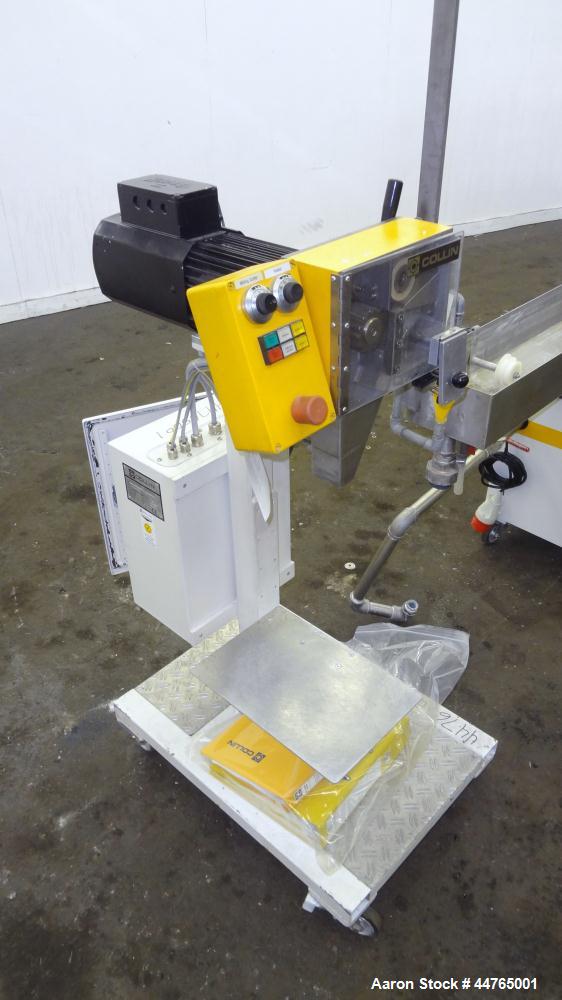

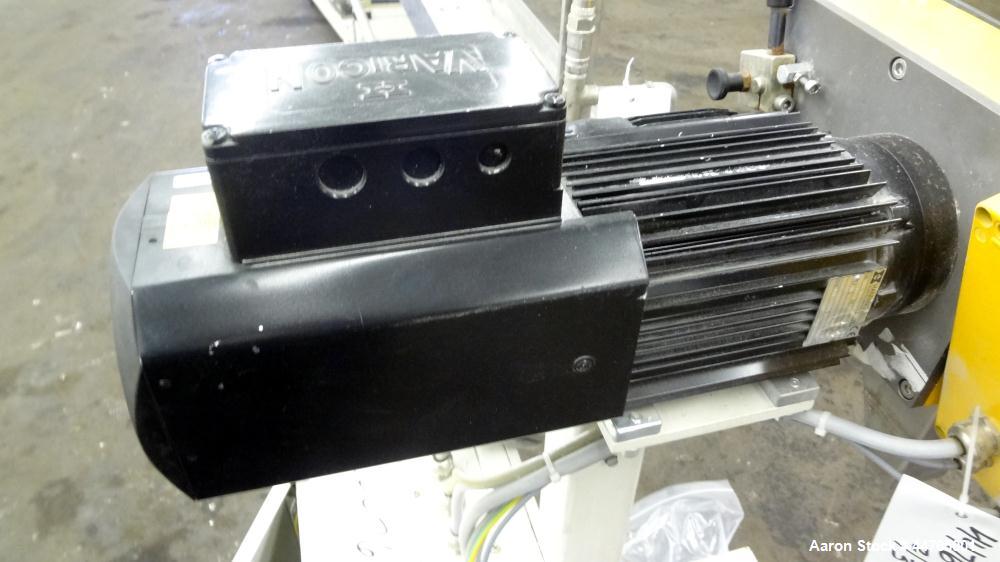

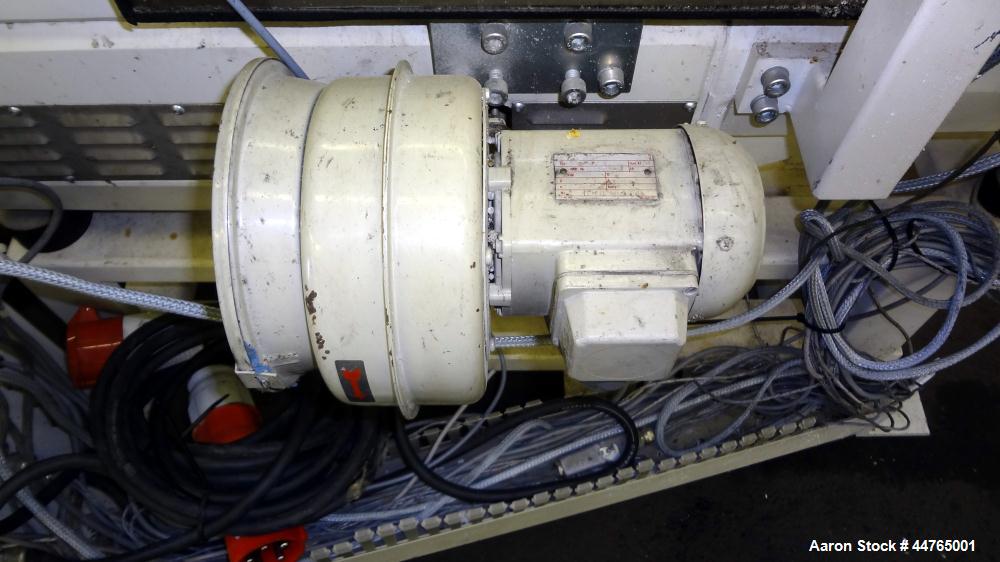

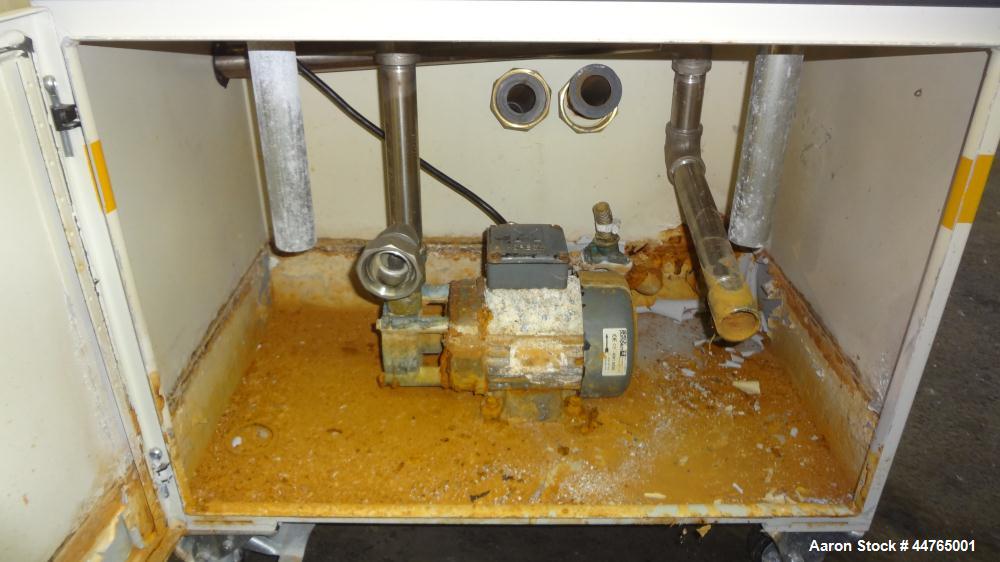

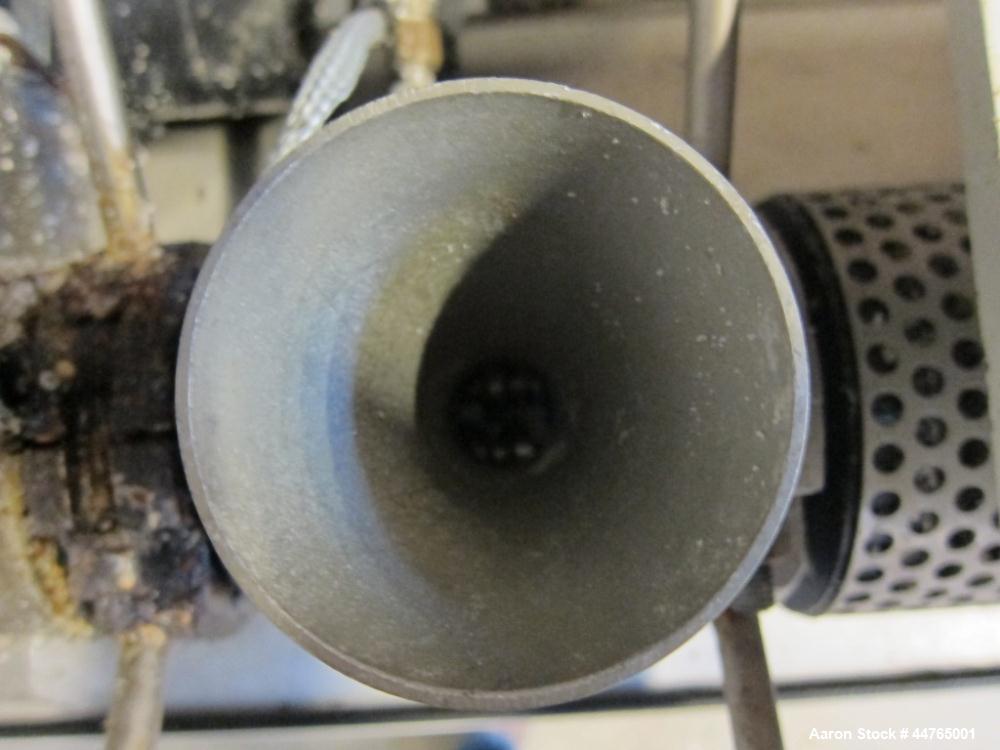

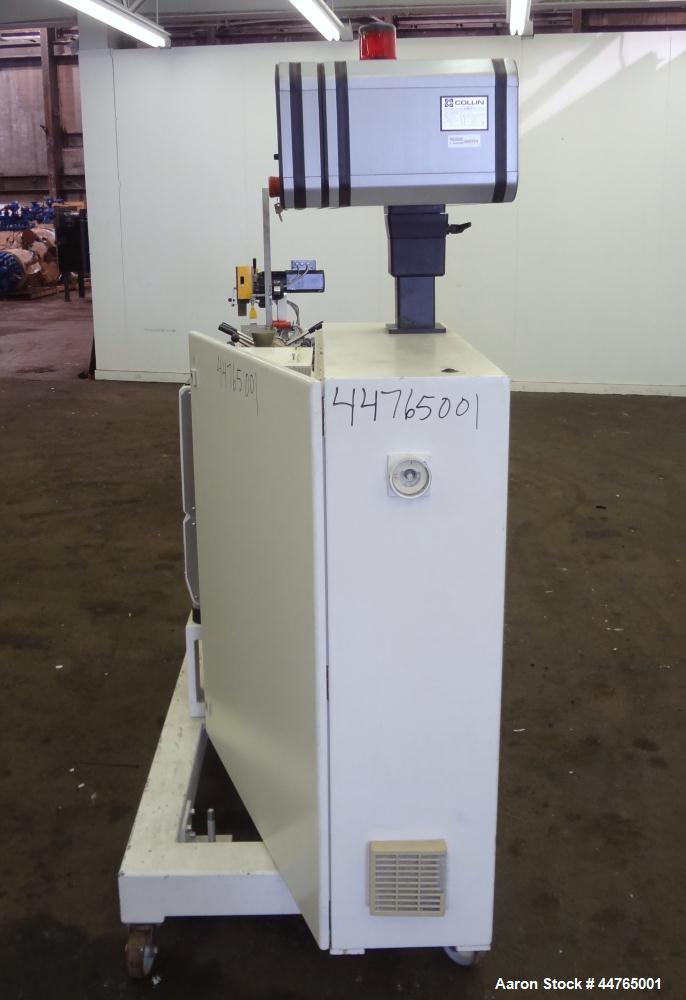

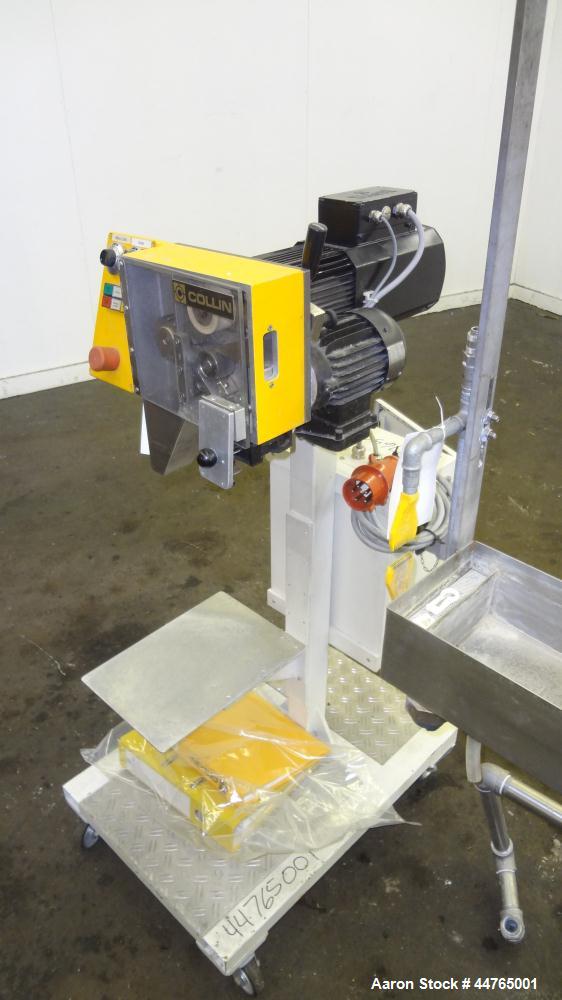

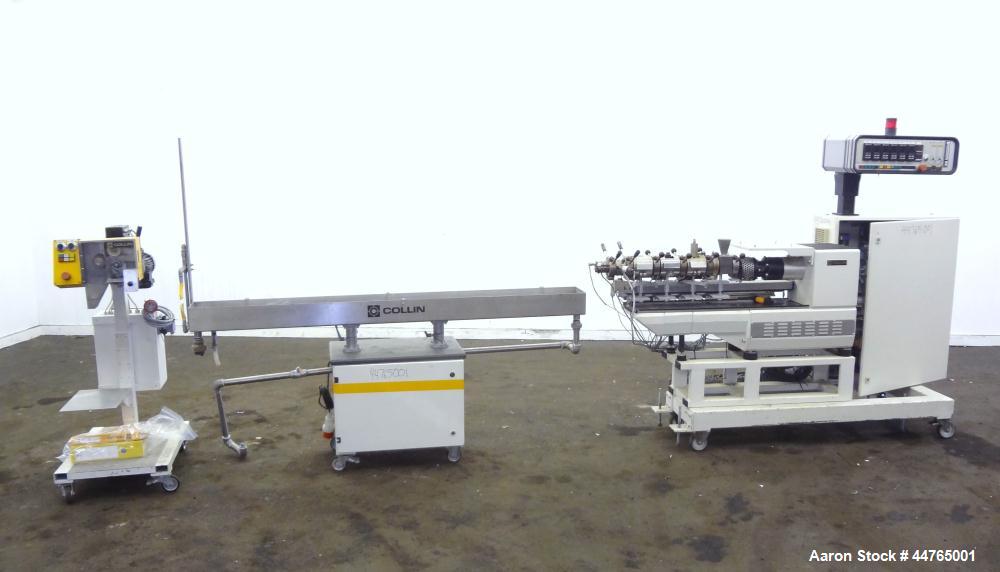

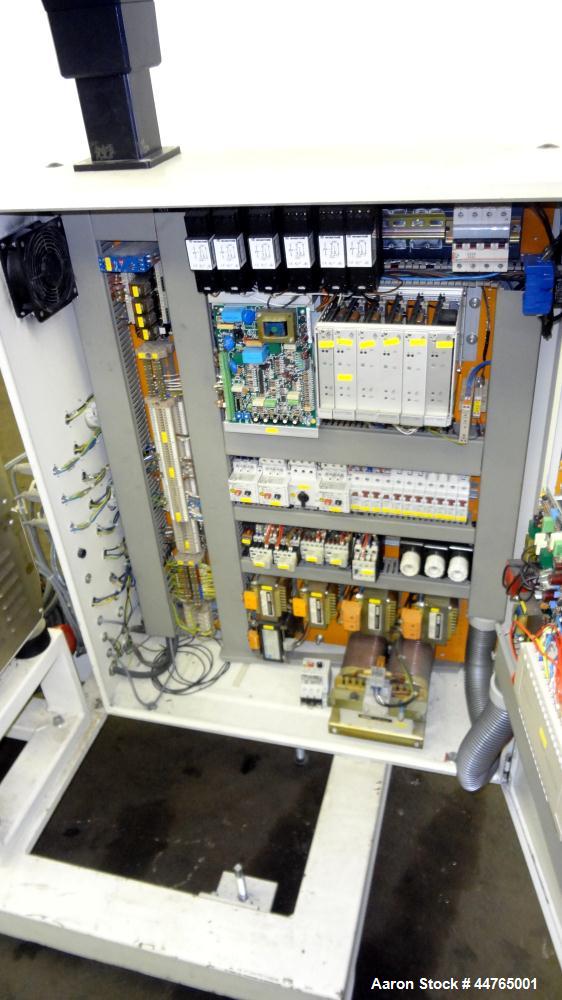

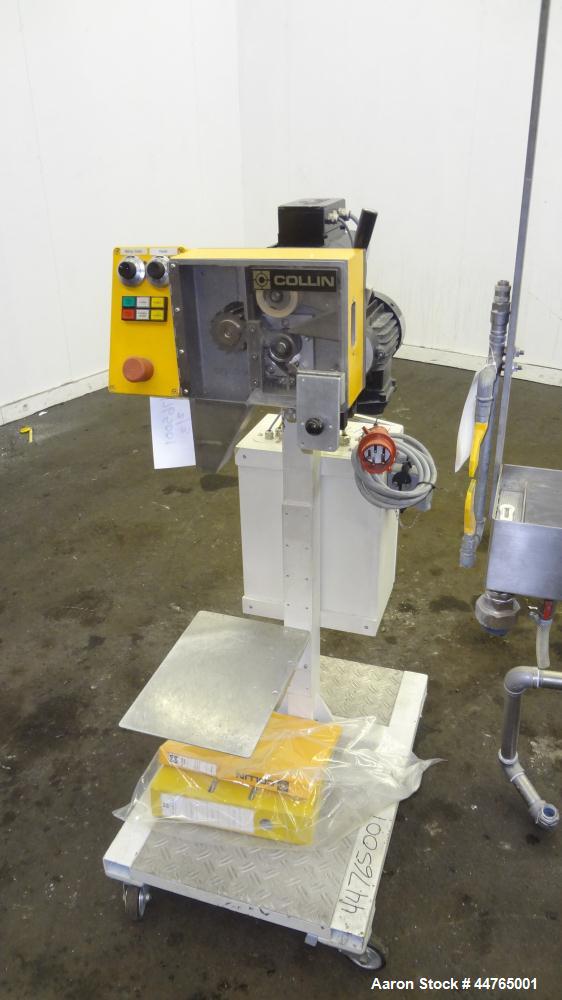

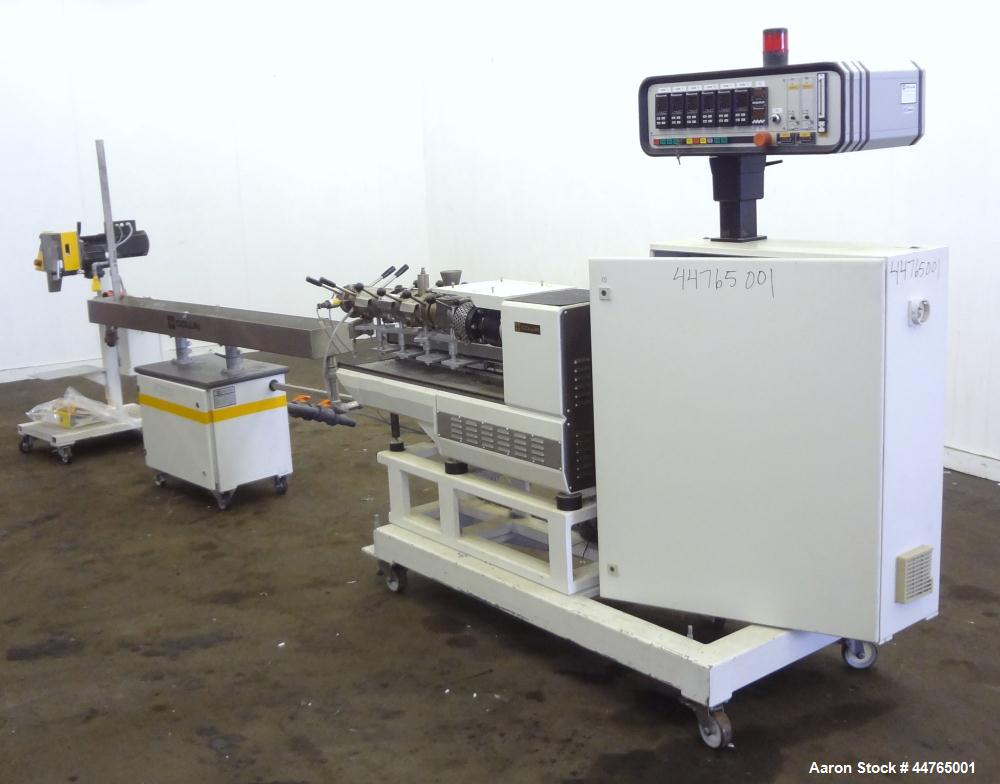

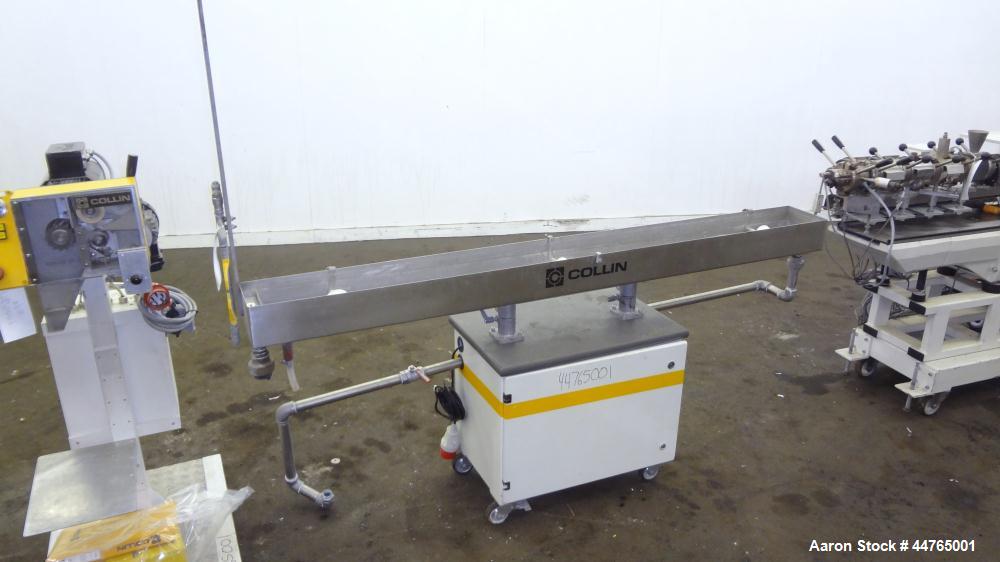

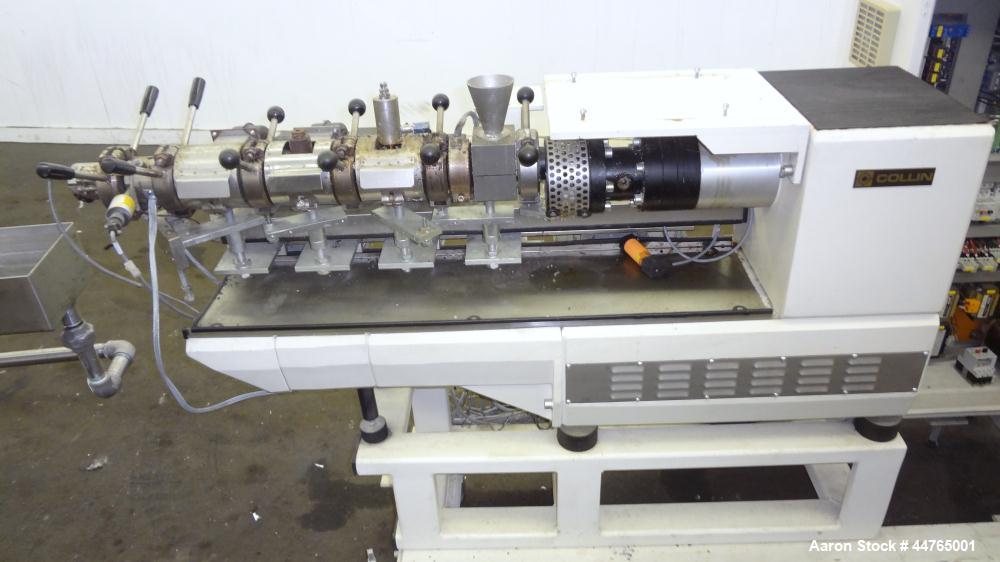

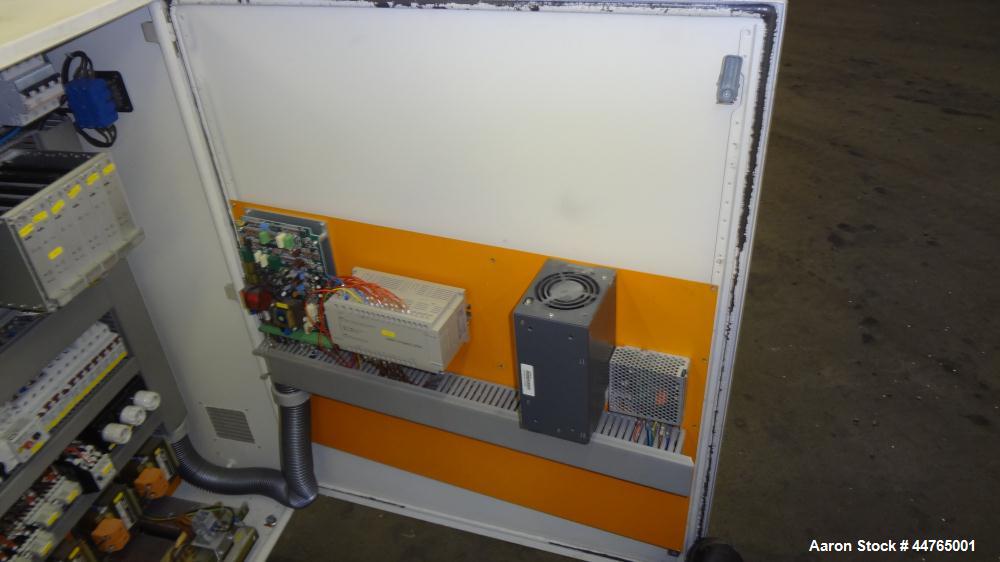

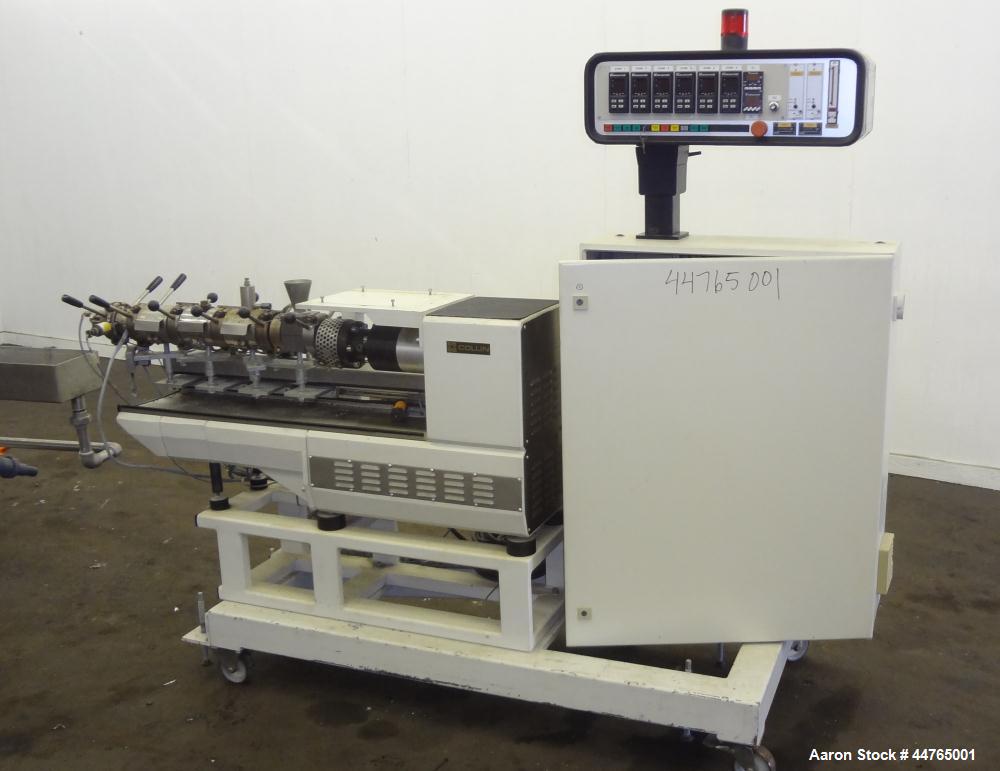

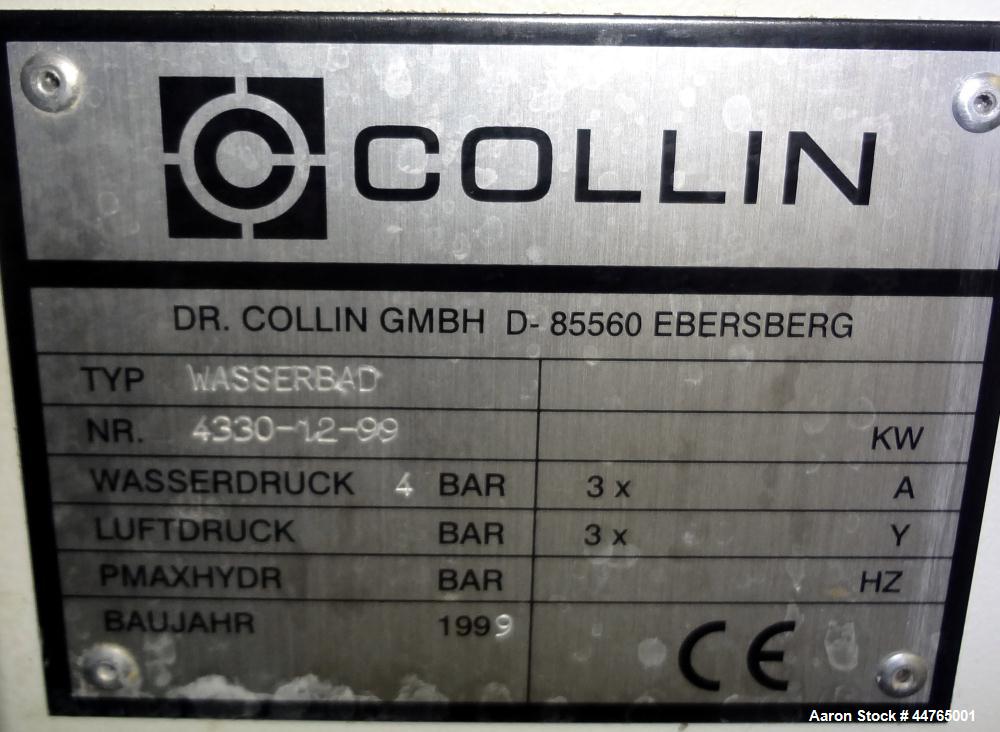

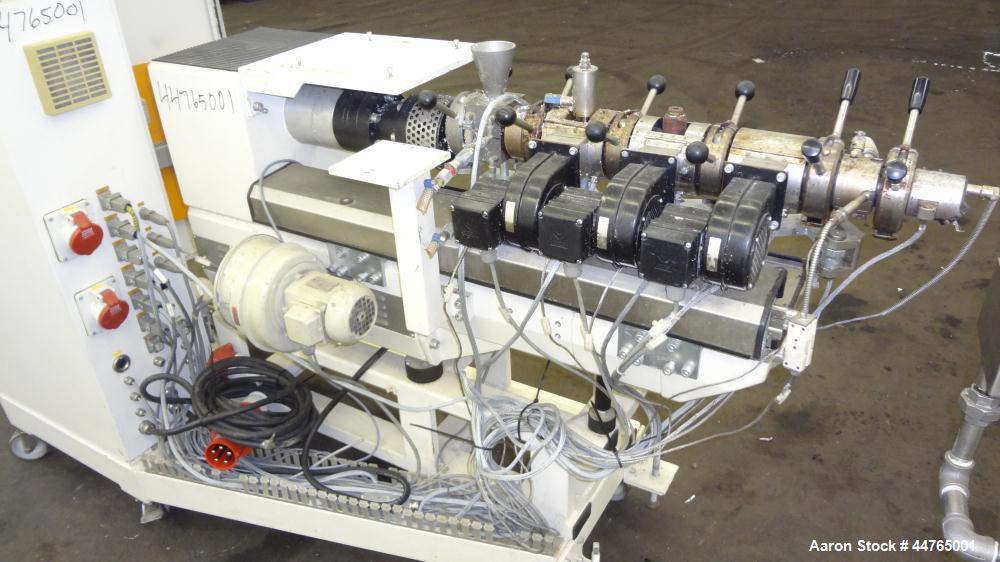

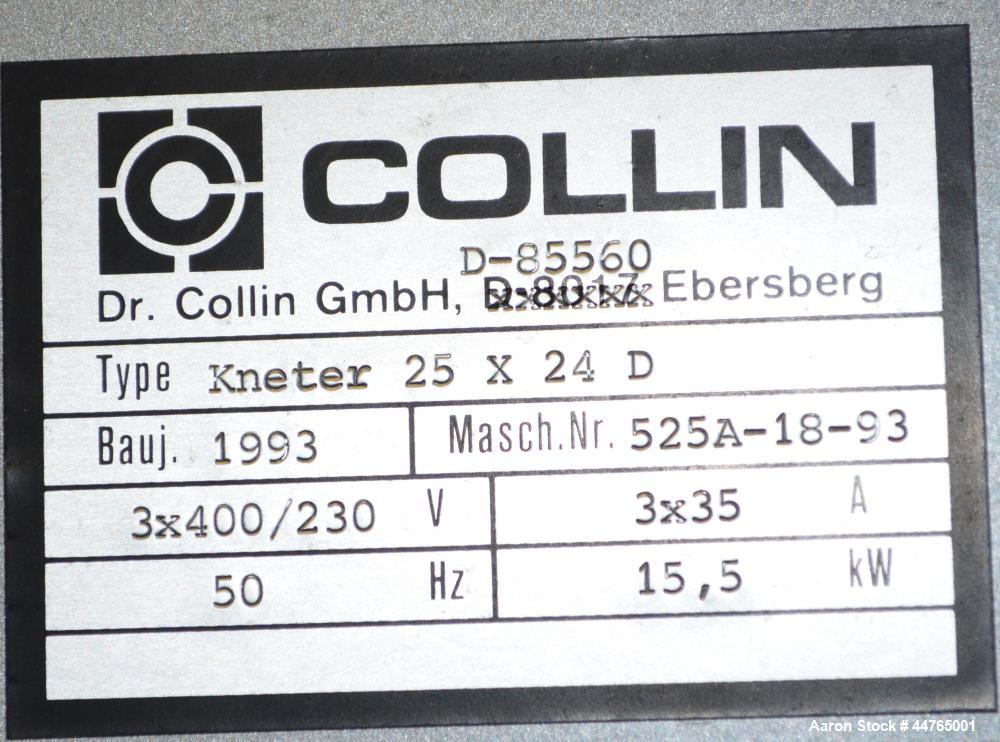

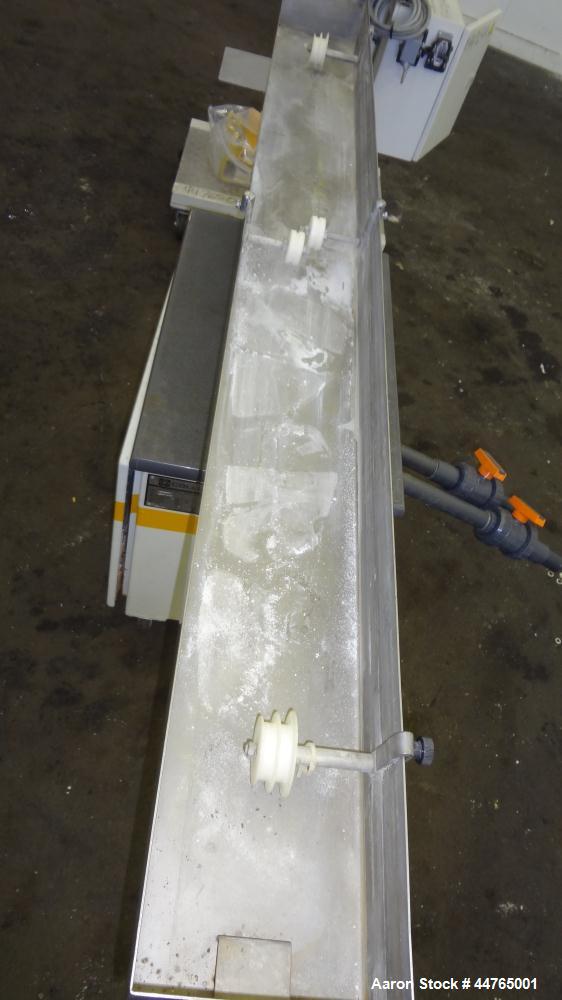

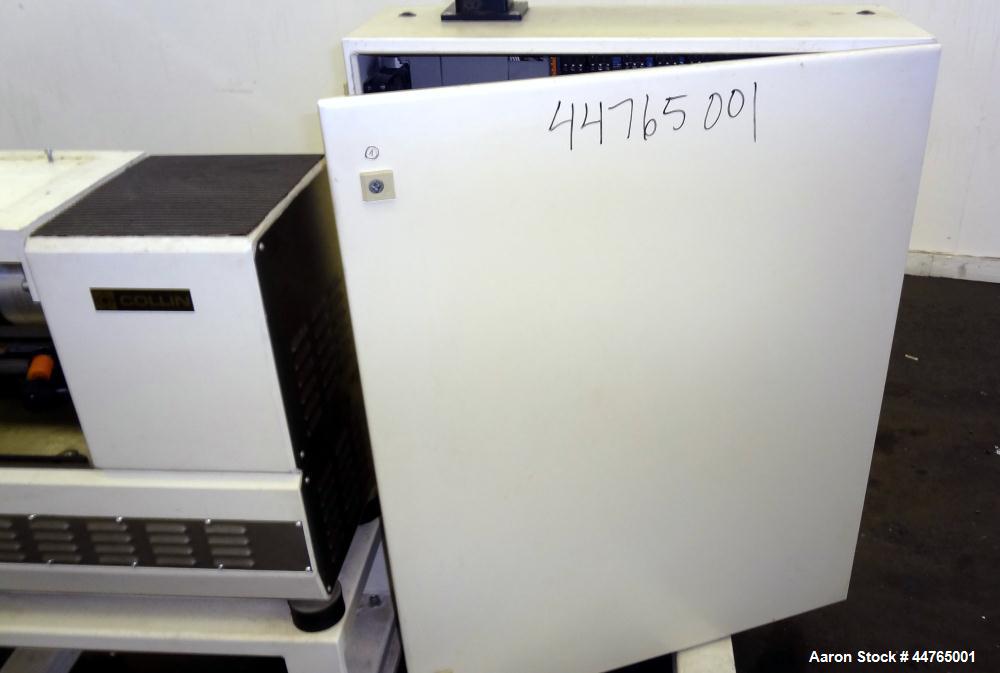

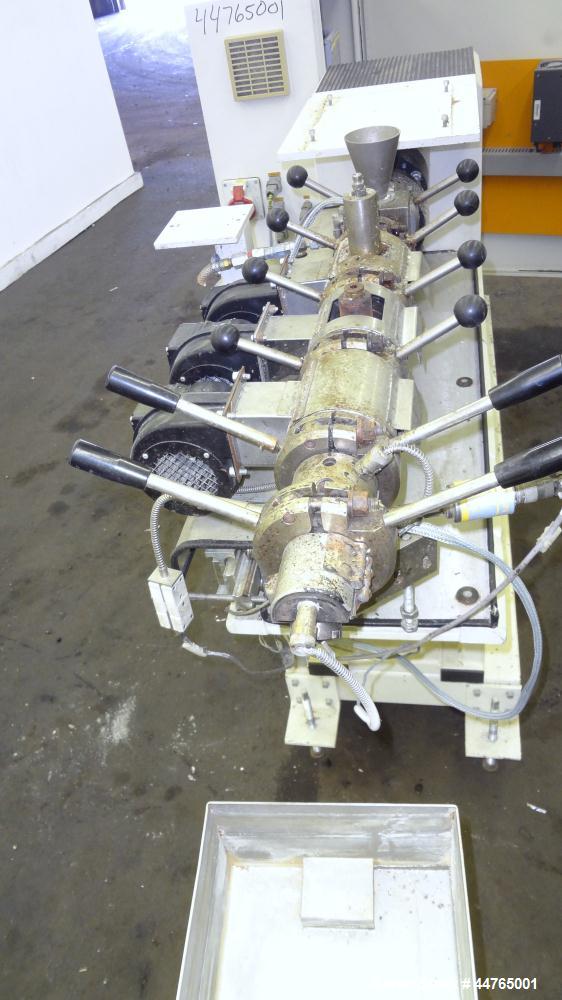

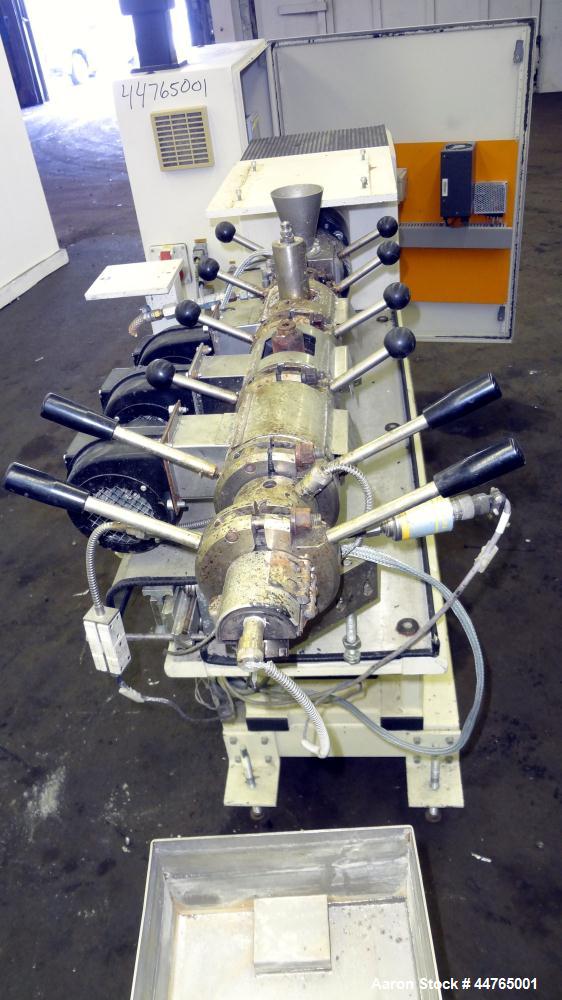

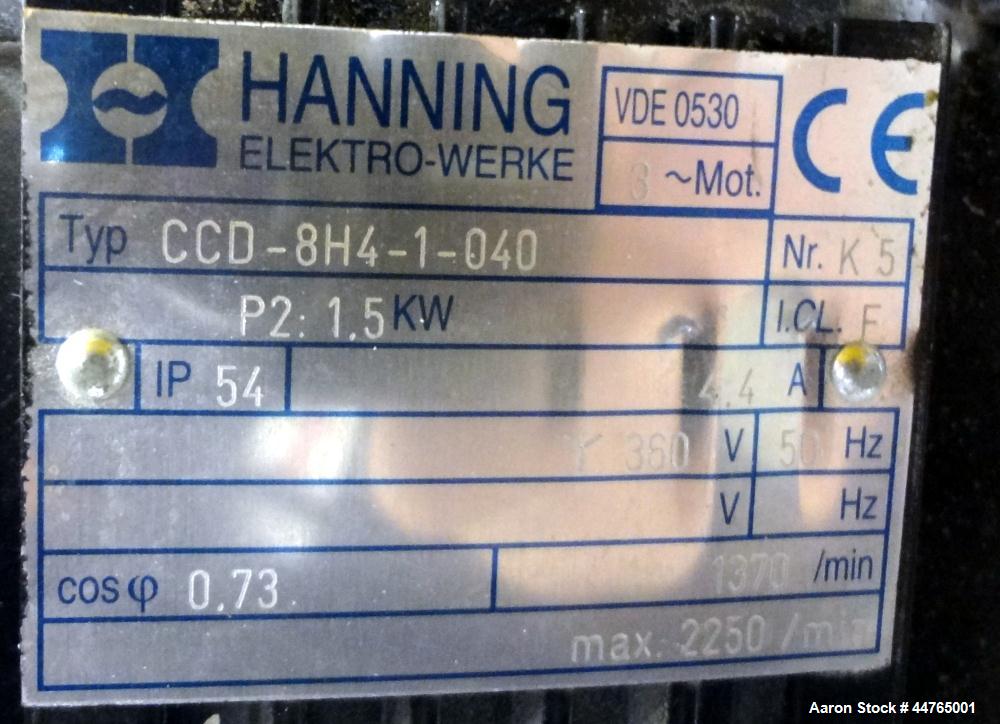

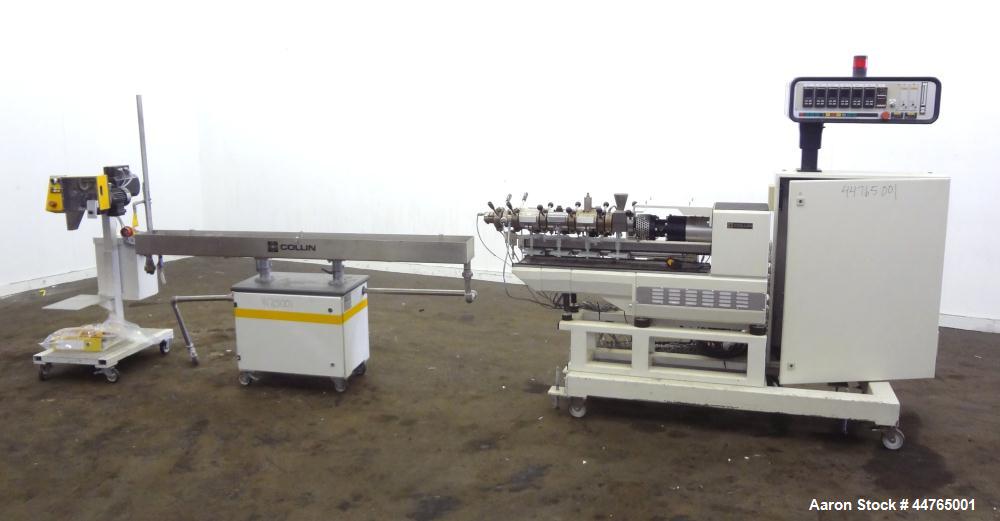

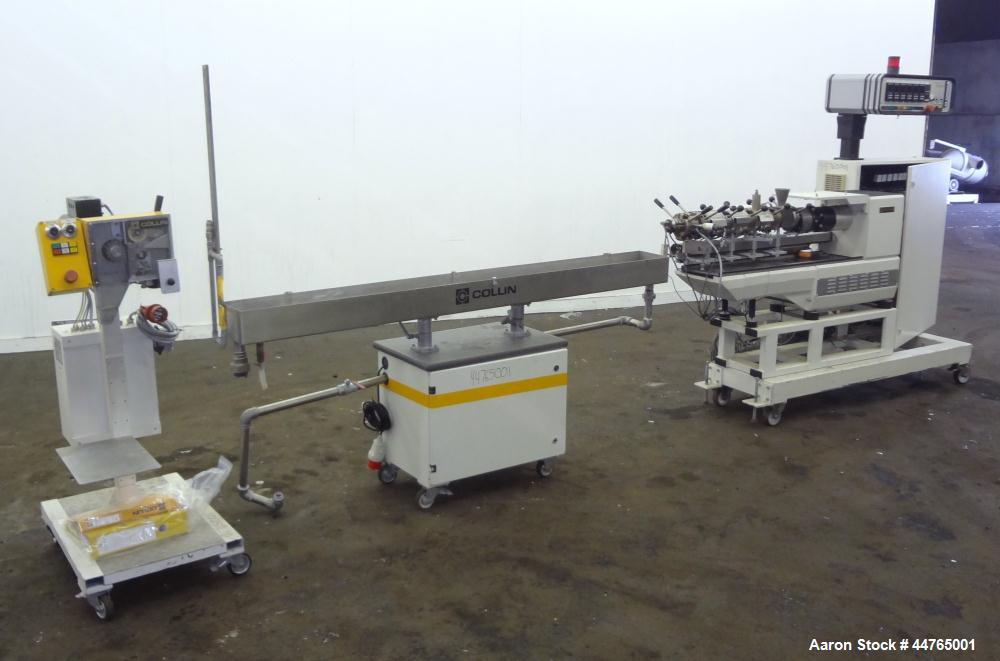

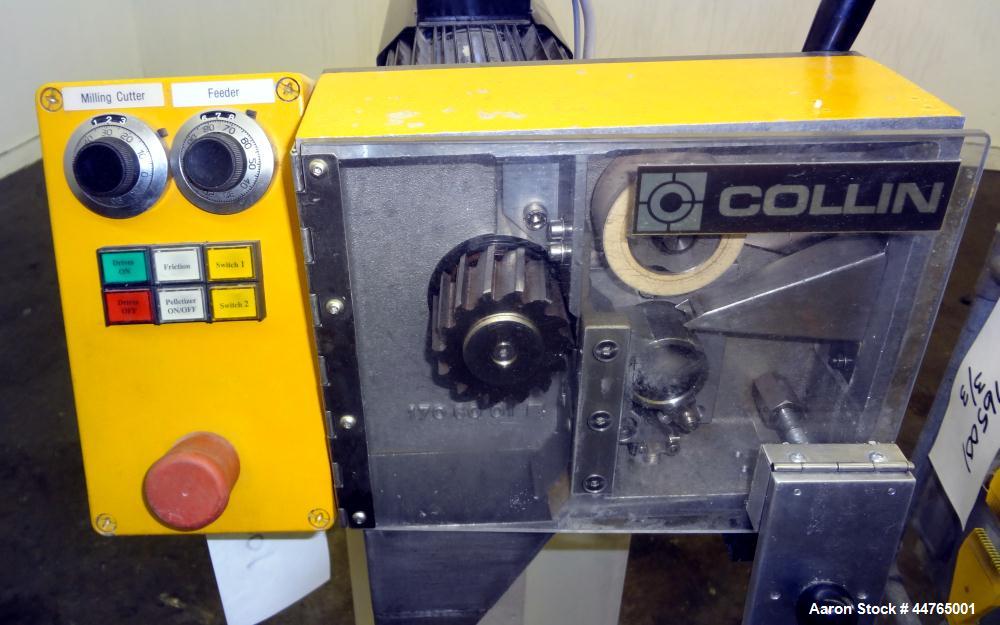

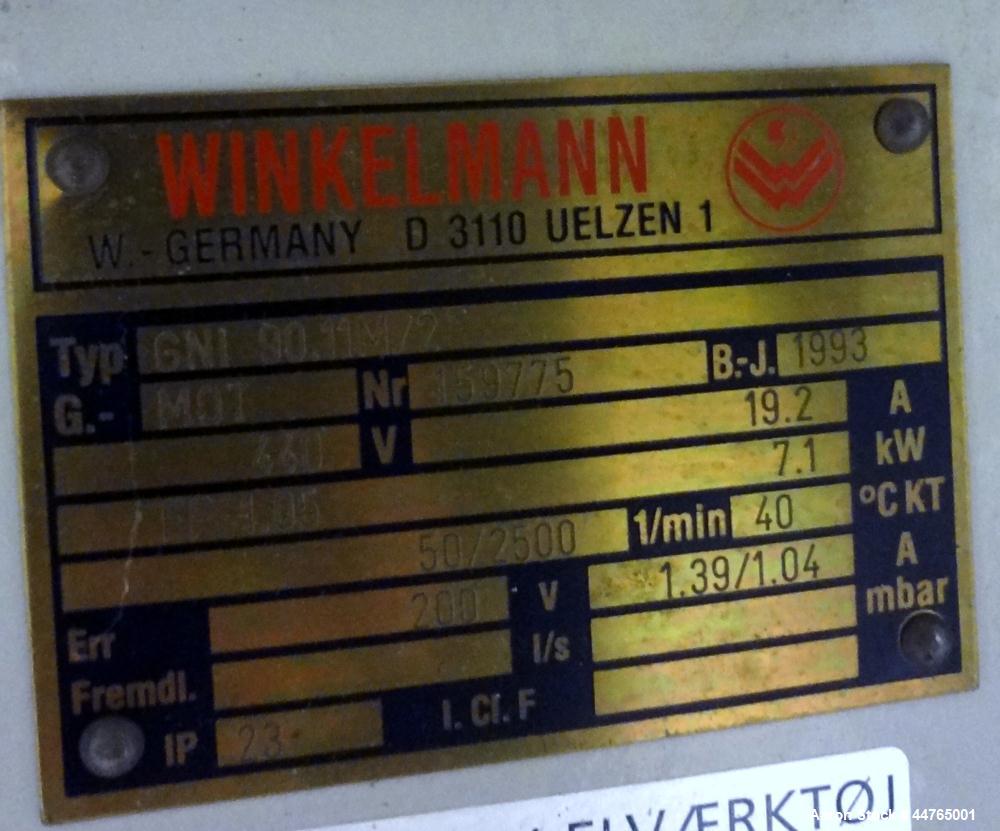

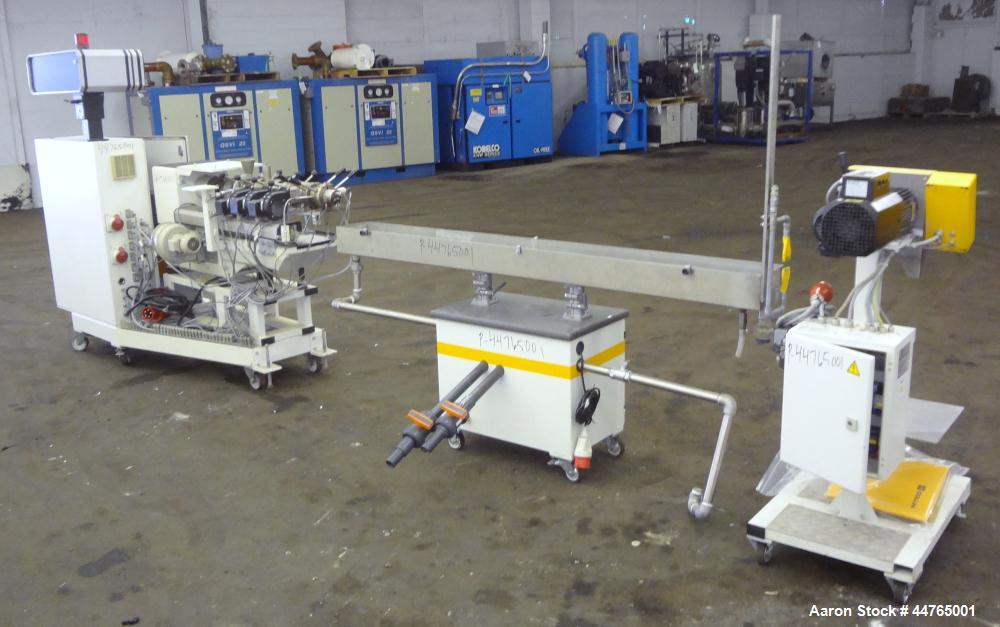

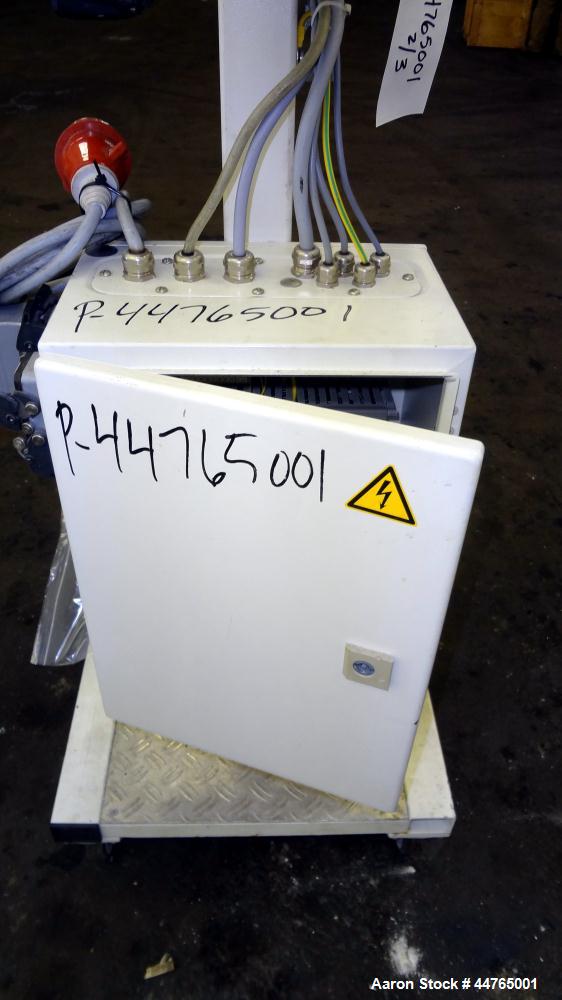

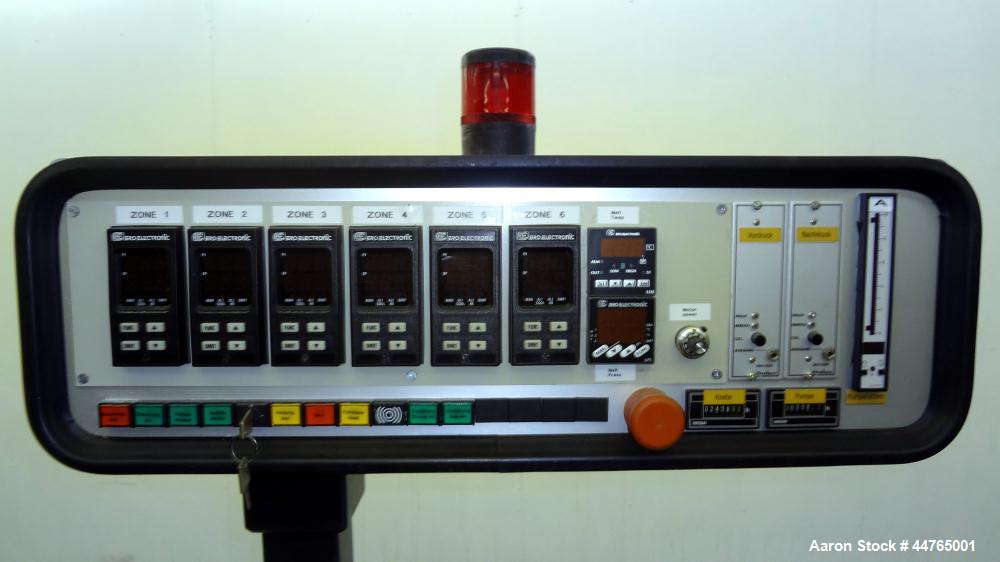

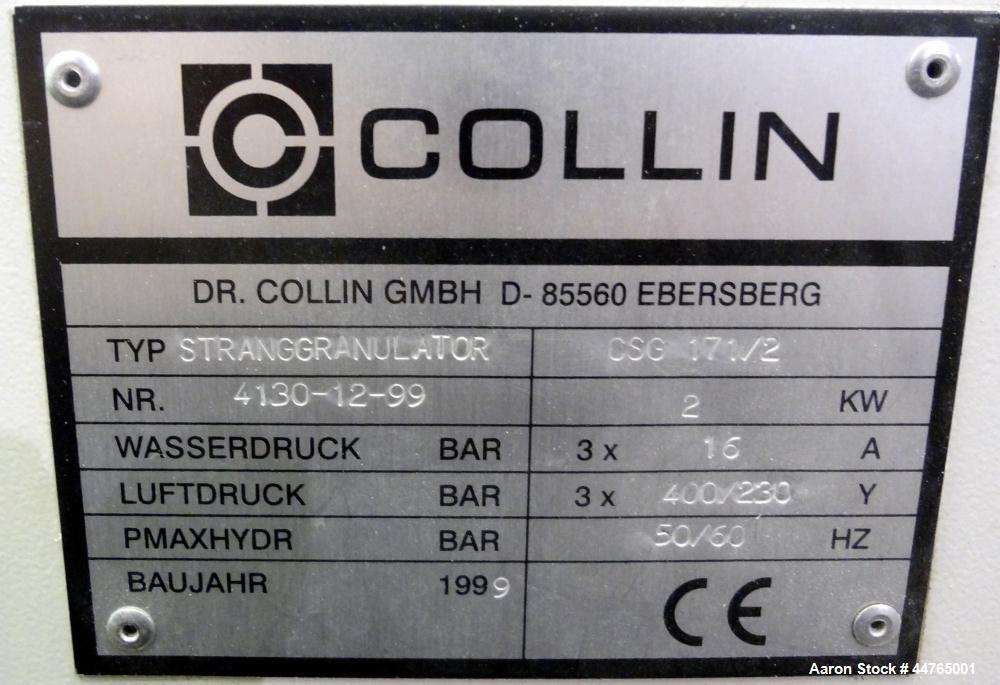

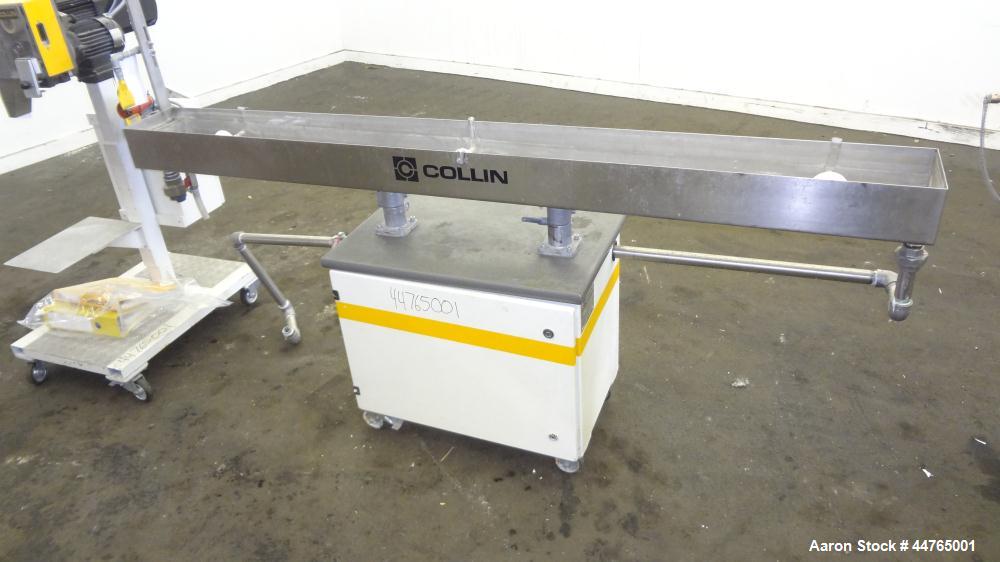

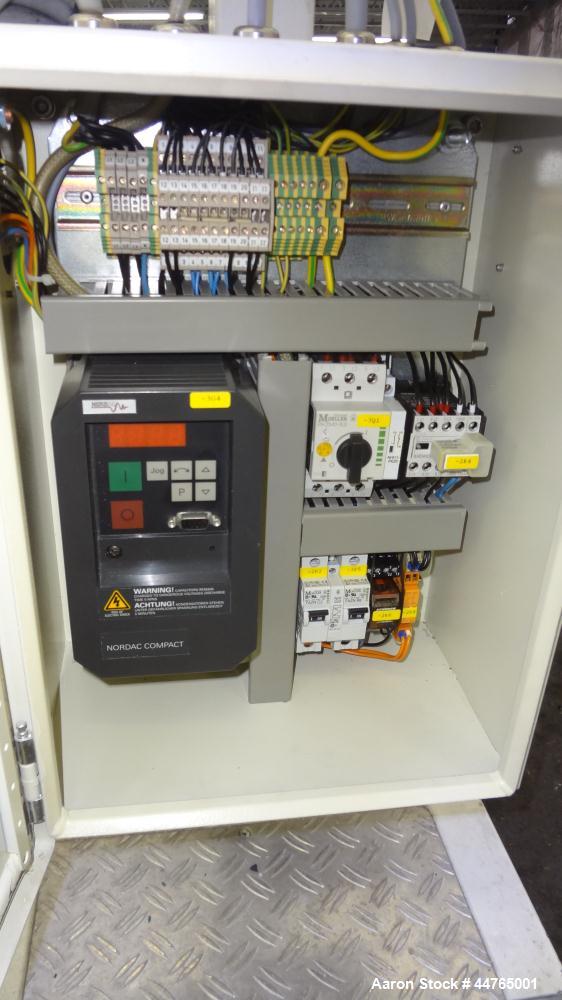

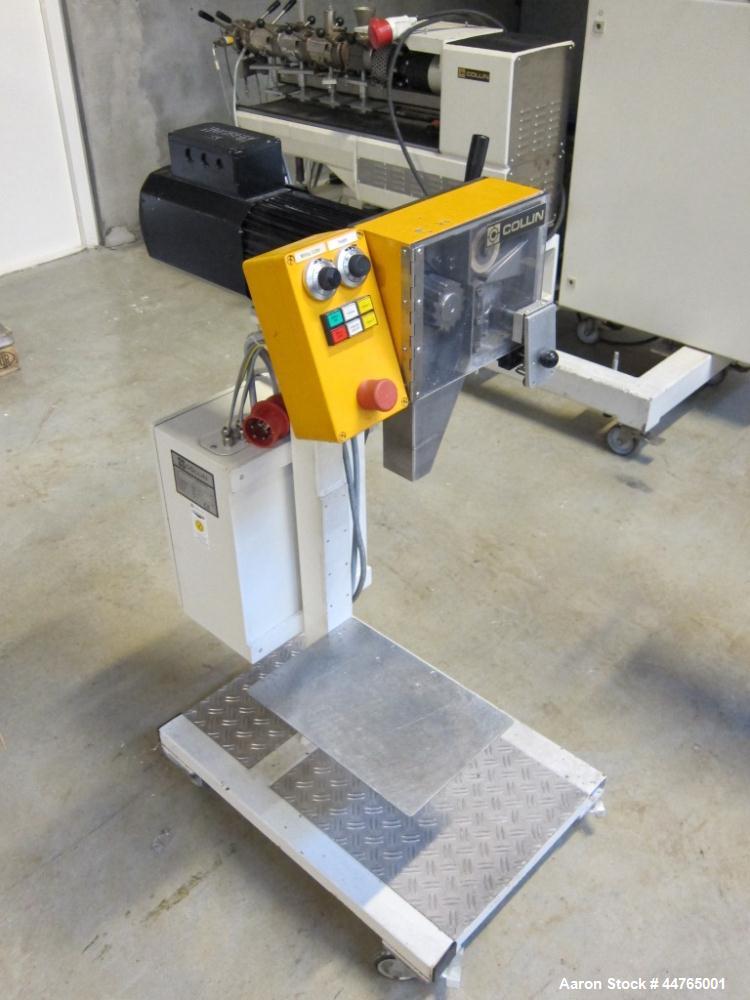

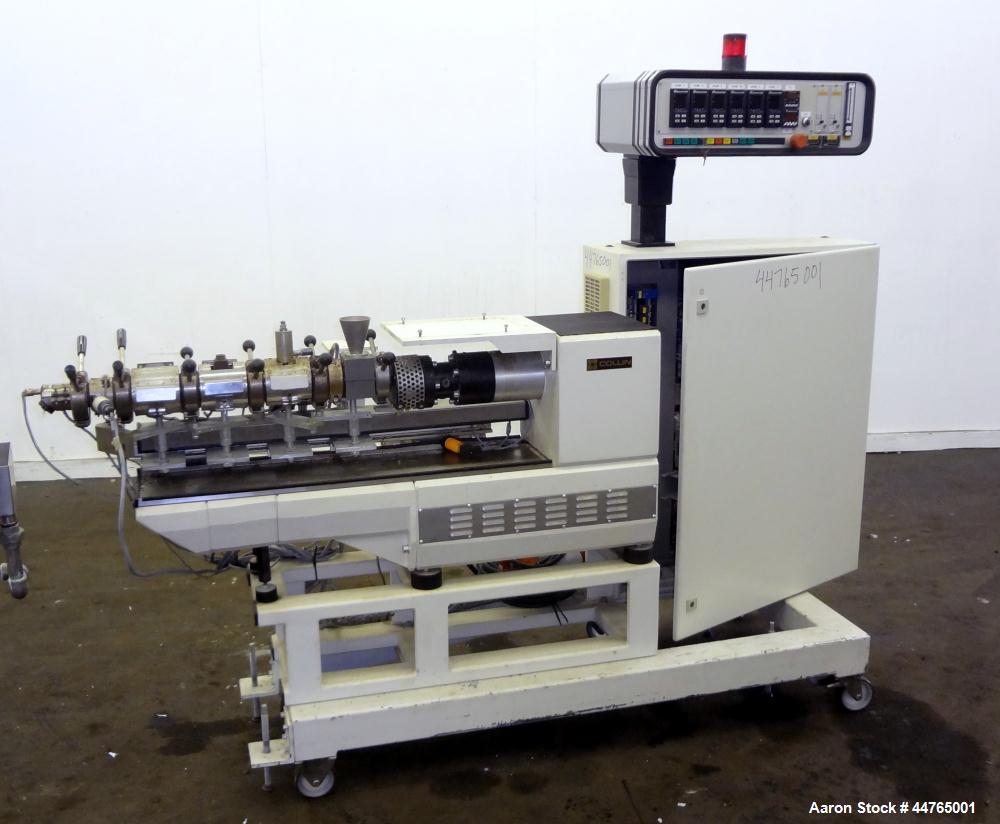

Used Dr. Collin Laboratory Pelletizing Line consisting of: (1) Collin 25mm co-rotating twin screw extruder, type Kneter 25 x 24 D, serial #525A-18-93, built 1993. Side by side screw design, approximately 24 to 1 L/D ratio. Electrically heated, air cooled, (3) barrel sections, (2) are vented, (1) water cooled feed section with hopper, approximately 39-1/2" centerline height. Driven by a 7.1 kw, 440 volt, 50/2500 rpm motor with gearbox. Includes (1) 3 mm (3) hole strand die, (1) operator control panel with Ero Electronic controllers, and a control panel. Frame mounted with casters . (1) Collin water bath, model 2000mm, stainless steel. 195 mm (7.6") Wide x 2000 mm (78.7") long x 114 mm (4.5") deep. Adjustable height from 800 mm to 1100 mm, water capacity approximately 32 liters. Includes a pump. Mounted on casters, serial #4330-12-99, built 1999. (1) Collin strand pelletizer, model CSG 171/2. (1) 30 mm (1.18") wide fixed blade rotor, maximum diameter of stand 5 mm, number of strands 1 to 3. (1) Metal, (1) rubber pull roll, driven by a 0.18 kw motor, pelletizer driven by a 1.5 kw, 360 volt, motor. Includes manual speed controls, and a control panel with a Nordac drive, base mounted on casters, serial #4130-12-99, built 1999.
