Stock #
49786001

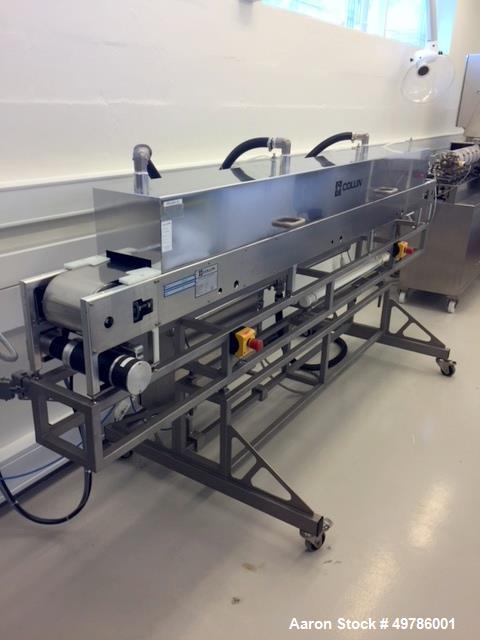

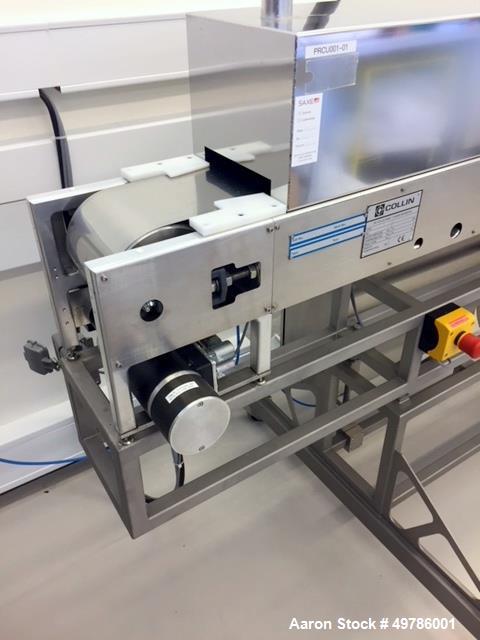

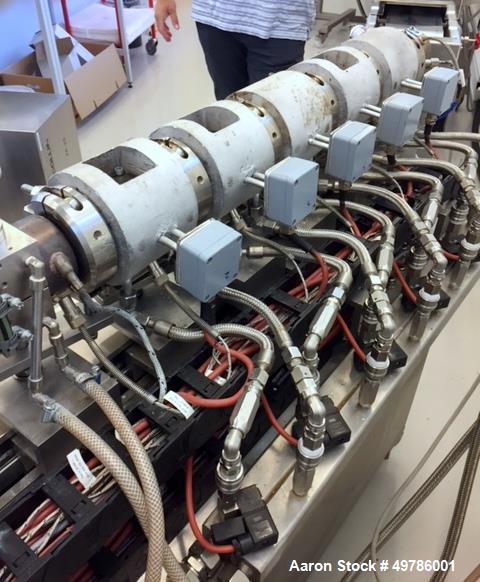

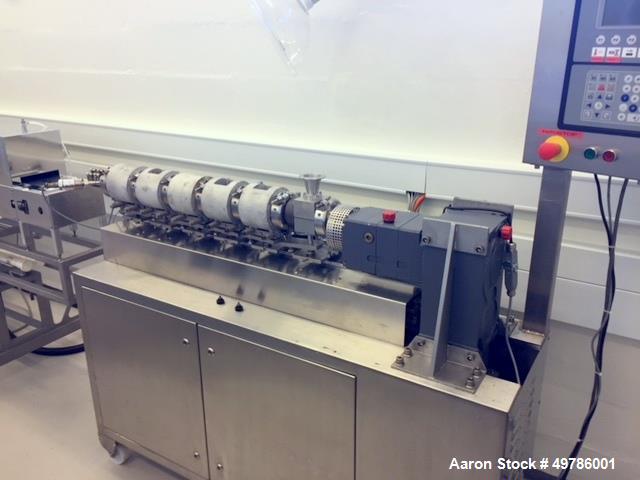

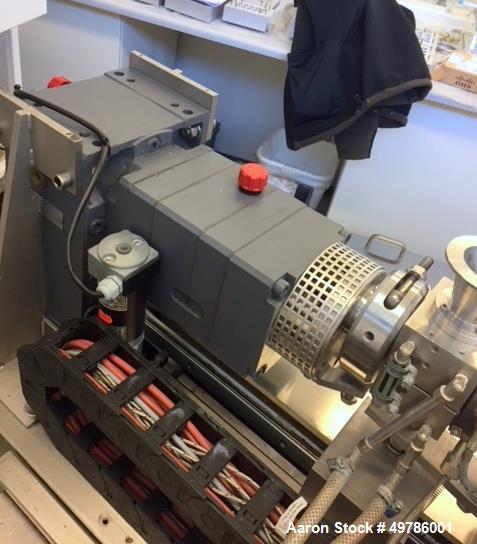

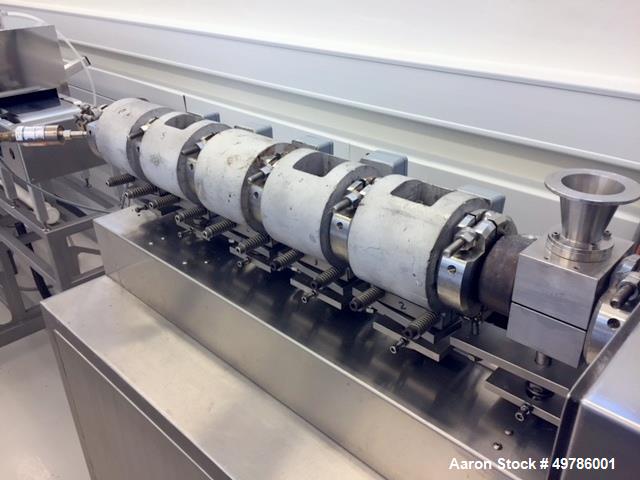

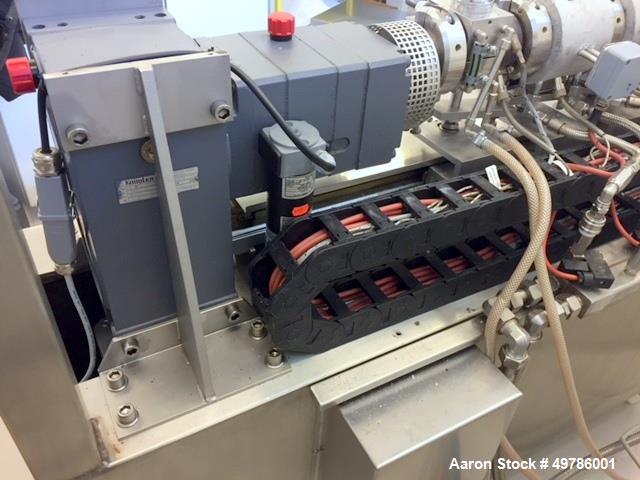

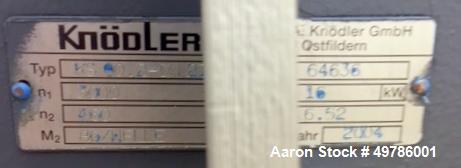

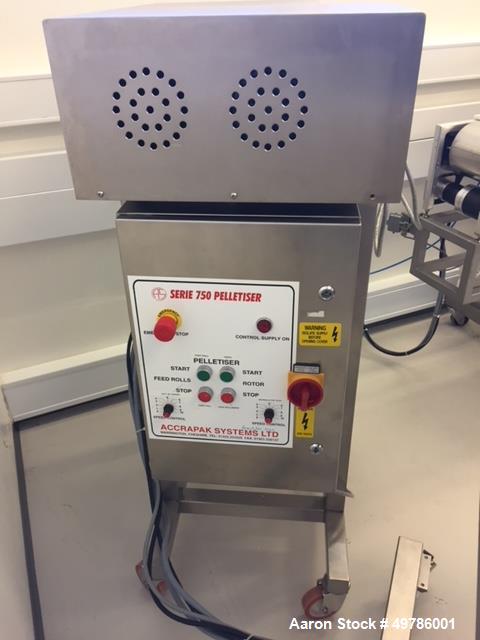

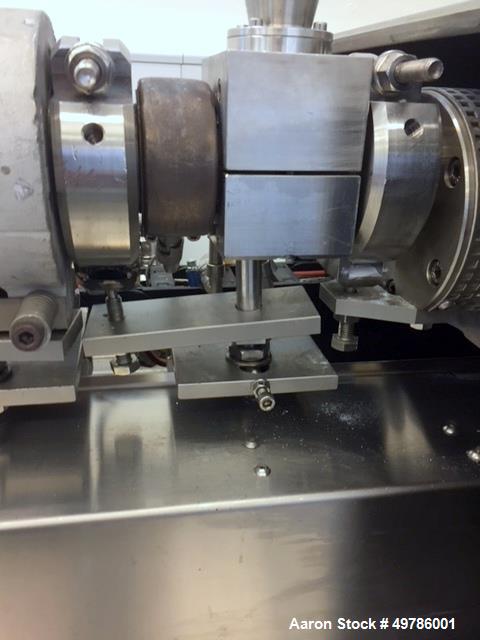

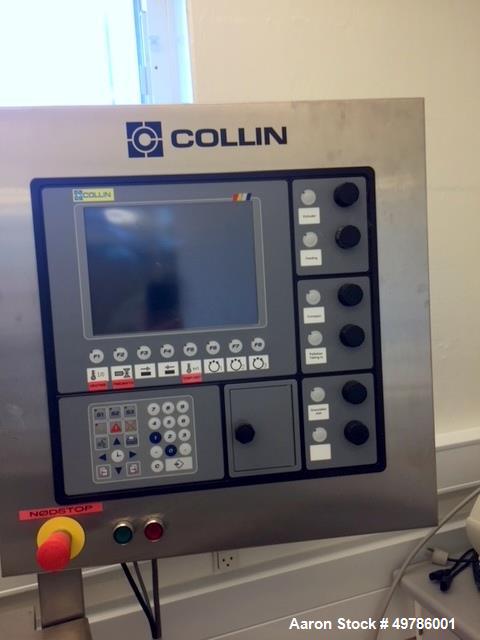

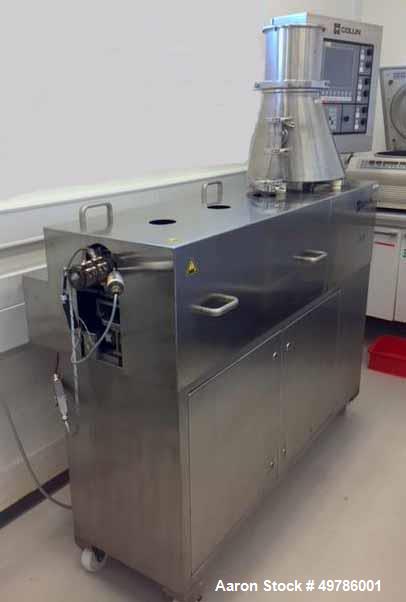

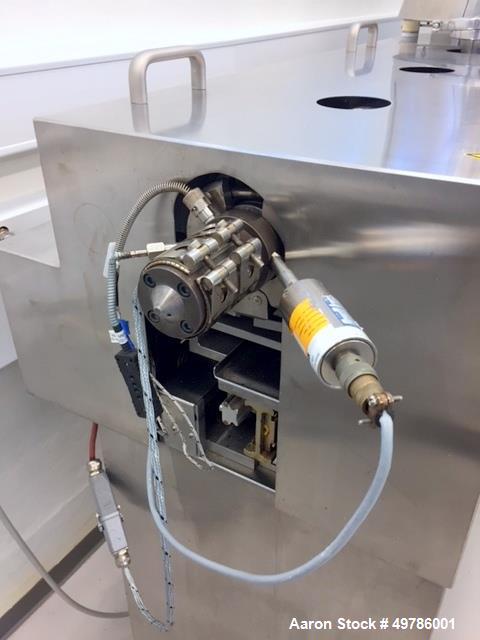

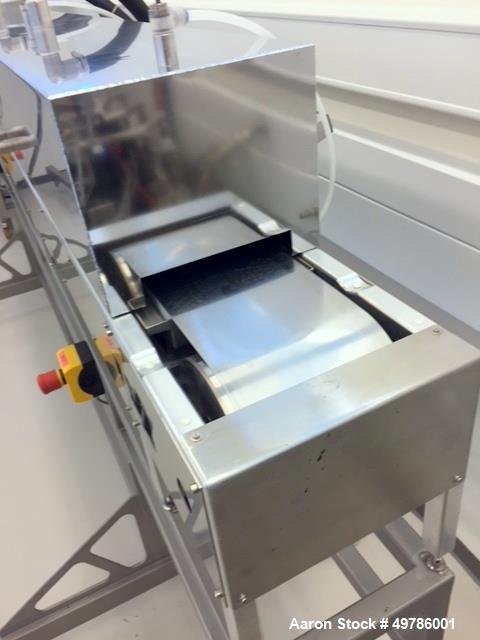

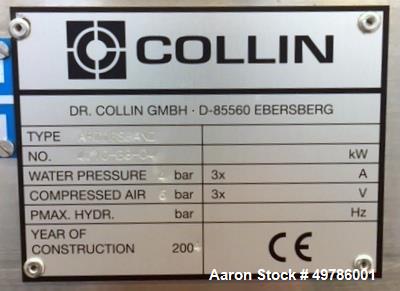

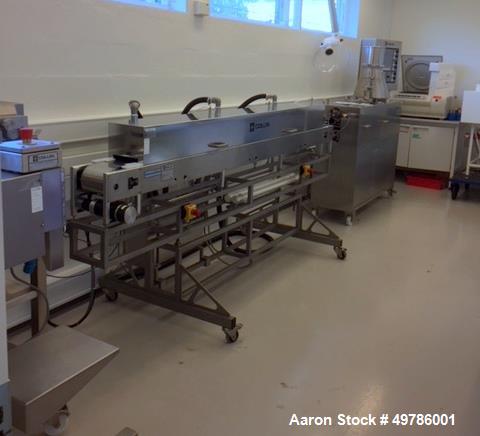

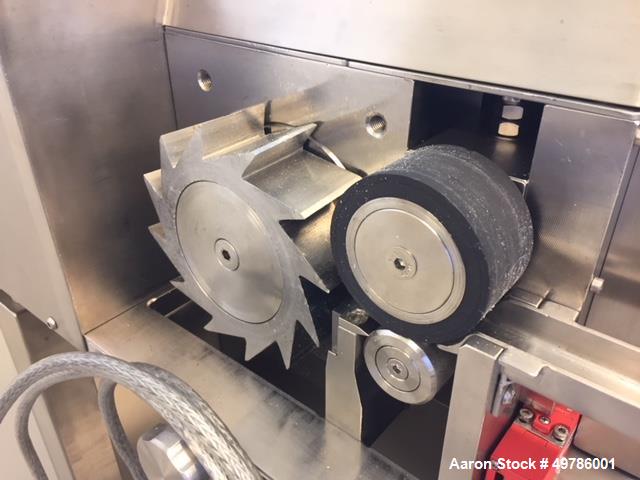

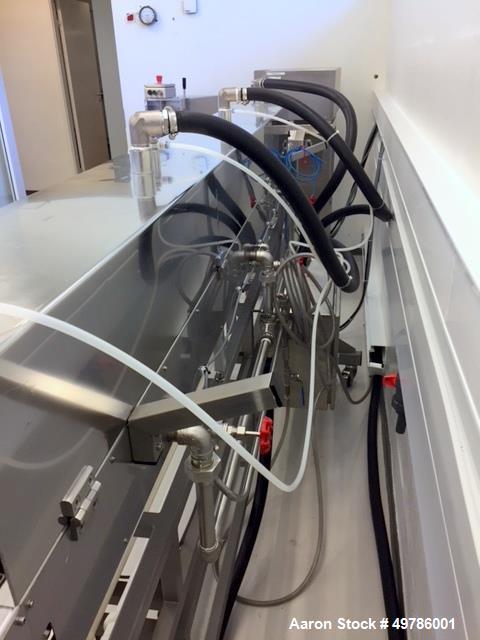

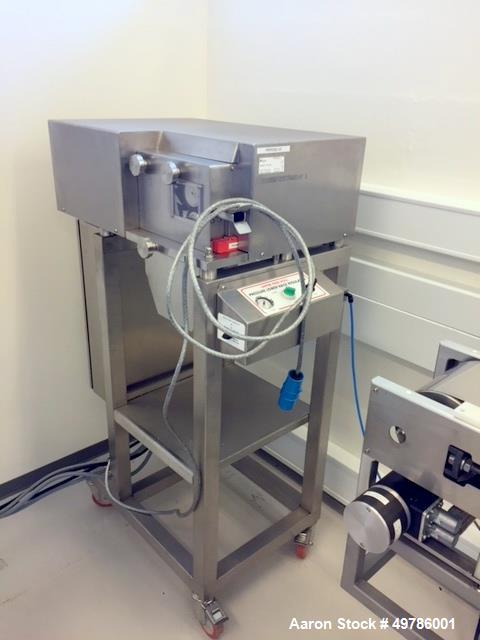

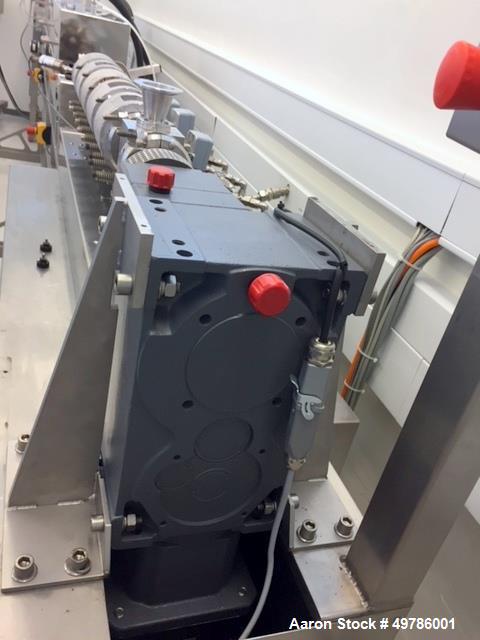

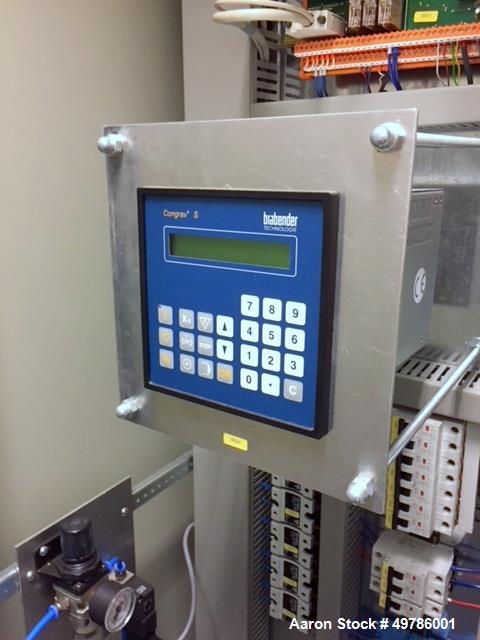

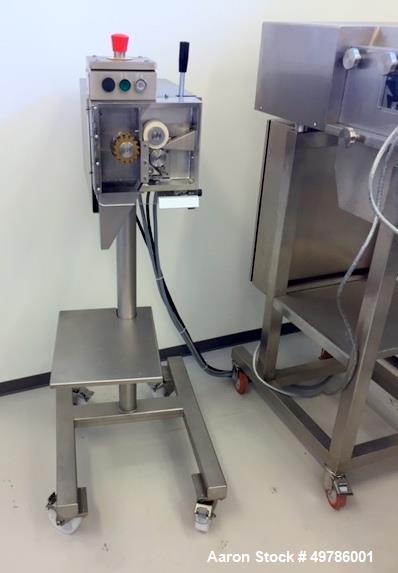

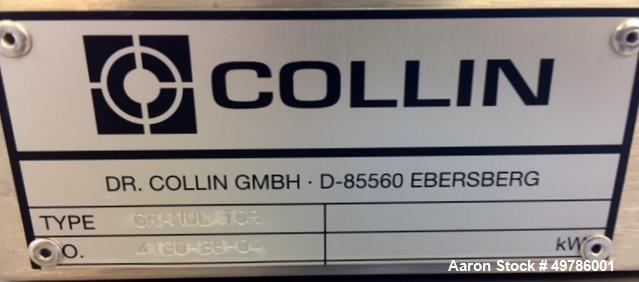

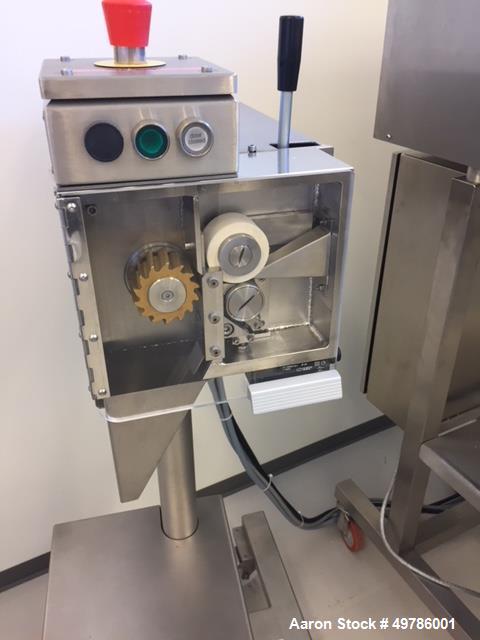

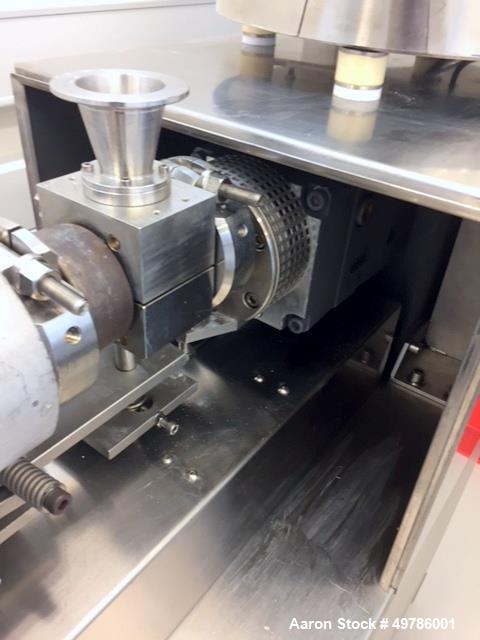

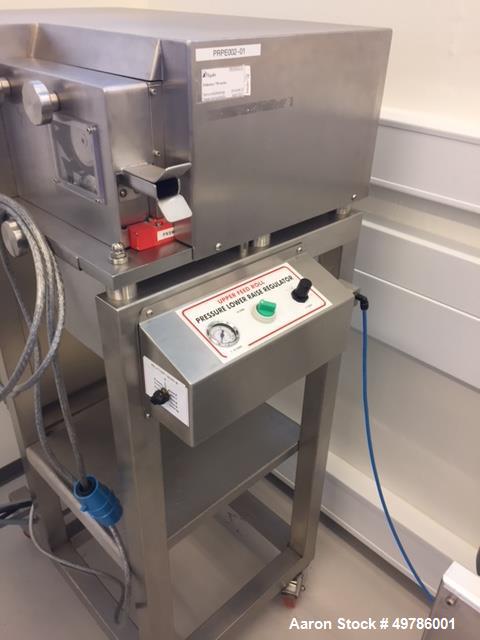

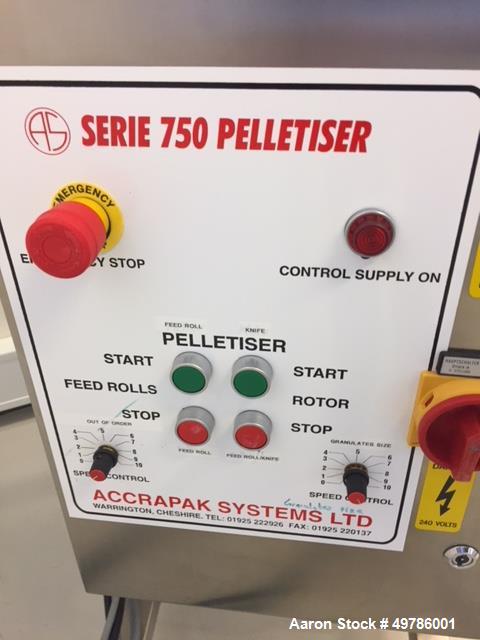

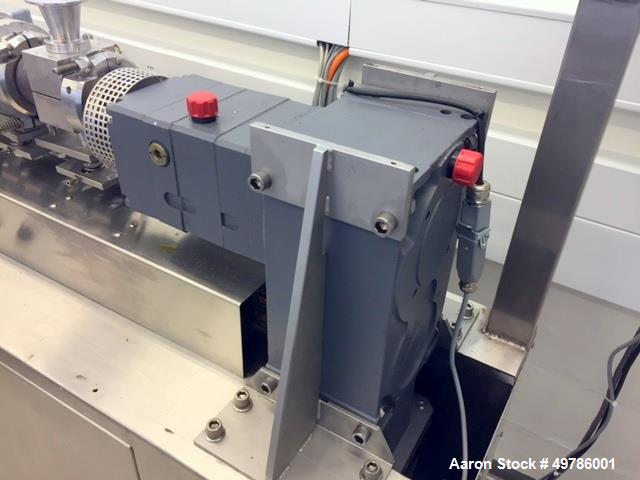

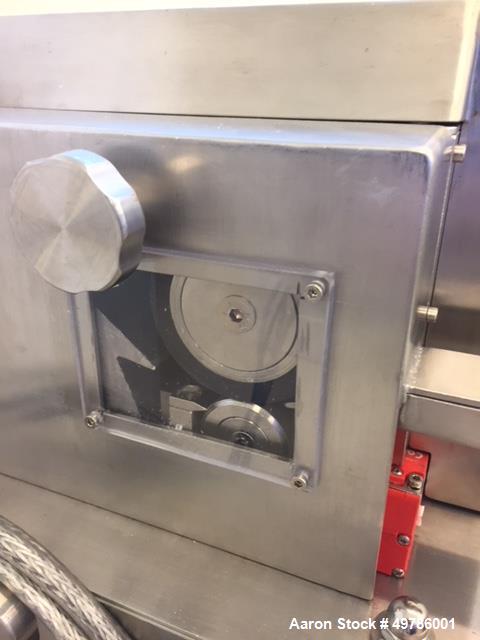

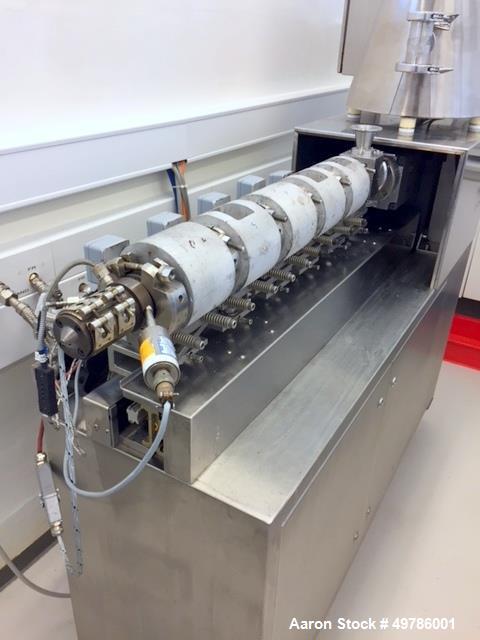

Used Dr. Collin Twin Screw Pelletizing Line. Consisting of: (1) Dr. Collin twin screw extruder, Type ZK 25. 25 mm (0.98") diameter x 850 mm (33.1") long co rotating screws. 34:1 L/D, Maximum screw speed 460 rpm. Electrically heated, water cooled. 5 section barrel, (3) vented and plugged, (2) non vented barrel sections. Driven via a 22.5 hp/15 kW Knödler gearbox, Type KS-80-2-DW-21. Gearbox ratio 1:6.52. N1 3000 RPM/N2 460 rpm by an exp. motor. On board Dr. Collin operating panel. Incl. (1) Brabender single screw gravimetric feeder. Stainless steel construction on covers and stand. On 4 wheels. New year 2004. Over all dimensions: 72" long x 2 width x 62" high (2200 mm long x 640 mm width x 1900 mm high), (1) Dr. Collin cooling band, Type ABZUGSBAND, Stainless steel construction, 5.9" (150 mm) wide x 111.1" (2820 mm) long. 3 air zones. Water pressure 60 psi (4 bar), Air pressure 90 psi (6 bar). On 4 wheels, Serial # 4710-38-04, New year 2004. Overall dimensions: 96" long x 33" width x 42" high (2950 mm long x 100 0mm width x 1300 mm high). (1) Dr. Collin strand pelletizer, Type GRANULATOR, wide helical rotor, pull roll. On 4 wheels. Serial # 4130-38-04, New 2004. Overall dimensions: 33" long x 33" width x 44" high (1000 mm high x 1000 mm width x 1350 mm high). (1) Accrapak Systems Ltd pelletizer, Type 750 Series. wide helical rotor, pull roll. On 4 wheels. New year 2004. Overall dimensions: 28" long x 16" width x 44" high (850 mm long x 500 mm width x 1350 mm high). (1) Single temperature unit, STW 150/1-6-20-K5, Serial # 042217. New year 2004. (1) Tool-Temp AG cooling unit, Type TT12000H, 3 x 380-415volt/50cycle/3Ph. Serial # 24-05212-1. New 2004. (1) Rittal double door control panel 39" long 19" width x 72" high (1200 mm long x 600 mm width x 2200 mm high). New year 2004.
