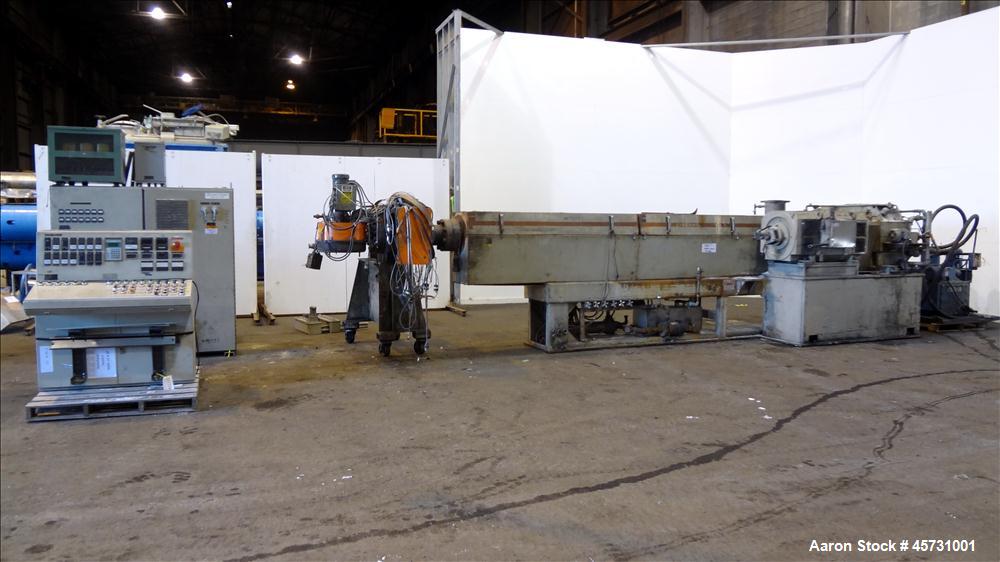

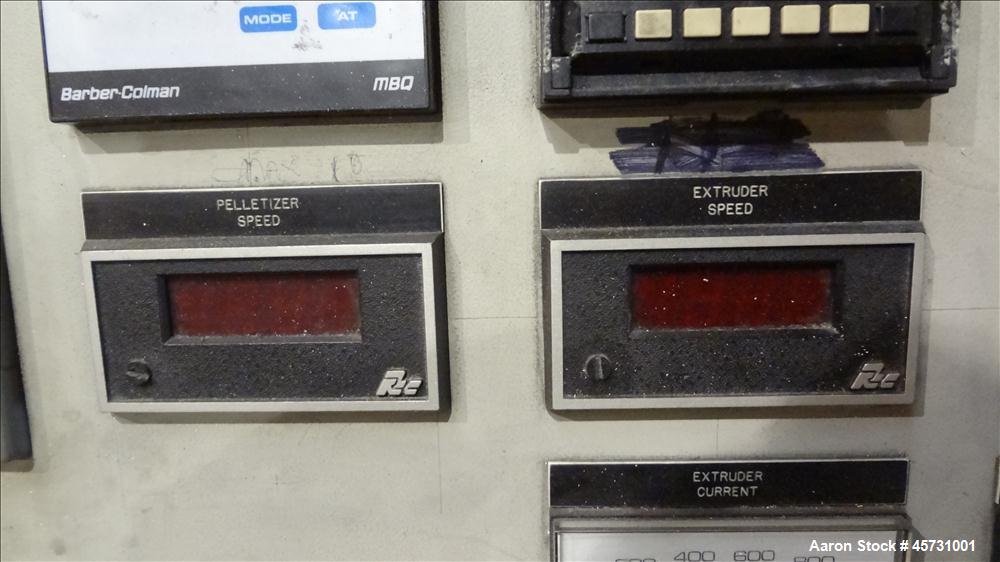

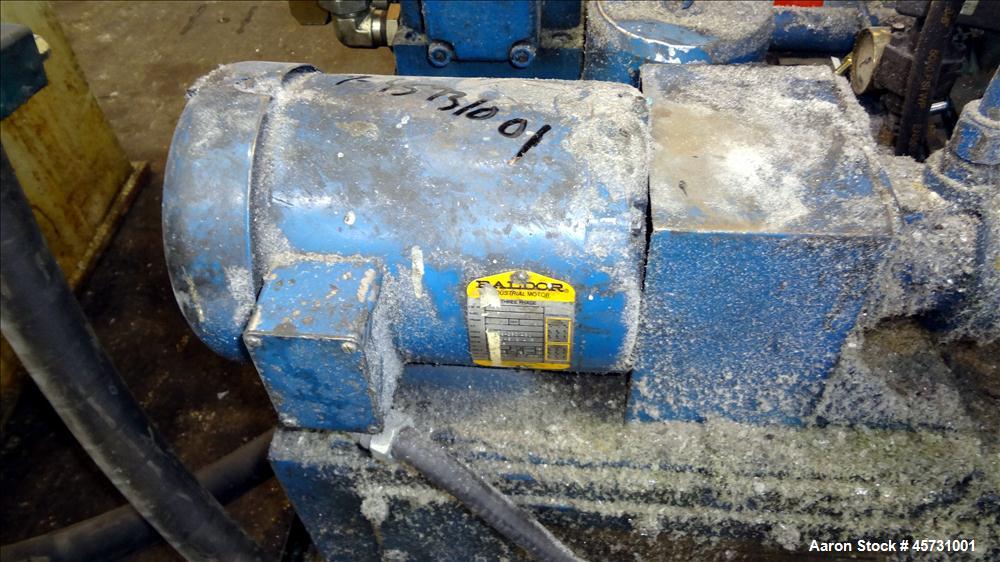

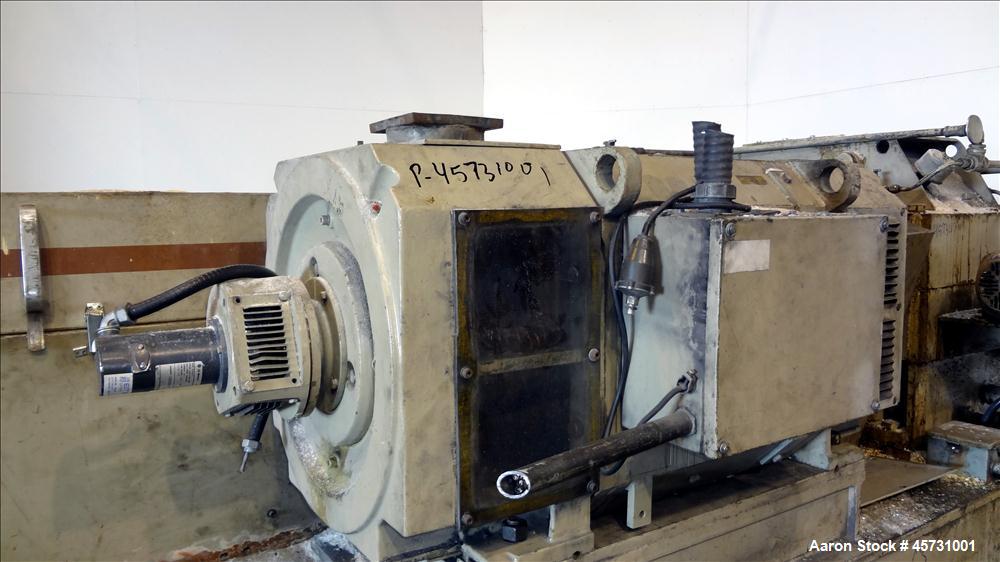

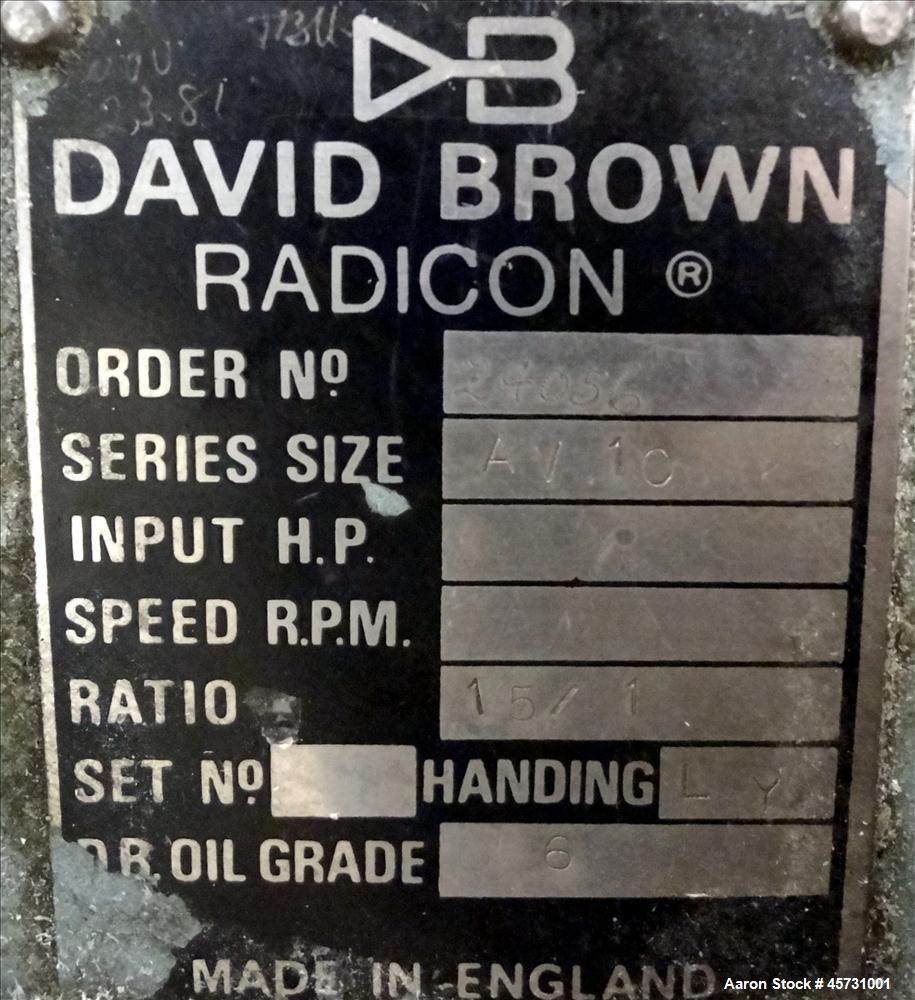

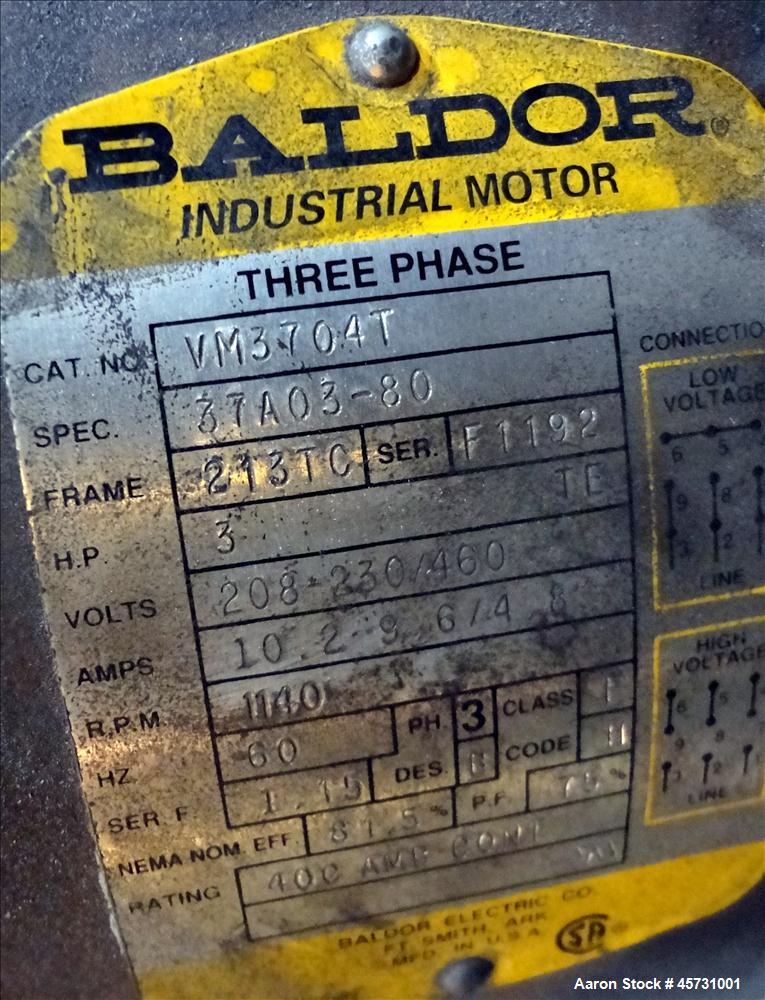

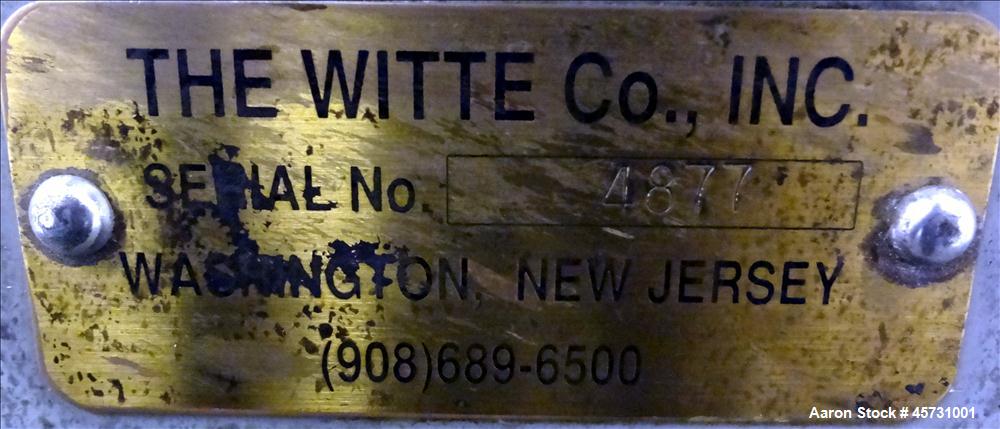

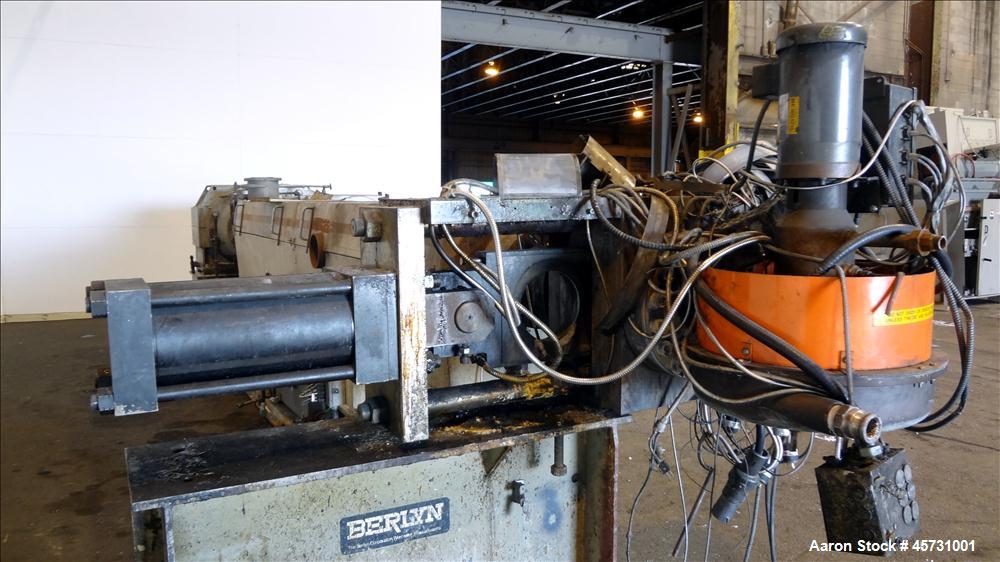

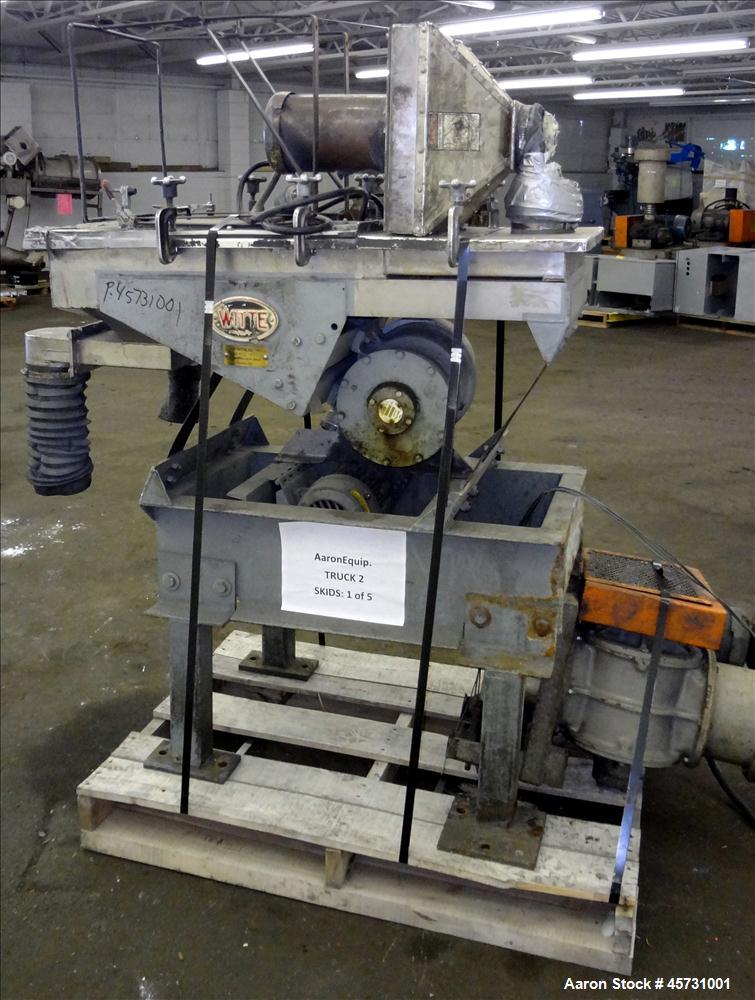

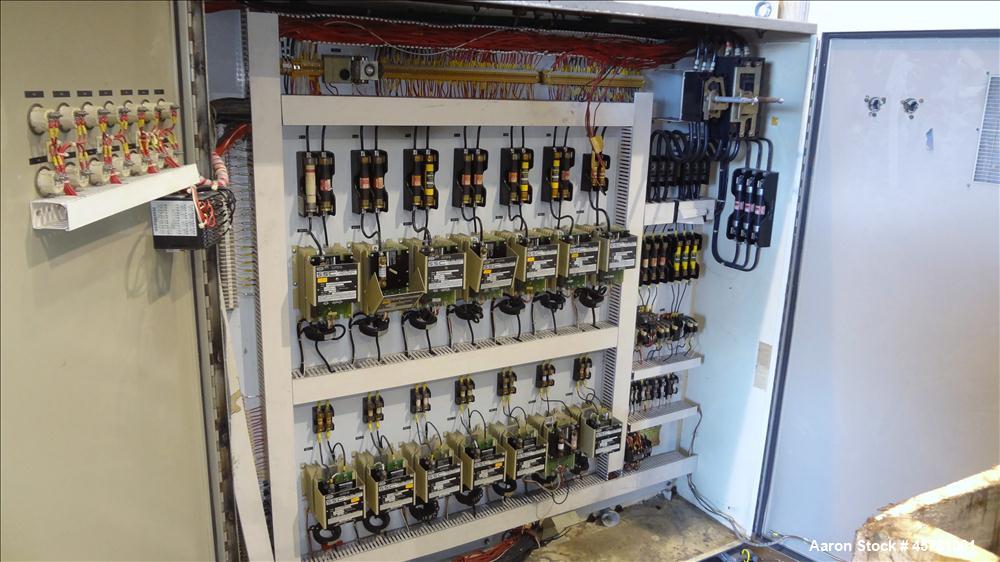

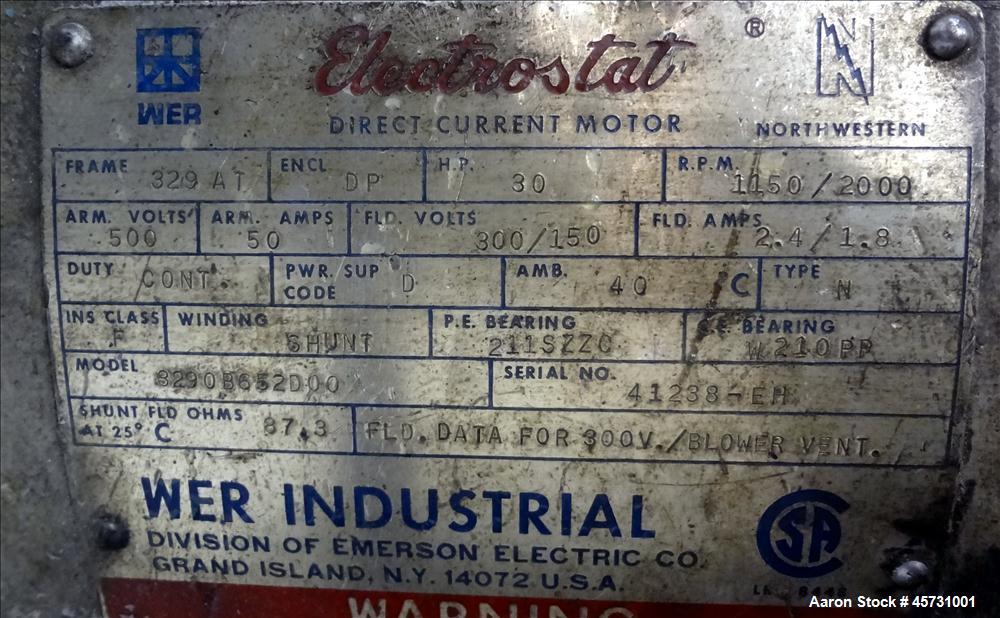

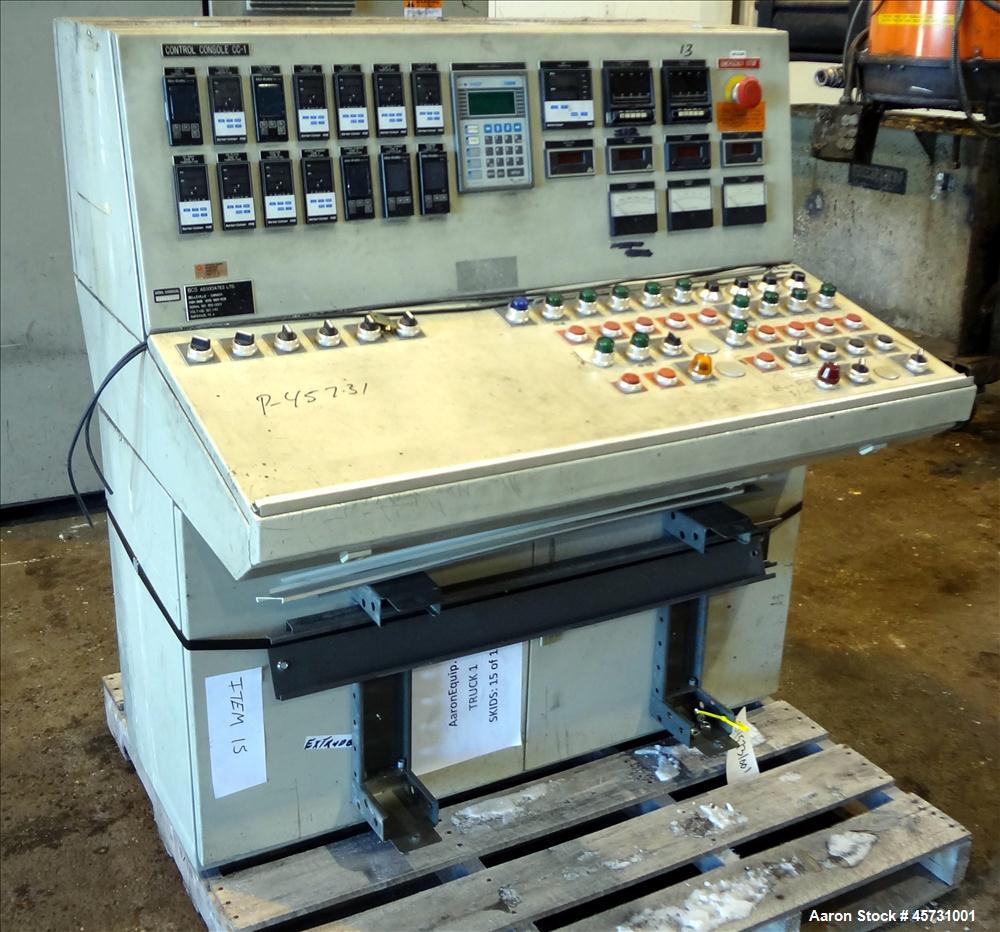

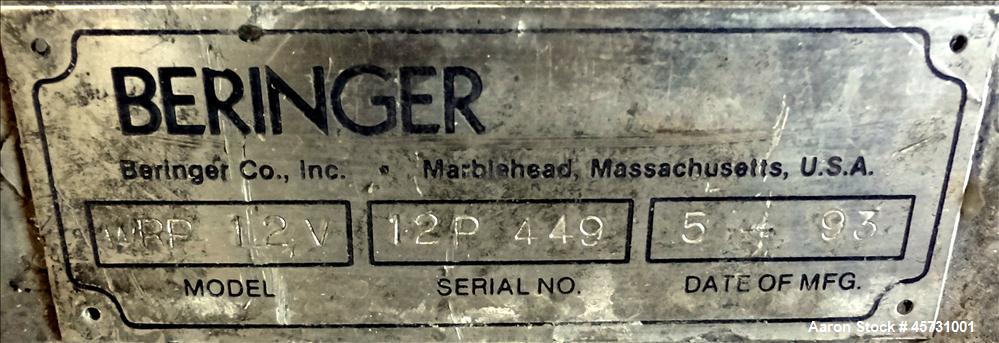

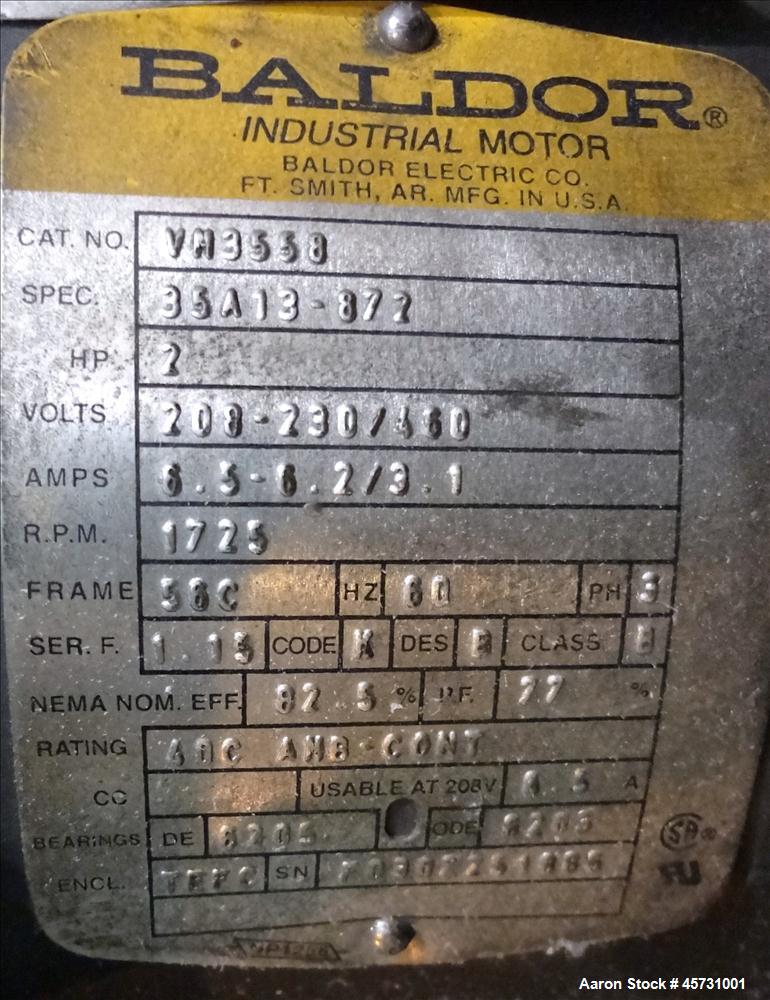

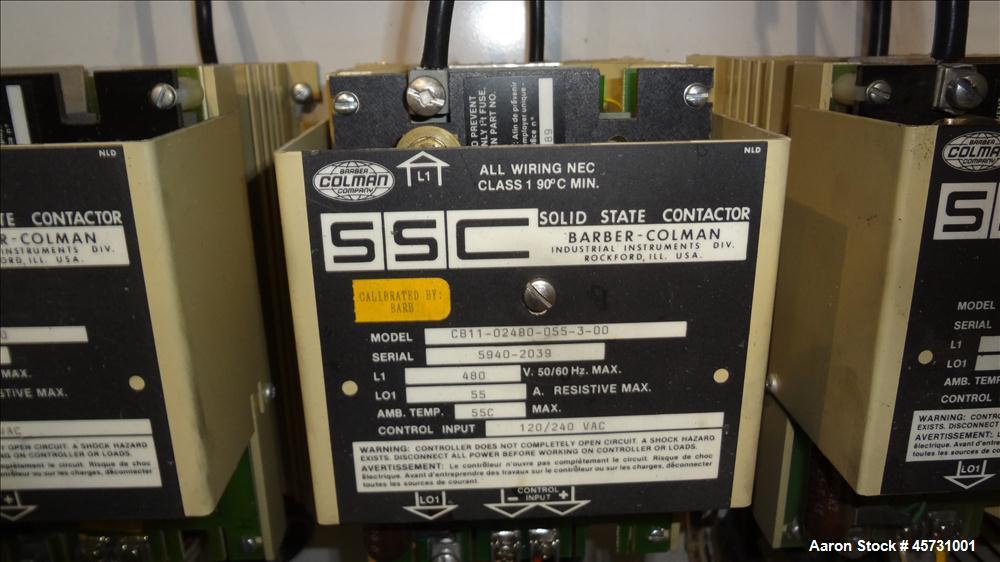

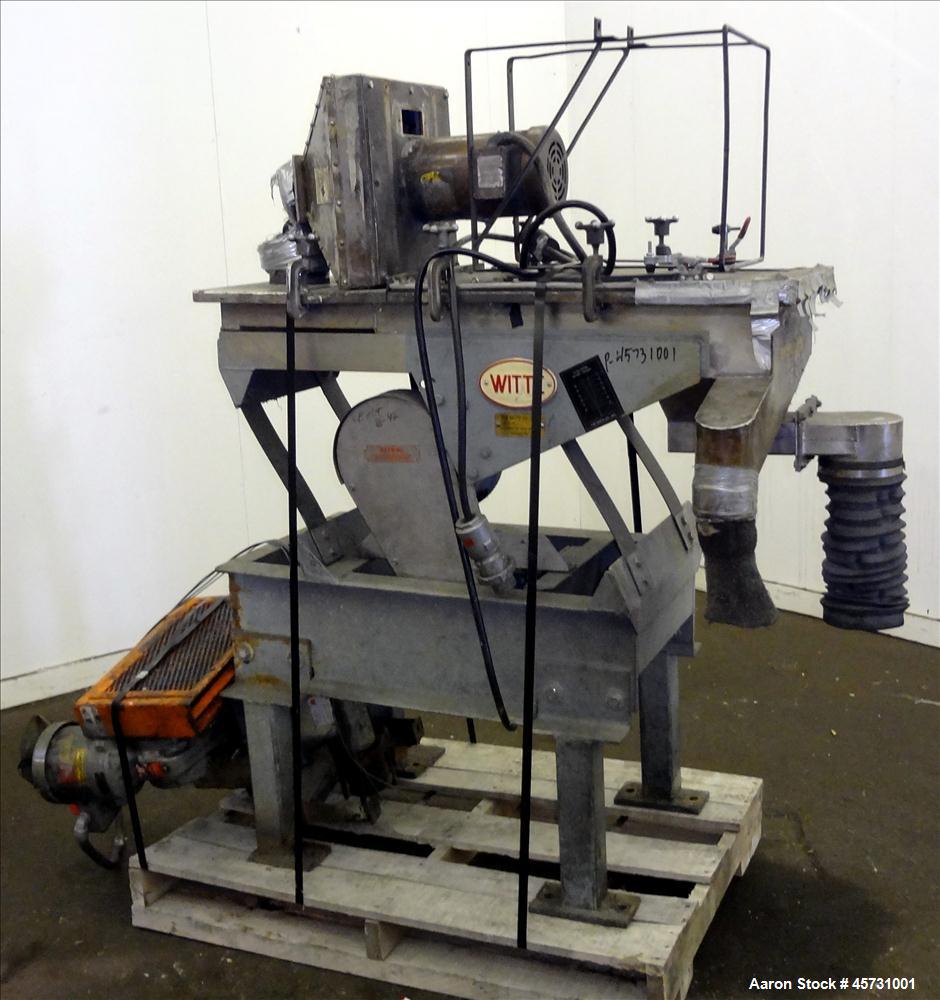

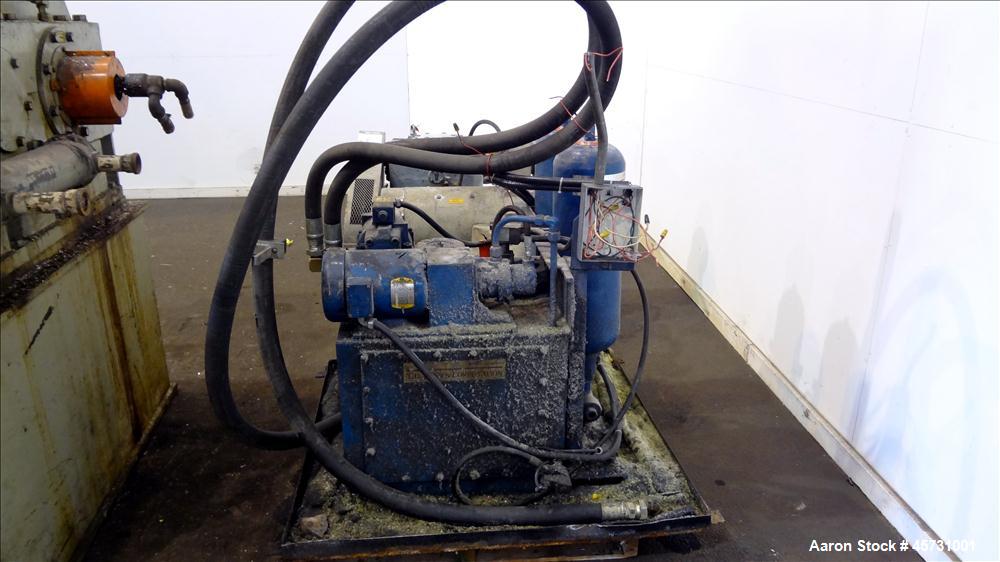

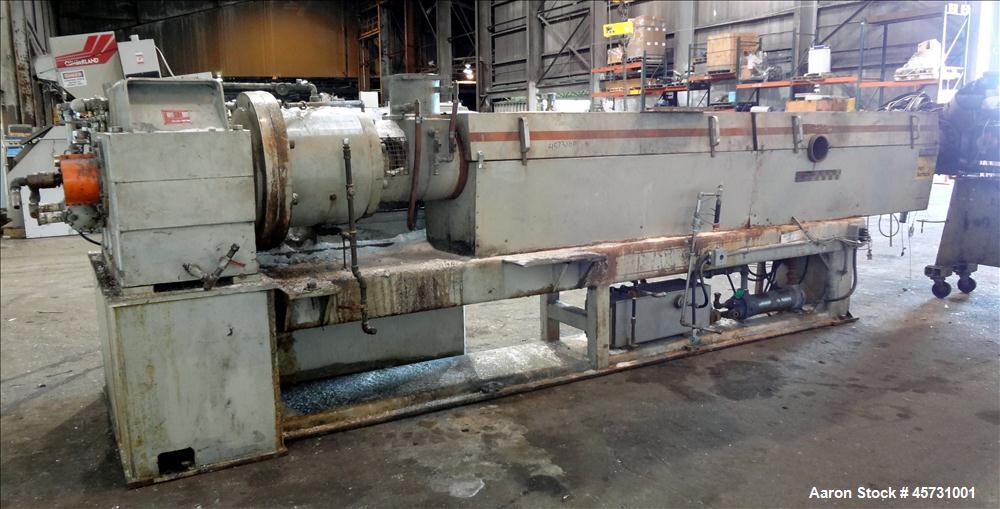

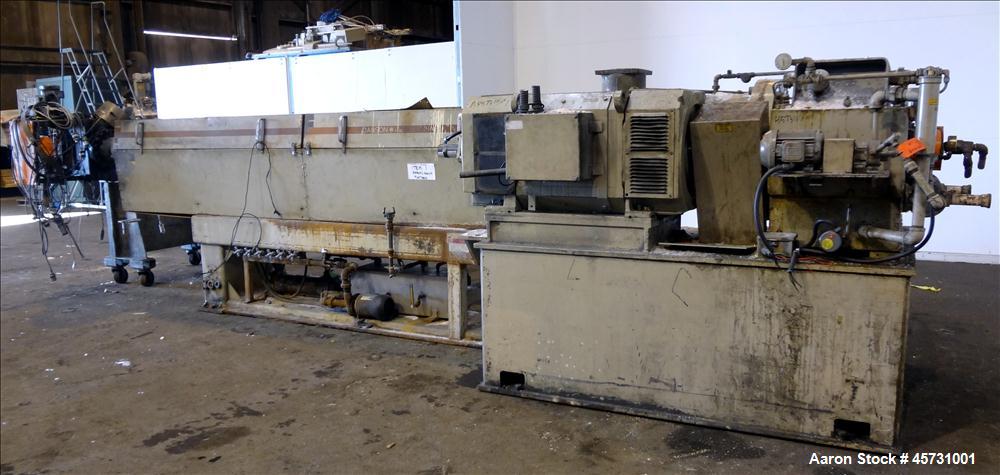

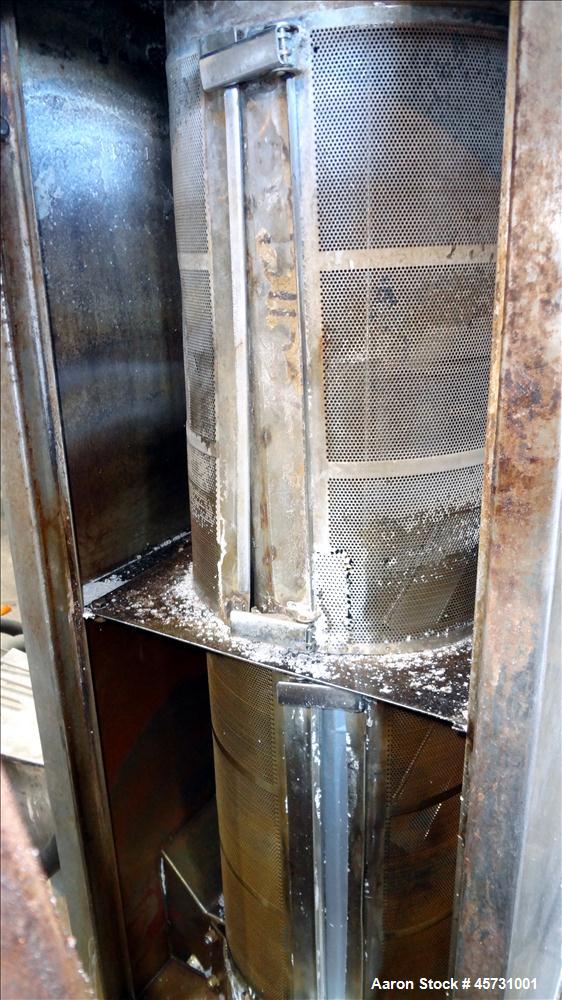

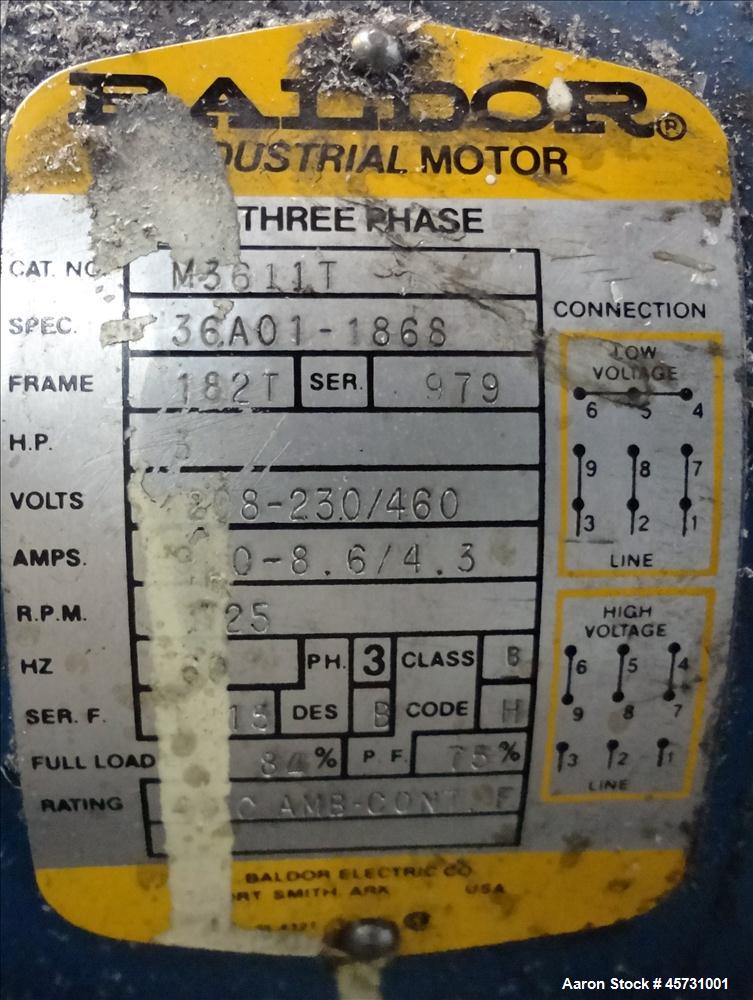

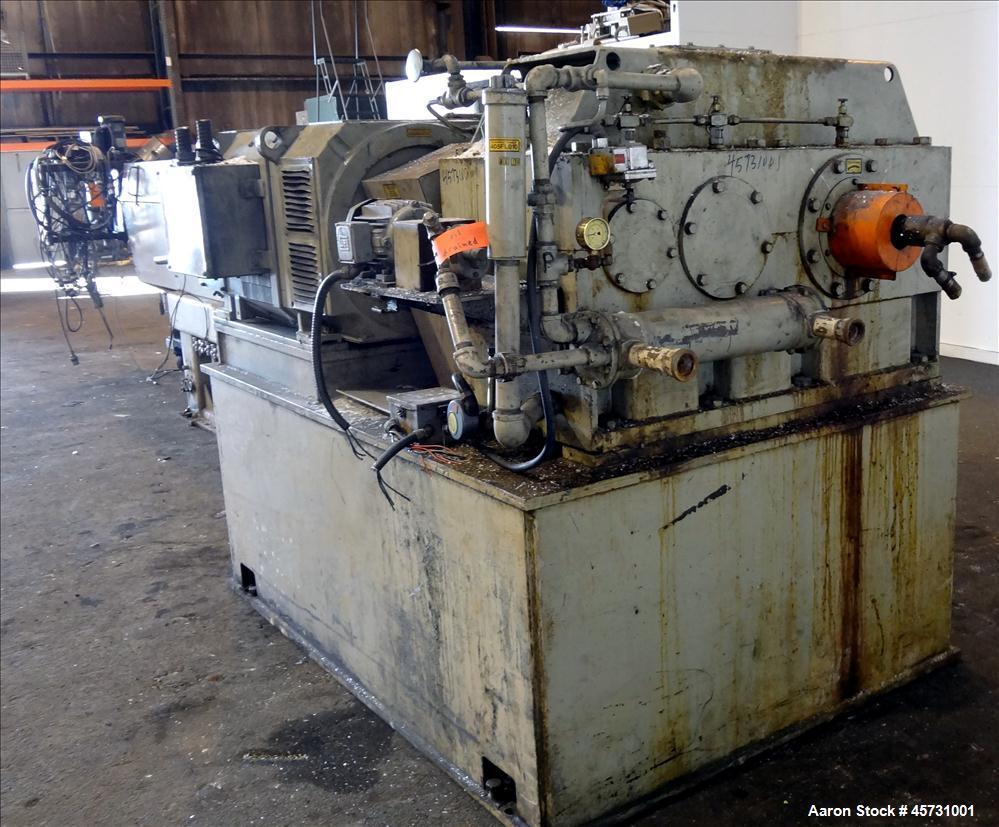

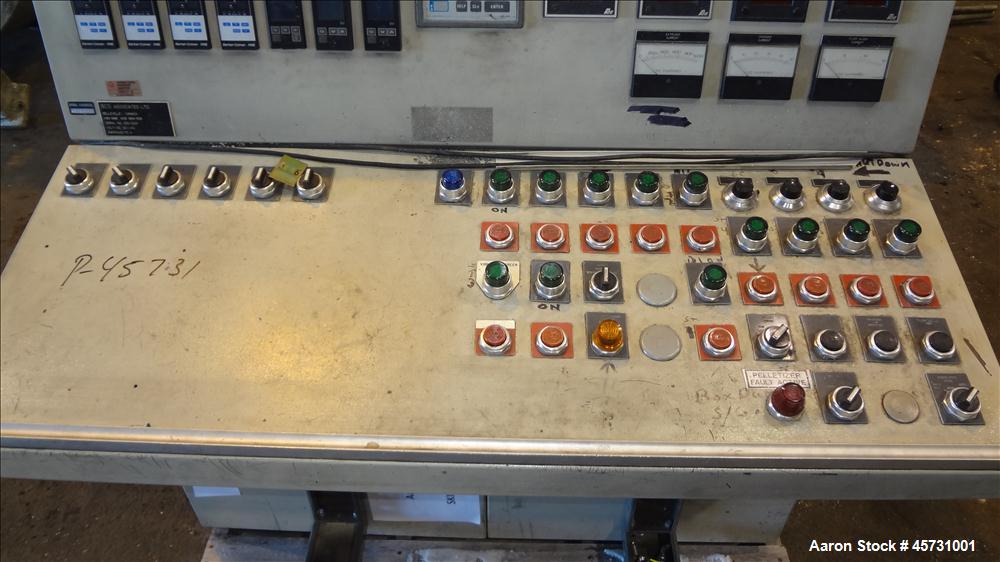

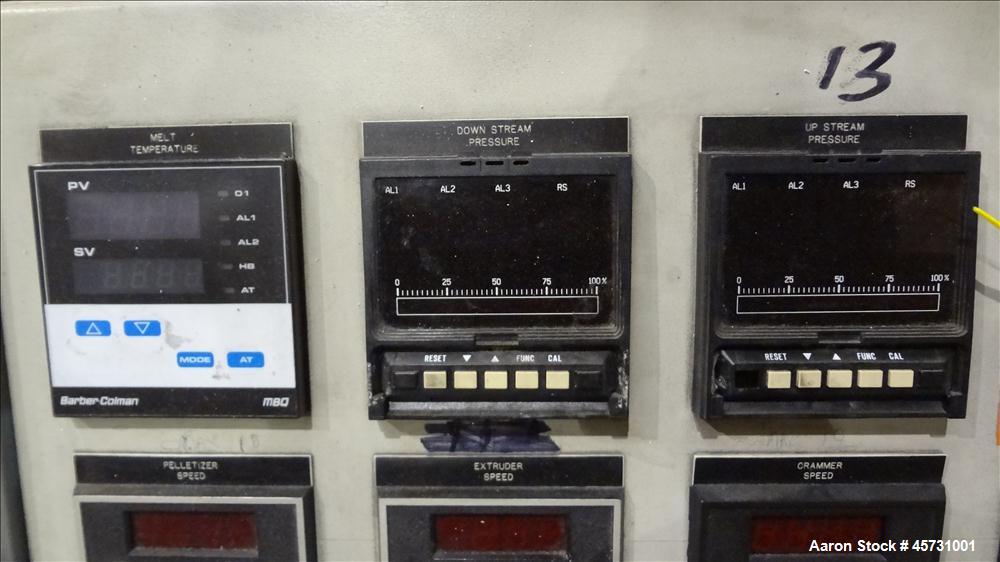

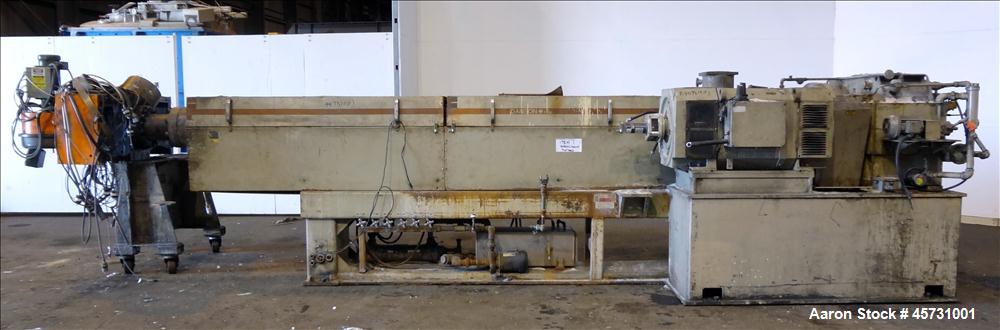

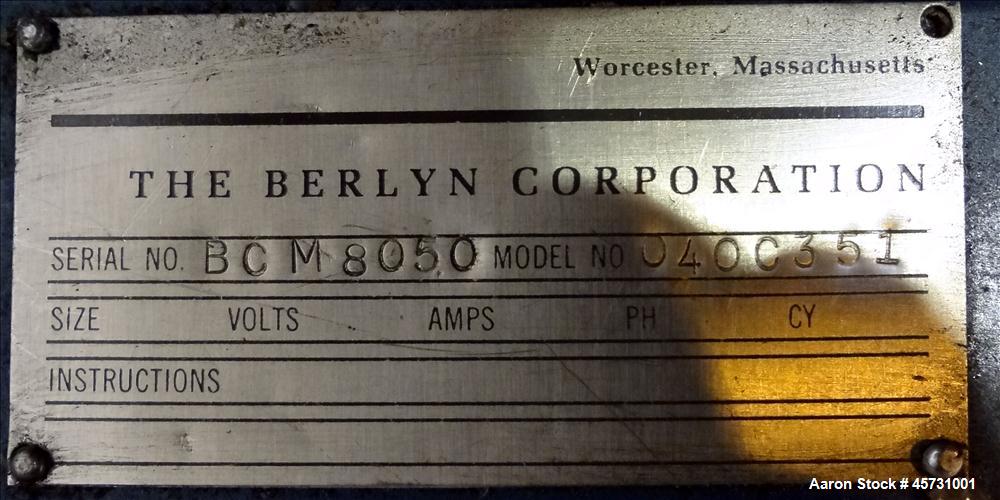

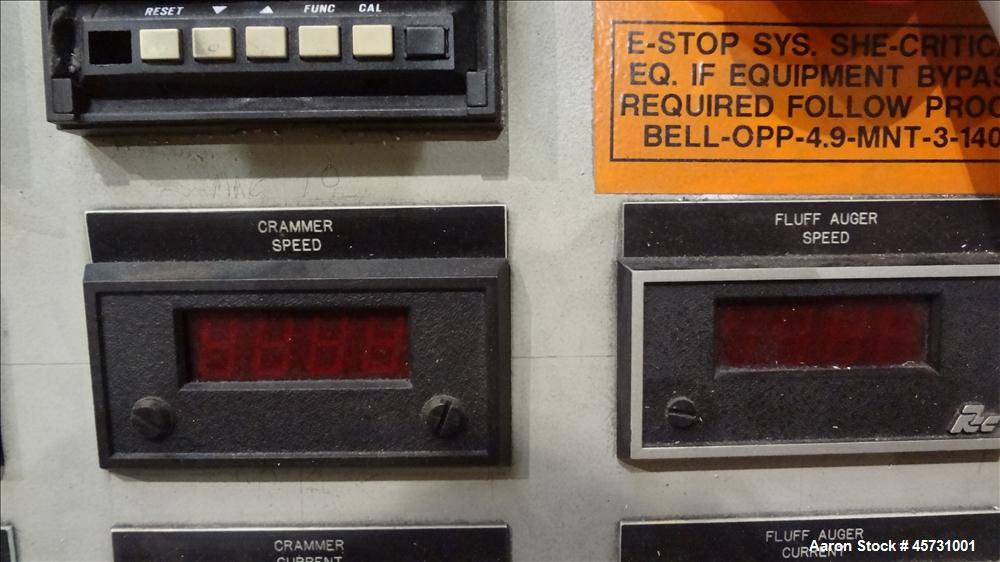

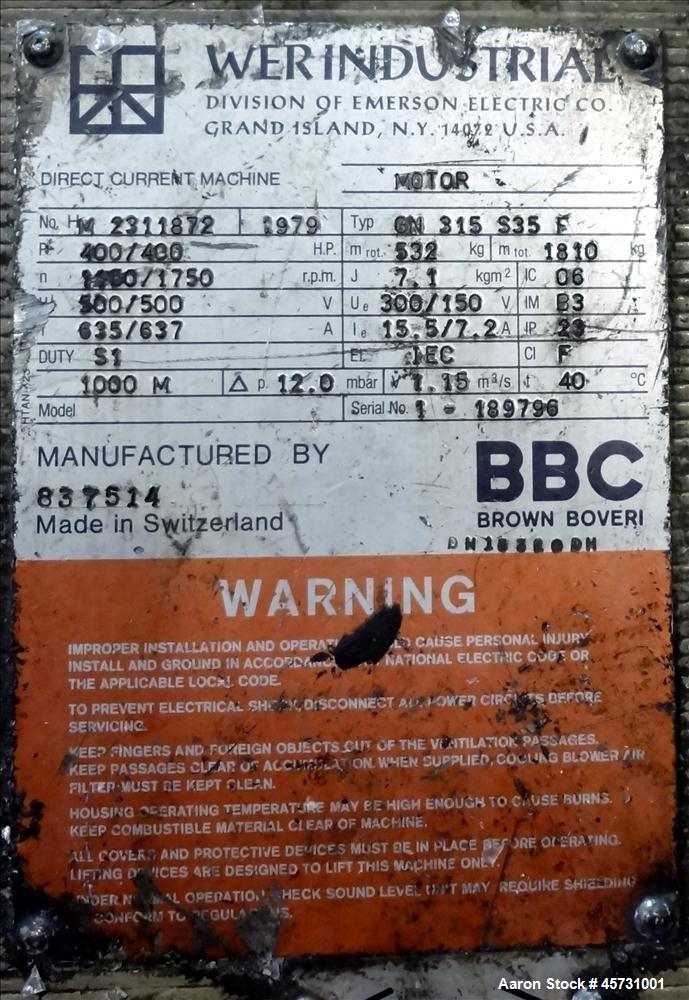

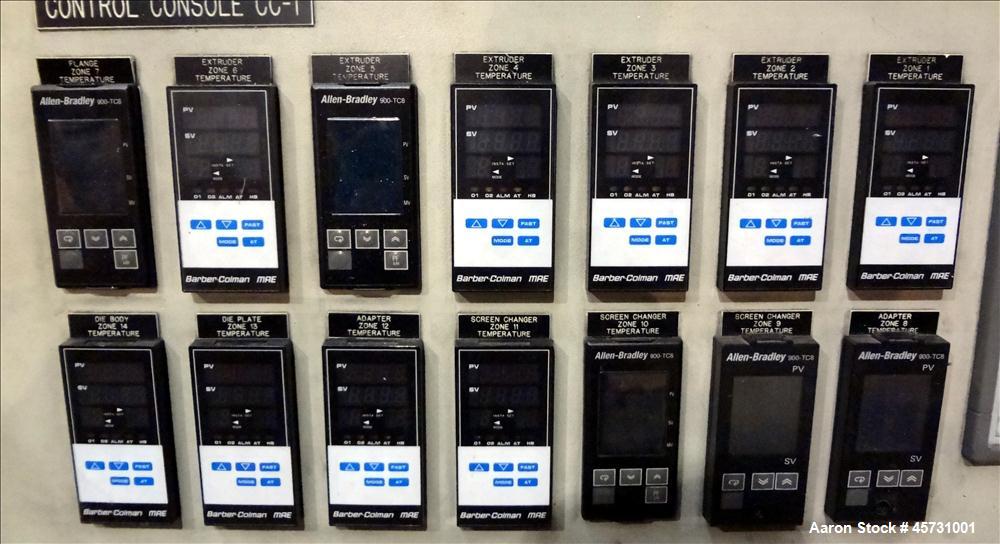

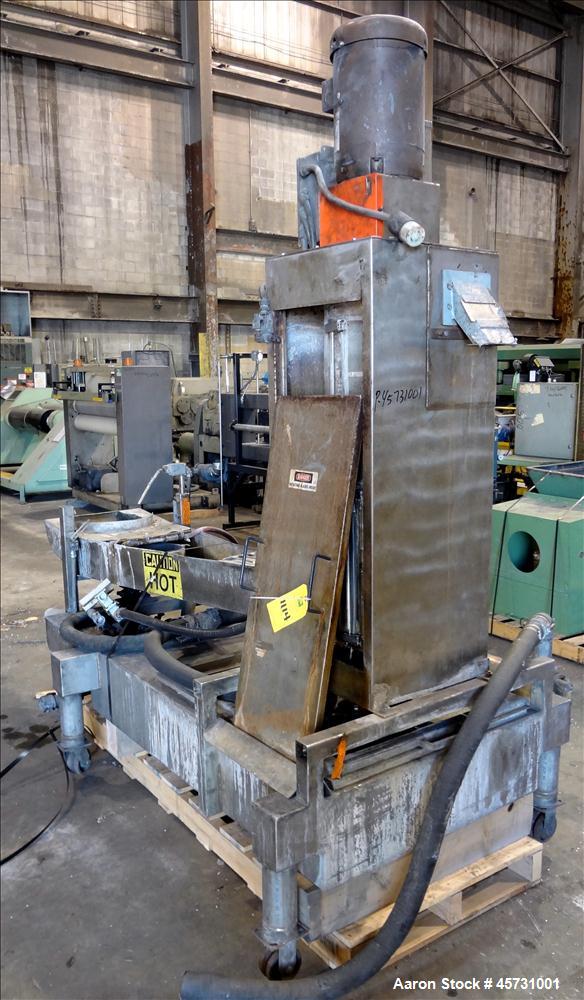

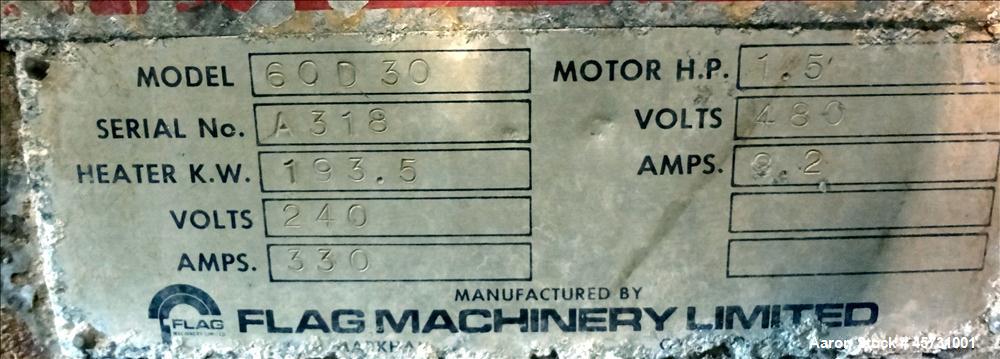

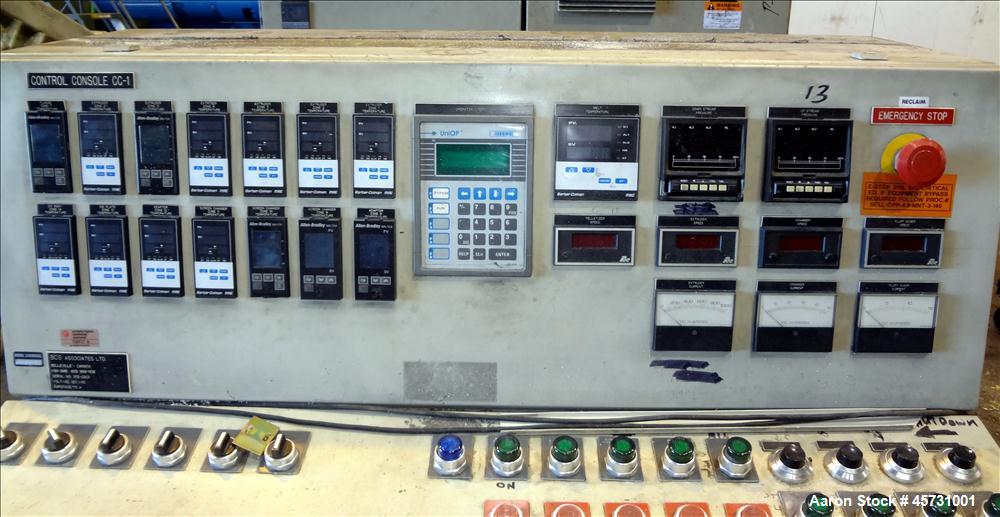

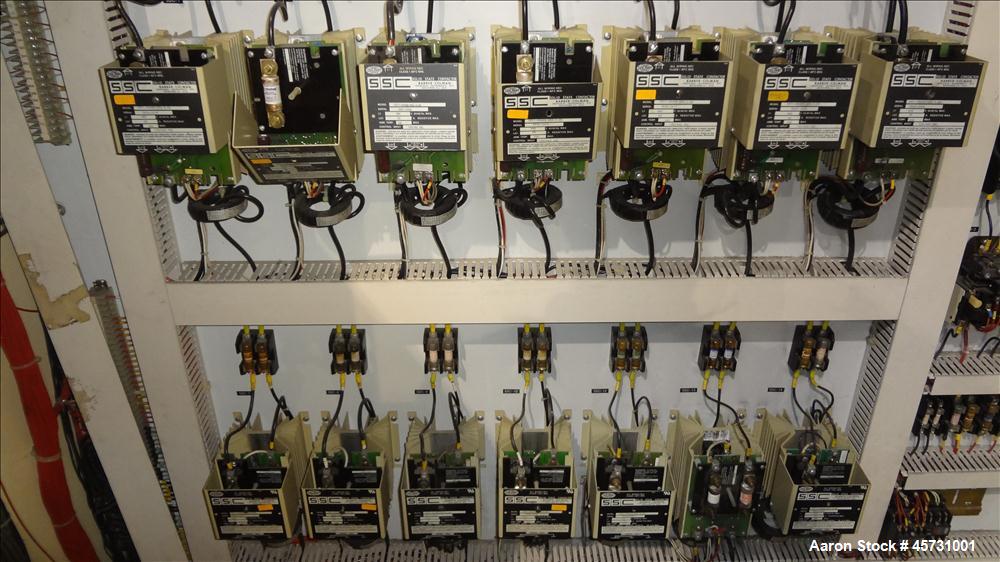

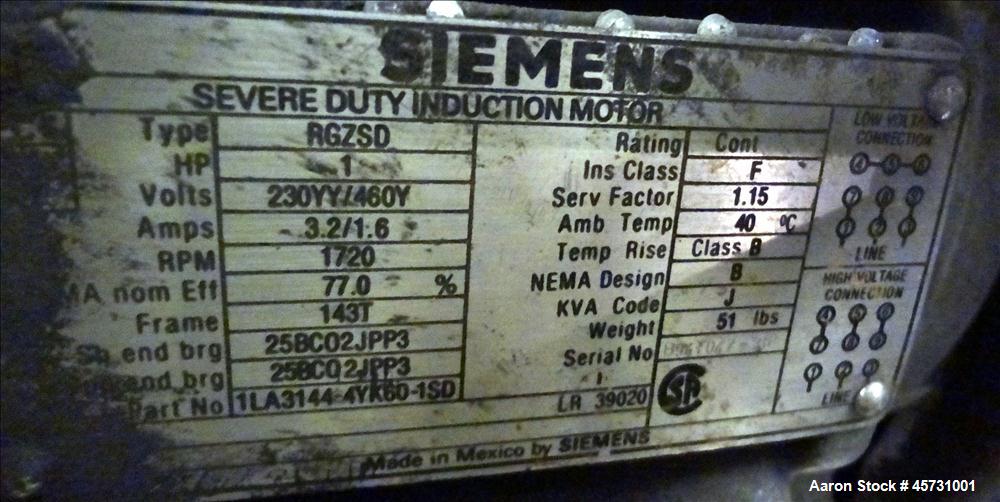

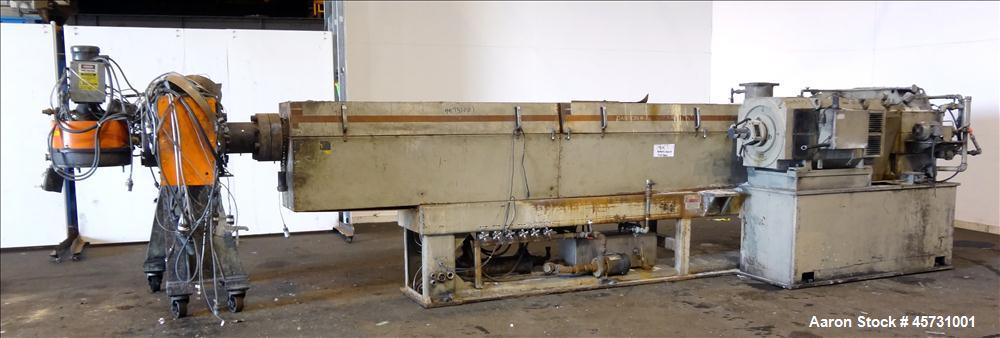

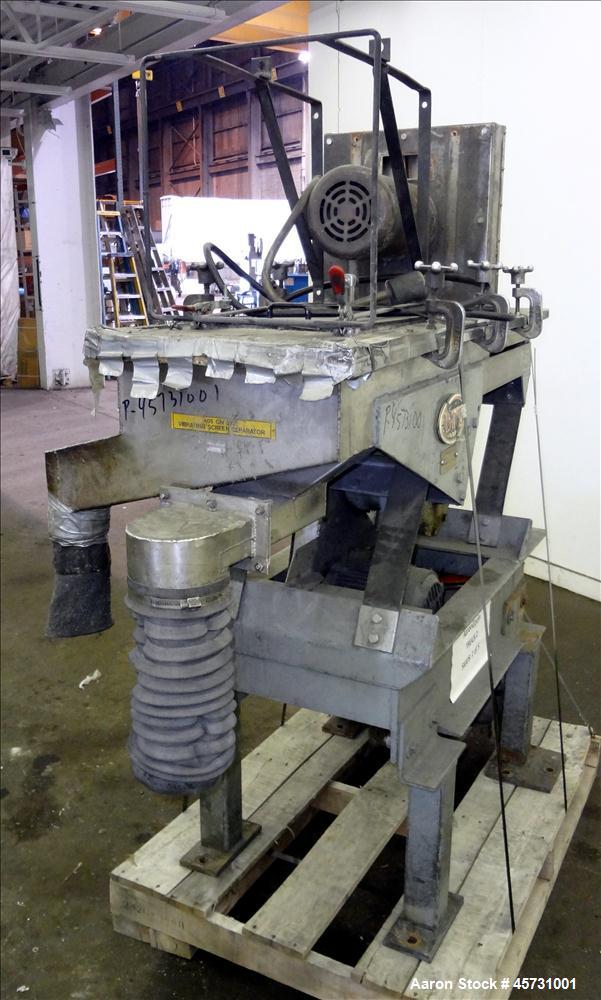

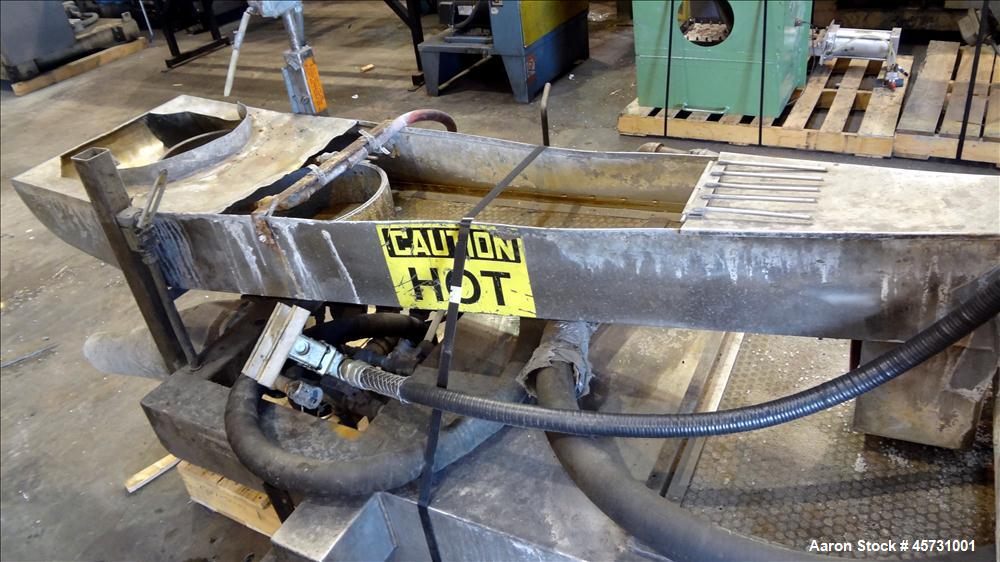

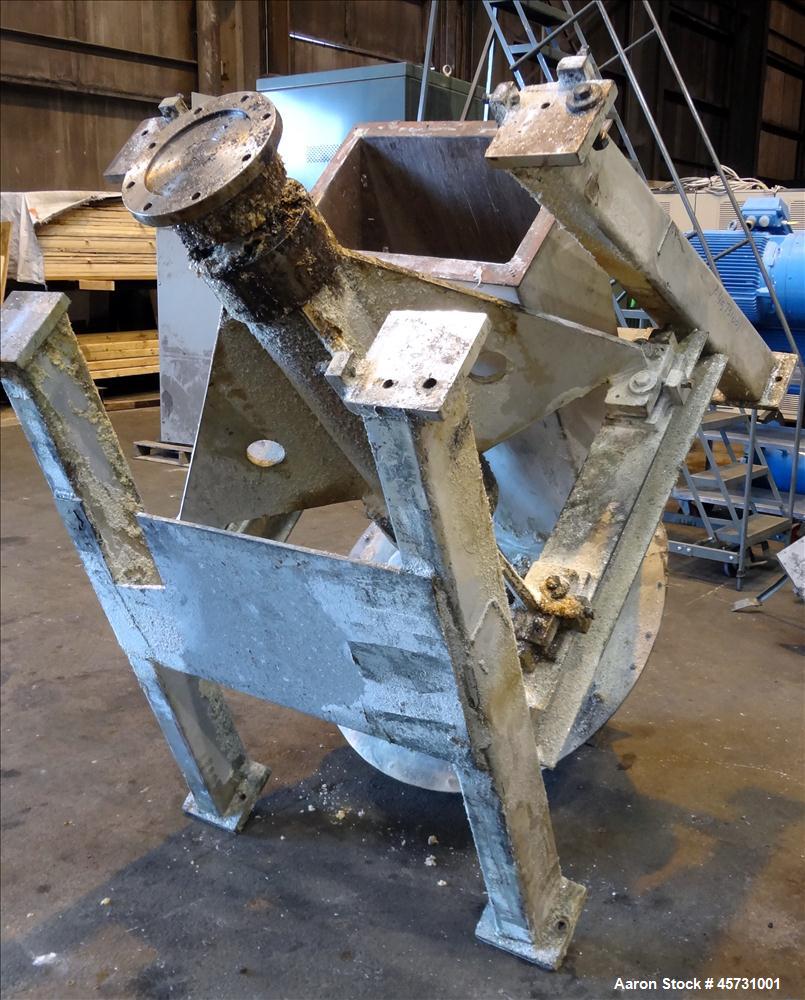

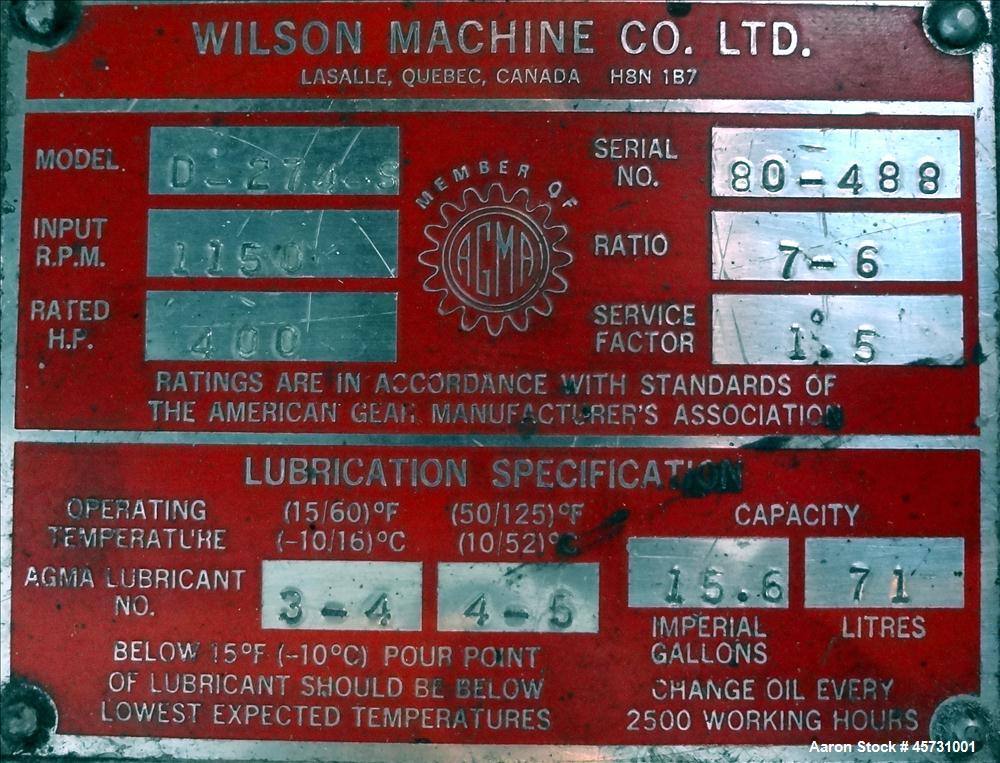

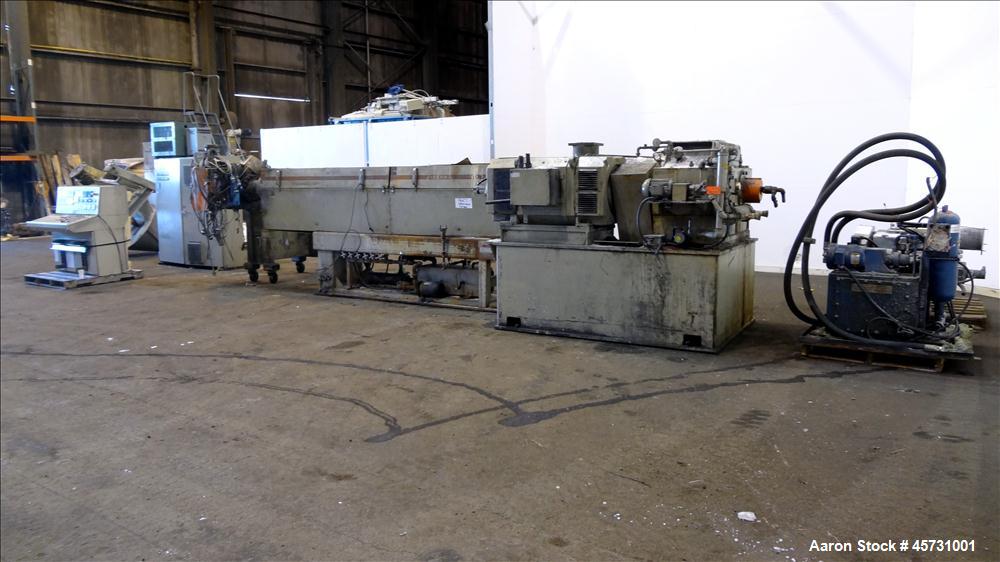

Used Johnson 6" Water Ring Pelletizing Line Consisting Of: Johnson Extruder Model 60D30, 30:1 L/D ratio, 54" center-line height, 6 zones, electrically heated, water cooled barrel. Barrel equipped with side vent (plugged). Driven by 400 hp, 500 volts, 1750 rpm DC motor including SCR Drive, Gearbox ratio is approximate 7:1. (14) zone temperature control panel, (6) Barrel zones Heat/cool, (8) downstream zones including die plate, screen changer and adapter. Extruder crammer feeder driven by a 30 hp DC, 500 volt, 1150/2000 rpm motor. 6" Berlin side hydraulic slide plate screen changer driven by a 2 hp, 208-230-460 volt, 1725 rpm motor with Berlyn power unit Model 040C351, 3 hp, 208-230-460 volt motor. Beringer water ring pelletizer, Model WRP12V including water slide and spin dryer driven by 3 hp, 208-230-460 volt, 1140 rpm motor. Dryer dumped into a 30" long x 16" wide Witte Classifier driven by a 1 hp, 230-460 volt, 1720 rpm motor.
