Used Single Screw Pelletizing Lines

Stock# 10755157

Used Davis Standard / Xaloy 6" pelletizing line consisting of: One (1) Davis Standard 6" model 60IN60TPTH extruder having a 34:1 L/D ratio barrel with a seven (7) zone electrically, heated, water cooled (closed loop), and vented barrel at a 42" centerline. Part Number 0022356-1-1. 8" x 12" on center feed throat. Oversized (8") Gearbox is direct driven in a wraparound manner by a 500 HP Reliance Super RPM 1150/1680 RPM D/C motor with Siemens Simoreg Microprocessor SCR control mounted in a stand-alone enclosure. Gearbox has a reduction ratio of 11.304:1 and is rated at 1050 HP at a service factor of 1.5. Liquid cooling system with heat exchanger for gearbox protection. Stand-alone control panel with sixteen (16) zones of Barber Coleman model 2408 digital controllers. Manufactured 9/2011. Gearbox completely rebuilt by Texas Extrusion Services 4/2022. 460/3/60. Drive 794 amps. Temp panel 400 amps. Reportedly barrier screw installed. Xaloy model EH-80SH hydraulic slide plate screen changer having two (2) nominal 8? diameter breaker plates. Serial number EH80-180 Mounted on a stand. With 3 hp hydraulic power pack with oversize accumulator. Xaloy model WRP-35S Pelletizer with 3 HP Cutting Head with stand, water reservoir with two (2) 1.5 HP water pumps, 7.5 HP slurry pump, 5 HP Spin Dryer, control panel and caster mounted pellet accumulation hopper. Serial number VB1057

Stock# 10755160

Used PTI Pelletizing Line, Model TS4500, 4.5" Diameter. 30:1 L/D Extruder having an electrically heated, water cooled (closed loop), and side vented barrel at a nominal 42? center-line height. The gearbox is a Flender model SZNE250 having a reduction ratio of 13.88:1 and has a service rating of 200 HP and a catalogue rating of 325 HP. The gearbox is belt driven in a wraparound manner by a 200 HP D/C motor with Safetronics SCR control. Over-sized on center oblong feed throat with water cooling. Free-standing temperature control panel has ten (10) zones of temperature controls. SCR is mounted inside the control panel. 480/3/60 400 amps. S/N 1832. Mounted on the extruder discharge is a model HSC-45 hydraulic slide plate screen changer having two (2) nominal 4.5" diameter breaker plates with oversized 5 HP hydraulic power pack. S/N H45-204. Downstream is a PTI model CPF1000S water ring pelletizing system with 3 HP cutter head, die, sluiceway, water system, Gala model 8.1BF spin dryer and control panel. S/N 2780. 460/3/60 30 amps.

Stock# 10755161

Used Prodex Pelletizing Line Prodex 4.5" 32:1 L/D extruder having an electrically heated, water cooled (closed loop), and side vented barrel. The gearbox is a Lufkin change gear gearbox and driven in a tuck under manner by a 300 HP A/C motor with Yaskawa inverter. Includes stand-alone cooling system for the gearbox. Over-sized on center oblong feed throat with water cooling and volumetric screw feeder. Free-standing temperature control panel has ten (10) zones of temperature controls. Inverter is free standing and mounted in its own enclosure. Mounted on the extruder discharge is a hydraulic slide plate screen changer having two (2) nominal 4.5" diameter breakers with hydraulic power pack, stand, and strand die. Downstream includes an 11" Cumberland "Quietizer" pelletizer with solid helical rotor. Powered by a 25 HP A/C motor and Yaskawa model V1000 inverter. Pelletizer feeds 10" x 72" Witte two deck screener. Offered less extruder screw.

Stock# 52700002

Used Union Pelletizing Line, type/model. 120 L/D 42 with a capacity of 300-500 kg/hr. (660-1100 lbs/hr). consisting of: (1) Union single screw extruder, type ?120 L/D 42. 4.68" (120 mm) dia. screw Electrically heated, Air cooled. Driven via a gear box by a 147 KW DC veriable speed motor, (1) OMP PREALPINA hydraulic screen changer 11.7" (300 mm) dia, new 2013, (1) Atmospheric degassing system, Drying system, Control panel. New 1998-2013. Suitable for recycled material of grinded rigid plastic materials PE, PP, PS, ABS. Plastics Equipment

Stock# 52700003

Used Officina Meccanica Prealpina SRL Single Screw Pelletizing Line, type/model T.60 L/D 35-Vent with a capacity of 80-110 kg/hr. (176-242 lbs./hr.) recycled grinded rigid plastic materials PE, PP, PC, PS,ABS, ABS/PC, PA, (1) Single extruder 60 mm dia single screw incl. rigid materials dosing unit (1) Die head-spaghetti, (1) Filter Cresta 80 mm dia.(1) Hydraulic screen changer semi-automat without interrupting the extrusion, (1) Degassing pump, (1) Cooling water bath, (1) Sheer pelletizing unit, type SGS 100, (1) Control panel and additional infrastructure. Reported refurbished.

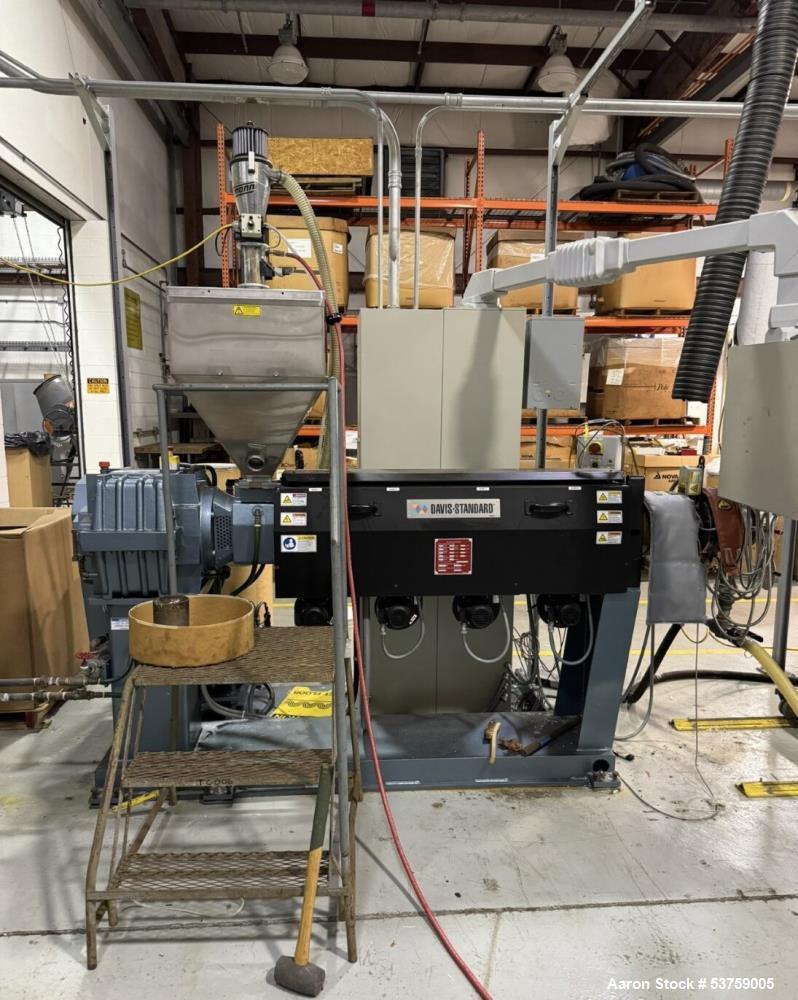

Stock# 53759005

Used 2.5" Davis Standard/Gala Pilot Plant Pelletizing Line. 2.5" Davis Standard Extruder, Model 25, 24:1 L/D Ratio, 4 zones air cooled barrel, 75 KW HP Capacity, 1.25 SF, 17.26 to 1 gear reduction ratio, 100 RPM Screw Speed, Material feed Hopper, Control Panel Mounted On Base. Gala Underwater Pelletizer, MAP, Skid Mounted, Spin Dryer, Tempered Water System, with Pumps/Filter. Serial# 002163674-1-1, Built 2020.
