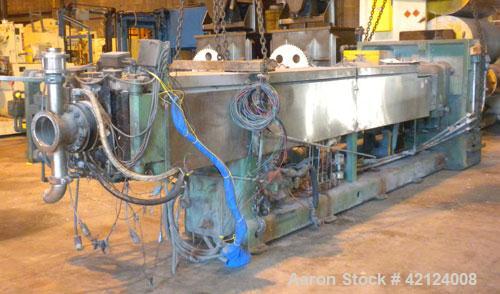

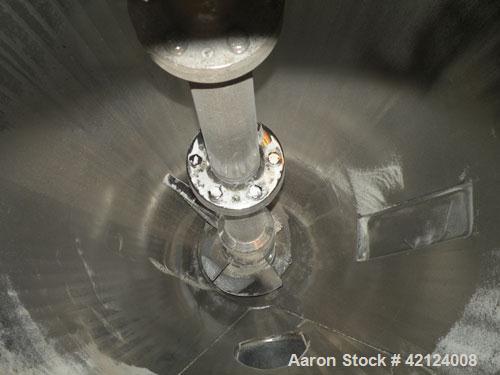

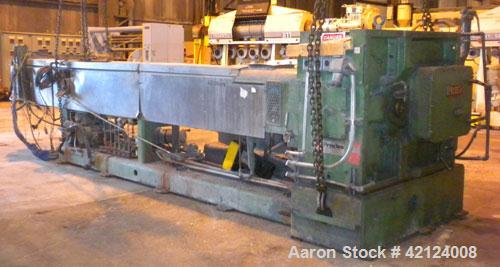

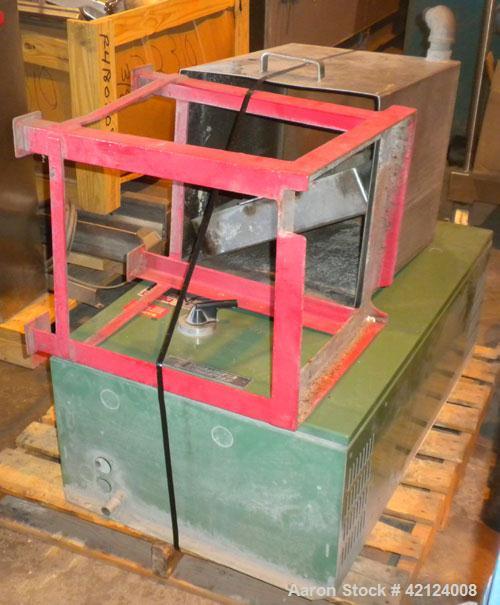

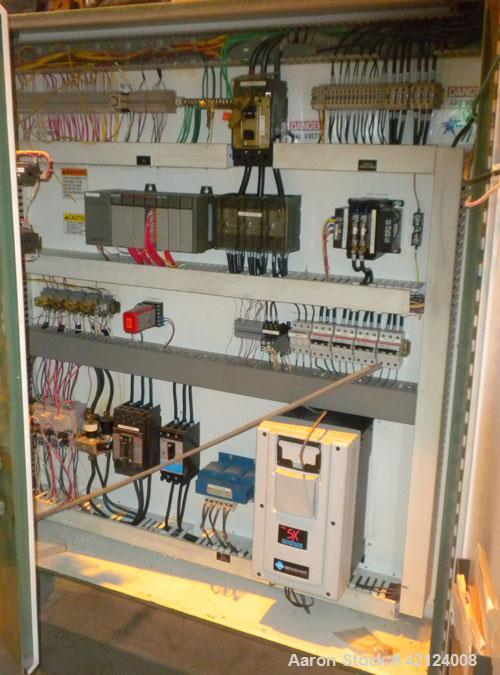

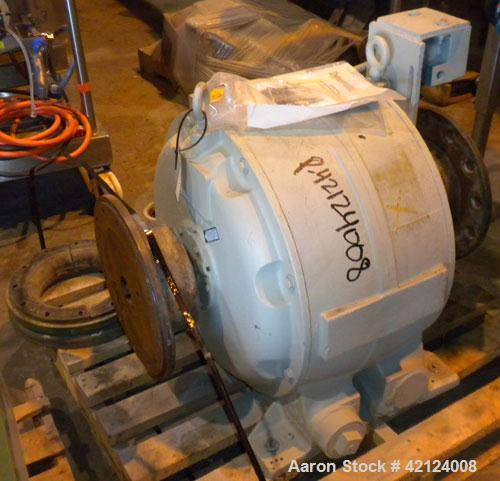

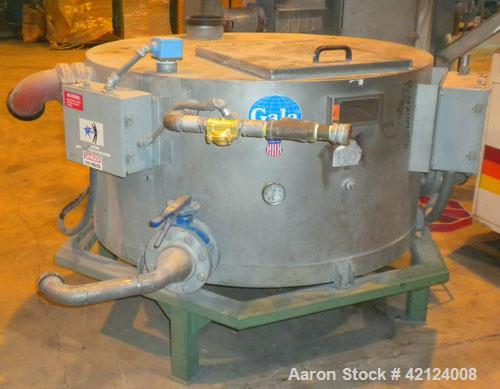

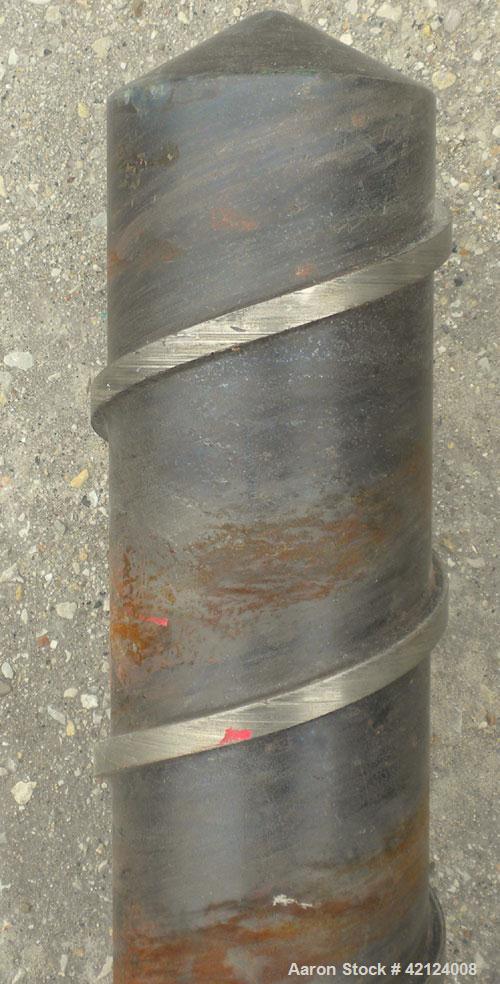

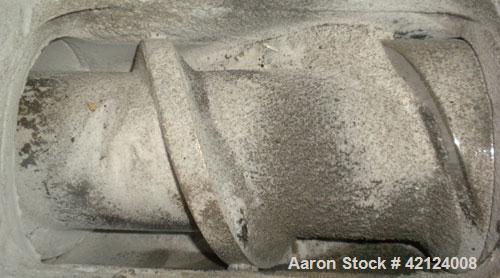

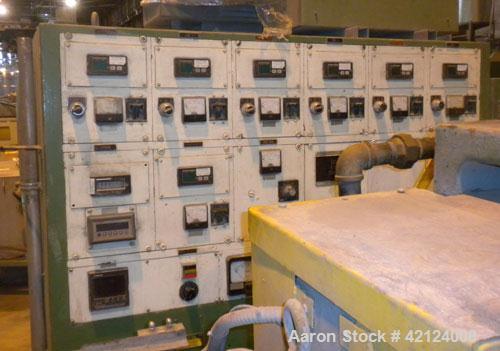

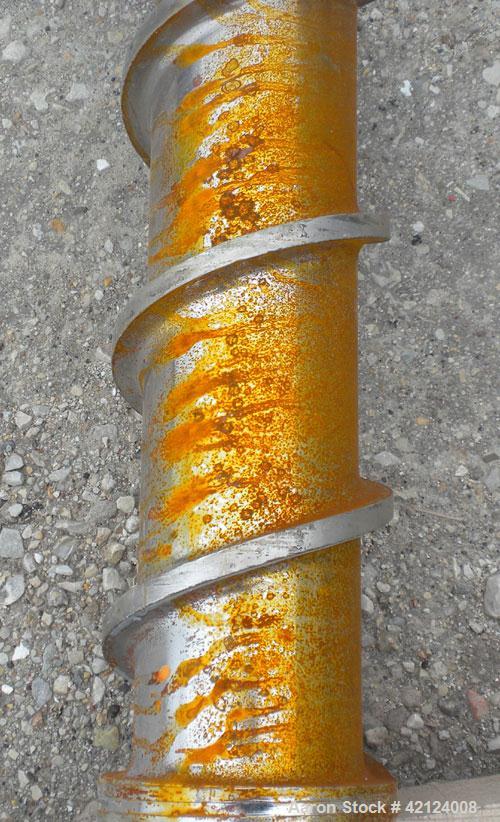

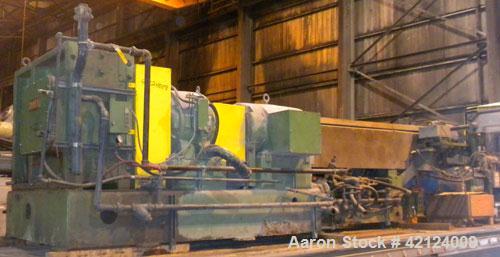

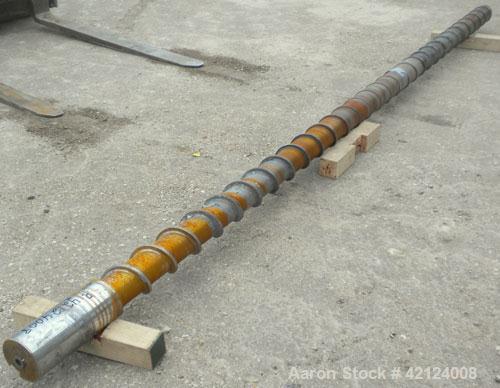

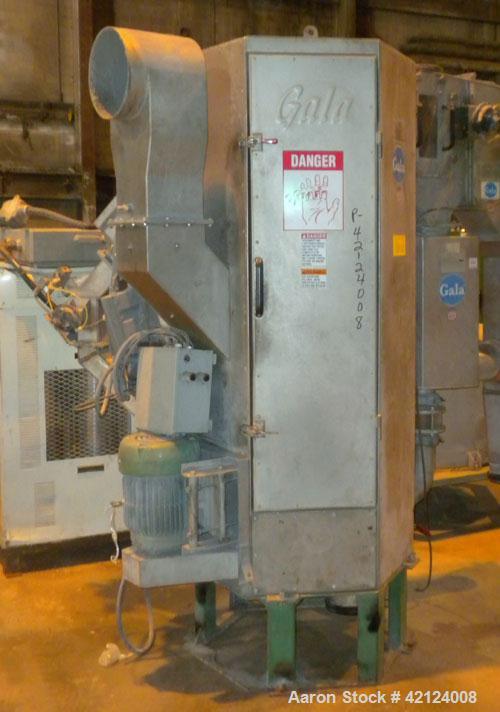

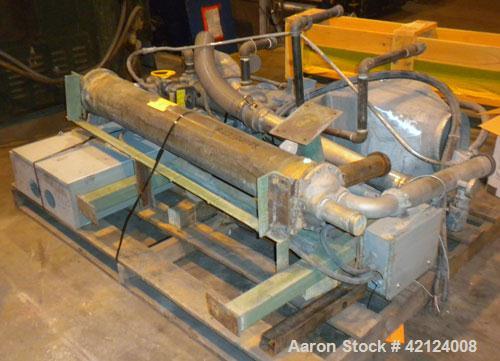

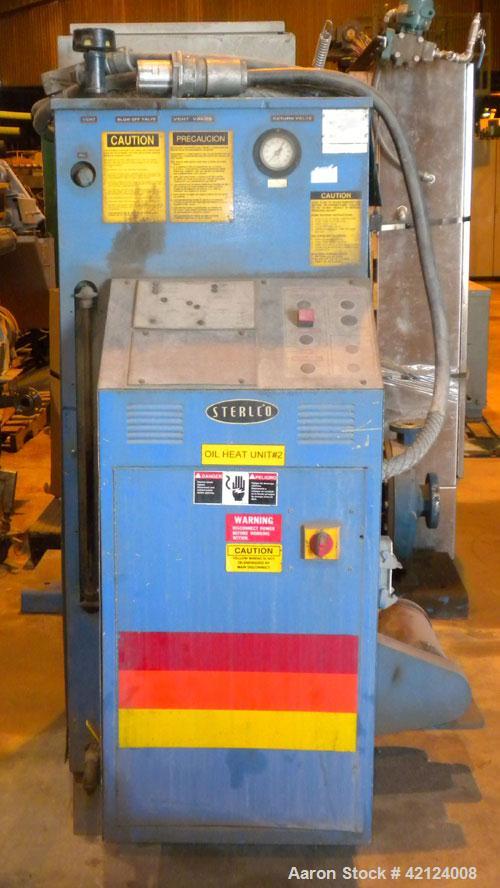

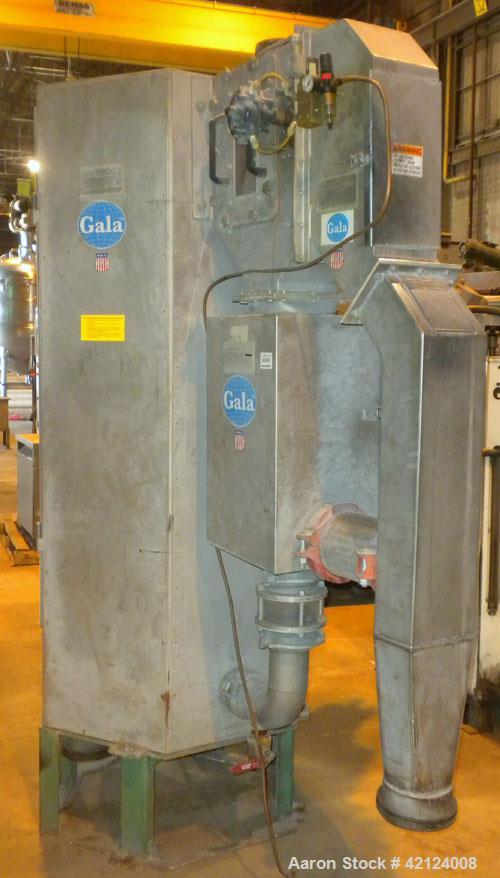

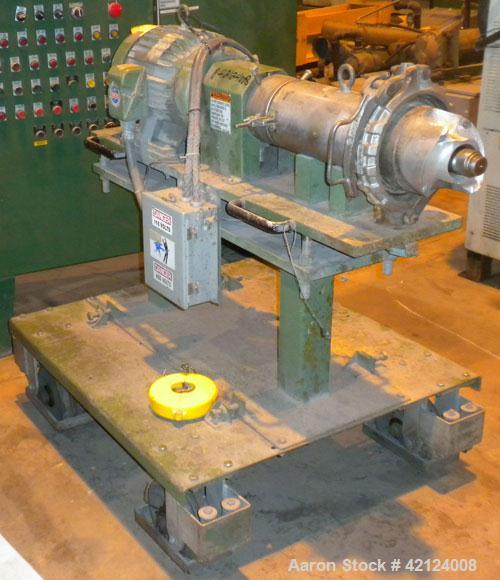

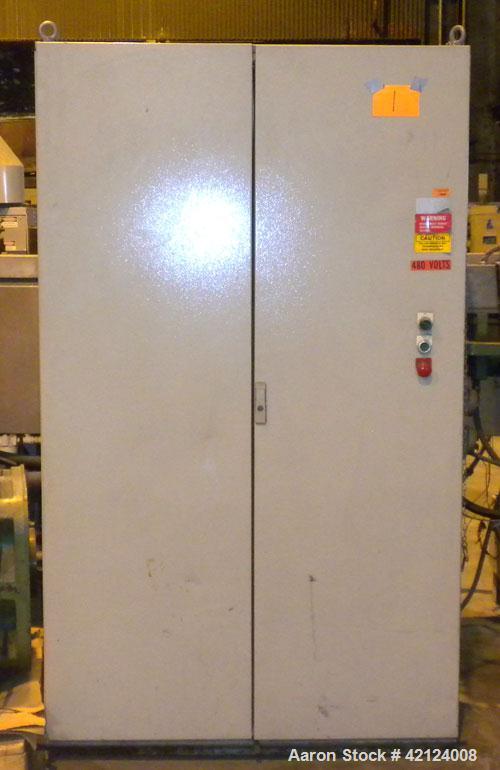

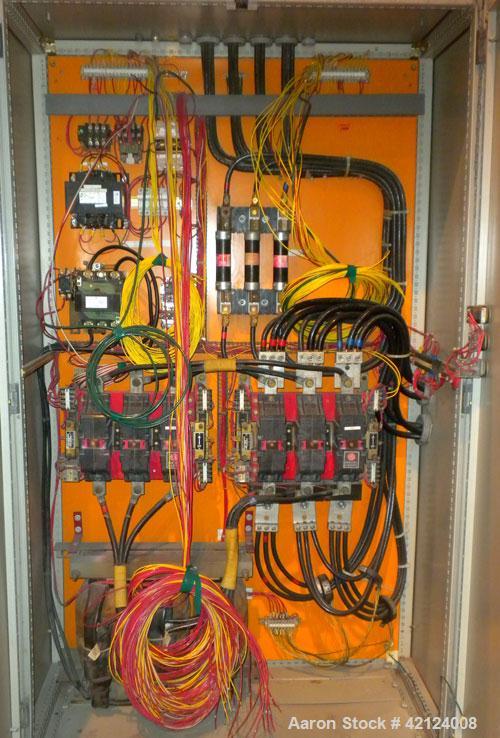

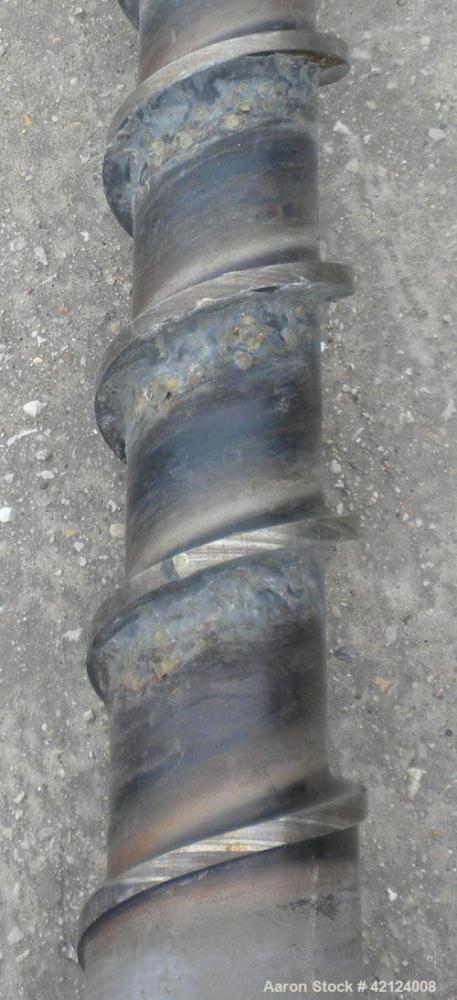

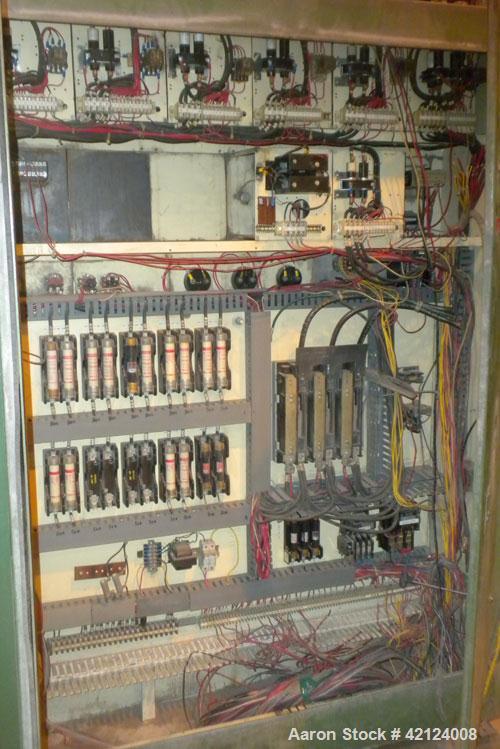

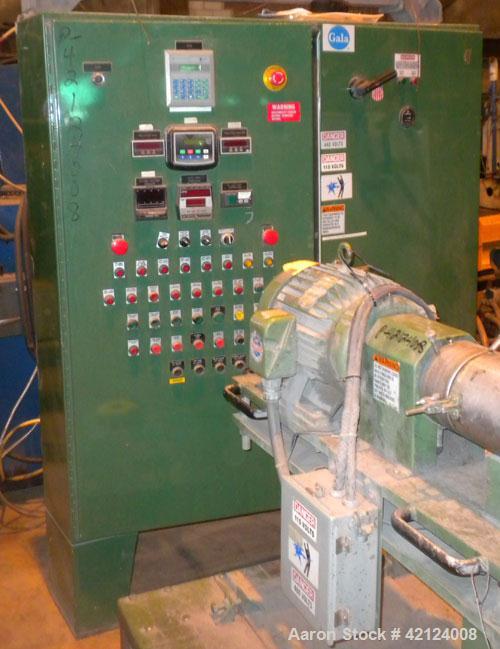

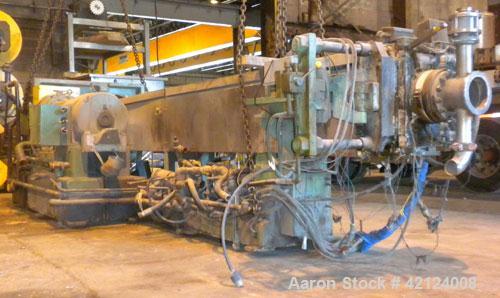

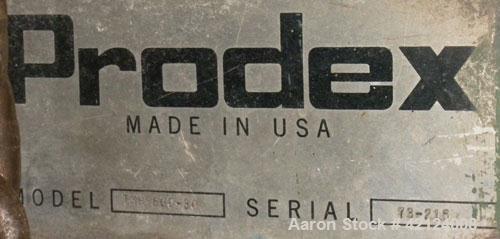

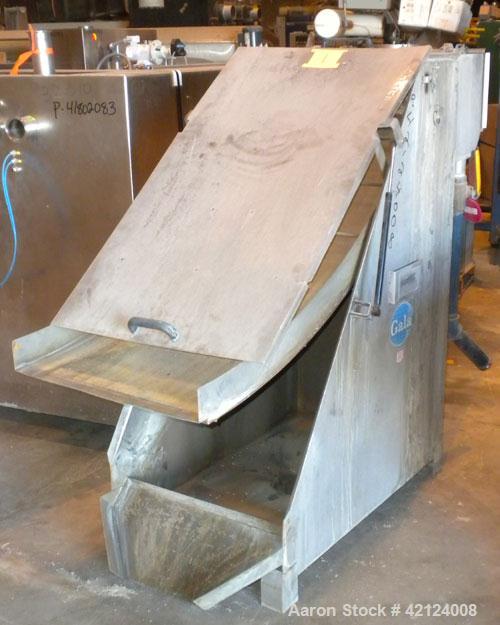

Used HPM Prodex 6’’ Underwater Pelletizing Line consisting of: (1) HPM Prodex 6’’ Torquemaster single screw extruder, model TMH600A-262-30D. 30 to 1 L/D ratio. Electrically heated, water cooled 6 zone side-vented barrel. Water cooled feed throat with an HPM crammer feeder, model 6.0" CF, serial #CF600-96192, driven by an approximate 25 hp motor. Approximate 42" centerline height. Driven by a 300 hp, 3/60/460 volt, 1770 rpm motor thru a gearbox, ratio approximately 17.70 to 1. Includes a control panel with Eurotherm temperature controllers. (1) Screen changer. (1) Gala model 7 underwater pelletizing system, (1) cutting chamber. (1) 15 hp cutting head. (1) TWS-120 tempered water system. (1) 12.3ECLN centrifugal pellet dryer, 7.5 hp. (1) Model FRS-160 fines removal screen, (1) New York blower. (1) Sterlco hot oil temperature control unit, model G9016-J1.
