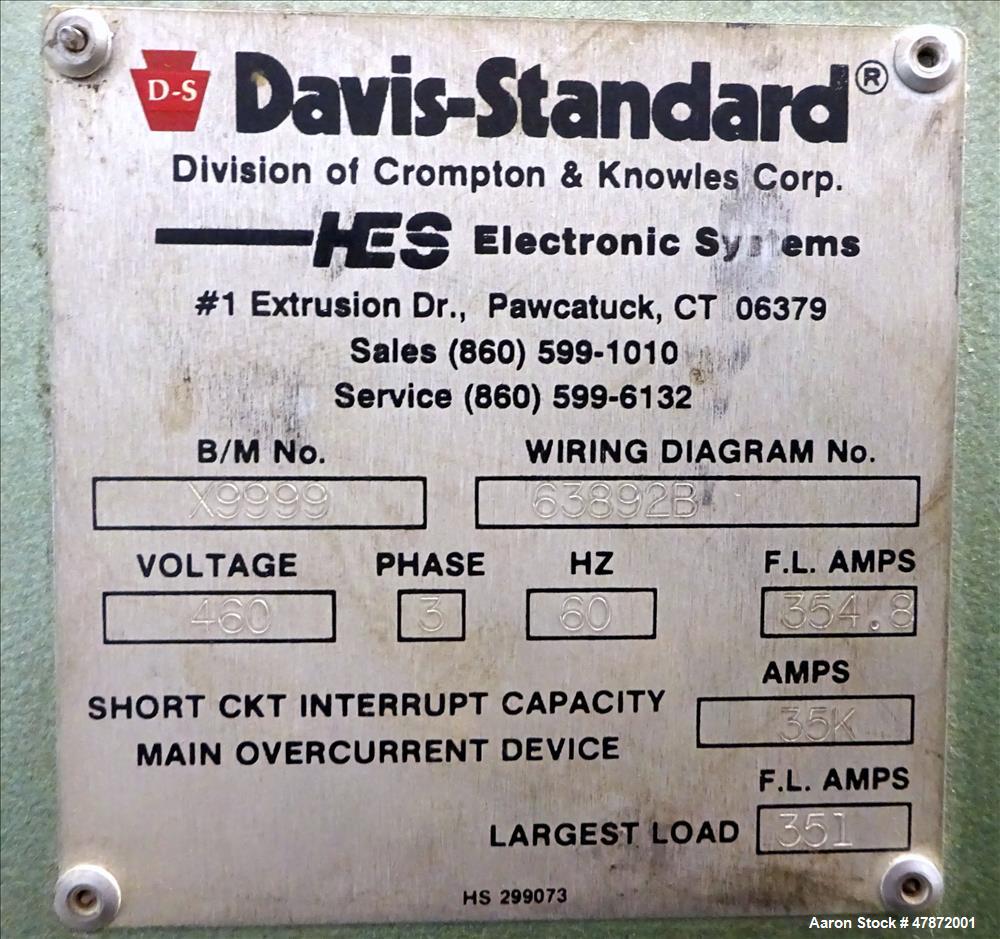

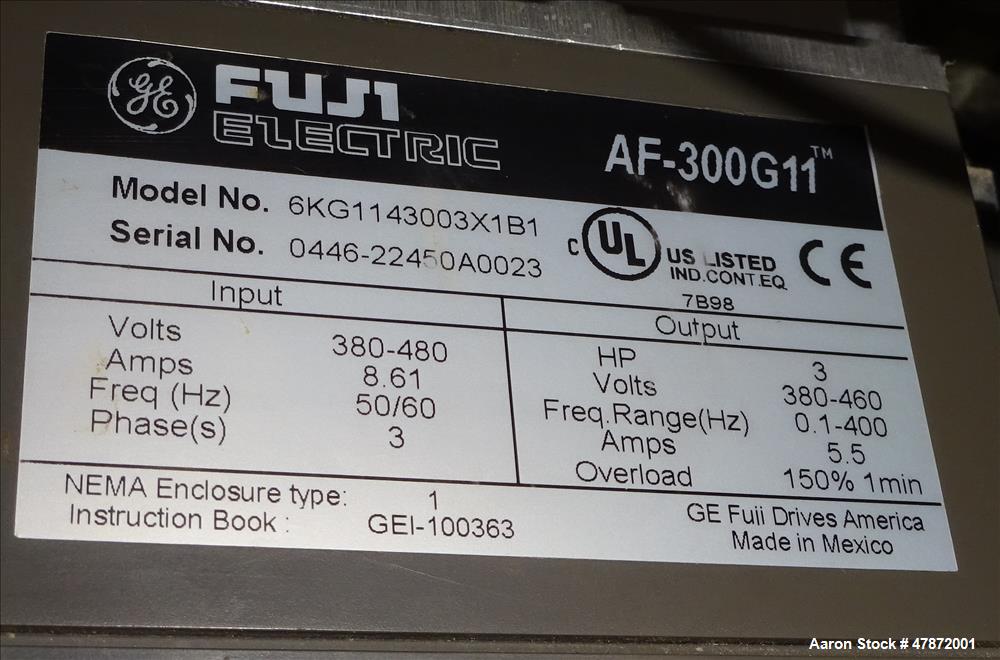

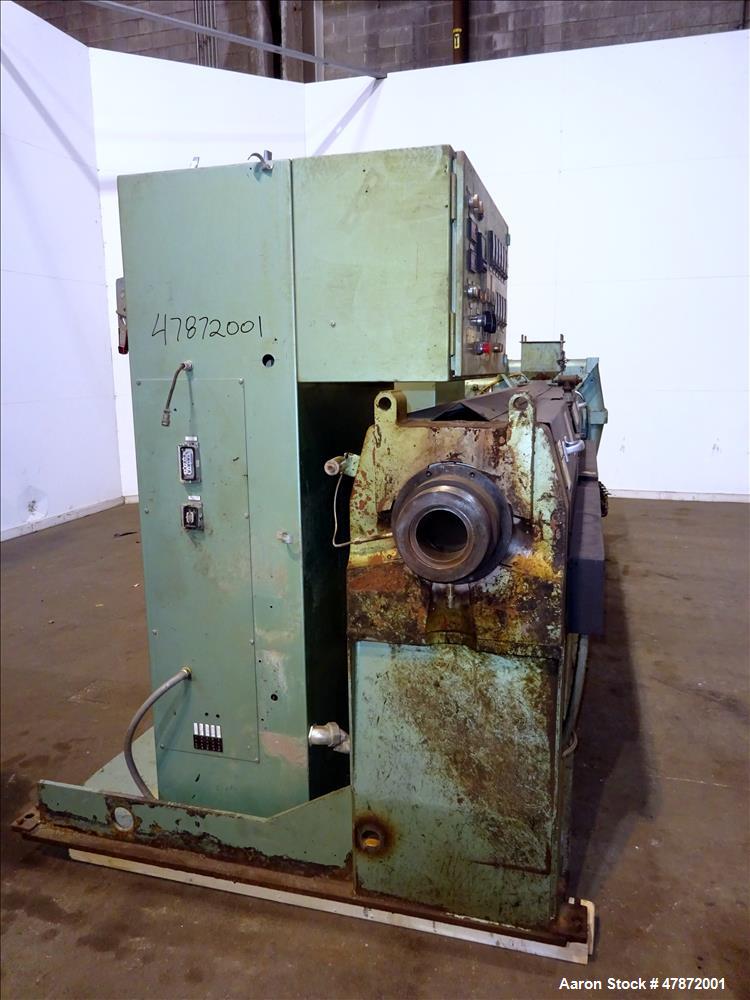

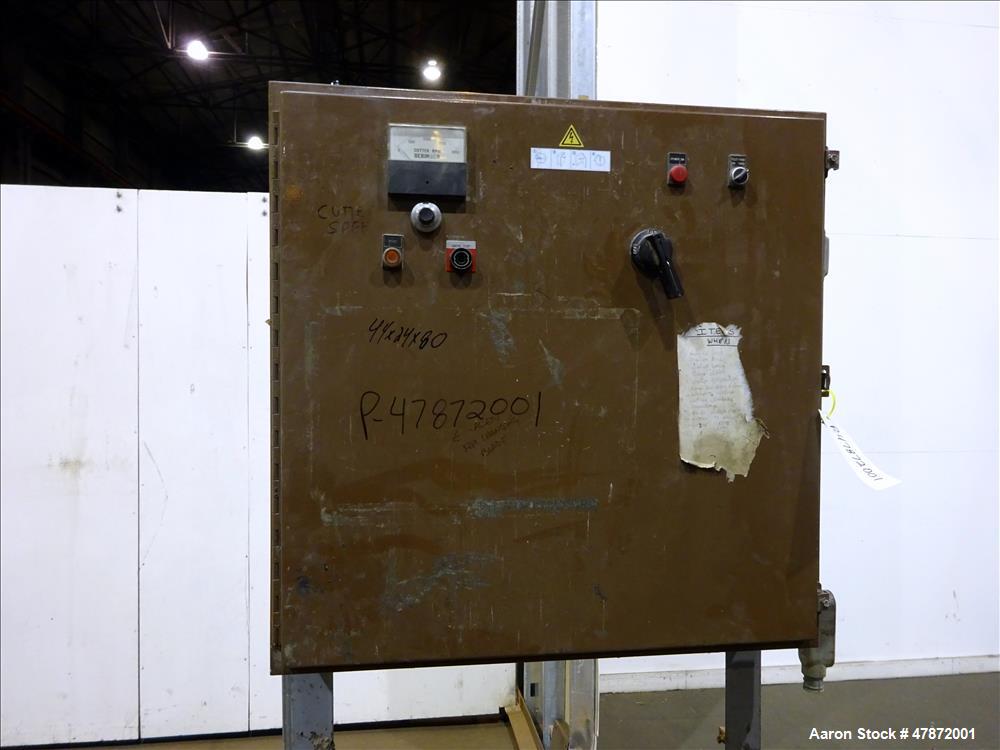

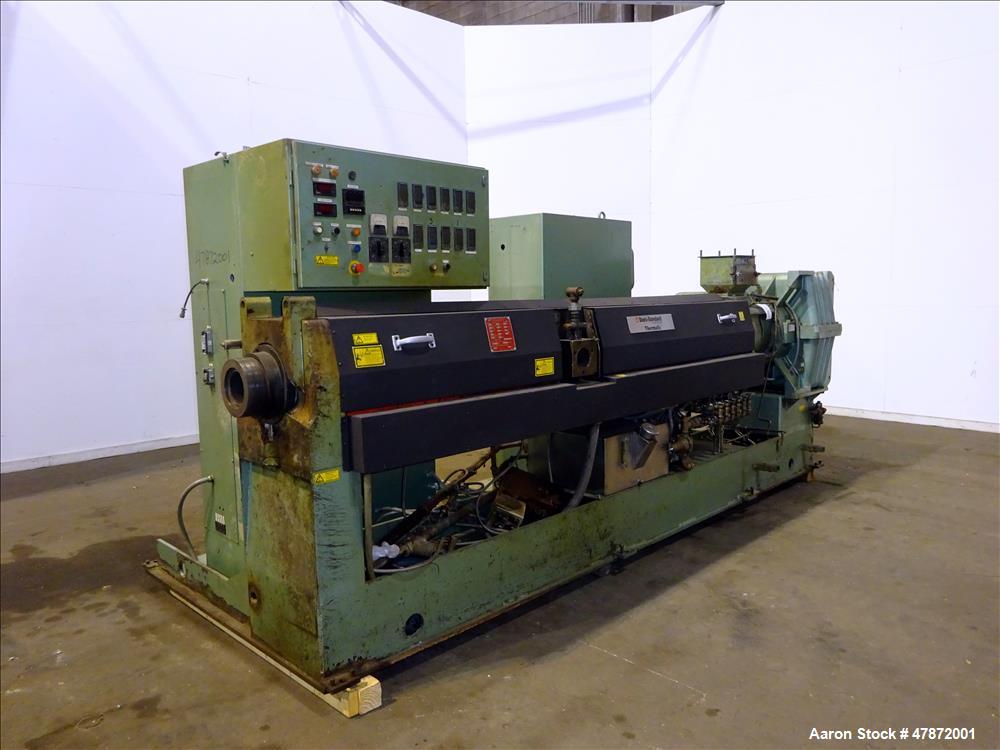

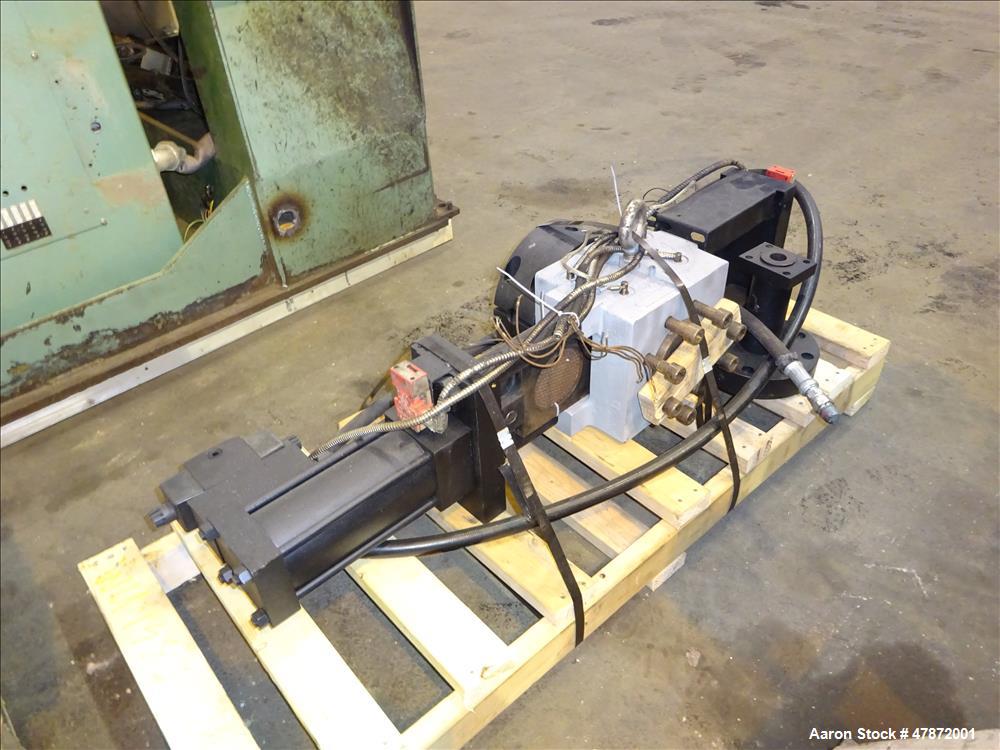

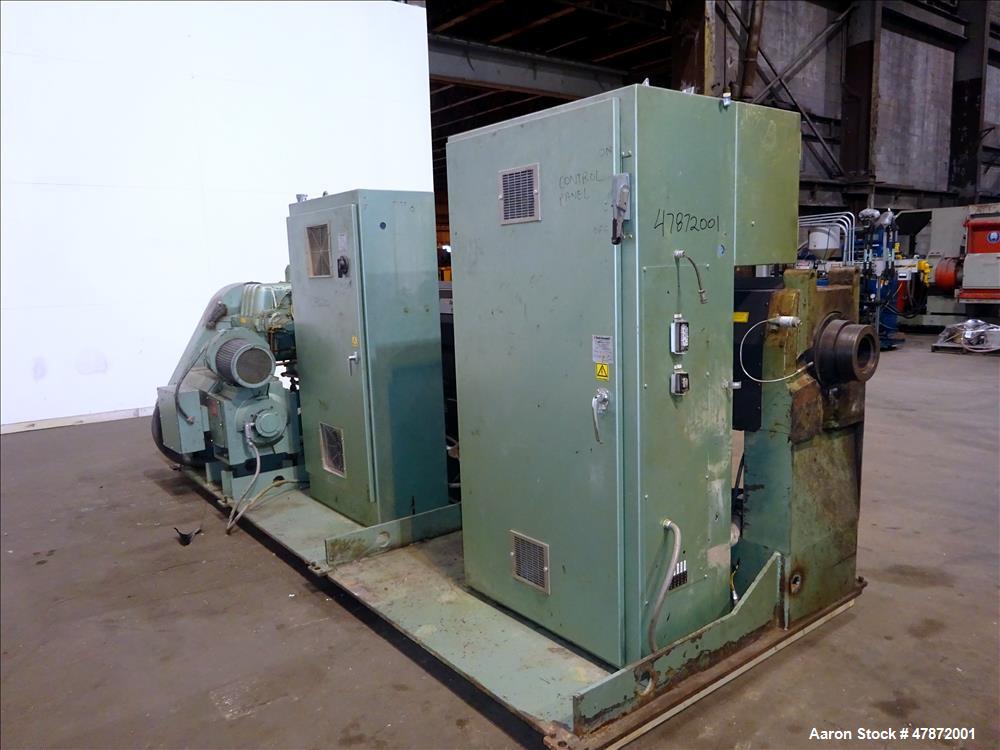

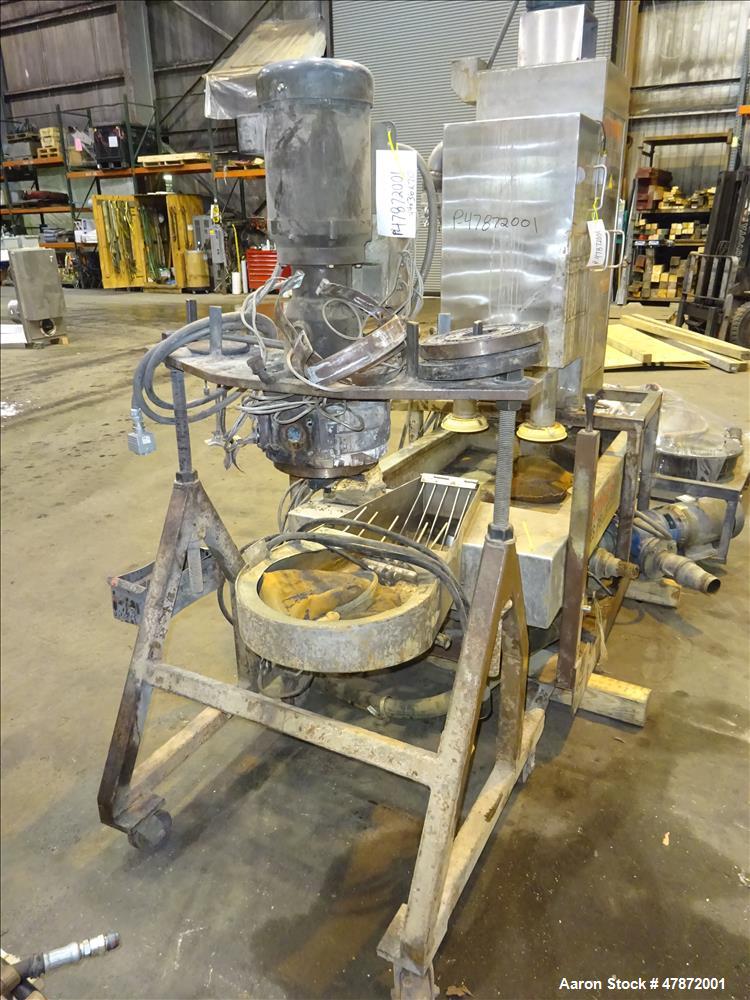

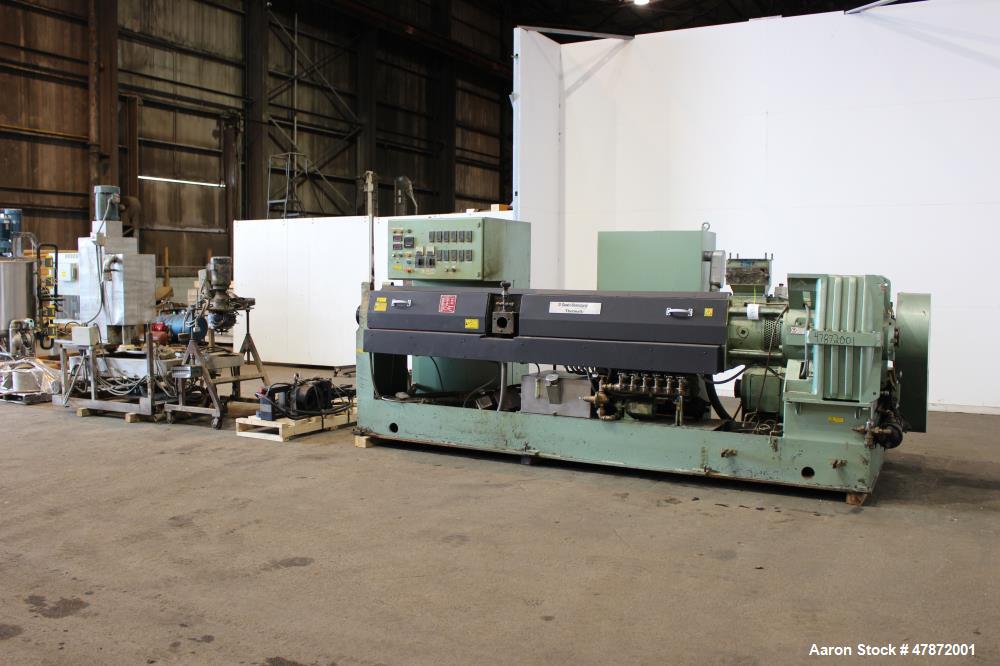

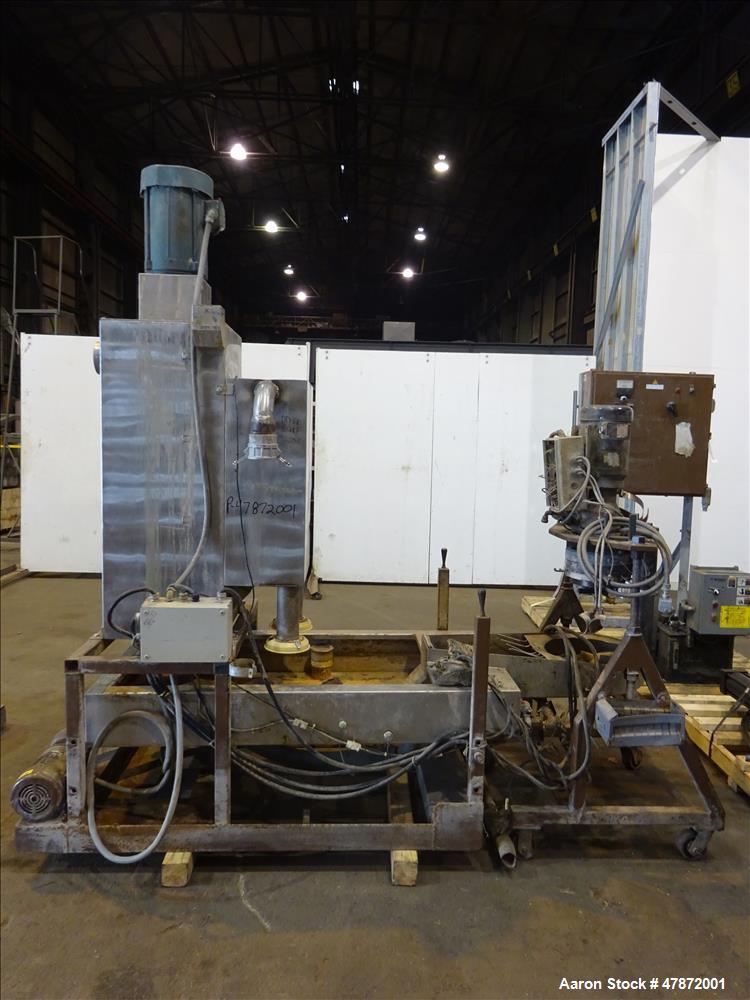

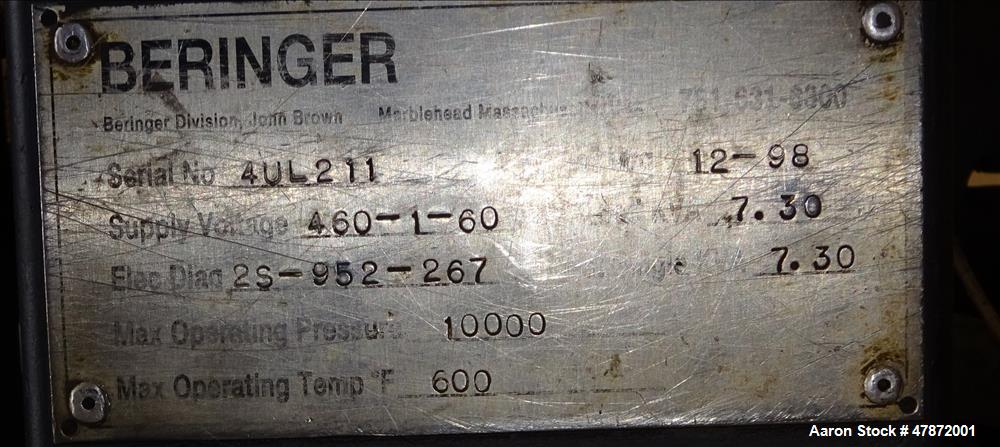

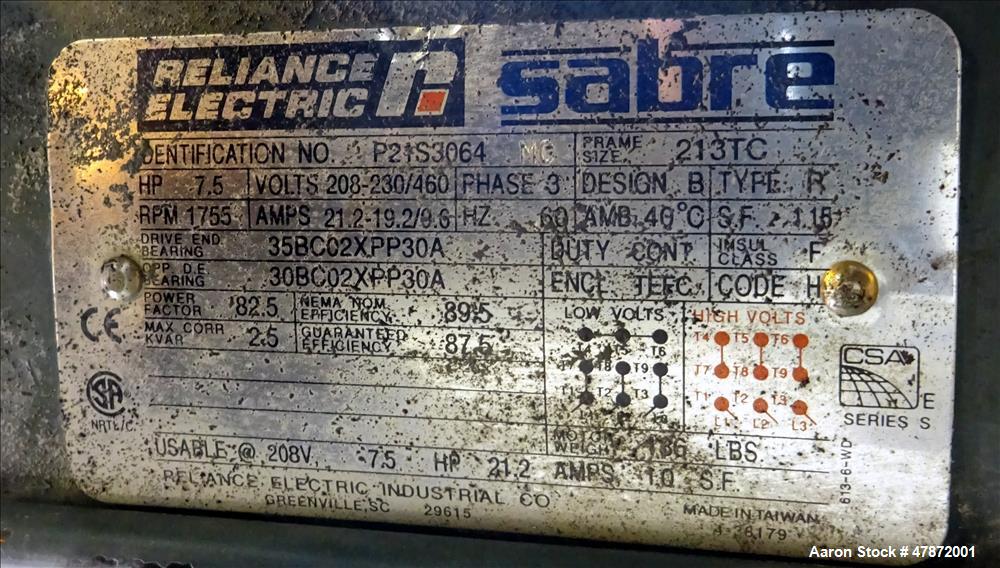

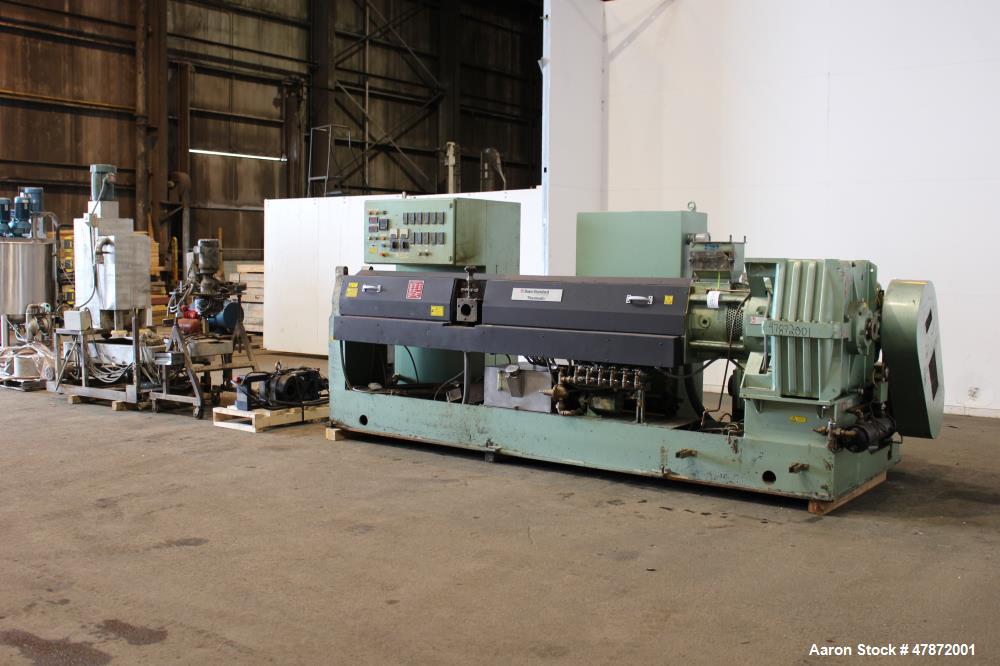

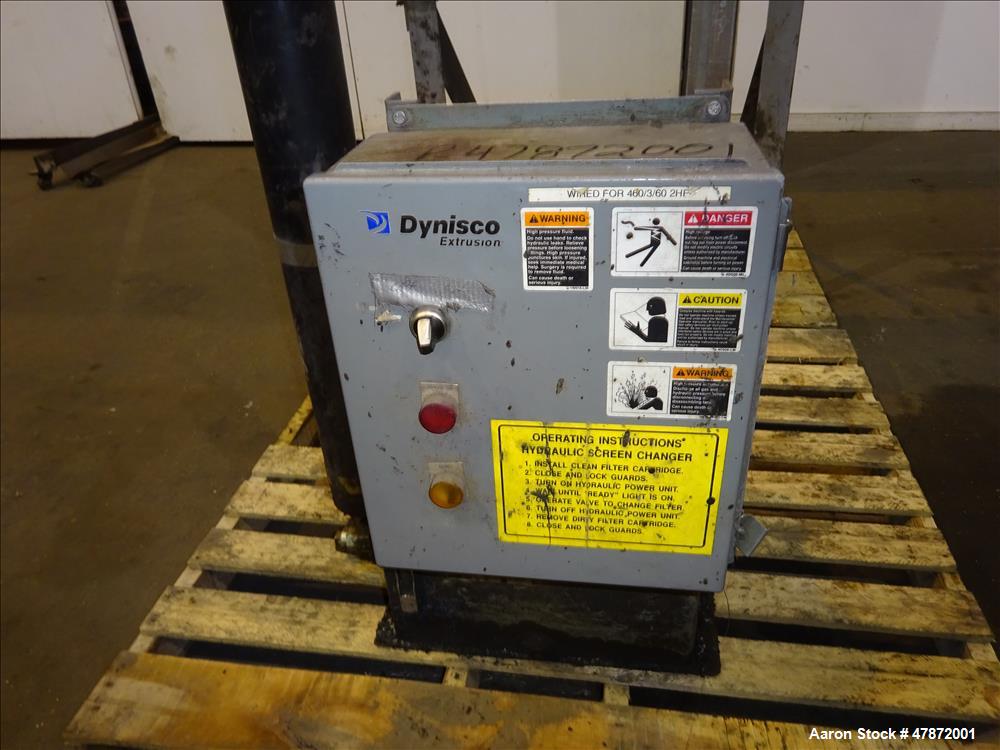

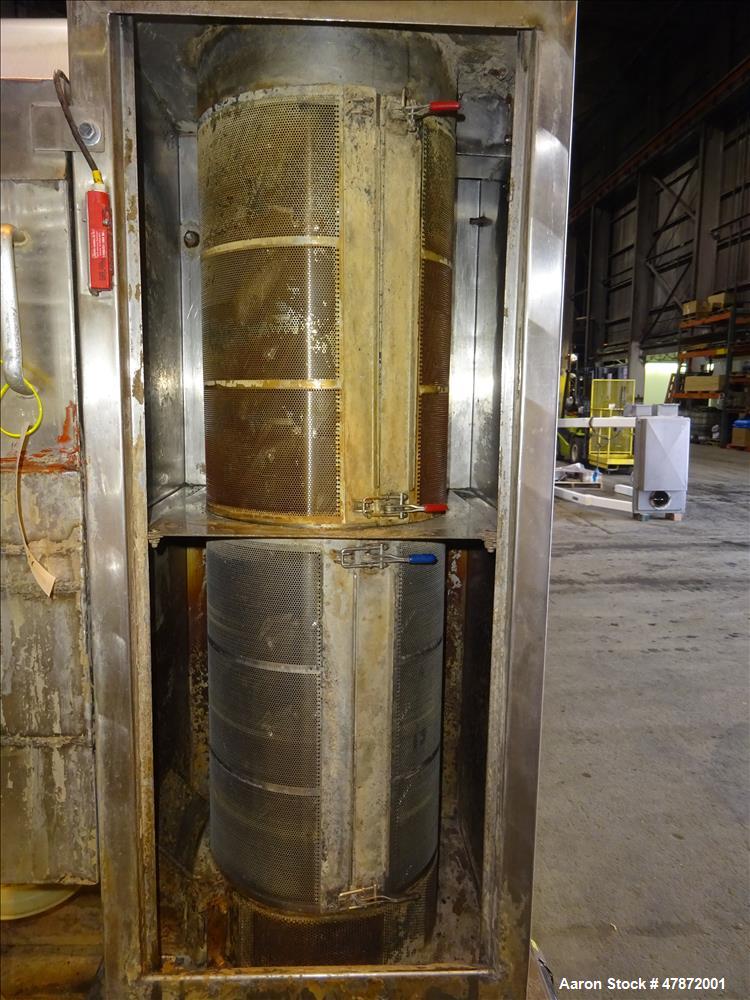

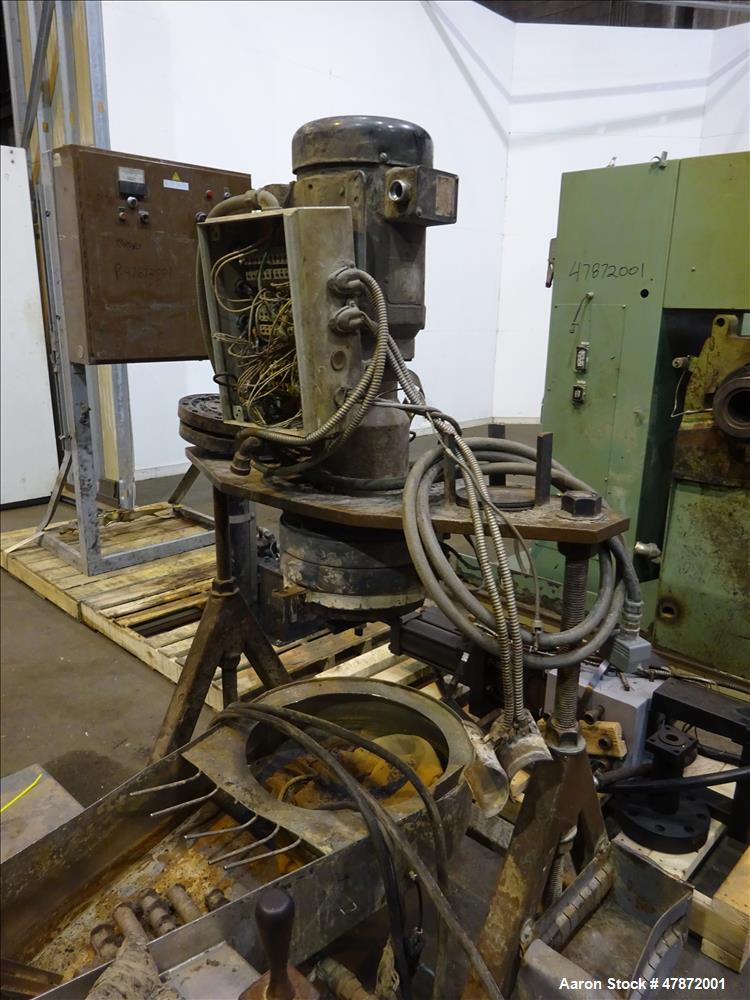

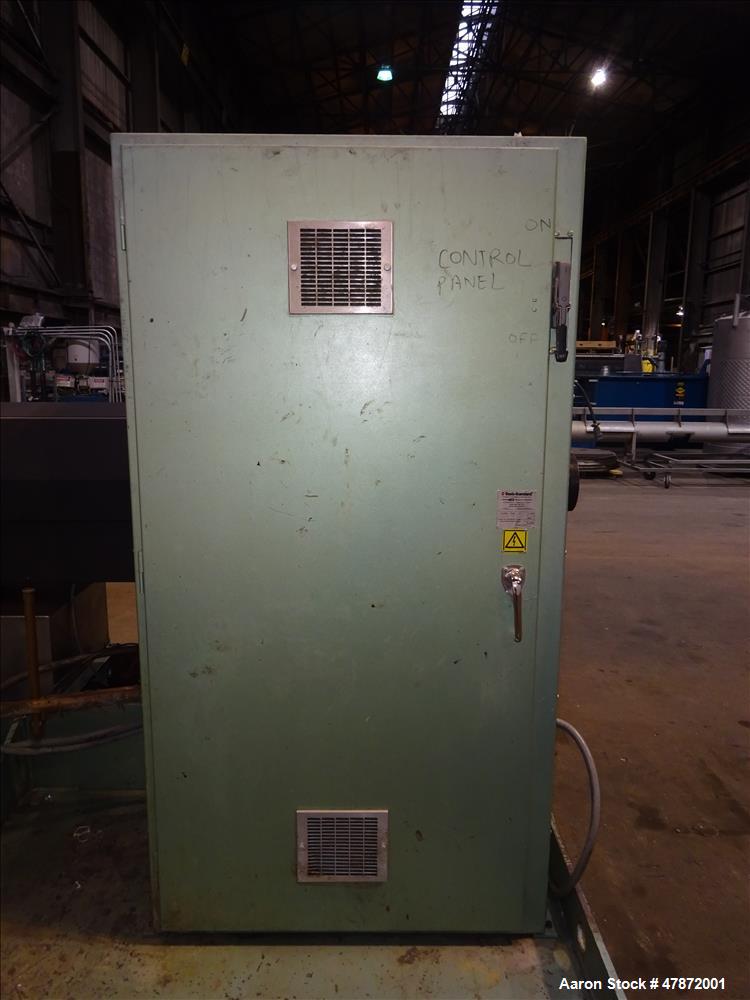

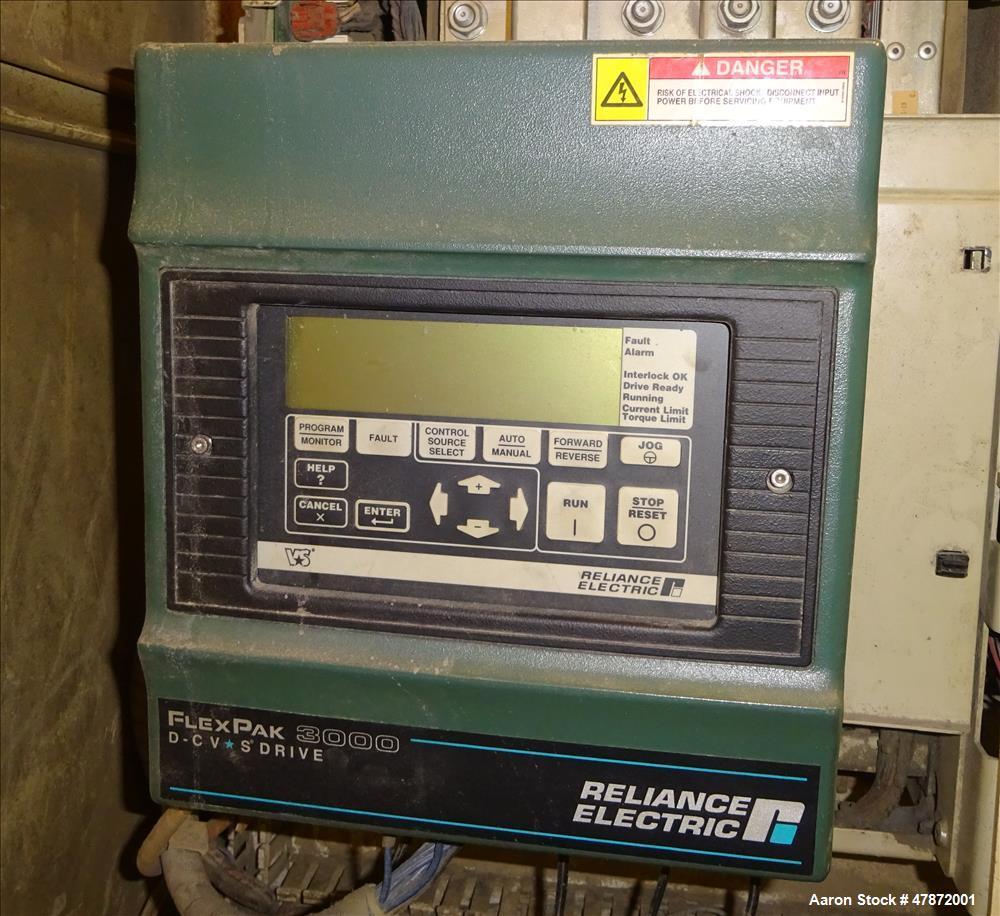

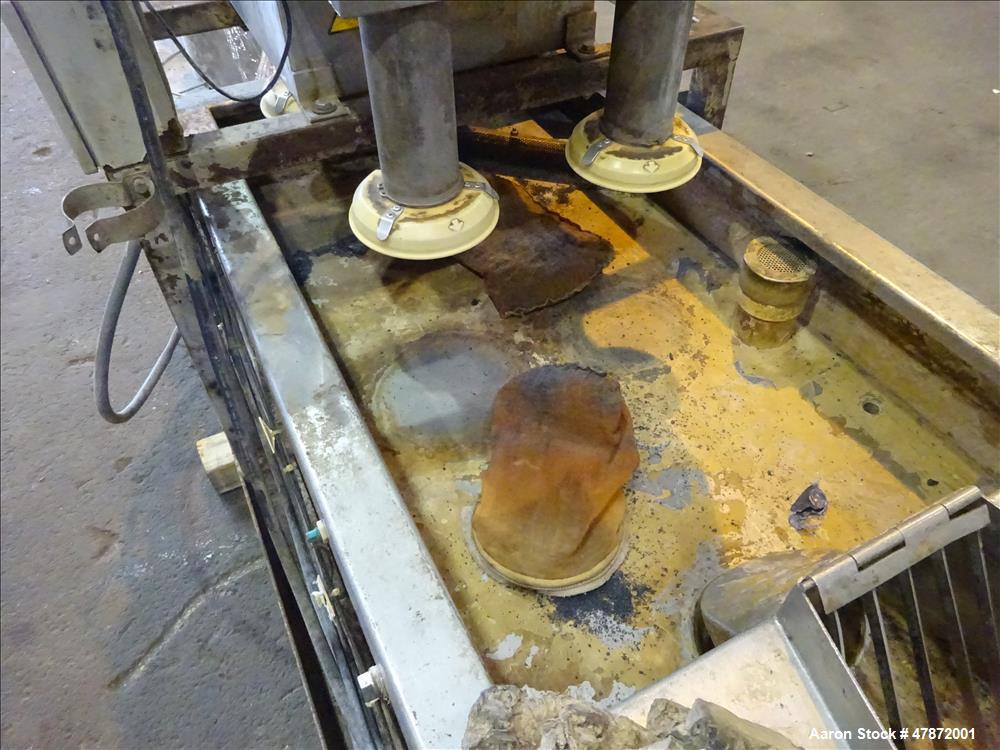

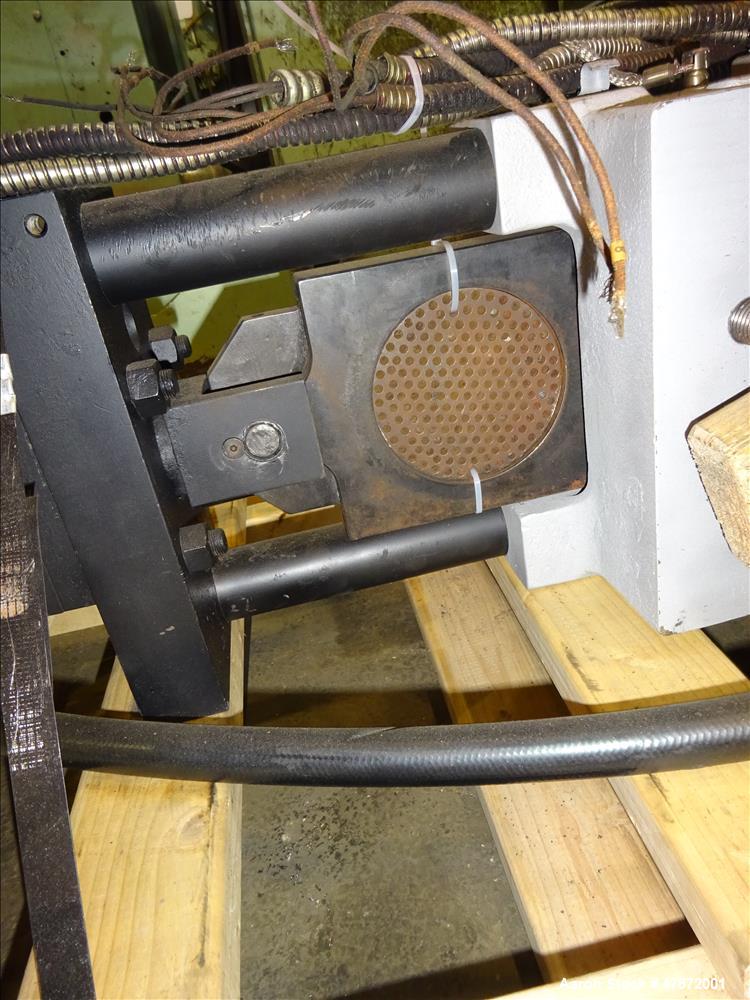

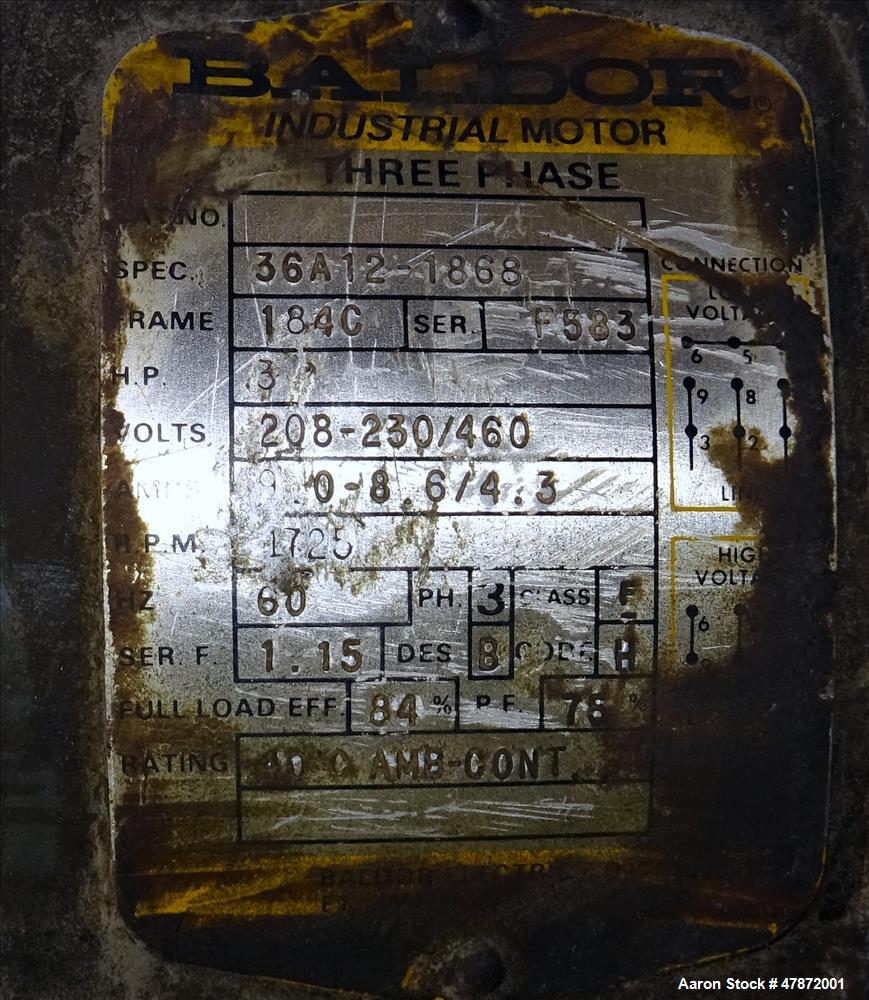

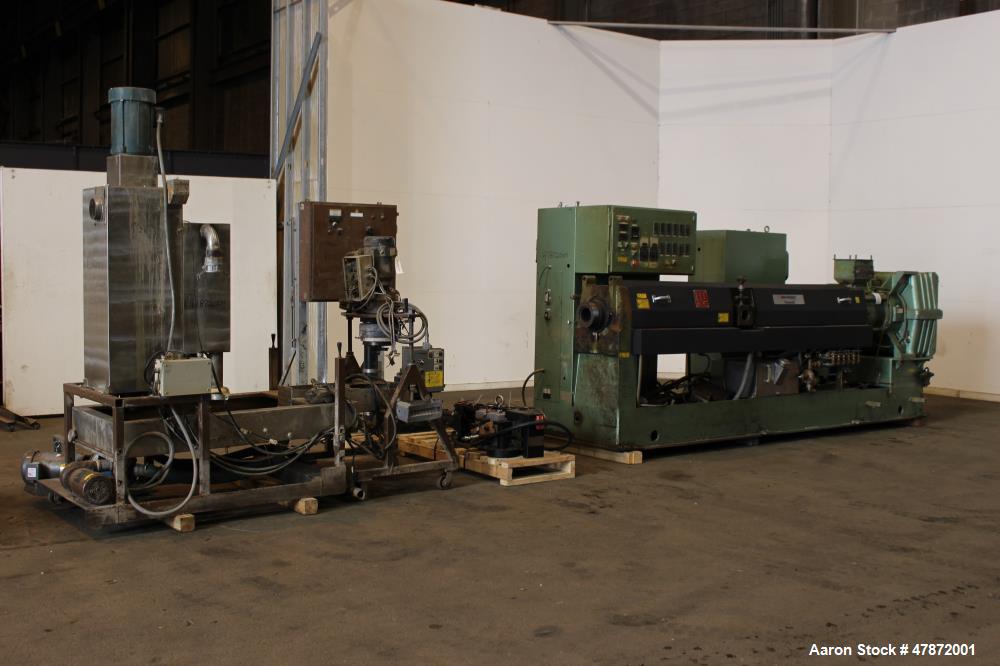

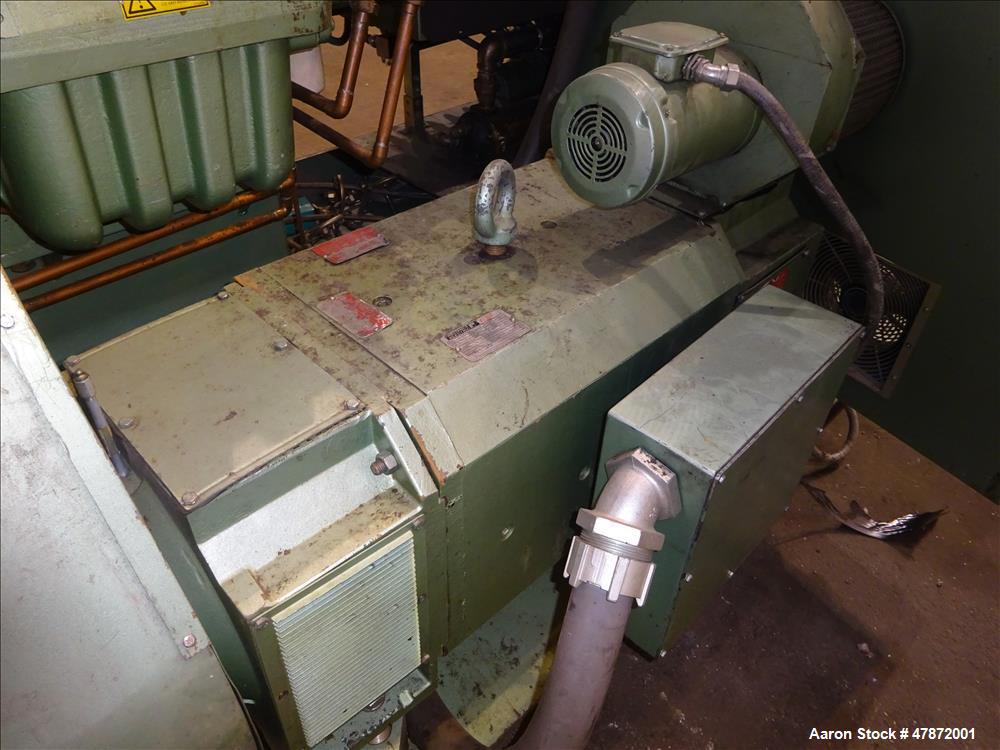

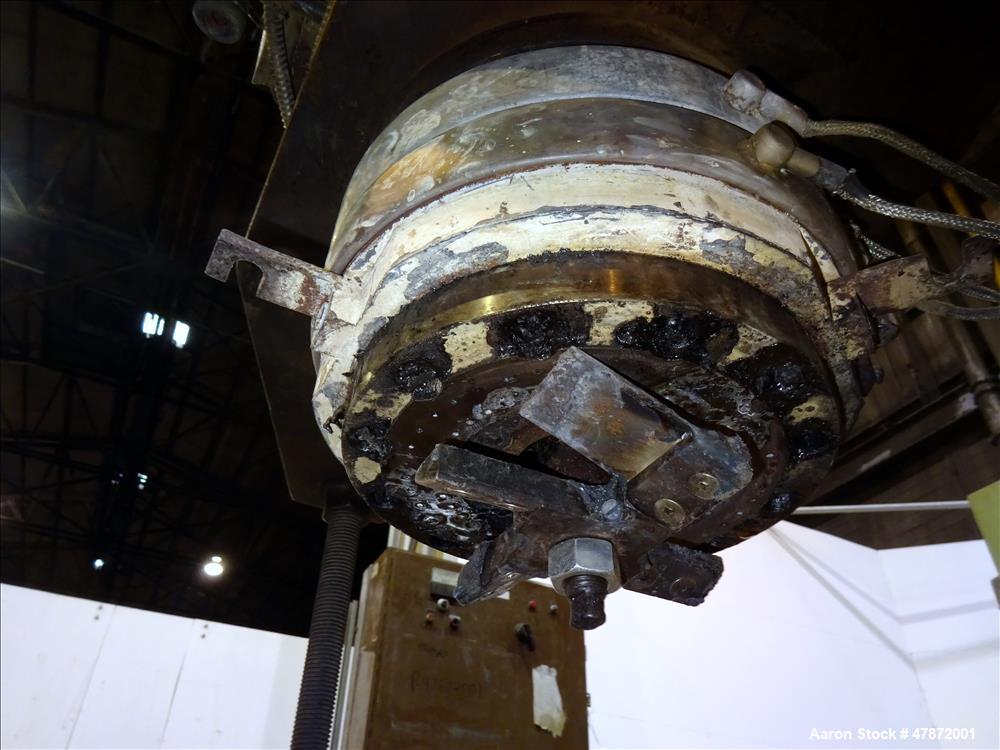

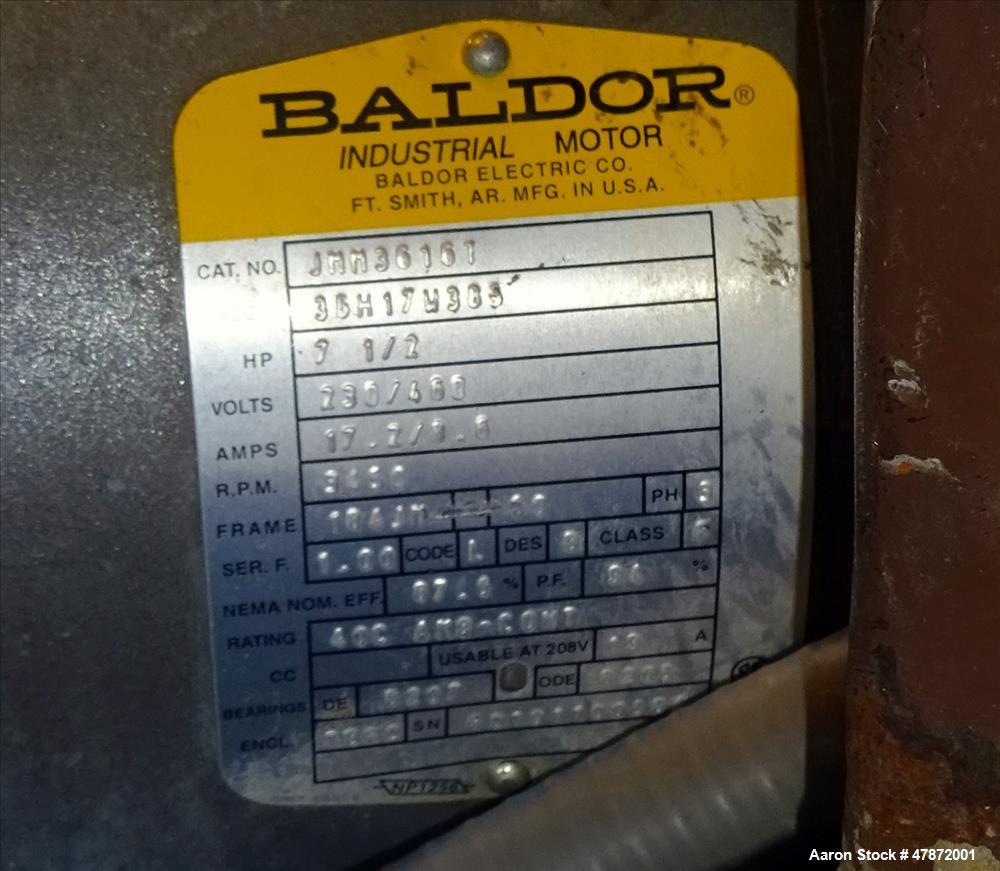

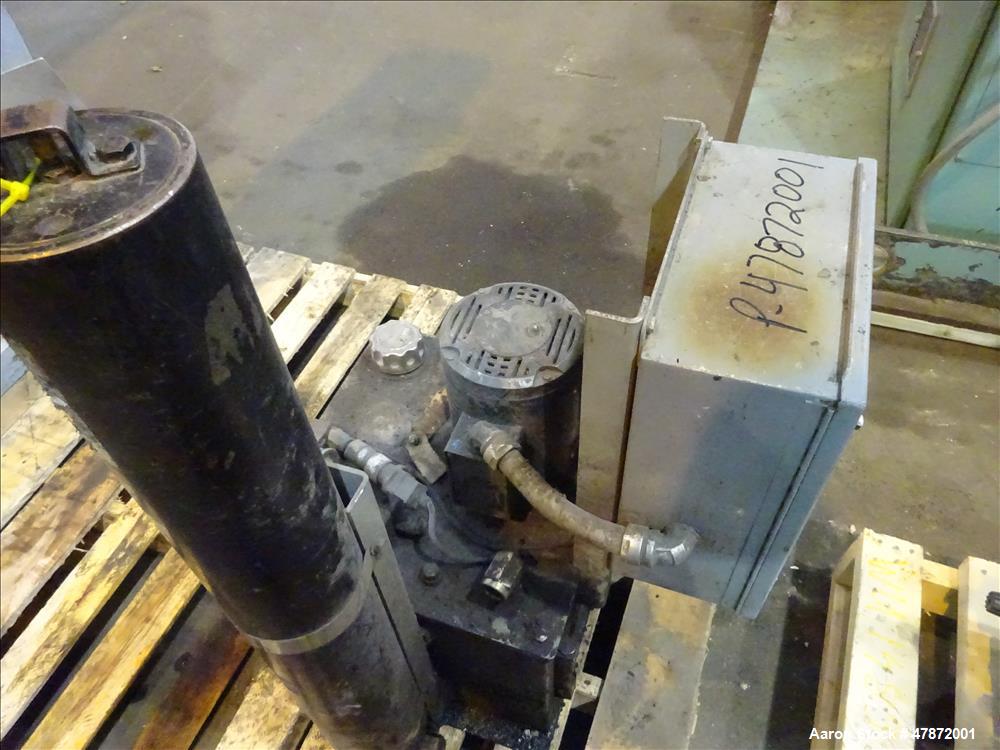

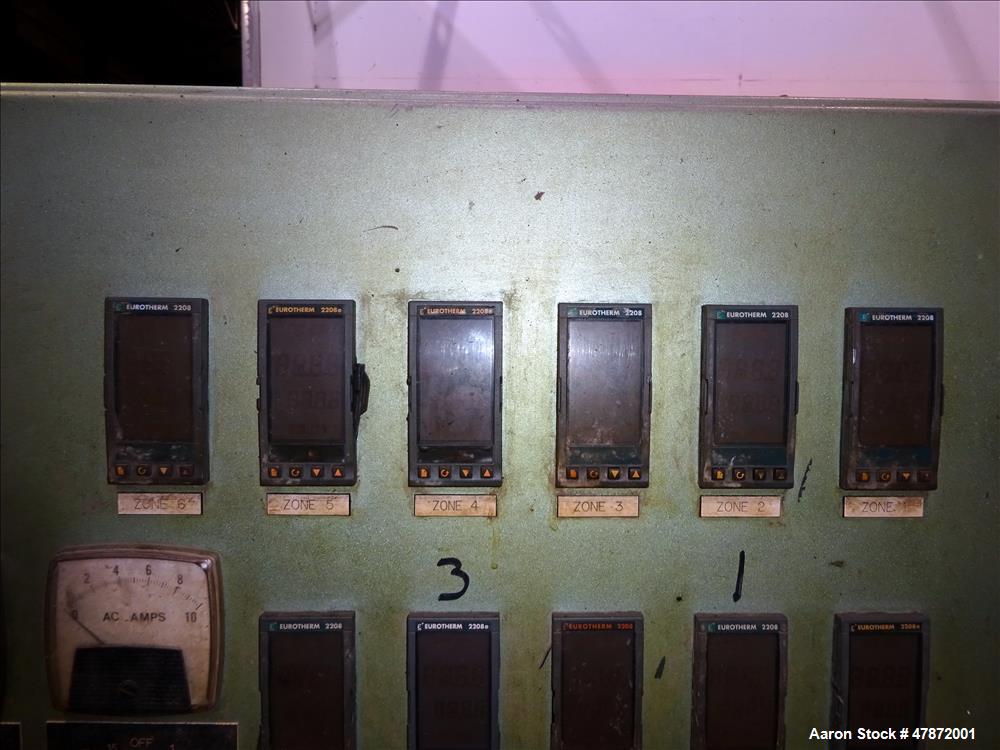

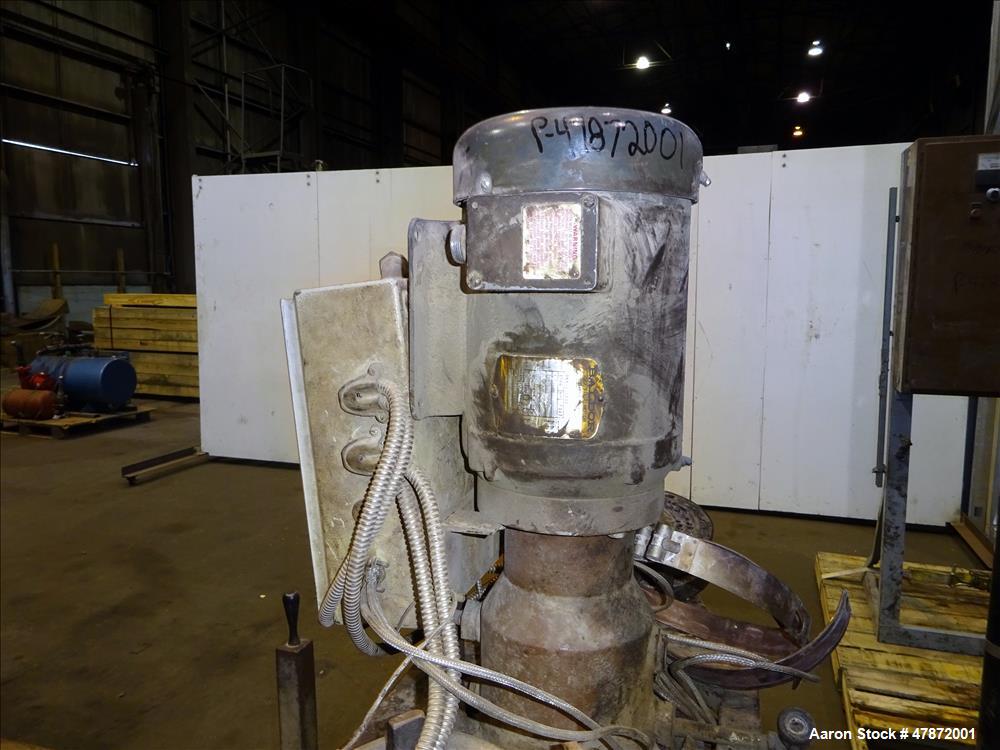

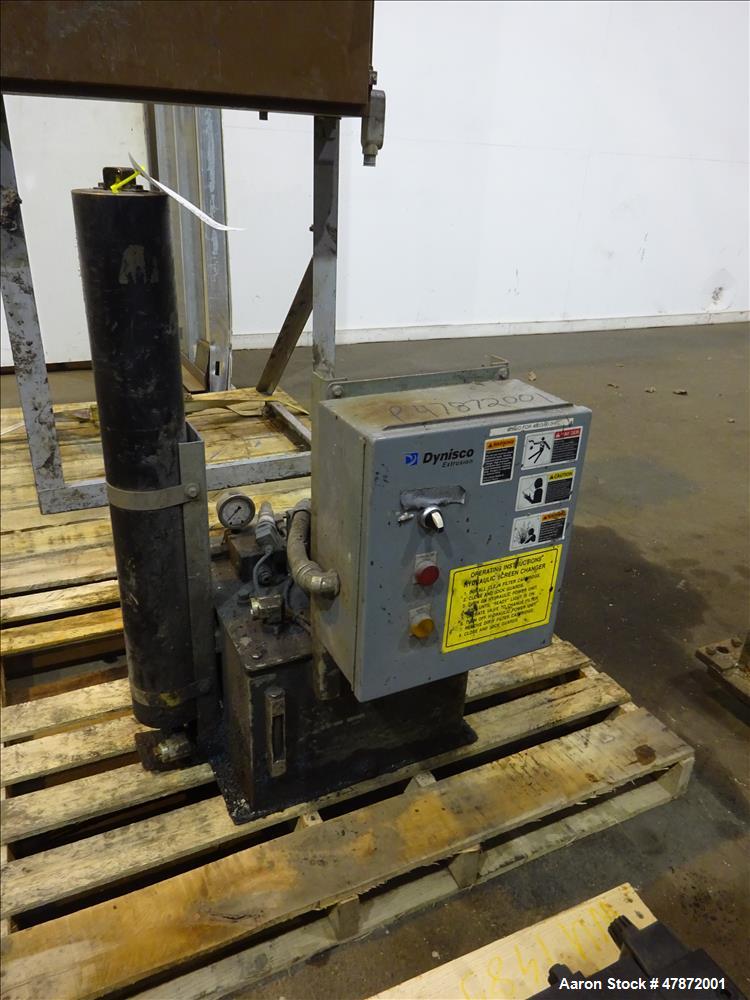

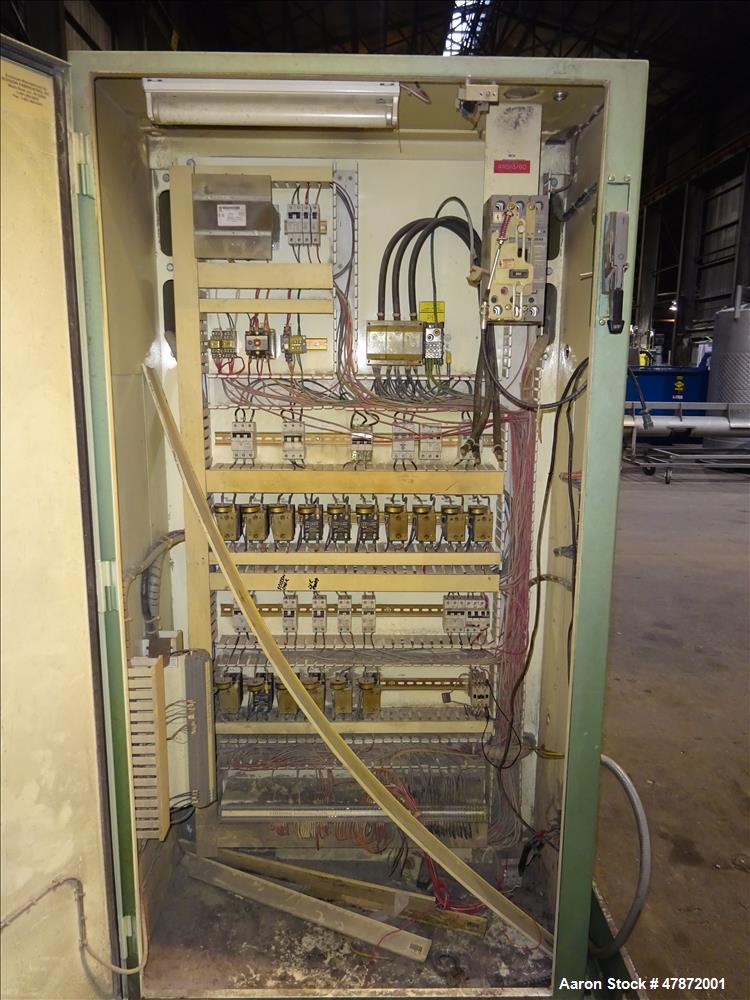

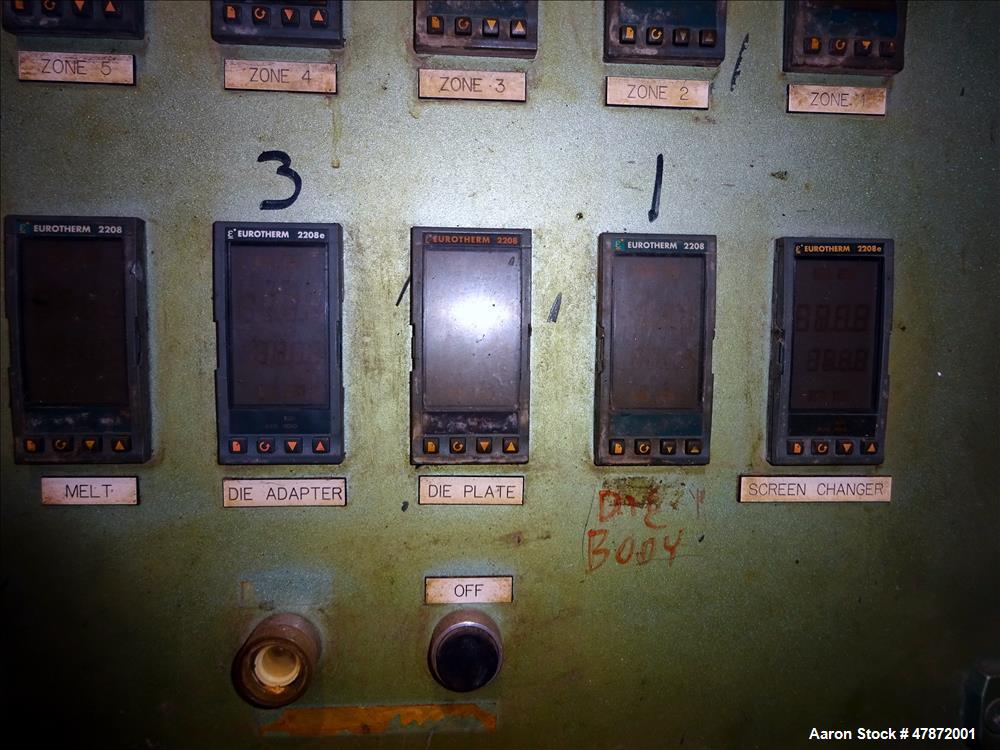

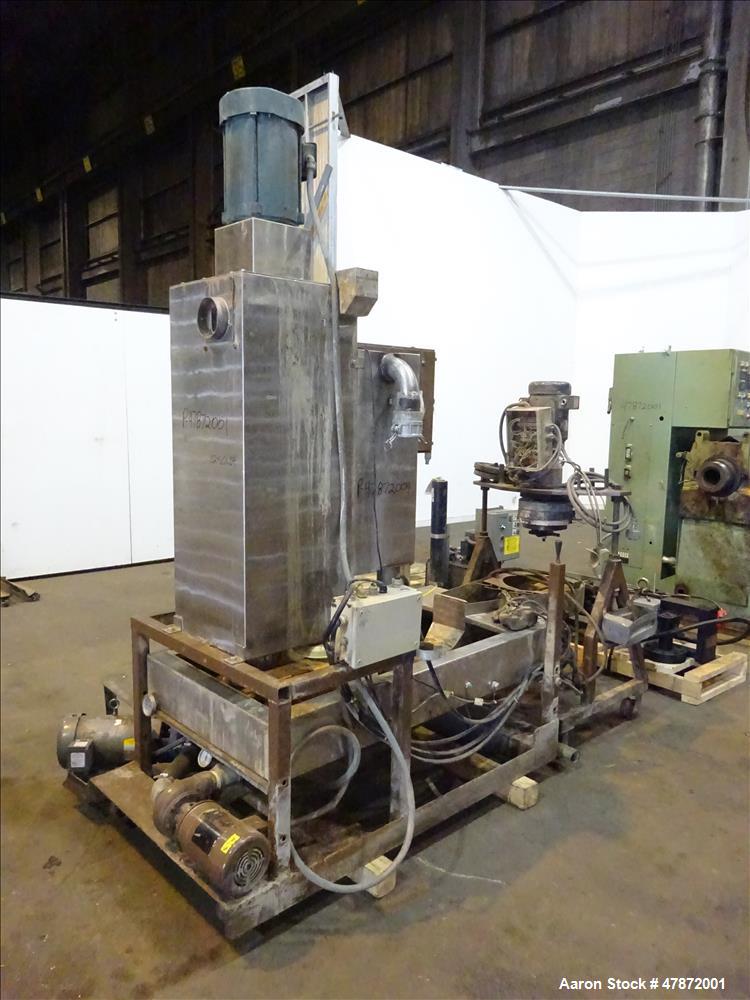

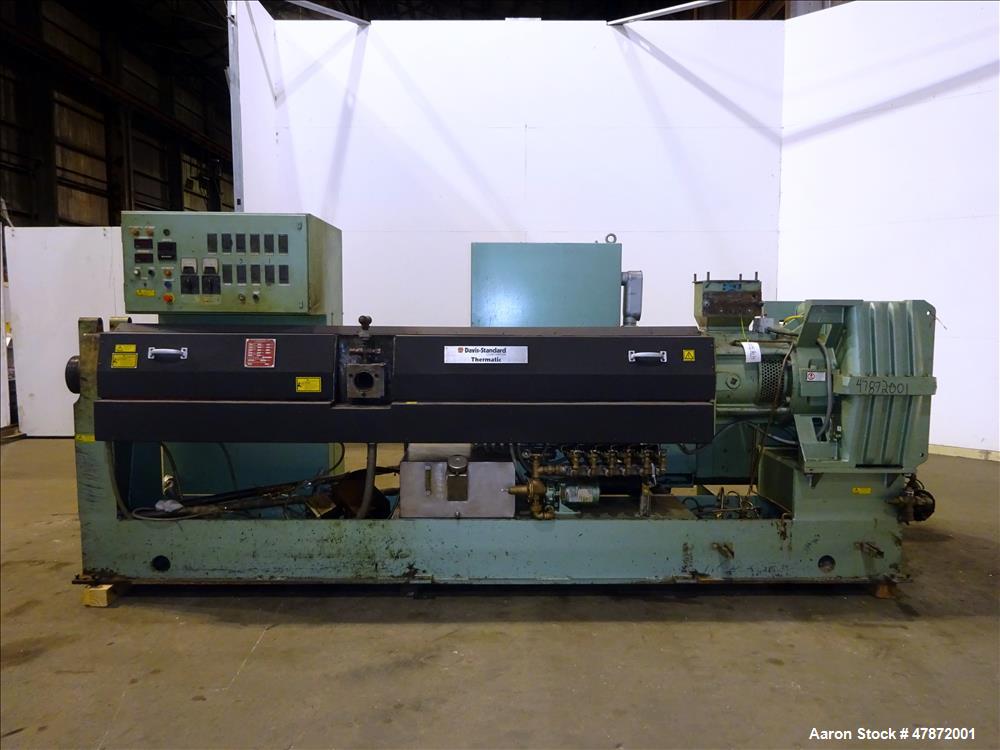

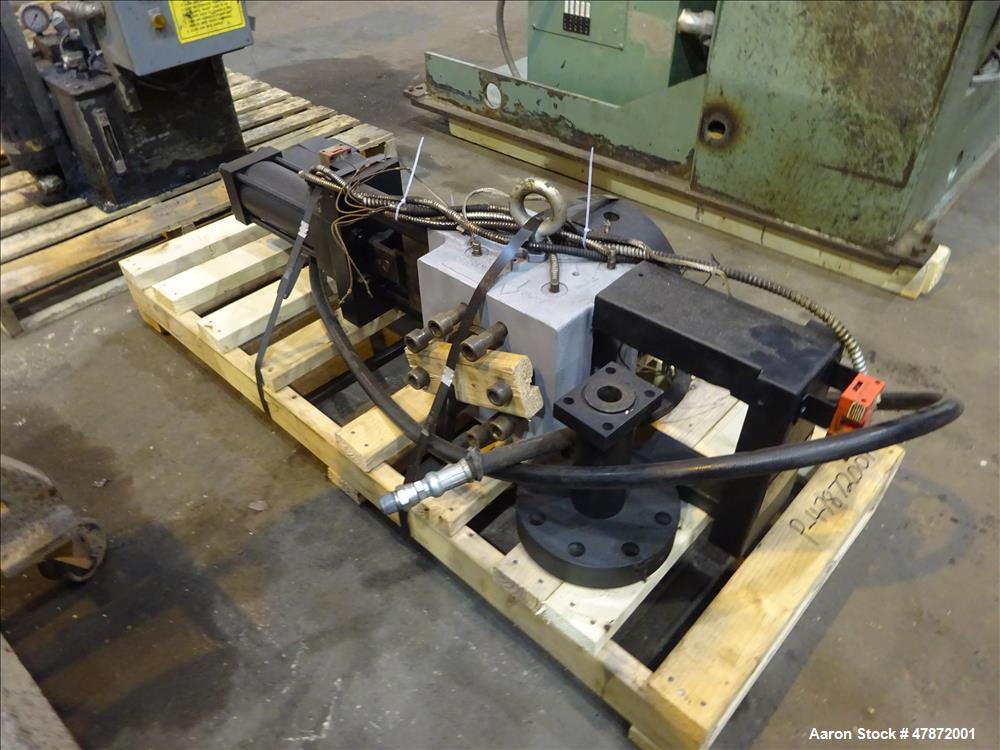

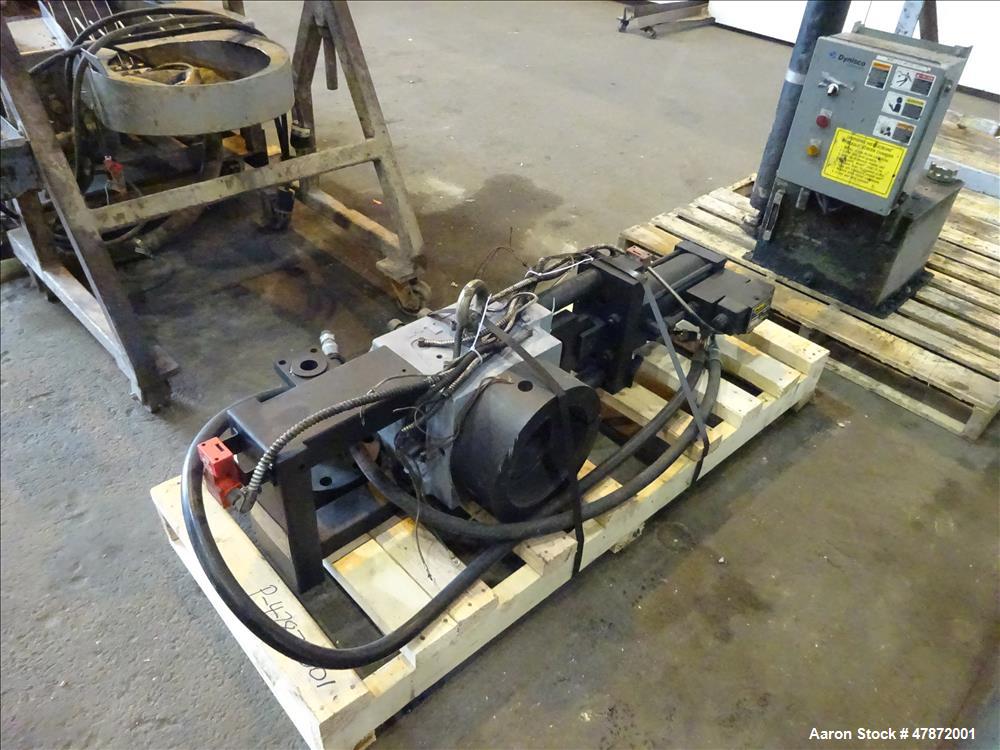

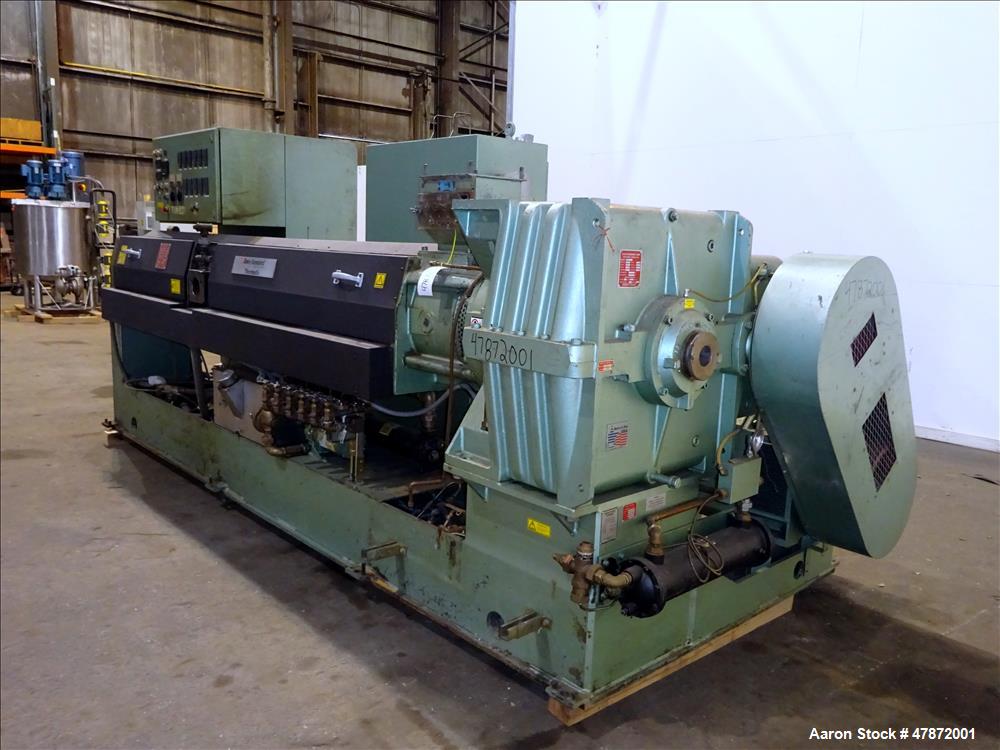

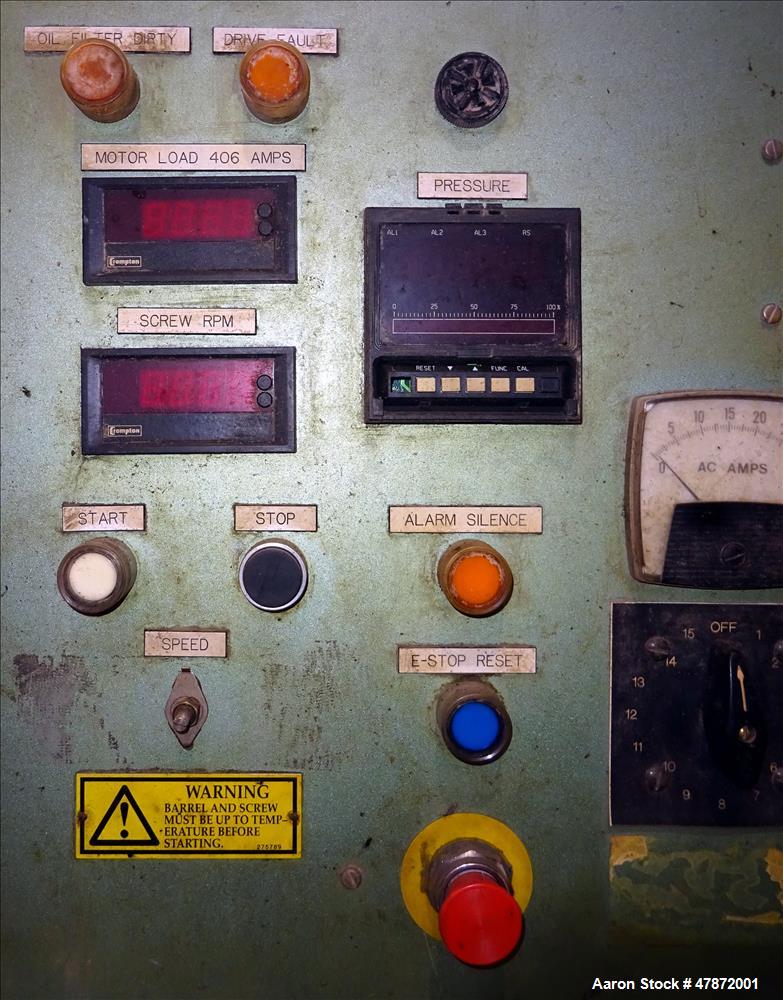

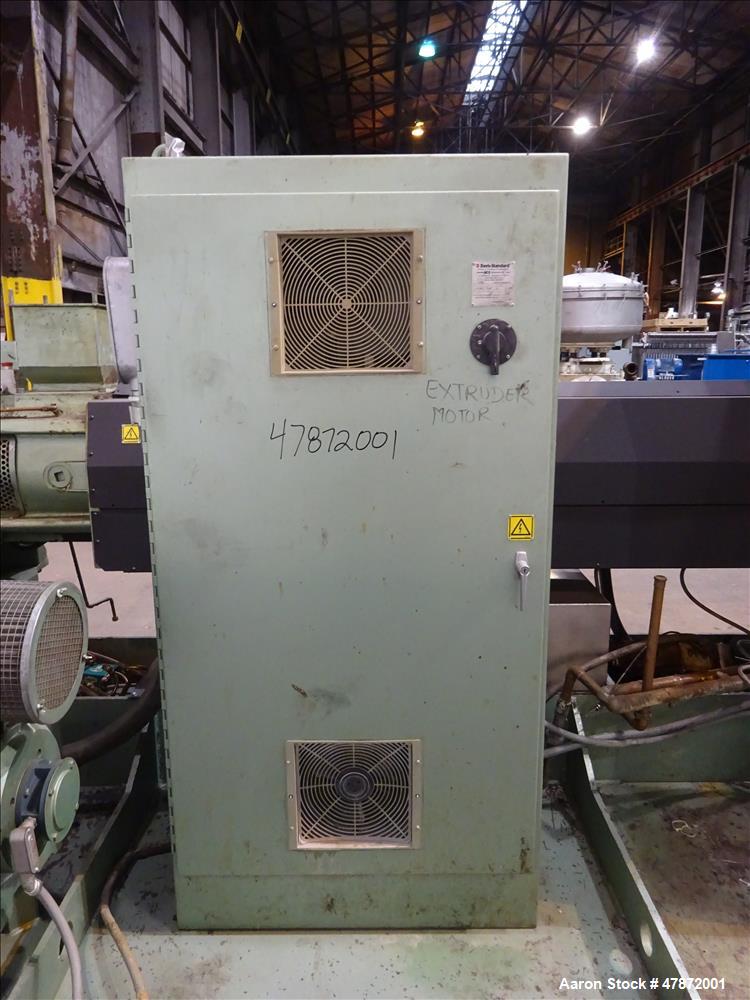

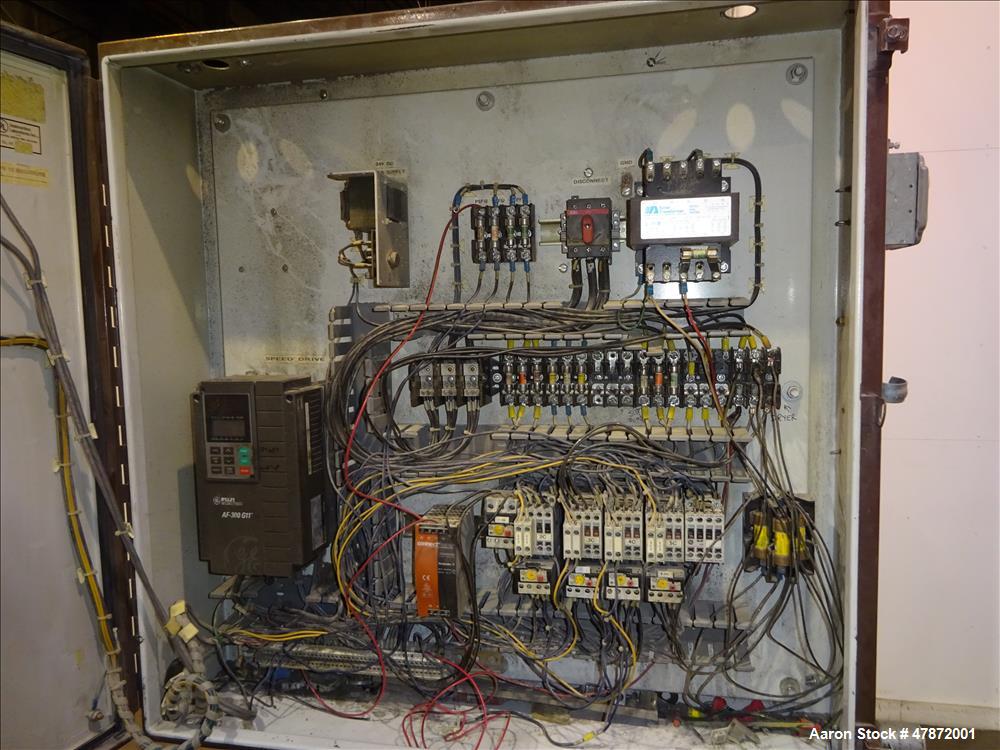

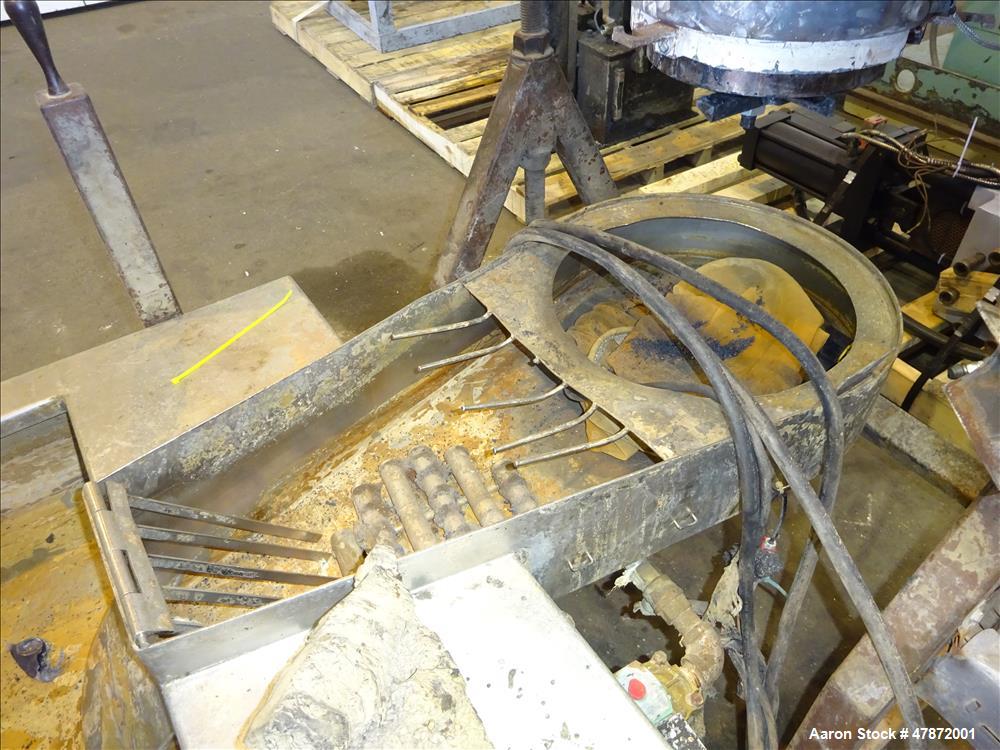

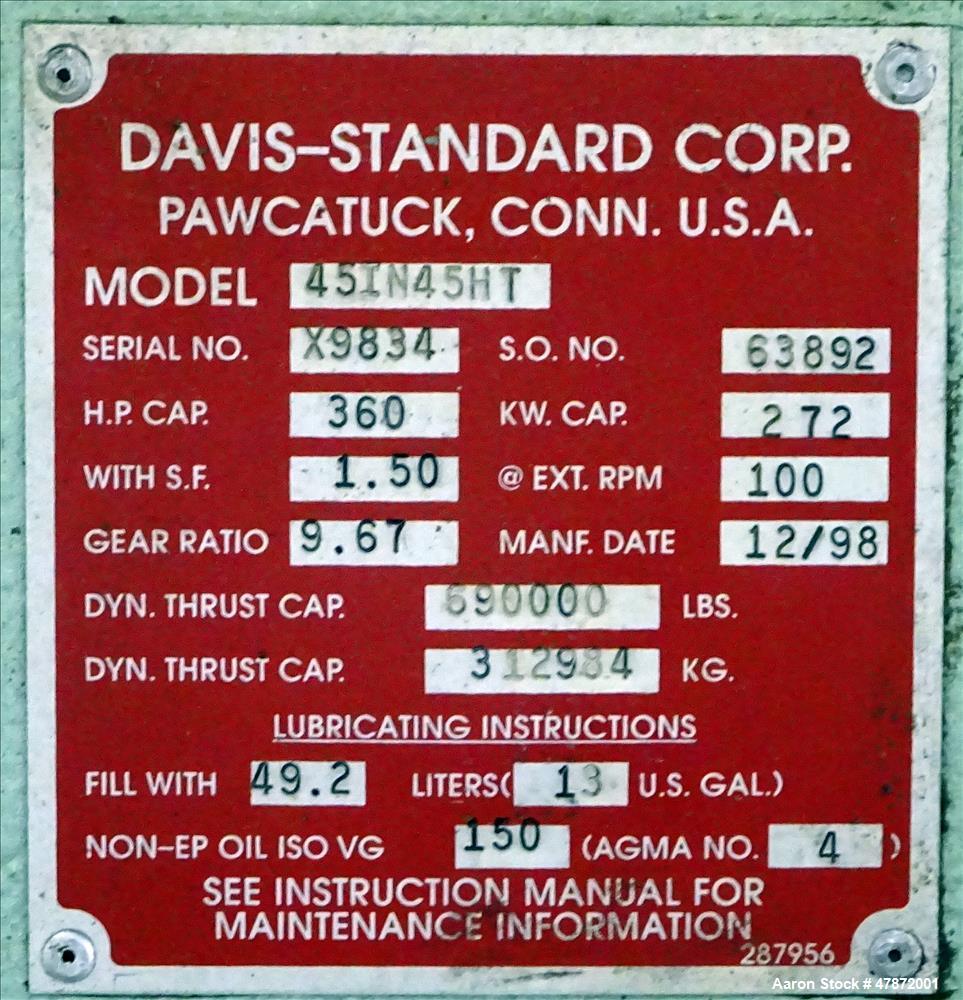

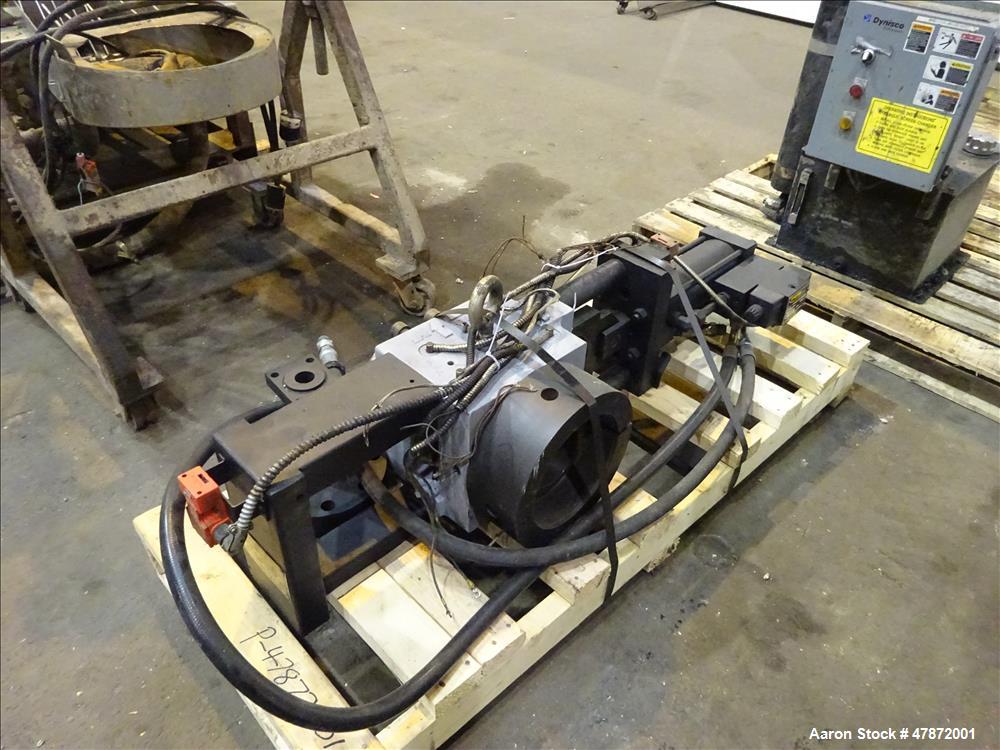

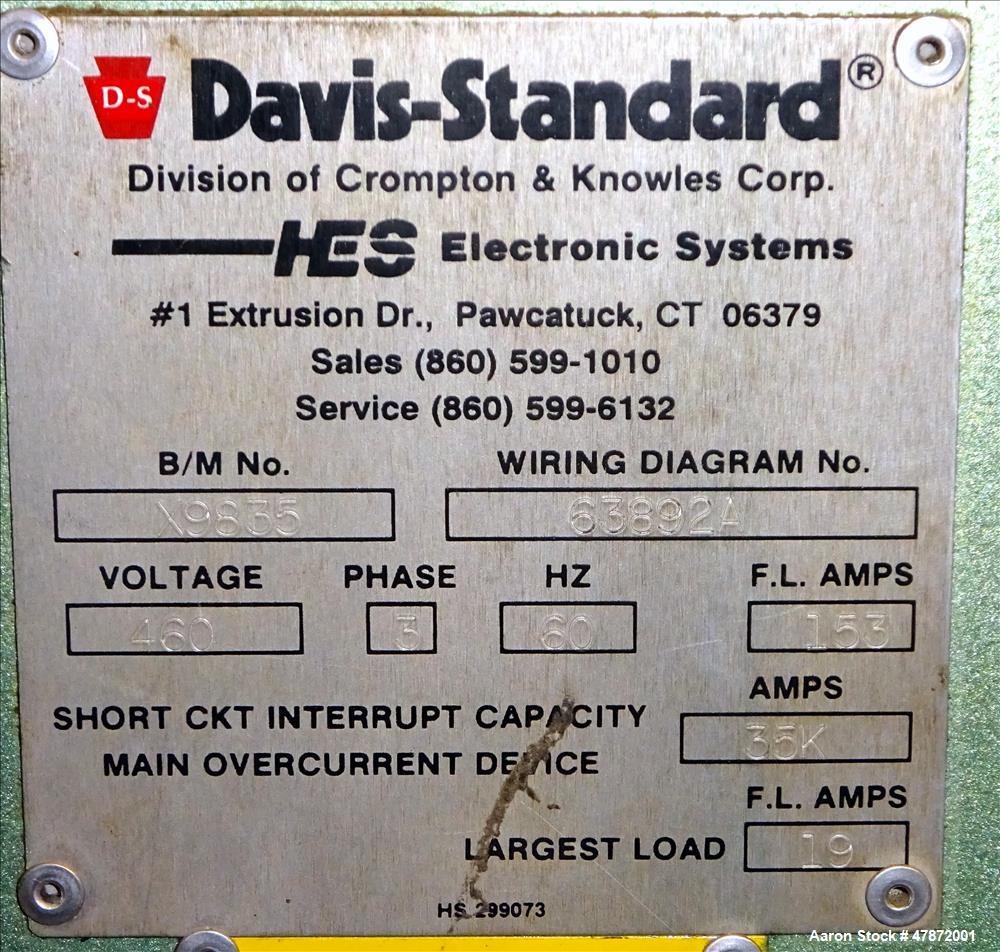

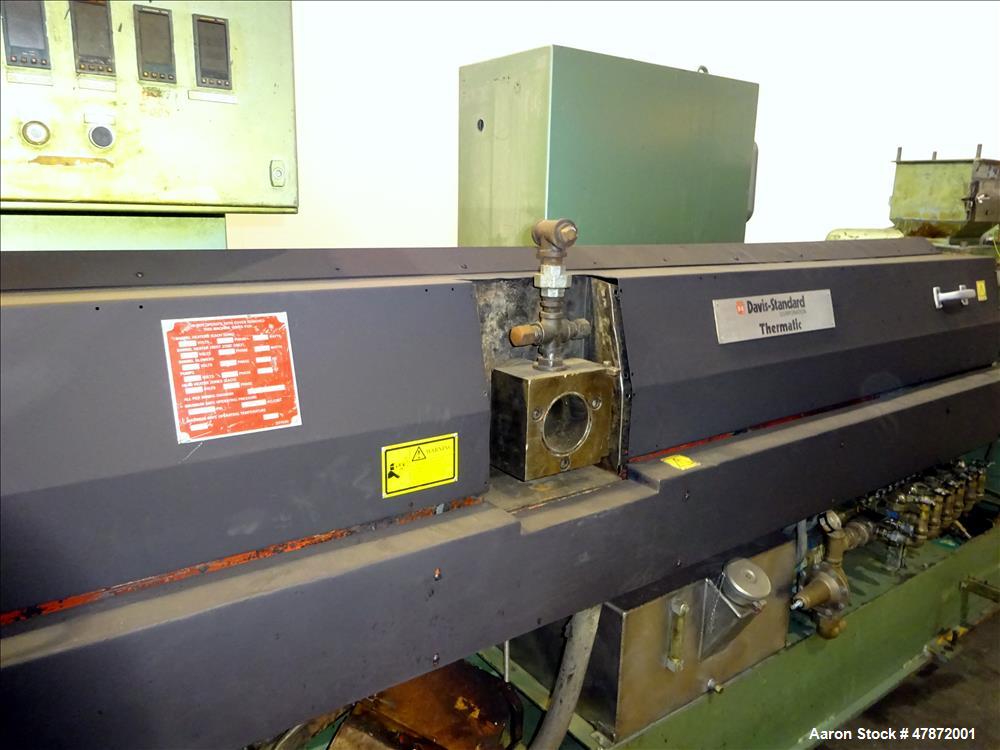

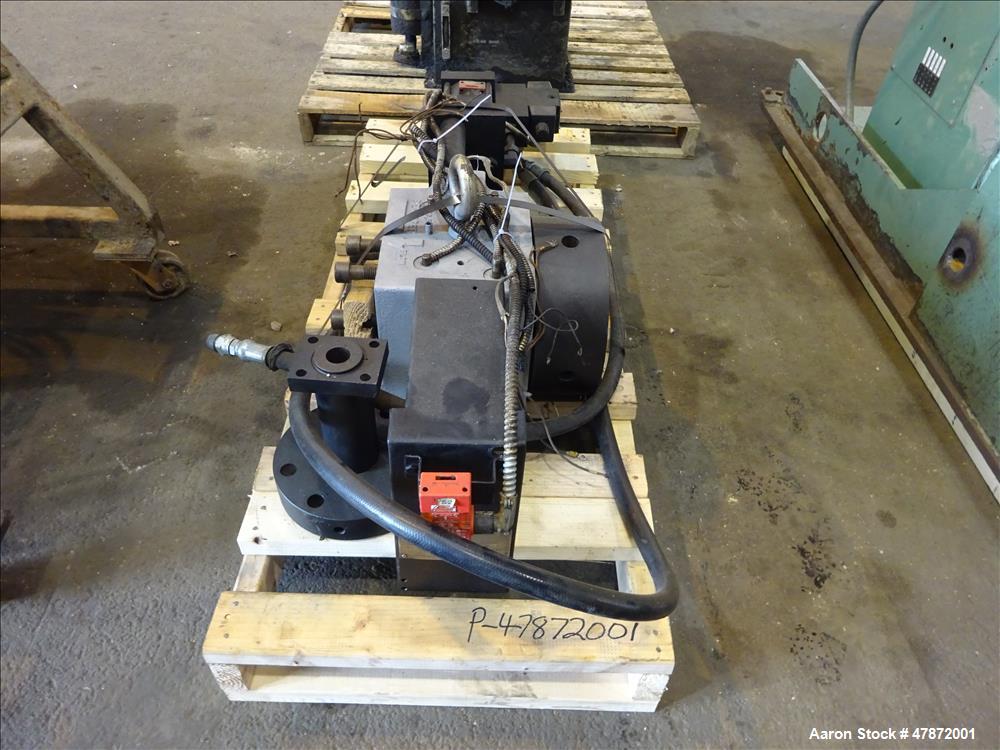

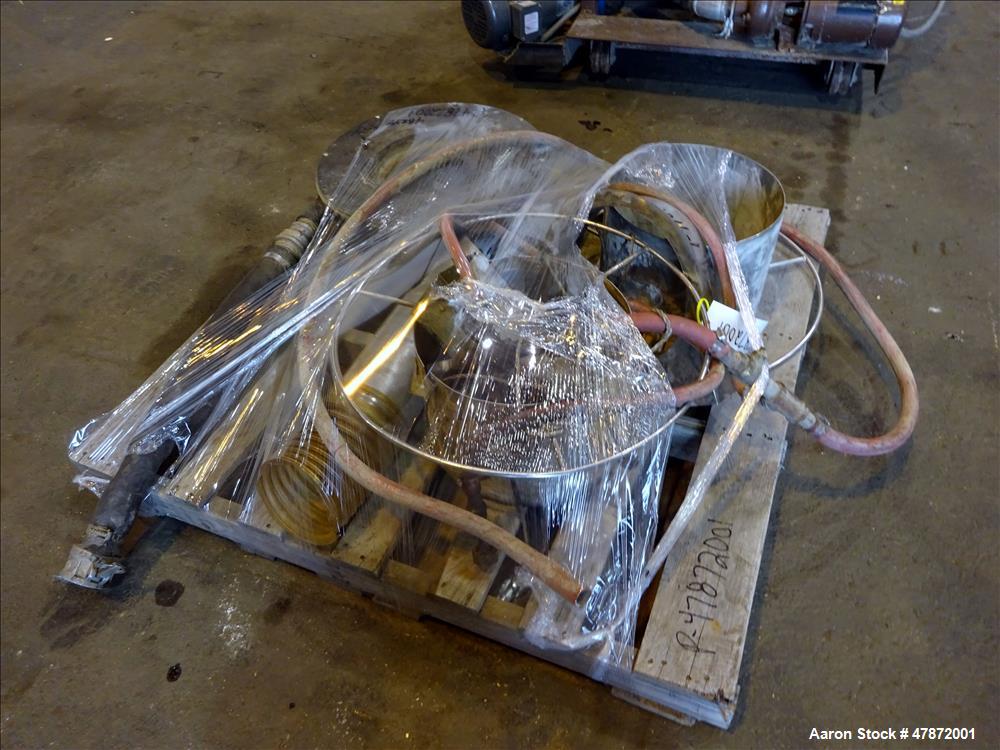

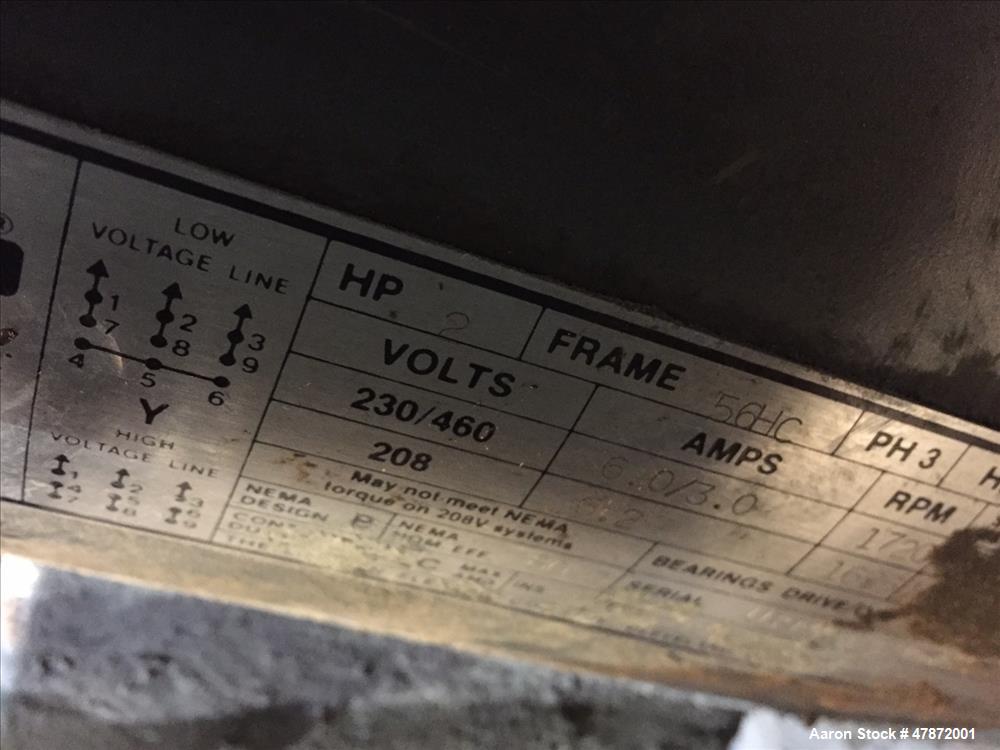

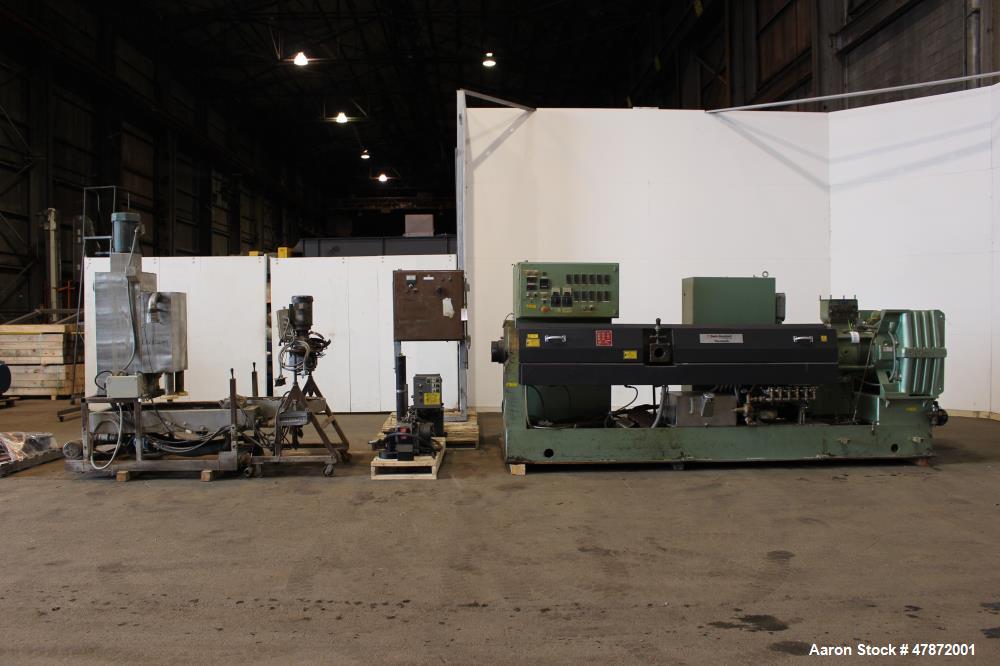

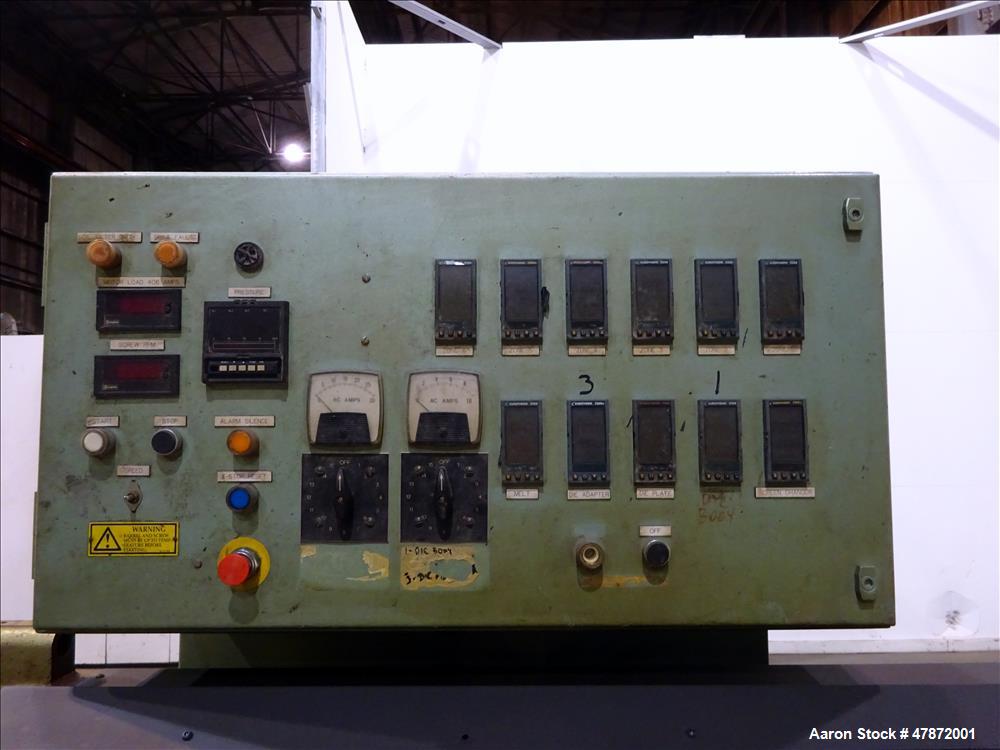

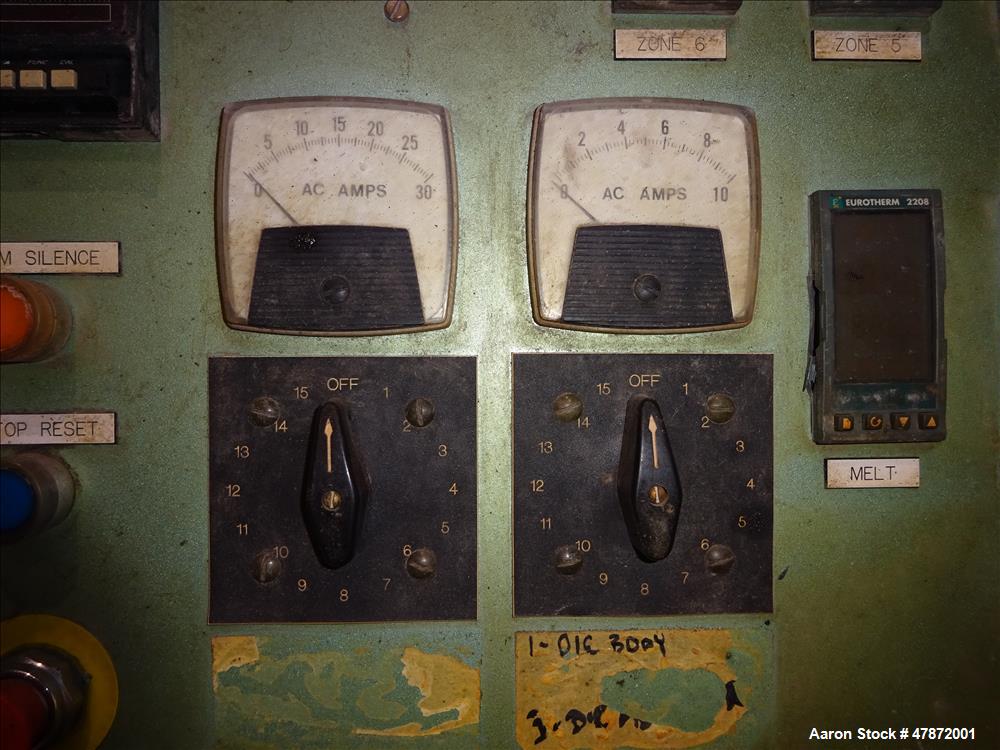

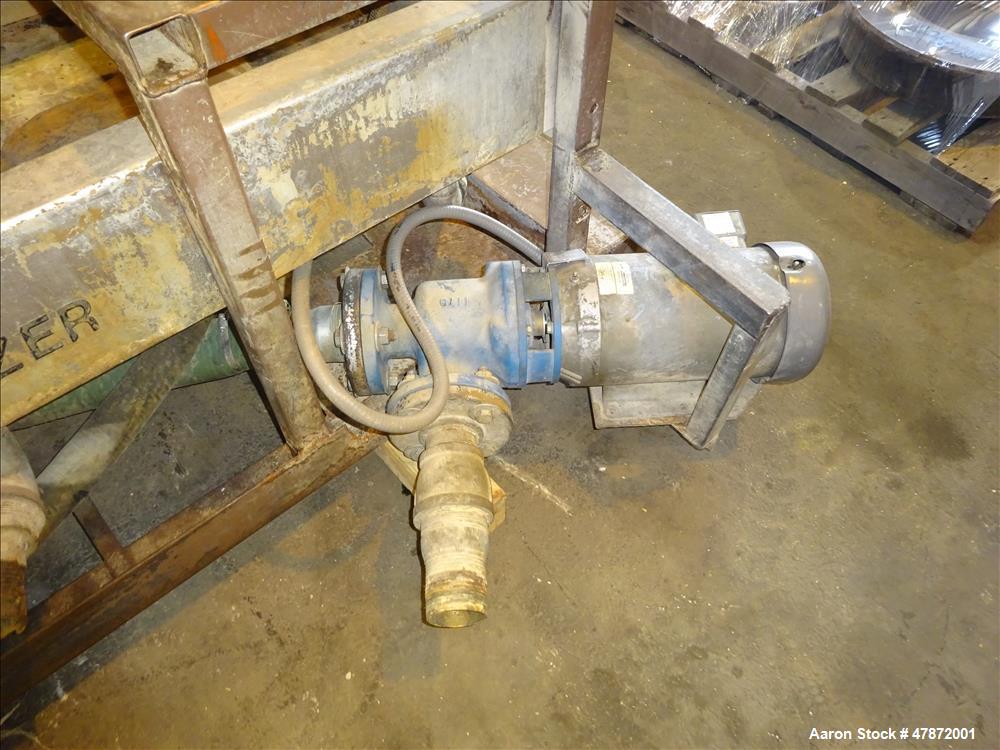

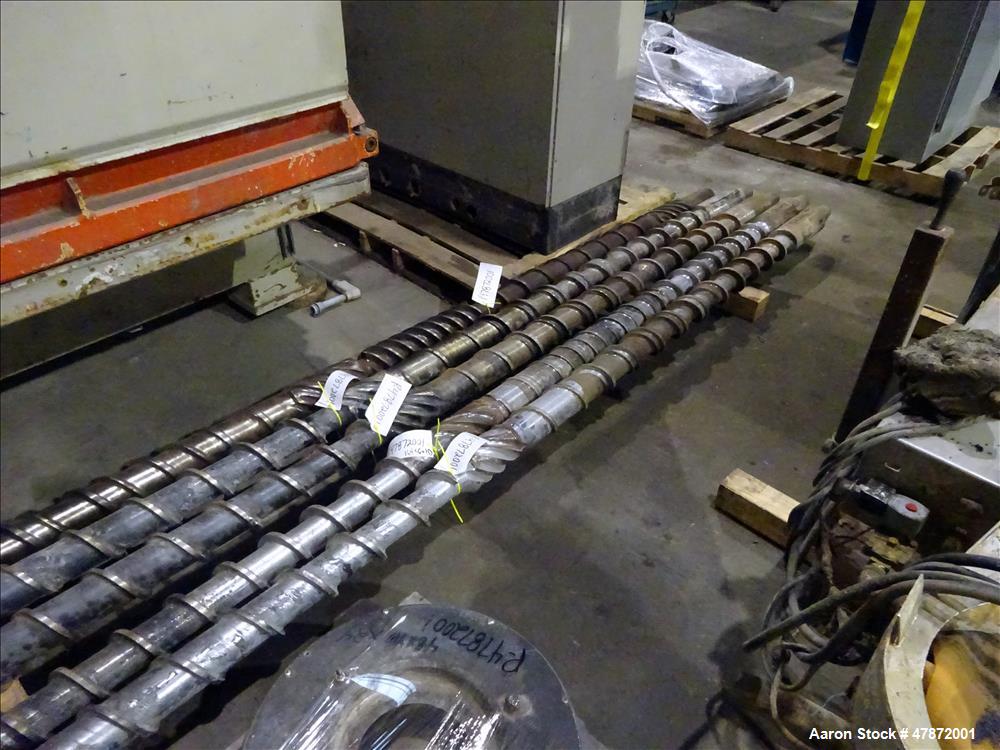

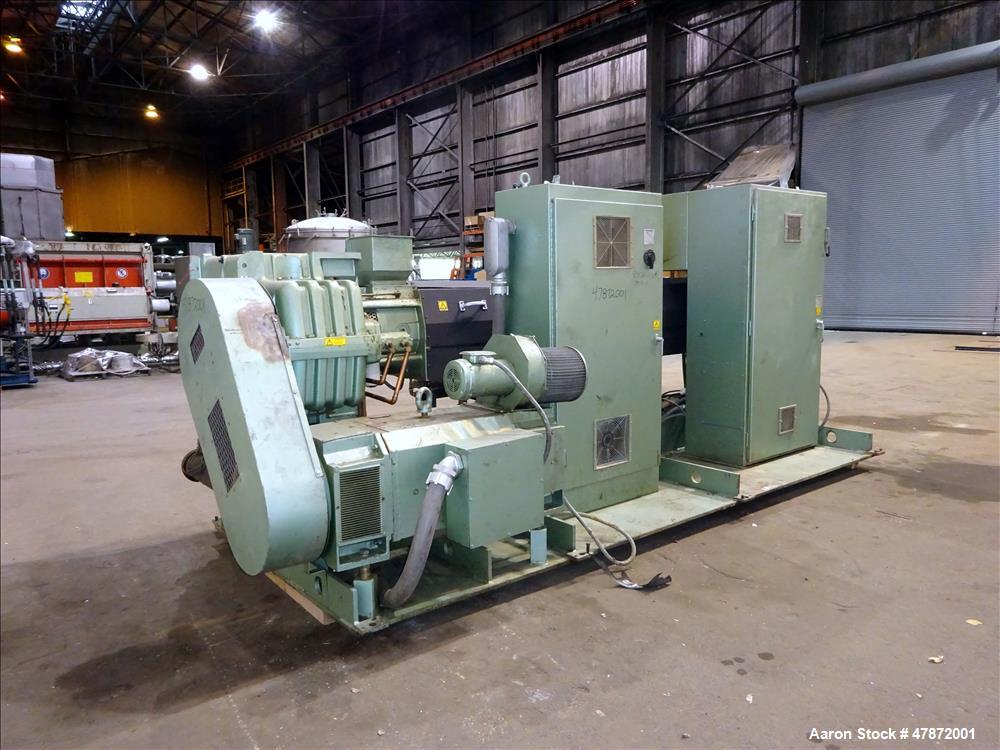

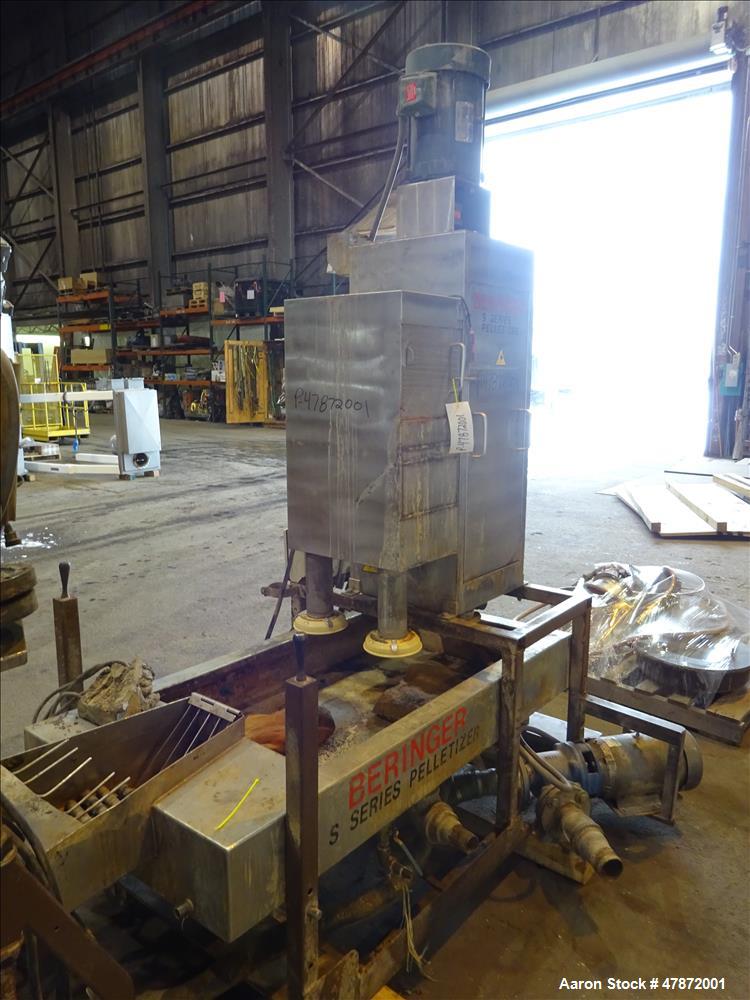

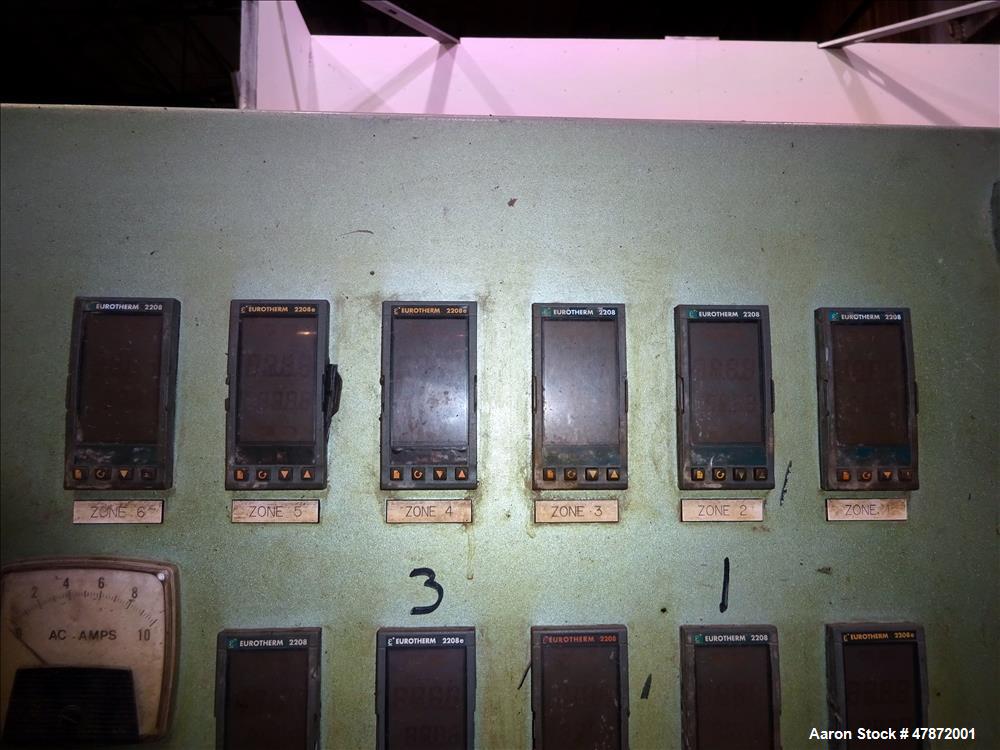

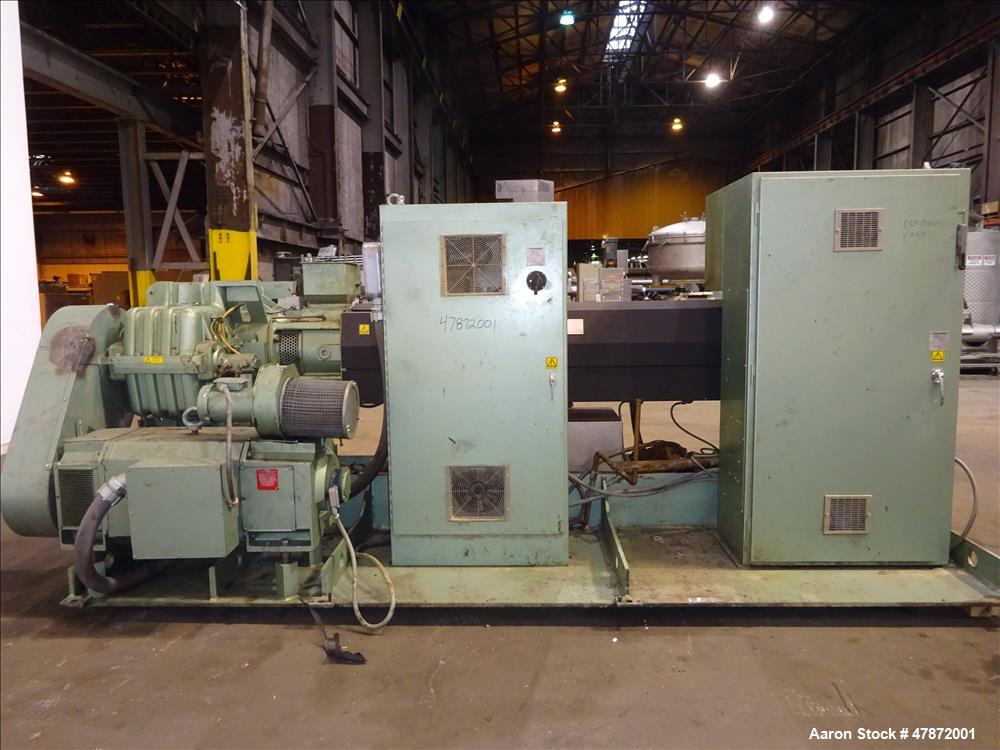

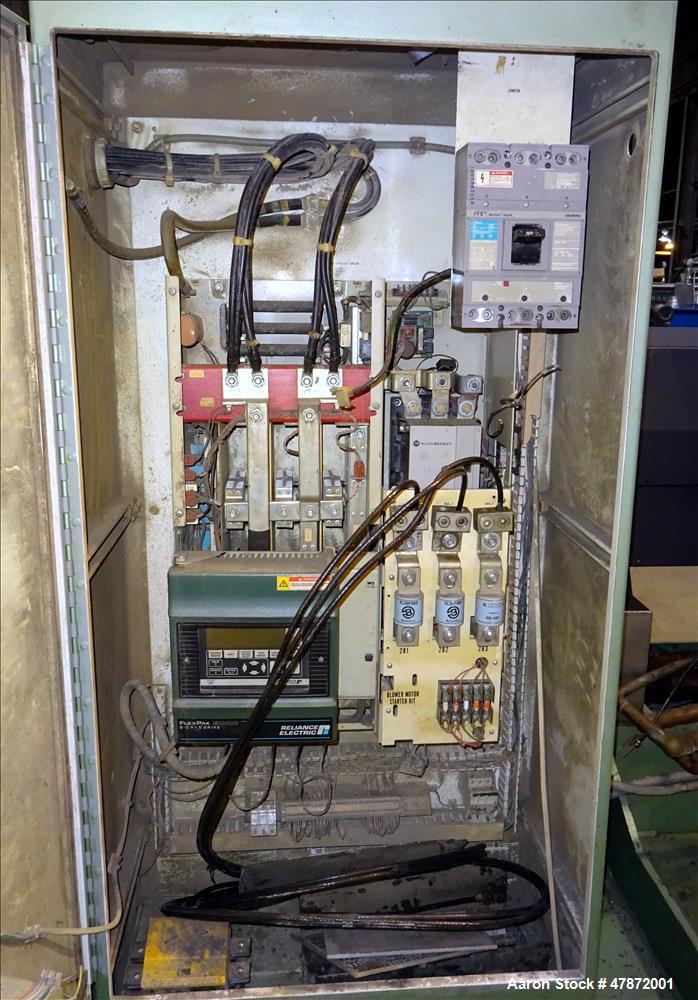

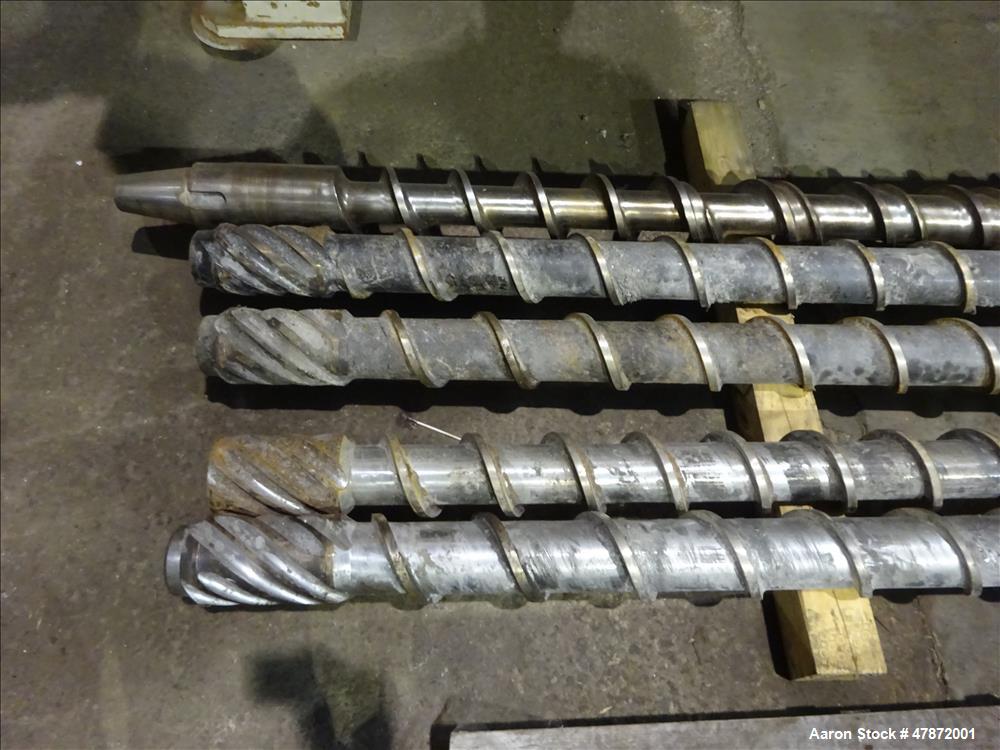

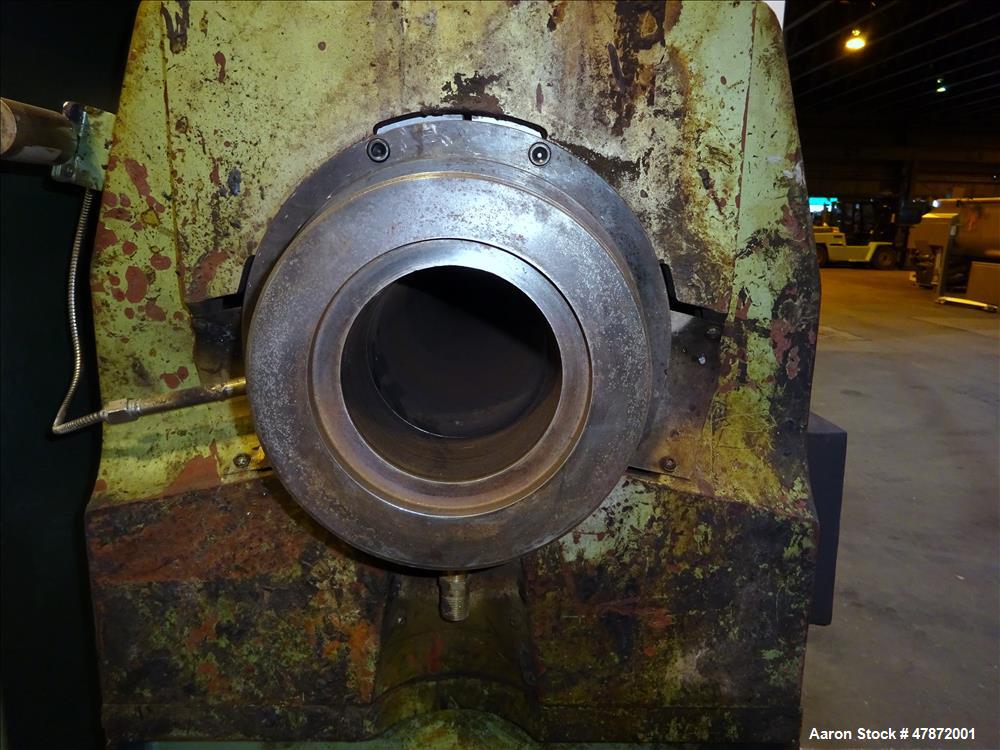

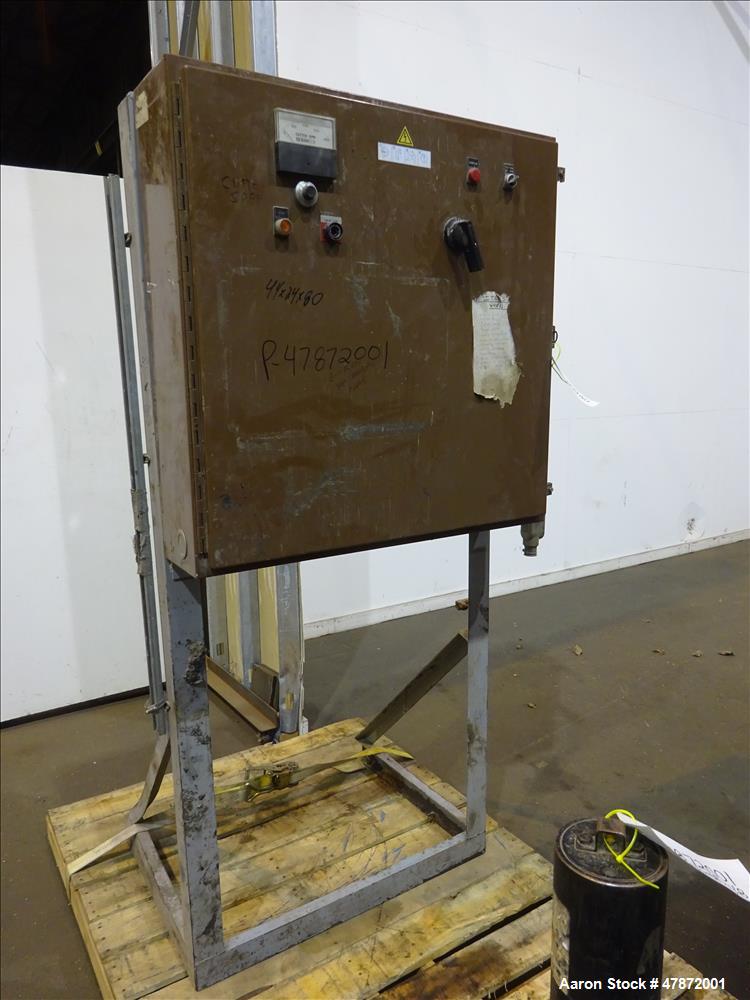

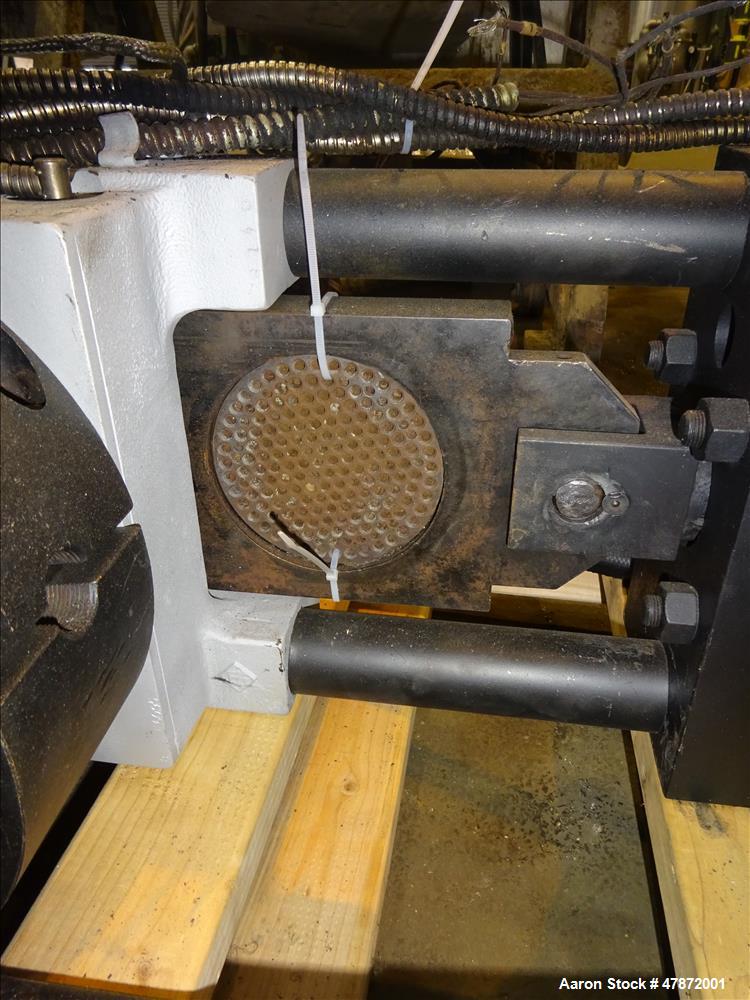

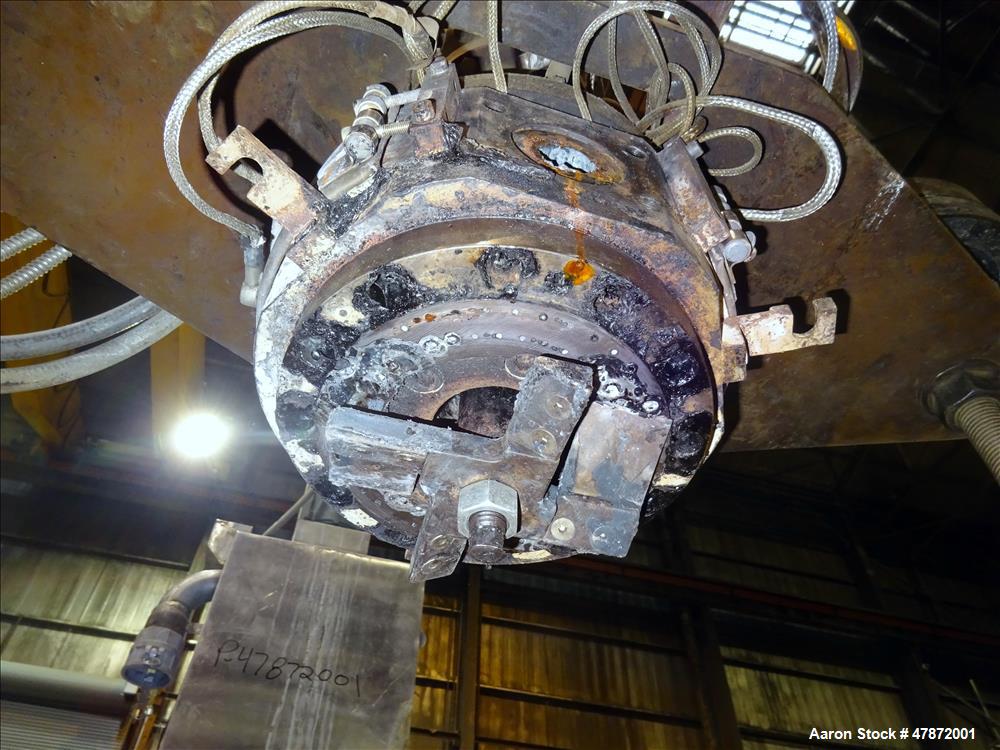

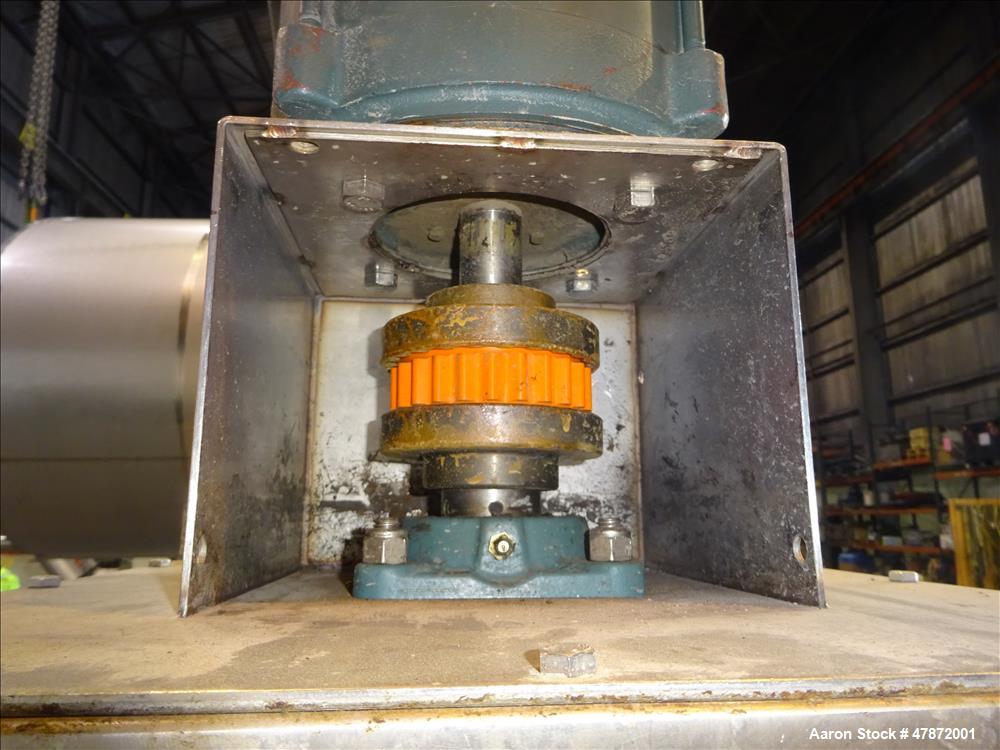

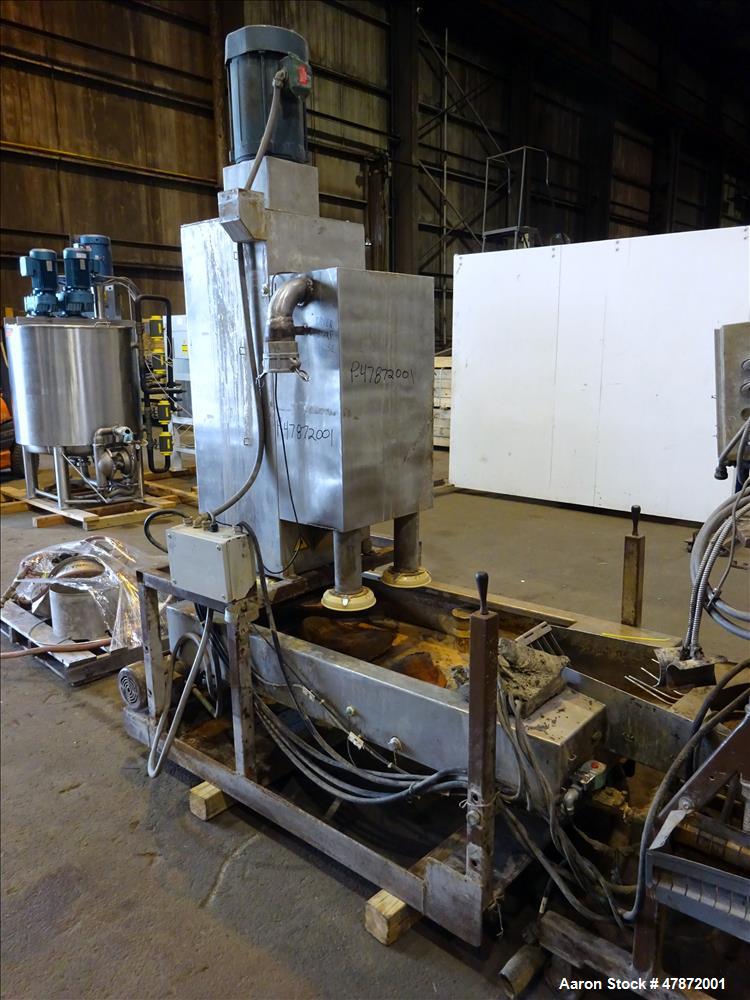

Used Davis Standard Single Screw Underwater Pelletizing Line Consisting Of: (1) Davis Standard 4-1/2" single screw extruder, Model 45IN45HT, approximate 30 to 1 L/D ratio. 6 Zone side vented barrel. Set up for electric heating (no bands), water cooling (no cooling bands) with pump and tank. Water cooled feed throat, no hopper. Approximate 42-1/4" centerline height. Driven by a 250hp, 500 volt, 1150/2000 rpm DC motor thru a gearbox, ratio 9.67 to 1. Mounted on a common base with a Reliance Flex Pak 3000 D-CV S drive, and a control panel with Eurotherm temperature controllers. Extruder serial# X9834, SO# 63892, built 12/98. (1) Beringer Ultra Lock hydraulic screen changer, model ULC-45. Maximum operating pressure 10,000 psi, maximum operating temperature 600 degrees F., serial# 4UL211, built 12/98. (1) Dynisco 2hp hydraulic power pack. (1) Beringer S series Water Ring Pelletizer, model WRP-35S. Cutting head driven by a 3hp, 3/60/208-230/460 volt, 1725 rpm motor, serial# 35P118-W/DG70, built 12/98 with a support stand. (1) Spin dryer driven by a 7.5hp, 3/60/208-230/460 volt, 1755 rpm motor, (1) water slide, (1) control panel and miscellaneous pumps.
