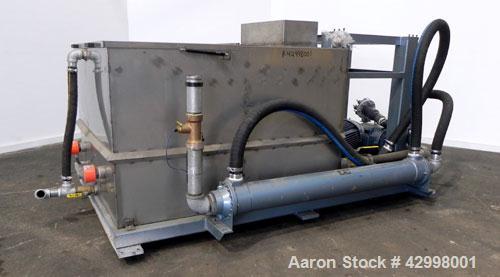

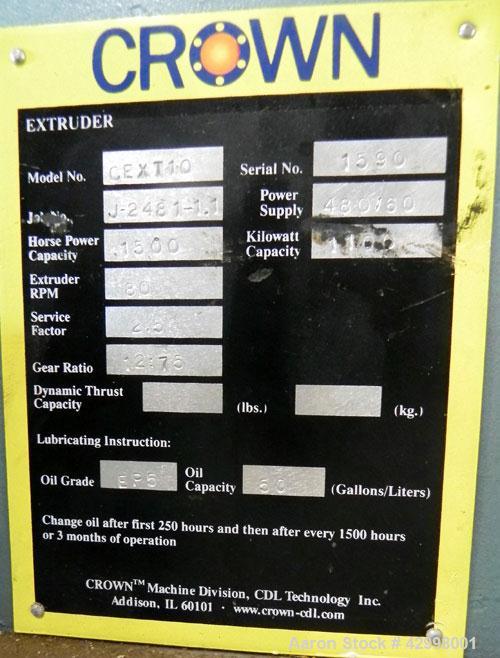

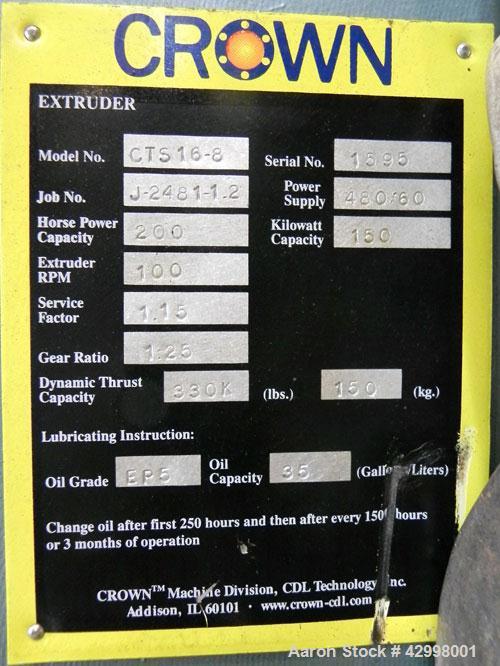

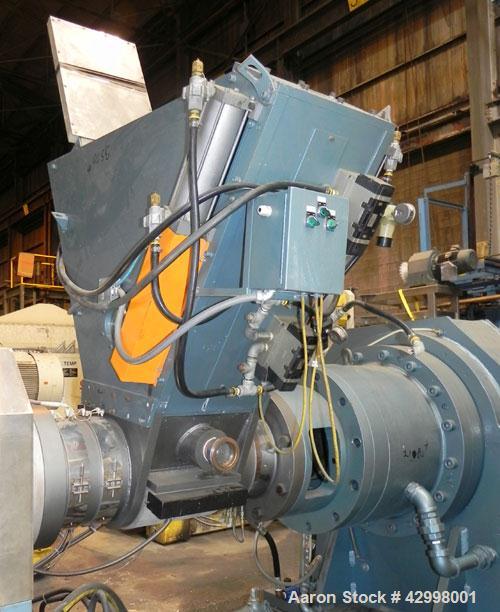

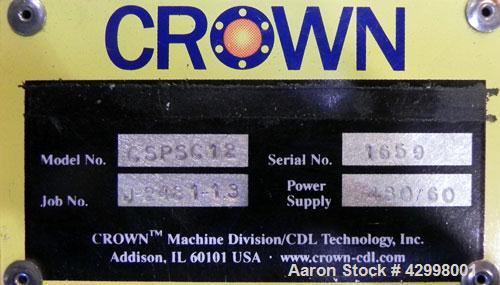

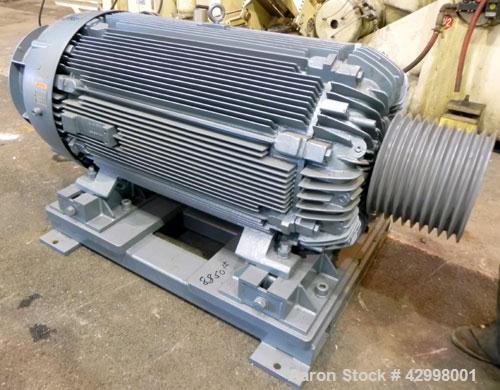

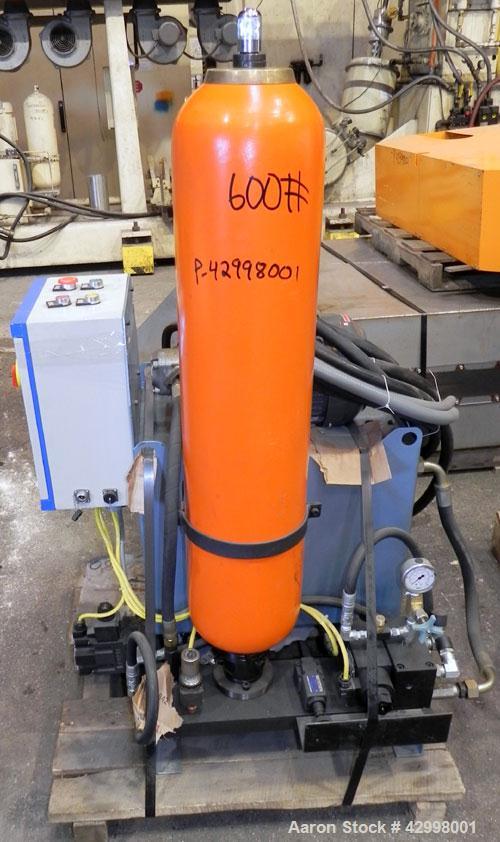

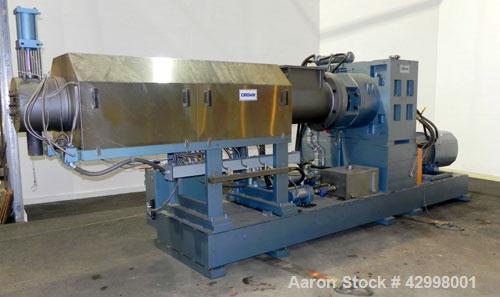

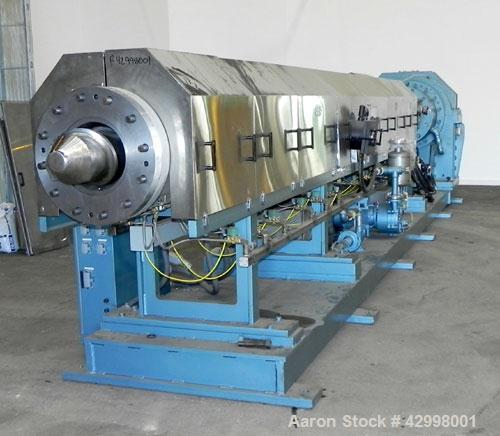

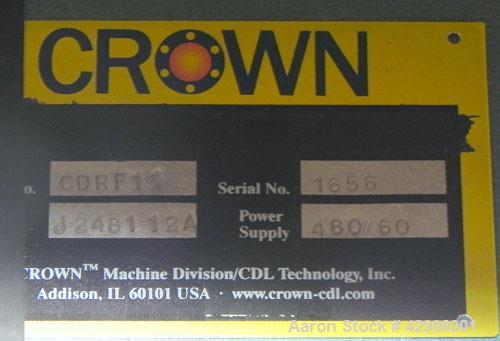

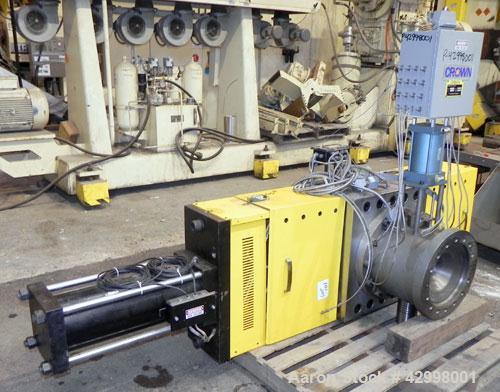

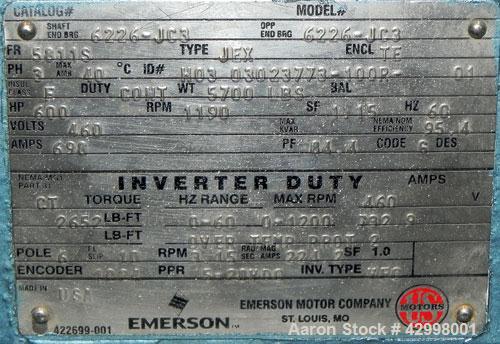

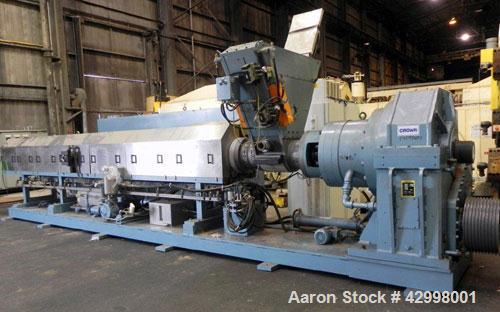

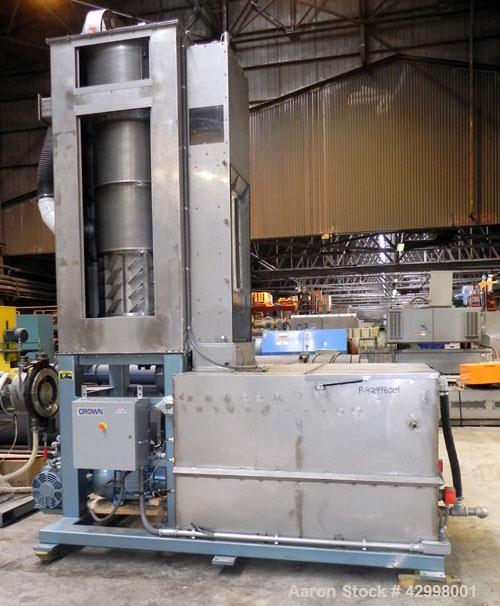

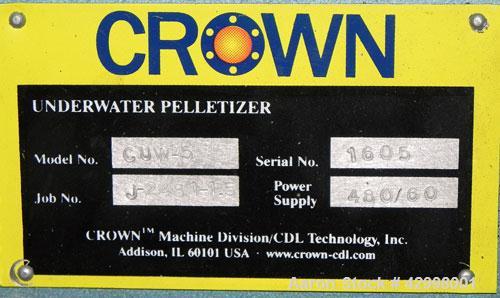

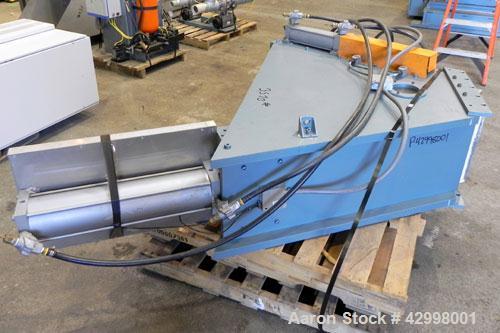

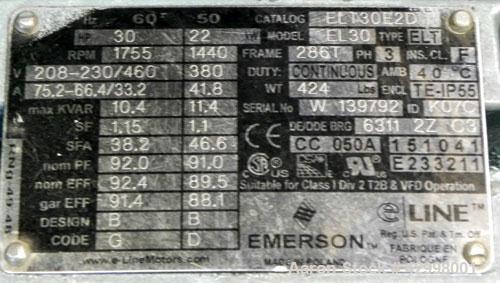

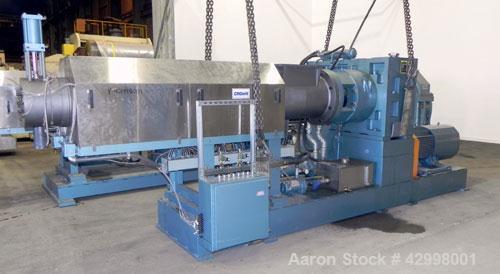

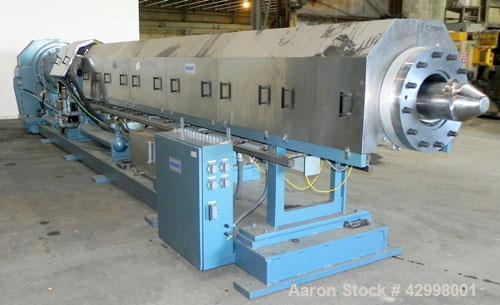

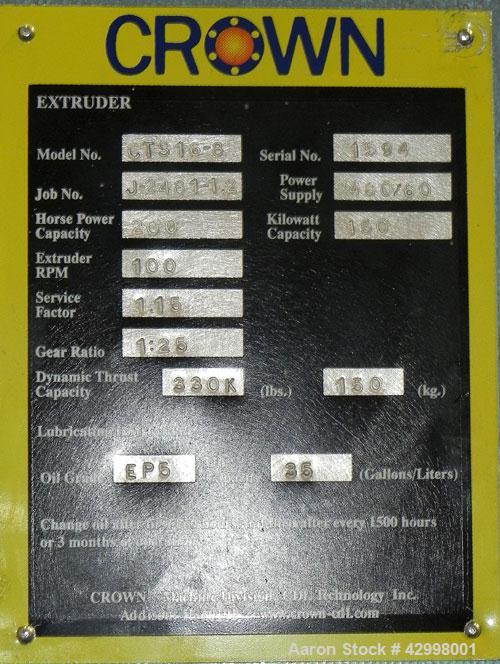

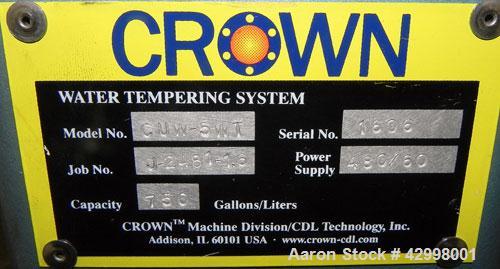

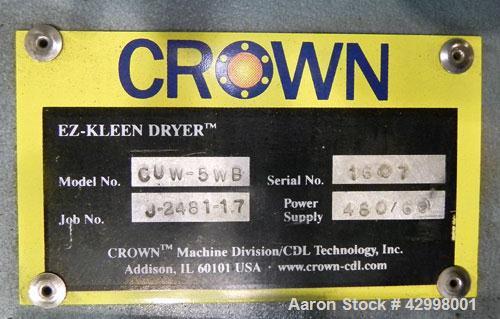

Used Crown (CDLTechnologies) Pelletizing Line, Consisting Of: (1) Crown (CDLTechnologies) 10’’ Diameter Single Screw Extruder, Model CEXT10, serial# 1590. Approximately 30 to 1 L/D ratio, cored for cooling. Electrically heated, water cooled side vented barrel with a circulation pump, holding tank, vacuum pump, and heat exchanger. Feed opening with a ram feeder, model CDRF11, serial# 1656. Approximate 53’’ centerline height. Driven by a 600hp, 460 volt, 1190 rpm motor, 12:75 gearbox ratio, 80 output rpm. (1) Crown approximate 12’’ hydraulic screen changer, model CSPSC12, serial# 1659, with a 5hp power pack. (1) Crown underwater pelletizer cutting head, model CUW-5, serial# 1605, driven by a 30hp, 3/60/208-230/460 volt, 1755 rpm motor, mounted on a stand. (1) Crown tampering system, model CUW-5WT, serial# 1606, (1) EZ-Kleen dryer, model CUW-5WB, serial# 1607, (2) Crown (CDLTechnologies) 8’’ Diameter Single Screw Extruder, Model CTS16-8. Tapered screw starting at approximate 16’’ diameter, down to 8’’ diameter, approximately 108’’ total length, cored for cooling. Electrically heated, water cooled barrel with a circulation pump, holding tank, and heat exchanger. Approximate 20" x 16" feed opening, no hopper. Approximate 60’’ centerline height. Driven by a 200hp, 460 volt, 1783 rpm motor, 1:25 gearbox ratio, 100 output rpm, serial #1595, & 1594. Includes miscellaneous panels.
Used Crown (CDLTechnologies) Pelletizing Line, Consisting Of: (1) Crown (CDLTechnologies) 10’’ Diameter Single Screw Extruder, Model CEXT10, serial# 1590. Approximately 30 to 1 L/D ratio, cored for cooling. Electrically heated, water cooled side vented barrel with a circulation pump, holding tank, vacuum pump, and heat exchanger. Feed opening with a ram feeder, model CDRF11, serial# 1656. Approximate 53’’ centerline height. Driven by a 600hp, 460 volt, 1190 rpm motor, 12:75 gearbox ratio, 80 output rpm. (1) Crown approximate 12’’ hydraulic screen changer, model CSPSC12, serial# 1659, with a 5hp power pack. (1) Crown underwater pelletizer cutting head, model CUW-5, serial# 1605, driven by a 30hp, 3/60/208-230/460 volt, 1755 rpm motor, mounted on a stand. (1) Crown tampering system, model CUW-5WT, serial# 1606, (1) EZ-Kleen dryer, model CUW-5WB, serial# 1607, (2) Crown (CDLTechnologies) 8’’ Diameter Single Screw Extruder, Model CTS16-8. Tapered screw starting at approximate 16’’ diameter, down to 8’’ diameter, approximately 108’’ total length, cored for cooling. Electrically heated, water cooled barrel with a circulation pump, holding tank, and heat exchanger. Approximate 20" x 16" feed opening, no hopper. Approximate 60’’ centerline height. Driven by a 200hp, 460 volt, 1783 rpm motor, 1:25 gearbox ratio, 100 output rpm, serial #1595, & 1594. Includes miscellaneous panels.
